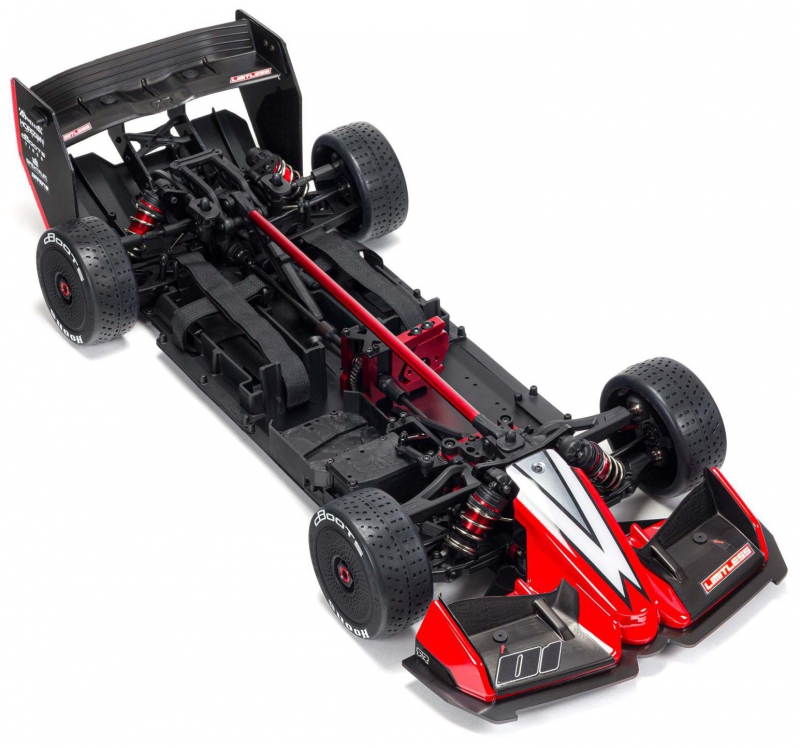

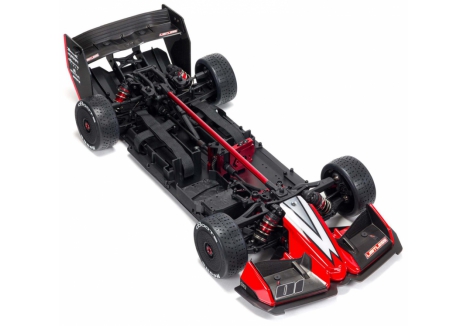

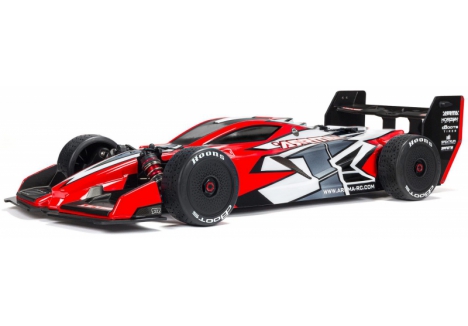

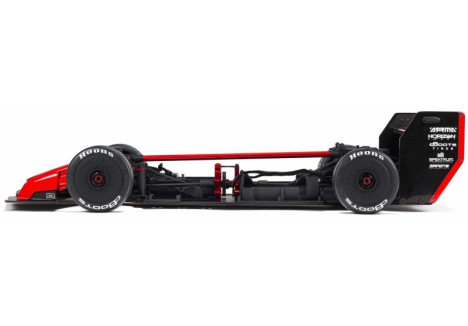

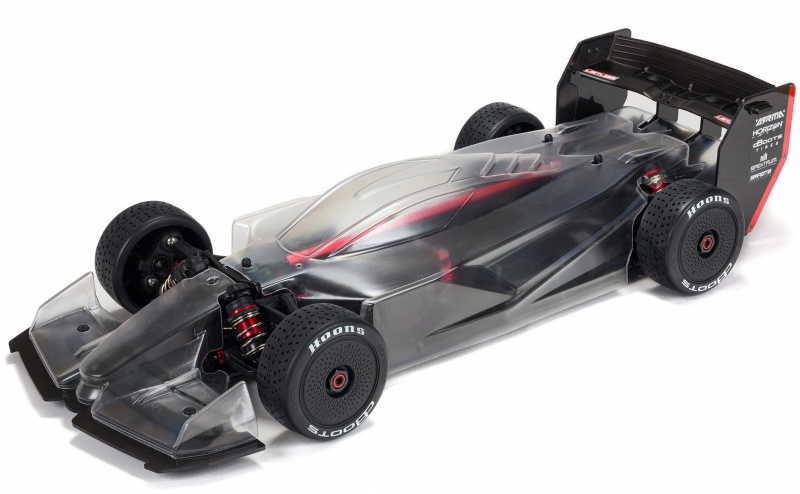

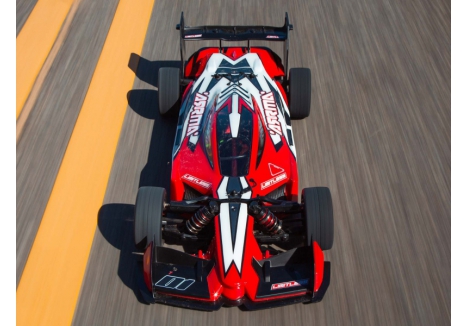

Product Description of ARRMA C-ARA7116V2 LIMITLESS V2 Speed Bash Roller

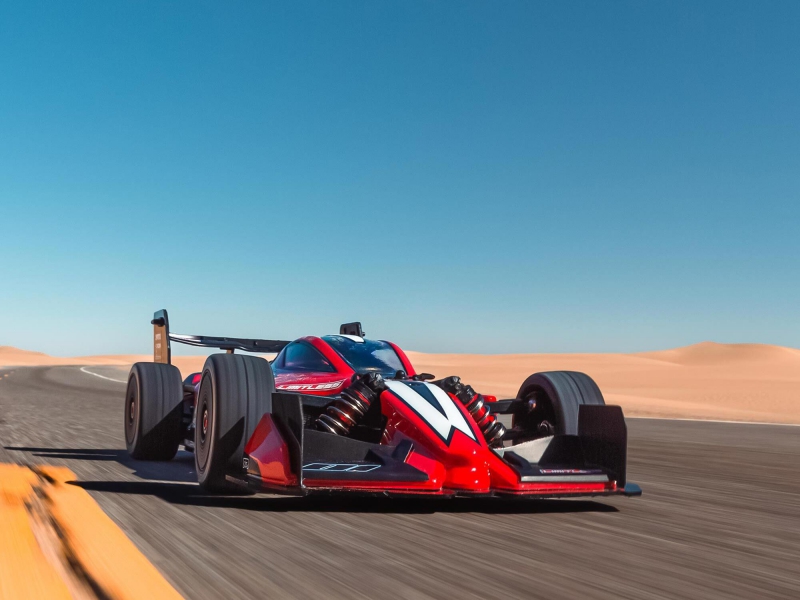

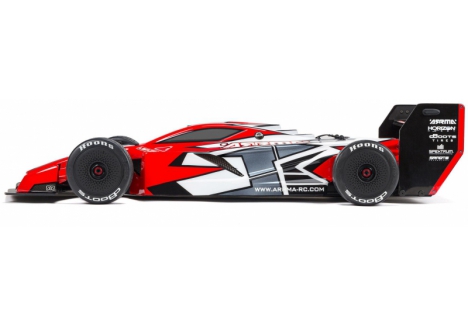

The ARRMA C-ARA7116V2 LIMITLESS V2 Speed Bash Roller is the ultimate RC supercar platform for street racing enthusiasts and speed bashers. Designed for intermediate to advanced drivers, this 1/7 scale brushless 4WD roller is engineered to support 8S power systems and reach speeds exceeding 110 mph. With a clear body ready for custom paint and a refined chassis built for high-speed stability, the LIMITLESS V2 is your gateway to extreme performance and personalisation.
Key features of the ARRMA C-ARA7116V2 LIMITLESS V2 Speed Bash Roller
- Clear body – customise your RC supercar with a unique paint scheme
- Optimised for 8S power – supports extreme speed and acceleration
- Refined chassis – reduced drivetrain vibration and improved motor compatibility
- Hoons™ tyres – high-traction all-road grip with Speed dish wheels
- Big bore aluminium shocks – stable handling at high speeds
What makes the ARRMA LIMITLESS V2 C-ARA7116V2 street racing RC car so fast?

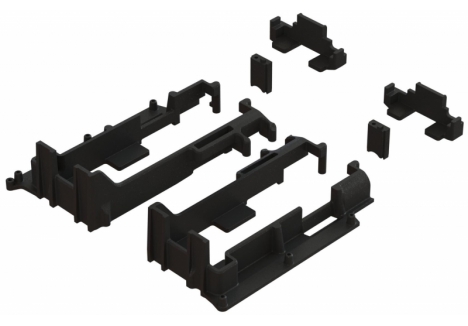

ARRMA engineers have redefined the LIMITLESS platform with a 3mm anodized aluminium chassis plate that repositions the motor mount to accept longer motors. The Easy Access Sliding Motor Mount accommodates larger diameter motors, while the electronics module fits oversized ESCs and includes a waterproof receiver box. These upgrades allow for powerful 8S configurations that push the LIMITLESS V2 to its full potential.
How does the ARRMA RC supercar chassis with 8S power support – C-ARA7116V2 handle extreme speed?

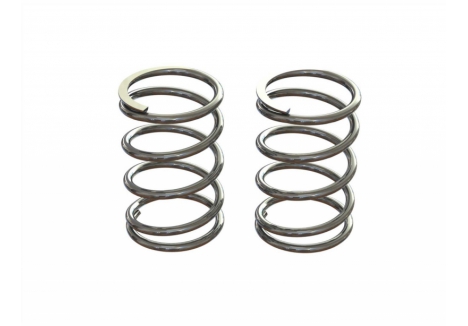

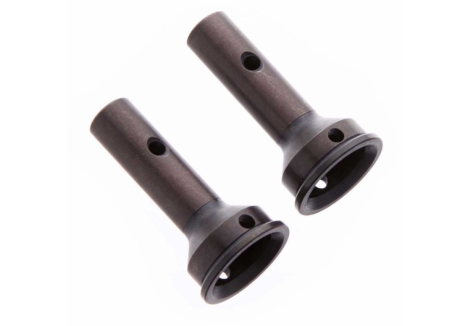

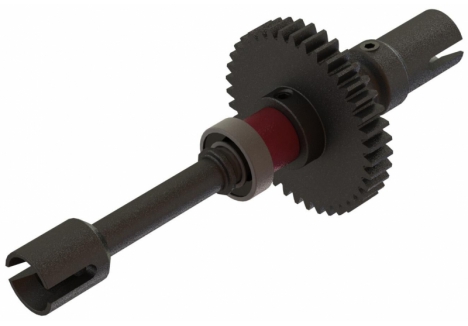

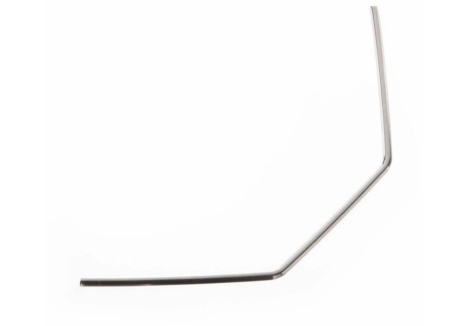

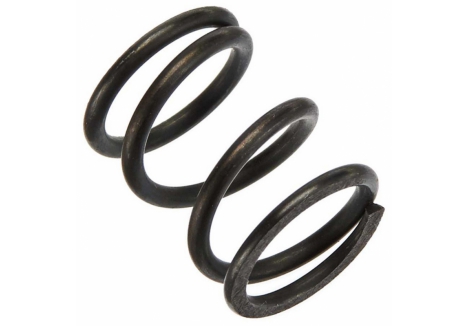

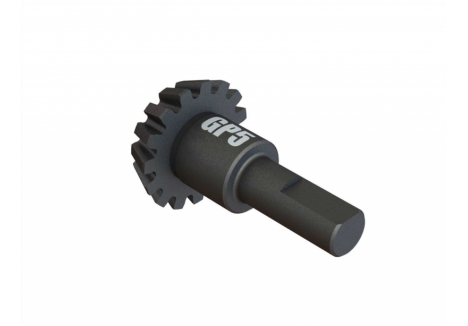

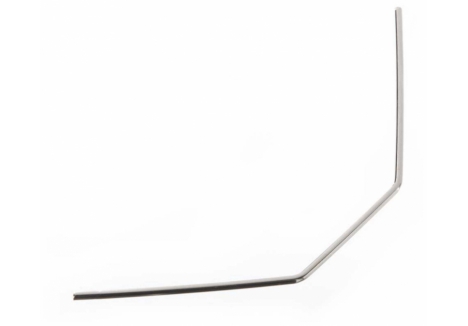

Stability is key at high speeds, and the LIMITLESS V2 delivers with a wider rear track, stiffer front springs, and a sway bar that improves handling. The 39T Mod 1.0 spool with long rear outdrive and shorter rear center driveshaft reduces drivetrain vibration, while GP5 gears lower the centerline drivetrain speed. These refinements ensure confident control and responsive steering even at 110+ mph.
Can the ARRMA speed bash roller with clear body for custom paint be tuned for aerodynamics?
Absolutely. The clear, low-drag body includes trim lines on the front and rear wings, allowing you to tune downforce and drag to suit your driving style. Window masks and decals are included, making it easy to personalise the look while optimising performance. This is the first ARRMA “Rattle Can Roller,” giving you full creative control over your RC supercar’s appearance.
What’s included and what do you need to complete the ARRMA brushless RC speed roller with clear body?
In the box, you’ll find the ARRMA LIMITLESS 1/7 Scale Speed Bash Roller, a clear body and nose cone, decal sheet, window mask, and manual. To complete the build, you’ll need a 2+ channel transmitter and receiver, metal gear steering servo, ESC (8S recommended), motor (50 series), two 4S LiPo batteries, compatible charger, and Mod 1 pinion gear. This modular setup lets you tailor the build to your exact performance goals.
Is the ARRMA 1/7 LIMITLESS V2 RC roller for extreme street speed – C-ARA7116V2 suitable for advanced builds?

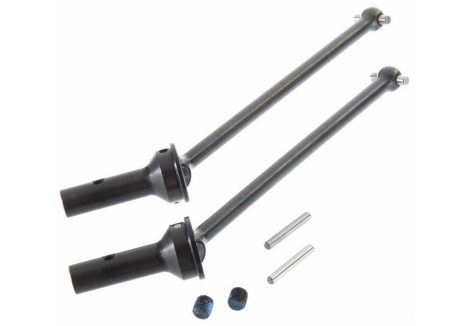

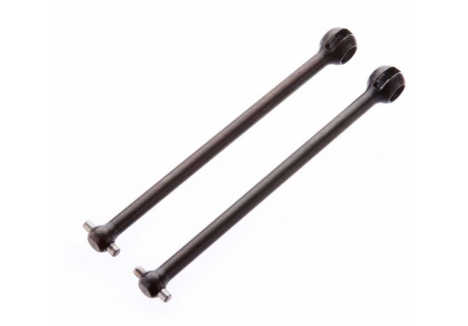

Yes. The LIMITLESS V2 is engineered for custom high-speed builds, making it ideal for experienced hobbyists. Its durable steel driveshafts, heavy-duty servo saver, and independent double wishbone suspension provide a robust foundation for extreme performance. The front-to-rear chassis brace increases stiffness, while big bore oil-filled shocks keep the Hoons™ tyres planted for maximum traction.
Whether you're chasing top speed records or building a personalised RC supercar, the ARRMA high-speed 4WD street racer with Hoons™ tyres delivers unmatched performance and flexibility. Buy ARRMA LIMITLESS V2 roller today and unleash your custom speed machine.
Technical Specifications of ARRMA C-ARA7116V2 LIMITLESS V2 Speed Bash Roller
Brand, Model, Product Type
- Brand: ARRMA
- Model: C-ARA7116V2
- Product Type: ARRMA C-ARA7116V2 1/7 LIMITLESS V2 speed bash roller, ARRMA LIMITLESS V2 C-ARA7116V2 street racing RC car, ARRMA C-ARA7116V2 brushless RC speed roller with clear body, ARRMA RC supercar chassis with 8S power support – C-ARA7116V2, ARRMA speed bash roller with clear body for custom paint
Dimensions
- Length: 73 cm – extended chassis for high-speed stability
- Width: 31.2 cm – wide rear track enhances cornering control
- Height: 16.5 cm – low profile reduces aerodynamic drag
- Front Track: 31 cm – tuned for responsive steering
- Rear Track: 31.2 cm – wider stance improves high-speed handling
- Ground Clearance: 1.5 cm – optimised for street racing surfaces
- Wheel Width: 4.3 cm – supports Hoons™ tyres for maximum grip
Chassis & Suspension

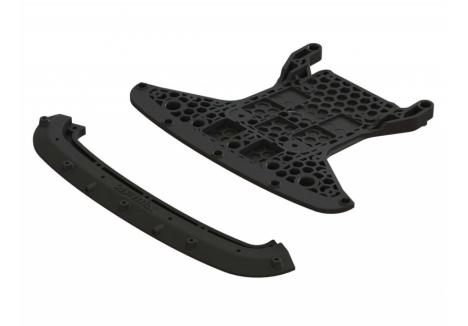

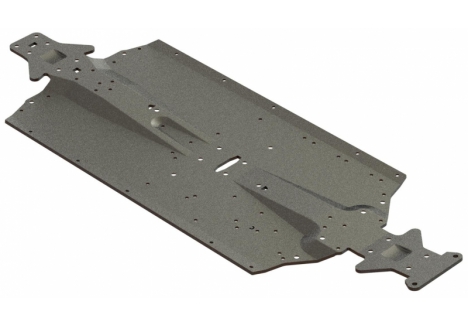

- Chassis: 3mm 6061-T6 aluminium plate – strong and lightweight for speed runs

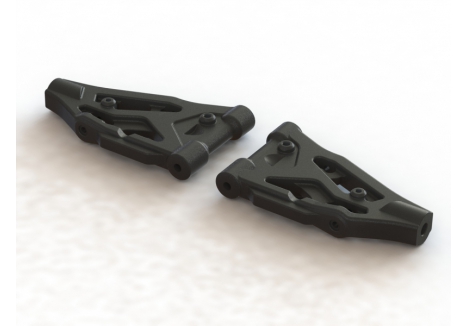

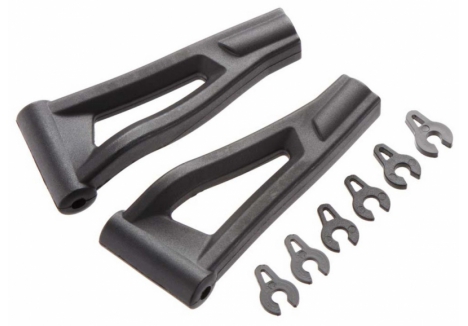

- Suspension: Independent double wishbone – tuned for stability and control

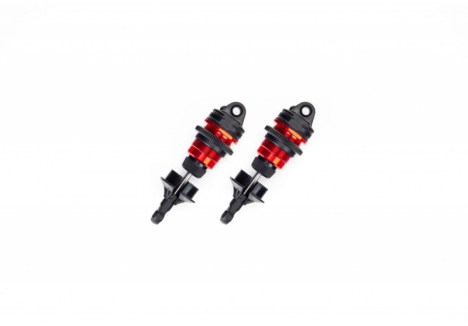

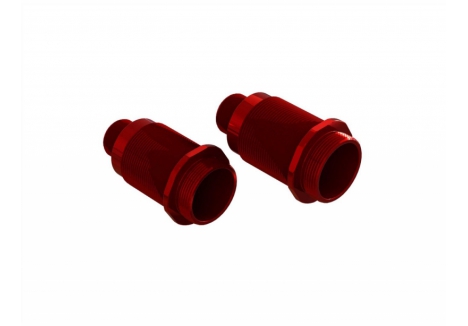

- Shock Type: Big bore aluminium oil-filled – absorbs impacts at high speeds
- Shock Sizes: 7.7 cm front, 8.7 cm rear – balanced damping across all corners

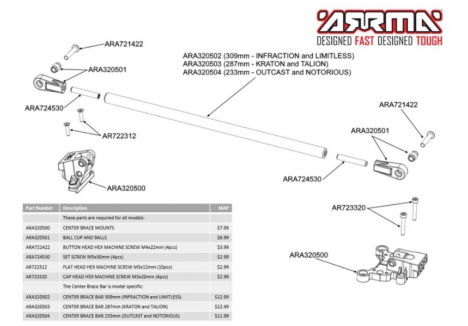

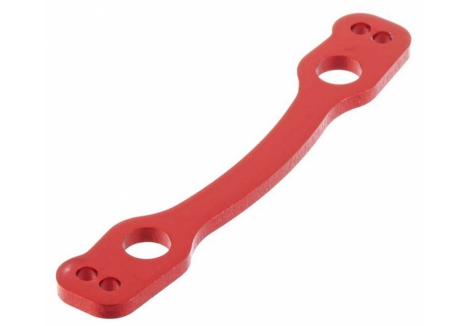

- Braces: Front-to-rear chassis brace – increases longitudinal stiffness
Drivetrain & Performance
- Drivetrain: 4WD – consistent power delivery across all wheels
- Differential: Two oil-filled metal gear diffs – durable and smooth
- Gear Pitch: 1.0 MOD – supports high-speed gearing setups
- Internal Gear Ratio: 2.8:1 – tuned for acceleration and top-end speed

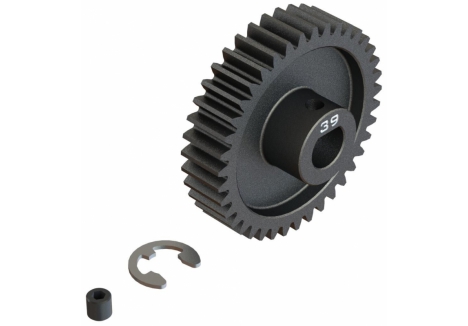

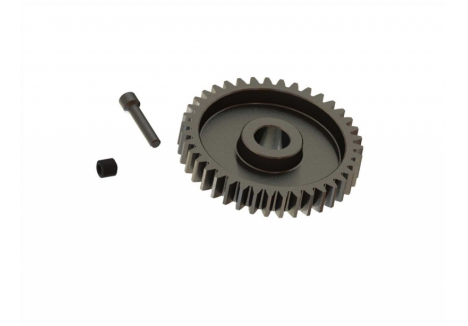

- Spur Gear: 39T – designed for reduced vibration and smoother power transfer
- Top Speed: 110+ km/h – capable of extreme street racing performance
Tyres & Wheels

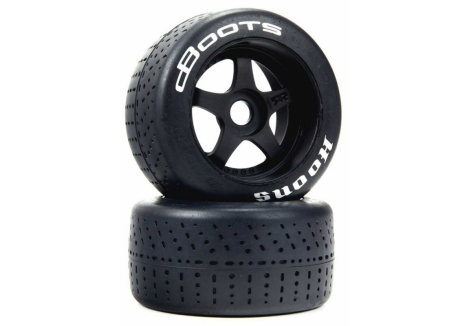

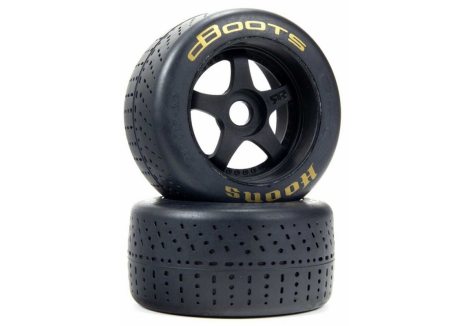

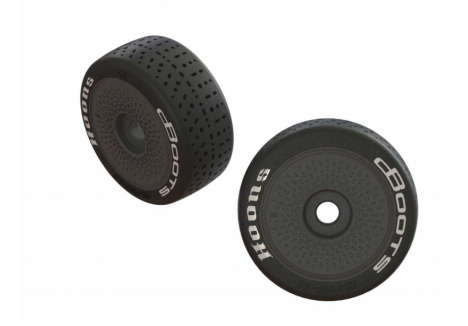

- Tyre Tread: Hoons™ – all-road grip with low rolling resistance
- Tyre Compound: White – engineered for high-speed traction
- Wheel Hex Size: 17mm – durable hubs for aggressive driving
- Wheel Diameter: 8.3 cm – matched to tyre profile for optimal contact
Electronics & Compatibility
- Power Type: Electric – supports 4S, 6S, and 8S LiPo systems

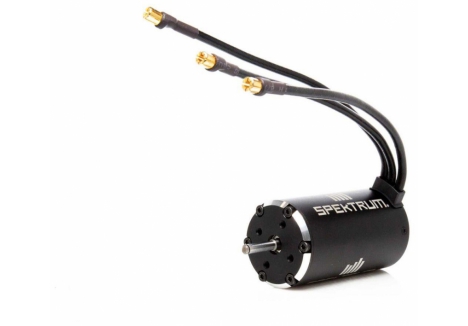

- Motor: Required – 50 series, max 11 cm length, 5 cm diameter

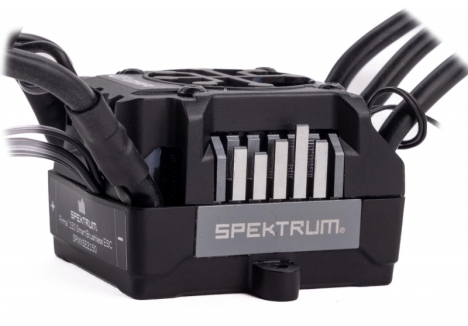

- ESC: Required – compatible with 8S setups
- Battery: Two 4S LiPo – sold separately
- Charger: Sold separately – match to battery specs

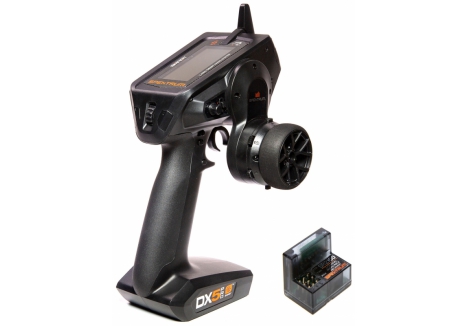

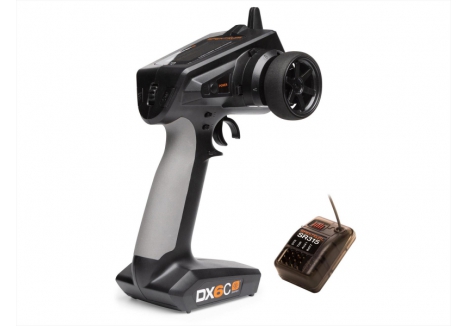

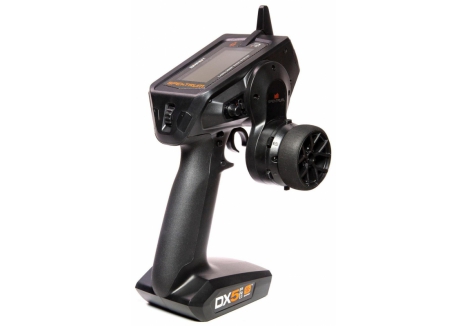

- Radio: Sold separately – requires 2+ channel transmitter and receiver

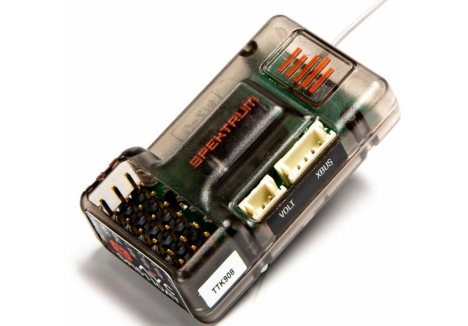

- Receiver: Sold separately – fits waterproof electronics module

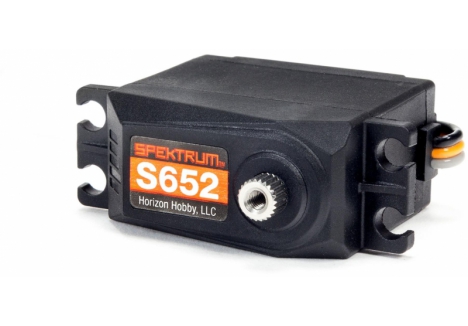

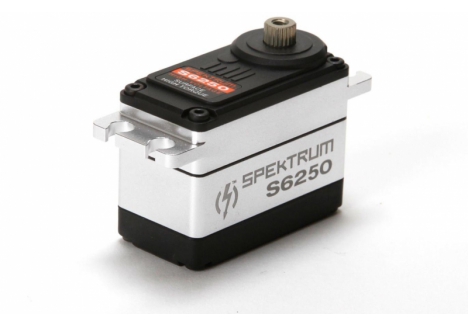

- Servos: Sold separately – metal gear, high-torque (23T spline, standard size)

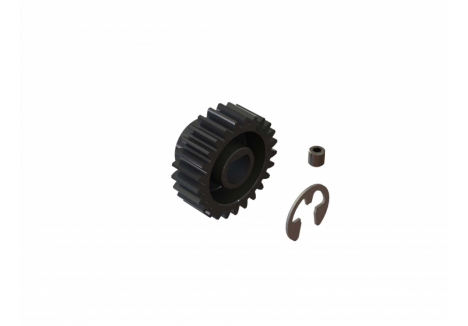

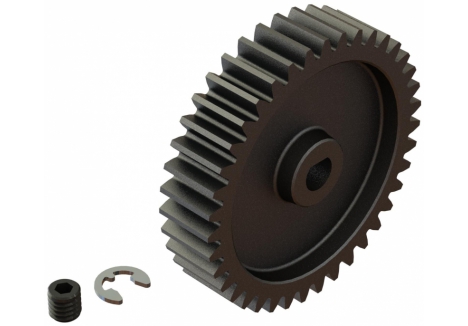

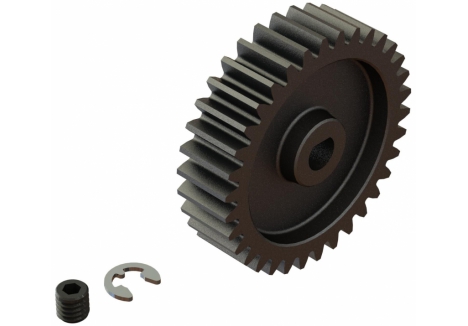

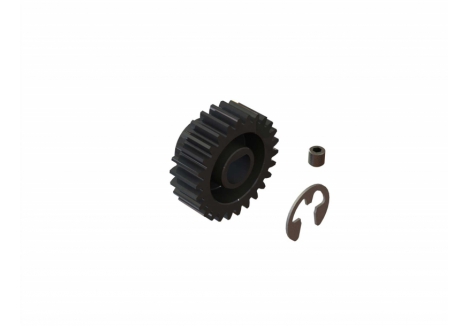

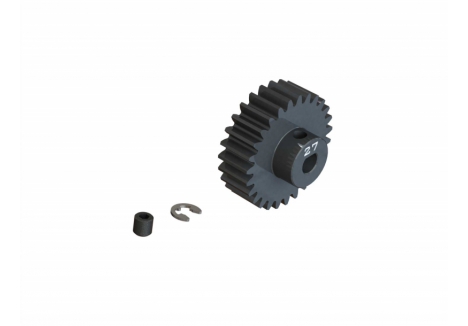

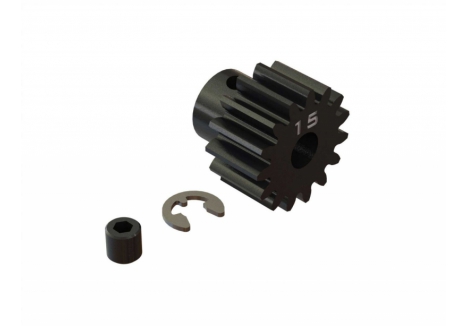

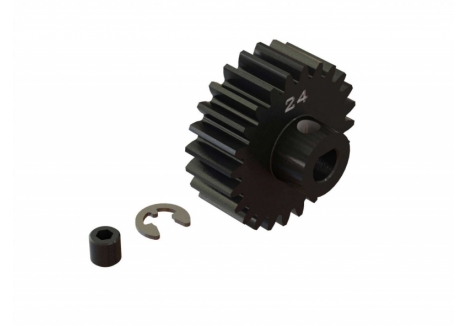

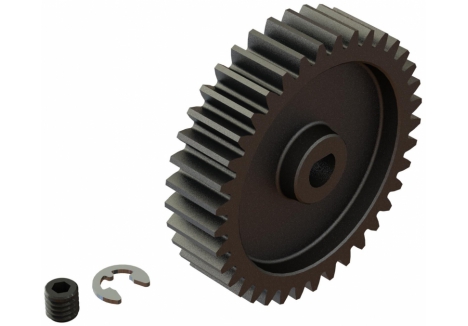

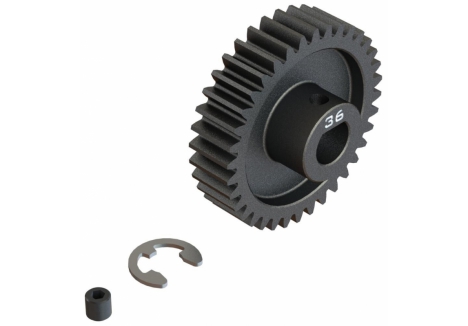

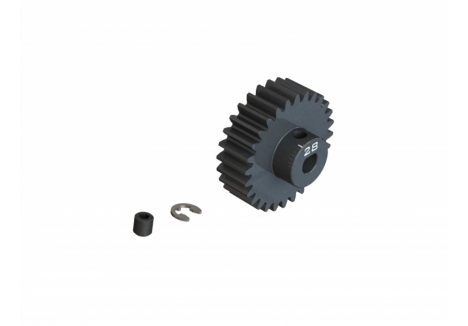

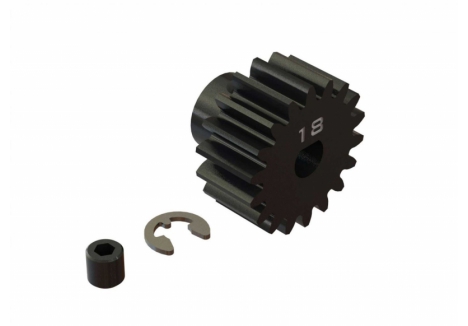

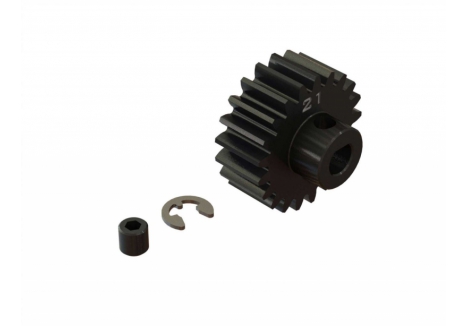

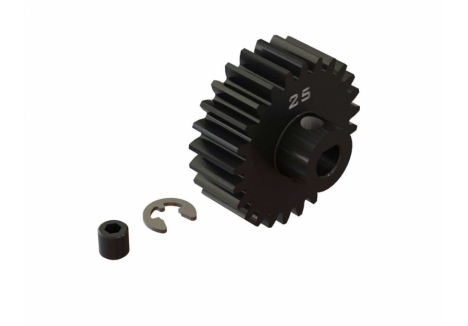

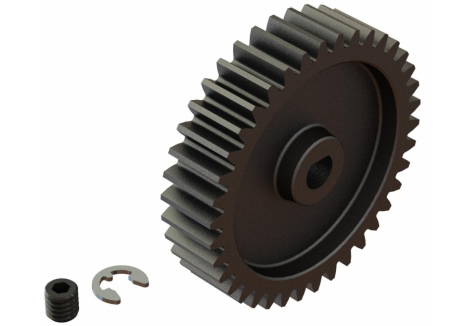

- Pinion Gear: Required – Mod 1 gear to suit chosen motor
Build & Assembly
- Completion Level: Roller – electronics and accessories required to complete
- Assembly Time: 1–3 hours – modular design for efficient build
- Body: Clear and trimmed – includes decals and window mask for custom paint
- Brakes: Integrated with ESC – ESC sold separately

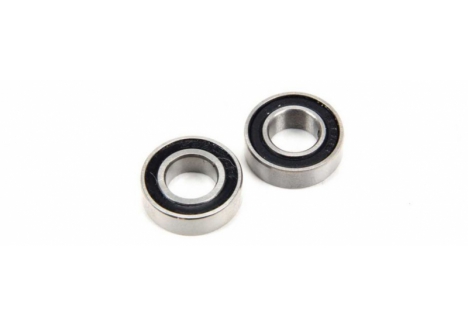

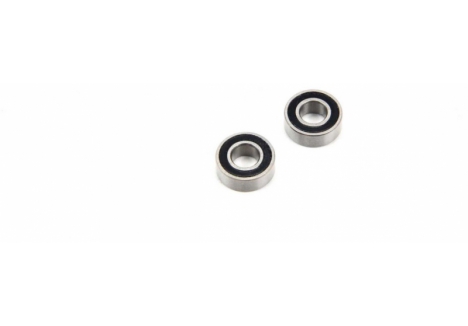

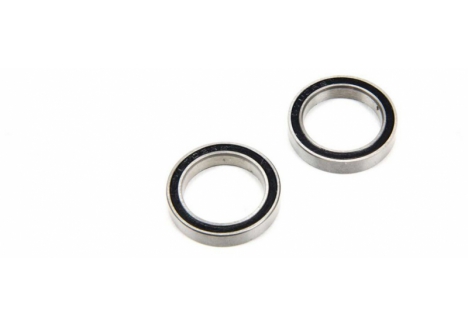

- Ball Bearings: Rubber shielded – smooth and protected operation
Parts Diagrams
Front Bumper and Nose
Front Assembly

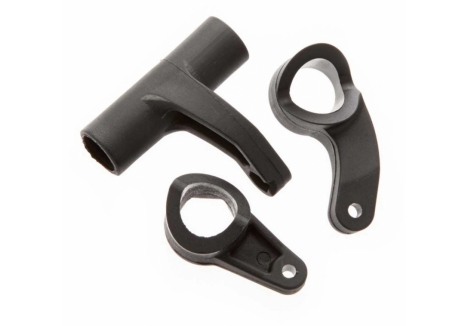

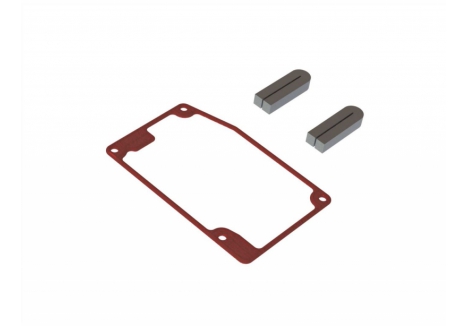

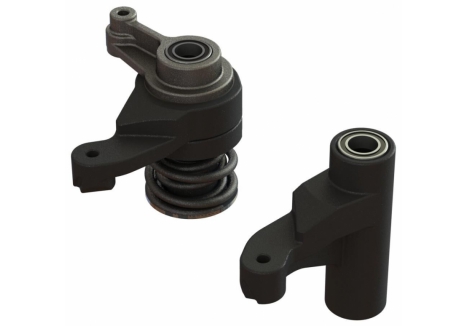

Steering and Receiver Box Assembly

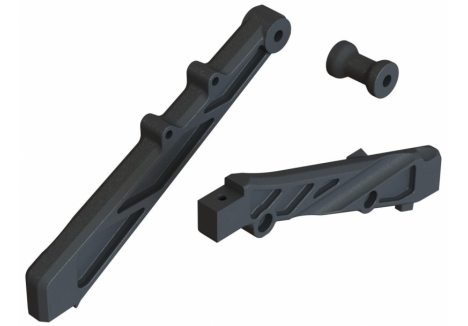

Chassis Assembly

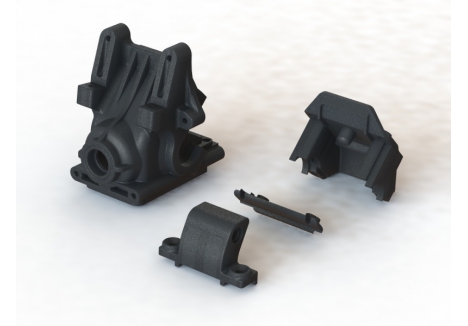

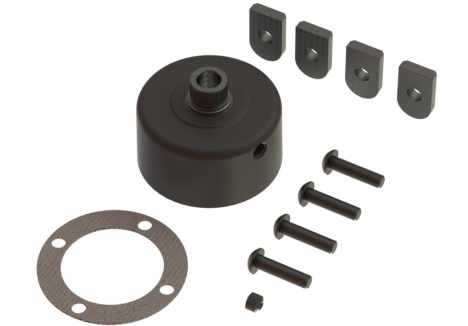

Front and Rear Differential Assembly
Centre Spool Assembly
Rear Assembly

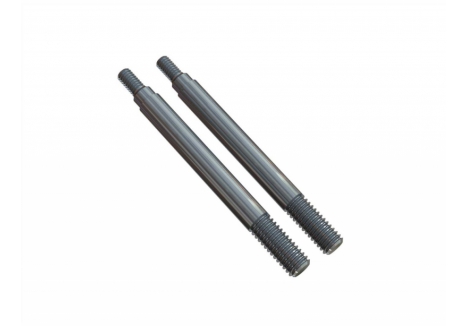

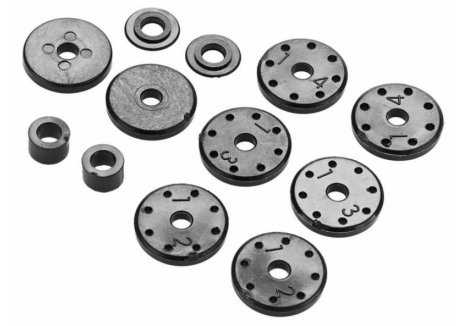

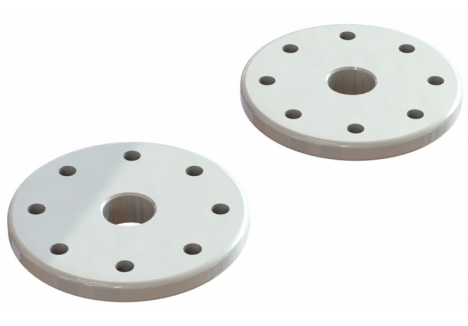

Shock Absorber Assembly

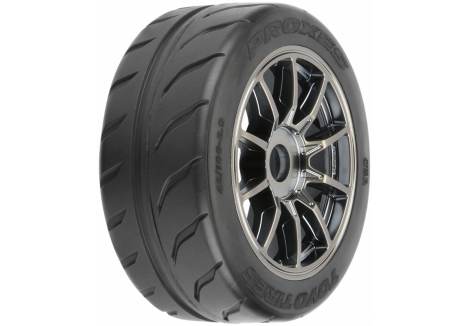

Bodyshell / Nose / Wheel & Tyre

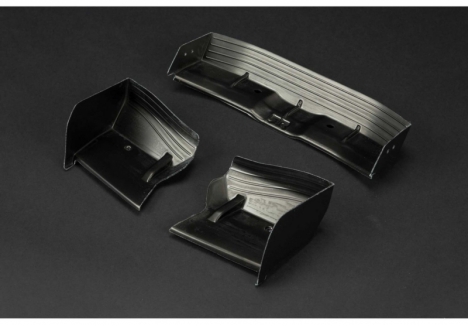

Rear Wing and Diffuser Assembly
