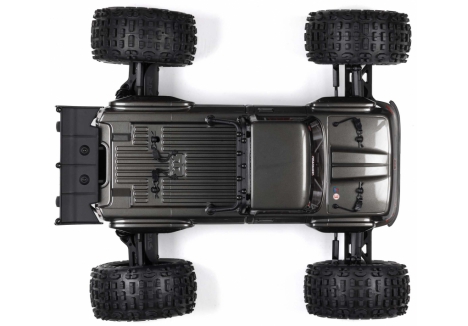

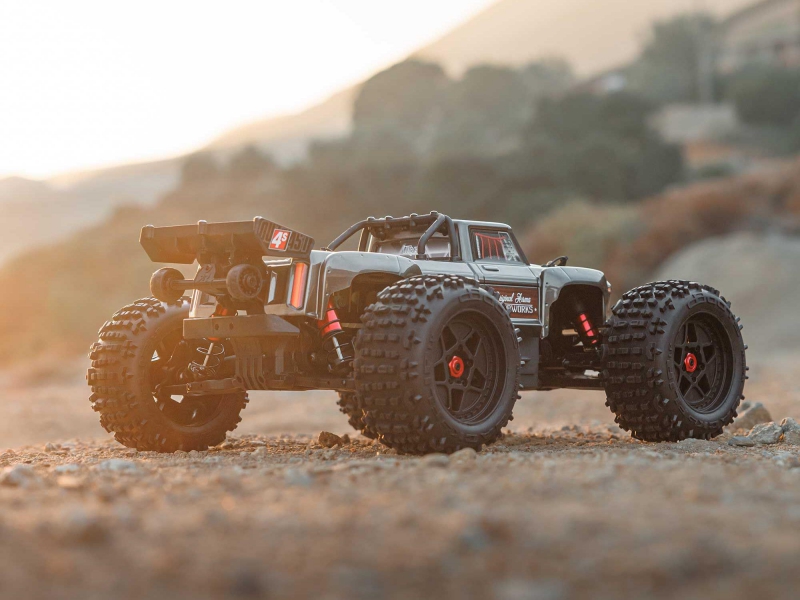

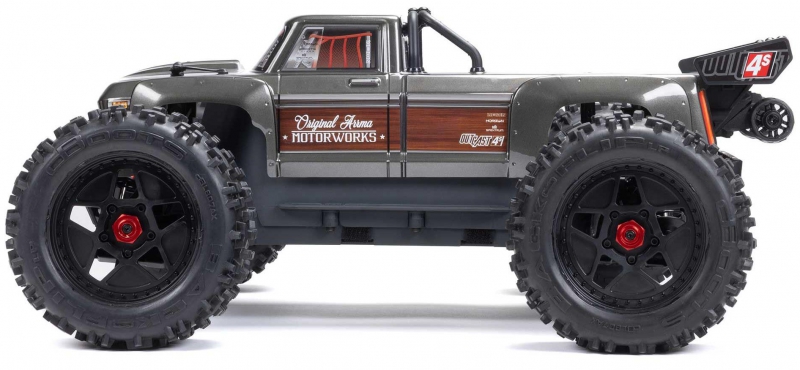

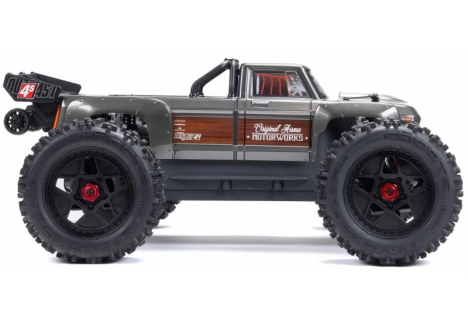

Product Description of ARRMA C-ARA4410V2T3 brushless stunt truck

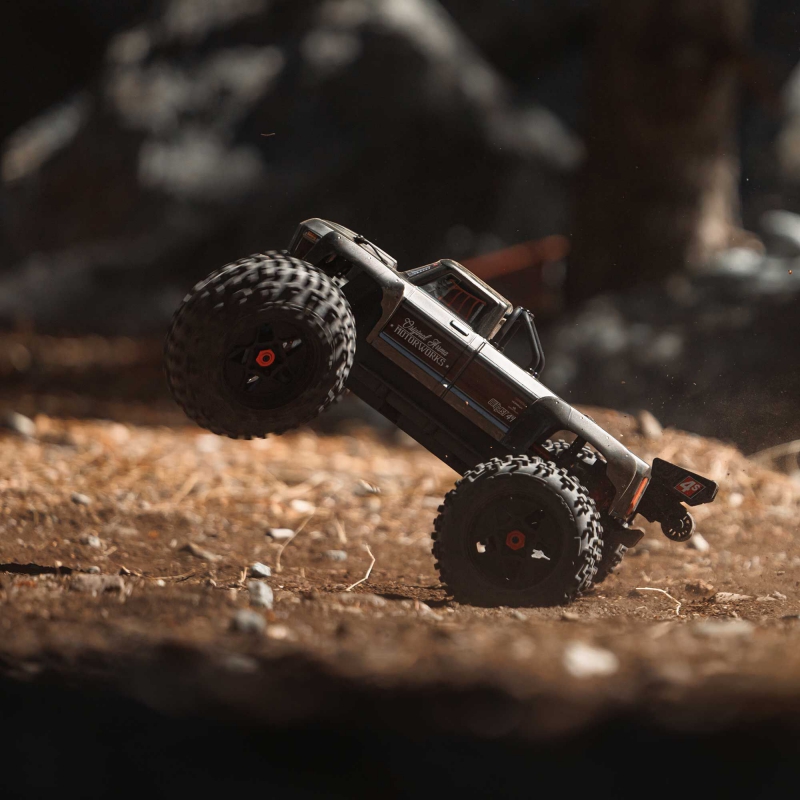

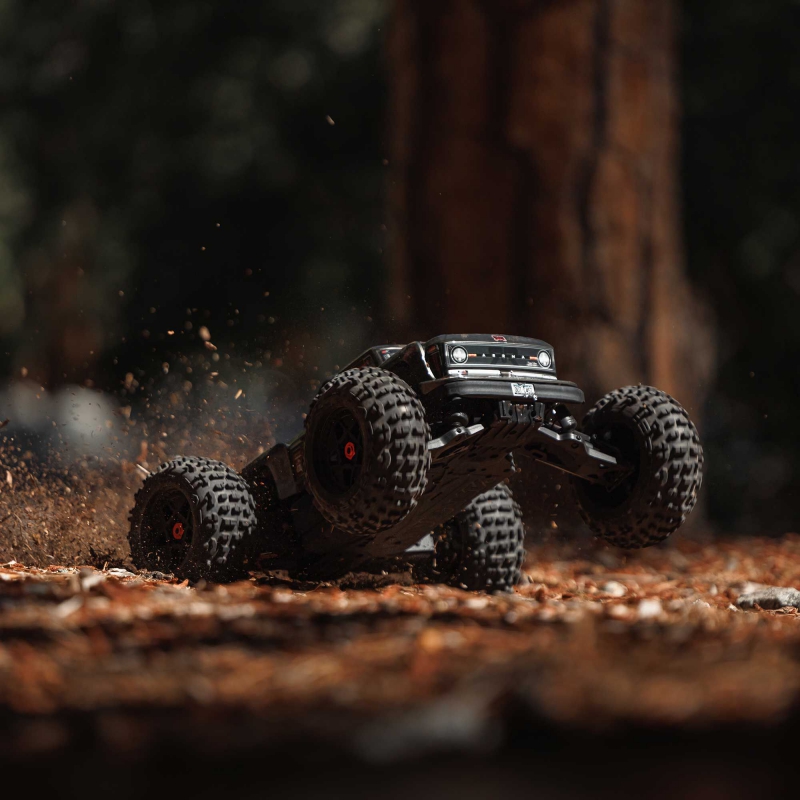

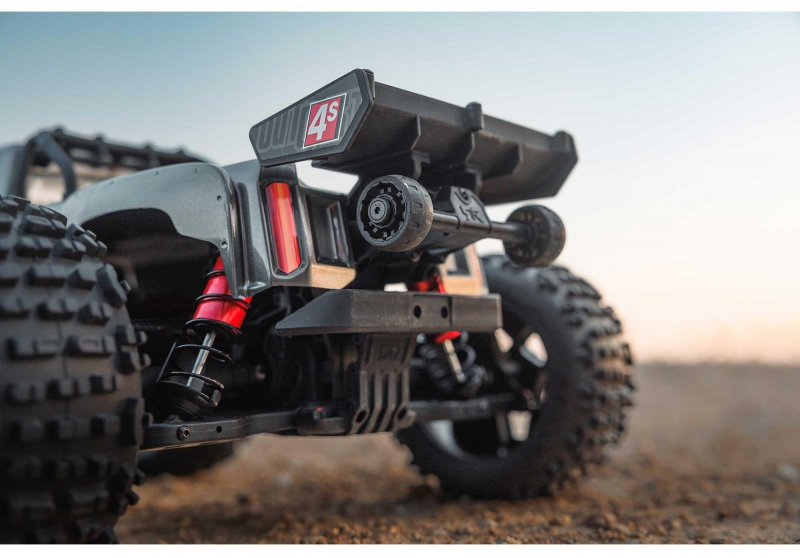

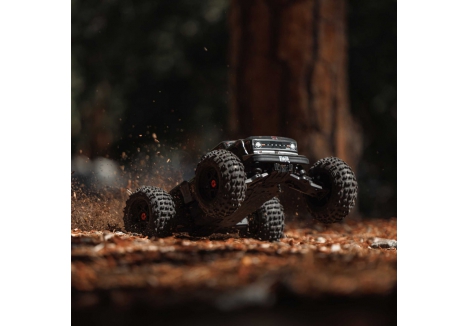

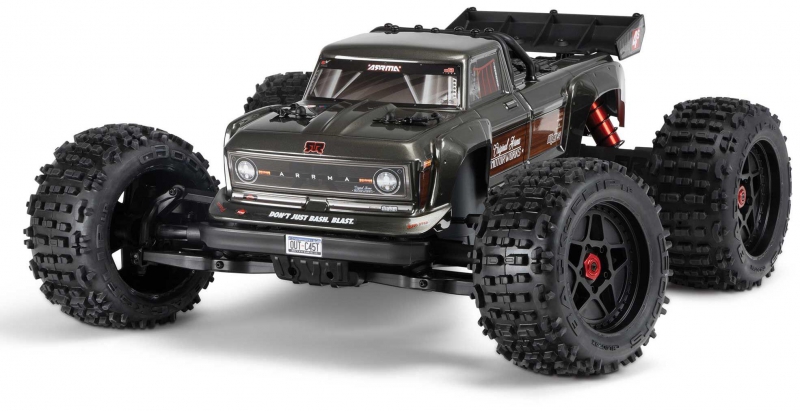

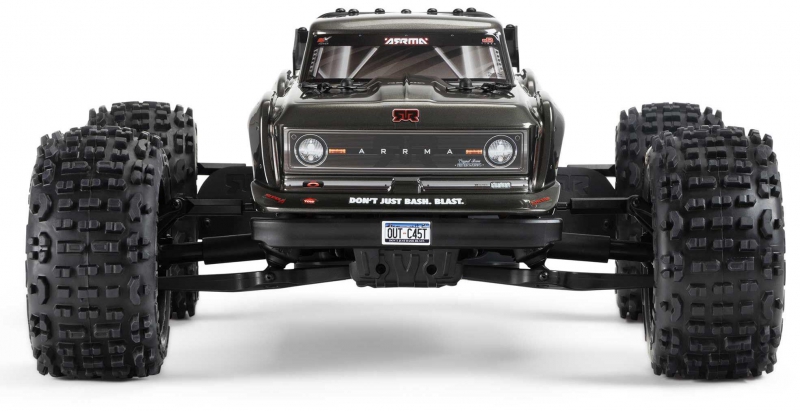

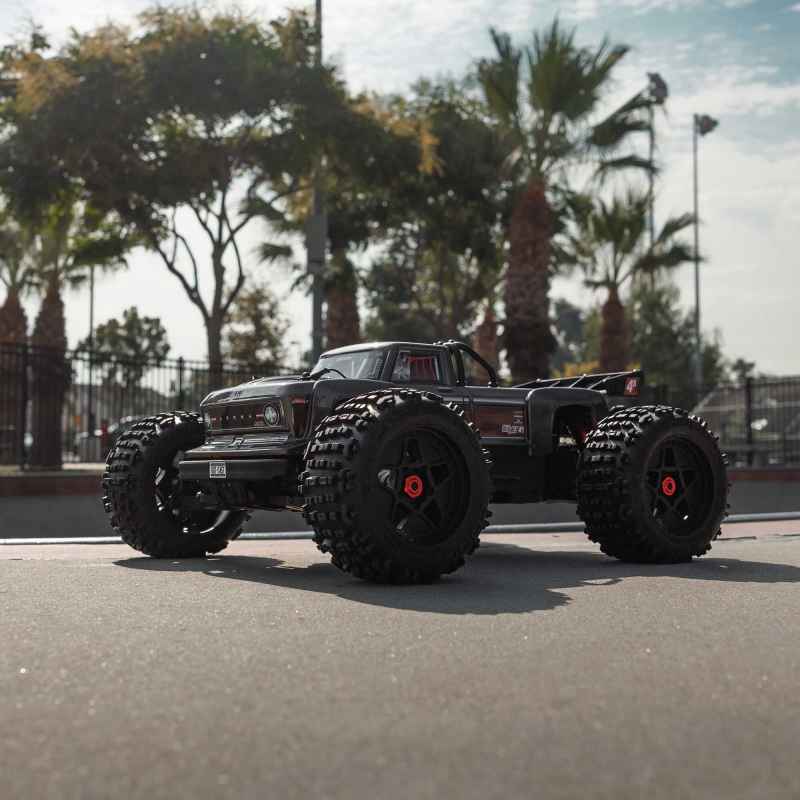

The ARRMA C-ARA4410V2T3 brushless stunt truck is a 1/10 scale RC car designed for high-impact stunts, short-course agility, and all-road blasting. Finished in rugged gunmetal, the 4WD OUTCAST BLX platform delivers a compact wheelbase, aggressive traction, and modular durability. With a Spektrum Firma 2400Kv brushless motor and 120A Smart ESC, the ARRMA C-ARA4410V2T3 1/10 scale RC car reaches speeds of 55+ mph and executes flips, wheelies, and jumps with precision. The aluminium-cased centre differential, EXB driveshafts, and oil-filled shocks ensure that the ARRMA C-ARA4410V2T3 4WD OUTCAST BLX remains composed under pressure, whether you're tearing through dirt or launching off ramps. This stunt truck is fully factory-assembled and ready to perform straight out of the box.
Key features of the ARRMA C-ARA4410V2T3 brushless stunt truck
- Aluminium-cased centre differential – improves traction and power balance across all surfaces
- Short wheelbase – enables flips, wheelies, and tight maneuvering for stunt-focused control
- BACK-FLIP tyres – vented low-profile tread for multi-surface grip and water dispersion

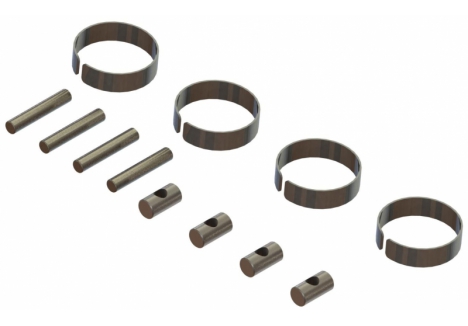

- EXB driveshafts – all-metal CVD components for extreme bash durability
- Oil-filled aluminium shocks – long travel dampers with silicone O-rings for terrain absorption

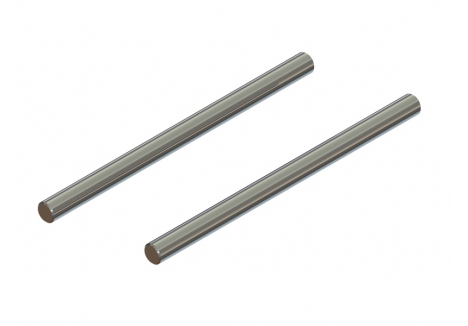

- Modular chassis – easy-access design with dirt drain and hinge pin bracing
- Dual protocol receiver – supports SLT and DSMR transmitters for flexible control
How does the centre differential improve stunt performance?

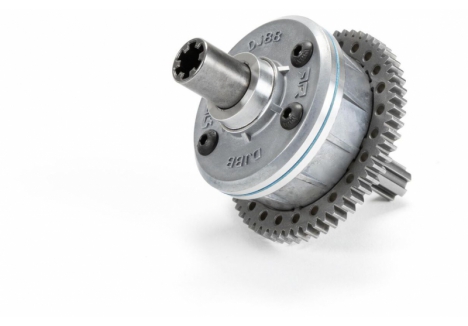

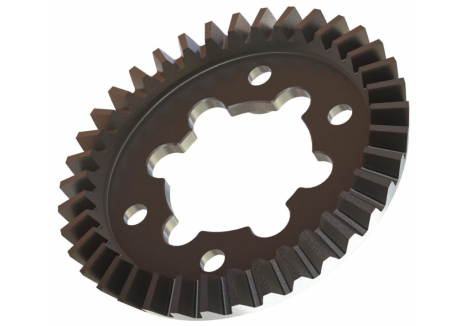

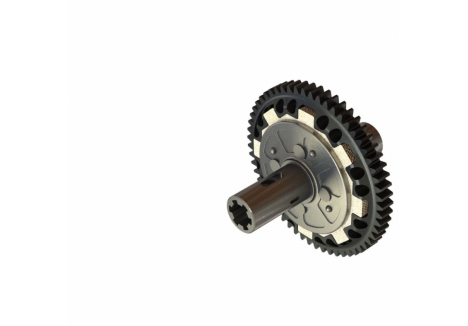

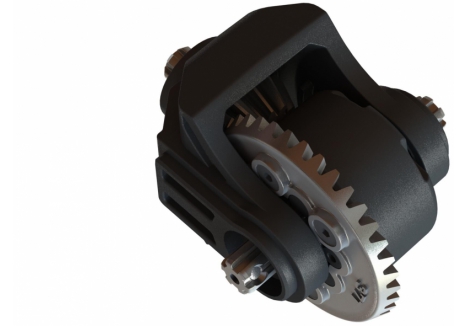

The aluminium-cased centre differential in the ARRMA stunt truck with centre diff and BACK-FLIP tyres is engineered to distribute torque evenly between front and rear wheels. This balance enhances grip during high-speed launches and mid-air rotations, allowing the truck to maintain control during flips and landings. The centre diff module integrates into the modular chassis, which includes hinge pin bracing and a dirt drain for added resilience. Whether blasting through loose terrain or executing aerial stunts, the centre differential ensures consistent traction and directional stability.
Why is the short wheelbase ideal for stunt control?

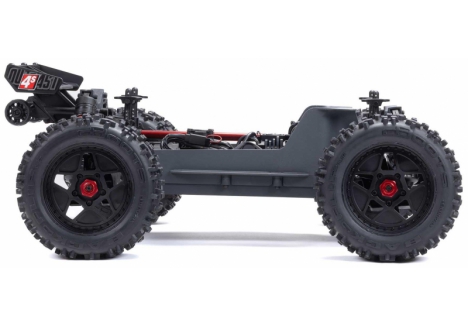

With a compact 12.32-inch wheelbase, the ARRMA C-ARA4410V2T3 brushless stunt truck is optimized for rapid directional changes and vertical maneuvers. The shortened chassis allows tighter rotation arcs, making flips and wheelies easier to initiate and control. Combined with a wide 450mm track and high shock towers, the truck maintains stability during aggressive stunts while remaining agile enough to navigate tight spaces. This geometry makes the platform ideal for drivers seeking the best ARRMA 1/10 RC car with short wheelbase and 55+ mph speed potential.
How do BACK-FLIP tyres enhance multi-surface grip?

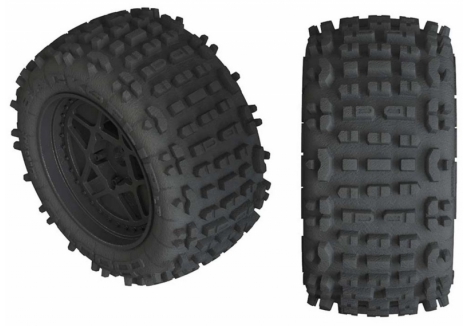

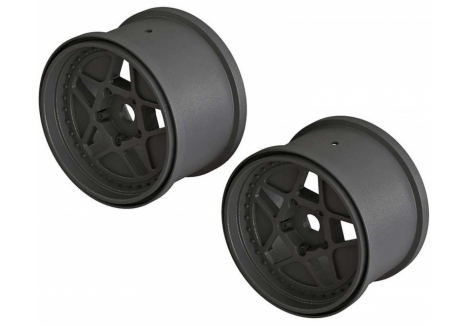

The dBoots BACK-FLIP LP tyres on the ARRMA C-ARA4410V2T3 1/10 scale RC car feature a vented low-profile design with an aggressive tread pattern. These tyres are mounted on tough 3.8-inch black multi-spoke wheels with CNC-machined red anodized 17mm hubs. The tread disperses water and debris, maintaining grip across dirt, grass, and pavement. Foam inserts provide structural integrity under load, while the low-profile shape supports high-speed stability. This tyre setup ensures that the stunt truck remains planted during launches, landings, and directional changes.
What makes the EXB driveshafts and shocks essential for durability?

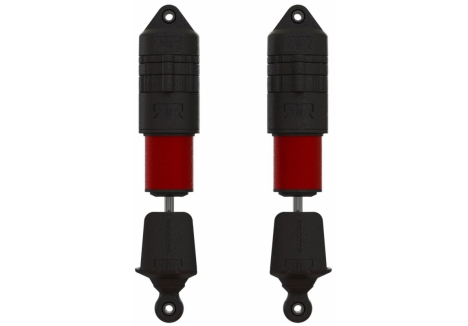

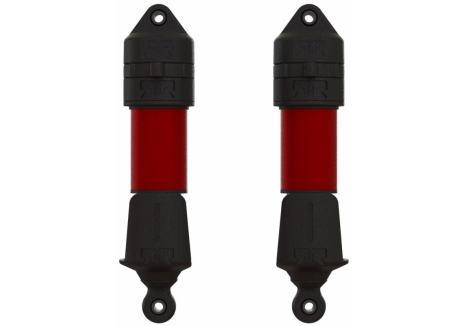

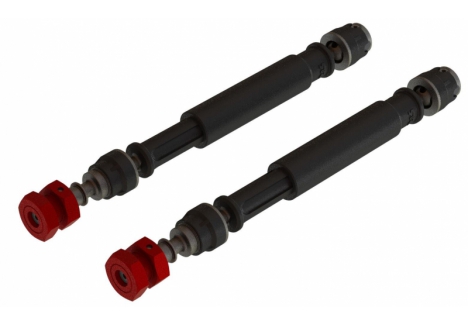

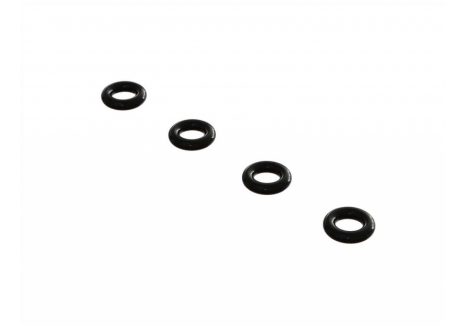

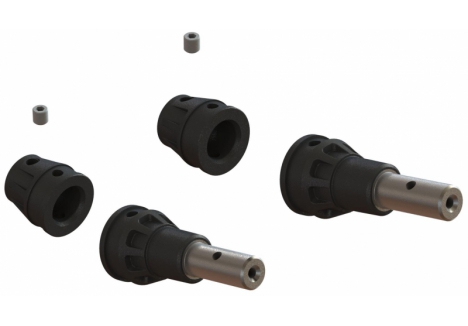

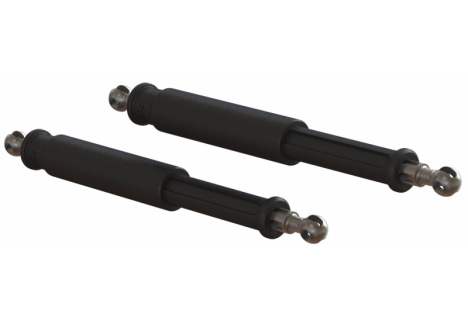

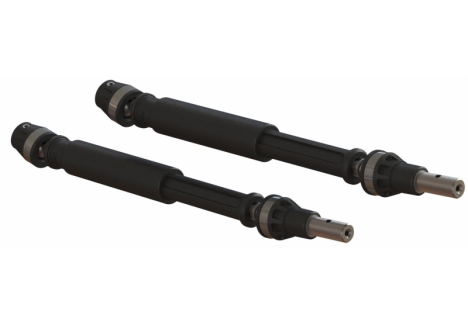

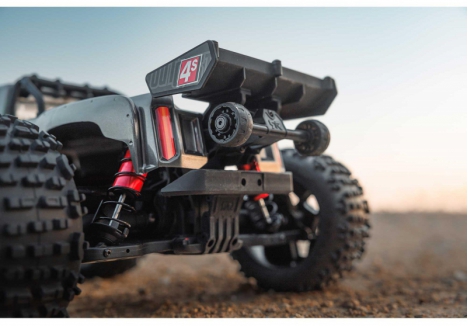

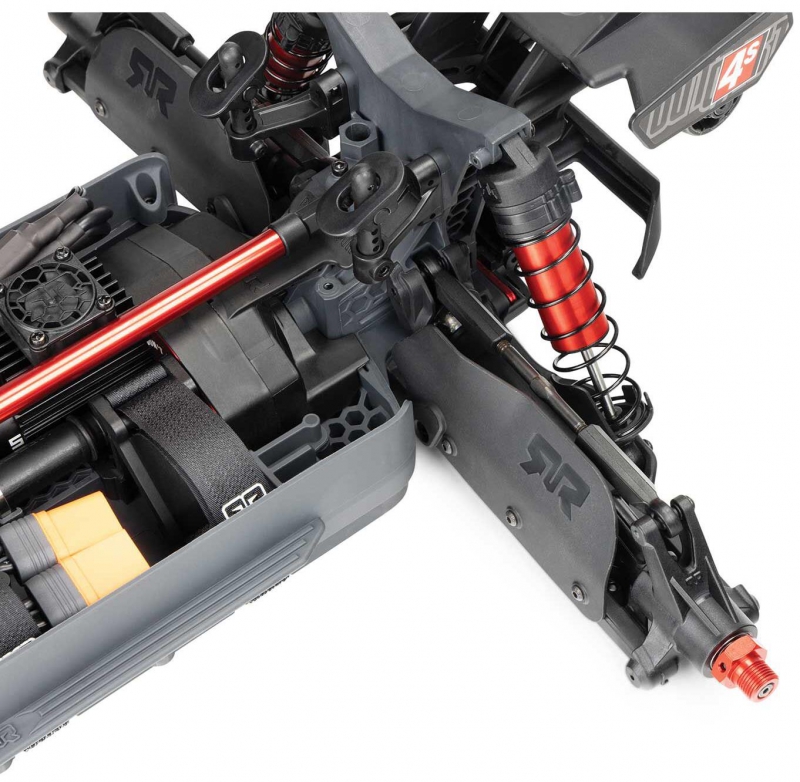

The ARRMA RC car with EXB driveshafts and oil-filled shocks is equipped with all-metal CVD front and rear driveshafts designed for extreme bash conditions. These components resist torsional stress and impact damage, ensuring reliable power delivery during aggressive driving. The long aluminium-bodied shocks are filled with oil and sealed with silicone O-rings, providing plush suspension travel and terrain absorption. Mounted on high towers, the shocks allow the truck to soak up jumps and bumps without compromising control or speed.
Is the modular chassis design built for fast maintenance?

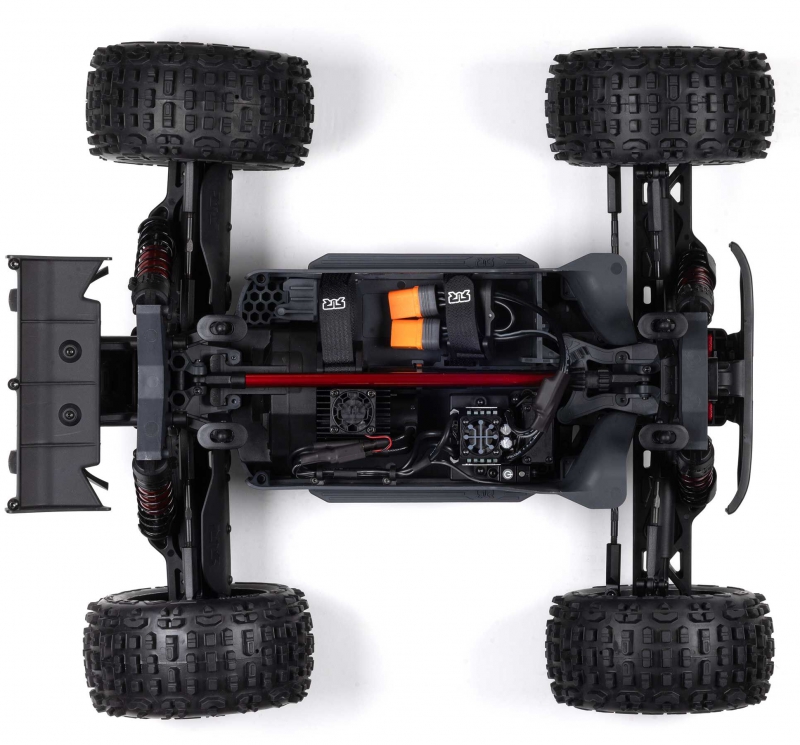

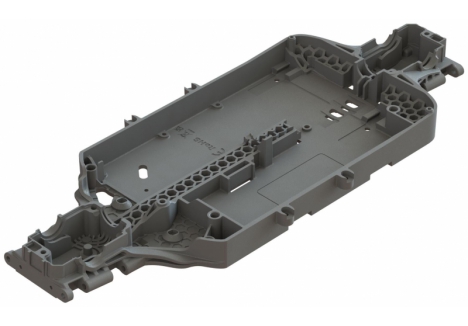

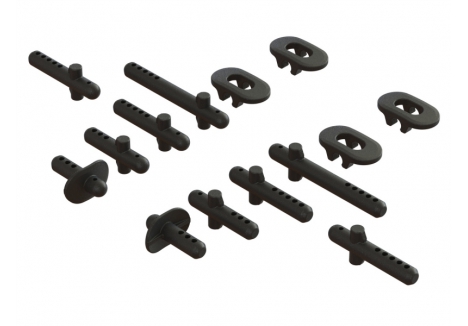

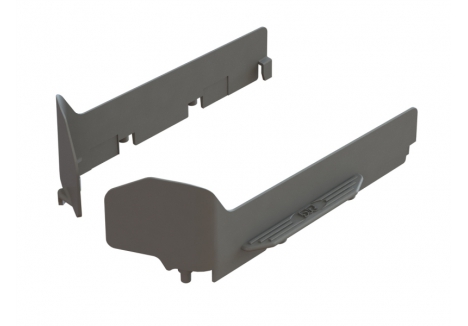

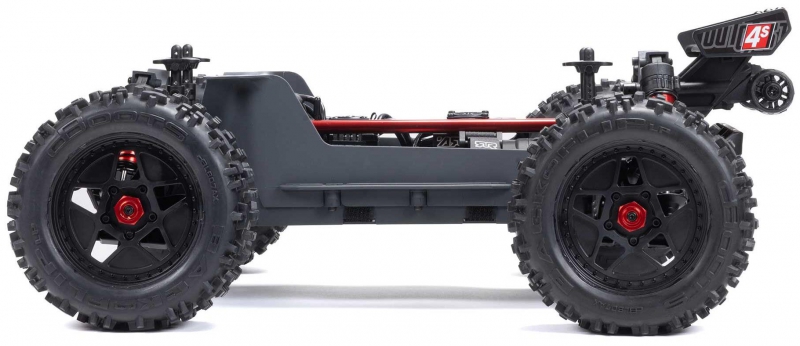

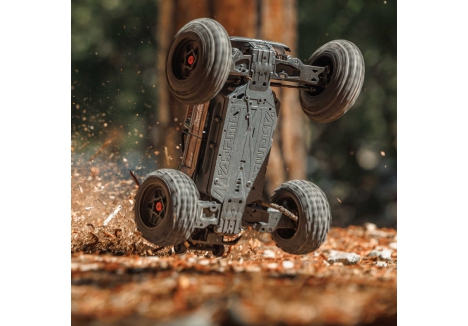

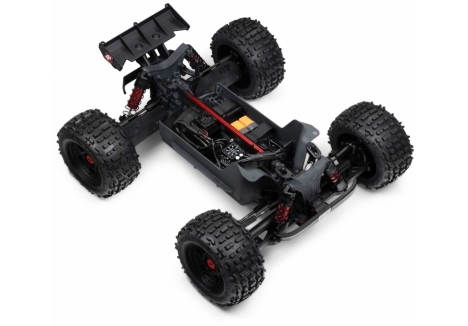

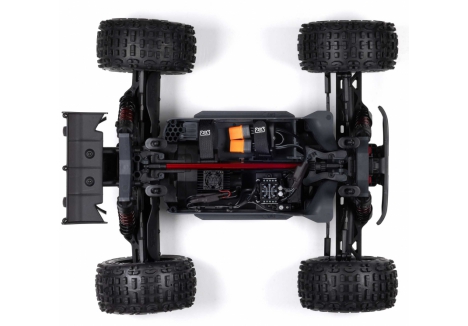

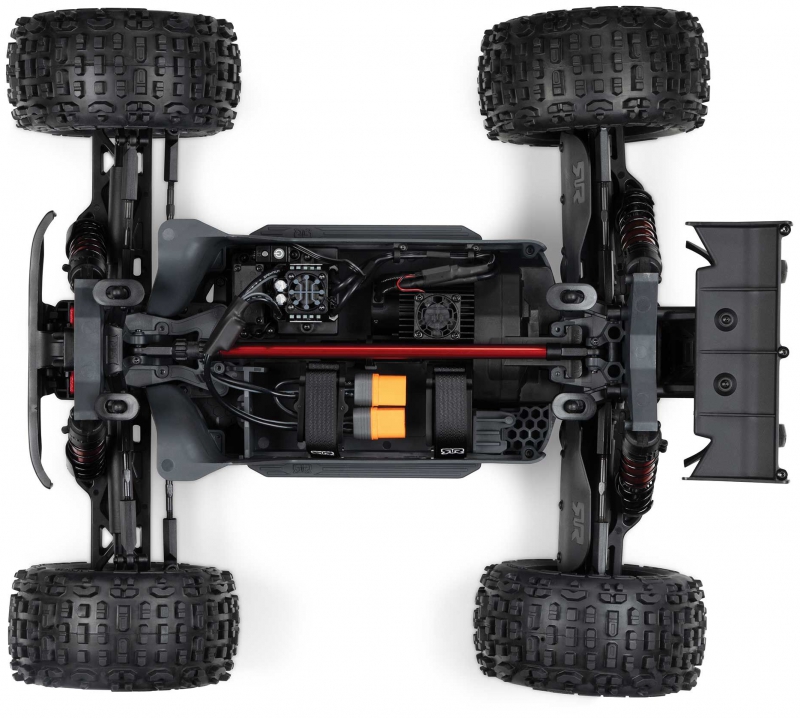

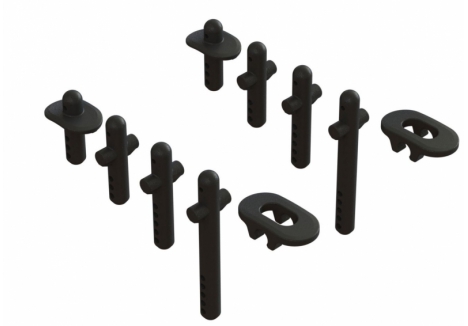

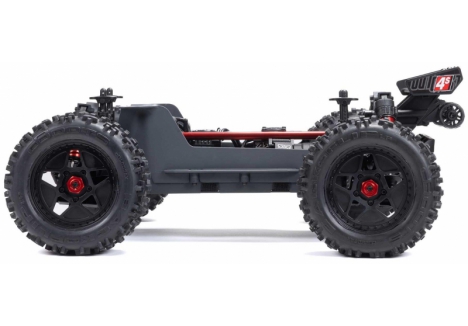

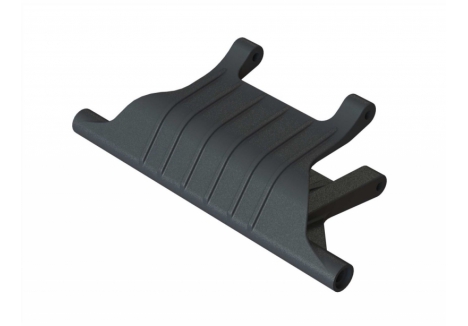

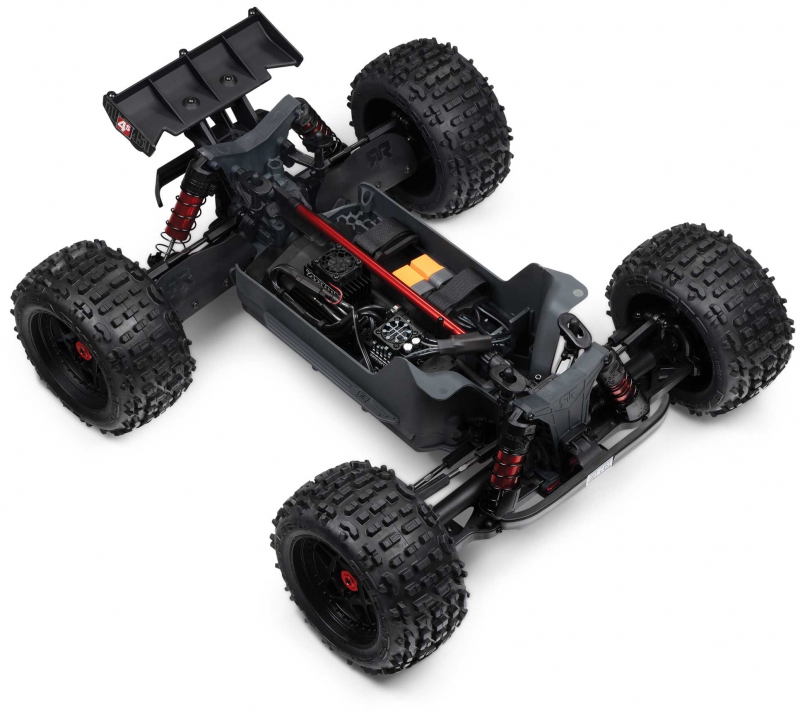

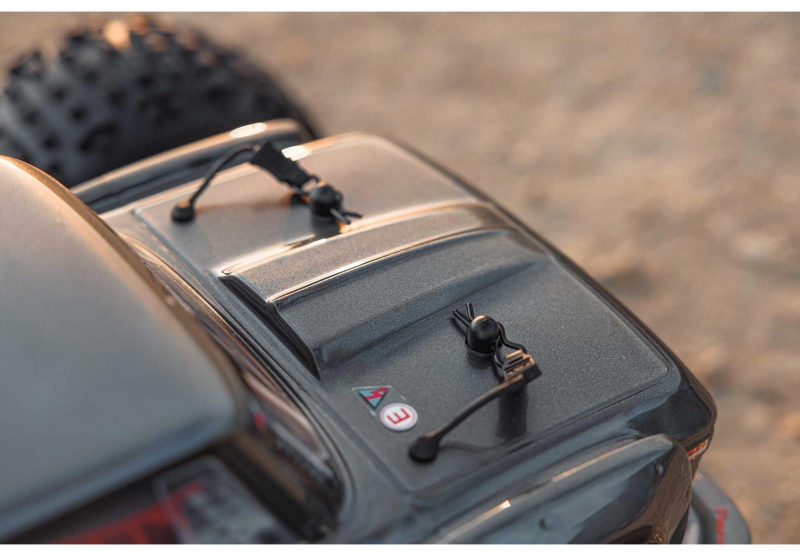

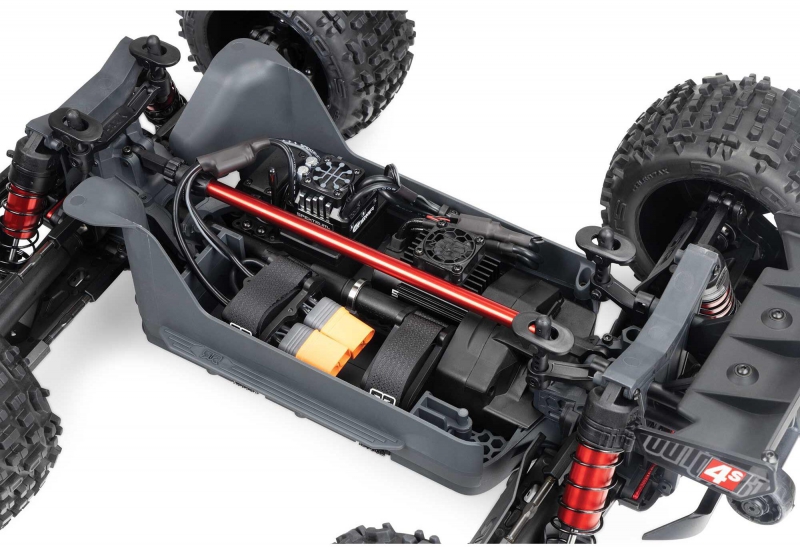

The modular composite chassis on the ARRMA C-ARA4410V2T3 4WD OUTCAST BLX separates the power system, electronics, and differential components into accessible modules. This layout simplifies routine maintenance and allows quick access to internal systems. The chassis includes a dirt drain, hinge pin bracing, and tall side guards for added protection. A centre support brace enhances structural rigidity, while front and rear bumpers absorb impact during stunts. The injection-molded rear wing and adjustable body mounts complete the durable design, making the truck ready for all-road punishment.
How does the electronics system support high-speed stunting?

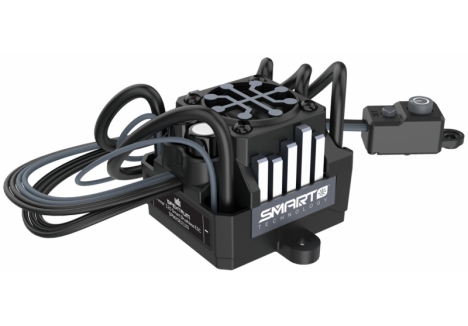

The Spektrum Firma 2400Kv brushless motor and 120A Smart V2 ESC in the ARRMA C-ARA4410V2T3 with 2400Kv motor and 120A Smart ESC deliver responsive throttle control and sustained power output. The ESC is waterproof and includes IC5 connectors (EC5 compatible), supporting 4S LiPo batteries for maximum performance. The Spektrum S662 metal-geared servo provides 236 oz-in of torque, enabling precise steering under load. The SLT3 transmitter includes throttle limiting for new drivers, while the SR315 receiver supports dual protocol DSMR/SLT and Smart telemetry. This system ensures that the truck remains responsive and controllable during high-speed stunts.
For drivers seeking an affordable ARRMA stunt truck with dirt guards and dual protocol receiver, the OUTCAST 4S BLX offers a complete package of performance, durability, and control. With its short wheelbase, modular chassis, and bash-ready components, the truck is built for flips, jumps, and all-road blasting. Buy ARRMA C-ARA4410V2T3 truck with waterproof electronics and modular chassis and unlock next-level stunt capability in a compact, gunmetal-finished platform.
Technical Specifications of ARRMA C-ARA4410V2T3 brushless stunt truck
Brand, Model and Product Type
- Brand: ARRMA
- Model: C-ARA4410V2T3
- Color: Gunmetal
- Product Type: ARRMA C-ARA4410V2T3 brushless stunt truck, ARRMA C-ARA4410V2T3 1/10 scale RC car, ARRMA C-ARA4410V2T3 4WD OUTCAST BLX, ARRMA C-ARA4410V2T3 with 2400Kv motor and 120A Smart ESC, ARRMA RC car with EXB driveshafts and oil-filled shocks
Dimensions
- Product Length: 51.5 cm – compact chassis supports stunt control and responsive handling
- Product Width: 45.0 cm – wide track enhances stability during flips and landings
- Product Height: 22.5 cm – elevated stance accommodates long shock travel and obstacle clearance
- Wheelbase: 31.3 cm – short wheelbase enables tight rotation arcs and stunt agility
- Product Weight: 4.17 kg – reinforced structure supports high-impact durability
Drivetrain and Transmission
- Drivetrain: 4WD – full-time four-wheel drive for consistent traction across all terrain types
- Drive Type: Forward / Brake / Reverse – integrated via ESC control for smooth operation

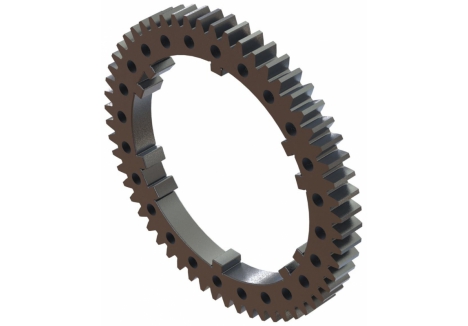

- Differential Type: 2-gear diffs – includes aluminium-cased centre differential for balanced torque distribution
- Final Drive Ratio: 12.48 – calibrated for stunt acceleration and top-end speed
- Internal Gear Ratio: 2.85 – optimized for 4S LiPo power delivery
Motor and Electronics

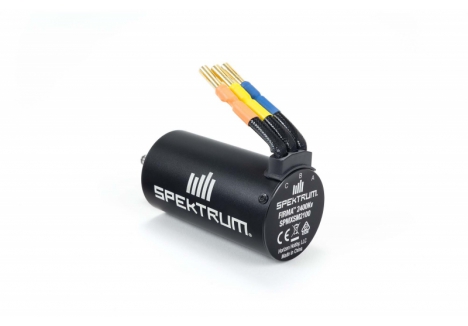

- Motor: Spektrum Firma 3668 2400Kv brushless – delivers high-speed performance with efficient cooling
- ESC: Spektrum Firma 120A Smart V2 – waterproof, telemetry-enabled, and IC5/EC5 compatible

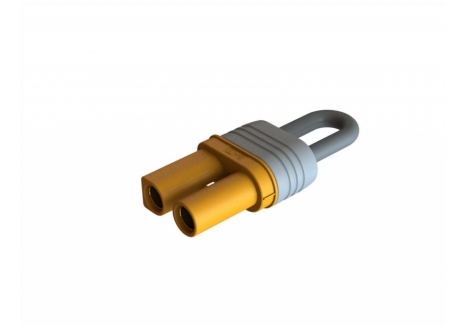

- Connector Type: IC5 (EC5 compatible) – supports high-current LiPo battery systems

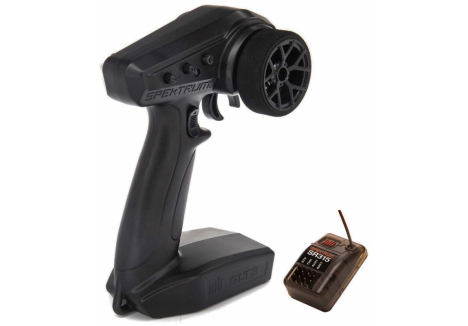

- Radio System: Spektrum SLT3 2.4GHz – 3-channel transmitter with foam wheel and throttle limiting
- Receiver: Spektrum SR315 – dual protocol DSMR/SLT with Smart telemetry support
- Servo: Spektrum S662 – metal-geared, waterproof, 236 oz-in torque with alloy case and 25T spline horn
Suspension and Chassis

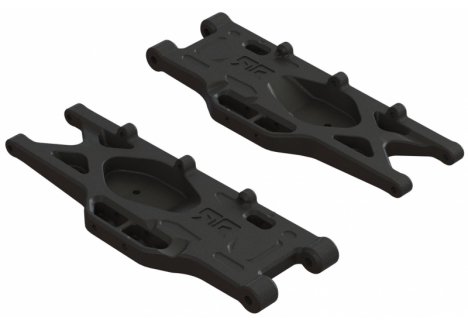

- Suspension Type: Independent double wishbone – wide arms for plush travel and terrain absorption
- Shock Type: Oil-filled aluminium body – long travel dampers with silicone O-rings mounted on high towers
- Chassis Material: Molded composite – modular layout with centre diff module, hinge pin bracing, and dirt drain
- Center Support: Included – adds rigidity and impact resistance during extreme stunting
Tyres and Wheels
- Tyre Type: dBoots BACK-FLIP LP – vented low-profile tread for multi-surface grip and water dispersion

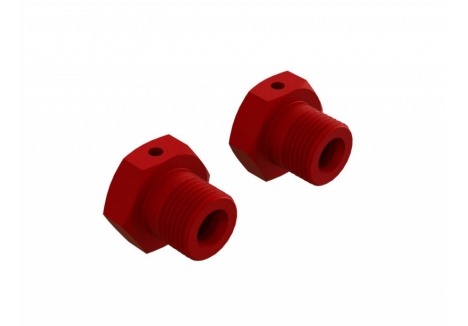

- Wheel Type: 3.8″ black multi-spoke – mounted on CNC-machined red anodized 17mm hubs
Technology and Control
- Smart Telemetry: Enabled – compatible with Spektrum dashboard and sensors
- Top Speed: 55+ mph – achievable with 4S LiPo and optional pinion gear
- Completion Level: Ready-To-Run – fully assembled with installed electronics
What’s in the Box

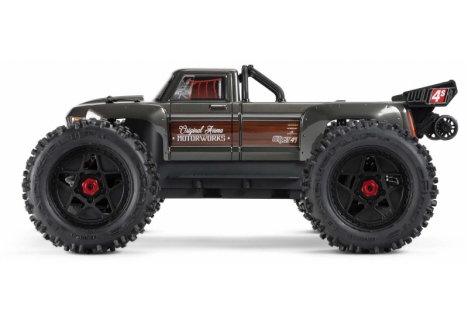

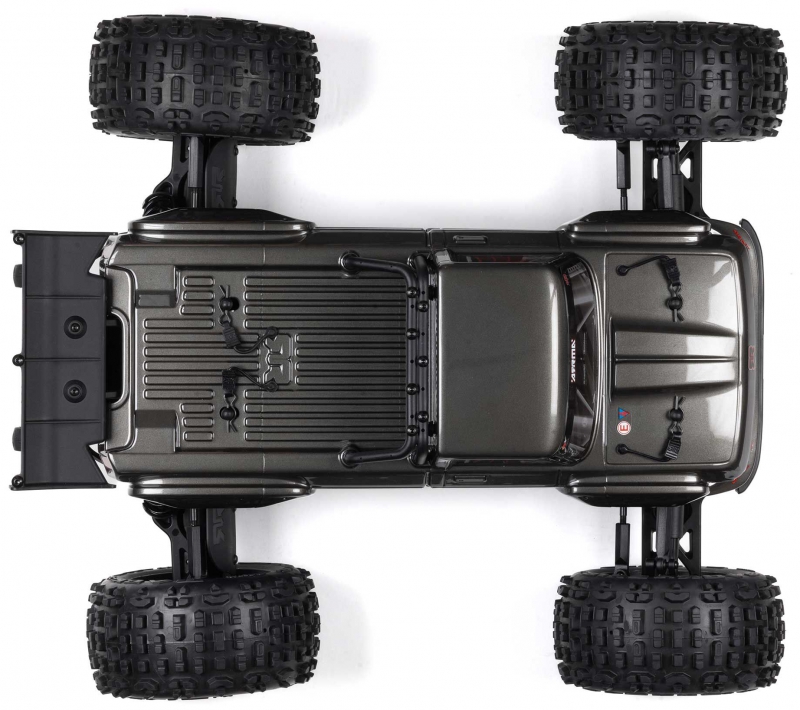

- 1 × ARRMA OUTCAST 4S BLX 4WD 1/10 Scale Stunt Truck RTR – Gunmetal
- 1 × Spektrum Firma 120A Smart ESC (installed)
- 1 × Spektrum Firma 2400Kv Brushless Motor (installed)
- 1 × Spektrum S662 Metal-Geared Waterproof Servo (installed)
- 1 × Spektrum SLT3 Transmitter
- 1 × Spektrum SR315 Receiver
- 4 × AA Batteries
- 1 × Instruction Manual
What You Require

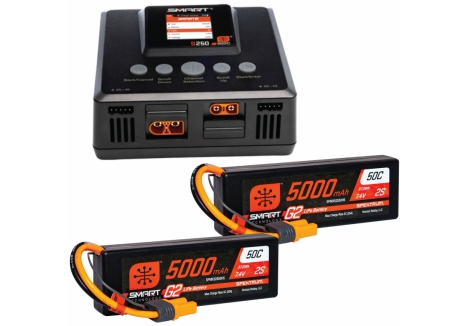

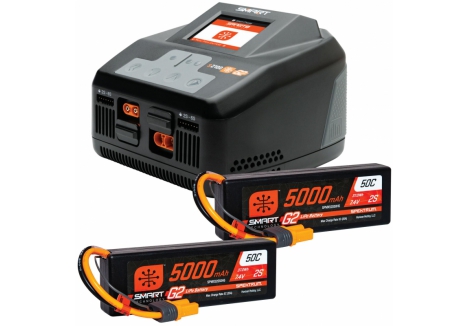

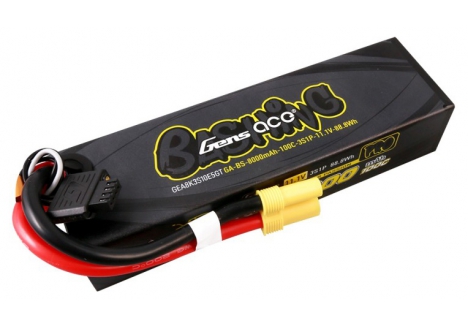

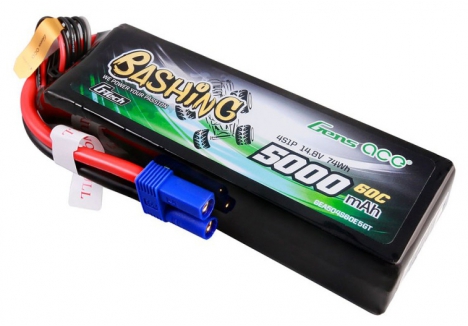

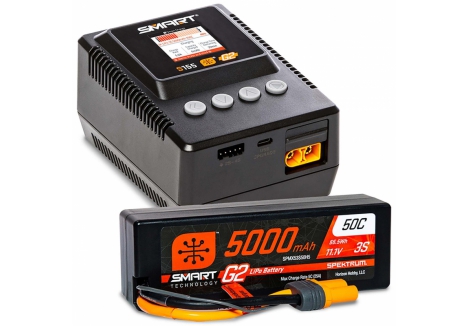

- 2 × 2S Hardcase LiPo Batteries, or 1 × 3S, or 1 × 4S Hardcase LiPo Battery

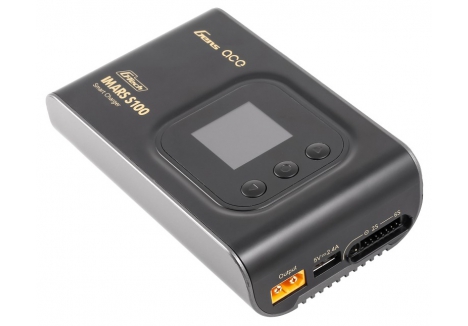

- 1 × Compatible LiPo Charger
Sold Separately
- Battery – required for operation
- Charger – compatible with selected battery type

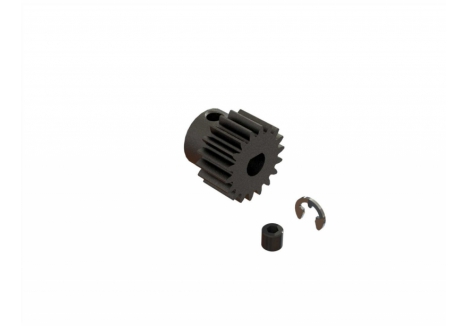

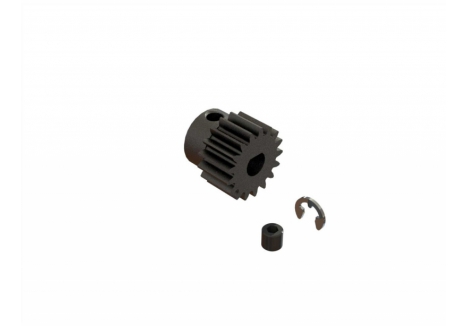

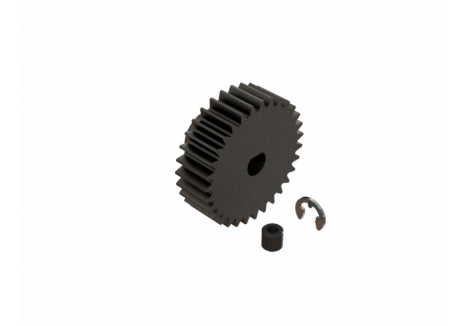

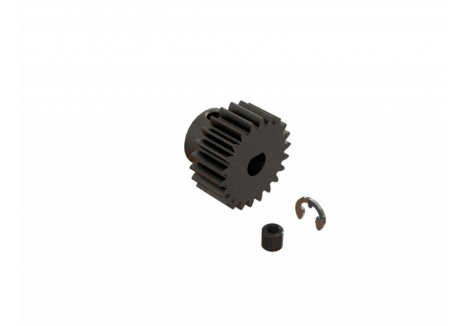

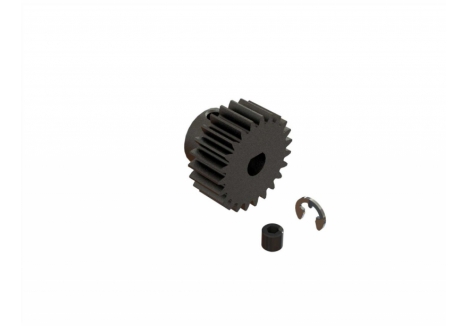

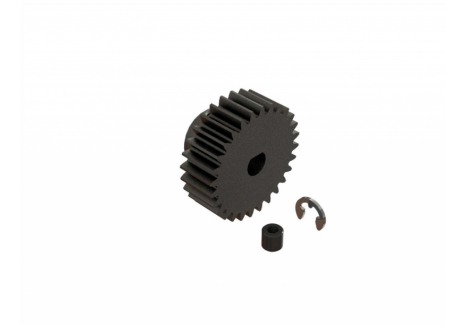

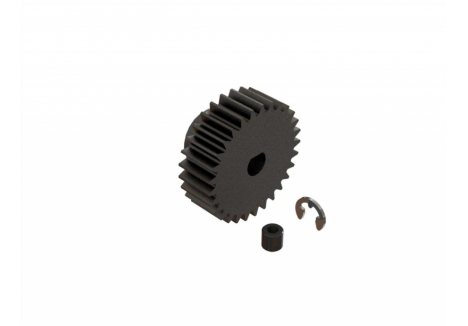

- Optional pinion gear – required for top speed configuration
