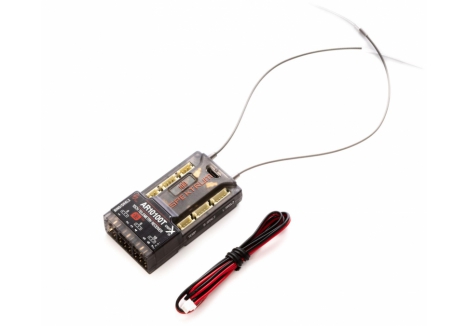

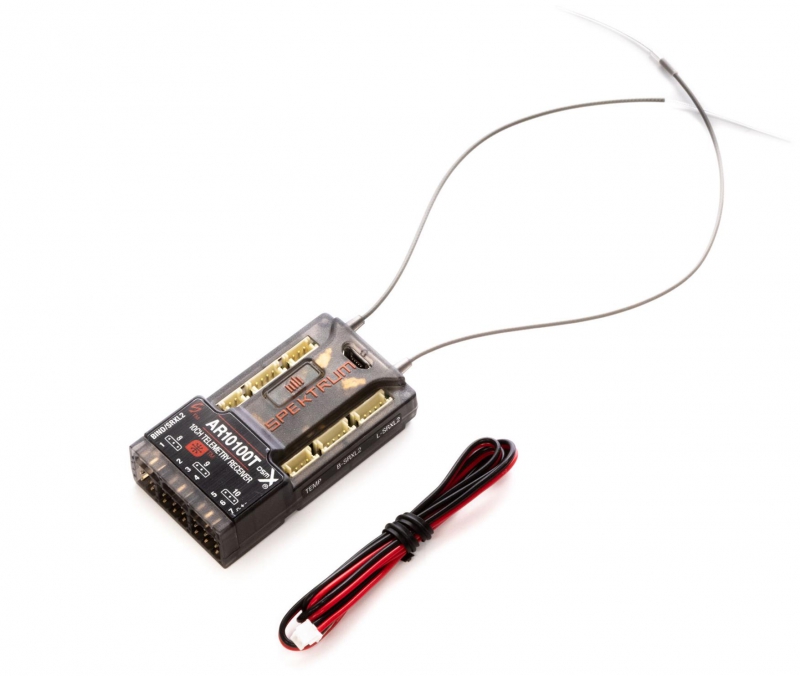

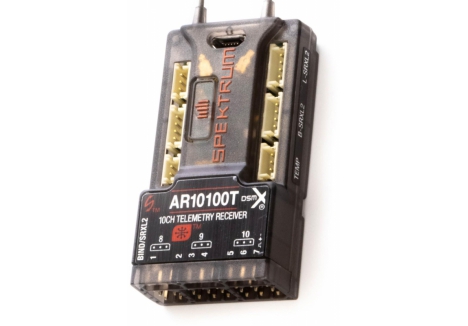

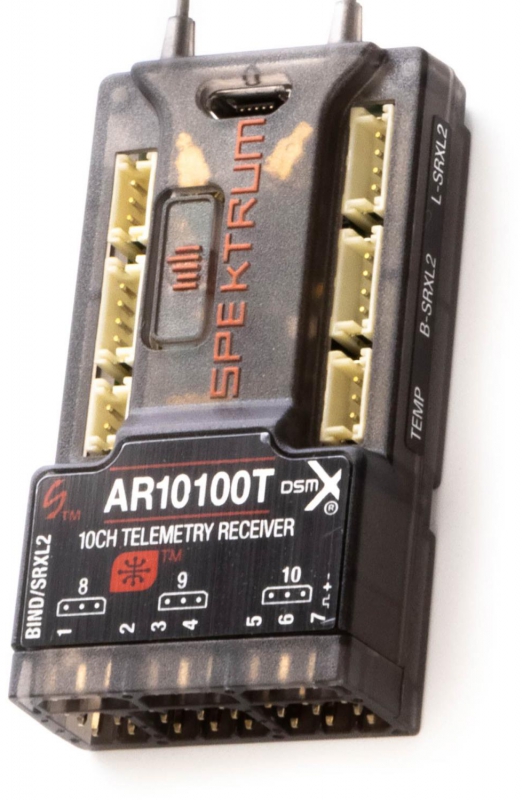

Product Description of Spektrum P-SPMAR10100T AR10100T receiver with full-range telemetry and integrated barometer
The Spektrum P-SPMAR10100T AR10100T receiver with full-range telemetry and integrated barometer is a compact, high-performance 10-channel DSMX receiver engineered for electric aircraft, helicopters, and sailplanes. Designed to deliver robust telemetry, secure RF coverage, and seamless Smart ESC integration, this receiver is ideal for pilots who demand precision, reliability, and advanced programming capabilities. With support for SmartSafe, Hold Last failsafe, and Forward Programming, the AR10100T offers a complete telemetry and control solution in a compact footprint that fits parkflyers, sport-class models, and giant-scale aircraft alike.
Key features of the Spektrum P-SPMAR10100T AR10100T receiver with full-range telemetry and integrated barometer
- Full-range telemetry – includes altitude and vario data via integrated barometer
- Smart ESC compatibility – enables one-wire telemetry without modules or adapters

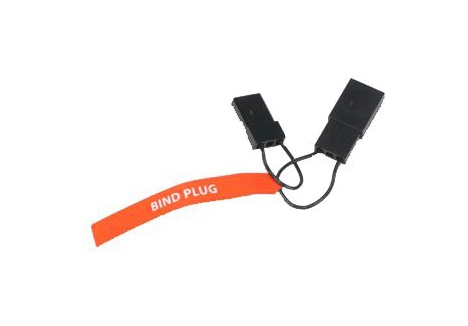

- Bind button – simplifies binding process without the need for a bind plug
- SRXL2 ports – supports up to two remote receivers for RF path redundancy
- Micro USB port – allows firmware updates and registration via Spektrum PC Programmer
- Failsafe programming – includes SmartSafe, Hold Last, and per-channel settings via Forward Programming
- Dual external antennas – ensures secure RF coverage from all angles
- Compact footprint – fits a wide range of aircraft including parkflyers and giant-scale models
How does the Spektrum P-SPMAR10100T enhance telemetry performance?
The Spektrum P-SPMAR10100T telemetry receiver with SRXL2 ports and USB firmware update access delivers full-range telemetry without the need for external sensors. Its integrated barometer provides altitude and vario data directly to compatible Spektrum transmitters, eliminating the need for additional modules. The receiver also includes VOLT, RPM, and TEMP ports for traditional telemetry sensors, and an XBUS port for expandable capabilities such as GPS, airspeed, and flight battery energy. This comprehensive telemetry suite allows pilots to monitor critical flight data in real time, enhancing situational awareness and safety.
What makes the AR10100T ideal for Smart ESC integration?
The Spektrum P-SPMAR10100T 10-channel DSMX receiver with Smart ESC support and bind button is ready to use with Spektrum Smart ESCs right out of the box. The throttle port supports one-wire telemetry transmission, allowing current, voltage, temperature, and RPM data to be sent directly to the transmitter without additional wiring or modules. This streamlined setup reduces clutter and simplifies installation, making the AR10100T a preferred choice for pilots using Smart power systems.
How does the AR10100T improve RF reliability?
The Spektrum P-SPMAR10100T with 3.5–9V input, 2048 resolution, and dual external antennas is built for secure signal coverage across all flight profiles. Its dual external antennas ensure consistent RF performance from all angles of the aircraft, while two SRXL2 ports allow connection of up to two remote receivers (sold separately) for additional RF path redundancy. This configuration is especially valuable for large-scale models or complex installations where signal integrity is critical.
Is the AR10100T easy to install and configure?
Yes. The DSMX telemetry receiver with XBUS expansion, RPM/voltage/temp ports, and compact footprint is designed for user-friendly installation and setup. The bind button eliminates the need for a bind plug, and the Micro USB port allows easy firmware updates and registration using Spektrum’s PC Programmer. The receiver supports Forward Programming, enabling pilots to configure failsafe parameters and other settings directly from their transmitter. Its compact dimensions (55 × 30 × 15 mm) and end-pin layout make it easy to install in tight fuselages or crowded electronics bays.
What aircraft types are supported?
The 10-channel receiver for aircraft, helicopters, and sailplanes with SmartSafe and Hold Last failsafe is compatible with all Spektrum DSM2 and DSMX transmitters. It supports a wide range of platforms, including parkflyers, sport-class aircraft, giant-scale models, helicopters, and sailplanes. Its full-range telemetry and robust failsafe options make it suitable for both recreational and performance-focused applications.
Why choose the AR10100T for your next build?
For pilots seeking a compact, feature-rich receiver with advanced telemetry and failsafe capabilities, the best 10-channel DSMX receiver with bind button, SRXL2 support, and Smart ESC compatibility offers a complete solution. With integrated barometer, Smart telemetry support, and secure RF coverage, the AR10100T delivers reliable performance across a wide range of aircraft types. Its ease of installation and compatibility with Spektrum’s ecosystem make it a smart investment for both new builds and upgrades.
Buy Spektrum P-SPMAR10100T AR10100T receiver for electric aircraft with Smart telemetry and barometer.
Technical Specifications of Spektrum P-SPMAR10100T AR10100T receiver with full-range telemetry and integrated barometer
Brand, Model and Product Type
- Brand: Spektrum
- Model: P-SPMAR10100T
- Product Type: Spektrum P-SPMAR10100T AR10100T receiver with full-range telemetry and integrated barometer, Spektrum P-SPMAR10100T 10-channel DSMX receiver with Smart ESC support and bind button, Spektrum P-SPMAR10100T telemetry receiver with SRXL2 ports and USB firmware update access, Spektrum P-SPMAR10100T with 3.5–9V input, 2048 resolution, and dual external antennas, 10-channel receiver for aircraft, helicopters, and sailplanes with SmartSafe and Hold Last failsafe
Dimensions
- Length: 5.5 cm – compact enough for parkflyers and sport-class aircraft
- Width: 3.0 cm – fits easily into standard fuselage compartments
- Height: 1.5 cm – low-profile design for streamlined installations
- Weight: 18 g – lightweight for minimal impact on aircraft CG
Channel and Signal Specifications
- Channels: 10 – supports advanced control setups across multiple aircraft types
- Modulation: DSMX/DSM2 – compatible with all Spektrum DSM2 and DSMX transmitters
- Resolution: 2048 resolution – ensures precise signal processing and control fidelity
- Range: Full – suitable for long-range and high-performance aircraft
Telemetry and Sensor Integration
- Telemetry Support: Yes – full-range telemetry with integrated barometer
- Integrated Barometer: Provides altitude and vario data without external sensors
- Smart ESC Compatibility: Spektrum P-SPMAR10100T 10-channel DSMX receiver with Smart ESC support and bind button – enables one-wire telemetry for voltage, current, RPM, and temperature
- Telemetry Ports: VOLT, RPM, TEMP – supports traditional Spektrum sensors
- XBUS Expansion: DSMX telemetry receiver with XBUS expansion, RPM/voltage/temp ports, and compact footprint – allows GPS, airspeed, and battery energy telemetry integration
Connectivity and Programming
- Bind Method: Bind button – eliminates need for bind plug
- Forward Programming: Yes – configure failsafe parameters and SmartSafe settings via transmitter
- Failsafe Options: SmartSafe, Hold Last, and per-channel failsafe programming
- USB Port: Spektrum P-SPMAR10100T telemetry receiver with SRXL2 ports and USB firmware update access – supports firmware updates and registration via Spektrum PC Programmer
Power and Voltage
- Input Voltage: 3.5–9V input – compatible with standard receiver power systems
Antenna and RF Coverage
- Antenna Length: 18.6 cm (7.32") – optimized for full-range signal transmission
- External Antennas: Dual external antennas – ensures secure RF coverage from all angles
- Remote Receiver Ports: 2 – supports up to two SRXL2 remote receivers for RF path redundancy
Mounting and Application
- Footprint: Compact – suitable for parkflyers, sport-class, and giant-scale aircraft
- Product Application: 10-channel receiver for aircraft, helicopters, and sailplanes with SmartSafe and Hold Last failsafe
- Water-Resistant: No – not designed for wet environments
What’s in the Box
- 1 × Spektrum AR10100T DSMX 10-Channel Telemetry Receiver

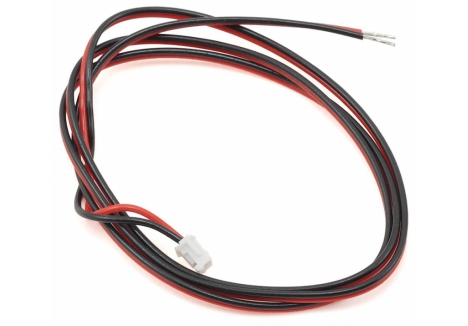

- 1 × Spektrum Flight Pack Voltage Sensor
- 1 × Product Manual
What You Require / What You Will Need
- 1 × Telemetry-capable DSMX transmitter

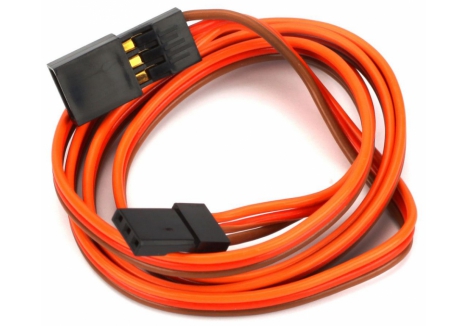

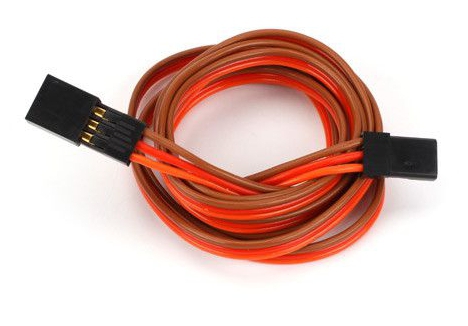

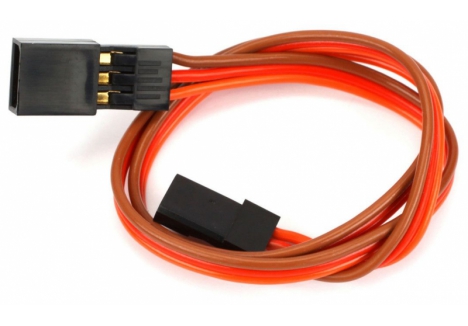

- Servo extensions – may be required depending on installation
Sold Separately

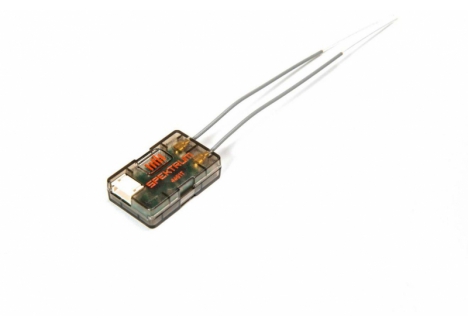

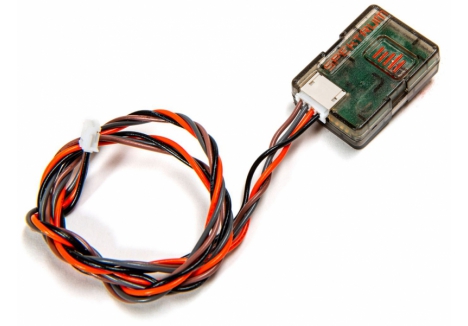

- SRXL2 Remote Receivers (SPM9747 or SPM4651T) – optional for RF redundancy
- Additional telemetry sensors – GPS, airspeed, battery energy modules
