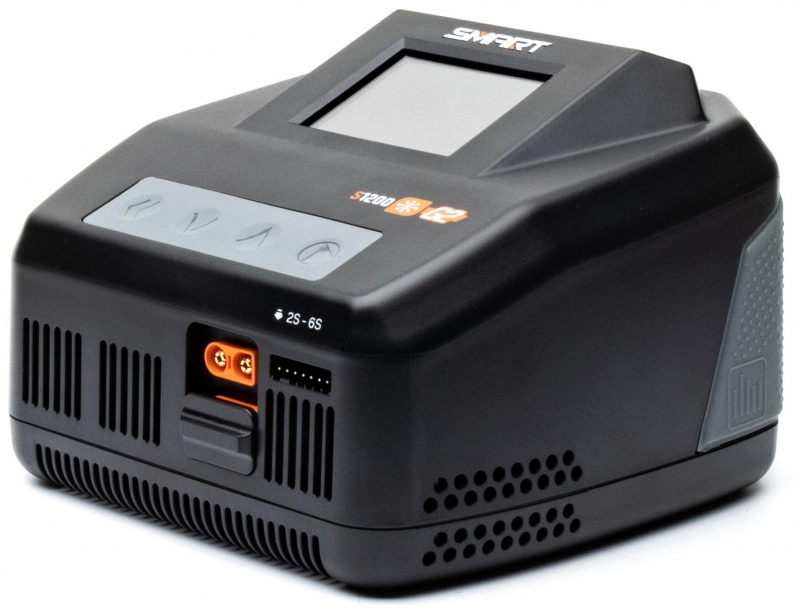

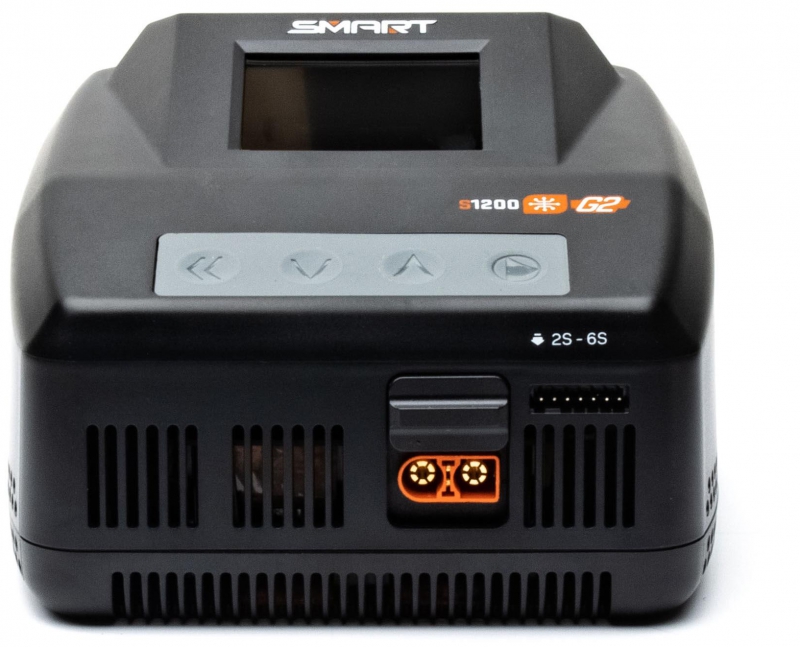

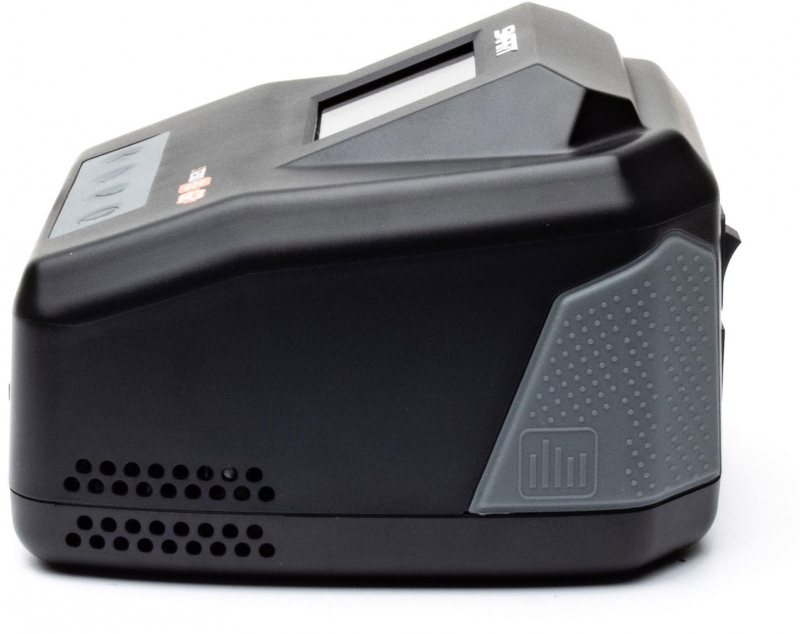

Product Description of Spektrum O-SPMXC2020I S1200 Smart G2 charger with 200W output and IC3/IC5 ports
The Spektrum O-SPMXC2020I S1200 Smart G2 charger with 200W output and IC3/IC5 ports is a high-performance, single-port AC charger built for RC enthusiasts who demand speed, simplicity, and Smart battery integration. With 200W of charging power and support for a wide range of battery chemistries, the S1200 delivers fast, safe, and intelligent charging for everything from LiPo and LiHV to NiMH and Pb packs. Its Auto Charge feature instantly recognizes Smart battery parameters and initiates optimized charging, while the one-wire balance system eliminates the need for separate balance leads—streamlining your setup and reducing clutter.
Key features of the Spektrum O-SPMXC2020I Smart G2 AC charger
- 200W single-port output – ideal for fast charging high-capacity packs
- Auto Charge function – automatically detects Smart battery settings for safe charging
- One-wire balance – balances Smart G2 batteries via IC3/IC5 without separate leads
- 2.4" IPS display – provides clear visuals and real-time charge countdown

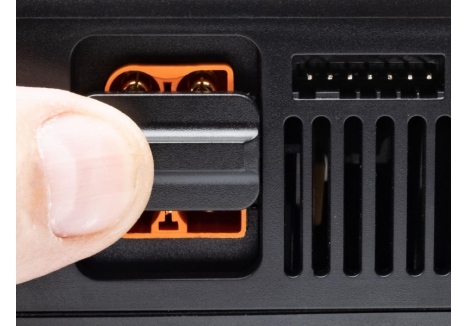

- IC3 and IC5 output ports – adapter-free connection for Smart batteries
- USB firmware updates – ensures access to the latest features and improvements
- Reverse polarity and thermal protection – safeguards charger and battery
- Low-noise cooling fan – maintains optimal temperature during operation
- Compact, rubber-grip case – fits easily into pit bags and workbenches
Why is the S1200 charger ideal for Smart G2 battery users?
The Spektrum O-SPMXC2020I Smart AC charger with Auto Charge and one-wire balance for G2 batteries is designed to make charging as effortless as possible. Once a Smart G2 battery is connected via IC3 or IC5, the charger automatically reads its chemistry, voltage, and preferred charge rate, initiating a safe and accurate charge cycle. Balancing is handled internally through the same connection, removing the need for external balance leads. This streamlined process reduces setup time, minimizes errors, and ensures optimal battery health with every charge.
What makes the user interface more intuitive?
The Spektrum O-SPMXC2020I 200W charger with 2.4" IPS display and USB firmware update support features a redesigned interface with crisp visuals, easy-to-navigate menus, and non-slip buttons. The high-resolution screen displays real-time data, including a countdown clock that shows exactly when your battery will be ready. Icons and navigation tools are optimized for clarity, making it easy to monitor charge progress, access battery history, and adjust settings. USB ports allow firmware updates and secondary device charging, keeping your gear current and versatile.
Which battery types are supported?
The Spektrum single-port charger for LiPo, NiMH, Pb, LiHV, and Smart batteries is compatible with virtually all RC battery chemistries. It supports 1–6S LiPo, LiHV, LiFe, and LiIon packs, as well as NiCd, NiMH, and Pb batteries. Whether you're charging Smart G2 packs or legacy batteries, the S1200 delivers reliable performance and flexible configuration. Its selectable charge rate and internal balancer ensure precise control across all supported chemistries, making it a universal solution for hobbyists with mixed battery inventories.
Why should you buy the Spektrum O-SPMXC2020I Smart charger?
The Spektrum O-SPMXC2020I S1200 Smart G2 charger with 200W output and IC3/IC5 ports is the ultimate single-port charging solution for RC drivers and pilots who value speed, safety, and Smart technology. With support for virtually every battery type, intuitive controls, and advanced features like Auto Charge and internal balancing, it transforms the charging experience into a seamless process. Buy Spektrum O-SPMXC2020I Smart charger for G2 LiPo packs with IC3/IC5 direct connection.
Technical Specifications of Spektrum O-SPMXC2020I S1200 Smart G2 charger with 200W output and IC3/IC5 ports
Brand, Model and Product Type
- Brand: Spektrum
- Model: O-SPMXC2020I
- Product Type: Spektrum O-SPMXC2020I S1200 Smart G2 charger with 200W output and IC3/IC5 ports, Spektrum O-SPMXC2020I Smart AC charger with Auto Charge and one-wire balance for G2 batteries, Spektrum O-SPMXC2020I 200W charger with 2.4" IPS display and USB firmware update support, Spektrum O-SPMXC2020I with real-time charge countdown clock and internal balancer, Smart G2 charger with reverse polarity protection and thermal safety features, Spektrum single-port charger for LiPo, NiMH, Pb, LiHV, and Smart batteries
Dimensions
- Product Length: 14.5 cm – compact footprint for bench or field use
- Product Width: 14.5 cm – stable base with rubber grips for secure handling
- Product Height: 10.4 cm – accommodates cooling fan and display interface
- Product Weight: 1015 g (2.2 lb) – portable yet sturdy for transport and setup
Power and Charging Specifications
- Input Voltage: 100–240V AC – supports global power standards
- Power Output: 200W – high-speed single-port charging
- Maximum Charge Rate: 15A – adjustable in 0.1A increments
- Standard Charge Rate: 0.1–15.0A – user-defined for safe charging
- Maximum Discharge Rate: 1.5A – adjustable in 0.1A steps (10W max)
Battery Compatibility
- Supported Chemistries: Smart, LiPo, LiHV, LiFe, LiIon, NiMH, NiCd, Pb
- LiPo Compatibility: 1S–6S – supports wide range of RC battery configurations
- NiMH/NiCd Compatibility: 1–16S – suitable for legacy packs
- Pb Compatibility: 1–12S – supports sealed lead-acid batteries
Smart Features and Safety
- Auto Charge: Yes – automatically detects Smart battery parameters
- Integrated Balancing: Yes – internal balancer with one-wire IC3/IC5 connection
- Safety Timer: Yes – prevents overcharging and thermal stress
- Reverse Polarity Protection: Yes – guards against incorrect connections
- Short Circuit Protection: Yes – ensures safe operation
- Thermal Protection: Yes – maintains safe operating temperature
- Overcurrent Protection: Yes – protects charger and battery from overload
Display and Interface

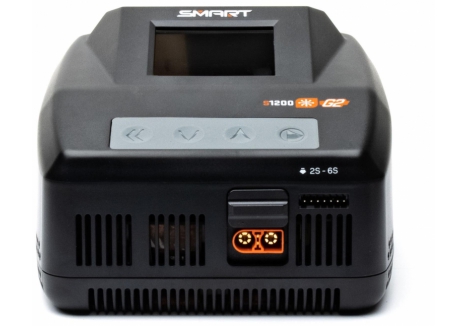

- Display Type: 2.4" IPS LCD – 320 × 240 resolution for clear visuals
- Charge Countdown Clock: Yes – shows real-time progress until full charge
- User Interface: Updated menus, icons, and navigation tools – intuitive and responsive
Connectivity and Ports

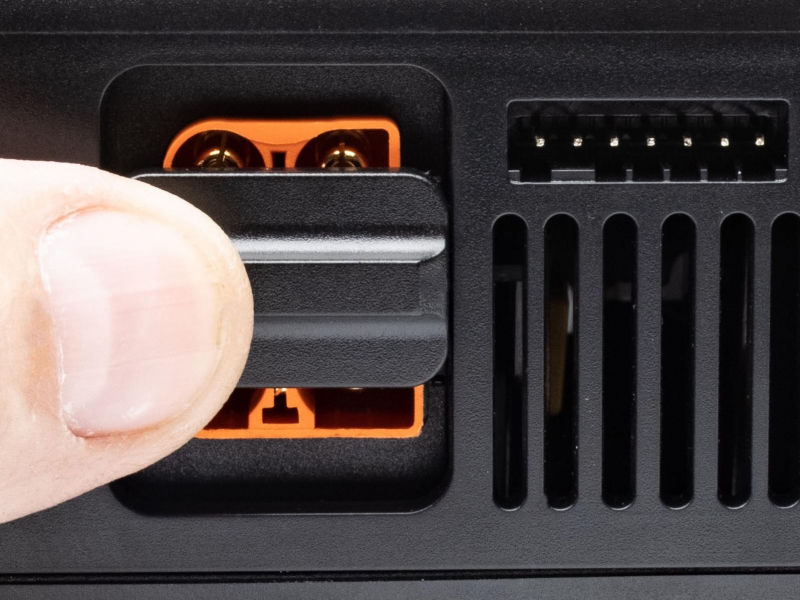

- Output Ports: 1 – single-channel charging via IC3 and IC5 connectors

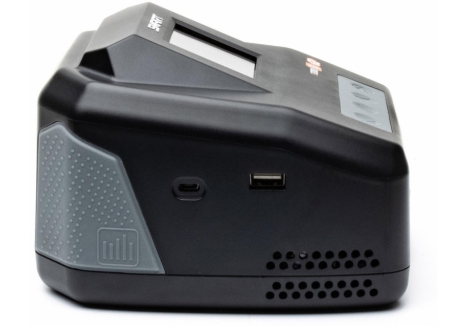

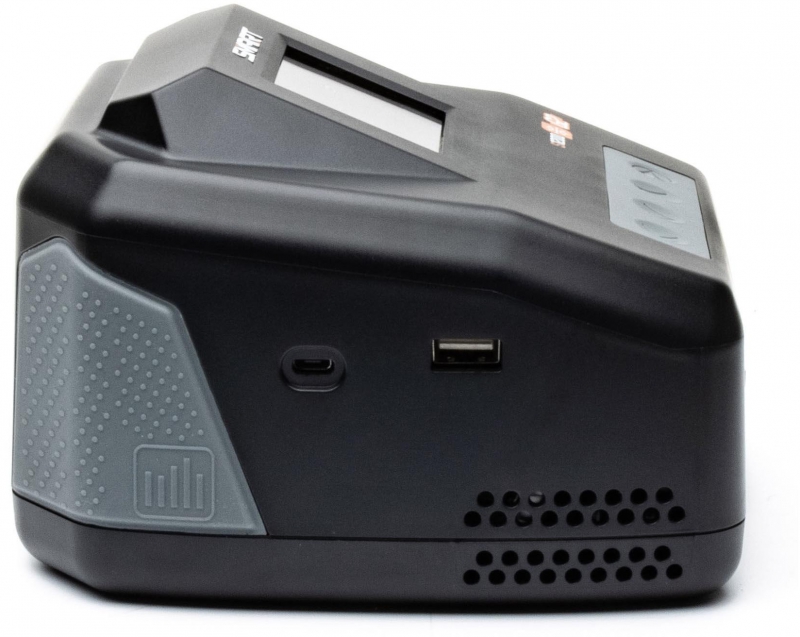

- USB Ports: Yes – supports firmware updates and secondary device charging
- PC Connectivity: Yes – enables data access and software integration

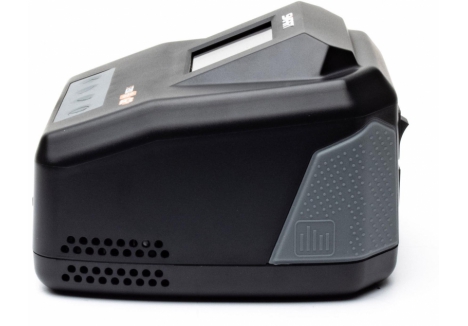

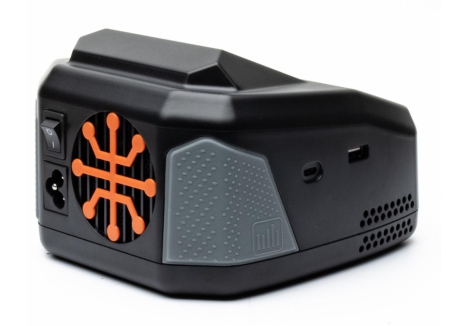

Construction and Design
- Case Design: Sleek, sturdy – fits well on workbenches and in field bags

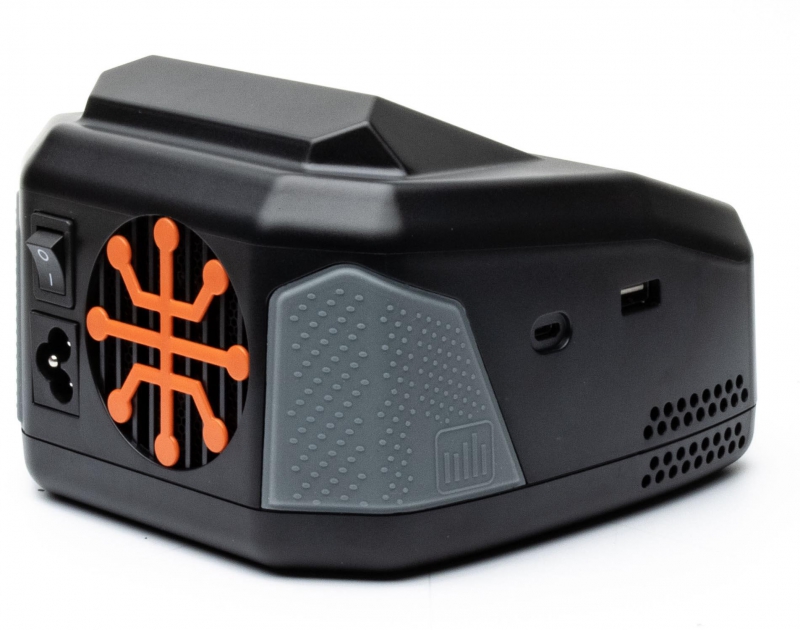

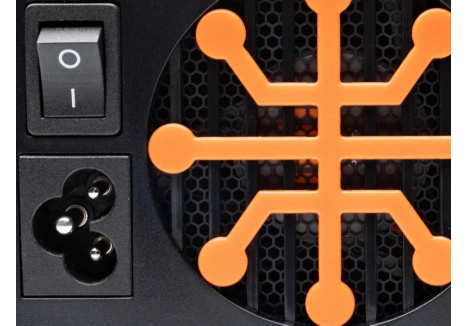

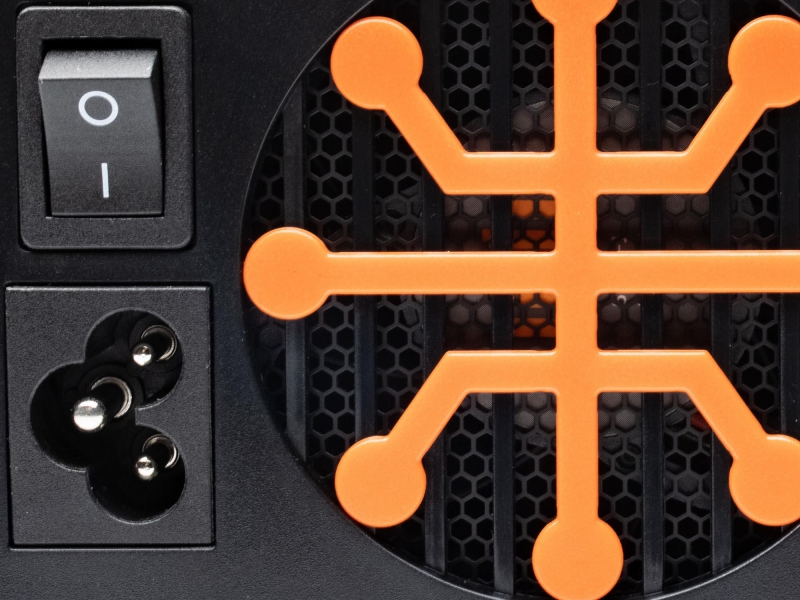

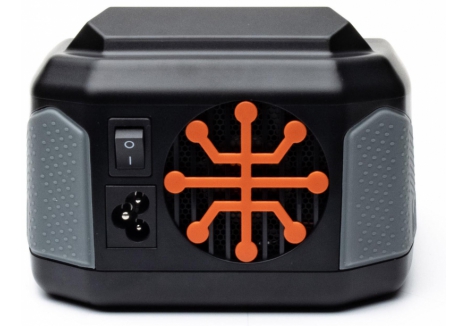

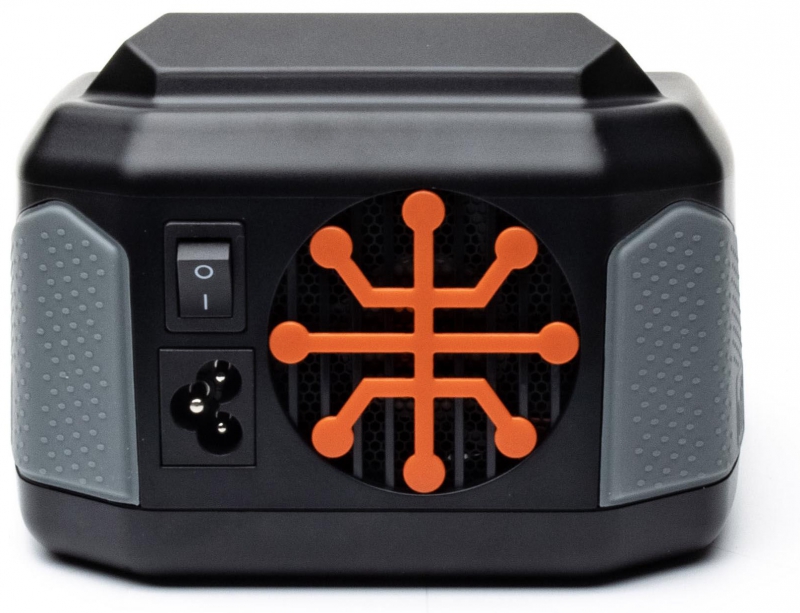

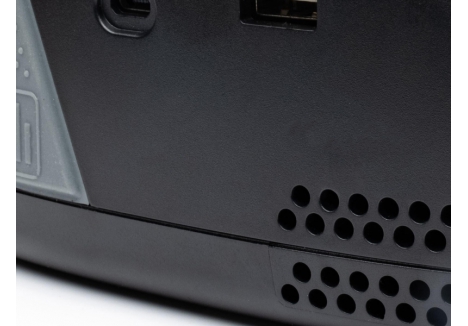

- Cooling System: Low-noise fan – maintains optimal temperature during operation
- Power Switch: ON/OFF – eliminates need to unplug for control
- Detachable Power Cord: Yes – enhances portability and convenience
What’s in the Box
- 1 × Spektrum S1200 Smart G2 AC Charger
- 1 × Power Cord
- 1 × Product Manual
What You Require / What You Will Need
- Compatible Smart or non-Smart battery packs
- Access to AC power outlet (100–240V)
Sold Separately

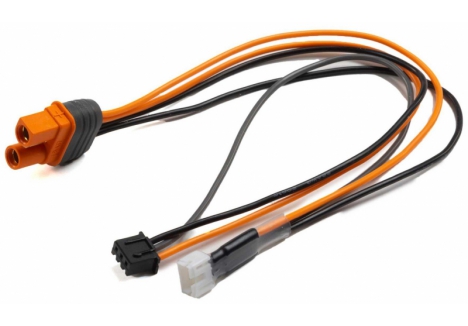

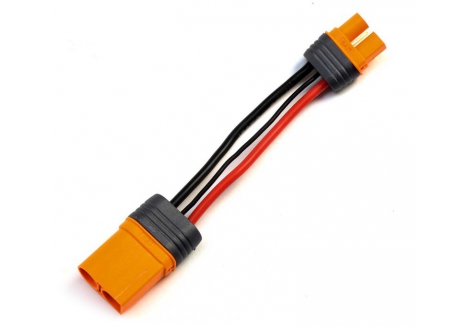

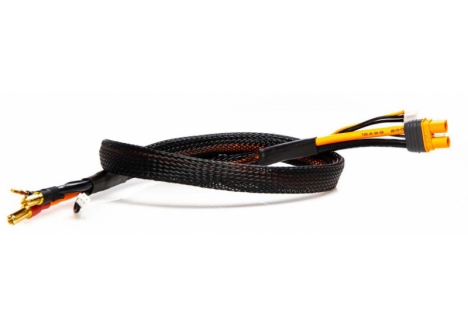

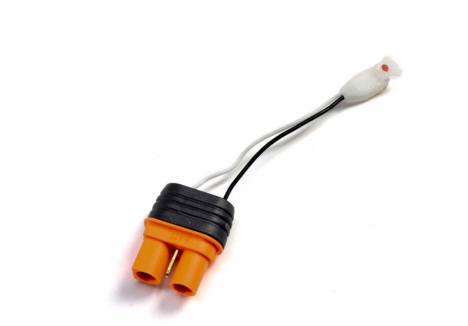

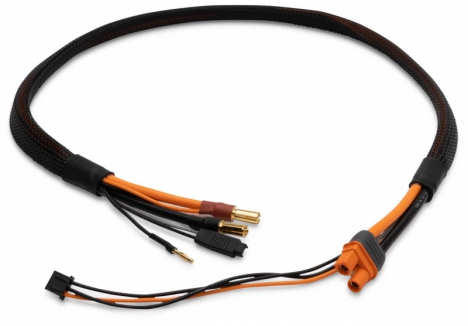

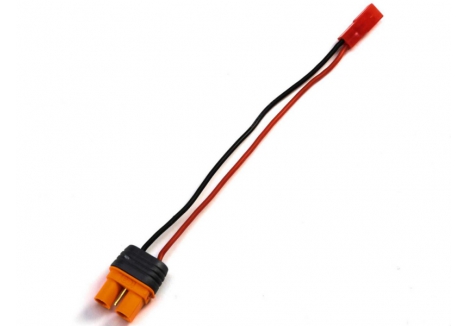

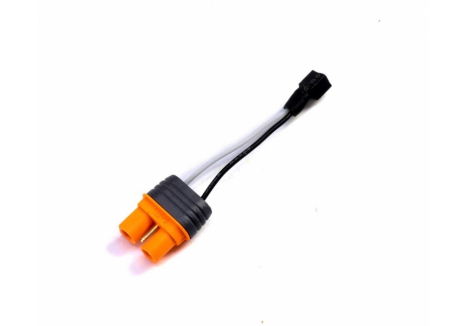

- Additional IC3/IC5 charge leads or adapters (if needed)

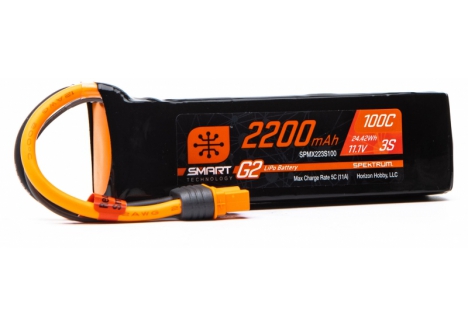

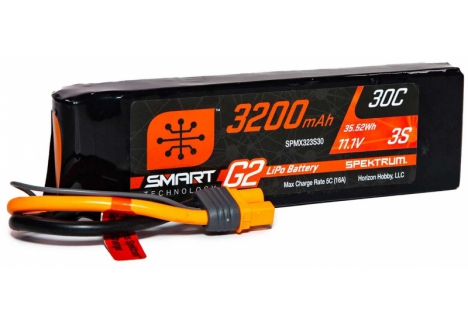

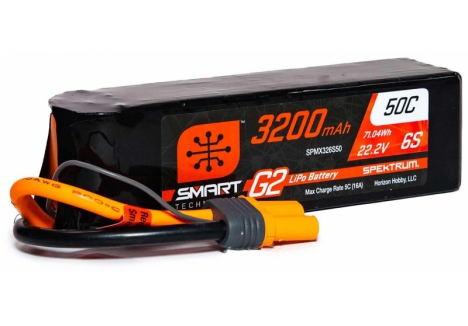

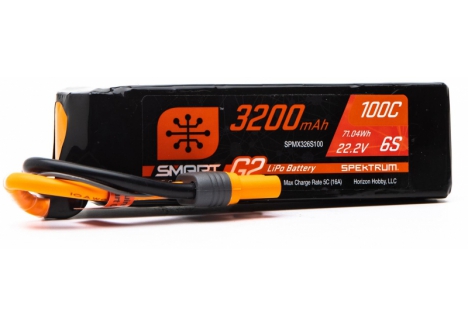

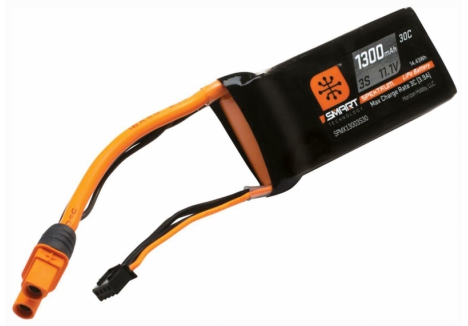

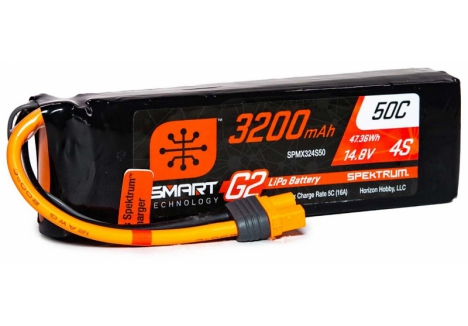

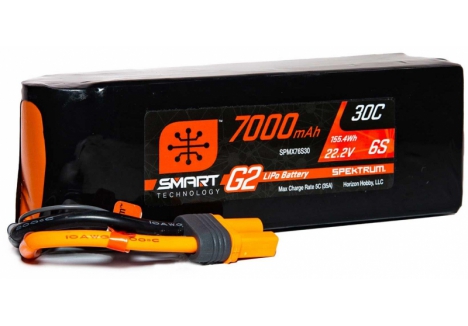

- Smart batteries for full feature access
