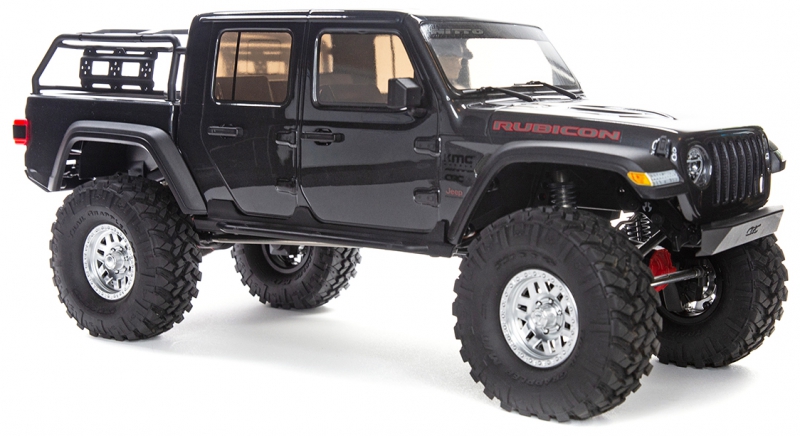

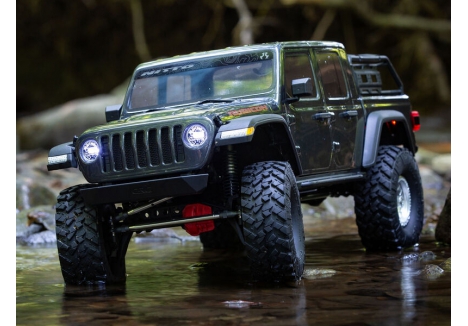

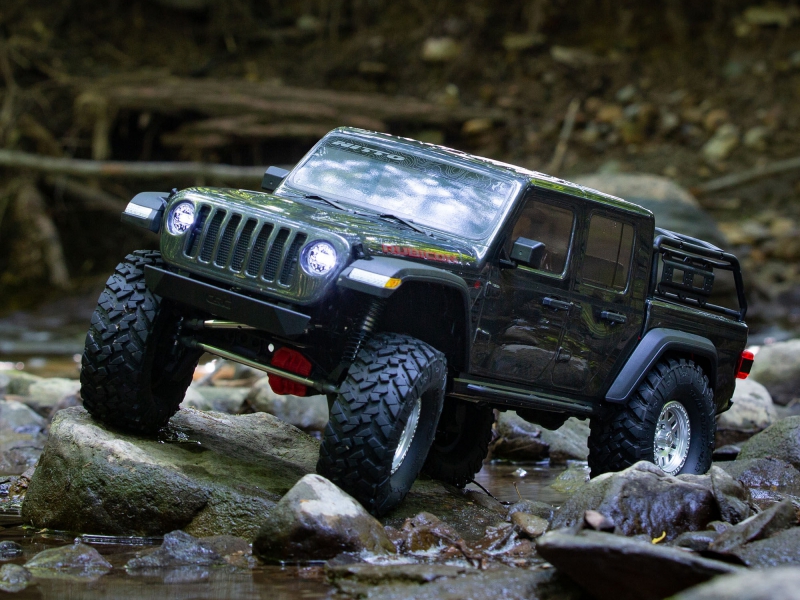

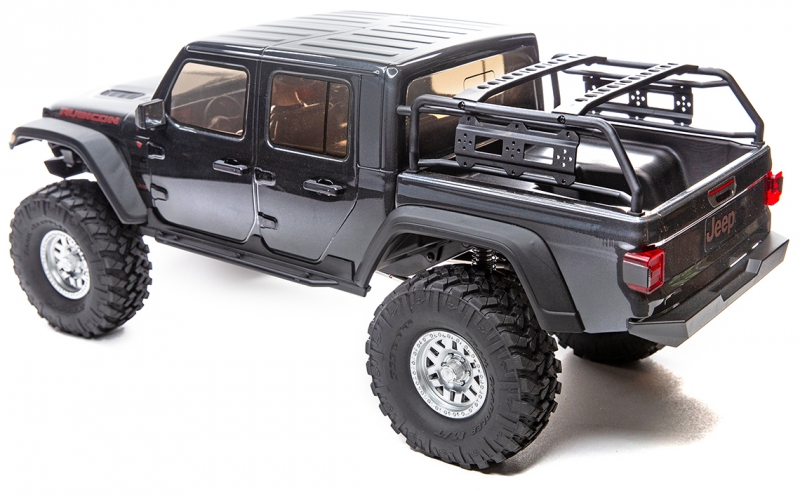

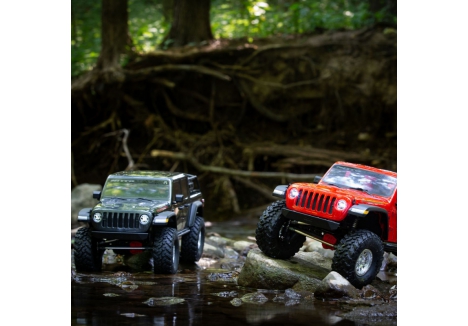

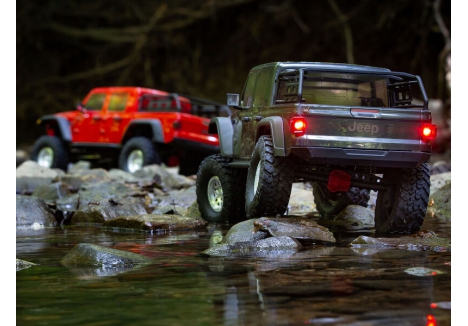

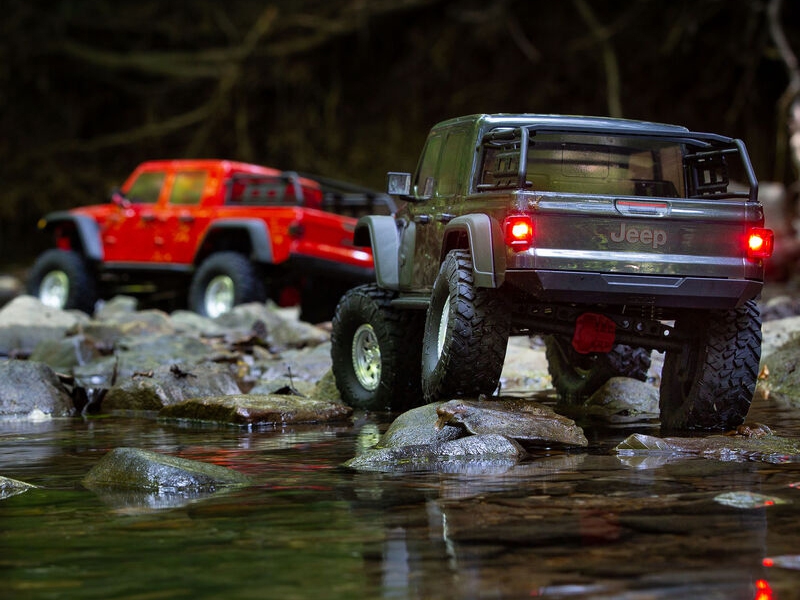

Product Description of Axial C-AXI03006BT1 1/10 SCX10III Jeep JT Gladiator 4WD Rock Crawler
The Axial C-AXI03006BT1 1/10 SCX10III Jeep JT Gladiator 4WD Rock Crawler is a ready-to-run brushed trail crawler engineered for scale realism, rugged terrain performance, and modular upgrade flexibility. Designed around the proven SCX10III platform, this model delivers a transformative off-road experience with a host of advanced features including portal axles, DIG transmission, and Smart-enabled electronics. The extended 13.9-inch wheelbase supports a highly detailed three-piece Jeep JT Gladiator body, complete with over 20 injection-molded components that elevate visual authenticity. Whether you're navigating rocky trails or fine-tuning suspension geometry for technical crawling, the Axial C-AXI03006BT1 SCX10III Jeep JT Gladiator brushed rock crawler RTR offers unmatched control, realism, and durability straight out of the box.
Key features of the Axial C-AXI03006BT1 SCX10III Jeep JT Gladiator
- DIG transmission with optional two-speed setup – switch between tighter turning radius or faster gear ratios
- AR45 portal axles – increased ground clearance and reduced torque twist for superior crawling
- Three-piece Jeep JT Gladiator body – enhanced realism with over 20 injection-molded scale details
- Spektrum Smart electronics – real-time telemetry and programmable ESC settings via DX3 transmitter

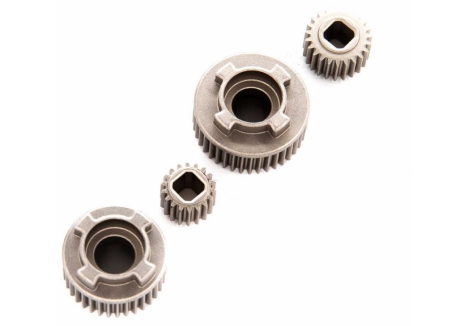

- All-metal drivetrain – 23 metal gears across transmission, portals, and axles for extreme durability
- Hard anodized oil-filled shocks – threaded bodies and bleed screws for precise tuning and easy rebuilds
- Flexible battery mounting – central tray for full-size packs plus side pod mounts for shorty LiPos
- Extended wheelbase and frame rails – supports full-scale Jeep JT Gladiator proportions
- Waterproof electronics – drive confidently in all weather and trail conditions
How does the DIG transmission enhance trail performance?

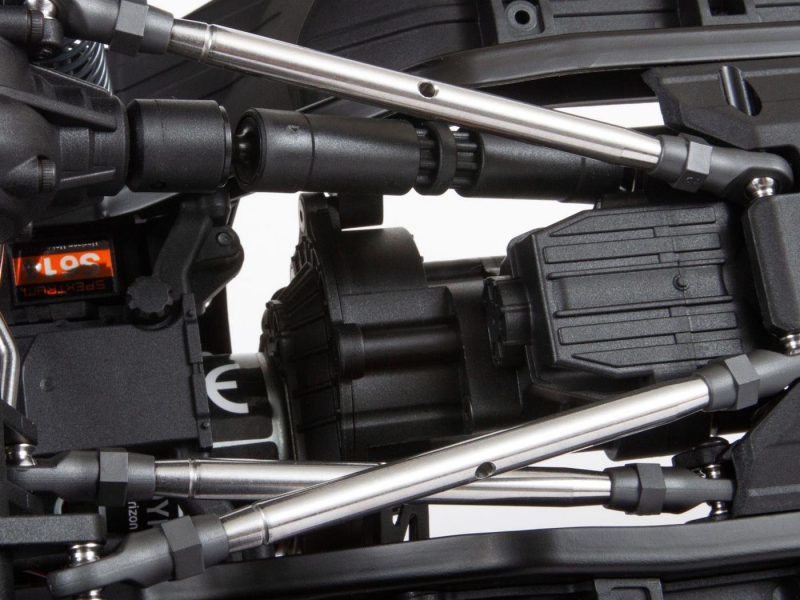

The Axial SCX10III Jeep JT Gladiator scale trail crawler arrives factory-configured with a DIG transmission that allows drivers to lock the rear axle from the DX3 transmitter. This enables front-wheel drive on demand, dramatically tightening the turning radius for navigating sharp corners and technical terrain. For those seeking speed over maneuverability, the DIG function can be replaced with a second gear that delivers a 40% increase in velocity. Advanced users can install an additional micro servo and use a four-channel or higher transmitter, such as the Spektrum DX5, to access both DIG and two-speed functions simultaneously. This modular transmission setup gives the Axial SCX10III Jeep JT Gladiator RTR for off-road trail crawling unmatched versatility in performance tuning.

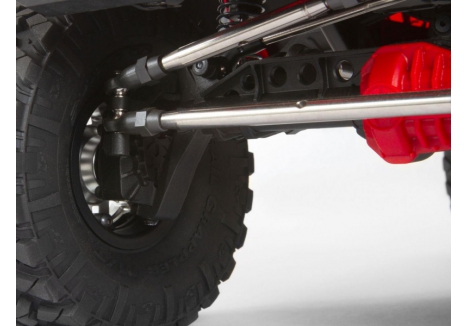

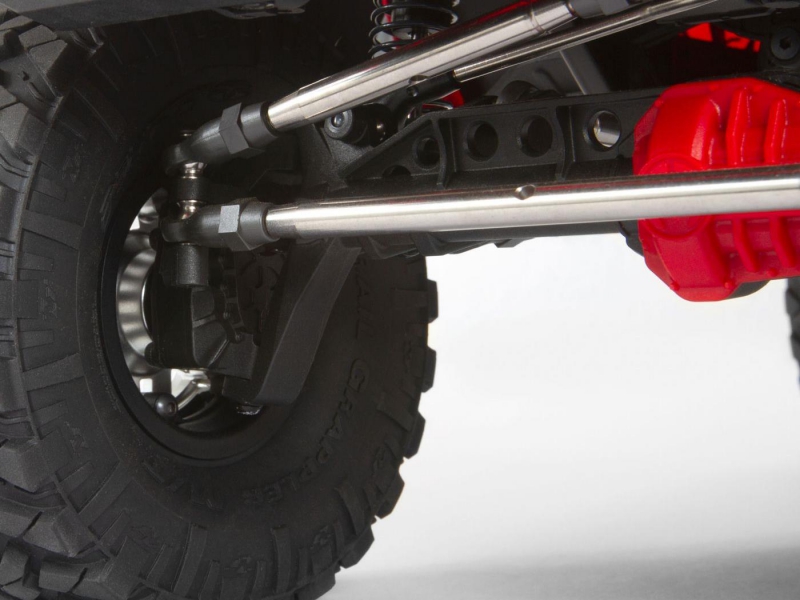

What makes the AR45 portal axles a game-changer?
The Axial SCX10III Jeep JT Gladiator 4WD with Nitto Trail Grappler tyres features AR45 portal axles with an offset front housing that mirrors full-scale vehicle geometry. These axles incorporate portal gears to raise ground clearance and reduce torque twist, allowing for smoother articulation and better obstacle negotiation. The universal joints provide up to 45 degrees of steering, while the differential locker uses Hypoid gears to achieve compact gear sizing and improved reduction ratios. This axle configuration not only boosts crawling capability but also enhances the visual realism of the Axial C-AXI03006BT1 Jeep JT Gladiator RTR with Spektrum Smart electronics.

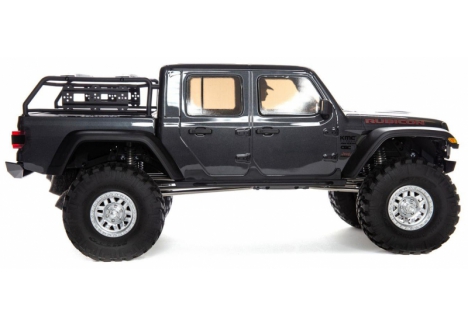

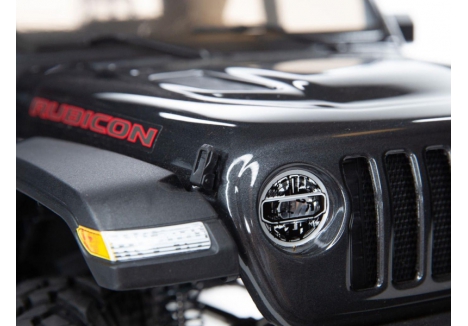

Why is the three-piece Jeep JT Gladiator body so realistic?

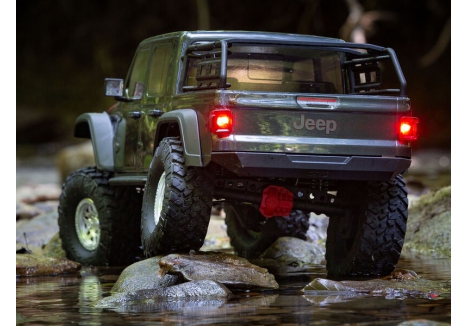

The body of the Axial SCX10III Jeep JT Gladiator ready to run brushed rock crawler is a standout feature, designed to replicate the full-size Jeep JT Gladiator with precision. Split into three sections, the Lexan body includes a deep bed that accommodates scale accessories and adds dimensional realism. Over 20 injection-molded components such as mirrors, hood vents, door handles, and a bed rack elevate the visual detail far beyond standard polycarbonate shells. Inner fender liners and floor sides conceal internal components, maintaining the clean, scale appearance from all angles. This attention to detail makes the Axial SCX10III Jeep JT Gladiator RTR for off-road trail crawling a top choice for enthusiasts who value authenticity.
How do Spektrum Smart electronics improve control?
Equipped with the Spektrum DX3 DSMR transmitter and Firma Smart 40A ESC/receiver, the Axial C-AXI03006BT1 SCX10III Jeep JT Gladiator scale rock crawler for sale supports real-time telemetry and programmable ESC settings. When paired with a Spektrum Smart LiPo battery, users can monitor battery capacity directly on the transmitter’s voltage indicator. The DX3 also supports the optional BT2000 Bluetooth module, enabling access to the Spektrum Dashboard app for enhanced telemetry without additional sensors. This integration of Smart technology ensures that the Axial SCX10III Jeep JT Gladiator brushed rock crawler RTR delivers responsive control, superior range, and interference resistance in any environment.
What durability features set this model apart?

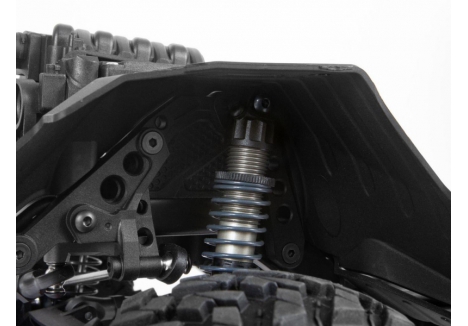

Durability is a cornerstone of the Axial SCX10III Jeep JT Gladiator with DIG function and portal axles. The drivetrain includes 23 metal gears across the transmission, portal axles, and differentials, ensuring long-term reliability under stress. The hard anodized oil-filled shocks feature threaded bodies and emulsion-style caps with bleed screws for easy maintenance and precise preload adjustment. Stainless steel pivot balls at all suspension points extend wear life and maintain consistent handling. Improved materials throughout the chassis allow for tighter tolerances and reduced slop, giving the Axial C-AXI03006BT1 SCX10III Jeep JT Gladiator 4WD Rock Crawler a refined, rugged build that’s ready for demanding trails.
Is the chassis designed for balance and flexibility?

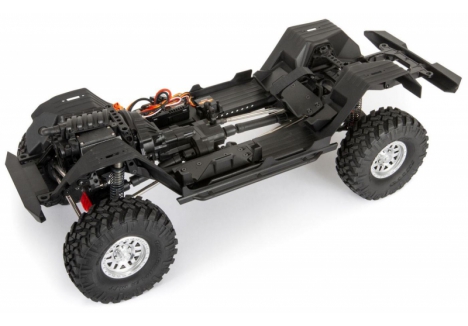

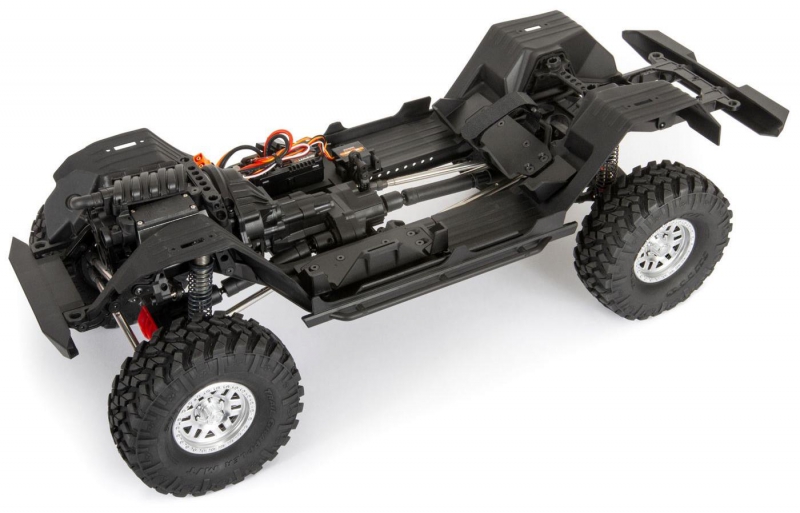

The chassis of the Axial SCX10III Jeep JT Gladiator brushed rock crawler RTR is engineered for optimal weight distribution and battery flexibility. The motor is mounted at the front to shift weight forward, improving climbing performance. The standard battery tray is centrally located for balance and accepts full-size LiPo or NiMH packs. For users who prefer compact power sources, side pod mounts accommodate shorty LiPo packs. The extended 13.9-inch wheelbase and longer frame rails support the full-scale Jeep JT Gladiator body, while the new rear body mount design simplifies removal for maintenance or customization. These features make the Axial SCX10III Jeep JT Gladiator scale trail crawler adaptable to a wide range of user preferences and terrain types.
Why choose the Axial SCX10III Jeep JT Gladiator for scale crawling?
From its highly detailed body to its advanced drivetrain and Smart electronics, the Axial SCX10III Jeep JT Gladiator RTR for off-road trail crawling is purpose-built for scale enthusiasts and performance seekers alike. The combination of DIG transmission, portal axles, and waterproof electronics ensures that the crawler performs reliably in diverse conditions. The inclusion of officially licensed Nitto Trail Grappler tyres mounted on 3-piece beadlock wheels adds grip and realism, while the molded interior and driver figure complete the scale experience. For those seeking the best Axial SCX10III Jeep JT Gladiator brushed rock crawler RTR with uncompromising detail and trail capability, this model stands out as a top-tier choice.
To experience the full potential of scale crawling with advanced features and rugged design, buy Axial C-AXI03006BT1 SCX10III Jeep JT Gladiator scale rock crawler for sale and elevate your off-road adventures today.
Technical Specifications of Axial C-AXI03006BT1 1/10 SCX10III Jeep JT Gladiator 4WD Rock Crawler
Brand, Model and Product Type
- Brand: Axial
- Model: C-AXI03006BT1
- Product Type: Axial C-AXI03006BT1 1/10 SCX10III Jeep JT Gladiator 4WD Rock Crawler, Axial C-AXI03006BT1 SCX10III Jeep JT Gladiator brushed rock crawler RTR, Axial C-AXI03006BT1 SCX10III Jeep JT Gladiator scale trail crawler, Axial SCX10III Jeep JT Gladiator with DIG function and portal axles, Axial C-AXI03006BT1 Jeep JT Gladiator RTR with Spektrum Smart electronics
Dimensions
- Product Length: 56.5 cm – extended wheelbase supports full-scale Jeep JT Gladiator proportions
- Product Width: 23.5 cm – wide stance improves stability on uneven terrain
- Product Height: 24.1 cm – accommodates detailed interior and molded driver figure
- Wheelbase: 35.3 cm – longer frame rails enhance realism and crawling capability
- Ground Clearance: 7.62 cm – portal axles increase clearance for obstacle negotiation
- Front/Rear Track Width: 22.6 cm – balanced track width for consistent handling
- Product Weight: 3175 g – optimized for trail stability and scale realism
Chassis and Suspension
- Chassis Type: Adjustable steel C-channel – durable and rigid for off-road performance

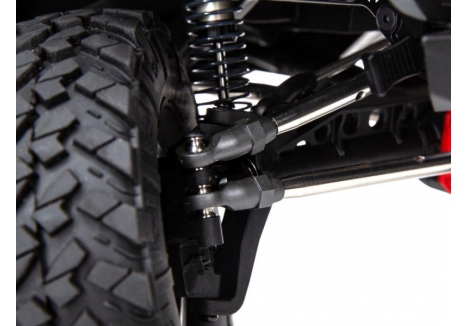

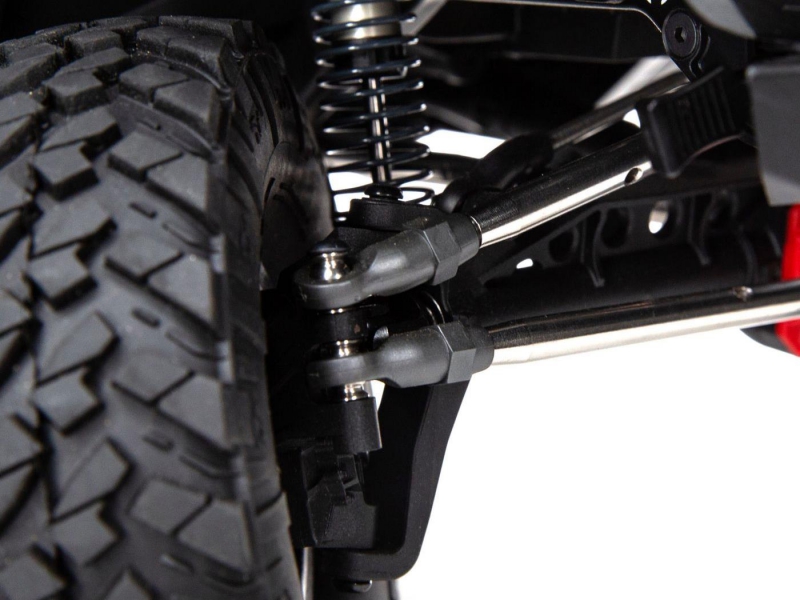

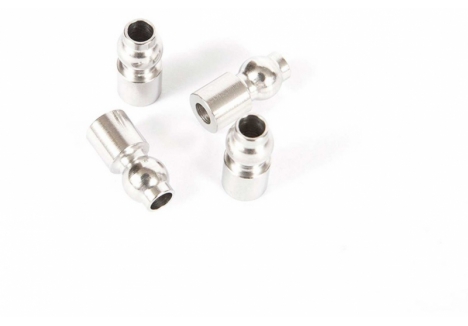

- Suspension System: Multi-link solid axle with stainless steel pivot balls – reduces torque twist and improves articulation

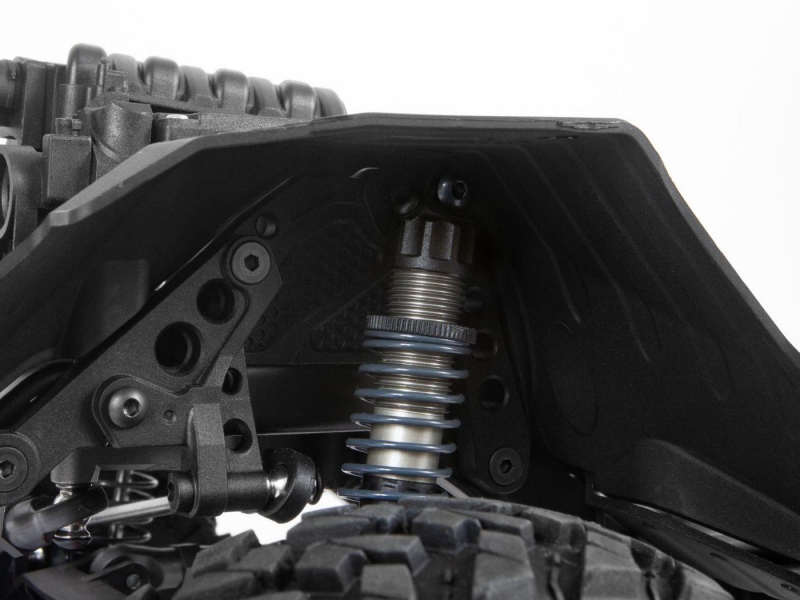

- Shock Type: Hard anodized oil-filled shocks – threaded bodies with bleed screws for precise tuning
- Suspension Geometry: Optimized for portal axles – enhances crawling stability and fine-tuning potential
Drivetrain and Transmission
- Drive Type: 4WD – full-time four-wheel drive for superior traction
- Transmission: DIG function with optional two-speed setup – choose tighter turning radius or 40% faster gear
- Gear Pitch: 32-pitch – durable gearing for trail use
- Final Drive Ratio: 45.6:1 (Low) / 31.3:1 (High) – optimized for torque and speed balance

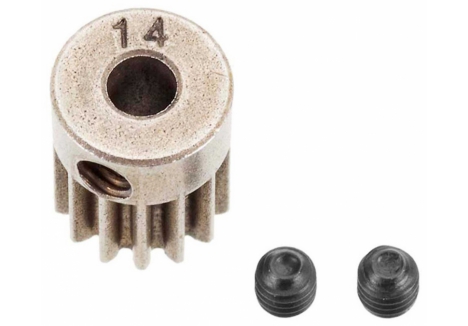

- Pinion Gear: 14T – matched for brushed motor performance
- Spur Gear: 40T – contributes to gear reduction and crawling control
- Differential: Locked – ensures consistent power delivery across all wheels

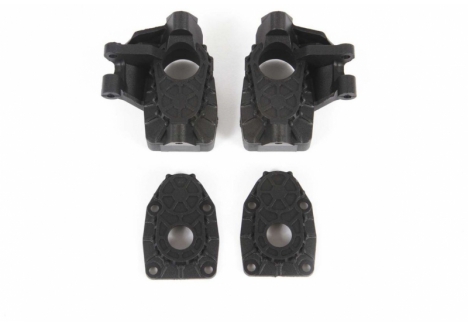

- Axle Type: AR45 portal axles – offset front housing with Hypoid gears for scale realism and reduced twist
- Steering Angle: Up to 45 degrees – enabled by universal joints in portal axles
Motor and Electronics

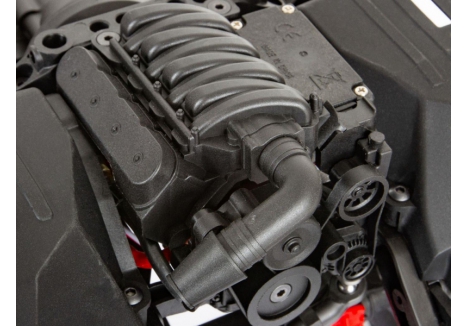

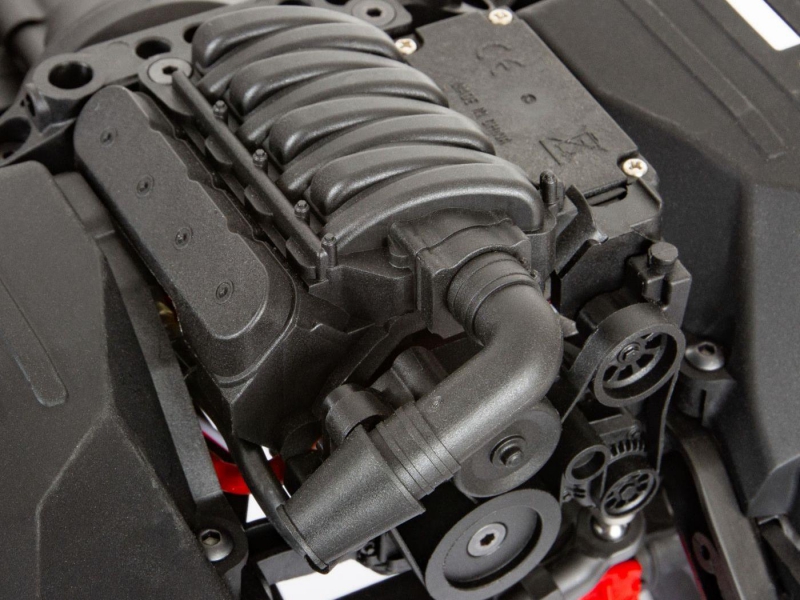

- Motor Type: Brushed – housed in replica V8 engine cover for scale appearance and forward weight

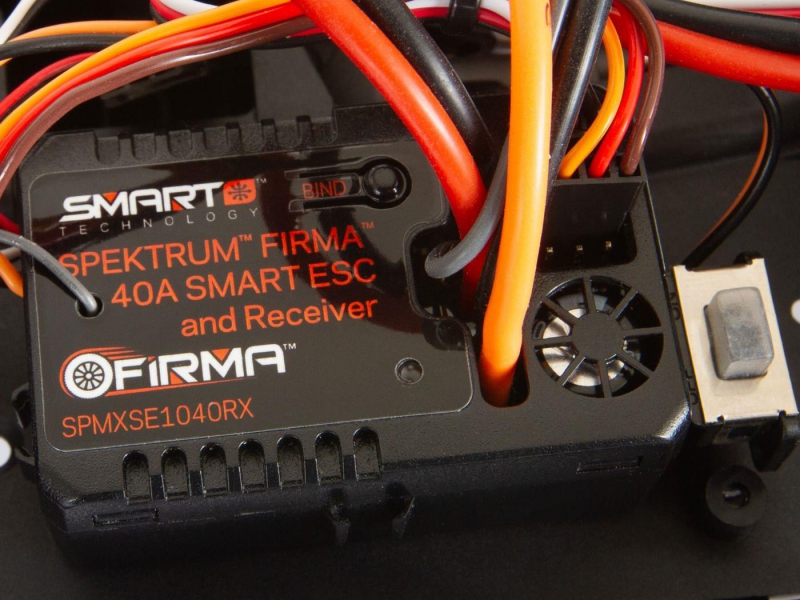

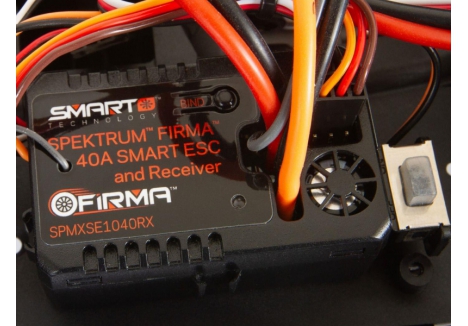

- ESC/Receiver: Spektrum Firma Smart 40A – supports Smart telemetry and programmable settings
- Radio System: Spektrum DX3 DSMR – interference-resistant with Smart battery monitoring

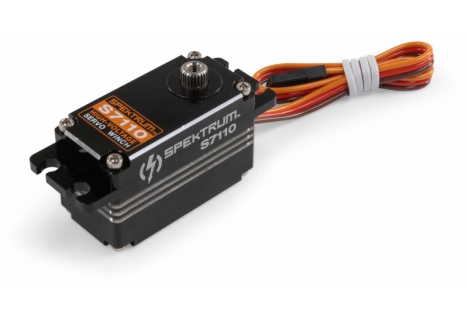

- Servo: Spektrum 15kg metal gear – waterproof and high-torque for trail reliability
- Technology: Smart – compatible with Spektrum Dashboard app via optional Bluetooth module
Battery and Power
- Battery Compatibility: 2S and 3S LiPo – supports standard and shorty packs
- Battery Tray: Center-mounted – improves chassis balance with front-mounted motor
- Side Pod Mounts: Available – for users preferring smaller LiPo configurations
- Max Battery Dimensions: 13.85 x 4.65 x 3.5 cm – accommodates full-size packs
- Connector Type: IC3 – ensures secure and efficient power delivery
Body and Tyres
- Body Type: Three-piece Lexan Jeep JT Gladiator – includes over 20 injection-molded scale details
- Interior: Molded driver figure – enhances scale realism

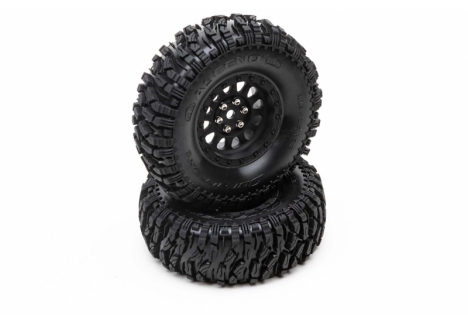

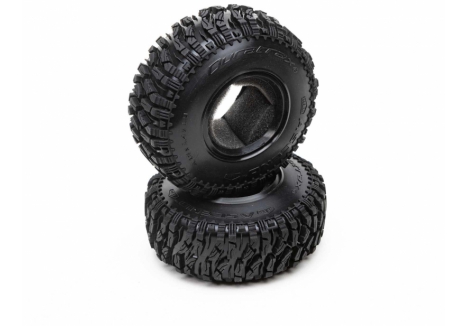

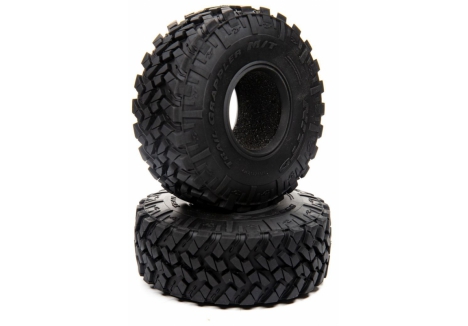

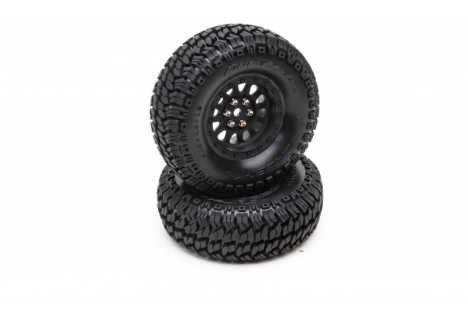

- Tyres: Licensed Nitto Trail Grappler – R35 compound for grip on dirt, rocks, and trails

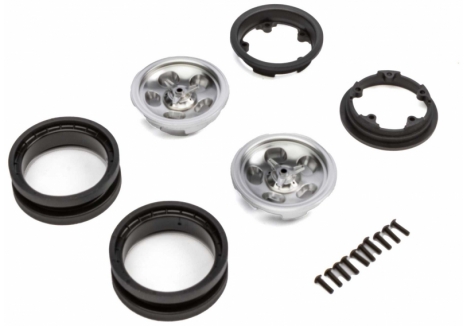

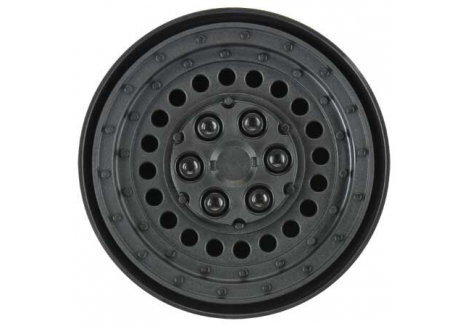

- Wheels: 3-piece beadlock – tyres removable and replaceable without glue

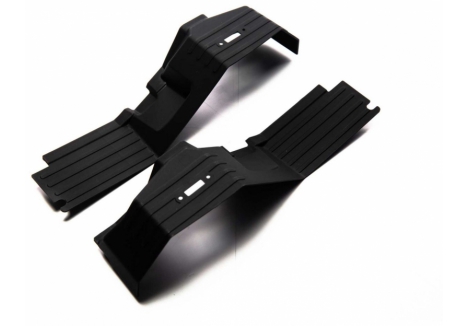

- Inner Fenders: Injection-molded – hide internal components for clean side profile
Control and Operation
- Drive Modes: Forward, Brake, Reverse – controlled via DX3 transmitter
- Radio Features: Thumb steering attachment – adds driving versatility
- Telemetry: Real-time battery capacity monitoring – available with Smart LiPo and DX3
What's in the Box
- Axial SCX10III Jeep JT Gladiator 4WD RTR

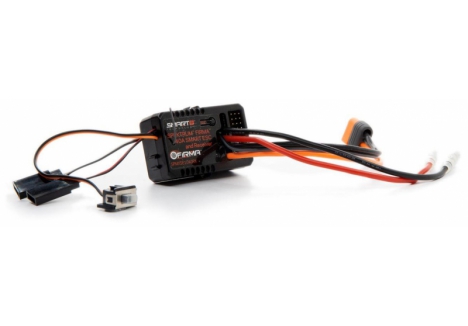

- Spektrum Firma Smart 40A ESC/Receiver (installed)
- Spektrum 15kg Servo (installed)

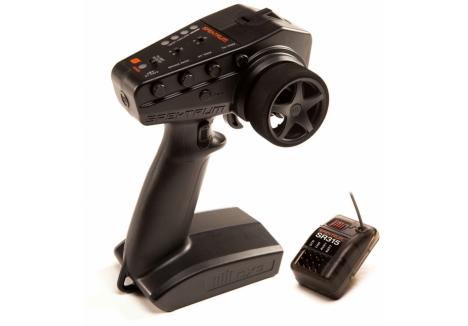

- Spektrum DX3 DSMR Radio
- 1/10 SCX10III Jeep JT Gladiator Manual
What You Will Need
- Vehicle Battery – accepts standard and shorty LiPo packs
- Compatible Charger – for 2S or 3S LiPo batteries
- LiPo Safety Container – recommended for safe charging and storage
Sold Separately
- Dynamite LED Program Card – for quick ESC programming

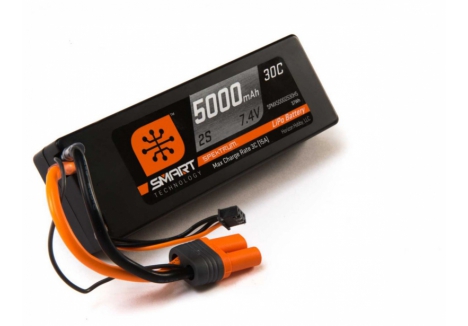

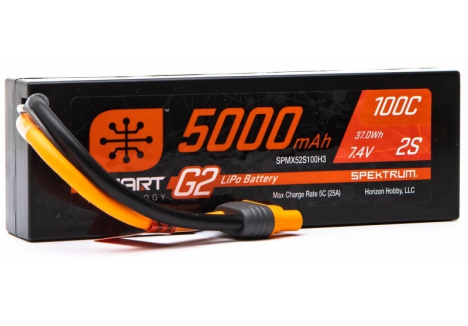

- Spektrum Smart LiPo Battery – required for Smart telemetry features
- Spektrum BT2000 Bluetooth Module – enables Spektrum Dashboard app connectivity
- Additional Micro Servo – needed for simultaneous DIG and two-speed transmission setup
- 4+ Channel Transmitter – such as Spektrum DX5, required for advanced transmission control
Warranty
- 1 Year Manufacturer Warranty – covers defects in materials and workmanship
