- Brand: Spektrum
- Model Number: SPMX32004S30
- Battery Type: LiPo (Lithium Polymer)
- Voltage: 14.8V nominal
- Cell Count: 4S (4 cells)
- Voltage per Cell: 3.7V
- Capacity: 3200mAh
- Watt Hours: 47.36Wh
- Discharge Rate (Maximum Continuous): 30C
- Charge Rate (Maximum): 5C
- Standard Charge Current: 3.2A (1C rate)
- Maximum Burst Discharge Rate: 30C
- Maximum Discharge Current: 96 amps (3200mAh × 30C)
- Connector Type: IC3
- Connector Compatibility: EC3 backwards compatible
- Balance Connector: JST_XH
- Balance Lead Length: 2.4 inches (60mm)
- Discharge Lead Length: 3.5 inches (89mm)
- Wire Gauge: 12 AWG
- Length: 5.55 inches (141mm)
- Width: 1.65 inches (42mm)
- Height: 1.02 inches (26mm)
- Weight: 11.4 ounces (325g)
- Case Type: Hard protective metal alloy housing
- Case Material: Metal alloy sheet exterior
- Charge Protection: Yes - integrated circuitry
- Short Circuit Protection: Yes
- Technology: Spektrum Smart Battery Technology
- Smart Microchip: Yes - stores battery parameters and health data
- Smart Discharge Feature: Yes - automatic discharge to safe storage voltage between 12-240 hours
- Data Logging: Tracks battery brand, type, capacity, C rating, cell voltage, temperature, charge cycles, discharge cycles, internal resistance
- Error Logging: Records over-heat, over-discharge, and over-charge incidents
- Application: RC Aircraft
- Customer Rating: 4 out of 5 stars
Overview

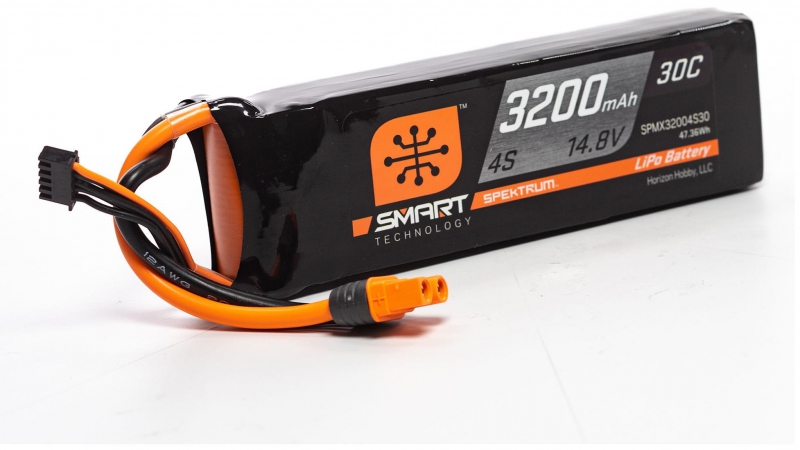

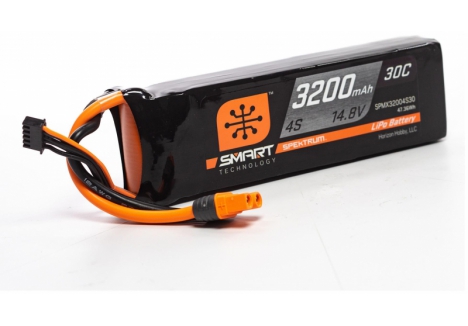

The Spektrum 14.8V 3200mAh 4S 30C Smart LiPo Battery with IC3 connector is a premium lithium polymer battery designed for high-performance RC aircraft and demanding applications. This intelligent battery system combines cutting-edge Smart technology with reliable power delivery, making it an ideal choice for RC enthusiasts across the UK seeking maximum performance and convenience. Whether you're flying electric RC planes, running competitive models, or upgrading an existing RC setup, this 4S LiPo battery offers the punch and reliability needed for serious flying.
What sets this battery apart from standard RC batteries is its integrated microchip and Smart technology compatibility. When connected to a compatible Spektrum Smart charger, this battery automatically uploads its unique parameters and health data, eliminating the need to manually configure charge settings every time you use it. Simply press the start button on your charger and let the Smart technology handle the rest. The battery intelligently stores vital information including charge cycles, temperature data, and discharge history, giving you complete visibility into your battery's condition and performance history.
Built with a protective outer metal alloy sheet, this battery combines durability with excellent heat dissipation properties, ensuring it maintains optimal performance during extended flight sessions. The 30C discharge rate makes this battery perfect for high-performance models and power systems, delivering the acceleration and sustained power that competitive pilots and experienced flyers demand from their RC equipment. With 3200mAh of capacity distributed across 4 cells, this battery provides excellent energy density in a compact, flight-ready package.
Key Features
- Spektrum Smart Technology — The integrated microchip stores unique battery parameters and health data that automatically upload to Spektrum Smart chargers, eliminating manual setup and ensuring optimal charging every time you fly.
- Automatic Smart Discharge — When programmed with a Spektrum Smart charger, the battery automatically discharges to your predetermined storage voltage after 12 to 240 hours of rest, protecting the lithium polymer cells from damage caused by prolonged full-charge storage and significantly extending overall battery lifespan.
- Data-Rich Monitoring — The integrated microchip records essential information such as battery brand, chemistry, cell count, capacity, charge and discharge cycle counts, C rating, temperature, and internal resistance, plus an error log tracking over-charge, over-discharge, and over-temperature incidents.
- IC3 Connector with Backwards Compatibility — Equipped with the next-generation IC3 connector featuring a data transfer wire for Smart functionality, yet fully backwards compatible with popular EC3 connectors, allowing use with both modern Smart systems and older RC equipment.
- Protective Metal Alloy Housing — The outer metal alloy sheet provides excellent heat dissipation during demanding flights, helps maintain battery shape under pressure, and increases overall durability compared to standard soft-case batteries.
- High Discharge Rate for Performance — The 30C maximum burst discharge rate delivers the sustained power needed for high-performance RC aircraft, competitive flying, and demanding power systems that require quick throttle response and consistent output.
- Customisable Charge Rates — When connected to a Spektrum Smart charger, you can customise the charge rate for individual batteries, allowing you to take full advantage of this battery's 5C maximum charge rate capability while the charger remembers your preferred settings for future charges.
- No Soldering Required — The battery arrives fully assembled with IC3 and IC5 connectors ready to use, eliminating the need for soldering and reducing setup time so you can get your RC aircraft airborne faster.
Technical Performance
This Spektrum Smart LiPo battery is engineered for serious RC aircraft performance with a 14.8V nominal voltage across 4 cells (3.7V per cell), delivering 3200mAh of capacity for sustained flight sessions. The 30C maximum burst discharge rate ensures responsive throttle control and powerful acceleration when you need it most, whilst the 5C maximum charge rate allows for reasonably quick turnaround between flights. With 47.36 watt-hours of total energy capacity and a maximum sustained discharge current of 96 amps (3200mAh × 30C), this battery is suitable for aerobatic aircraft, fast-flying models, and high-powered racing applications. The battery features charge protection circuitry and short circuit protection built-in, safeguarding your valuable RC equipment from electrical faults. Weighing 325 grams (11.4 ounces) and measuring 141mm in length, 42mm in width, and 26mm in height, this battery offers a compact footprint that fits into many standard RC aircraft battery compartments. The 12 AWG wire gauge provides adequate current-carrying capacity whilst maintaining flexibility for installation, with a 60mm balance lead for cell monitoring and an 89mm discharge lead for main power connection. The protective metal alloy exterior helps dissipate heat during high-discharge operations, keeping internal cell temperatures within safe operating ranges and maintaining consistent performance throughout your flying session.
What's in the Box
- Spektrum 14.8V 3200mAh 4S 30C Smart LiPo Battery with IC3 connector
- Instruction manual
- Spektrum Smart Batteries safety sheet (multilingual)
- Battery safety sheet (multilingual)
Frequently Asked Questions
- What is Spektrum Smart battery technology and how does it improve my RC flying experience? — Spektrum Smart technology uses an integrated microchip to store unique battery parameters and health data. When you connect this battery to a compatible Spektrum Smart charger, the battery automatically uploads all its information including charge rates, previous charge cycles, temperature history, and any error events. This means you never have to manually input battery specifications—simply connect the battery, press the start button, and the charger handles everything else. The charger remembers your preferred settings, so subsequent charges are even faster. This technology takes the guesswork out of battery management, ensures optimal charging conditions every time, and helps you monitor battery health to make informed decisions about when to retire older packs.
- Will this Smart LiPo battery work with my existing RC charger and aircraft? — Yes, the IC3 connector is fully backwards compatible with popular EC3 connectors used on many RC aircraft and chargers. However, to take advantage of all Smart features including automatic smart discharge and data logging, you'll need a compatible Spektrum Smart charger. Without a Smart charger, the battery functions as a standard high-quality LiPo battery. If you're considering upgrading your charger, a Spektrum Smart charger will unlock the full potential of this battery and make battery management significantly easier.
- What does the smart discharge feature do and why is it important? — Smart discharge is an automatic feature that protects your battery when programmed into a Spektrum Smart charger. After you've finished flying, if you leave the battery for a set period (between 12 and 240 hours), the battery automatically discharges itself to a safe storage voltage. This is crucial because lithium polymer cells degrade when left fully charged for extended periods. By automatically maintaining a safe storage voltage, smart discharge significantly extends your battery's lifespan, maintains better performance over time, and reduces the risk of battery damage or failure. This feature is particularly valuable for RC enthusiasts who fly intermittently or store batteries between flying seasons.
- Is this battery suitable for my high-performance RC aircraft or racing model? — Absolutely. The 30C discharge rate makes this battery ideal for high-performance applications including competitive RC aircraft flying, aerobatic manoeuvres, and power-hungry racing models. The 3200mAh capacity provides excellent energy density while maintaining a compact size suitable for most aircraft. However, you should verify that your aircraft's battery compartment can accommodate the 141mm length and 325-gram weight, and that your motor and ESC are rated for the 14.8V nominal voltage and 96-amp maximum current output. Check your aircraft's manual or consult with RC specialists to ensure proper compatibility.
- How long does this battery take to charge and what's the charge current? — The battery has a maximum charge rate of 5C, which equals 16 amps for this 3200mAh capacity. The standard charge current is 3.2A (1C rate), which would fully charge the battery in approximately one hour under normal conditions. Using the full 5C rate with a compatible Spektrum Smart charger could achieve faster charging in around 12 minutes, though charging at lower rates is generally gentler on battery longevity. When connected to a Spektrum Smart charger, you can customise the charge rate to suit your needs, and the charger will remember your preference for future charges.
- What protection features does this battery include? — This battery includes integrated charge protection circuitry and short circuit protection to safeguard both the battery and your RC equipment from electrical faults. Additionally, the Smart microchip monitors for over-charge, over-discharge, and over-temperature incidents, logging these events so you can review the battery's history and determine if it's still suitable for use. The protective metal alloy housing helps dissipate heat during high-discharge operations, maintaining safe internal temperatures during demanding flights.
- Is this battery suitable for beginners, or is it only for experienced RC pilots? — This battery is best suited for intermediate to advanced RC enthusiasts who are comfortable with lithium polymer batteries and have appropriate charging equipment. Beginners new to RC should start with ready-to-run kits that include compatible batteries and chargers. However, if you're upgrading from a beginner package and have experience with LiPo batteries, the Smart technology features actually make this battery easier to manage than traditional packs, as the charger handles all the technical settings automatically. Always follow proper LiPo safety procedures including using appropriate chargers and storage containers.
