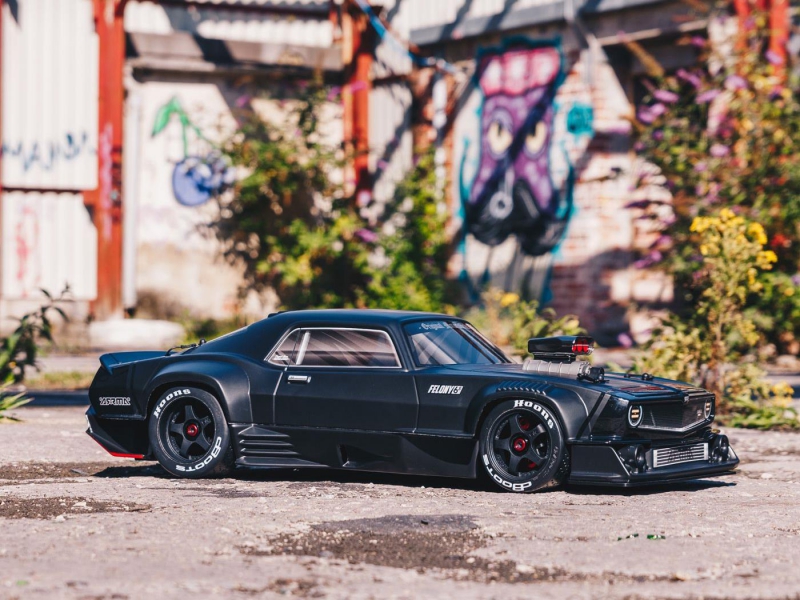

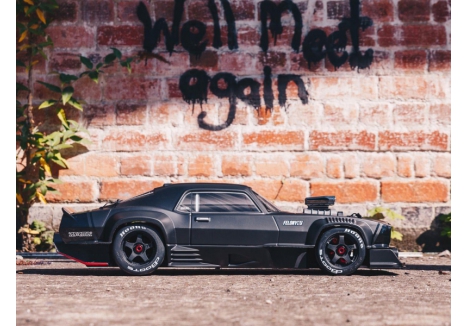

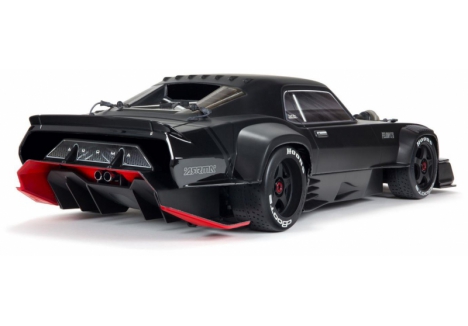

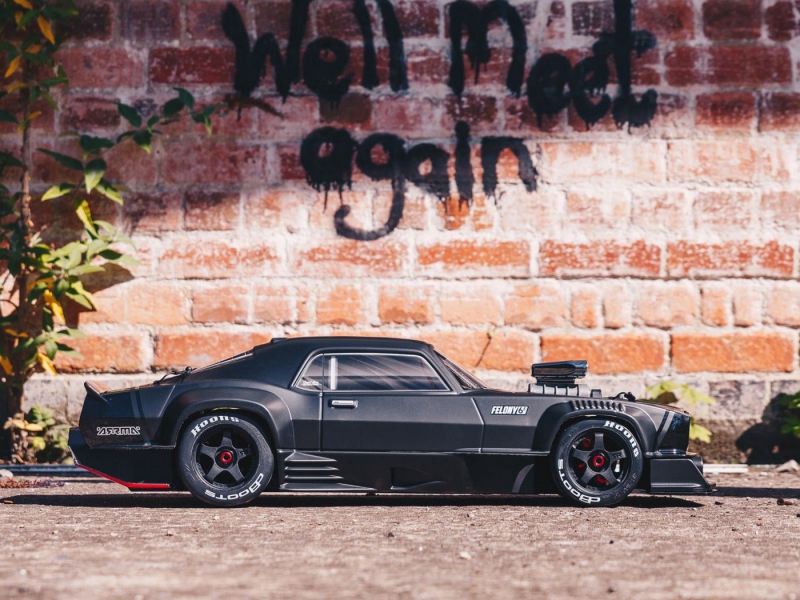

Product Description of ARRMA C-ARA7617V2T1 brushless muscle car

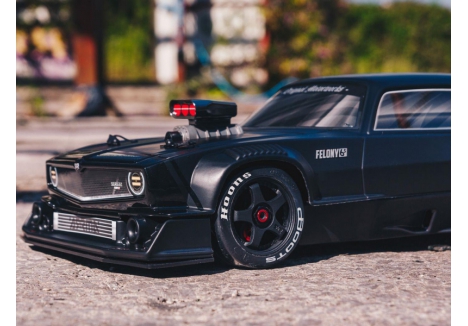

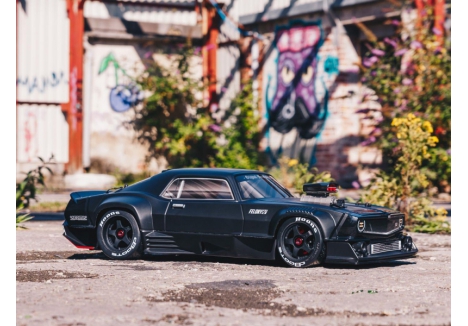

The ARRMA C-ARA7617V2T1 brushless muscle car is a 1/7 scale street bash RC car that fuses retro muscle car styling with modern 6S BLX performance. Designed for high-speed all-road action, this 4WD resto-mod vehicle delivers 80+ mph capability, aggressive handling, and full telemetry support. Whether you're drag racing on asphalt or drifting through dirt, the ARRMA C-ARA7617V2T1 4WD resto-mod vehicle offers scale realism, intelligent electronics, and rugged durability in one sleek package. With a matte black multi-part body, oversized rear tyres, and adjustable aero components, this machine is built to dominate the street bash scene.
Key features of the C-ARA7617V2T1 brushless muscle car
- AVC receiver and DX3 transmitter – real-time stability control and Smart telemetry integration
- 2050Kv brushless motor and Smart ESC – 6S compatible system with 80+ mph top speed potential
- Aluminium chassis and centre brace – reinforced structure for high-speed durability
- Oil-filled aluminium shocks – adjustable coil-over design for smooth all-road handling
- dBoots Hoons tyres – all-road tread with larger rear tyres for authentic muscle car grip
- Adjustable aero wing – tunable downforce for drag racing and street bashing
- Customizable body kit – includes accessory pack and decals for scale personalization
How does AVC technology improve high-speed control?
The Spektrum SR6110AT AVC receiver included with the ARRMA C-ARA7617V2T1 with AVC receiver and 2050Kv motor provides Active Vehicle Control for enhanced stability at high speeds. Paired with the DX3 transmitter, drivers can adjust AVC gain on the fly to match surface conditions and driving style. The transmitter also features a Smart battery voltage indicator, allowing real-time monitoring of power levels. This system ensures the ARRMA C-ARA7617V2T1 1/7 scale street bash RC car remains responsive and composed, even during aggressive throttle inputs and cornering maneuvers.
What makes the power system ideal for street bashing?
At the heart of the ARRMA RC car with Smart ESC and adjustable aero wing is a Spektrum Firma 4074 2050Kv brushless motor paired with a 150A Smart ESC. This setup supports 4S and 6S LiPo batteries and delivers explosive acceleration and sustained top-end speed. The motor features a black anodized aluminium can, 4-pole construction, and a 5mm shaft with E-clip retention. The ESC includes an integrated cooling fan, IC5 connectors, and full telemetry support via the Spektrum Dashboard app. Together, they provide the ARRMA C-ARA7617V2T1 brushless muscle car with intelligent power delivery and thermal stability for extended bashing sessions.

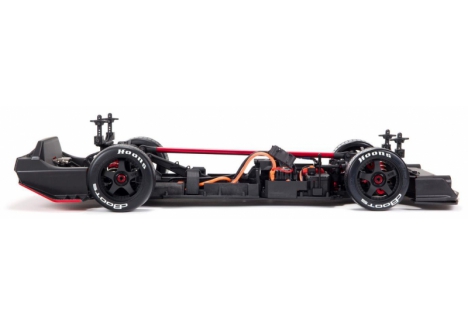

How does the chassis design support aggressive driving?

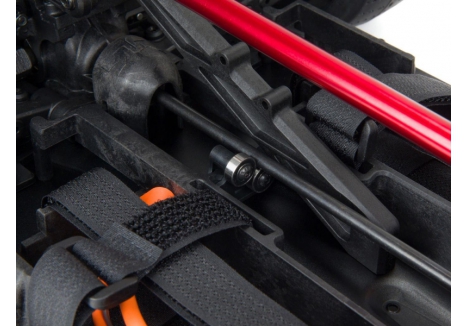

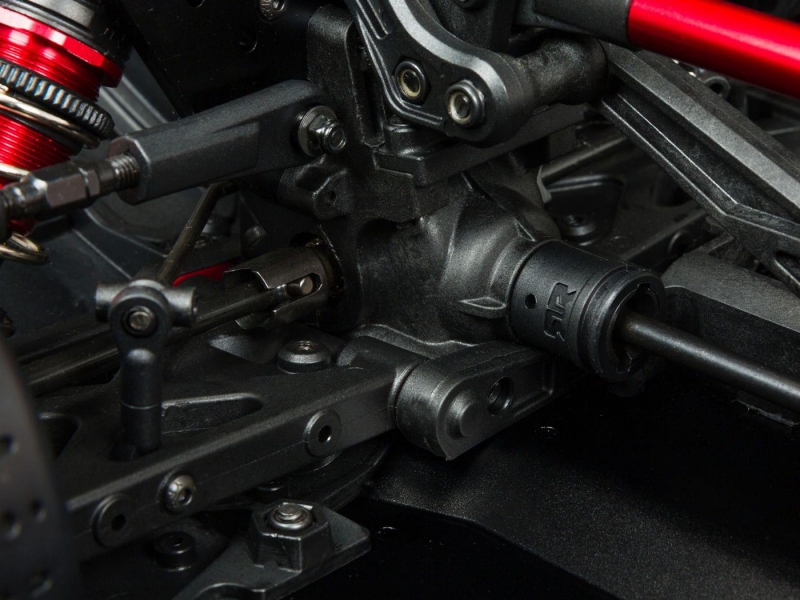

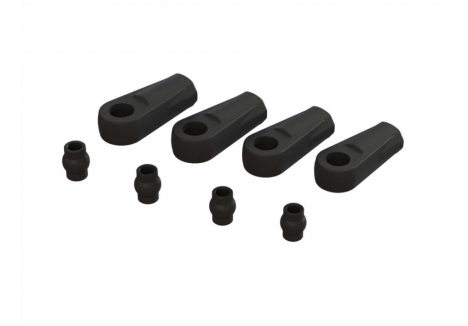

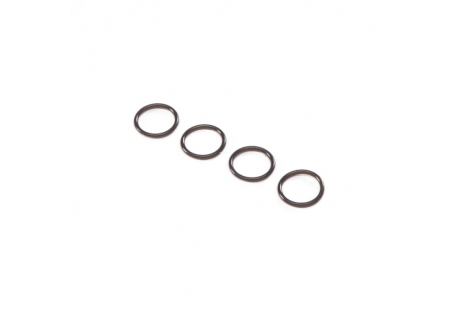

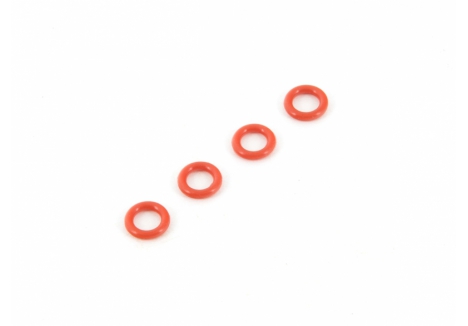

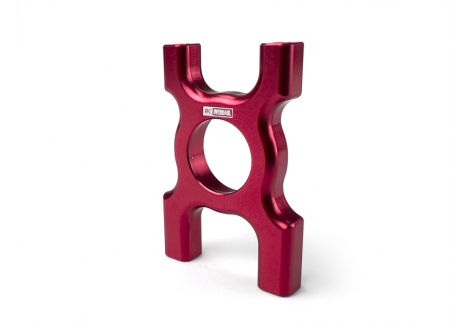

The 3mm 6061-T6 anodized aluminium chassis of the ARRMA muscle car with aluminium chassis and dBoots Hoons tyres is reinforced with a centre brace and high-speed driveshaft support. Heavy-duty steel driveshafts, all-metal diff outdrives, and sealed gearbox internals ensure drivetrain reliability under extreme loads. Captured ball ends and hub nut O-rings prevent component failure during high-impact runs. Combined with waterproof electronics and large battery trays, the chassis layout supports the ARRMA C-ARA7617V2T1 4WD resto-mod vehicle across varied terrain and driving styles.
What makes the suspension system ideal for all-road aggression?
The oil-filled, adjustable aluminium shocks mounted on black-anodized shock towers provide plush damping and consistent tyre contact. The independent front and rear suspension geometry is tuned for high-speed stability and responsive cornering. The dBoots Hoons tyres feature a classic tread pattern and are mounted on five-spoke wheels, with larger rear tyres and matched gearbox ratios for authentic muscle car handling. Whether you're launching off curbs or carving through corners, the suspension system ensures the ARRMA RC car with Smart ESC and adjustable aero wing remains composed and aggressive.
How customizable is the FELONY’s body and aero setup?

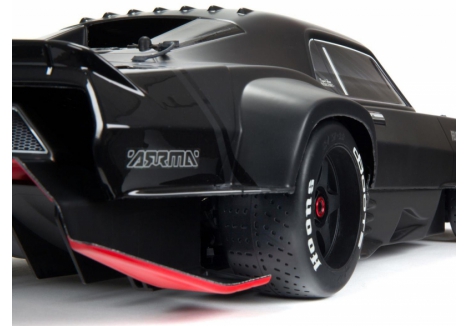

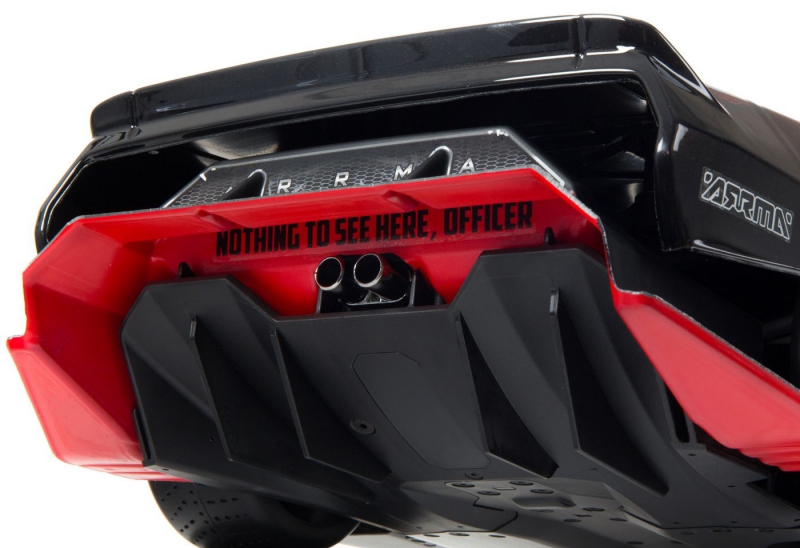

The multi-part undercut body of the ARRMA C-ARA7617V2T1 brushless muscle car arrives factory-finished in matte black with screen-printed decals and trim. It includes interchangeable engine intake and cooling accessories, allowing drivers to personalize the look. Adjustable front and rear body mounts support tuning for stance and clearance, while the rear wing offers aerodynamic adjustability for drag racing or street bashing. The front splitter adds downforce, and the rear diffuser includes exhaust detailing for scale realism. These features make the ARRMA C-ARA7617V2T1 4WD resto-mod vehicle as visually striking as it is performance-driven.
Is this the best option for high-speed street bashing?
For those seeking the best ARRMA street bash vehicle with large rear tyres and centre brace, the FELONY 6S BLX platform delivers unmatched speed, style, and control. With AVC stability, Smart telemetry, and a fully customizable body kit, it’s built for drivers who want to push limits and personalize their ride. The combination of retro muscle car aesthetics and modern electronics makes the ARRMA C-ARA7617V2T1 1/7 scale street bash RC car a standout choice for all-road aggression and drag-strip dominance.
Whether you're chasing top speed or tuning for scale realism, the ARRMA C-ARA7617V2T1 brushless muscle car combines intelligent electronics, rugged construction, and resto-mod styling. From its 6S power system and Smart ESC to its adjustable wing and dBoots tyres, every detail is engineered for impact. Buy ARRMA C-ARA7617V2T1 car with 6S power system and telemetry support today and unleash full-throttle performance with street-ready style.
Technical Specifications of ARRMA C-ARA7617V2T1 brushless muscle car
Brand, Model and Product Type
- Brand: ARRMA
- Model: C-ARA7617V2T1
- Product Type: ARRMA C-ARA7617V2T1 brushless muscle car, ARRMA C-ARA7617V2T1 1/7 scale street bash RC car, ARRMA C-ARA7617V2T1 4WD resto-mod vehicle, ARRMA C-ARA7617V2T1 with AVC receiver and 2050Kv motor, ARRMA RC car with Smart ESC and adjustable aero wing
Dimensions
- Product Length: 72.5 cm – extended chassis for drag-style stance and high-speed stability
- Product Width: 32.8 cm – wide track supports aggressive cornering and scale realism
- Product Height: 19.2 cm – low-profile body with aerodynamic wing and diffuser
- Wheelbase: 40.6 cm – tuned for balance between straight-line speed and responsive handling
- Product Weight: 5.0 kg – reinforced aluminium chassis and heavy-duty drivetrain components
- Battery Tray Dimensions: 18.0 × 5.5 × 7.0 cm – supports large-format 4S or 6S LiPo batteries
Power System and Electronics

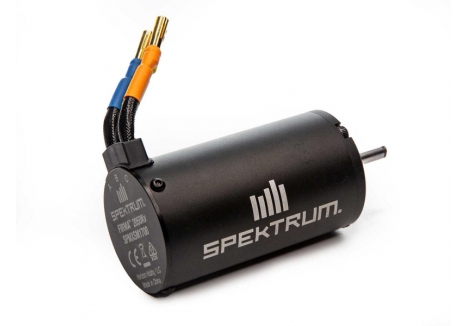

- Motor: Spektrum Firma 4074 2050Kv brushless motor – 4-pole construction with 5mm shaft and etched aluminium can

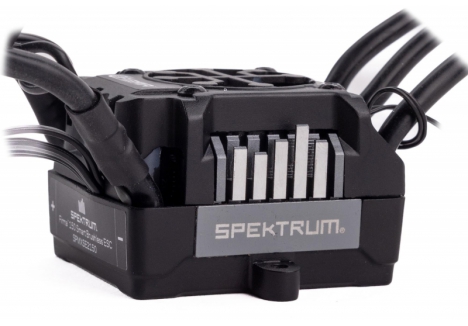

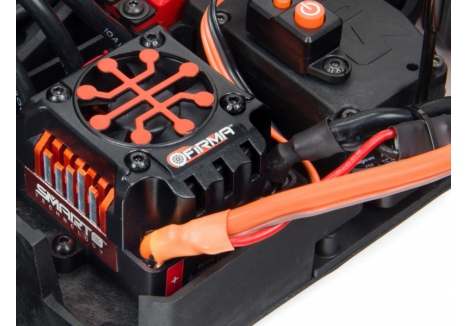

- ESC: Spektrum Firma 150A Smart ESC – waterproof, 6S LiPo compatible, with integrated fan and IC5 connectors

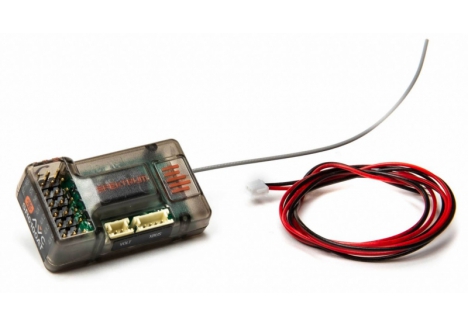

- Receiver: Spektrum SR6110AT AVC receiver – DSMR protocol with full telemetry and stability control

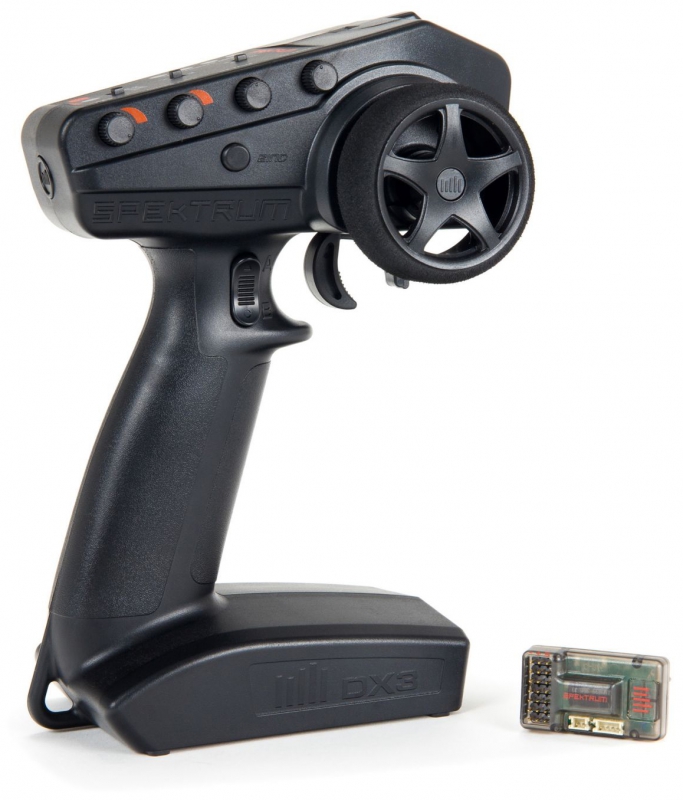

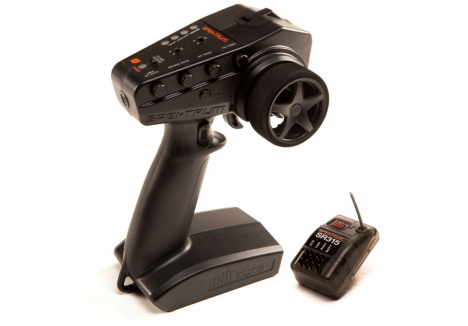

- Transmitter: Spektrum DX3 3-channel DSMR radio – AVC gain adjustment and Smart battery voltage indicator
- Servo: ARRMA ADS-15M waterproof servo – metal gears, 194 oz-in torque @ 6V, 25T spline
Drivetrain and Transmission

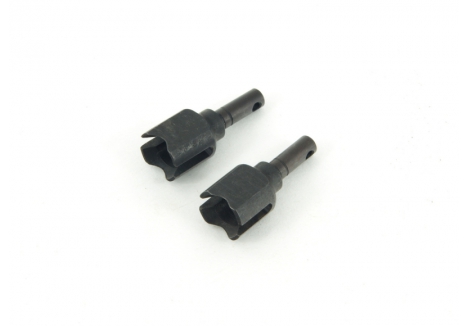

- Drive System: 4WD – shaft-driven with steel driveshafts and all-metal gearbox internals

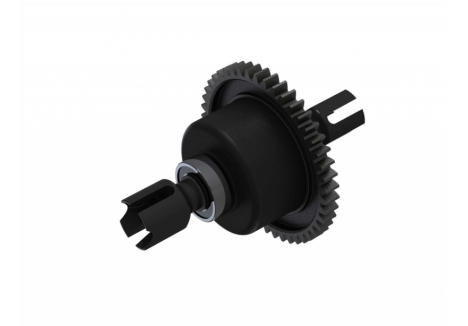

- Differentials: Three oil-filled metal gear diffs – matched front and rear ratios for tyre size compensation
- Final Drive Ratio: Front: 8.05:1, Rear: 8.83:1 – tuned for muscle car handling and acceleration
- Internal Gear Ratio: Front: 2.8:1, Rear: 3.07:1 – optimized for staggered tyre setup

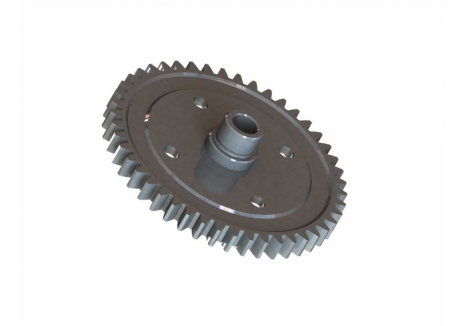

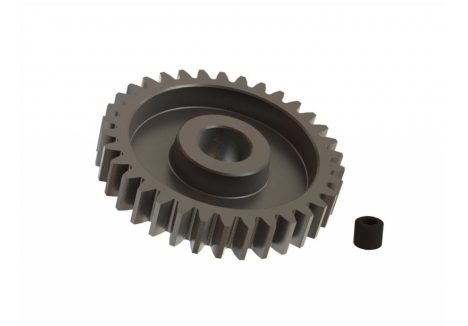

- Spur Gear: 46T – heavy-duty gearing for high-speed output

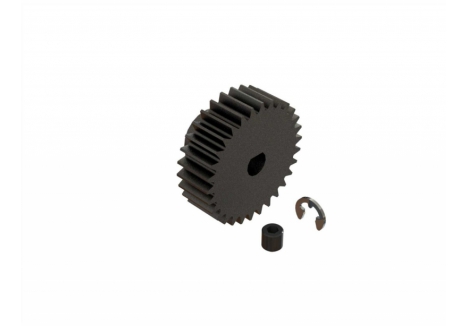

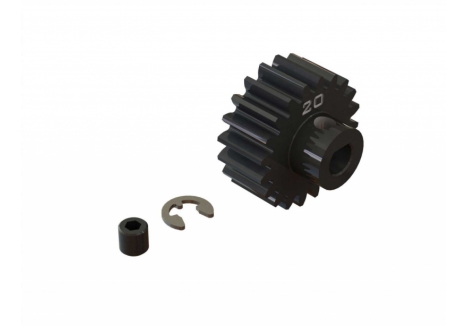

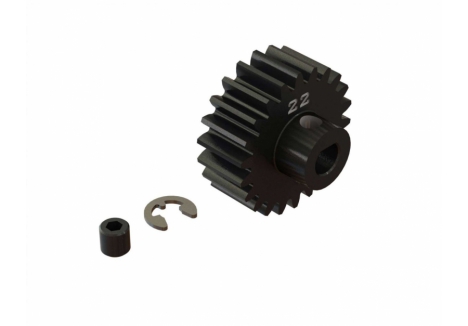

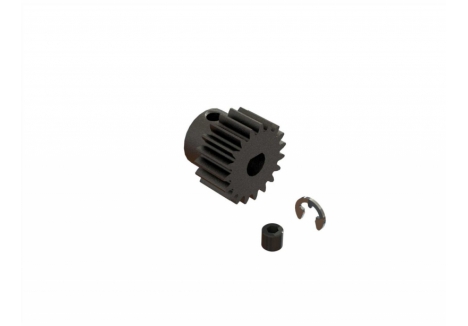

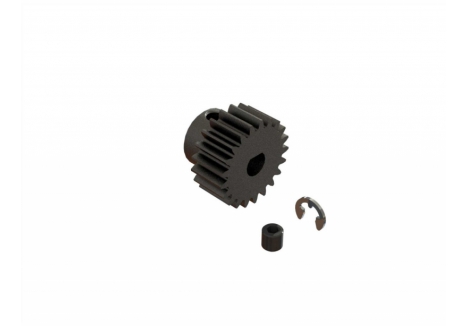

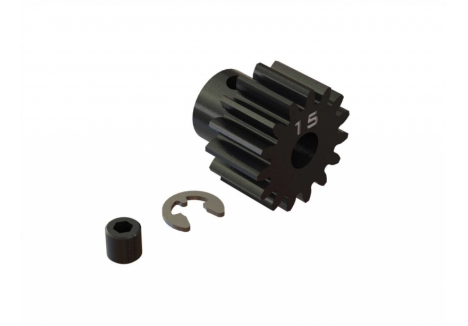

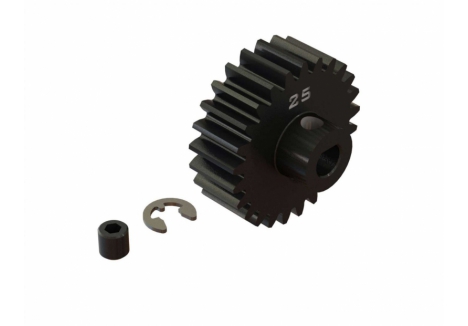

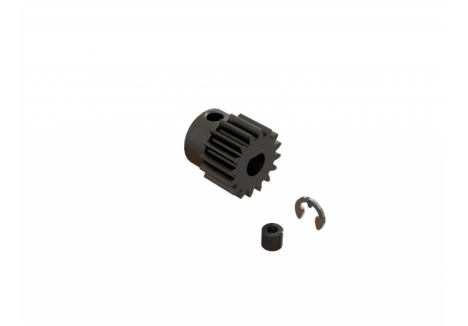

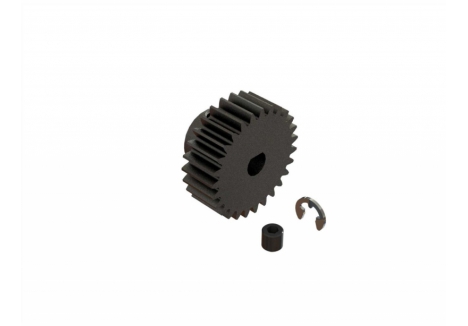

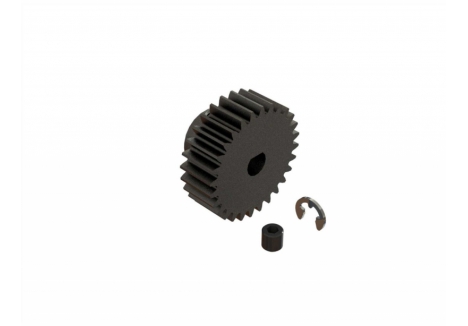

- Pinion Gear: 16T – factory-installed with optional speed pinion included
- Brakes: Integrated with ESC – programmable brake strength and reverse speed
Suspension and Handling

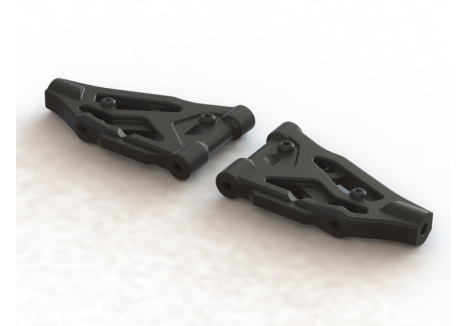

- Suspension Type: Independent front and rear – tuned for street bashing and drag racing

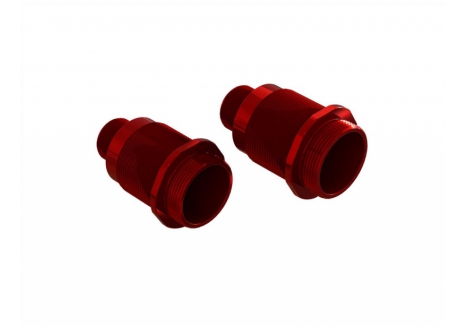

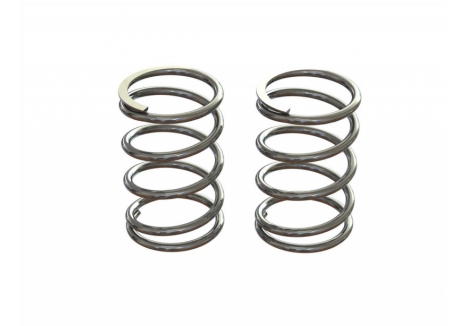

- Shock Type: Oil-filled aluminium shocks – 7.7 cm front, 8.7 cm rear, mounted on anodized aluminium towers

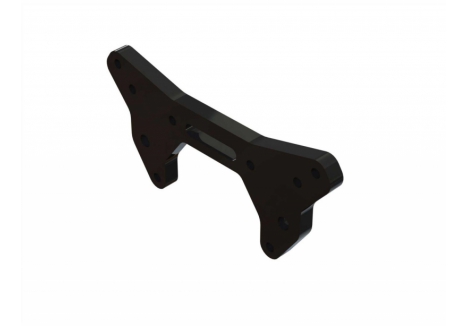

- Shock Towers: Black-anodized aluminium – reinforced for impact resistance and tuning stability

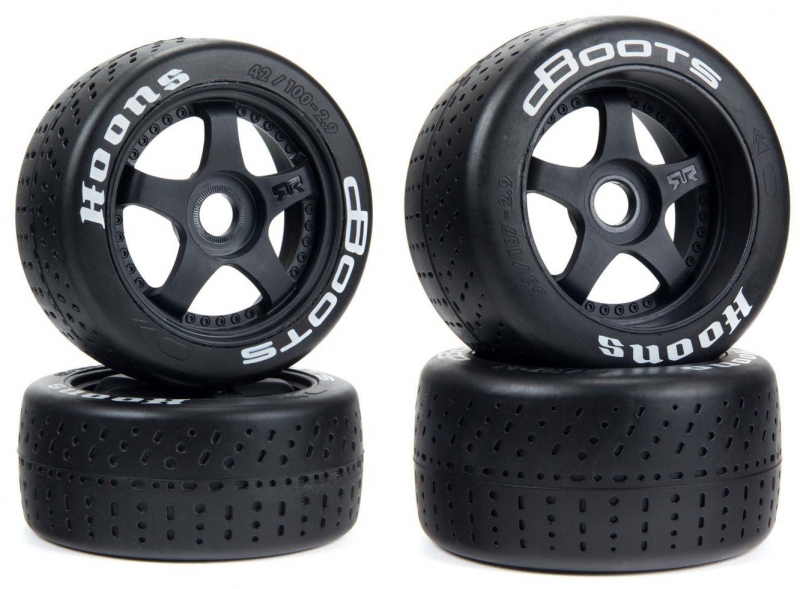

Tyres and Wheels

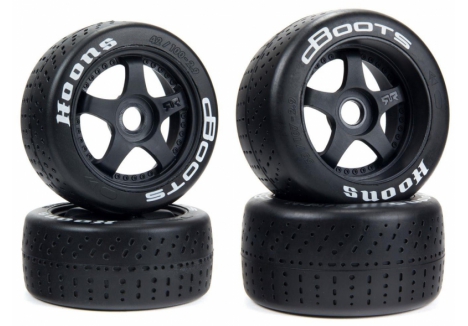

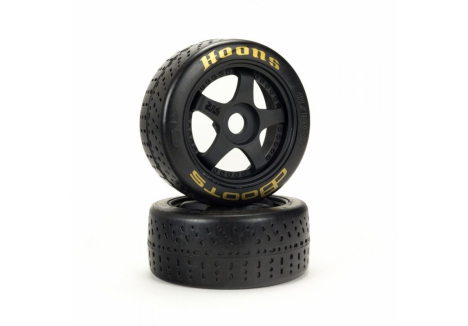

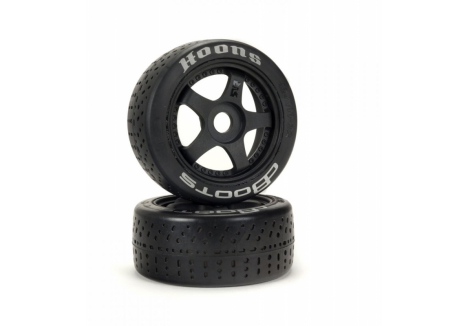

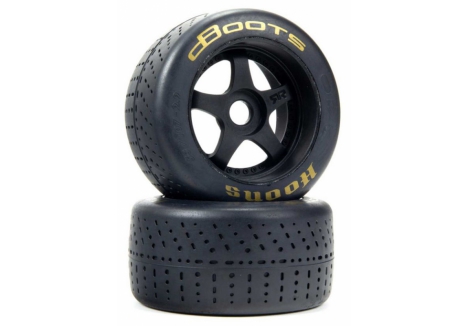

- Tyres: dBoots Hoons all-road tyres – classic tread with larger rear diameter for muscle car stance
- Wheel Type: Five-spoke wheels – scale styling with durable hubs

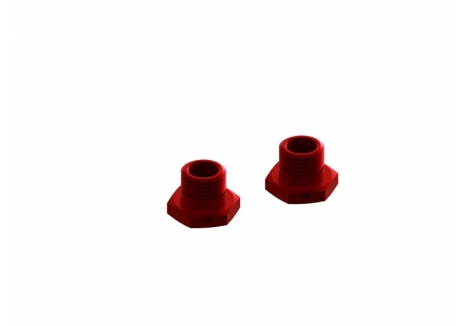

- Wheel Hex Size: 17 mm – supports high-torque applications and secure fitment
Chassis and Structural Components

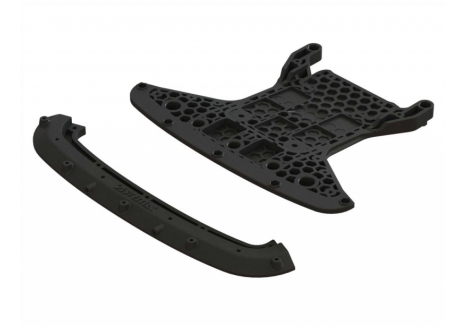

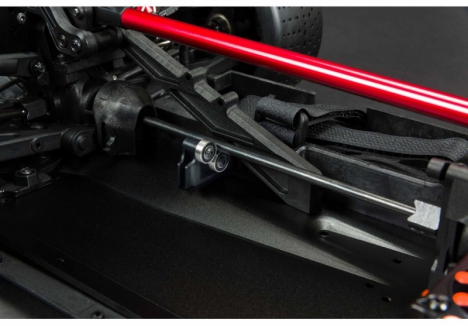

- Chassis Material: 3 mm 6061-T6 anodized aluminium – reinforced with centre brace and high-speed driveshaft support

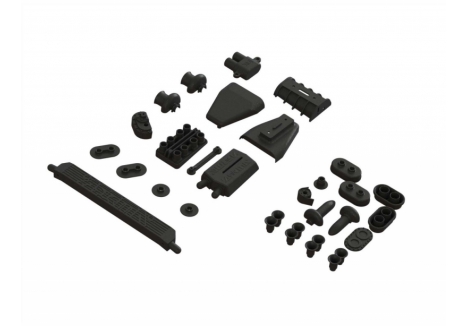

- Body Design: Multi-part undercut muscle car body – includes accessory pack and decals for customization

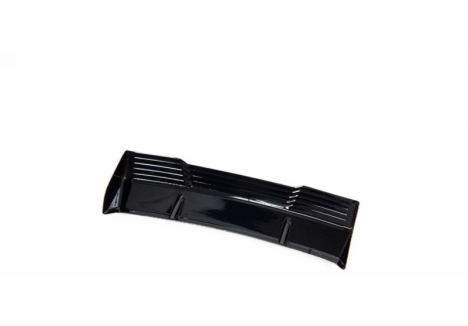

- Aero Components: Adjustable rear wing, front splitter, and rear diffuser – tunable downforce and scale detailing
- Battery Mount: Large tray – supports up to 18.0 × 5.5 × 7.0 cm battery dimensions
- Water Resistance: Yes – waterproof receiver box, ESC, and servo for all-weather operation
Performance and Drive Modes
- Top Speed: 80+ mph – achievable with 6S LiPo and optional gearing
- Drive Modes: Standard throttle, AVC-enabled stability control, telemetry monitoring via Spektrum Dashboard app
What’s in the Box
- 1 × ARRMA FELONY 6S BLX 4WD Resto-Mod Street Bash Vehicle RTR
- 1 × Spektrum Firma 150A Smart ESC (installed)
- 1 × Spektrum Firma 4074 2050Kv Brushless Motor (installed)
- 1 × ARRMA ADS-15M Waterproof Servo (installed)
- 1 × Spektrum SR6110AT AVC Receiver (installed)
- 1 × Spektrum DX3 DSMR Radio
- 1 × Instruction Manual
What You Require
- 2 × 2S or 2 × 3S LiPo Batteries with EC5 or IC5 connectors
- 1 × Compatible LiPo Battery Charger
- 4 × AA Batteries for Transmitter
Parts Diagrams
Front Assembly

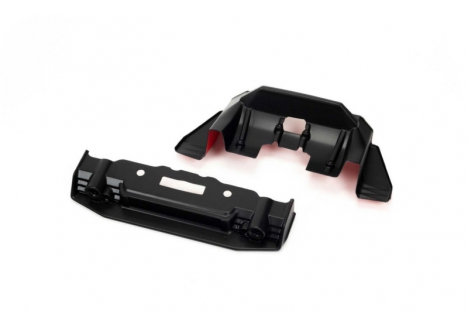

Front Bumper Assembly

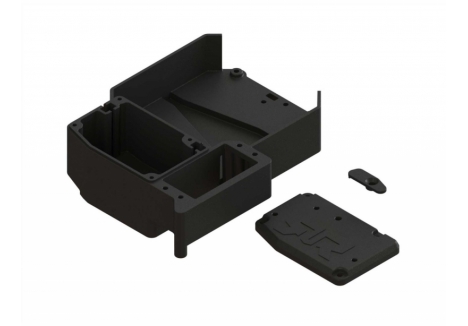

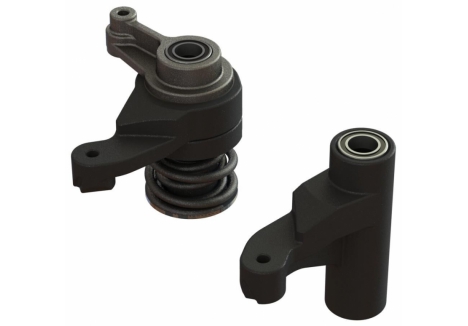

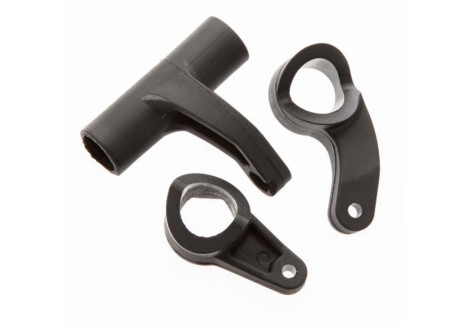

Steering and Receiver Box Assembly
Rear Assembly

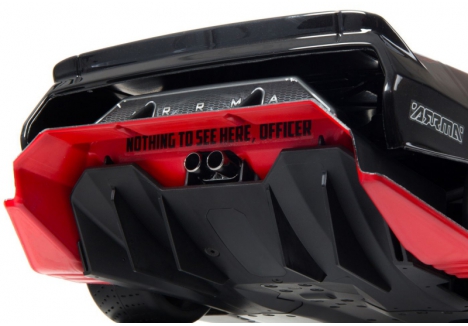

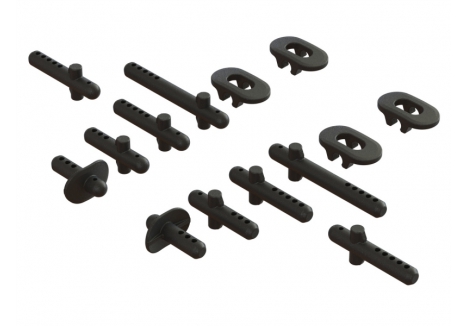

Rear Diffuser and Bodymount
Chassis and Transmission Assembly

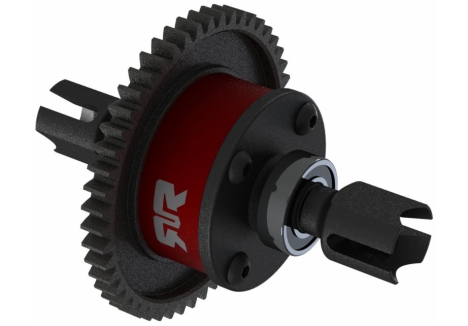

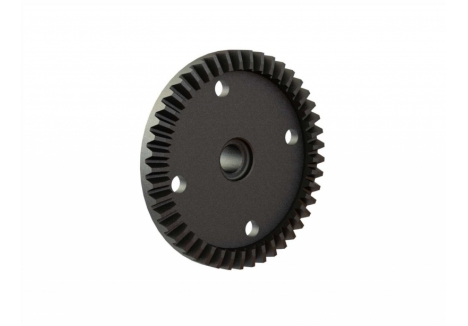

Differential Assembly

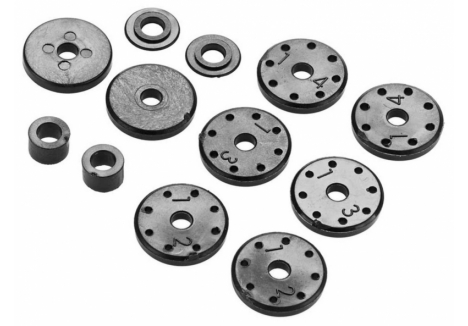

Shock absorber Assembly
Bodyshell & Accessories / Wheel & Tyre
