Overview
Drivers and pilots enjoy even more Smart advantages when using Spektrum™ Smart G2 30C LiPo batteries. New "Generation 2" features make these powerful LiPo packs even simpler and safer to use together with your Smart charger.
For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery's innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. You can change the battery's Auto Storage settings based on your own preferences. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries.
Smart G2 30C soft-case LiPo packs also include thicker internal metal side plates. These plates improve heat dissipation and provide more protection for the cells against punctures during rough landings or in similar impact-prone situations.
As with other Smart batteries, you'll never have to set your own charging preferences for a Spektrum™ Smart G2 battery until you want to. When a Smart G2 LiPo battery is connected to a Spektrum™ Smart charger, its unique charging parameters and health information upload to the charger from the battery's integrated memory microchip. Through the charger you can view and set preferences such as charge rates, so all that's required to charge the pack is connecting it to your Smart charger. Smart technology takes care of the rest.
Spektrum™ Smart G2 30C LiPo batteries store a wide variety of essential information, including:
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
Spektrum™ Smart G2 LiPo 30C batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents. This data can be helpful in assuring that the battery you've chosen is right for the application. Innovative Spektrum™ Smart G2 LiPo 30C batteries are so easy to use, they nearly take care of themselves. It's easy to achieve peak battery performance, reliability and longevity with Smart G2 technology!
Note: G2 batteries require the use of a Spektrum™ G2 Smart Charger or earlier Smart Charger with G2 update.
Features
- Simpler and safer to use
- Balance charge through the IC3® or IC5® connector data wire — with only one connection, no balance lead required
- Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
- Thicker internal metal side plates protect cells and improve heat dissipation
- Integrated microchip stores unique parameters for each battery
- IC3® and IC5® connectors are also compatible with EC3™ and EC5™ styles
- Spektrum™ G2 Smart Charger required (or earlier Smart Charger with G2 update)
Video Overview
- Battery Type: LiPo (Lithium Polymer)
- Chemistry: 3.7V per cell
- Nominal Voltage: 11.1V
- Number of Cells: 3S (three cells in series)
- Capacity: 5000mAh
- Watt Hours: 55.5Wh
- Connector Type: IC5
- Backward Compatibility: EC5 compatible
- Maximum Continuous Discharge Rate: 30C
- Maximum Burst Discharge Rate: 30C
- Maximum Charge Rate: 5C
- Normal Standard Charge Current: 5A
- Normal Standard Charge Rate: 1C
- Charge Protection Circuitry: Yes
- Wire Gauge: 12 AWG

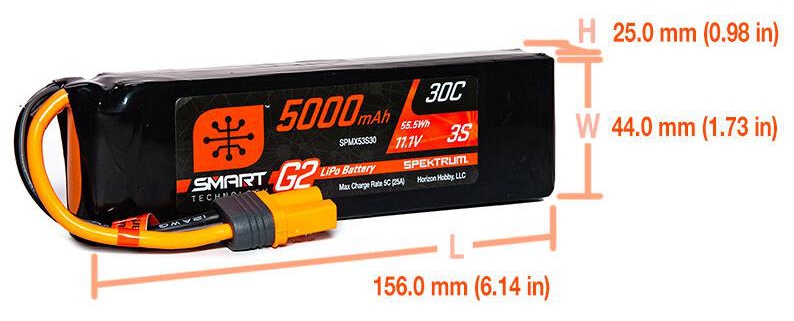

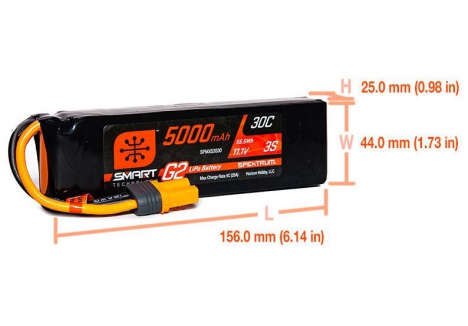

- Product Length: 6.14 inches (156mm)
- Product Width: 1.73 inches (44mm)
- Product Height: 0.98 inches (25mm)
- Product Weight: 15.16 oz (430g)
- Application: Surface battery
- Battery Balance Connector: G2 Smart
- Technology: Smart G2
- Integrated Microchip: Yes, stores battery brand, type, capacity, C rating, cell voltages, temperature, charge cycles, discharge cycles, and internal resistance
- Error Logging: Yes, tracks over-charge, over-discharge, and over-temperature incidents
- Auto Storage Discharge: Yes, factory-programmed to discharge to 3.90V per cell after 72 hours inactivity
- Auto Storage Discharge Rate: Up to 1.5A
- Storage Discharge Speed: Three times faster than previous G1 Smart batteries
- Internal Metal Side Plates: Thicker design for improved heat dissipation and cell protection
- User-Customisable Settings: Charge rate and auto storage parameters adjustable through Smart charger
- Smart Charger Requirement: Spektrum Smart Charger required
- Data Upload: Automatic charging parameters and health information upload to Smart charger
Overview

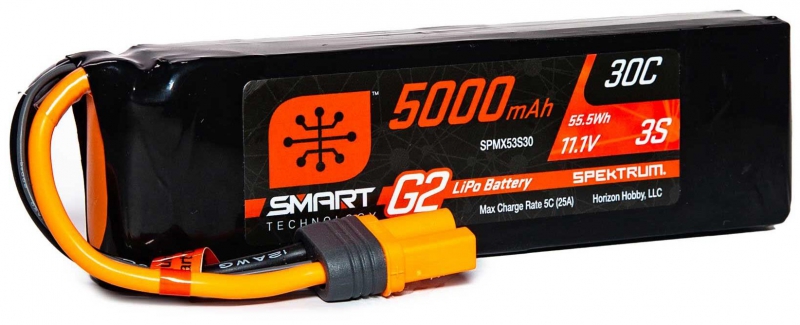

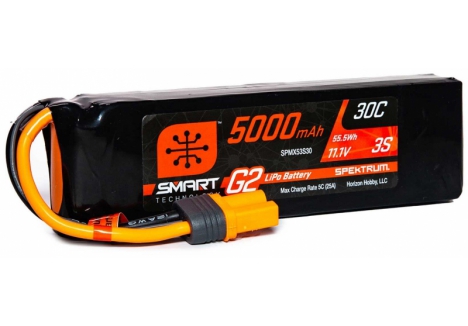

Experience ultimate convenience and reliability with the Spektrum 11.1V 5000mAh 3S 30C Smart LiPo G2 battery featuring IC5 connector (model SPMX53S30). This advanced lithium polymer battery pack is engineered for RC car enthusiasts, drone pilots, and serious hobbyists across the UK who demand performance without compromise. The Smart G2 technology represents a significant evolution in LiPo battery design, combining intelligent microchip integration with simplified charging protocols that eliminate the need for separate balance leads. Whether you're running a high-performance electric RC car, a competitive racing platform, or a precision aerial model, this 5000mAh capacity battery delivers the sustained power and reliability you need for extended run times and consistent performance.
What sets this Spektrum Smart G2 battery apart in the crowded RC battery market is its revolutionary approach to battery management. Unlike traditional LiPo batteries that require complex charging procedures and multiple connectors, the Smart G2 uses a single IC5 connector that communicates directly with compatible Spektrum Smart chargers. This means your battery's unique charging parameters, health data, and balancing information transfer automatically when you connect the pack. The result is a seamless, safer charging experience that takes the guesswork out of LiPo battery care. For UK-based RC enthusiasts looking for a ready-to-use battery solution that simplifies the entire charging process, this is a game-changing option.
The 11.1V nominal voltage (3S configuration with three lithium cells at 3.7V each) and 30C continuous discharge rate make this pack ideal for demanding applications where sustained power delivery is essential. The 5000mAh capacity provides excellent runtime for most RC applications, from competitive racing platforms to recreational bashing. Built with thicker internal metal side plates that improve heat dissipation and protect cells from puncture damage during crashes, this battery is designed to withstand the rigours of real-world RC use across any UK terrain.
Key Features
- Smart G2 Technology with Single Connection — Rather than juggling multiple connectors and balance leads, the Smart G2 battery uses only one IC5 connector that carries all necessary balancing information through an integrated data wire. This eliminates the complexity of traditional LiPo charging and makes the entire process safer and more convenient for RC car UK enthusiasts of any skill level.
- Automatic Charging Parameter Upload — When you connect this battery to a compatible Spektrum Smart charger, its integrated memory microchip automatically uploads all charging parameters and battery health information. Your charger knows exactly how to charge this pack optimally without any manual configuration required.
- Integrated Memory Microchip — This battery stores comprehensive data about itself including brand, battery type, capacity, C rating, individual cell voltages, battery temperature readings, total charge and discharge cycles, and internal resistance measurements. This intelligence allows you to make informed decisions about battery health and suitability for specific applications.
- Auto Storage Discharge Function — Factory-programmed to automatically discharge to a safe storage voltage of 3.90V per cell after 72 hours of inactivity, this feature eliminates one of the biggest maintenance headaches associated with LiPo batteries. You no longer need to remember to discharge unused packs, as the Smart G2 handles this automatically, resulting in longer overall battery life and better performance consistency.
- Three Times Faster Storage Discharge Rate — Compared to previous generation Smart batteries, the G2 achieves storage discharge at rates up to 1.5A, meaning your batteries reach safe storage voltage three times faster. This is particularly valuable for serious RC enthusiasts with multiple batteries who appreciate quicker turnaround between charging sessions.
- Thicker Internal Metal Side Plates — Construction-grade improvements include reinforced metal side plates within the soft case that significantly improve heat dissipation during high-discharge applications. These plates also provide crucial protection against puncture and cell damage during crash impacts, making this battery more durable than standard LiPo packs.
- Enhanced Safety Through Data Logging — The battery maintains a detailed error log tracking over-heat incidents, over-discharge events, and over-charge occurrences. This historical data gives you visibility into whether your battery has experienced stress conditions that might affect its reliability or remaining lifespan.
- User-Customisable Auto Storage Settings — While the factory default is excellent, you can adjust the battery's automatic storage discharge settings through your Smart charger based on your personal preferences and usage patterns. This flexibility ensures the battery suits your specific operational requirements.
- Backward Compatible with EC5 Connectors — Although this pack features the IC5 connector, it maintains compatibility with EC5-style connectors, providing flexibility when working with various RC systems and older equipment in your collection.
- User-Customisable Charge Rate — You can set the charge rate individually for this battery, allowing you to take full advantage of the 5C maximum charge rating. Your custom rate preference is remembered by the microchip, so your chosen settings apply automatically on subsequent charging sessions.
- Spektrum Smart Charger Required — This battery realises its full potential only when paired with a Spektrum Smart charger, ensuring you get dedicated, optimised charging specifically designed for this G2 battery generation.
Technical Performance
The 11.1V nominal voltage produced by three series-connected lithium polymer cells provides the power and efficiency needed for demanding RC applications including high-speed racing, aggressive bashing, and precision aerial work. At 5000mAh capacity, this pack delivers substantial energy storage that translates to extended runtime compared to smaller capacity alternatives. The 30C continuous discharge rating indicates this battery can safely deliver 150 amps of continuous current (5000mAh multiplied by 30C), making it suitable for brushless motor systems with moderate to high power requirements. The 5C maximum charge rate means you can charge this pack at up to 25 amps, significantly reducing charge time when you're running multiple batteries. The integrated microchip continuously monitors battery performance, capturing detailed metrics that help you maintain optimal battery health over many charge cycles. Built with 12 AWG wire gauge connectors to minimise voltage drop during high current discharge, this battery maximises available power delivery to your RC system. The soft case construction keeps overall weight at 430 grams (15.16 ounces), providing an excellent balance between durability and weight management for most RC applications. Dimensions of 6.14 inches length, 1.73 inches width, and 0.98 inches height make this pack compatible with standard battery trays in most ready-to-run RC car UK platforms and custom builds. The 55.5 watt-hour energy rating reflects the combined capacity and voltage, helping you understand total energy storage relative to other batteries in your collection.
What's in the Box
- Spektrum 11.1V 5000mAh 3S 30C Smart G2 LiPo Battery with IC5 connector
- Integrated IC5 connector with data wire for Smart charger communication
What You Need to Complete
- Spektrum Smart Charger (required to charge and balance this battery; Smart G2 batteries are compatible only with Spektrum Smart Chargers)
- RC car, truck, buggy, or aerial platform compatible with 3S LiPo batteries and IC5 or EC5 connectors
Frequently Asked Questions
- Why do I need a Spektrum Smart Charger to use this battery? — This is a Smart G2 battery, which means it communicates with your charger through an integrated microchip housed in the IC5 connector. The charger reads this battery's unique parameters and health information, then applies optimised charging protocols automatically. Standard chargers cannot communicate with the microchip, so a Spektrum Smart Charger is essential to realise the full benefits of this technology. The good news is that Spektrum Smart Chargers are compatible with all Smart batteries, so one quality charger serves your entire battery fleet.
- How long will this 5000mAh battery last per charge cycle? — Runtime depends entirely on your RC vehicle's power draw, which is determined by motor size, gearing, driving style, and throttle usage. A lightweight racing buggy might achieve 15-20 minutes of hard driving, while a heavier basher at moderate speeds could exceed 30 minutes. The best approach is to test with your specific setup and note the actual runtime you experience.
- What makes the Smart G2 better than regular LiPo batteries? — Three fundamental advantages set Smart G2 apart: first, you need only one connection instead of separate power and balance connectors, simplifying the charging process significantly; second, the integrated microchip stores detailed battery history and health data, helping you make informed decisions about battery retirement; third, automatic storage discharge means your batteries maintain safe voltage levels without manual intervention, extending their useful lifespan considerably.
- Can I charge this battery with a standard LiPo charger? — No, this is a Smart G2 battery and requires a Spektrum Smart Charger. Attempting to charge it with a standard charger would bypass the microchip's safety features and charging optimisation protocols. Always use a Spektrum Smart Charger for this battery.
- How does the automatic storage discharge work? — After 72 hours of inactivity, the battery's integrated circuitry automatically begins discharging at rates up to 1.5A until it reaches the safe storage voltage of 3.90V per cell. This process is completely automatic and requires no user action. You can adjust the timing through your Smart charger if you prefer different storage parameters, but the factory default suits most users perfectly.
- Will this battery work with my older RC car? — This depends on your RC car's connector type and charging system. The IC5 connector is backward compatible with EC5-style connectors, so if your vehicle uses EC5 connectors, the physical connection will work. However, you still need a Spektrum Smart Charger to properly charge and balance this battery, so ensure your setup supports that before purchasing.
- What's the difference between Smart G2 and Smart G1 batteries? — The Smart G2 represents a generational advancement with three key improvements: the storage discharge rate is three times faster than G1, meaning batteries reach safe voltage much quicker; the IC3 and IC5 connectors feature improved design for more solid connections and higher heat resistance; and the overall engineering provides better cell protection through thicker internal metal side plates.
- How many charge cycles can I expect from this battery? — LiPo battery lifespan depends on how you treat it. Proper care including avoiding deep discharge, staying within safe temperature ranges, storing at correct voltage, and using quality chargers typically yields 300-500 full charge cycles. The Smart G2's automatic storage discharge and error logging help you maintain optimal conditions throughout the battery's life.
- Is this battery suitable for beginners? — Yes, absolutely. In fact, Smart G2 batteries are ideal for beginners because they eliminate much of the complexity associated with LiPo batteries. You don't balance connectors or set charging parameters manually; the battery and charger handle that together. The automatic storage discharge means you don't need to remember discharge routines. For anyone new to RC, a Smart G2 battery paired with a Smart charger removes significant barriers to entry.
- What should I do if I won't use this battery for several weeks? — Simply leave it disconnected. The Smart G2's factory programming will automatically discharge it to safe storage voltage (3.90V per cell) after 72 hours, and you can leave it in that state indefinitely. When you're ready to use the battery again, charge it normally using your Spektrum Smart Charger, and you're good to go.
