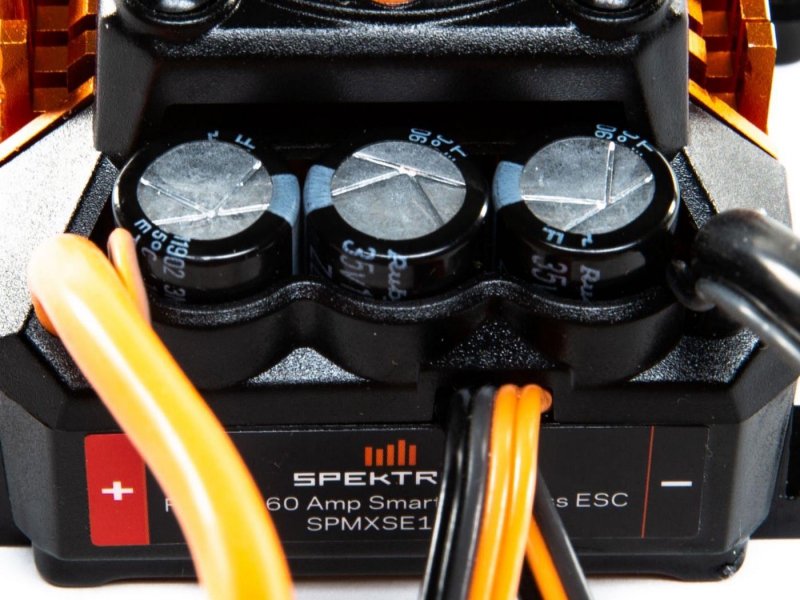

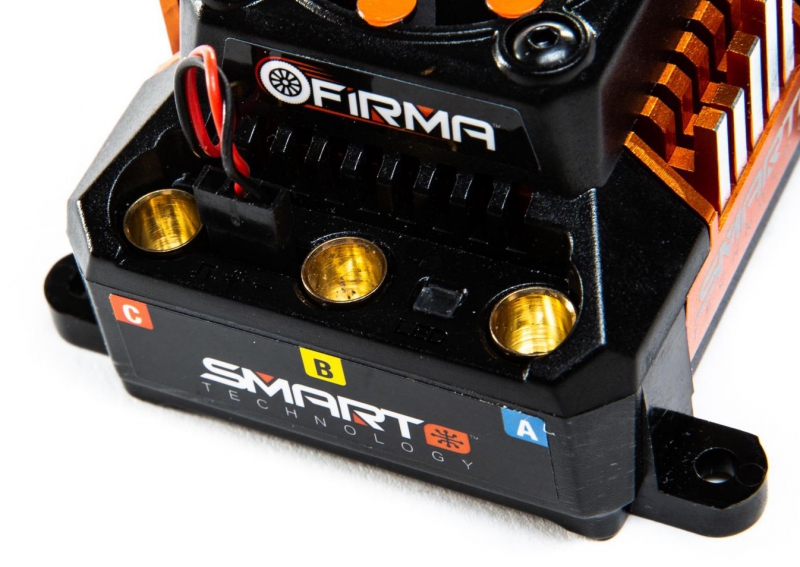

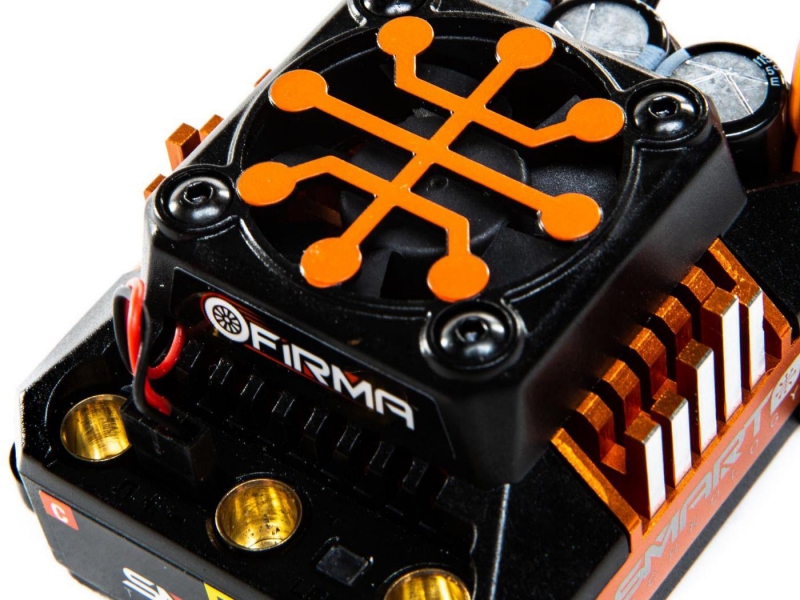

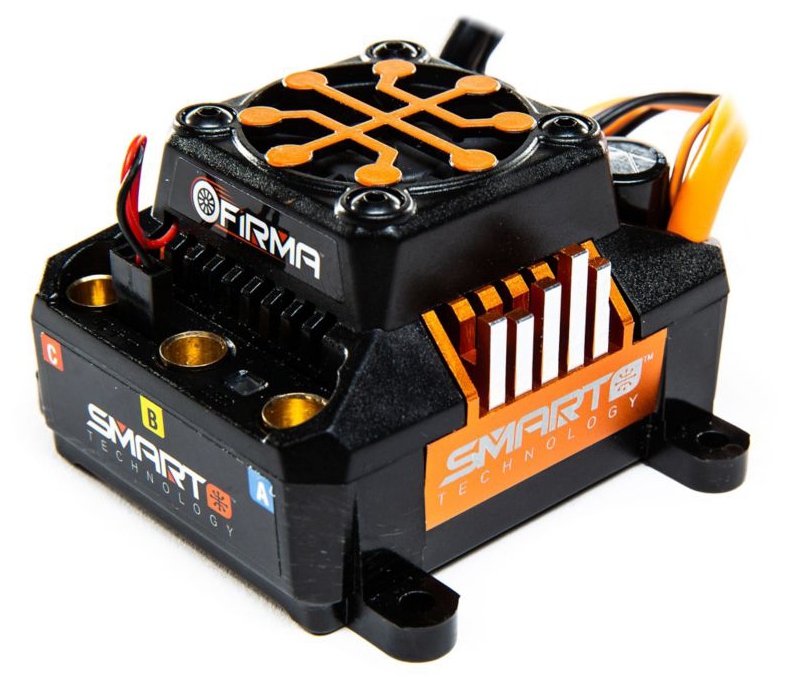

The Spektrum P-SPMXSE1160 Firma 160A Smart ESC with 3S–8S LiPo support, IC5 input, and 1050A burst current is engineered for serious surface RC drivers who demand uncompromising power, telemetry precision, and rugged reliability. Designed for large-scale vehicles and off-road platforms, this brushless ESC delivers high-current performance with intelligent control features that elevate your driving experience. With a waterproof housing, integrated cooling fan, and aluminum heat sink, the Spektrum P-SPMXSE1160 is built to withstand the harshest conditions while maintaining consistent output and thermal stability. Whether you're pushing through gravel, snow, or mud, this ESC is ready to perform.
Key features of the Spektrum P-SPMXSE1160 Firma 160A Smart ESC
- Smart telemetry – real-time data transmission including RPM, voltage, temperature, and battery capacity
- Multiple programming options – button interface, Smart ESC Programming Box, and SmartLink USB app

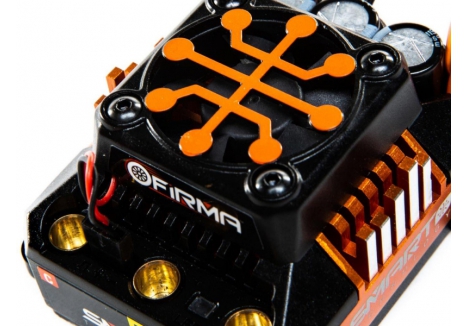

- Cooling fan and aluminum heat sink – thermal efficiency for sustained high-current operation
- Waterproof housing – all-weather protection for off-road and surface applications
- Failsafe logic and multi-point protection – includes over-current, thermal, and low-voltage safeguards
- 5A switch-mode BEC – stable power delivery with 6V output for servos and receivers
- Compact form factor – 77mm width and 280g weight for rugged installs
Why is the Spektrum P-SPMXSE1160 ideal for large-scale RC vehicles?
The Spektrum P-SPMXSE1160 brushless ESC for large-scale RC vehicles with cooling fan and firmware updates is purpose-built for platforms that demand high voltage and sustained current. Supporting 3S–8S LiPo batteries and delivering up to 160A continuous current with a 1050A burst rating, this ESC powers heavy-duty trucks and buggies through extreme terrain with ease. Its rugged plastic case and mounting tabs ensure secure installation, while the aluminum heat sink and active cooling fan maintain optimal operating temperatures during high-load conditions. Whether you're racing or bashing, the Spektrum P-SPMXSE1160 provides the torque and responsiveness needed for top-tier performance.
How does Smart telemetry enhance control and diagnostics?
The Smart ESC for RC trucks and buggies with one-wire telemetry, failsafe logic, and aluminum heat sink offers seamless telemetry integration without the need for extra wires or modules. Through a single wire, the ESC transmits RPM, temperature, battery voltage, and capacity directly to your Spektrum transmitter in real time. This allows drivers to monitor system health, make adjustments on the fly, and optimize performance based on live feedback. When paired with a Spektrum Smart LiPo battery, the ESC also provides detailed battery diagnostics such as cycle count, cell voltage, and remaining capacity—giving you full visibility into your power system.
What programming options are available for the Spektrum P-SPMXSE1160?

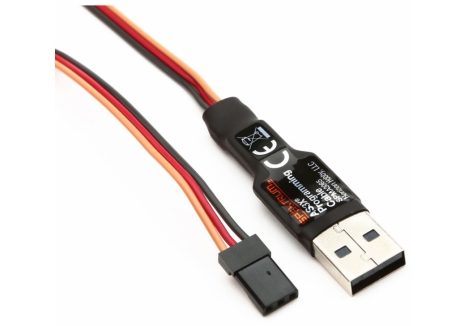

The Spektrum digital ESC with 1050A burst current, 6.5mm motor leads, and SmartLink programming options supports multiple programming methods to suit different user preferences. For quick adjustments, the onboard button interface allows basic configuration without additional tools. For advanced tuning, users can connect the Smart ESC Programming Box or use the SmartLink USB app to access a full suite of settings. These options enable customization of throttle response, brake strength, cutoff thresholds, and more—ensuring the ESC can be tailored to match your driving style and terrain conditions. Firmware updates are also supported, allowing users to stay current with performance enhancements and feature upgrades.
Can the Spektrum P-SPMXSE1160 handle extreme environments?
Absolutely. The Spektrum P-SPMXSE1160 waterproof surface ESC with Smart telemetry, 6.5mm motor bullets, and 5A switch-mode BEC is built for all-weather operation. Its waterproof housing protects internal components from moisture, dust, and debris, making it suitable for use in rain, snow, and mud. The high heat-resistant IC5 connectors ensure reliable power delivery, while the rugged construction supports long-term durability in off-road conditions. Whether you're navigating unpredictable terrain or pushing your vehicle to its limits, this ESC is engineered to perform under pressure.
What protection systems are built into the Spektrum P-SPMXSE1160?
The high-performance surface ESC with button programming, waterproof housing, and multi-point protection includes a comprehensive set of safety features. Over-current protection prevents damage during electrical surges, while thermal protection safeguards against overheating. The programmable low-voltage cutoff protects your LiPo battery from over-discharge, and failsafe logic ensures controlled shutdown in the event of signal loss. These systems work together to maintain the integrity of your electronics and provide peace of mind during high-stress driving scenarios.
Is the Spektrum P-SPMXSE1160 easy to install and integrate?
Installation is straightforward thanks to the ready-to-use design of the Spektrum P-SPMXSE1160 with 6V BEC output, 280g weight, and 77mm width for rugged installs. No soldering is required, and the ESC comes equipped with IC5 connectors that are backwards compatible with EC3 and EC5 systems. The 6.5mm motor bullet connectors provide secure and efficient power delivery to brushless motors, while the compact dimensions allow for flexible placement within large-scale chassis layouts. With plug-and-play simplicity and full compatibility with Spektrum Smart receivers and transmitters, integration into your existing setup is seamless.
Buy Spektrum P-SPMXSE1160 Firma 160A Smart ESC for 3S–8S brushless RC vehicles and off-road platforms.
Brand, Model and Product Type
- Brand: Spektrum
- Model: P-SPMXSE1160
- Product Type: Spektrum P-SPMXSE1160 Firma 160A Smart ESC with 3S–8S LiPo support, IC5 input, and 1050A burst current, Spektrum P-SPMXSE1160 waterproof surface ESC with Smart telemetry, 6.5mm motor bullets, and 5A switch-mode BEC, Spektrum P-SPMXSE1160 brushless ESC for large-scale RC vehicles with cooling fan and firmware updates, Spektrum P-SPMXSE1160 with 6V BEC output, 280g weight, and 77mm width for rugged installs, Smart ESC for RC trucks and buggies with one-wire telemetry, failsafe logic, and aluminum heat sink, High-performance surface ESC with button programming, waterproof housing, and multi-point protection
Dimensions
- Length: 7.0 cm – suitable for large-scale chassis layouts
- Width: 7.7 cm – wide footprint for secure mounting and heat dissipation
- Height: 4.4 cm – vertical clearance optimized for rugged installs
- Weight: 280 g – robust construction for high-current surface applications
Electrical and Performance Specifications
- ESC Type: Brushless – engineered for efficient motor control in surface vehicles
- Application: Surface – ideal for RC trucks, buggies, and off-road platforms
- Input Voltage: 3S–8S LiPo (up to 29.6V) – supports high-voltage setups for extreme terrain
- Maximum Continuous Current: 160A – delivers sustained power for aggressive driving
- Maximum Burst Current: 1050A – handles peak loads during throttle spikes and acceleration
Connector and Output Configuration

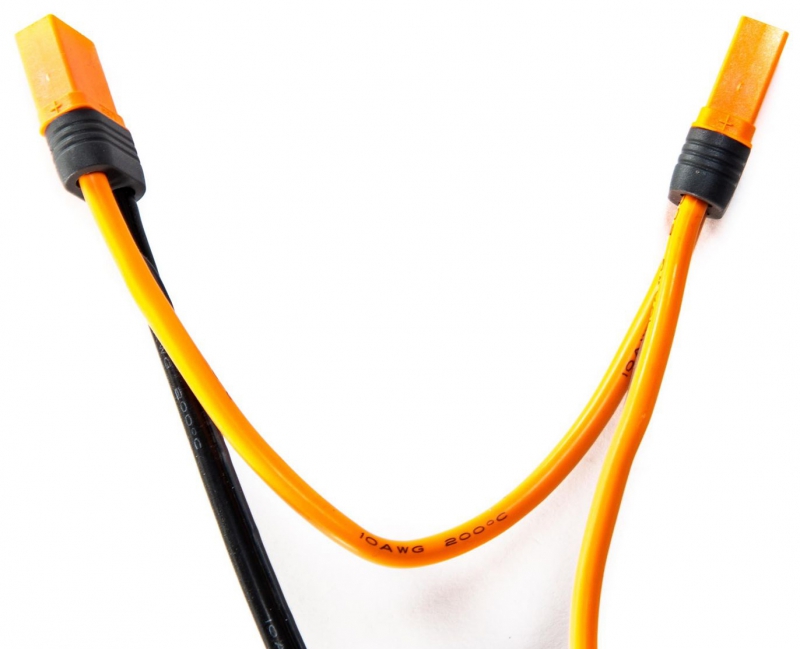

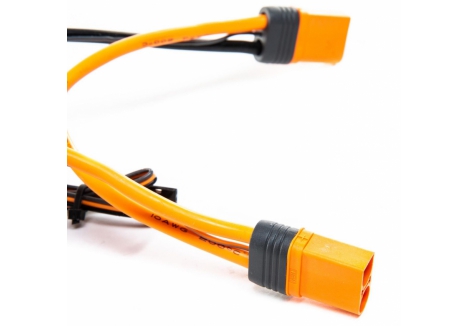

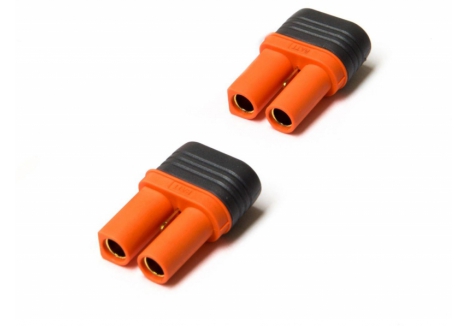

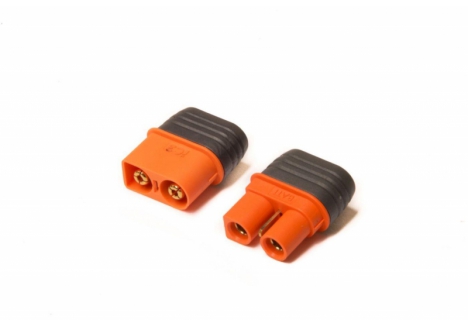

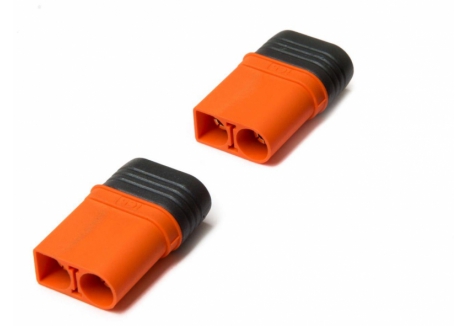

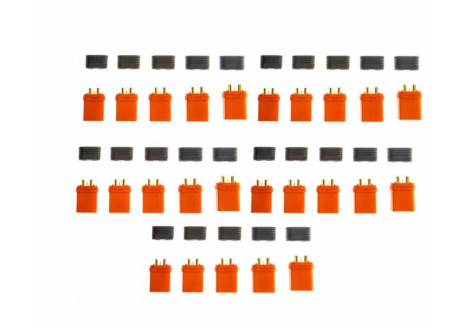

- Battery Connector: IC5 – high heat-resistant input, backwards compatible with EC3 and EC5

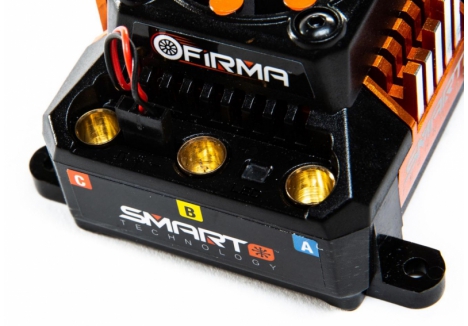

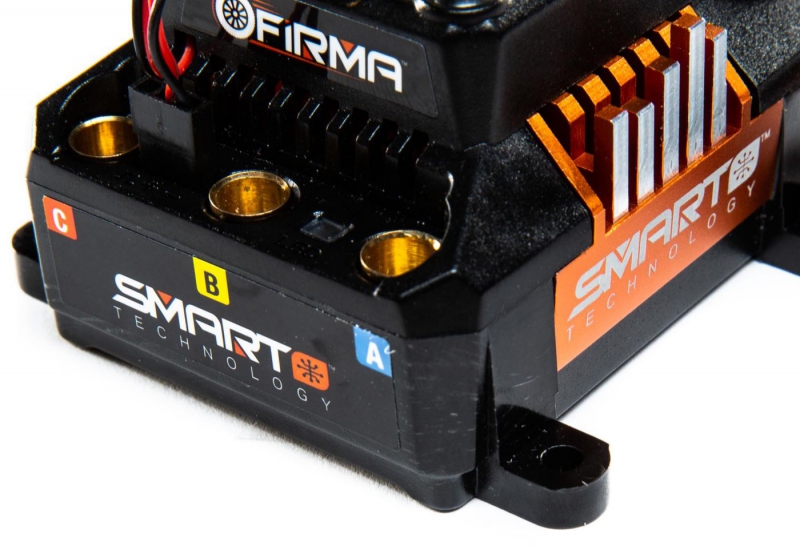

- Motor Output Lead: 6.5mm bullet connectors – secure and efficient connection for brushless motors
Processor and Control Features
- Processor: 32-bit ARM M4 – enables high-resolution signal input and precise motor output
- Programmable: Yes – supports multiple programming methods for flexible configuration

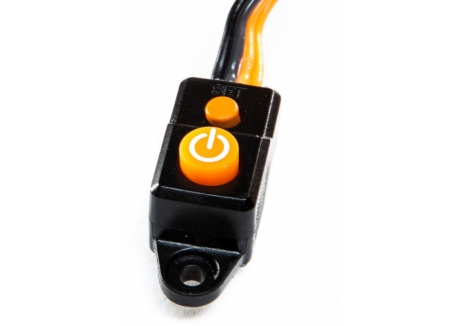

- Programming Options: Button interface, Smart ESC Programming Box, SmartLink USB App
- Forward/Reverse: Yes – includes full directional control for surface vehicle maneuverability
- Brakes: Yes – adjustable braking force for terrain-specific tuning
Telemetry and Smart Technology
- Telemetry: Smart all-in-one – transmits RPM, voltage, temperature, and battery data via one-wire link
- Smart Battery Data: Compatible with Spektrum Smart LiPo – displays cycles, capacity, and cell voltage in real time
Protection and Safety Features
- Waterproof Rating: Yes – fully sealed for all-weather operation
- Failsafe Protection: Yes – maintains control during signal loss or system fault
- Thermal Protection: Yes – prevents overheating during extended use
- Overload Protection: Yes – safeguards against electrical surges
- Low-Voltage Cutoff: Programmable – protects battery from over-discharge
BEC Specifications
- BEC Type: Switch-mode – provides efficient and stable power delivery
- BEC Voltage: 6V – suitable for standard surface electronics
- BEC Continuous Current: 5A – supports high-demand servo systems
Construction and Mounting
- Case Material: Rugged plastic – impact-resistant for off-road durability
- Heat Sink: Integrated aluminum – improves thermal efficiency under load
- Cooling Fan: Yes – active cooling for sustained high-current operation
- Mounting Tabs: Included – enables secure installation in surface vehicle chassis
- Installation: Ready to install – no soldering required
What’s in the Box
- 1 × Spektrum Firma Smart ESC
- 1 × Spektrum Smart Sticker Sheet
- 1 × Product Manual
What You Require / What You Will Need

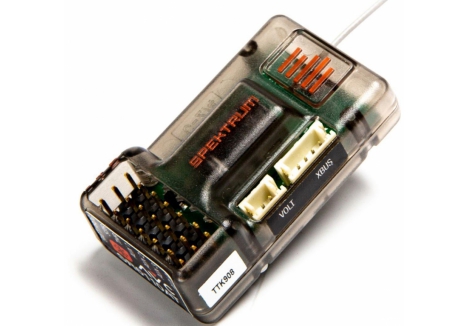

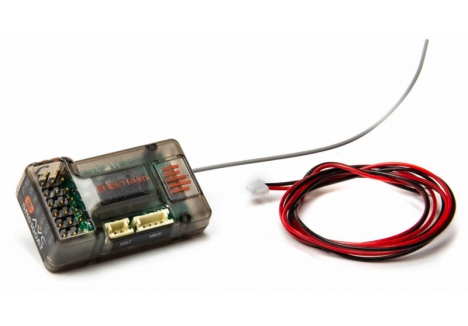

- 1 × Spektrum Surface Receiver

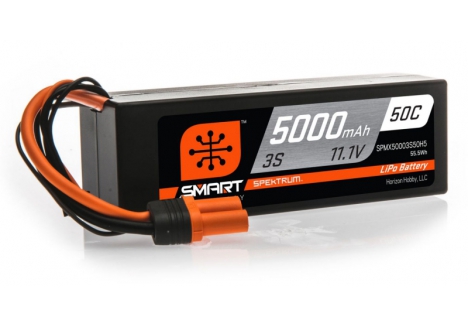

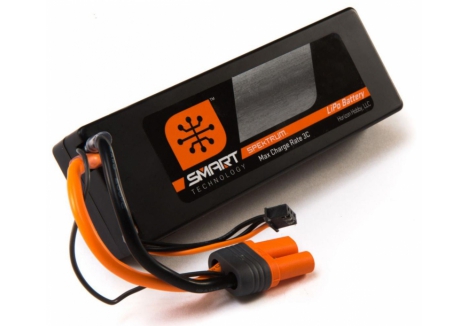

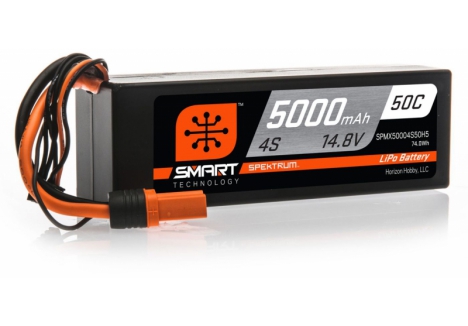

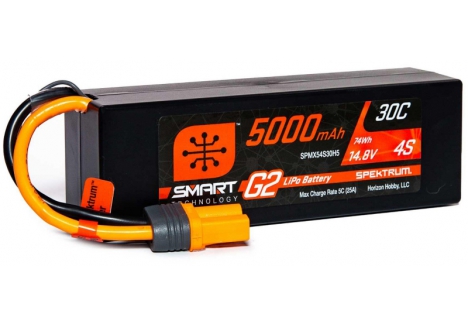

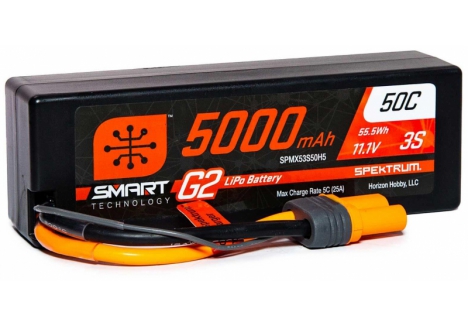

- 1 × Spektrum Smart Technology LiPo Battery
- 1 × Spektrum Transmitter
