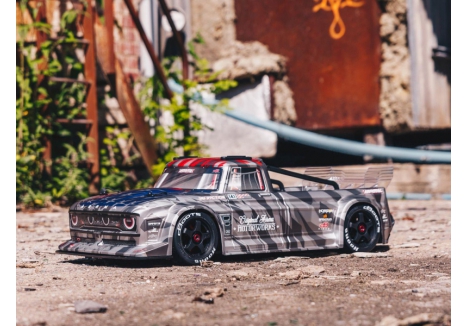

Product Description of ARRMA C-ARA7615V2T2 brushless street bash truck

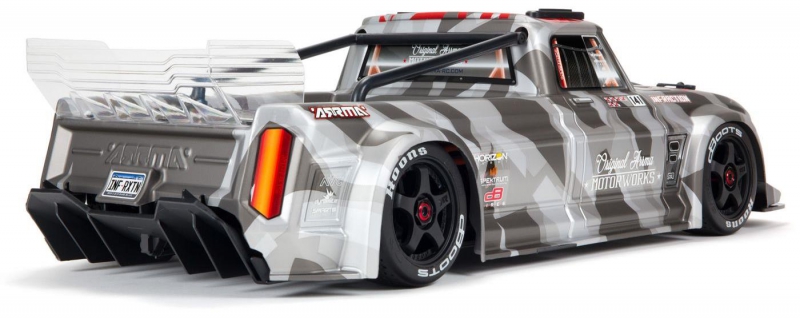

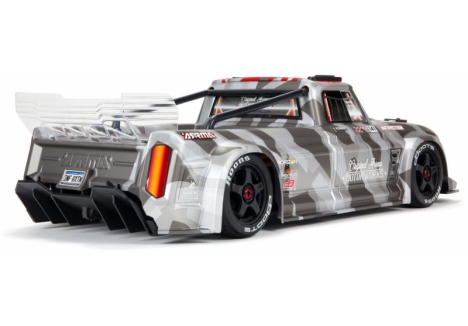

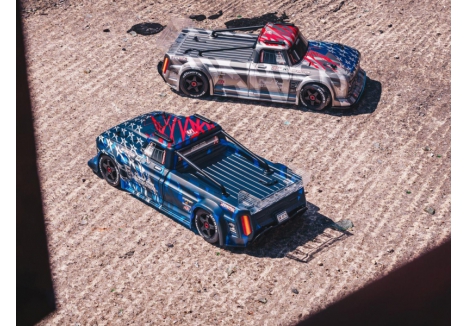

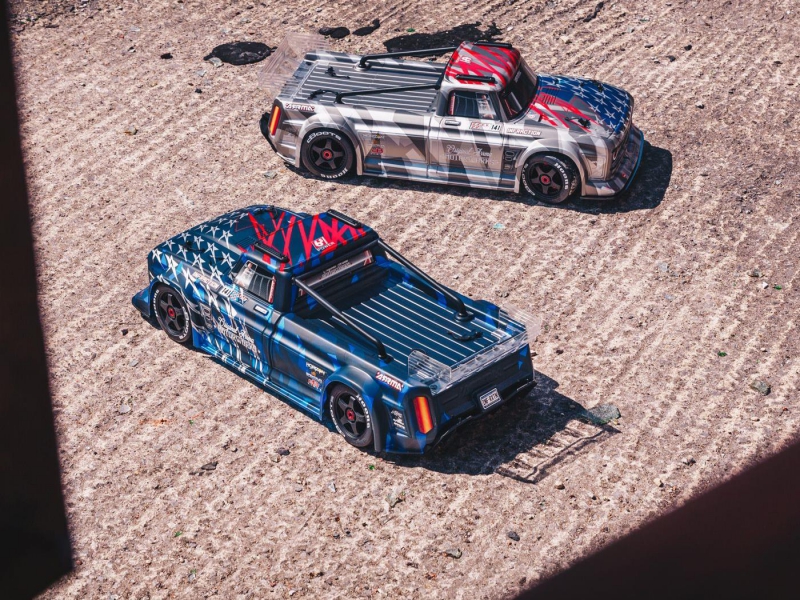

The ARRMA C-ARA7615V2T2 brushless street bash truck is a 1/7 scale all-road RC car engineered for high-speed aggression and resto-mod style. Finished in silver matte gloss, this 4WD vehicle combines a mechanical handbrake, Smart telemetry electronics, and aerodynamic bodywork for unmatched control and customization. Whether you're drifting through asphalt, blasting over gravel, or cornering on oval tracks, the ARRMA C-ARA7615V2T2 4WD resto-mod vehicle delivers 80+ mph performance with scale realism and rugged durability. From its full-width splitter to its rear diffuser and adjustable wing, every detail is tuned for aerodynamic dominance.
Key features of the C-ARA7615V2T2 brushless street bash truck
- AVC receiver and DX3 transmitter – real-time stability control and Smart telemetry integration
- Mechanical handbrake – metal disc brake module with dedicated servo for stunt control
- 2050Kv brushless motor and Smart ESC – delivers 80+ mph speeds with 6S LiPo compatibility
- Aluminium chassis and centre brace – reinforced structure for high-speed durability
- Oil-filled aluminium shocks – adjustable coil-over design for smooth all-road handling
- dBoots Hoons tyres – all-road tread with 5-spoke wheels for grip and scale realism
- Custom body kit – silver matte gloss finish with tunable wing, splitter, and diffuser
How does the mechanical handbrake enhance stunt control?

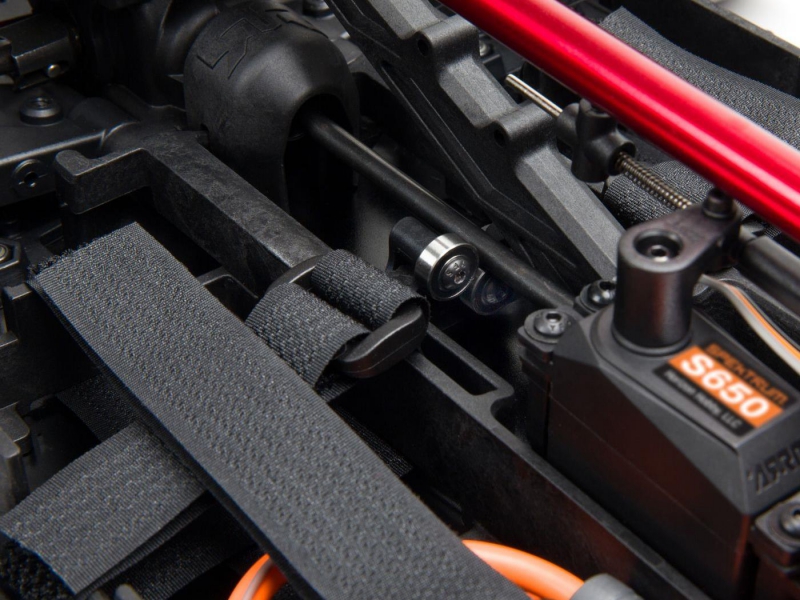

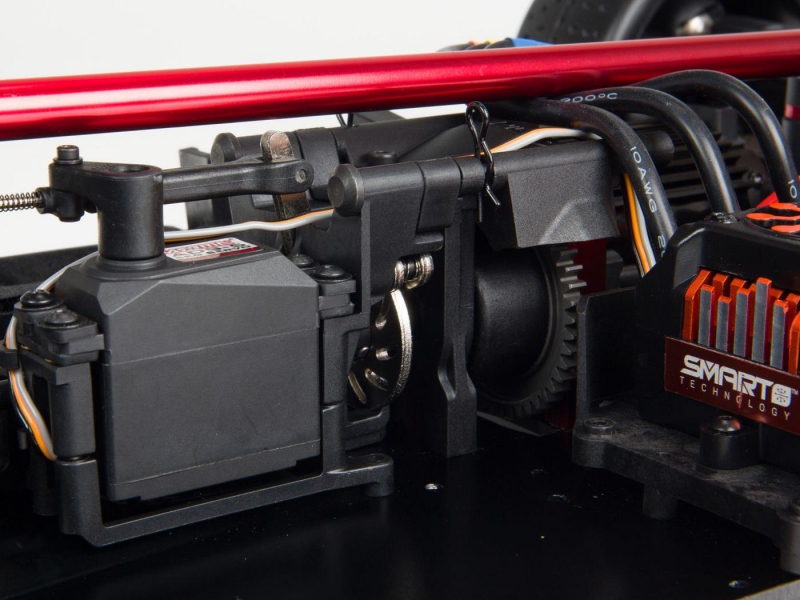

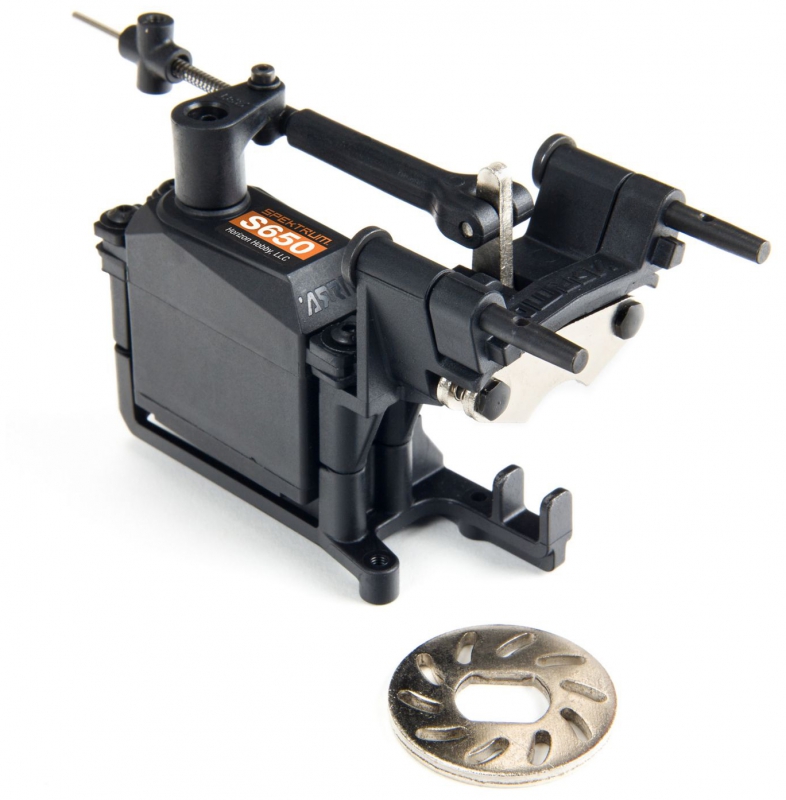

The mechanical handbrake in the ARRMA C-ARA7615V2T2 with AVC receiver and mechanical handbrake is operated via a thumb switch on the DX3 transmitter. It activates a metal disc brake module powered by a waterproof Spektrum SPMS650 servo, enabling precise drifts, hooning, and stunt maneuvers. This feature adds a new layer of control to the ARRMA C-ARA7615V2T2 1/7 scale all-road RC car, making it ideal for street bashers who want to push the limits of performance and style.
What makes the power system ideal for all-road bashing?

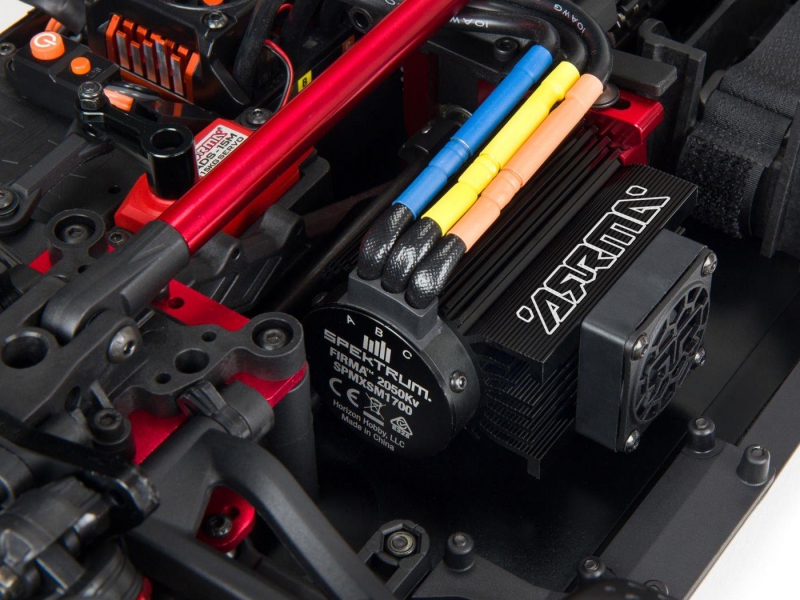

The ARRMA RC car with Smart ESC and adjustable aero wing features a Spektrum Firma 4074 2050Kv brushless motor paired with a 150A Smart ESC. This setup supports 4S and 6S LiPo batteries and delivers explosive acceleration and sustained top-end speed. The motor includes a Safe-D pinion gear, black anodized aluminium can, and 5mm shaft for thermal stability and drivetrain protection. The ESC offers full telemetry support via the Spektrum Dashboard app, allowing drivers to monitor voltage, temperature, and RPM in real time. Together, they make the ARRMA C-ARA7615V2T2 brushless street bash truck both powerful and intelligent.

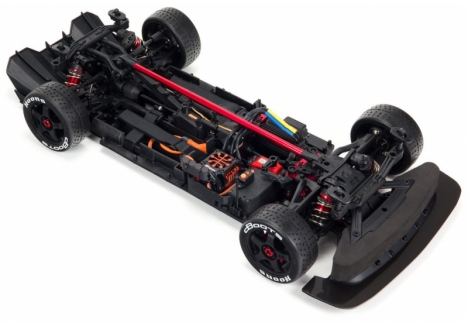

How does the chassis design support aggressive driving?

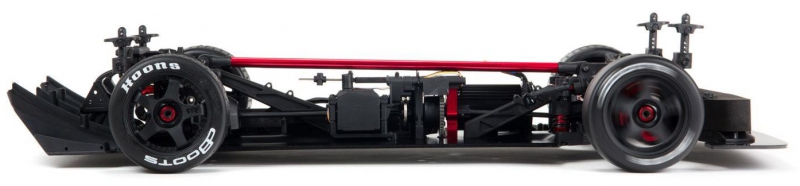

The 3mm 6061-T6 anodized aluminium chassis of the ARRMA street truck with aluminium chassis and dBoots Hoons tyres is reinforced with a centre brace and high-speed driveshaft support. Heavy-duty steel driveshafts, all-metal diff outdrives, and updated internal gears with a new tooth profile ensure drivetrain reliability under extreme loads. A lower internal gear ratio reduces transmission RPM, minimizing resonance and increasing durability. Combined with waterproof electronics and large battery trays, the chassis layout supports the ARRMA C-ARA7615V2T2 4WD resto-mod vehicle across varied terrain and driving styles.
What makes the suspension system ideal for all-road aggression?

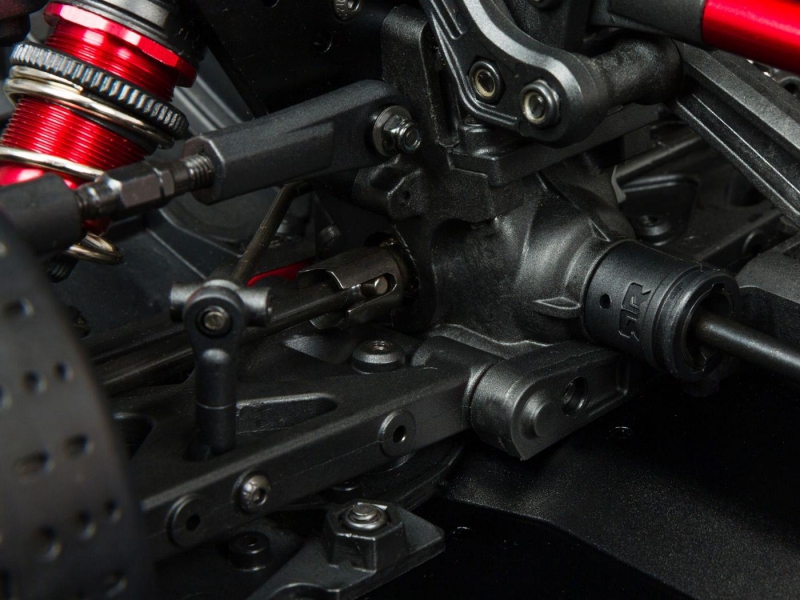

The oil-filled, adjustable aluminium shocks mounted on black-anodized shock towers provide plush damping and consistent tyre contact. The independent front and rear suspension geometry is tuned for high-speed stability and responsive cornering. The dBoots Hoons tyres feature a classic tread pattern and are mounted on five-spoke wheels, offering grip across asphalt, gravel, and short grass. Whether you're launching off curbs or carving through corners, the suspension system ensures the ARRMA RC car with Smart ESC and adjustable aero wing remains composed and aggressive.

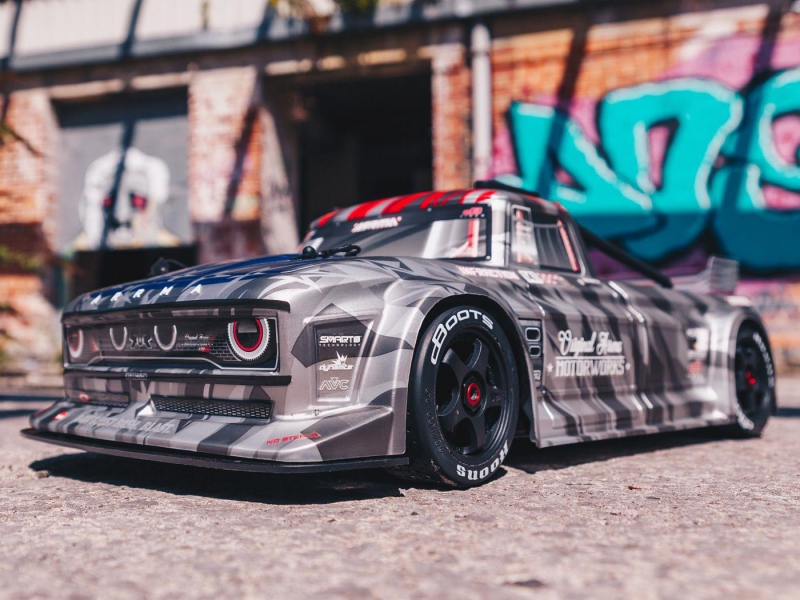

How customizable is the INFRACTION’s aero and body setup?

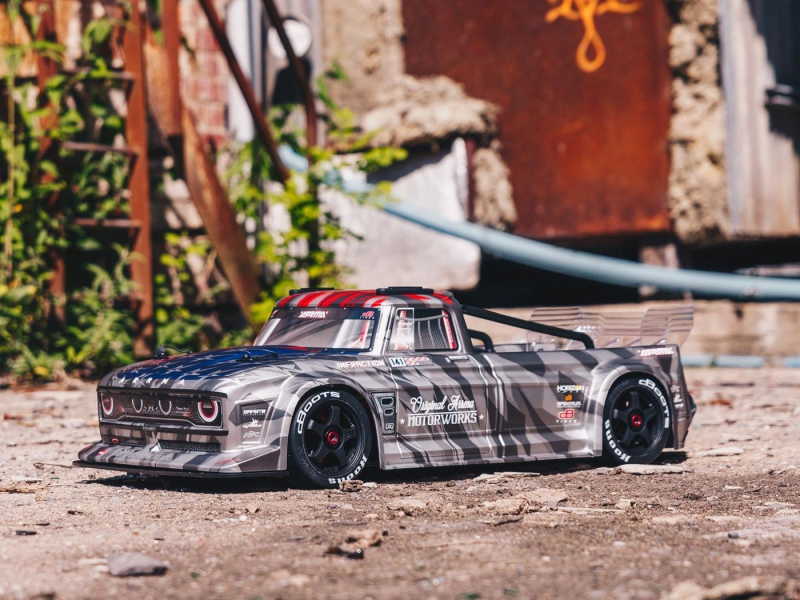

The silver matte gloss body of the ARRMA C-ARA7615V2T2 brushless street bash truck arrives factory-finished with screen-printed decals and trim. It includes adjustable front and rear body mounts, a tunable rear wing, full-width front splitter, and rear diffuser for aerodynamic control. These components balance downforce and grip, enabling faster cornering and improved stability. Combined with the mechanical handbrake and Smart telemetry system, the ARRMA C-ARA7615V2T2 1/7 scale all-road RC car offers a fully customizable driving experience.
Is this the best option for high-speed street bashing?
For those seeking the best ARRMA street bash vehicle with centre brace and rear diffuser, the INFRACTION 6S BLX platform delivers unmatched speed, style, and control. With AVC stability, Smart telemetry, and a fully integrated aero system, it’s built for drivers who want to push limits and personalize their ride. The combination of resto-mod styling and modern electronics makes the ARRMA C-ARA7615V2T2 brushless street bash truck a standout choice for all-road aggression and stunt-ready performance.
Whether you're chasing top speed or tuning for scale realism, the ARRMA C-ARA7615V2T2 brushless street bash truck combines intelligent electronics, rugged construction, and aerodynamic styling. From its 6S power system and mechanical handbrake to its adjustable wing and dBoots tyres, every detail is engineered for impact. Buy ARRMA C-ARA7615V2T2 truck with 6S power system and telemetry support today and unleash full-throttle performance with street-ready style.
Technical Specifications of ARRMA C-ARA7615V2T2 brushless street bash truck
Brand, Model and Product Type
- Brand: ARRMA
- Model: C-ARA7615V2T2
- Product Type: ARRMA C-ARA7615V2T2 brushless street bash truck, ARRMA C-ARA7615V2T2 1/7 scale all-road RC car, ARRMA C-ARA7615V2T2 4WD resto-mod vehicle, ARRMA C-ARA7615V2T2 with AVC receiver and mechanical handbrake, ARRMA RC car with Smart ESC and adjustable aero wing
Dimensions
- Product Length: 69.5 cm – extended chassis for high-speed stability and aerodynamic control
- Product Width: 31.0 cm – wide track supports aggressive cornering and scale realism
- Product Height: 20.0 cm – low-profile body with integrated aero components
- Wheelbase: 40.6 cm – tuned for balance between straight-line speed and responsive handling
- Product Weight: 5.0 kg – reinforced aluminium chassis and heavy-duty drivetrain components
- Ground Clearance: 1.5 cm – optimized for street bashing and low-drag airflow
- Battery Tray Dimensions: 13.85 × 4.65 × 3.5 cm – supports 4S or 6S LiPo batteries with IC5 connectors
Power System and Electronics

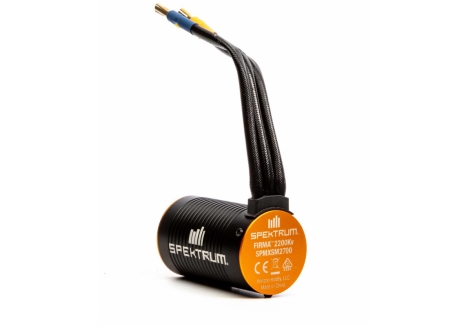

- Motor: Spektrum Firma 4074 2050Kv brushless motor – 4-pole construction with 5mm shaft and etched aluminium can

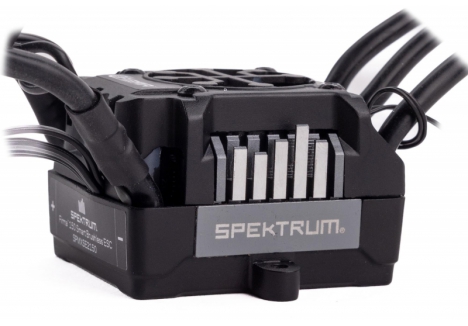

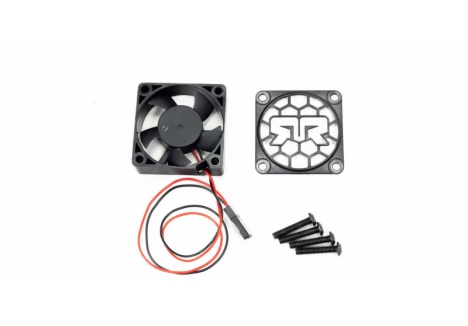

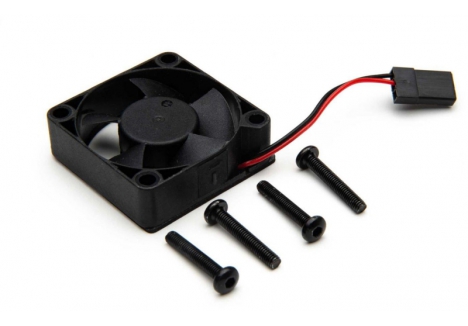

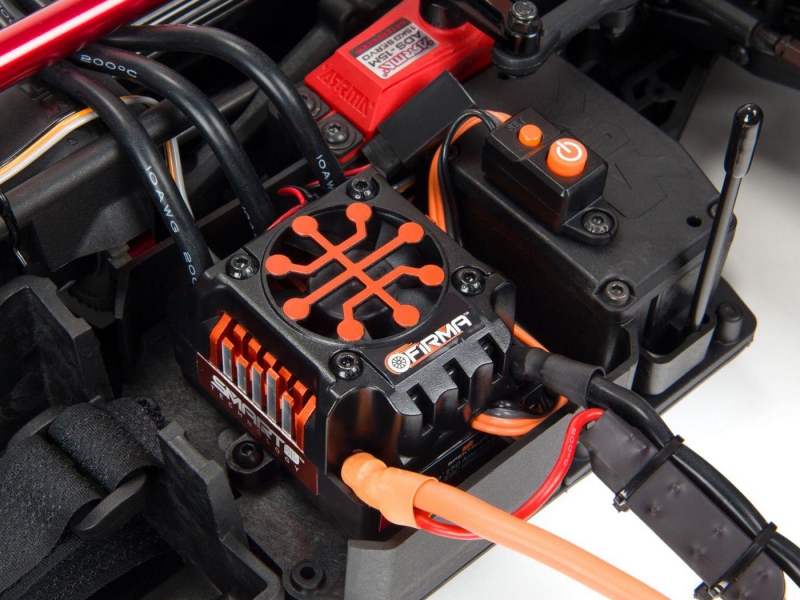

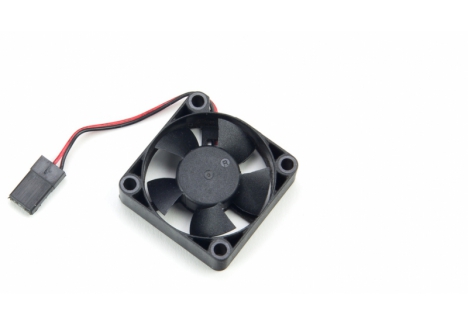

- ESC: Spektrum Firma 150A Smart ESC – waterproof, 6S LiPo compatible, with integrated fan and IC5 connectors

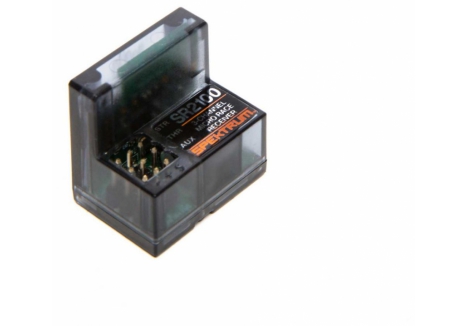

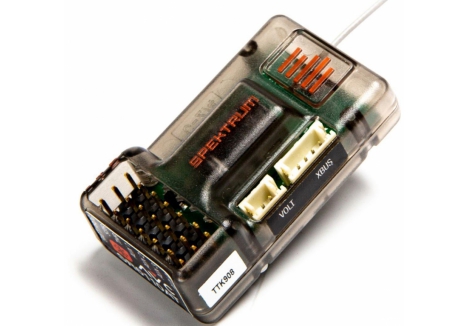

- Receiver: Spektrum SR6110AT AVC receiver – DSMR protocol with full telemetry and stability control

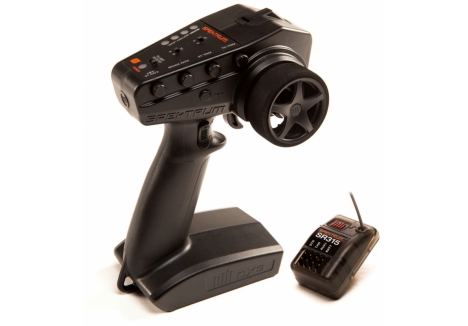

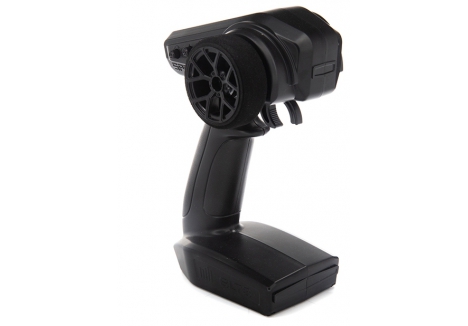

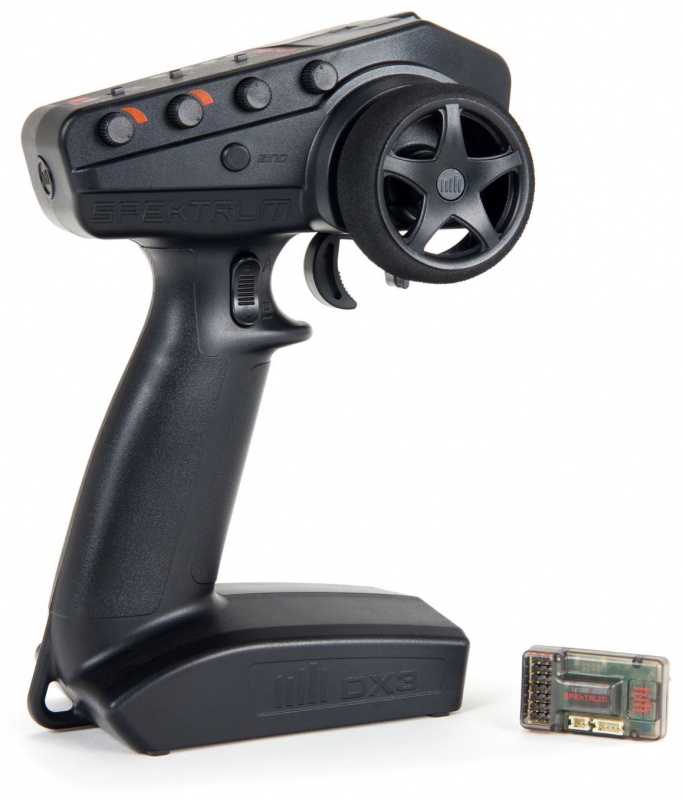

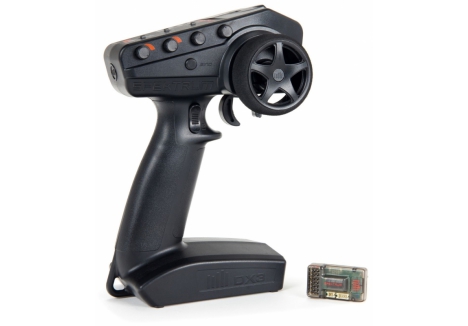

- Transmitter: Spektrum DX3 3-channel DSMR radio – AVC gain adjustment and Smart battery voltage indicator
- Steering Servo: ARRMA ADS-15M waterproof servo – metal gears, 194 oz-in torque @ 6V, 25T spline
- Brake Servo: Spektrum SPMS650 waterproof servo – plastic gears, 84 oz-in torque @ 6V, 23T spline
Drivetrain and Transmission

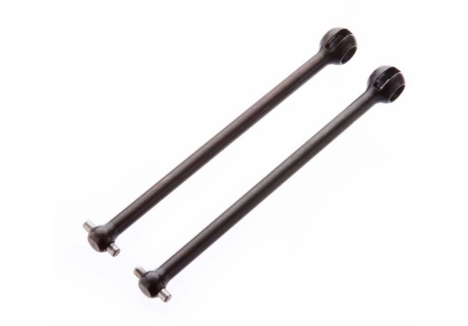

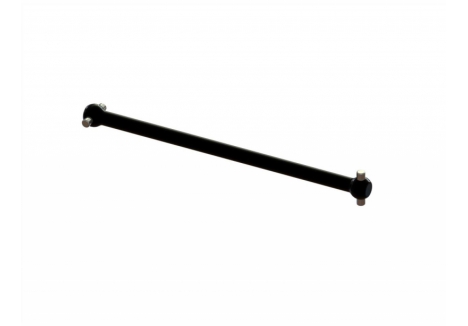

- Drive System: 4WD – shaft-driven with steel driveshafts and all-metal gearbox internals

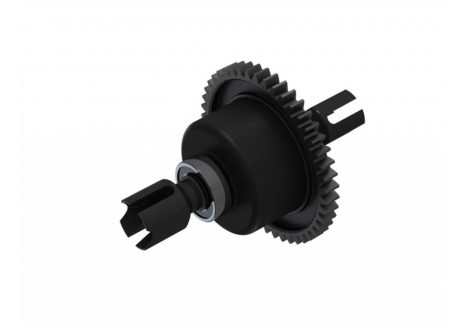

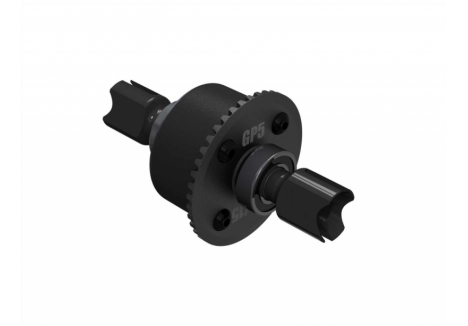

- Differentials: Three oil-filled metal gear diffs – updated tooth profile for increased strength
- Final Drive Ratio: 8.58:1 – tuned for acceleration and terrain control
- Internal Gear Ratio: 2.8:1 – optimized for drivetrain efficiency and reduced resonance

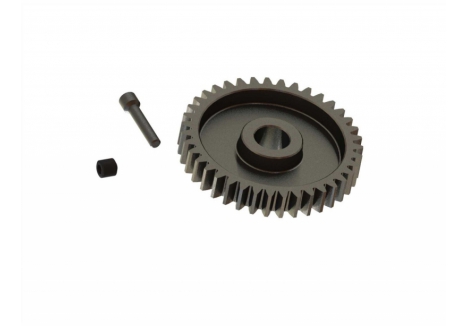

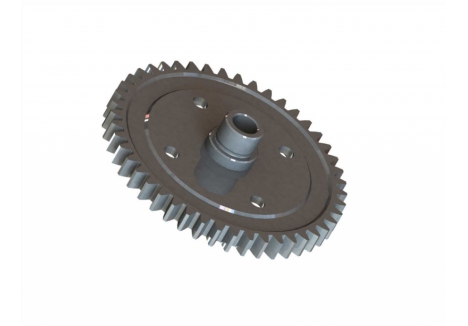

- Spur Gear: 46T – heavy-duty gearing for high-speed output

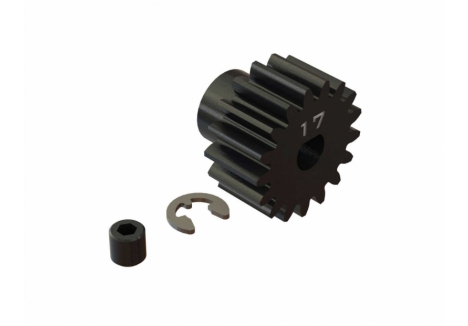

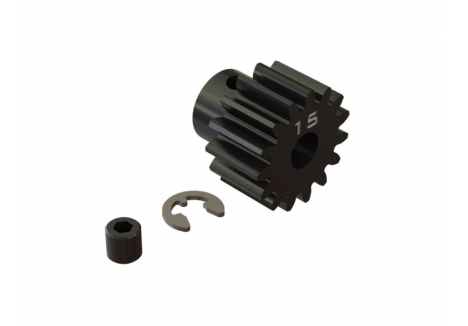

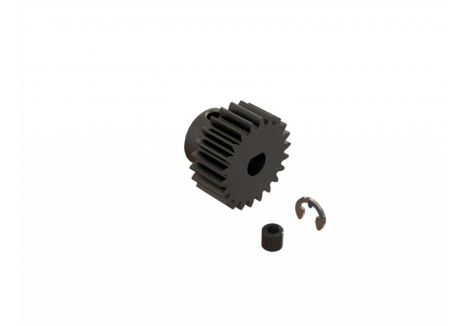

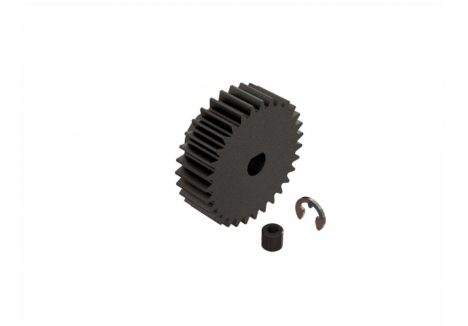

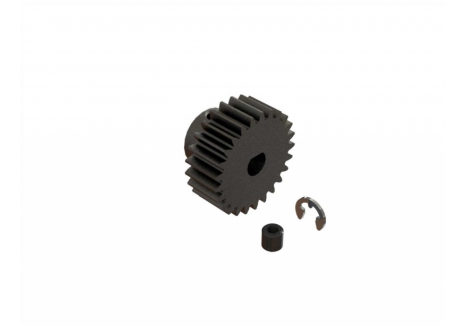

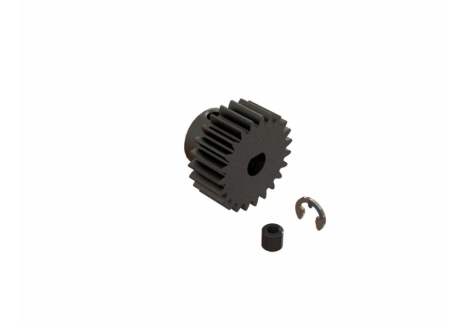

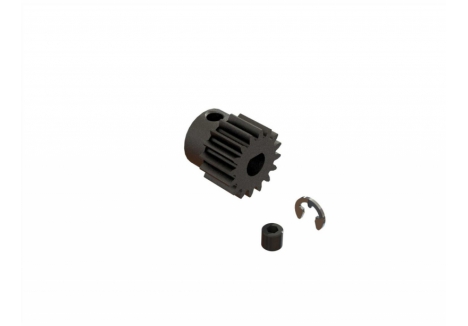

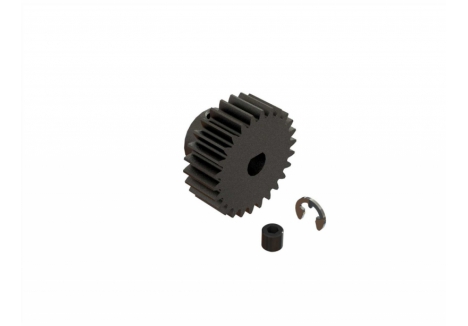

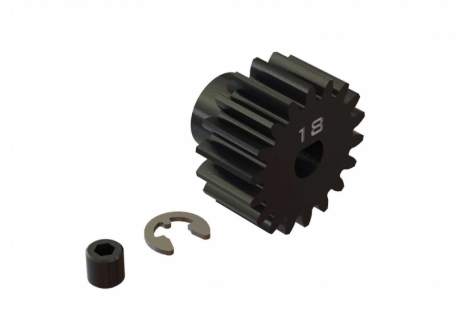

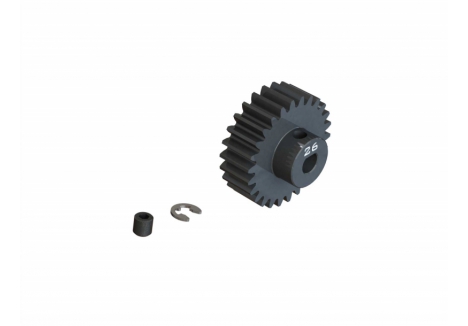

- Pinion Gear: 15T – factory-installed with Safe-D retention system
- Brakes: ESC-integrated braking plus mechanical disc handbrake module
Suspension and Handling
- Suspension Type: Independent front and rear – tuned for street bashing and stunt control

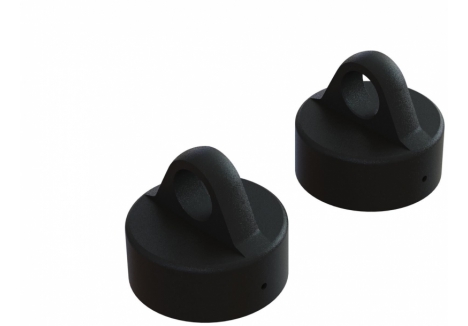

- Shock Type: Oil-filled aluminium shocks – 7.7 cm front, 8.7 cm rear, mounted on anodized aluminium towers

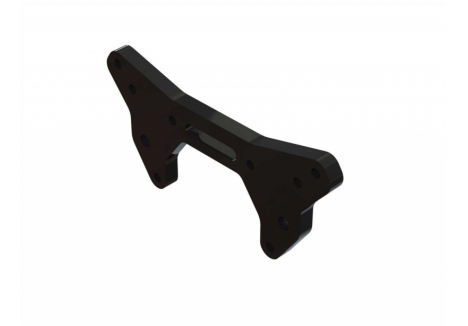

- Shock Towers: Black-anodized aluminium – reinforced for impact resistance and tuning stability
Tyres and Wheels

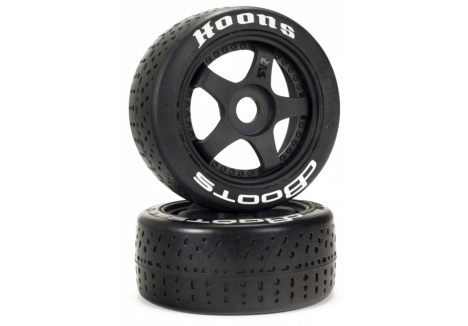

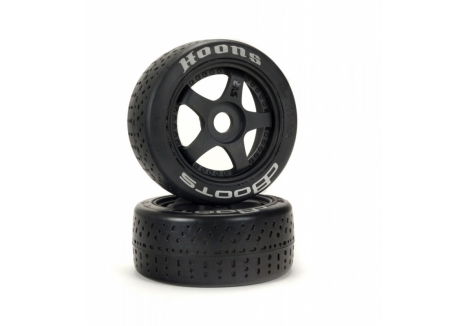

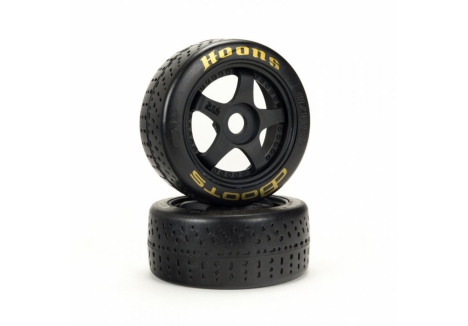

- Tyres: dBoots Hoons all-road tyres – classic tread for grip across asphalt, gravel, and short grass
- Wheel Type: Five-spoke wheels – scale styling with durable hubs
- Wheel Hex Size: 17 mm – supports high-torque applications and secure fitment
Chassis and Structural Components

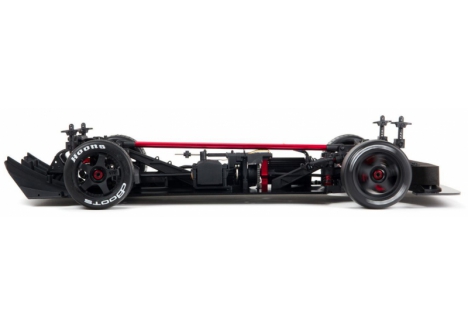

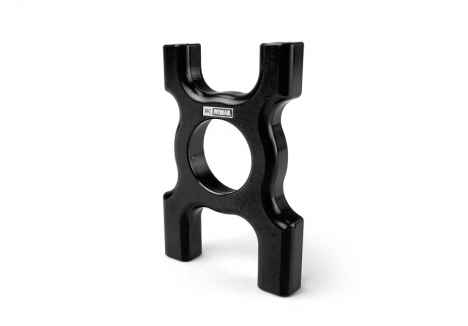

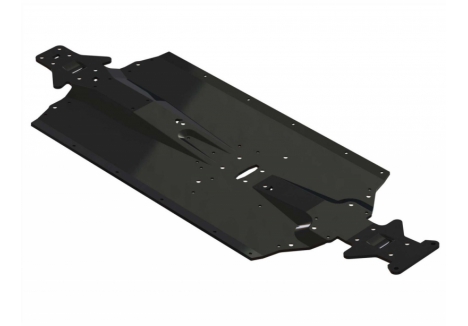

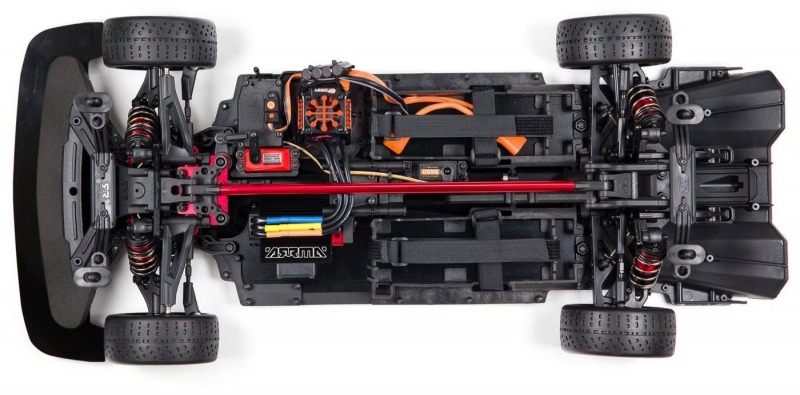

- Chassis Material: 3 mm 6061-T6 anodized aluminium – reinforced with centre brace and high-speed driveshaft support

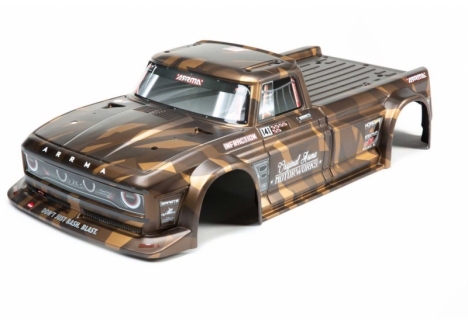

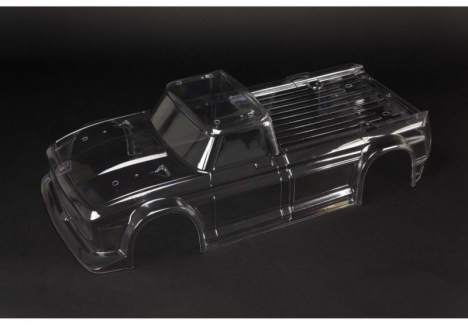

- Body Design: Silver matte gloss INFRACTION body – screen printed, decaled, and trimmed
- Aero Components: Adjustable rear wing, full-width front splitter, and rear diffuser – tunable downforce and scale detailing
- Water Resistance: Yes – waterproof receiver box, ESC, and servos for all-weather operation
Performance and Drive Modes
- Top Speed: 80+ mph – achievable with 6S LiPo and optional gearing
- Drive Modes: Standard throttle, AVC-enabled stability control, telemetry monitoring via Spektrum Dashboard app
What’s in the Box
- 1 × ARRMA INFRACTION 6S BLX 4WD Resto-Mod Street Bash Truck RTR
- 1 × Spektrum Firma 150A Smart ESC (installed)
- 1 × Spektrum Firma 4074 2050Kv Brushless Motor (installed)
- 1 × ARRMA ADS-15M Waterproof Steering Servo (installed)
- 1 × Spektrum SPMS650 Waterproof Brake Servo (installed)
- 1 × Spektrum SR6110AT AVC Receiver (installed)
- 1 × Spektrum DX3 DSMR Radio
- 1 × Instruction Manual
What You Require

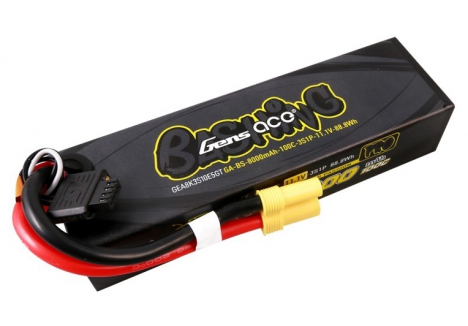

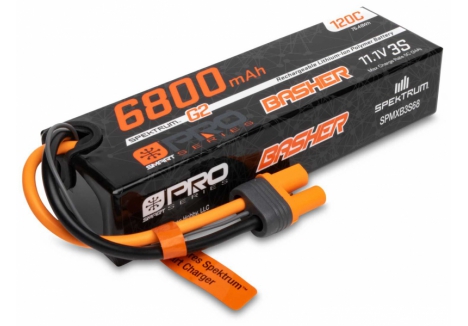

- 2 × 2S or 2 × 3S LiPo Batteries with EC5 or IC5 connectors
- 1 × Compatible LiPo Battery Charger
- 4 × AA Batteries for Transmitter
Parts Diagrams
Front Assembly
Front Bumper Assembly

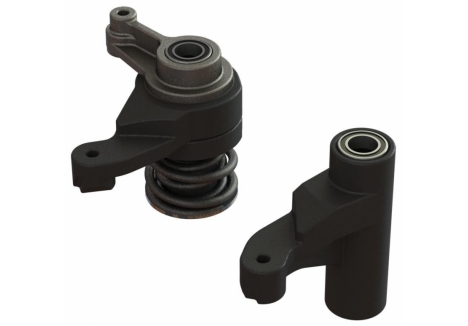

Steering and Receiver Box Assembly
Rear Assembly

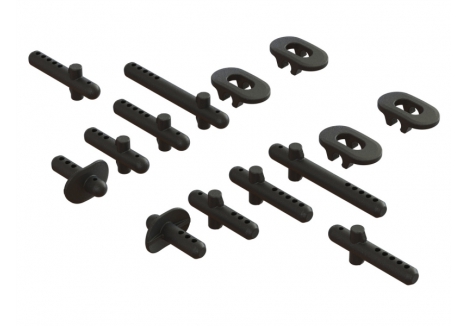

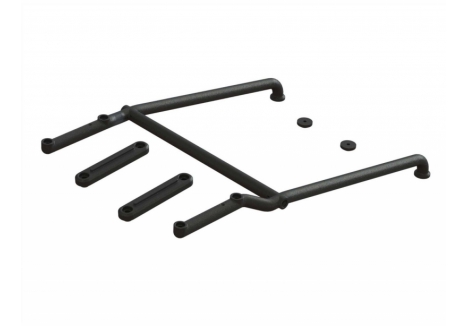

Rear Diffuser and Bodymount
Chassis and Transmission
Handbrake Assembly
Differential Assembly
Shock Absorber Assembly
Bodyshell / Wheel & Tyre
