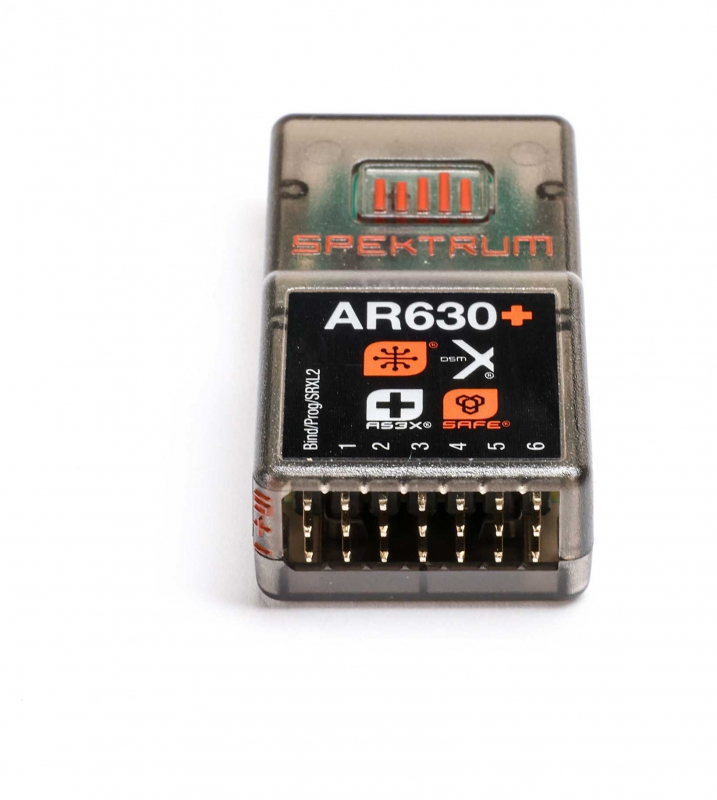

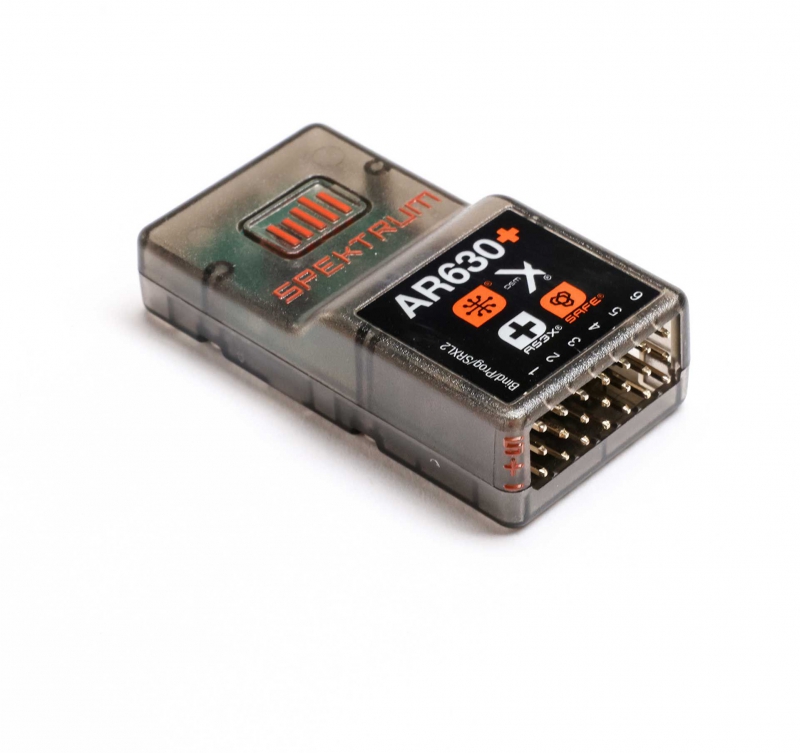

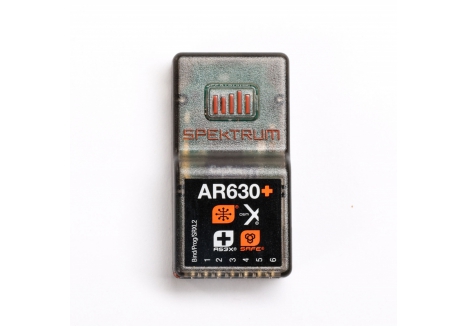

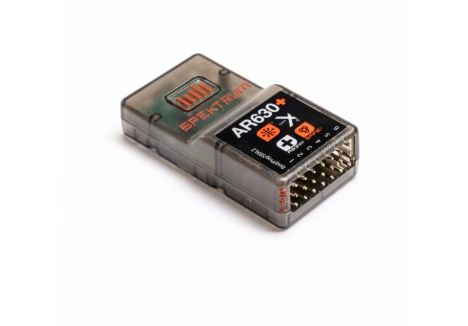

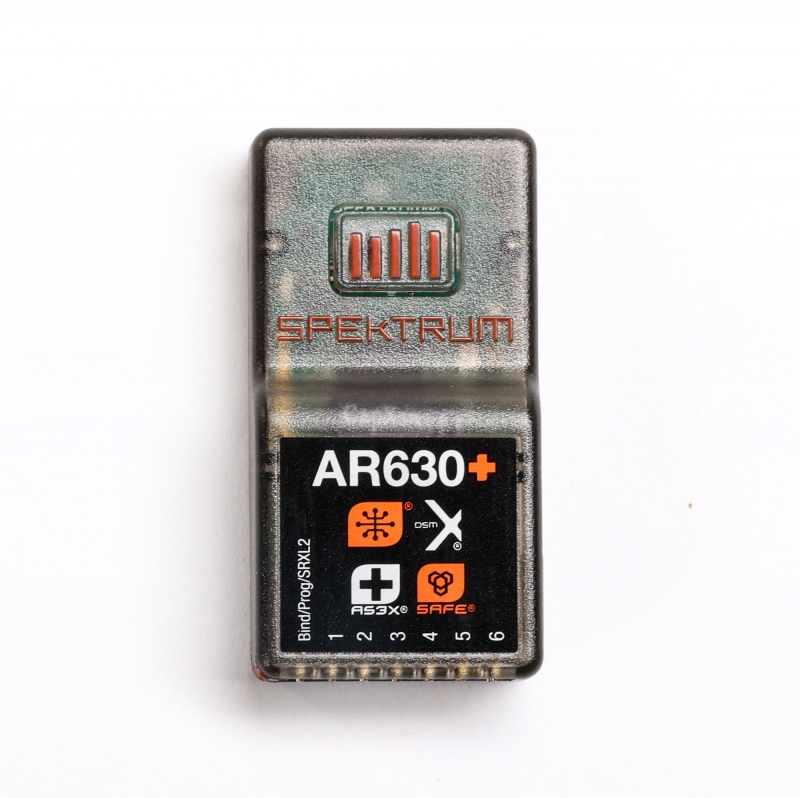

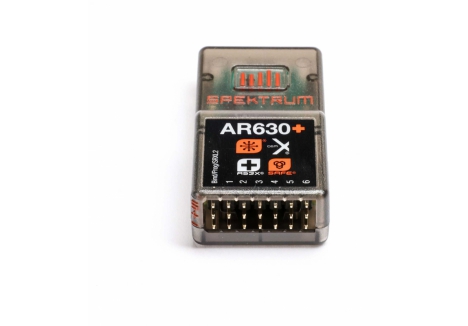

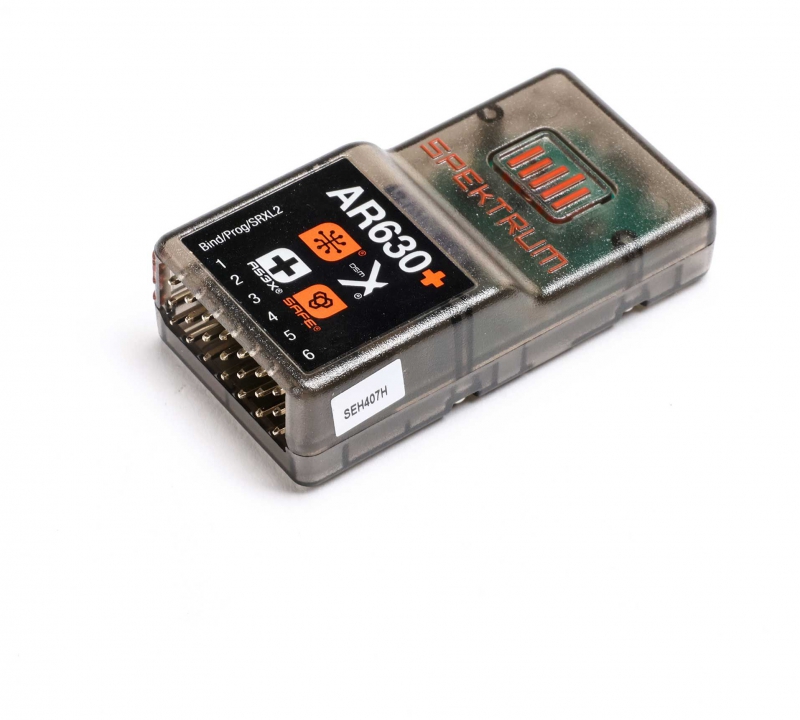

Spektrum AR630+ 6-Channel AS3X+ & SAFE Receiver Overview
The AR630+ features fly-by-range telemetry, a bind button for easy binding with no plugs necessary, SmartSafe technology, Hold Last, and preset failsafe types set through Forward Programming. It also features Smart Telemetry support and Smart Throttle support. Additionally, Smart Model Files allow BNF models to be stored on the receiver to automatically set the model at bind.
With Smart Technology, the normal servo connector delivers the throttle signal to the ESC, and the ESC sends telemetry data like voltage and current back to the receiver. The AR630+ receiver throttle port (Channel 1 port only) will automatically detect when a Smart-compatible ESC is connected. ESCs with Smart and IC series connectors can also pass along battery data from compatible Spektrum Smart batteries. Spektrum Avian ESCs are compatible with the AR630+ receiver for Smart Technology features.
For Smart to function, you must have a Smart ESC paired with a Smart Telemetry receiver and a Spektrum DSMX transmitter with telemetry. An update for your transmitter may be required for Smart features. See www.spektrumrc.com to register and update your transmitter. If a standard ESC or servo is plugged into the throttle port on the AR630+ receiver, the throttle port will operate normally (PWM signal) like any conventional RC system.
Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, non-computer transmitters.
Spektrum AR630+ 6-Channel AS3X+ & SAFE Receiver Features
- Streamlined, end-pin design in a lightweight hard case
- Bind button allows for easy binding and eliminates the need for a bind plug
- Fly-by range telemetry support
- Standard servo connectors
Spektrum AS3X+ Receiver Firmware Update Guide
- Product: Spektrum AR630+ DSMX 6-Channel AS3X+ & SAFE Receiver
- Model Number: SPM-1030
- Manufacturer: Spektrum
- Application: Air
- Frequency Band: 2.4GHz
- Protocol: DSMX and DSM2 compatible
- Number of Channels: 6
- Input Voltage: 3.5V to 9V
- Dimensions: 47 x 25 x 13 mm (1.85 x 0.98 x 0.51 inches)
- Weight: 9.5 grams (0.34 ounces)
- Stabilisation System: AS3X+ (Attitude Stabilisation and Control by Sensing 3 axes)
- Flight Protection: SAFE (Sensor Assisted Flight Envelope)
- Antenna Design: Internal antenna (antenna-less)
- Range: Full range
- Telemetry: Fly-by-range telemetry capable
- Telemetry Range: Fly-By
- Serial Output: SRXL2
- Signal Resolution: 2048
- Bind Method: Bind button (no bind plug required)
- Receiver Ports: Standard servo connectors
- Smart Technology: Yes - supports Spektrum Smart ESCs and Smart Telemetry

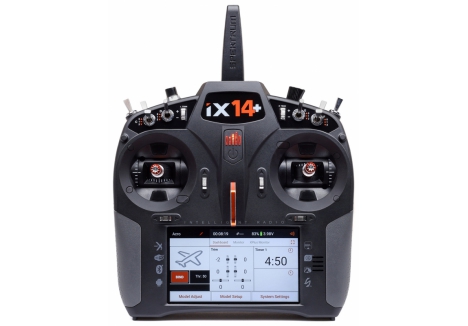

- Smart Model Files Support: Yes - compatible with iX20, iX14, and NX transmitters with latest firmware
- Forward Programming: Yes - wireless configuration from compatible Spektrum transmitters
- Failsafe: Yes - preset failsafe types through Forward Programming
- SmartSafe Technology: Yes
- Hold Last: Yes
- AS3X+ Features: Stop Lock and Release Rate parameters, Heading Hold improvements, improved gyro filtering, Canard support, Thrust Vectoring support
- Integrated Variometer: No
- Telemetry Sensors: No (works with external Smart ESC telemetry)
- Transmitter Compatibility: Spektrum DSMX and DSM2 transmitters with telemetry capability for full features
- Incompatible Transmitters for Forward Programming: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, non-computer transmitters
- ESC Compatibility: Any standard ESC; Spektrum Avian ESCs for Smart Technology features
- Battery Compatibility: Compatible with Smart batteries via Spektrum Avian ESCs
- Case: Lightweight hard case protective shell
- Package Contents: 1x AR630+ Receiver, 1x Product Manual (Multilingual)
Overview
The Spektrum AR630+ DSMX 6-Channel AS3X+ & SAFE Receiver represents a significant advancement in RC aircraft stabilisation technology, delivering professional-grade flight performance in a compact, lightweight package. This is the perfect receiver for pilots who demand precision control and confidence in their flying, whether you're a seasoned RC modeller in the UK or someone stepping into the world of advanced RC aircraft for the first time. The AR630+ combines cutting-edge stabilisation algorithms with intuitive wireless programming, making it one of the most accessible yet capable receivers available on the market today.
What sets the AR630+ apart from other RC receivers is its revolutionary AS3X+ stabilisation system, a completely redesigned algorithm that has been rigorously tested by experts throughout the hobby. Unlike previous generations, AS3X+ delivers better flight performance, improved sensor accuracy and data rate, with absolutely no delay in control response or limits on control throws. Pilots consistently report that aircraft equipped with this receiver simply feel like expertly tuned models that do exactly what you want them to do. Combined with SAFE flight envelope protection technology, the AR630+ gives you confidence to push your RC aircraft to new heights whilst maintaining safety margins that prevent over-control and extreme attitudes.
Whether you're building a custom RC aircraft, upgrading an existing model, or looking for a reliable receiver for competitive flying, the AR630+ is engineered to deliver. Its antenna-less design eliminates the traditional external antenna that can suffer from damage or degradation over time, whilst the internal antenna design delivers superior full-range performance across the entire frequency spectrum. The receiver is ready to work seamlessly with Spektrum Smart ESCs and telemetry-capable transmitters, making it an intelligent choice for modern RC aircraft systems in the UK and beyond.
Key Features
- AS3X+ Stabilisation System — The all-new AS3X+ stabilisation algorithm delivers a generationally different feel compared to the previous AS3X standard, with vastly improved flight performance and sensor accuracy. This means your RC aircraft will maintain stable flight even in challenging conditions, with no delay in control response, making it ideal for pilots who want precision handling without compromising on feel.
- SAFE Flight Envelope Protection — SAFE (Sensor Assisted Flight Envelope) technology uses AS3X+ to deliver normal flight performance but with limited bank and pitch angles to prevent your aircraft from getting into extreme attitudes. This is invaluable for learning, recovery from mistakes, and keeping expensive RC models safe during competitive flying or challenging flight conditions.
- Antenna-less Design — The AR630+ features an internal antenna design that offers superior full-range performance whilst eliminating the risk of failure from long-term wire exposure or accidental damage. Installation is easier than ever, and you'll never have to worry about antenna placement or degradation affecting your RC aircraft's range and reliability.
- Forward Programming Capability — Configure the AR630+ wirelessly directly from any compatible Spektrum transmitter through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments, allowing you to fine-tune your AS3X+ and SAFE settings in the field in seconds.
- Smart Telemetry Support — The AR630+ features fly-by-range telemetry and will send vital telemetry data such as current, voltage, temperature, and RPM directly to your compatible Spektrum transmitter. This real-time information helps you monitor your RC aircraft's battery health and performance whilst flying.
- Smart Technology Integration — The receiver's throttle port (Channel 1) automatically detects when a Smart-compatible ESC is connected, allowing normal servo connector delivery of the throttle signal to the ESC with telemetry data sent back to the receiver. Spektrum Avian ESCs are compatible, and compatible Smart batteries can pass battery data directly to the system.
- Smart Model Files Support — This advanced feature allows transmitter configuration parameters to be stored within the receiver's model file. When binding to a receiver containing one of these model files, you'll be prompted to download the model file and overwrite your currently selected transmitter model, providing an easy way to acquire transmitter setup for BNF models without manual configuration.
- Bind Button Design — The included bind button allows for easy binding and eliminates the need for separate bind plugs, simplifying your RC aircraft setup routine and reducing the number of components you need to carry to the field.
- Advanced AS3X+ Tuning Parameters — The system features Stop Lock and Release Rate parameters, improved heading hold performance, enhanced gyro filtering, and support for canard and thrust vectoring configurations, making it suitable for a wide range of RC aircraft types from simple trainers to advanced aerobatic planes.
- 6-Channel Capacity — With six independent channels, the AR630+ provides comprehensive control over your RC aircraft, supporting aileron, elevator, rudder, throttle, landing gear, and flap functions, or any other combination of servo and ESC requirements your build demands.
- DSMX with DSM2 Backward Compatibility — The receiver operates on the modern DSMX protocol whilst maintaining full backward compatibility with older DSM2 systems, ensuring compatibility with both new and legacy Spektrum transmitters.
- Compact Lightweight Construction — Measuring just 47 x 25 x 13 mm and weighing only 9.5 grams, the AR630+ fits into the tightest spaces within your RC aircraft whilst keeping weight minimal, crucial for optimising performance and flight time.
Technical Performance
The Spektrum AR630+ is engineered to the highest standards of quality and performance. Operating across the full 2.4GHz band, the receiver delivers rock-solid signal integrity with full-range telemetry capability. The device supports an input voltage range of 3.5 to 9 volts, making it compatible with virtually any standard receiver battery configuration used in modern RC aircraft. With a 2048-point resolution, the AR630+ delivers smooth, precise servo control across all six channels. The SRXL2 serial output architecture enables advanced communication protocols with compatible flight controllers and ESCs. The receiver has been thoroughly tested to work reliably in real-world flying conditions, with a proven track record of delivering stable, predictable flight performance across diverse aircraft types. The lightweight hard case protective shell ensures the receiver is protected during transport and installation, whilst remaining compact enough not to impact your RC aircraft's weight distribution or balance characteristics.
What's in the Box
- Spektrum AR630+ 6-Channel AS3X+ & SAFE Receiver
- Product Manual (multilingual)
What You Need to Complete
- Spektrum DSMX or DSM2 compatible transmitter (transmitter must support Forward Programming for setup — DX6i, DX6G2 EU, DX7, DX7S, DX7SE, DX7G2 EU, DX8 and non-computer transmitters do not support Forward Programming)

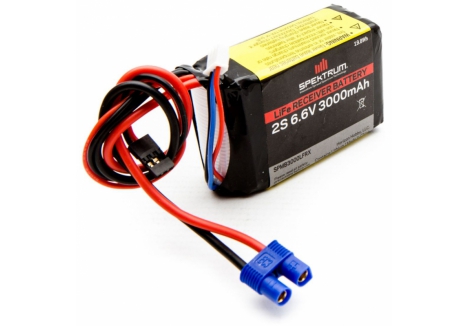

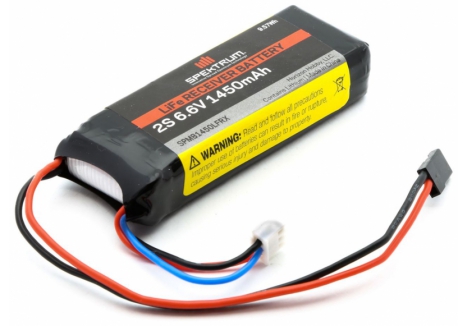

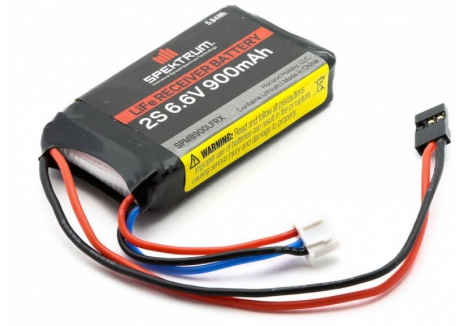

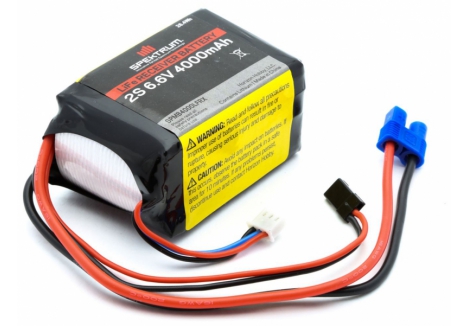

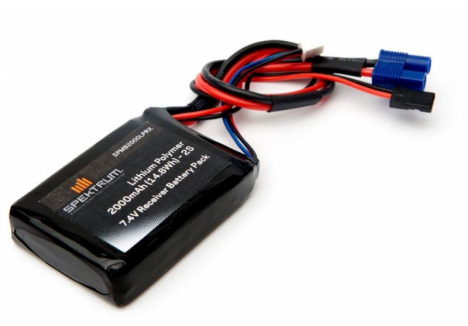

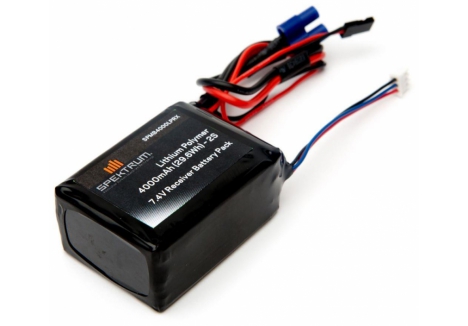

- Receiver battery pack (3.5V to 9V input voltage)

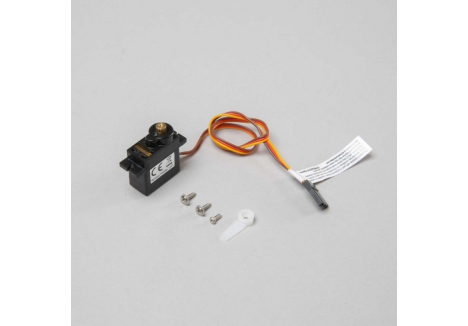

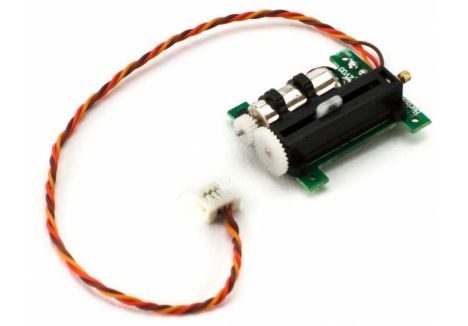

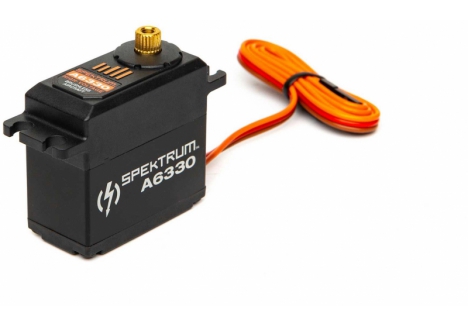

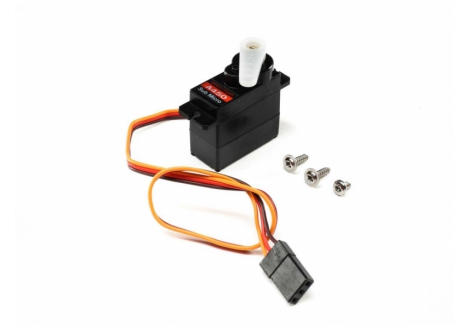

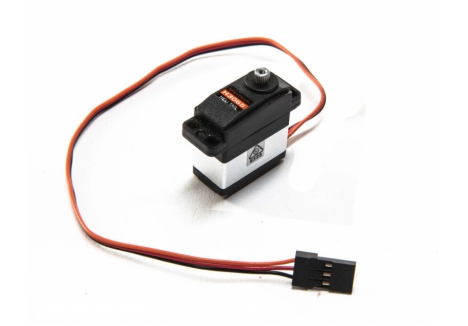

- Servos for control surfaces (6 servos maximum)

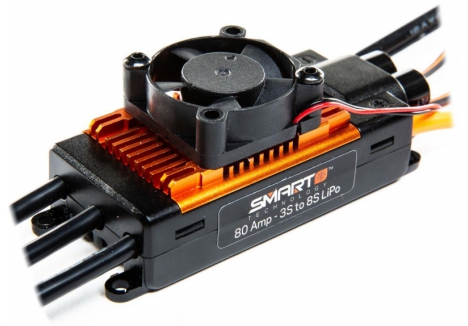

- ESC (optional: Spektrum Smart ESC recommended for full telemetry and Smart Technology features)
- Aircraft airframe and structural components
Frequently Asked Questions
- What is AS3X+ and how does it improve my RC aircraft flying? — AS3X+ is Spektrum's next-generation in-flight stabilisation system featuring a vastly improved stabilisation algorithm that delivers better flight performance, improved sensor accuracy, and no delay in control response or limits on control throws. Unlike previous stabilisation systems that can feel sluggish or limit how far you can move the control sticks, AS3X+ allows full control authority whilst providing subtle corrections that make your RC aircraft feel like an expertly tuned machine. Pilots report that aircraft equipped with AS3X+ respond more naturally and predictably in all flight conditions.
- What is SAFE technology and do I need it? — SAFE (Sensor Assisted Flight Envelope) Technology uses the AS3X+ stabilisation system to monitor your RC aircraft's attitude and prevent over-control by limiting bank and pitch angles. This keeps your aircraft within safe flying envelopes, preventing it from getting into extreme attitudes that could lead to crashes. SAFE is particularly valuable for learning pilots, for recovery from control mistakes, and for protecting expensive RC aircraft during competitive flying or challenging conditions. You can disable SAFE through Forward Programming if you prefer unrestricted control.
- Is the AR630+ suitable for beginners? — Yes, the AR630+ is excellent for beginners, especially when used with SAFE technology enabled. The built-in stabilisation and flight envelope protection make it much more forgiving than conventional receivers, helping new pilots learn smooth control inputs and recover from mistakes. However, the receiver is also sophisticated enough for advanced aerobatic flying and competitive use, so you won't outgrow it as your skills develop. Beginners should note that they need a compatible Spektrum DSMX transmitter with Forward Programming support to set up the receiver.
- What battery does the AR630+ need? — The AR630+ accepts input voltages from 3.5V to 9V, which covers virtually all standard RC receiver battery configurations. You can use 1S LiPo batteries (3.7V nominal), 1S LiFe batteries (3.2V nominal), 2S configurations (7.4V nominal), or even 3S packs (11.1V nominal) if you use appropriate voltage regulators. Most RC pilots use a dedicated 2S LiPo receiver battery pack in the 1000-2200mAh range, which provides reliable power and good runtime. Always ensure your battery is properly balanced and in good condition before flying.

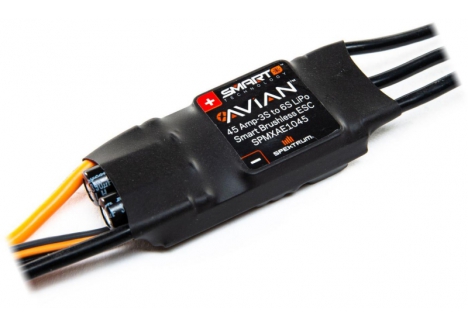

- Do I need a Smart ESC to use the AR630+? — No, the AR630+ works perfectly with any standard ESC. However, if you use a Spektrum Smart ESC (such as the Spektrum Avian series), you'll unlock additional features including Smart Telemetry, which sends real-time data about voltage, current, temperature, and RPM directly to your Spektrum transmitter. This gives you valuable flight-time information and battery health monitoring. If you use a standard ESC, the receiver functions normally with conventional PWM signals, making it compatible with virtually any brushless or brushed speed controller.
- What transmitter do I need to use the AR630+? — You need a Spektrum DSMX or DSM2 compatible transmitter. For full features including Forward Programming setup, you'll want a modern computer transmitter such as the iX20, iX14, or NX series. Note that older transmitters including the DX6i, DX6G2 (EU), DX7, DX7S, DX7SE, DX7G2 (EU), DX8, and non-computer transmitters do not support Forward Programming. If you have an older transmitter, you can still bind and use the AR630+ with default settings, but you won't be able to adjust AS3X+ or SAFE parameters wirelessly.
- Is the internal antenna as good as an external antenna? — Yes, the AR630+ internal antenna design actually delivers superior full-range performance compared to traditional external antennas. Internal antennas eliminate the risk of failure from long-term wire exposure, accidental damage, or antenna placement mistakes. The internal design has been engineered to provide excellent range and signal integrity across the entire 2.4GHz frequency spectrum, and users report no noticeable difference in range or performance compared to external antenna receivers.
- How many servos can I connect to the AR630+? — The AR630+ provides 6 independent channels, so you can connect up to 6 servos or other devices. Typical configurations include aileron (1-2 servos), elevator (1-2 servos), rudder (1 servo), throttle (1 ESC), landing gear (1 servo), and flaps (1-2 servos), depending on your RC aircraft design. You can assign any servo to any channel through transmitter programming.
- What makes the AR630+ different from the AR631+ or AR637T+? — The AR630+ is the basic 6-channel model without built-in telemetry sensors, making it the most affordable option. The AR631+ is a slightly enhanced version, whilst the AR637T+ is a telemetry version with integrated sensors and enhanced features. If you want telemetry and don't need integrated sensors, the AR630+ is the best choice because it works with Spektrum Smart ESCs to get telemetry data without additional modules or wiring.
- Can I use the AR630+ in turbine-powered aircraft? — Spektrum does not recommend using the AR630+ in turbine-powered aircraft models due to the extreme heat and vibration environments associated with turbine power plants. For turbine aircraft, you should consult Spektrum's compatibility documentation or contact customer support for suitable alternatives.
- How do I set up and tune the AS3X+ system? — Setup is incredibly simple thanks to Forward Programming. You use your compatible Spektrum transmitter's Forward Programming menu to adjust AS3X+ parameters wirelessly, directly from the field. Most aircraft can be set up in less than five minutes, including first-flight tuning. The AR630+ includes preset configurations for common aircraft types, and the system is designed to be even easier to tune than previous AS3X versions, with no need for hours of tweaking and adjustment.
