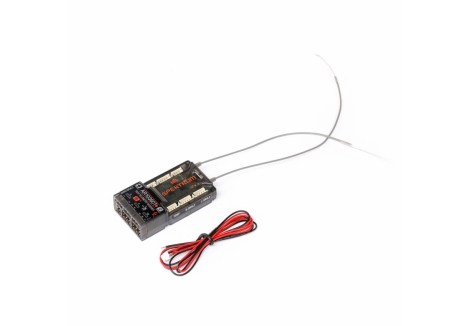

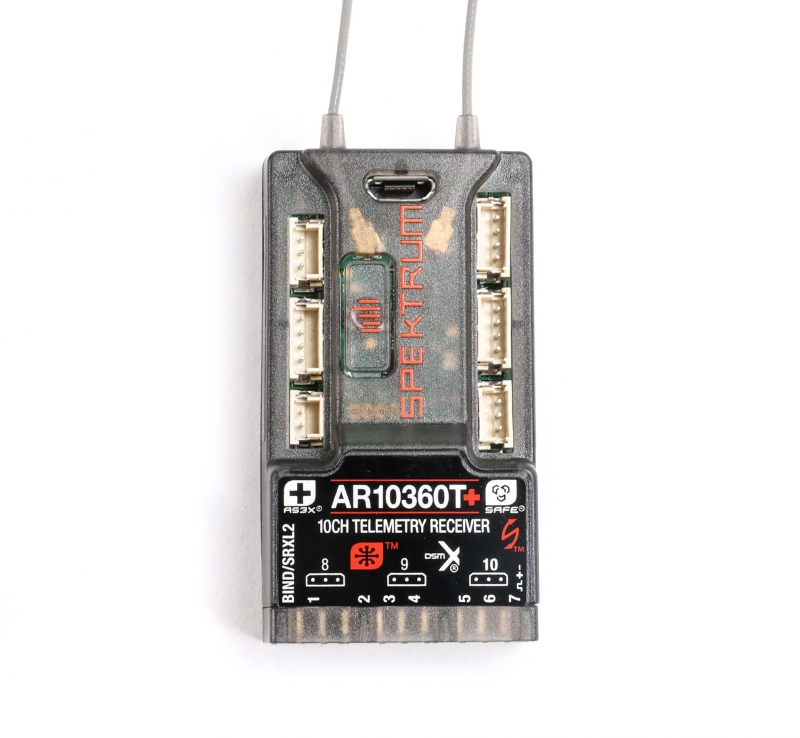

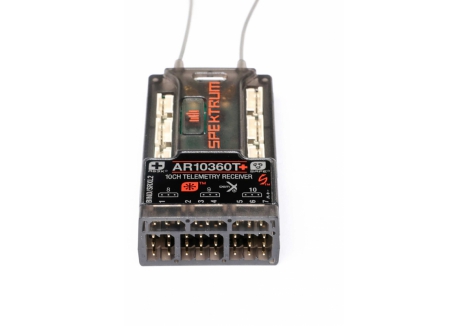

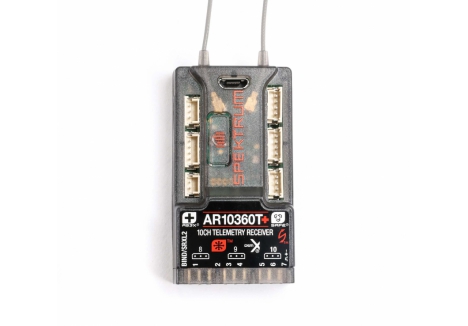

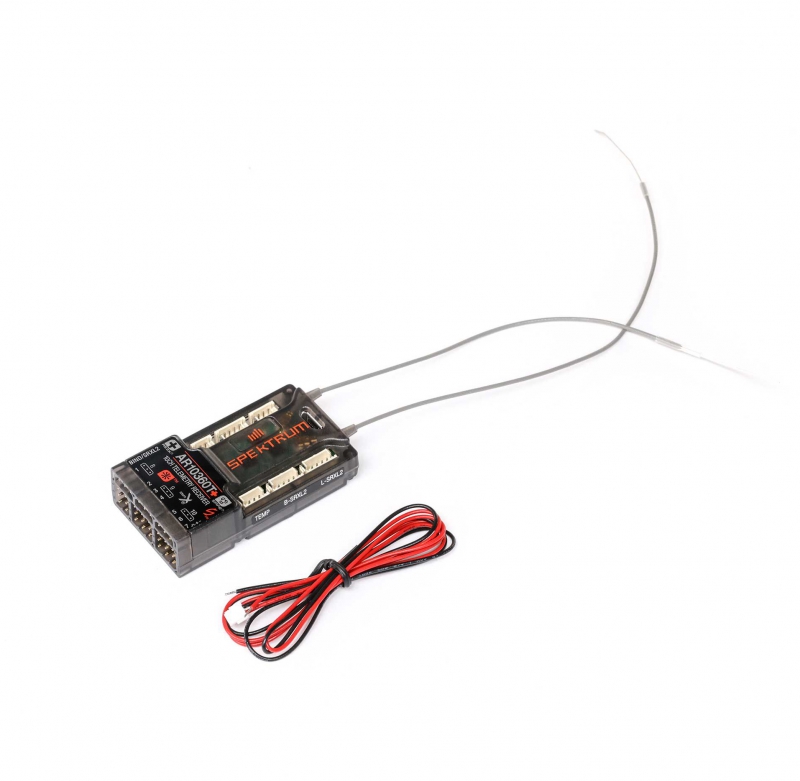

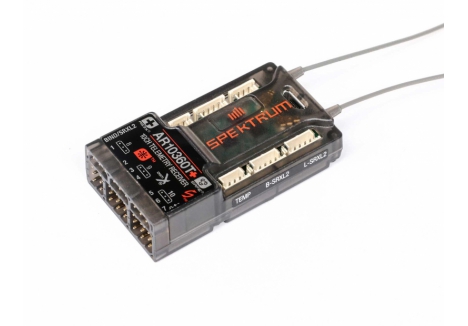

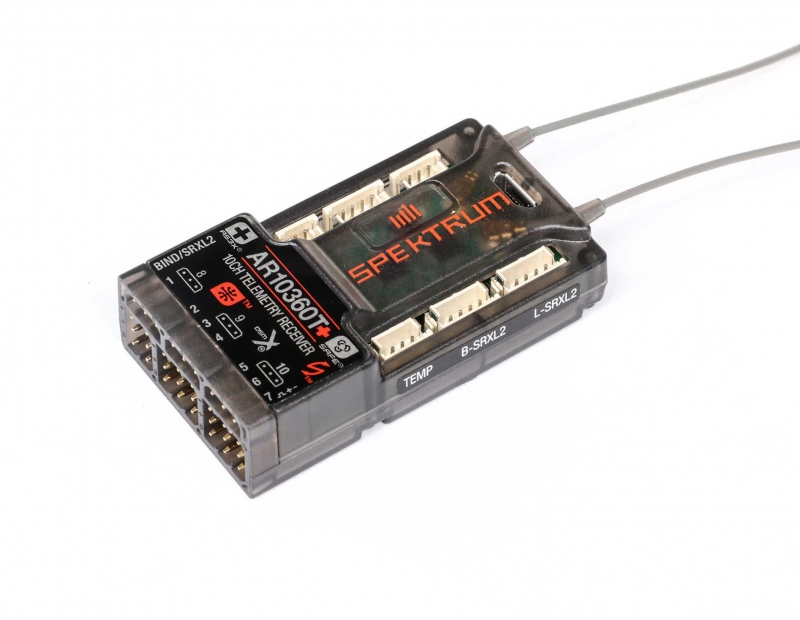

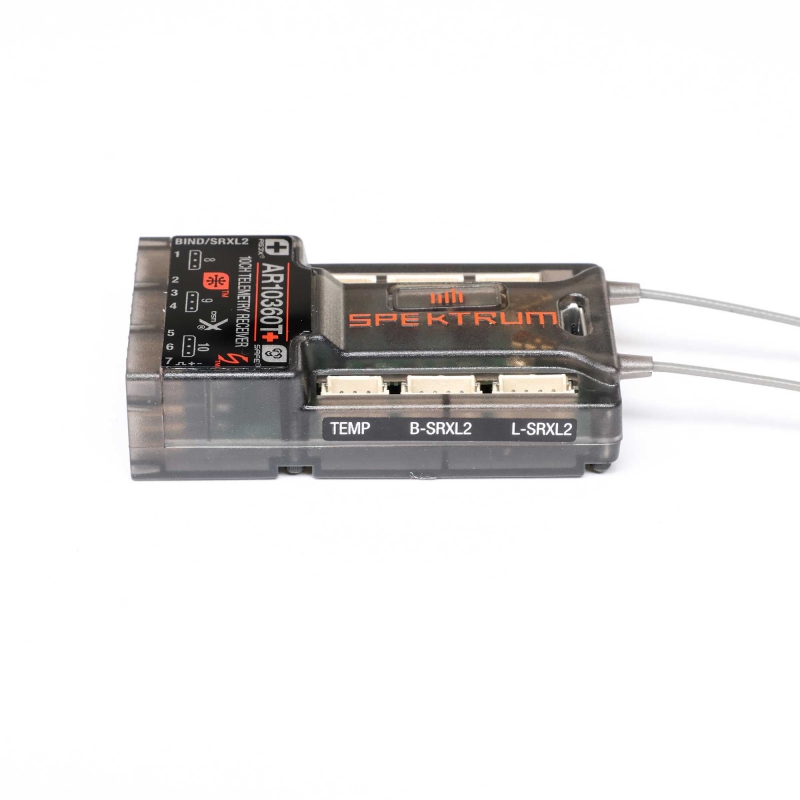

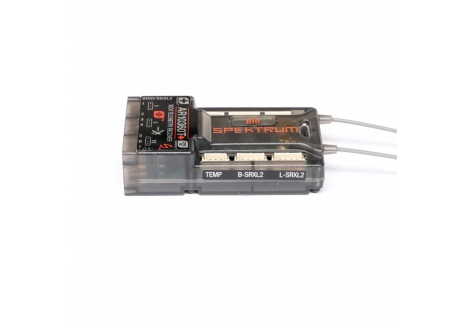

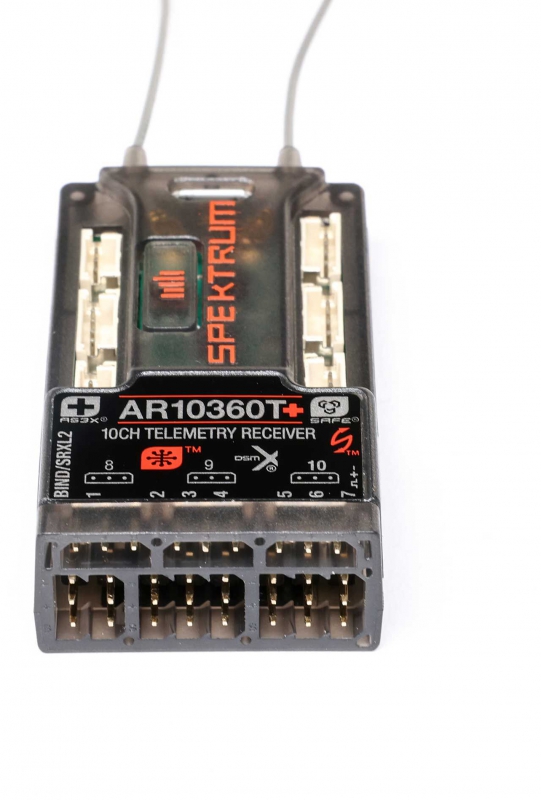

Spektrum AR10360T+ 10-Channel Telemetry Receiver Overview
The Spektrum™ AR10360T+ 10 Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR10360T+ is a full-range 10-channel receiver with built-in AS3X+® and SAFE® stabilization, which counters the effects of wind, turbulence, and torque using a 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. The all-new AS3X+ stabilization algorithm creates better flight performance, improved sensor accuracy, data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.
The AR10360T+ features full-range telemetry and an integrated barometer to provide altitude and vario telemetry data without additional purchase. XBUS, RPM, voltage, and temperature ports can be used to add additional telemetry sensors available separately. It also features two SRXL2 ports for SRXL2 Remote Receivers (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect smart devices, program and update the receiver, bind with a traditional bind plus, or connect a battery. The AR10360T+ also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last, as well as preset failsafe types set through Forward Programming. Additionally, Smart Model Files allows BNF models to be stored on the receiver to automatically set the model at bind. The AR10360T+ also features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application.
Go to www.spektrumrc.com for the latest receiver updates.
Spektrum AR10360T+ 10-Channel Telemetry Receiver Features
- Compatible with all Spektrum DSM2 and DSMX transmitters
- AS3X+ and SAFE set up through Forward Programming directly from your Spektrum transmitter
- Compact footprint fits most parkflyer size, sport class, and giant scale models
- Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need for additional sensors

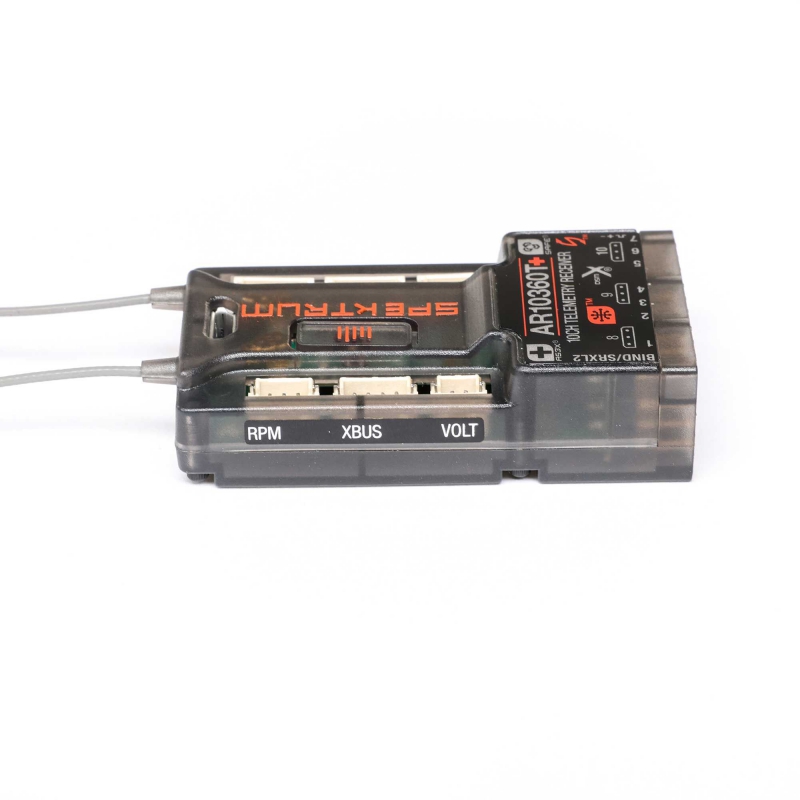

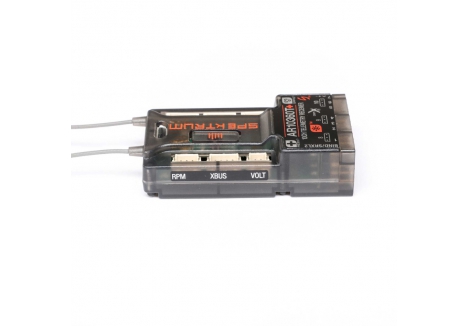

- VOLT, RPM, and TEMP telemetry ports can be used with traditional Spektrum Telemetry Sensors
- XBUS telemetry port for expandable telemetry capabilities, like GPS, Air Speed, Flight Battery Energy, and more
- Two external antennas will ensure secure RF coverage from all angles of the aircraft

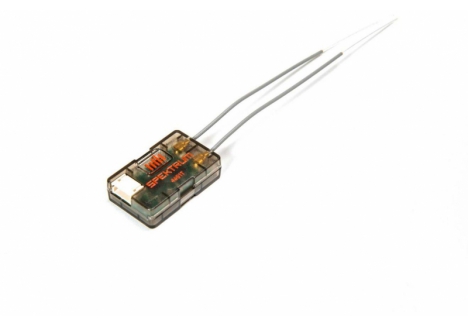

- Additional RF path redundancy with up to 2 additional SRXL2 Remote Receivers, SPM9747 or SPM4651T, sold separately
- Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need for modules, links, and wires
- End pin output pins for easy and compact installation
- Forward Programming capable of setting individual failsafe parameters per channel, programming AS3X+ and SAFE parameters, and more
- Micro USB port for firmware updating and model setup sharing capability
- Model Number: P-SPM-1034 / SPMAR10360T
- Brand: Spektrum
- Product Type: 10-Channel DSMX/DSM2 Air Receiver with Telemetry
- Frequency Band: 2.4GHz
- Modulation: DSMX/DSM2
- Channels: 10 independent channels
- Forward Programming: Yes
- Programmable: Yes
- Input Voltage: 3.5V–9V
- Telemetry: Yes, full-range
- Integrated Barometer: Yes (for altitude and vario data)
- Integrated Variometer: Yes
- AS3X Technology: Yes, AS3X+ with 3-axis MEMS gyroscope
- SAFE Technology: Yes, with Panic recovery mode
- Failsafe: Yes, with programmable per-channel parameters
- Failsafe Types: SmartSafe technology and Hold Last preset
- Bind Method: Bind button (no plug required)
- Antenna: Two external antennas, 7.32" (186mm) each
- XBUS Telemetry Port: Yes, for expandable telemetry sensors
- VOLT Port: Yes, for voltage telemetry sensor
- RPM Port: Yes, for RPM telemetry sensor
- TEMP Port: Yes, for temperature telemetry sensor
- Remote Receiver Ports: 2 (SRXL2 capable)
- Compatible Remote Receivers: SPM9747, SPM4651T (sold separately)
- Serial Output: SRXL2 Technology
- Spektrum Smart ESC Compatible: Yes, one-wire telemetry ready
- Micro USB Port: Yes, for firmware updates and model setup sharing
- PC Programmer Compatible: Yes
- Model Setup Sharing: Yes, via Micro USB
- Servo Header: SRXL2/Bind/Program/Battery servo header
- End Pin Output Configuration: Yes
- Applications: Airplane, Sailplane
- Product Length: 2.16" (55mm)
- Product Width: 1.18" (30mm)
- Product Height: 0.59" (15mm)
- Product Weight: 18g (0.63oz)
- Range: Full range
- Compatible Transmitters: All Spektrum DSM2 and DSMX transmitters
- Compatible Aircraft Types: Parkflyer size, sport class, giant scale models
- Manual Languages Available: English, German, French, Italian, Multilingual
- Registration: Transmitter and receiver registration available
- Firmware Updates: Available via Spektrum website at www.spektrumrc.com
- Customer Rating: 4.2 out of 5
- Not Recommended For: Turbine-powered aircraft models
Overview
The Spektrum AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver is a professional-grade receiver designed for RC aircraft enthusiasts who demand stability, precision and real-time flight data. This advanced receiver represents the pinnacle of Spektrum's stabilisation technology, combining next-generation AS3X+ stabilisation with SAFE flight envelope protection to deliver exceptional flight characteristics across parkflyer, sport class and giant scale aircraft. Whether you're an experienced RC pilot looking to upgrade your fleet or a serious hobbyist investing in top-tier equipment for your UK RC collection, the AR10360T+ offers uncompromising performance and reliability that sets it apart in the competitive RC market.
Built with a compact footprint measuring just 2.16" (55mm) in length, 1.18" (30mm) in width and 0.59" (15mm) in height, this receiver weighs a mere 18 grams, making it suitable for installation in a wide variety of aircraft designs without compromising weight distribution or flight characteristics. The all-new AS3X+ stabilisation algorithm creates better flight performance and improved sensor accuracy compared to previous generations, with a data rate and responsiveness that provides pilots with a generationally different feel. With full-range 10-channel capability and integrated telemetry features, the AR10360T+ delivers everything serious RC aircraft builders and pilots need in a single, integrated package.
This receiver stands out from the competition through its combination of advanced stabilisation technology, comprehensive telemetry capabilities, forward programming flexibility and user-friendly setup options. The AR10360T+ is compatible with all Spektrum DSM2 and DSMX transmitters, ensuring seamless integration with your existing RC radio system, whether you're flying sport models, sailplanes or larger aircraft requiring sophisticated flight control.
Key Features
- AS3X+ Stabilisation System — The receiver features Spektrum's exclusive AS3X+ technology with a 3-axis MEMS gyroscope that automatically counters the effects of wind, turbulence and torque, delivering smooth, precise flight performance without delay in control response or limiting control throws. The new AS3X+ algorithm represents a generational improvement over previous AS3X systems, providing enhanced sensor accuracy and improved data processing rates that result in noticeably better flight feel.
- SAFE Flight Envelope Protection — SAFE (Sensor Assisted Flight Envelope) technology works in conjunction with AS3X+ to help prevent over-control and excessive attitudes, with a dedicated Panic recovery mode that can automatically return your aircraft to level flight from any attitude with a single button press, allowing quick recovery from tense flying situations.
- 10 Independent Channels — Full support for 10 independent control channels provides ample functionality for complex aircraft configurations including multi-axis wing control, landing gear, flaps, retracts, payload doors and more, all with individual failsafe parameters.
- Full-Range Telemetry — The receiver transmits vital flight data across the complete control range with integrated barometric sensor providing altitude and variometer (vario) data without requiring additional external sensors, whilst dedicated ports for VOLT, RPM and TEMP telemetry allow connection of optional Spektrum telemetry sensors for comprehensive in-flight monitoring.
- Integrated Barometric Sensor — The built-in barometer automatically provides altitude and climb-rate telemetry data, eliminating the need for purchasing and installing separate altitude sensors on your aircraft whilst reducing weight and component count.
- XBUS Expandable Telemetry Port — An XBUS telemetry port enables connection of advanced optional telemetry sensors for GPS positioning, air speed measurement, flight battery energy monitoring and additional flight data, allowing customisation of your telemetry package to match specific aircraft and mission requirements.
- Compatible with Spektrum Smart ESC — Ready to work seamlessly with Spektrum Smart electronic speed controllers for one-wire telemetry integration, eliminating the need for multiple sensor modules, connecting wires and additional power connections whilst simplifying installation on your aircraft.
- Dual External Antennas — Two external antennas (7.32" / 186mm each) ensure secure RF coverage from all angles of the aircraft, maintaining reliable signal reception regardless of aircraft attitude or position relative to the transmitter.
- RF Path Redundancy with Remote Receivers — Support for up to two additional SRXL2 remote receivers (SPM9747 or SPM4651T sold separately) provides additional RF path redundancy, critical for large-scale and long-range flight operations where reliability is paramount.
- Forward Programming from Transmitter — Fully configure the AR10360T+ wirelessly directly from any compatible Spektrum DSMX transmitter through the Forward Programming menu without requiring a separate computer, allowing adjustment of AS3X and SAFE parameters, individual channel failsafe settings, and more from the flight line.
- Bind Button Operation — An integrated bind button eliminates the need for bind plugs, allowing quick and convenient binding with your transmitter through a simple button press.
- Micro USB Port for Firmware Updates — A convenient Micro USB connection (cable not included) enables firmware updates and model setup sharing using the Spektrum PC Programmer application on any compatible computer, with ability to update main and remote receivers simultaneously when connected.
- Smart Model Files Storage — The receiver can store BNF model files that automatically configure optimal settings when binding, reducing setup time and ensuring consistent performance across multiple aircraft.
- SmartSafe and Hold Last Failsafe Modes — Multiple failsafe operating modes including SmartSafe technology and Hold Last preset, fully programmable with individual parameters per channel through Forward Programming.
- End Pin Output Configuration — End pin servo connector output simplifies installation and allows for more compact receiver mounting without bulky servo connectors, ideal for space-constrained airframes.
- SRXL2 Bind/Program/Battery Header — A dedicated SRXL2/Bind/Program/Battery servo header provides multiple connection options for remote receivers, traditional bind plugs, battery connection or advanced smart devices.
Technical Performance
The AR10360T+ represents advanced receiver engineering optimised for demanding RC aircraft applications. Operating across the 2.4GHz frequency band using DSMX and DSM2 modulation protocols, the receiver delivers full-range control with the ability to handle up to 10 independent servo channels. The compact physical dimensions (55mm length × 30mm width × 15mm height) and lightweight construction at just 18 grams make this receiver suitable for parkflyer aircraft down to sport-class and giant-scale models, offering flexibility across the RC aircraft spectrum. Input voltage operation between 3.5V and 9V provides compatibility with a wide range of battery configurations from small 1S LiPo cells up to standard multi-cell aircraft power systems. The integrated MEMS gyroscope and barometric sensor represent sophisticated sensor integration, with onboard processing that delivers stabilisation and telemetry data without requiring external modules. Dual external antennas with 186mm length ensure consistent RF reception, whilst the two available SRXL2 remote receiver ports provide redundancy options for critical applications. The receiver has earned a 4.2 out of 5 customer rating from Spektrum users, reflecting strong real-world performance and reliability across diverse aircraft types and flying conditions.
What's in the Box
- Spektrum AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver
- Two external antennas (7.32" / 186mm each)
- Instruction manual (English, German, French, Italian and multilingual versions)
- Transmitter and receiver registration documentation
- Setup sheet and quick reference guide
What You Need to Complete
- Spektrum DSMX or DSM2 compatible radio transmitter
- Servos (quantity depends on aircraft configuration)
- Electronic speed controller (ESC) if powering a motor-driven aircraft
- Aircraft airframe and construction materials
- Battery pack (3.5V–9V input voltage requirement)
- Micro USB cable for firmware updates (common type, not included)
- Optional: Spektrum telemetry sensors (VOLT, RPM, TEMP) for expanded monitoring
- Optional: SRXL2 remote receivers (SPM9747 or SPM4651T) for additional RF redundancy
- Optional: Spektrum Smart ESC for integrated one-wire telemetry
Frequently Asked Questions
- What is AS3X+ and how does it improve my RC aircraft flying experience? — AS3X+ is Spektrum's advanced 3-axis stabilisation system that uses an onboard MEMS gyroscope to automatically counteract wind, turbulence and torque effects. The new AS3X+ algorithm in this receiver provides improved sensor accuracy and data processing rates compared to previous AS3X versions, resulting in smoother, more stable flight characteristics that many pilots describe as flying an expertly pre-tuned aircraft. There is no delay in control response and no limiting of control throws, so your aircraft responds exactly as you command whilst the gyro smooths out environmental disturbances.
- What is SAFE technology and how does it help me as a pilot? — SAFE (Sensor Assisted Flight Envelope) is Spektrum's technology that prevents over-control and extreme aircraft attitudes. SAFE works by limiting bank and pitch angles to predefined safe boundaries, helping prevent inadvertent stalls or dangerous attitudes. The receiver includes a Panic recovery mode that automatically returns your aircraft to level flight from any attitude with a single button press, allowing quick escape from difficult flying situations. SAFE can be customised and adjusted through forward programming on your transmitter.
- Is this receiver suitable for beginner RC aircraft builders? — Whilst the AR10360T+ is a professional-grade receiver with advanced features, its forward programming capability from your transmitter makes setup straightforward without requiring computer software. However, this receiver is best suited to pilots with some RC experience, as it's designed for sport-class, parkflyer and giant-scale aircraft rather than basic trainer models. Beginners might consider simpler 6-channel receivers, although the AR10360T+ does offer excellent learning tools through its stabilisation and envelope protection features.
- What voltage battery do I need for this receiver? — The AR10360T+ accepts input voltage between 3.5V and 9V, providing flexibility with various battery configurations. This range covers single-cell LiPo batteries (3.7V nominal) up to three-cell LiPo packs (11.1V nominal, though regulated to safe input levels). Your specific battery choice depends on your aircraft power requirements and ESC specifications rather than receiver voltage alone.
- How does this receiver compare to the AR8360T+? — The AR10360T+ is the 10-channel version with expanded control capability compared to the 8-channel AR8360T+. Both feature identical AS3X+ stabilisation and SAFE protection technology. The AR10360T+ provides four additional control channels, making it ideal for complex aircraft configurations including separate flap, gear, retract and payload door controls, whilst the AR8360T+ suits simpler aircraft needing basic wing, elevator, rudder and throttle control.
- Can I use this receiver with non-Spektrum transmitters? — No, the AR10360T+ requires a Spektrum DSM2 or DSMX compatible transmitter. It is not compatible with Futaba, JR, Hitec or other radio system brands. Ensure your transmitter is DSMX or DSM2 compatible before purchasing this receiver.
- What telemetry data does this receiver provide without additional sensors? — The AR10360T+ provides full-range telemetry automatically including voltage, altitude and variometer (climb-rate) data via its integrated barometric sensor. RPM, temperature and additional data require optional telemetry sensor modules connected to dedicated ports. An XBUS port allows connection of advanced optional sensors for GPS, air speed and battery energy monitoring.
- How do I update firmware on the AR10360T+? — Firmware updates are performed through the Micro USB port using a standard Micro USB cable (not included) and the Spektrum PC Programmer application on any compatible computer. When multiple remote receivers are connected, all units can be updated simultaneously. Visit www.spektrumrc.com for the latest firmware versions.
- Can I add remote receivers for signal redundancy? — Yes, the AR10360T+ features two SRXL2 remote receiver ports supporting up to two additional remote receivers (SPM9747 or SPM4651T, sold separately). This provides RF path redundancy critical for large-scale and long-range aircraft operations, with seamless failover if the main signal path is compromised.
- Is this receiver waterproof for outdoor flying? — The manufacturer notes that using this receiver in turbine-powered aircraft models is not recommended. Standard water resistance specifications are not provided in available documentation, so care should be taken in wet conditions. Consult the detailed instruction manual for environmental operating recommendations.
