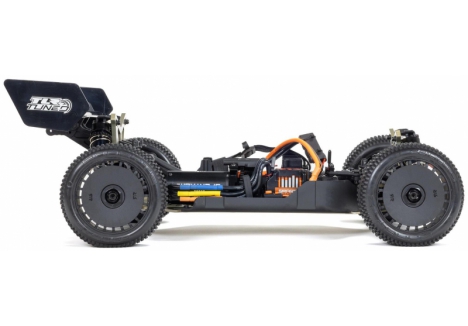

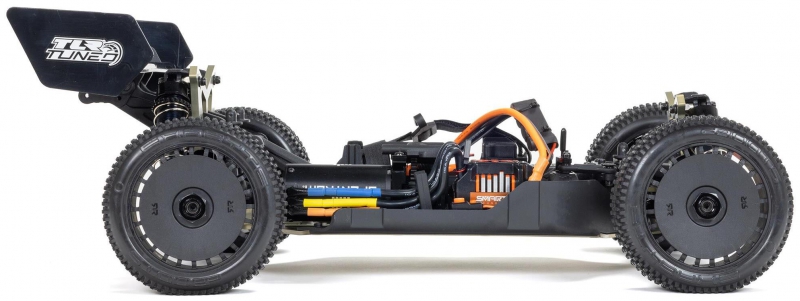

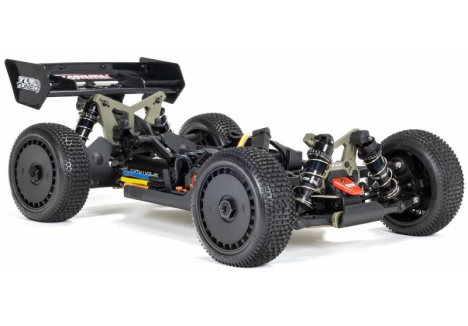

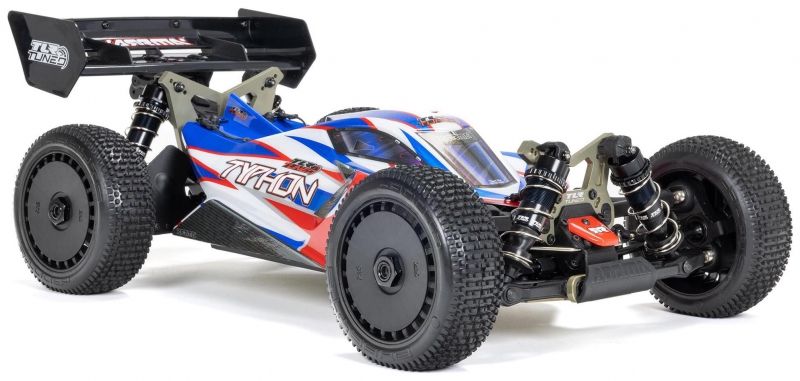

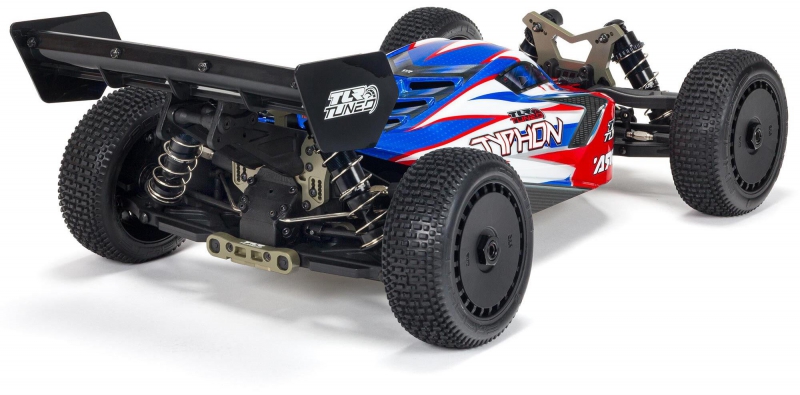

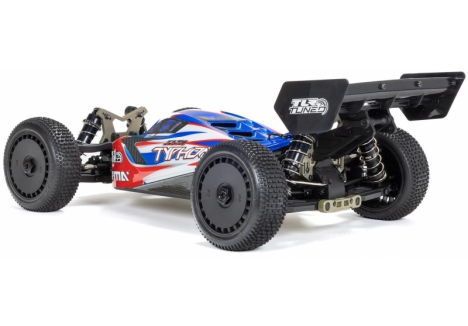

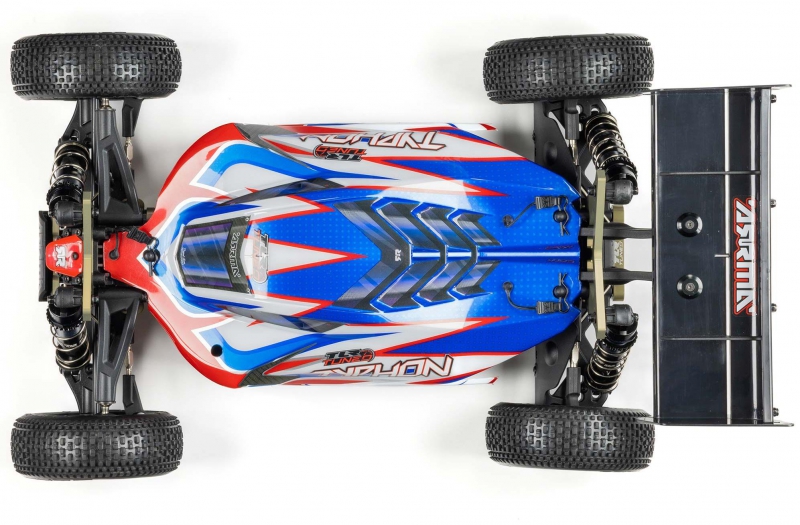

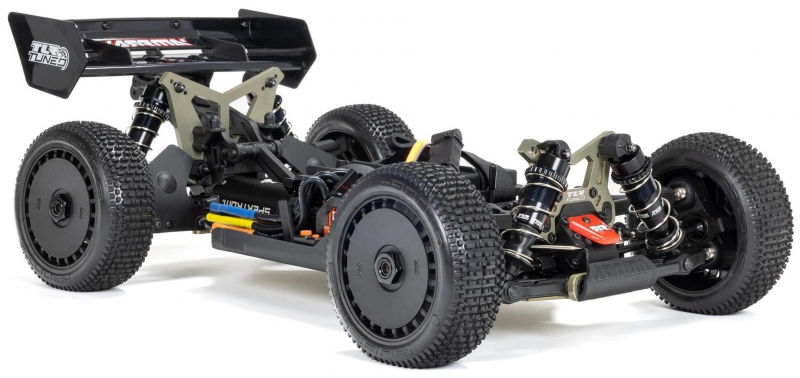

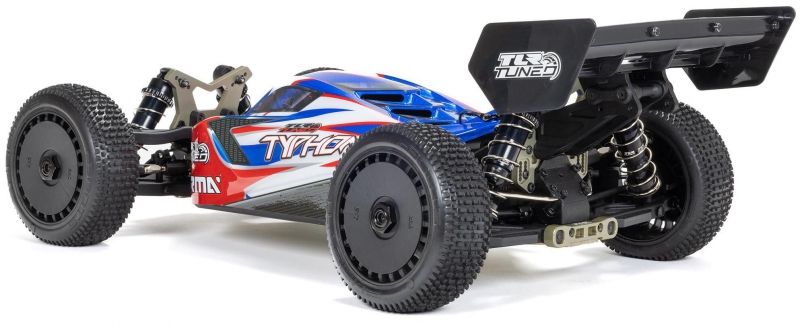

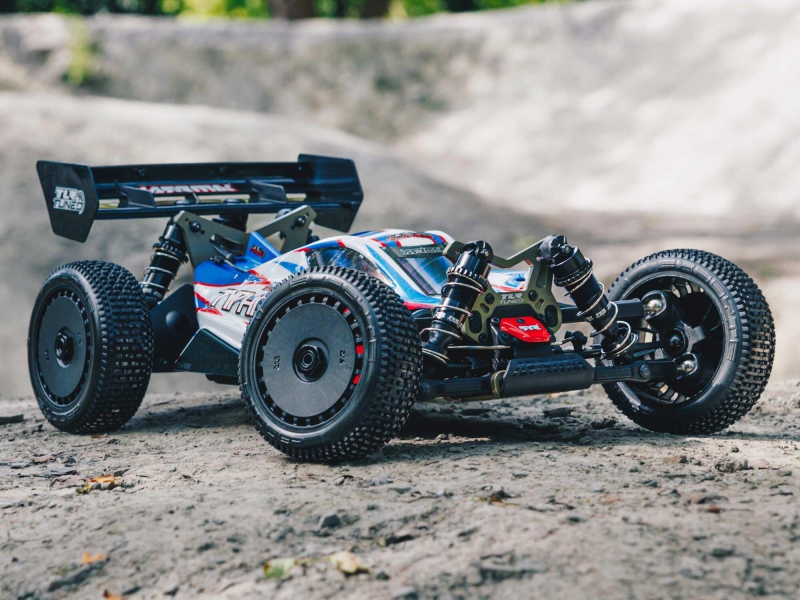

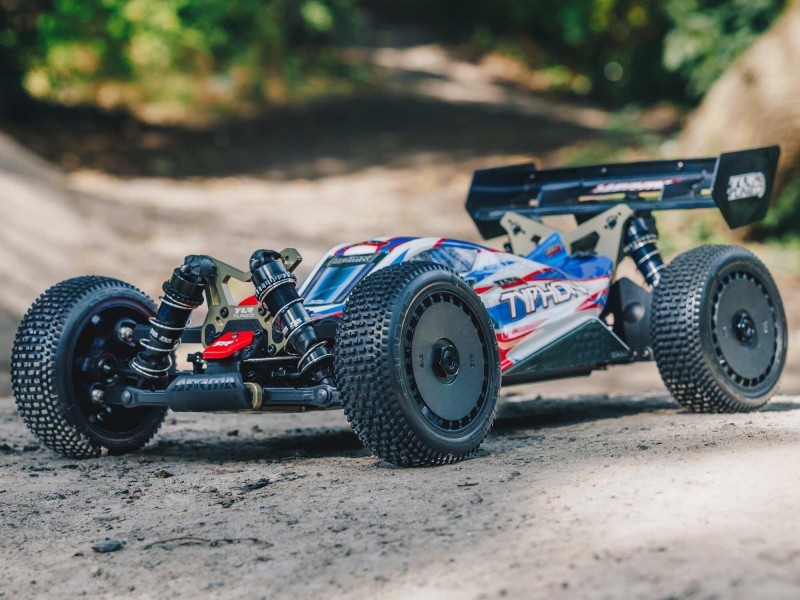

1/8 TLR TUNED TYPHON 6S 4X4 BLX Buggy RTR Red/Blue

Model No: C-ARA8406


Next Working Day Delivery Order before 2pm

In Stock for Immediate Dispatch

£628.00

Inc VAT & delivery

£739.99

£111.99

Next Day Delivery

We Accept
In Stock
Delivery Included
1 Year Warranty

Product Details

Loaded with upgrades to improve durability and handling, the TLR Tuned TYPHON 1/8 4WD Race Buggy adds chassis tuning and racing capabilities to the top-of-the-line ARRMA bash platform - as well as RTR convenience and proven Spektrum electronics.

Key Features

  • The ultimate 1/8 scale ARRMA buggy out of the box, with many laser-etched TLR Tuned parts.
  • Ready for racing or bashing with factory-installed Spektrum electronics.
  • Standout ARRMA body with an exclusive paint scheme of Race Spec colours.
  • Powerful 4S and 6S LiPo capable Spektrum brushless power system.
  • Spektrum SLT3 3-channel 2.4GHz radio and SR315 dual protocol receiver.
In The Box
  • (1) 1/8 TLR Tuned TYPHON 6S 4WD BLX Buggy RTR
  • (1) Spektrum Firma 150A Smart Waterproof ESC
  • (1) Spektrum Firma 4074 2050Kv Brushless Motor
  • (1) Spektrum 2.4GHz SLT3 3-Channel Transmitter
  • (1) Spektrum SR315 3-Channel Dual Protocol Receiver
  • (1) Spektrum SPMS652 Waterproof Metal-Geared Digital Servo
  • (4) AA Batteries for the Transmitter
  • (1) Product Manual
Needed to Complete

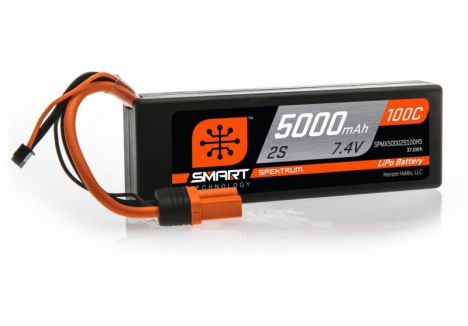

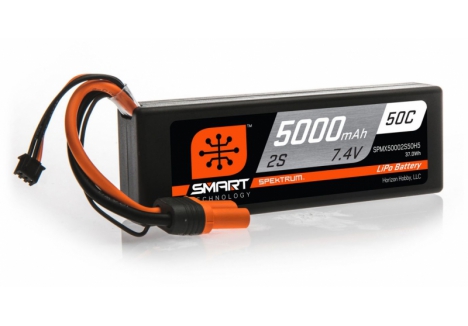

  • (1) 4S or 6S LiPo Battery with EC5 or IC5 Connector
  • (1) LiPo Battery Charger

Features

  • The ultimate 1/8 scale ARRMA buggy out of the box, with many laser-etched TLR Tuned parts.
  • Ready for racing or bashing with factory-installed Spektrum electronics.
  • Standout ARRMA body with an exclusive paint scheme of Race Spec colours.
  • Powerful 4S and 6S LiPo capable Spektrum brushless power system.
  • Spektrum SLT3 3-channel 2.4GHz radio and SR315 dual protocol receiver.

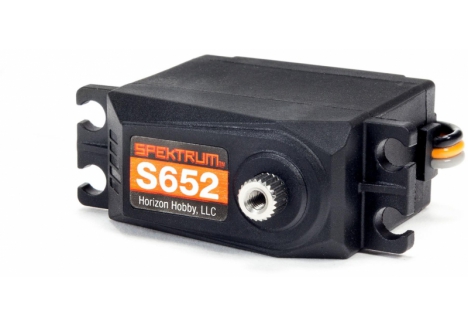

  • Spektrum S652 steel gear waterproof digital servo with 265 oz-in of torque @ 7.4V.
  • TLR Tuned 7075-T6 aluminium parts — chassis, shock towers, and steering rack.
  • TLR Tuned adjustable suspension hangers.
  • TLR Tuned black TLR branded shocks with machined tapered shock pistons, machined shock guides and X-ring Seals, attached to the shock towers with EXB shock standoffs.
  • Black-anodized aluminium motor mount, servo mount, and 17mm wheel hexes.

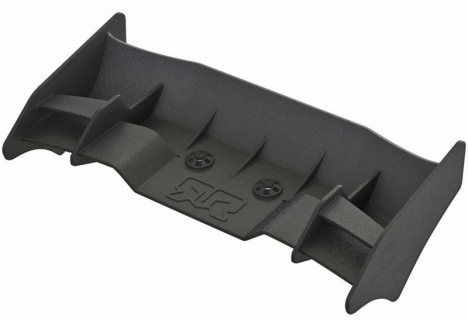

  • Race Spec tunable rear wing mounted on a high rear wing mount.
  • Race compound dBoots EXABYTE tyres.

Fully assembled and factory-equipped for bashing or racing!

Loaded with high-end parts for improved strength, handling, and long-term durability, the 1/8 scale ARRMA TLR Tuned TYPHON 4WD Race Buggy gives bashers the perfect platform for entering competitive racing. It has the chassis tuning capabilities of a race spec buggy and arrives ready-to-run, with proven Spektrum radio and brushless power systems installed. The TLR Tuned TYPHON 4WD Race Buggy RTR comes prepared to hit the racetrack or the bash spot — you decide which!With its powerful 4S and 6S LiPo capable Spektrum brushless power system, the TLR Tuned TYPHON blasts over rough terrain with ease. On 4S, you can compete at your local racetrack. With the additional power of a 6S LiPo, the TLR Tuned TYPHON performs stunts and tackles big jumps at your favorite off-road bash location. The buggy's durable TLR Tuned 7075-T6 aluminium upgrades include the chassis plate, steering rack, adjustable upper and lower suspension hangers, shock bodies, and front and rear shock towers. All are laser-etched with the TLR Tuned logo. The oil-filled, adjustable shocks have machined tapered pistons, machined shock guides, and X-ring seals, and are attached to the shock towers with Extreme Bash (EXB) stand-offs. The TLR Tuned TYPHON 4WD Race Buggy also features a heavy-duty drivetrain that holds up to extreme bashing and high-speed racing, with all-metal diff outdrives and gearbox internals plus durable steel driveshafts throughout. Its extra-strong wheel hubs support low-drag wheels on which ARRMA engineers have mounted multi-terrain, race compound dBoots EXABYTE tyres for next-level grip. A Race Spec tunable rear wing helps to keep the tyres and buggy grounded, contributing to confident control and responsive handling at high speeds.Maintenance downtime is kept to the minimum with an efficient, driver-friendly design. For example, an aluminium sliding mount gives you fast, hassle-free access to the factory-installed Spektrum Firma 4074 2050Kv brushless motor.Topping off the 1/8 scale TLR Tuned TYPHON 4WD Race Buggy RTR is a standout body finished in an exclusive paint scheme of Race Spec colours plus decals. It's the ultimate ARRMA buggy for intermediate-level bashers with an eye towards racing.

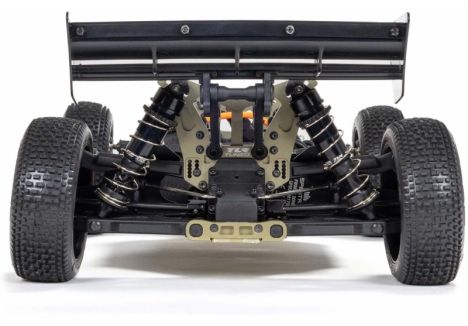

Header Image of TLR Tuned Typhon RTR

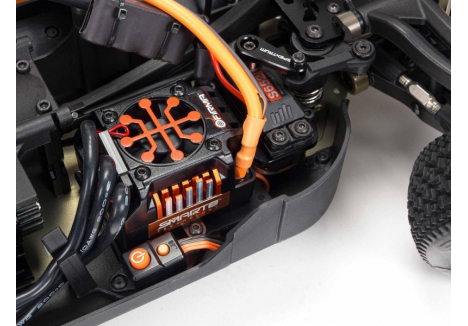

SPEKTRUM 6S CAPABLE BRUSHLESS POWER SYSTEM
SPEKTRUM 6S CAPABLE BRUSHLESS POWER SYSTEM

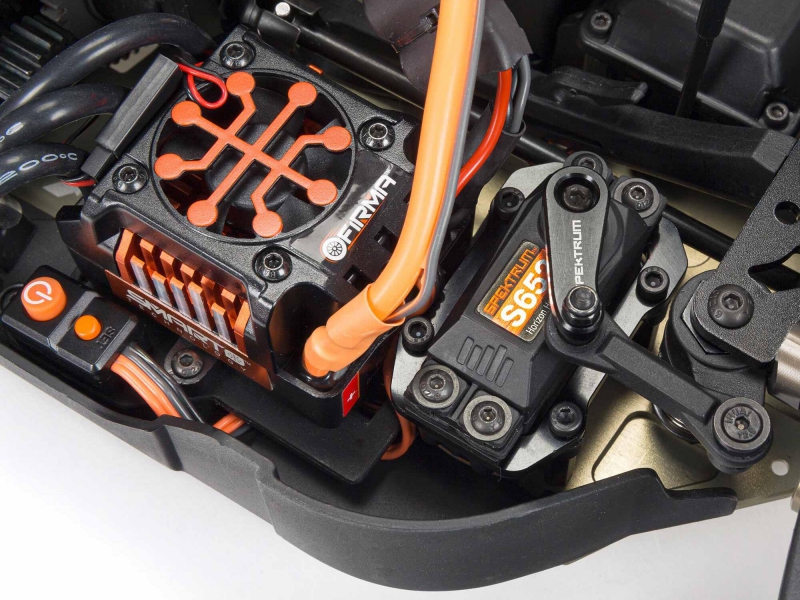

The included Spektrum Firma 2050Kv brushless motor and Firma 150A Smart ESC together provide the perfect power system for use with 4S or 6S LiPo batteries. On 4S you can compete at your local racetrack. The additional power supplied by a 6S LiPo supports big jumps and stunts at your local bash spot.



ALUMINIUM PARTS
ALUMINIUM PARTS

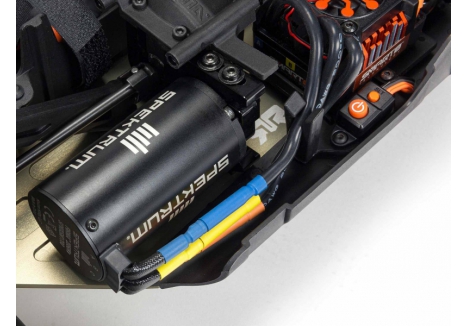

The Firma 2050Kv brushless motor arrives factory-installed on a black-anodized aluminium sliding motor mount for durability and fast, hassle-free access. The servo mount and 17mm wheel hexes are also constructed of aluminium for bash-ready strength.



SPEKTRUM SLT3 2.4GHz 3-CHANNEL RADIO
SPEKTRUM SLT3 2.4GHz 3-CHANNEL RADIO

The included Spektrum SLT3 transmitter is ergonomically designed for fatigue-free driving and has a foam wheel for precise fingertip control. Throttle limits can be set at 50% or 75% until you're ready to use the full speed potential. Compatible with SLT and DSMR protocols, the SR315 3-channel receiver offers outstanding range and fast response rate. For dependable steering control, ARRMA includes a Spektrum S652 metal-gear digital servo capable of 265 oz-in of torque.

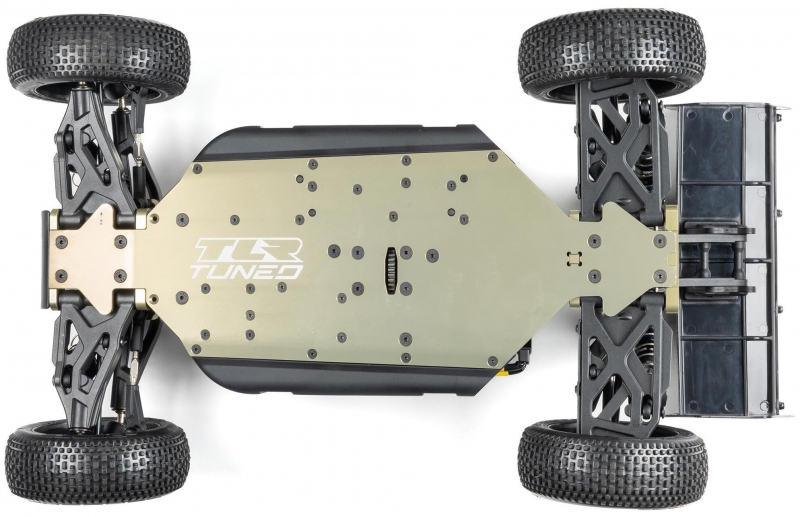

TLR TUNED 7075-T6 ALUMINIUM PARTS
TLR TUNED 7075-T6 ALUMINIUM PARTS

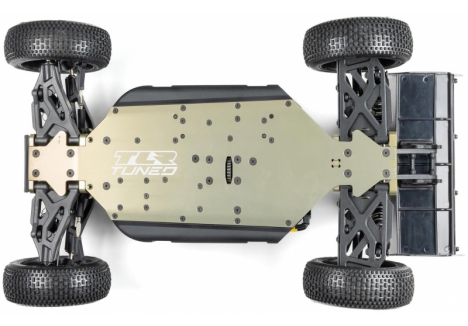

The TLR Tuned TYPHON 4WD Race Buggy RTR features many high-end aluminium parts that increase durability and improve handling. For intermediate-level bashers, it's the perfect platform to use for racing and to gain experience with tuning — Designed Faster and Tougher!



TLR TUNED ADJUSTABLE SUSPENSION HANGERS
TLR TUNED ADJUSTABLE SUSPENSION HANGERS

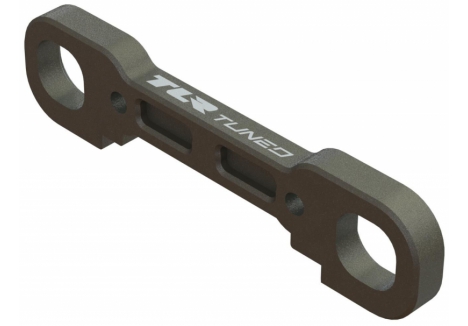

Laser-etched with the TLR Tuned logo, the TLR Tuned aluminium lower and upper suspension hangers have many different inserts included in the box that you can swap out to tune your buggy for the best performance in a variety of driving conditions.

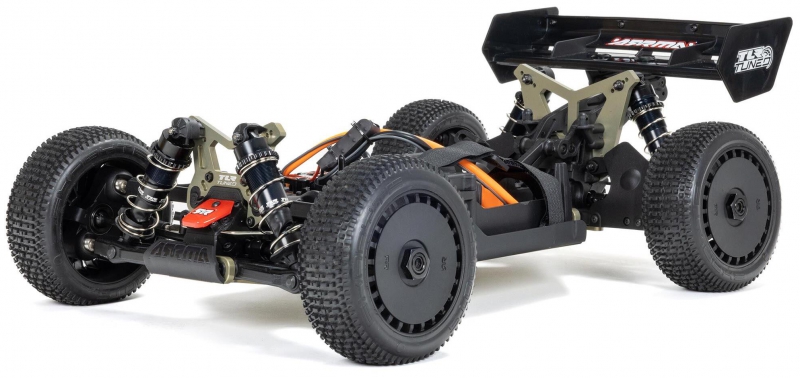

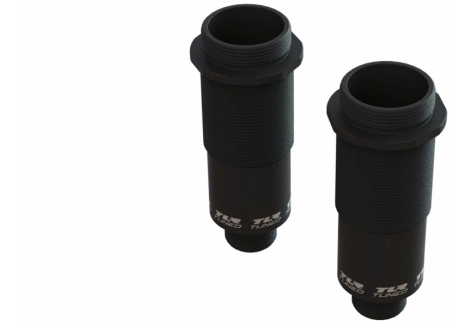

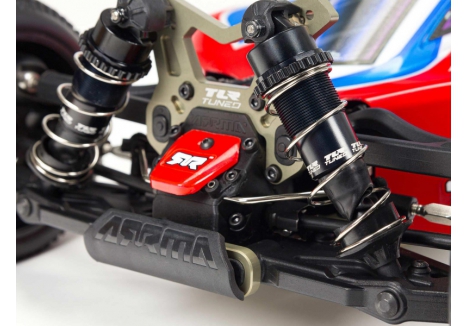

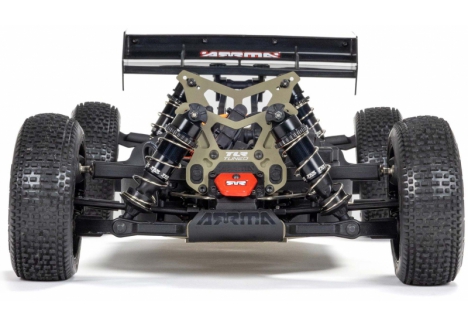

OIL-FILLED SHOCKS
OIL-FILLED SHOCKS

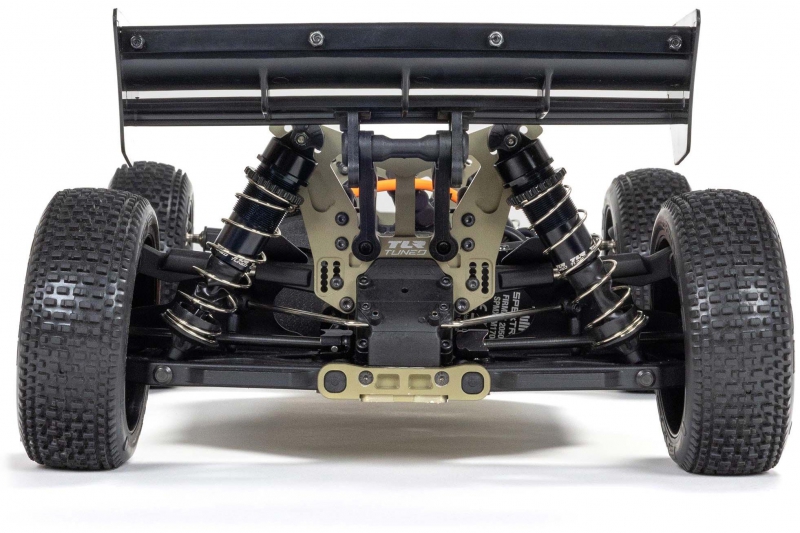

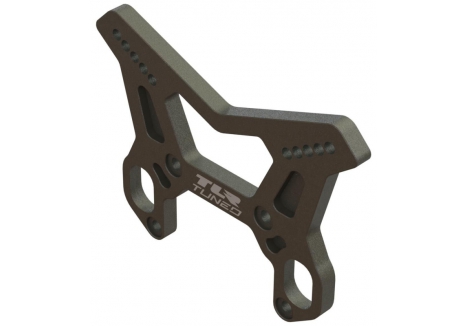

The adjustable oil-filled shocks are mounted on TLR Tuned 7075-T6 Aluminium Shock Towers and feature TLR Tuned Aluminium Shock bodies, machined tapered shock pistons, and EXB Extreme Bash shock stand-offs. They easily soak-up bumps over dirt, asphalt, and grass for super-smooth damping.

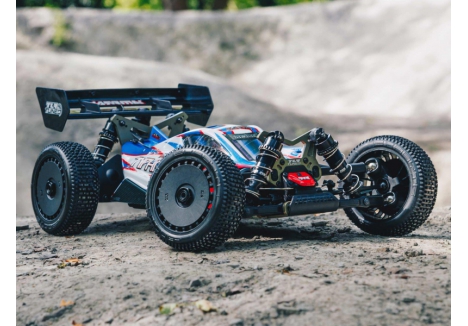

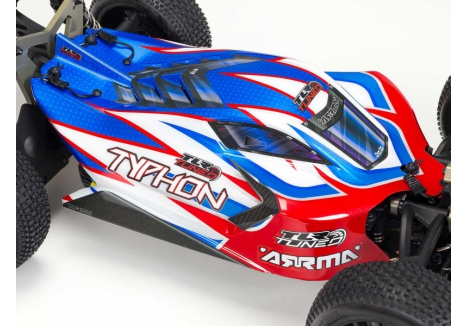

RACE SPEC FINISHED BODY
RACE SPEC FINISHED BODY

Topping off the TLR Tuned TYPHON 4WD Race Buggy RTR is a sleek body that's factory-finished with exclusive Race Spec colours and decals, distinguishing it from the roller version TLR Tuned TYPHON. A low-drag, tunable rear wing helps keep the buggy grounded, contributing to confident control and responsive handling at thrilling high speeds.

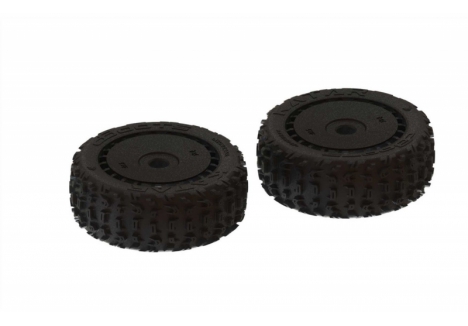

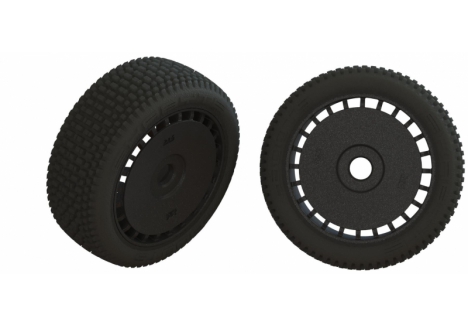

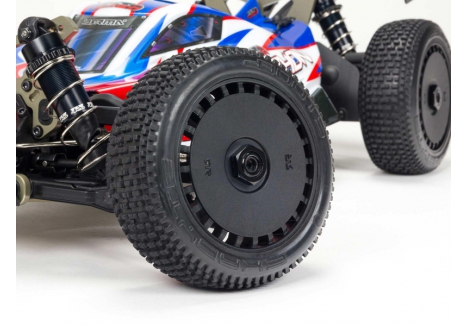

HIGH-TRACTION dBOOTS EXABYTE TYRES
HIGH-TRACTION dBOOTS EXABYTE TYRES

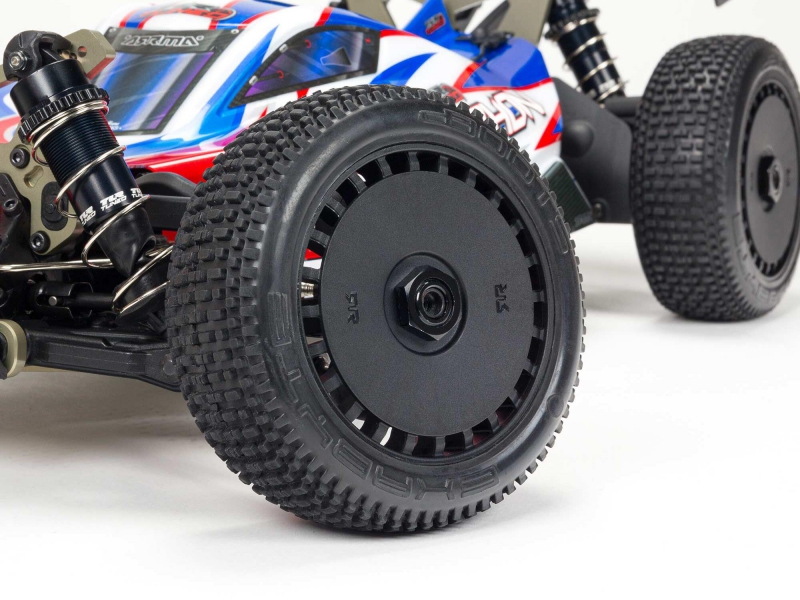

The dBoots EXABYTE tyres are made of high-quality, race compound rubber for long-lasting durability. Their multi-surface tread pattern provides excellent traction in all conditions. The tyres include foam inserts and are pre-glued to low-drag, 1/8 buggy nylon wheels. The industry standard 17mm hex fitting adds strength for extreme action and allows easy maintenance plus a wide range of tuning options.



Footer Image of TLR Tuned Typhon RTR

Brand, Model and Product Type

  • Brand: ARRMA
  • Model: C-ARA8406
  • Color: Red/Blue (Race Spec Finish)
  • Product Type: ARRMA C-ARA8406 brushless race buggy, ARRMA C-ARA8406 1/8 scale electric RC car, ARRMA C-ARA8406 4WD TLR Tuned buggy, ARRMA buggy with TLR aluminium chassis and EXABYTE tyres, ARRMA RC car with adjustable suspension hangers and SLT3 radio

Dimensions

  • Product Length: 51.5 cm – extended chassis for high-speed stability and race-grade control
  • Product Width: 31.2 cm – wide track improves cornering precision and rollover resistance
  • Product Height: 18.9 cm – low-profile body with aerodynamic wing and Race Spec styling
  • Wheelbase: 32.8 cm – optimized for responsive handling and terrain adaptability
  • Product Weight: 3.63 kg – reinforced aluminium and steel components for durability

Chassis and Structural Components

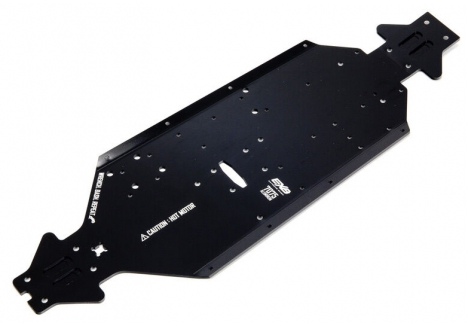

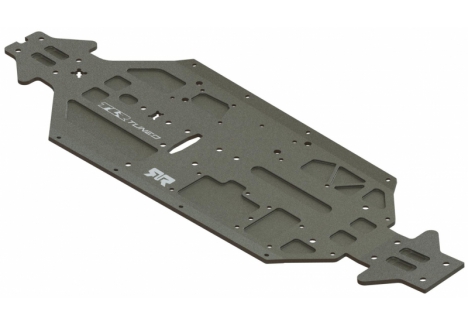

  • Chassis Material: 3 mm 7075-T6 aluminium – laser-etched TLR Tuned plate with 2.5 mm upper deck

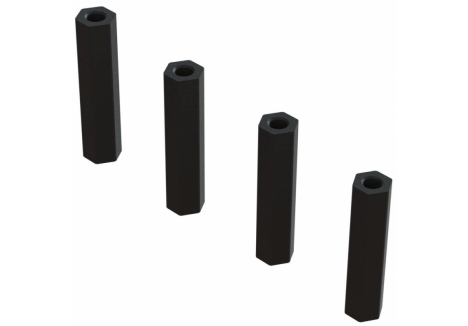

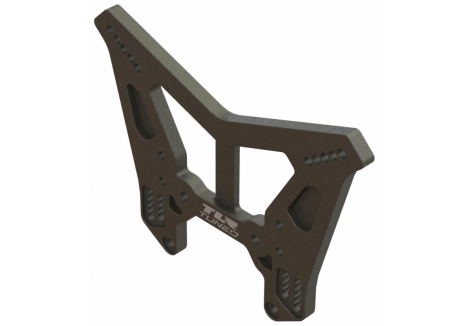

  • Shock Towers: TLR Tuned aluminium – supports oil-filled shocks with EXB standoffs
  • Motor Mount: Black-anodized aluminium sliding – allows quick motor access and secure fitment
  • Servo Mount: Aluminium – bash-ready strength and precision alignment

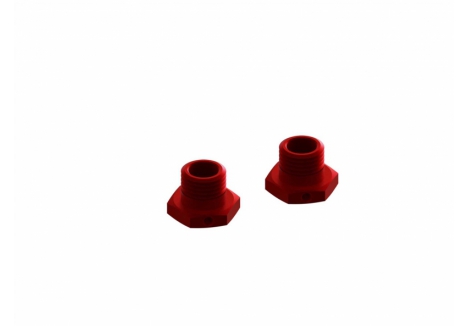

  • Wheel Hexes: 17 mm aluminium – industry standard for durability and tuning flexibility
  • Body: Painted, decaled, and trimmed – Race Spec finish with aerodynamic contours

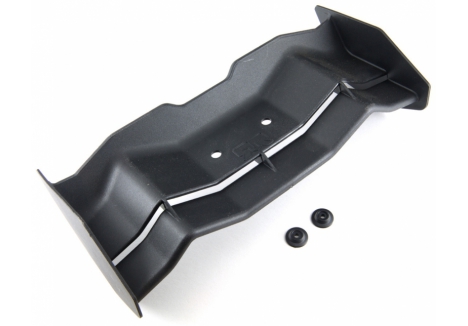

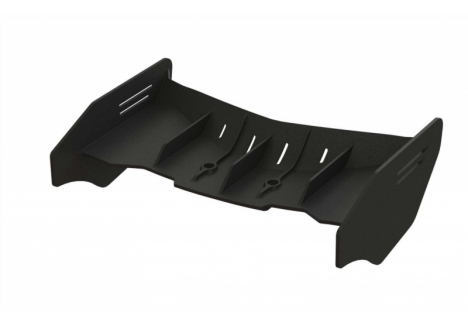

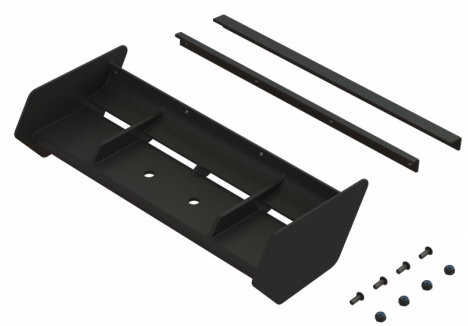

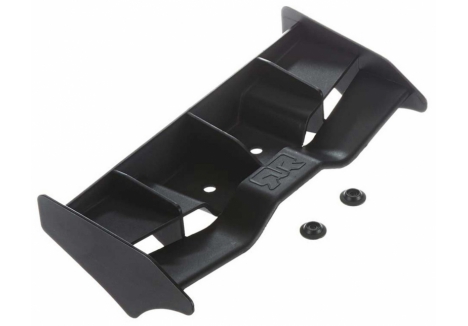

  • Rear Wing: Tunable – mounted high for increased downforce and stability

Power System and Electronics

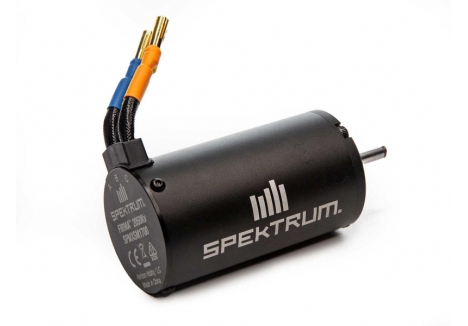

  • Motor: Spektrum Firma 4074 2050Kv brushless – 4-pole construction for consistent torque
  • ESC: Spektrum Firma 150A Smart – waterproof, telemetry-enabled, 4S/6S LiPo compatible
  • Servo: Spektrum S652 digital – metal gears, 265 oz-in torque @ 7.4V
  • Transmitter: Spektrum SLT3 2.4GHz 3-channel – throttle limiting and ergonomic foam grip
  • Receiver: Spektrum SR315 – dual protocol DSMR/SLT, Smart telemetry compatible

Drivetrain and Transmission

  • Drive Type: Forward/Brake/Reverse – full directional control for race and bash modes

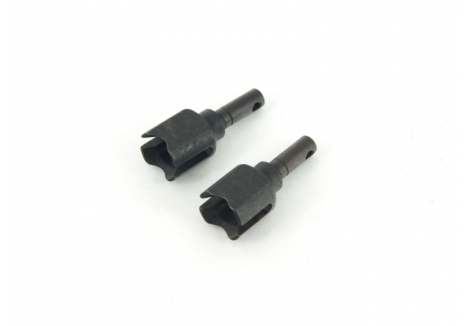

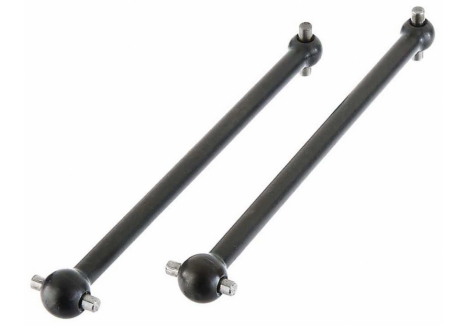

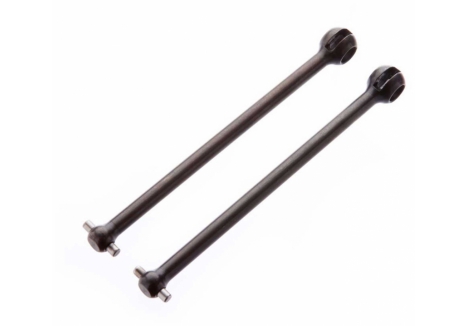

  • Drivetrain: 4WD – steel driveshafts and all-metal diff outdrives for torque endurance

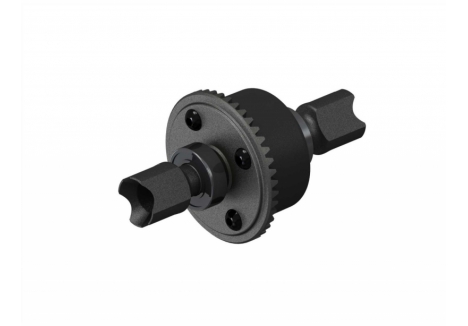

  • Differential Type: 3-gear – sealed and fluid-filled for independent wheel control
  • Internal Gear Ratio: Not specified – tuned for torque delivery and drivetrain efficiency
  • Final Drive Ratio: 10.31 – optimized for acceleration and terrain versatility
  • Gear Pitch: 1.0 MOD – heavy-duty gearing for high-load racing conditions
  • Spur Gear: 50T – matched to motor output for balanced performance

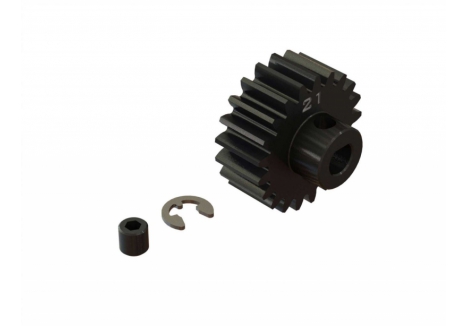

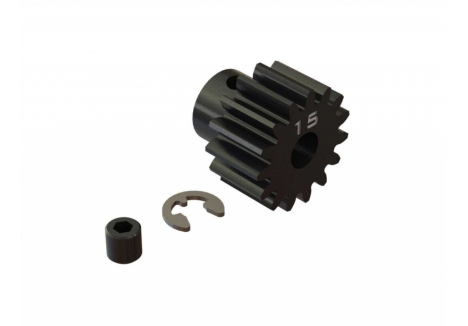

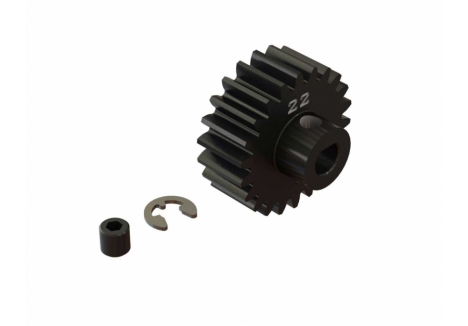

  • Pinion Gear: 16T – factory-installed for optimal gearing out of the box

Suspension and Handling

  • Suspension Type: Independent – TLR Tuned adjustable hangers with multiple inserts
  • Shock Type: Oil-filled aluminium coilovers – machined pistons, guides, and X-ring seals
  • Front Track: 31.2 cm – wide stance for stability and cornering control
  • Rear Track: 31.2 cm – matched geometry for balanced handling

Tyres and Wheels

  • Tyre Type: dBoots EXABYTE – race compound rubber with multi-surface tread
  • Tyre Compound: High-traction – engineered for grip across dirt, grass, and asphalt
  • Wheel Type: Low-drag nylon – pre-glued with foam inserts for consistent performance
  • Wheel Hex Size: 17 mm – standard fitment for tuning and durability
  • Wheel Width: 4.15 cm – wide footprint for traction and stability
  • Inner Tyre/Outer Wheel Diameter: 8.3 cm – optimized for race-grade terrain control

Battery and Power Compatibility

  • Battery Compatibility: 4S and 6S LiPo – supports both track and bash configurations
  • Connector Type: IC5 – reliable interface for high-current delivery

Technology and Smart Features

  • Smart Telemetry: Enabled – real-time monitoring of ESC temperature, motor RPM, and battery voltage
  • Receiver Protocols: Dual – compatible with DSMR and SLT transmitters
  • Water Resistance: Yes – waterproof electronics for all-weather operation

Vehicle Classification

  • Scale: 1/8 – large format for competitive racing and high-speed bashing
  • Vehicle Type: Buggy – designed for off-road precision and performance
  • Vehicle Size: Standard – suitable for varied terrain and competitive use
  • Top Speed: 70+ mph – achievable with 6S LiPo and factory gearing

What’s in the Box

  • 1 × ARRMA TLR Tuned TYPHON 6S 4WD BLX Buggy RTR
  • 1 × Spektrum Firma 150A Smart Waterproof ESC
  • 1 × Spektrum Firma 4074 2050Kv Brushless Motor
  • 1 × Spektrum SLT3 2.4GHz 3-Channel Transmitter
  • 1 × Spektrum SR315 3-Channel Dual Protocol Receiver
  • 1 × Spektrum S652 Waterproof Metal-Geared Digital Servo
  • 4 × AA Batteries for Transmitter
  • 1 × Product Manual

What You Require

  • 1 × 4S or 6S LiPo Battery with EC5 or IC5 Connector
  • 1 × Compatible LiPo Battery Charger

Sold Separately

  • LiPo Battery – required for operation
  • Battery Charger – compatible with 4S or 6S LiPo

Parts Diagrams

Front Assembly
Steering and Servo Mount Assembly
Chassis Assembly
Centre Diff Mount Assembly
Rear Assembly

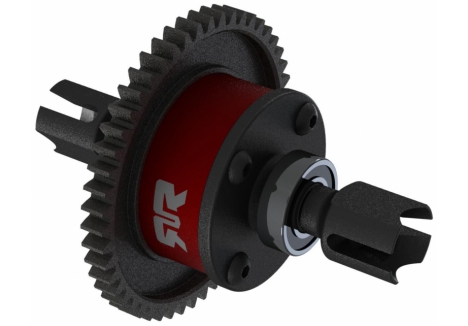

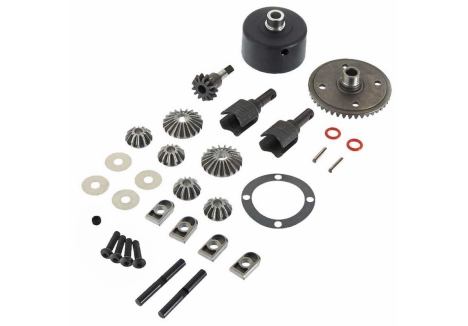

Centre Diff Assembly

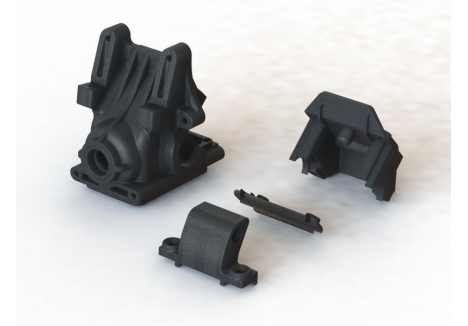

Front & Rear Diff Assembly
Shock Absorber Assembly

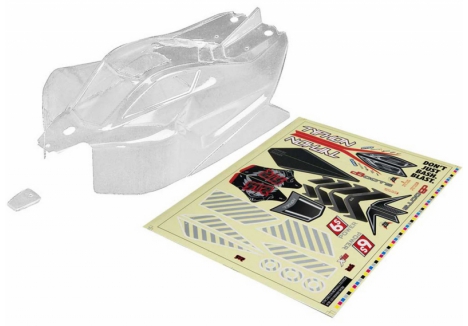

Bodyshell / Wing / Wheel & Tyre
