Overview

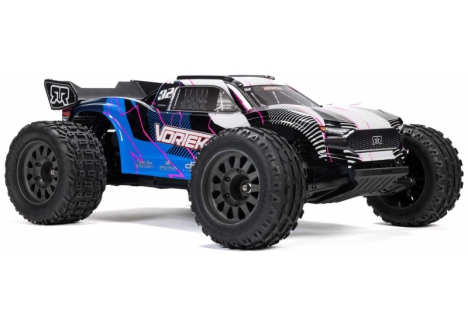

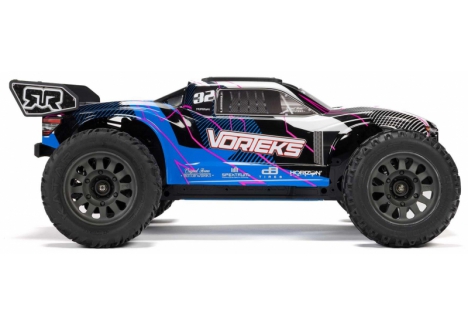

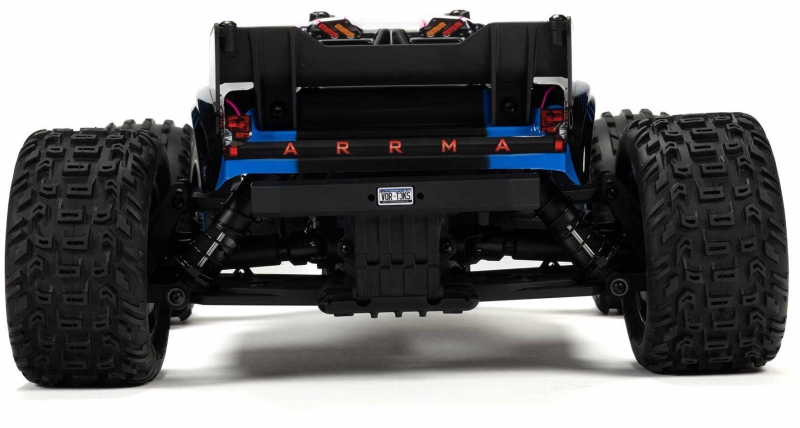

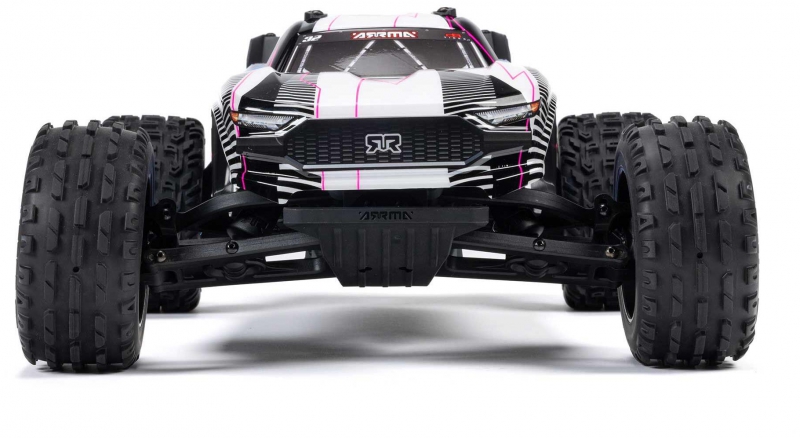

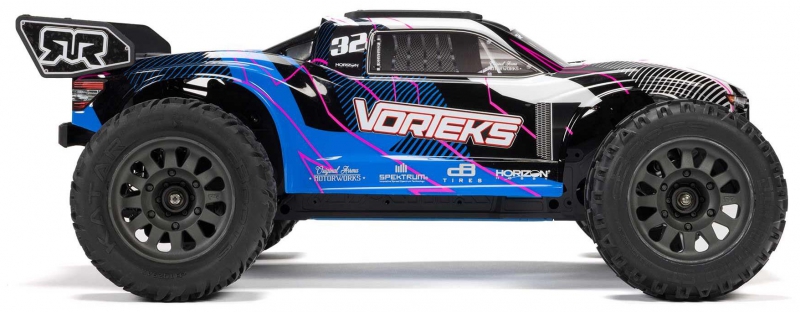

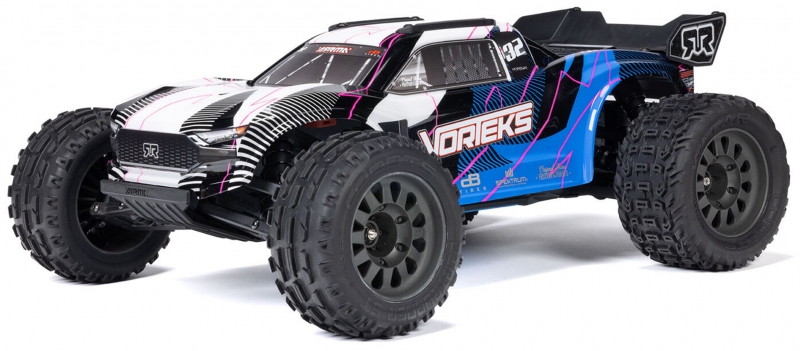

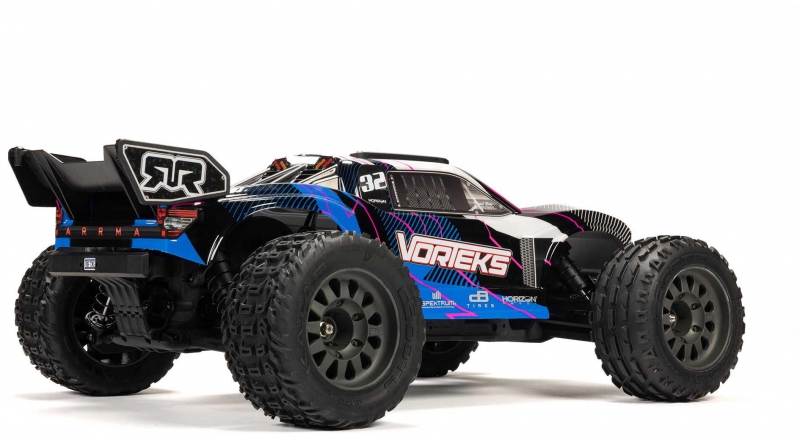

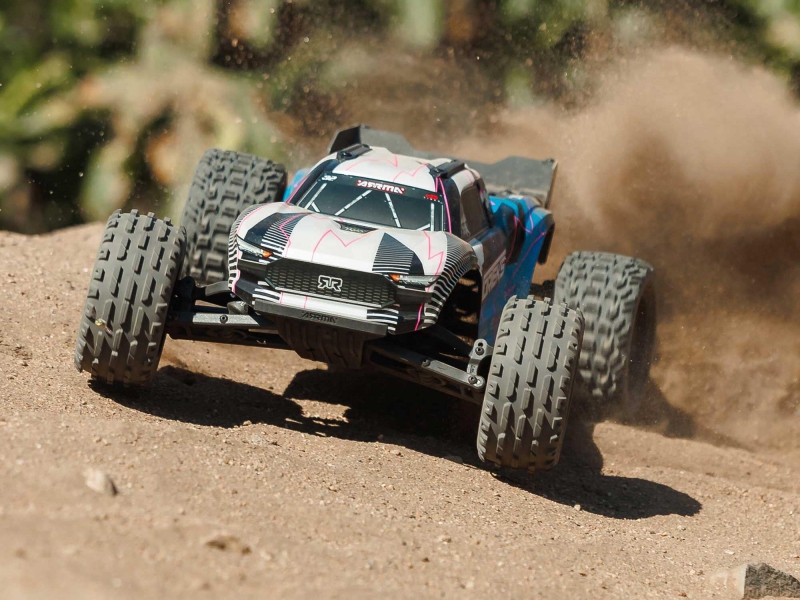

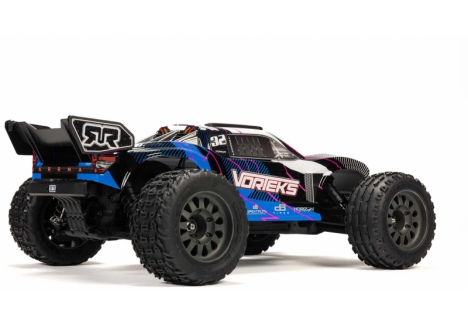

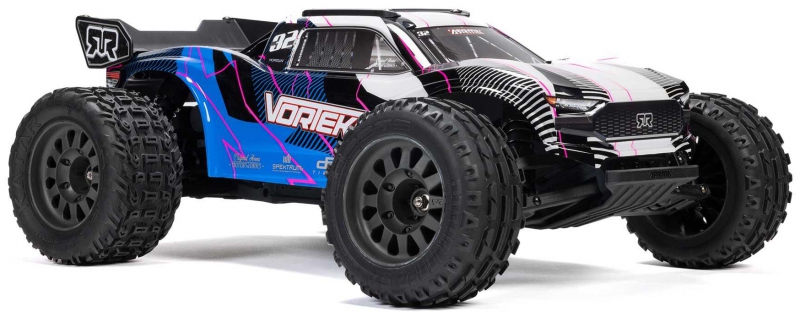

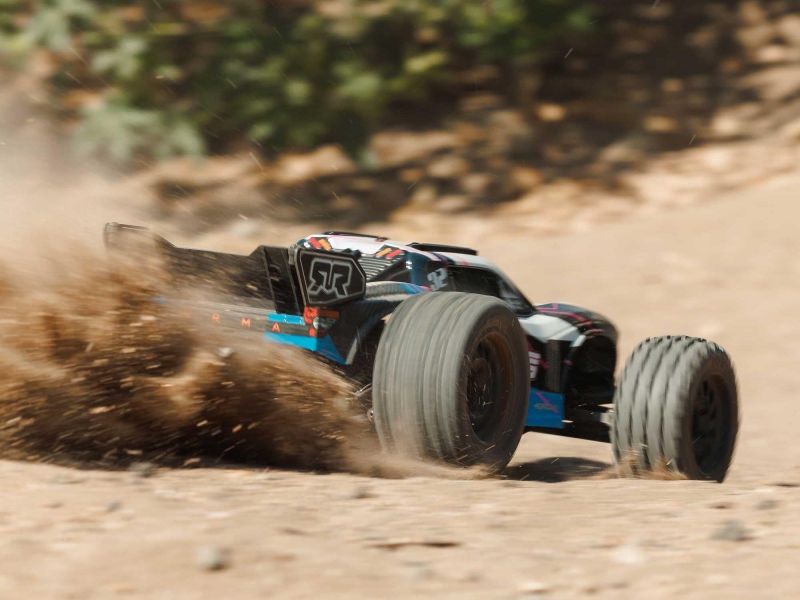

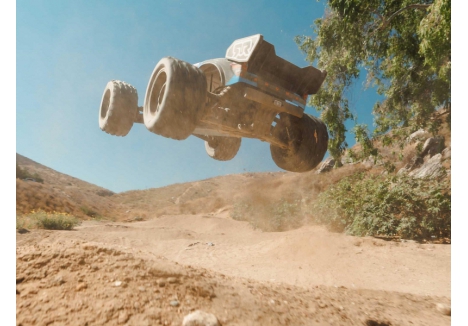

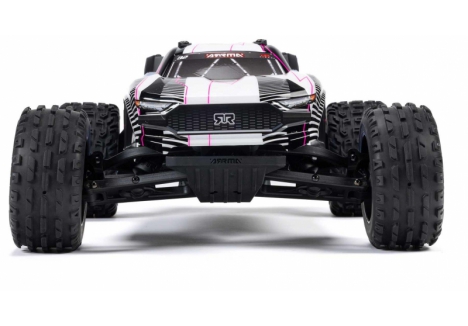

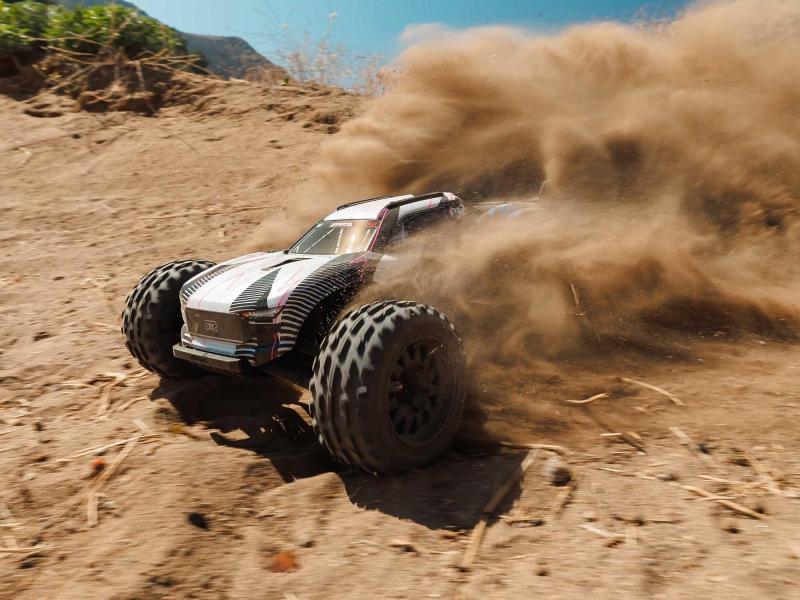

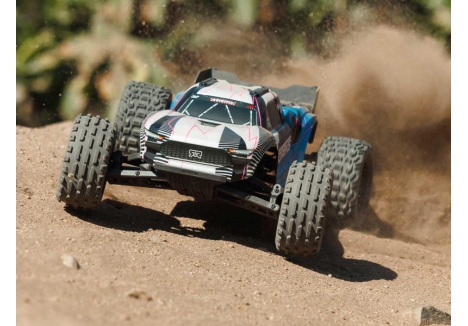

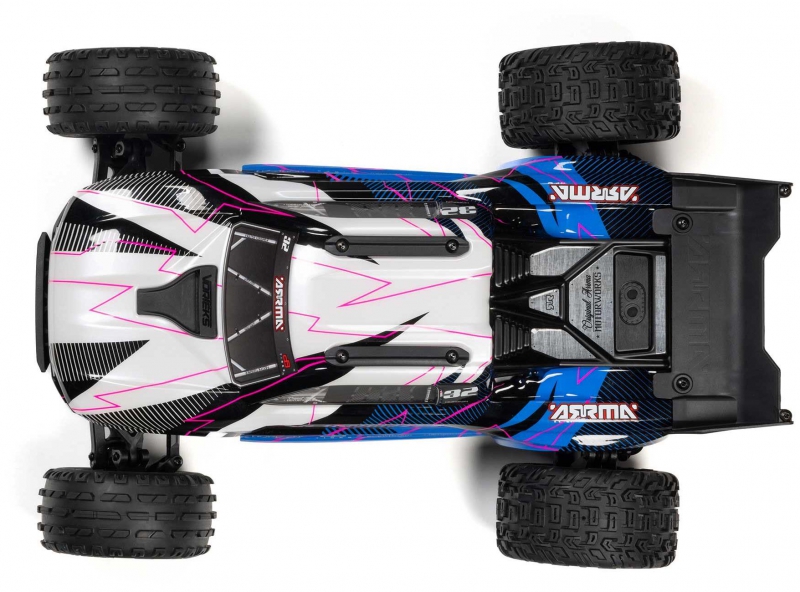

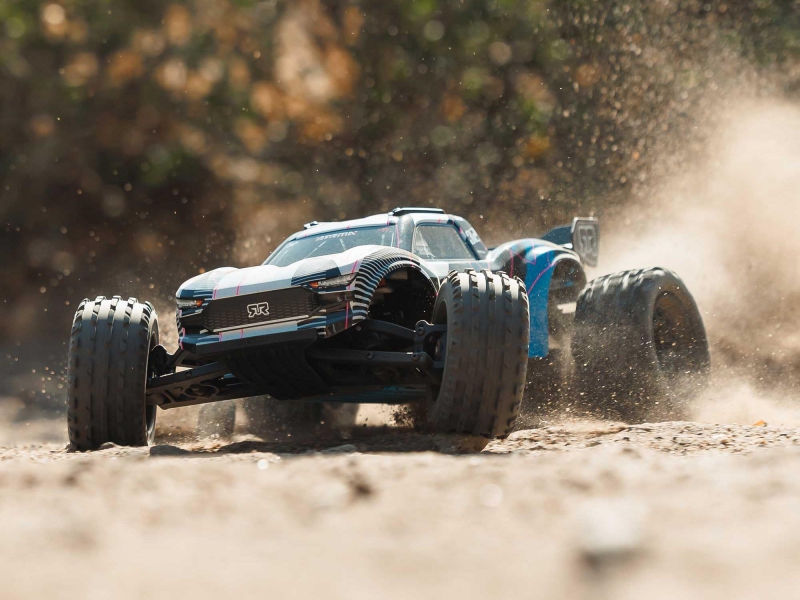

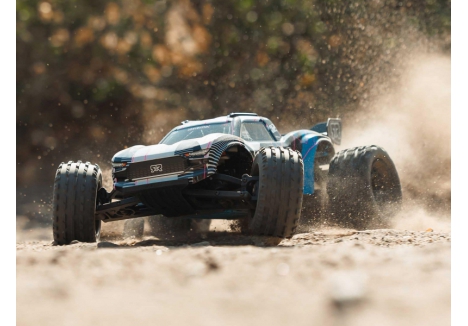

Blast over terrain with the incredible speed, stability and toughness of the ARRMA VORTEKS 2WD, one of the most affordable hobby-quality 1/10 scale stadium trucks available in the UK ready-to-run RC market. This ready-to-run RC car delivers the perfect combination of performance and value, making it ideal for first-time RC hobbyists and experienced drivers alike. Whether you're looking for a reliable ready to run RC truck for weekend bashing at your local park or backyard racing, the VORTEKS MEGA 550 2WD offers professional-grade engineering at an accessible price point that won't break the bank.
The VORTEKS is engineered to deliver more refined performance than any previous ARRMA 2WD vehicle, with a perfect balance of stability and agility that instils confidence at any speed. Its wide stance contributes to confidence-boosting control, whilst the low and sporty stadium truck body style lets you carve through turns without slowing down. The composite chassis design combines a long wheelbase with mid-motor positioning for balanced handling and extended motor life with reduced maintenance requirements. As you gain experience with your VORTEKS 2WD, you can stretch its performance envelope by customising it with option parts and upgrading to LiPo batteries whenever you're ready for the next level.
This ARRMA 1/10 scale stadium truck is engineered to handle demanding terrain with punishing durability, making it perfect for bashers who want serious performance without the premium price tag. Easy to upgrade and customise, the VORTEKS accepts brushless motor conversions and LiPo battery upgrades, allowing your investment to grow alongside your RC driving skills and ambitions.
Key Features

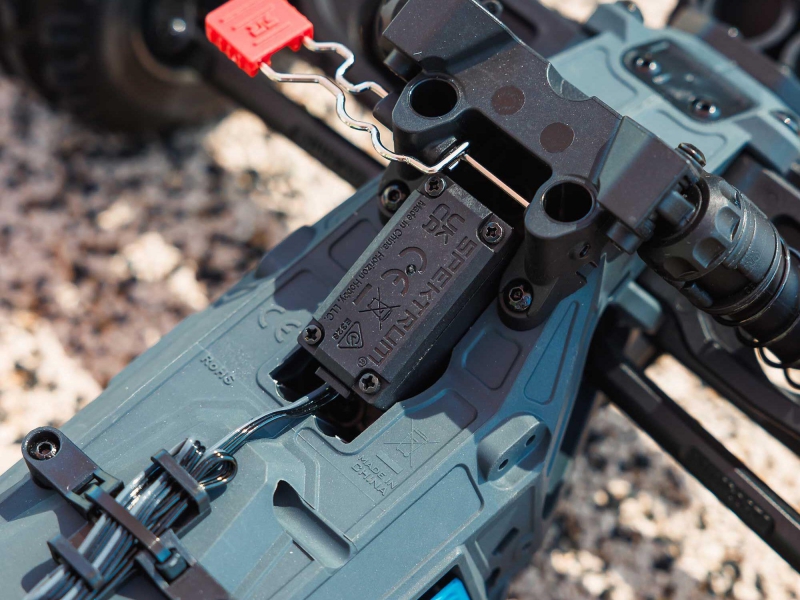

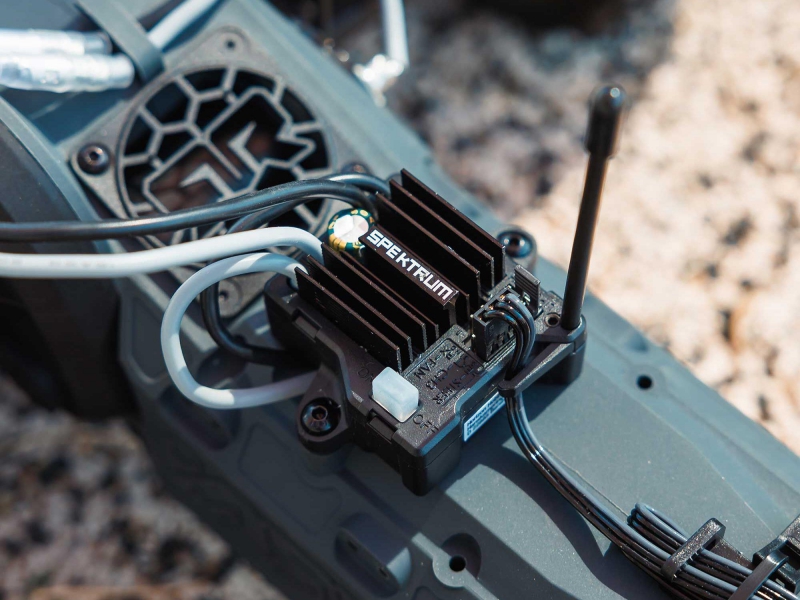

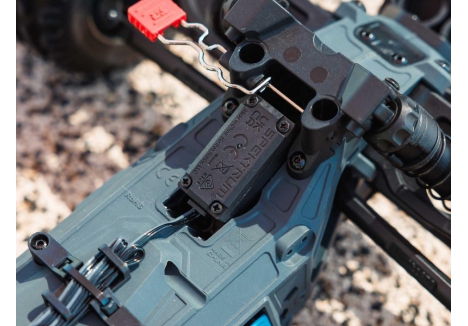

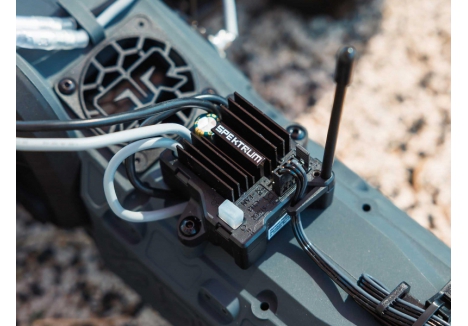

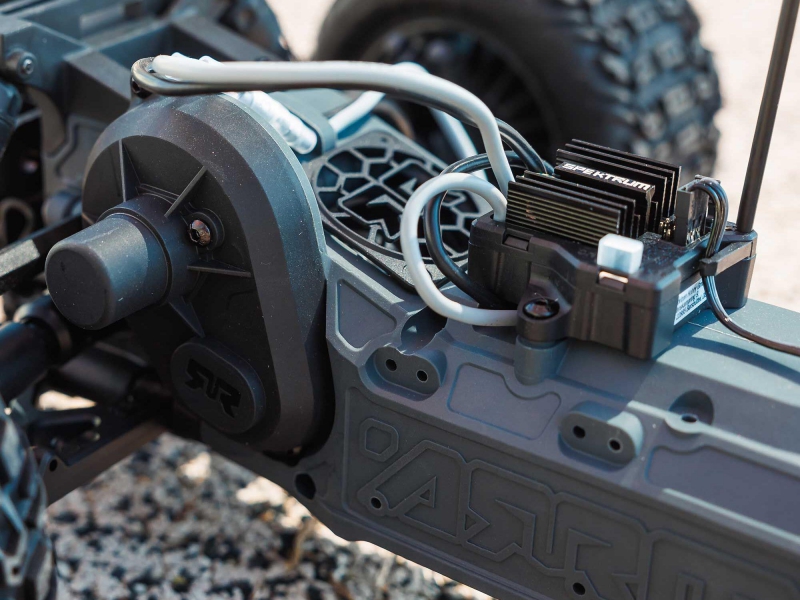

- Spektrum SLT 2-in-1 40A ESC and Receiver — The integrated 40-amp electronic speed control and receiver unit provides smooth, proportional throttle and steering control whilst delivering waterproof performance so you can bash through wet conditions without concern. The mono-chromed wires add that professional appearance straight out of the box.

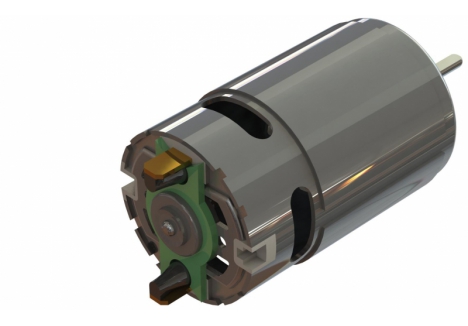

- MEGA 550 14T Brushed Motor — This powerful brushed motor delivers impressive torque and acceleration for a standard 550 size unit, fitting perfectly into the VORTEKS and offering easy upgrade options to brushless power as your skills develop. The 550 size motor format means abundant aftermarket support for enhanced performance parts.

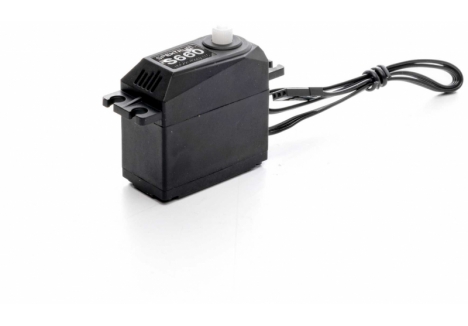

- Spektrum S660 Digital Steering Servo — Rugged, powerful and rated at 6kg-cm torque with 0.15 second response time at 6 volts, this high-torque digital steering servo turns the VORTEKS with ease across all terrains. The waterproof construction ensures reliable steering control in all weather conditions.

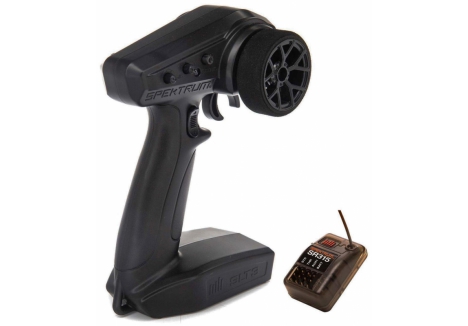

- Spektrum SLT2 2.4GHz Transmitter with Throttle Limiter — The included 2-channel radio system features selectable 50% and 75% throttle limiters, making it perfect for new drivers to safely learn control skills and master driving lines before unleashing full power. The ergonomic handle design and foam wheel grip provide maximum comfort during extended driving sessions.

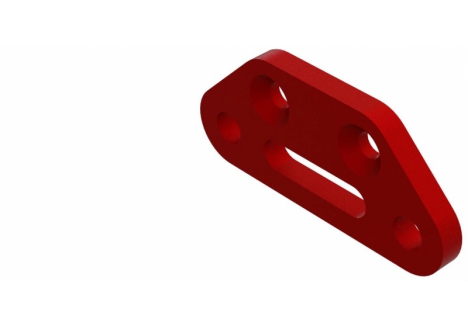

- Mesh-Safe Motor Plates — Specialised motor mounting plates lock the motor into the correct position, allowing fast, easy and secure gearing changes without risk of misalignment or damage.

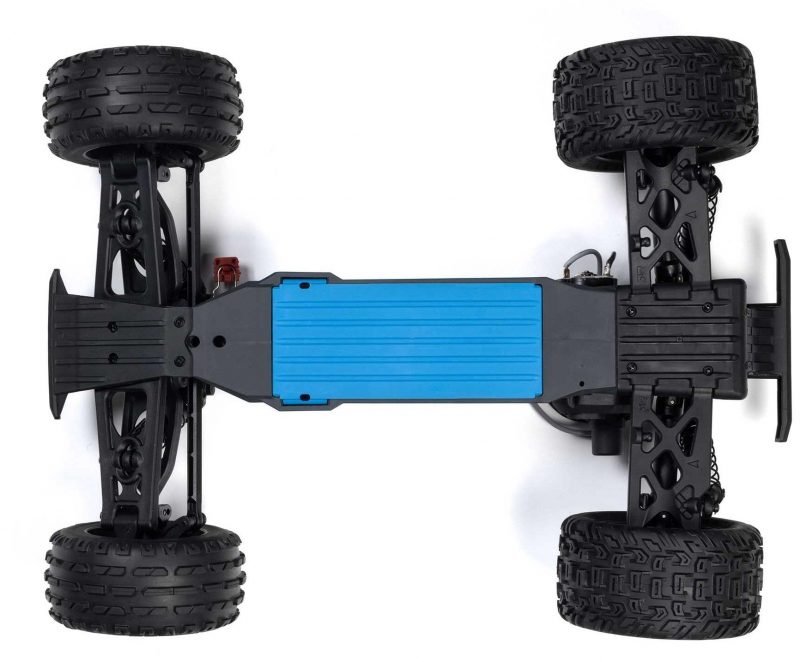

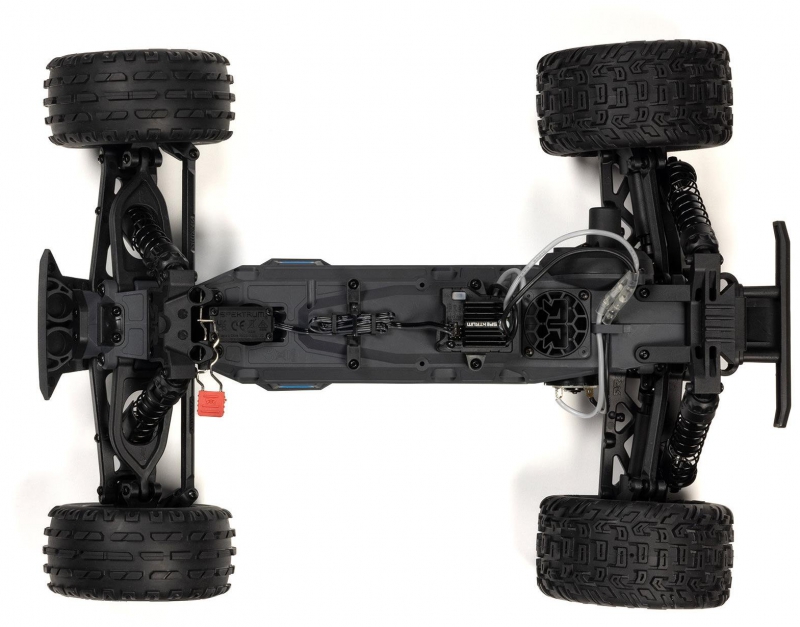

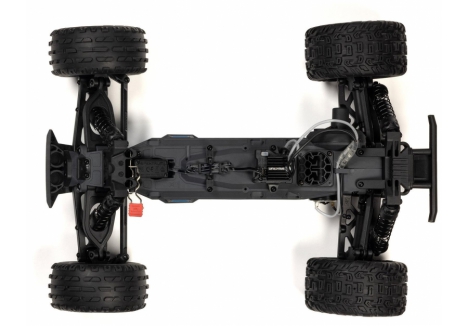

- Composite Chassis with Spine Design — The mouldable composite chassis features a distinctive spine design that keeps dirt out more effectively than conventional chassis styles, resulting in cleaner performance and extended intervals between maintenance sessions.

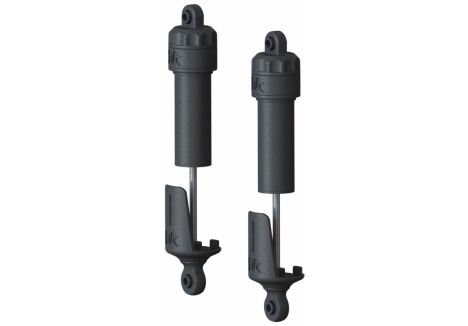

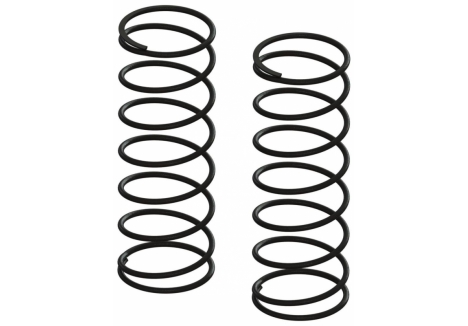

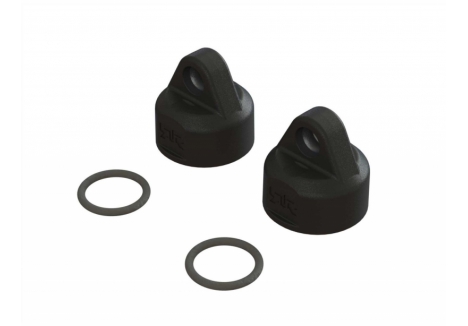

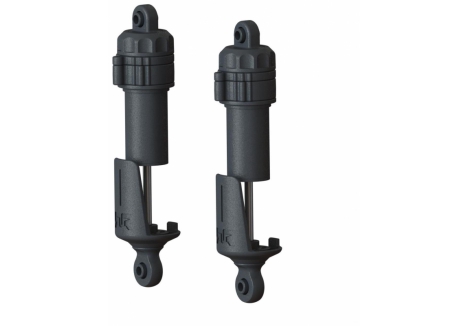

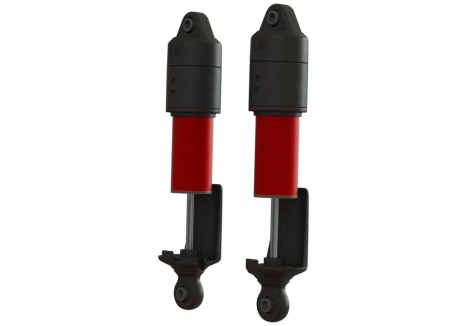

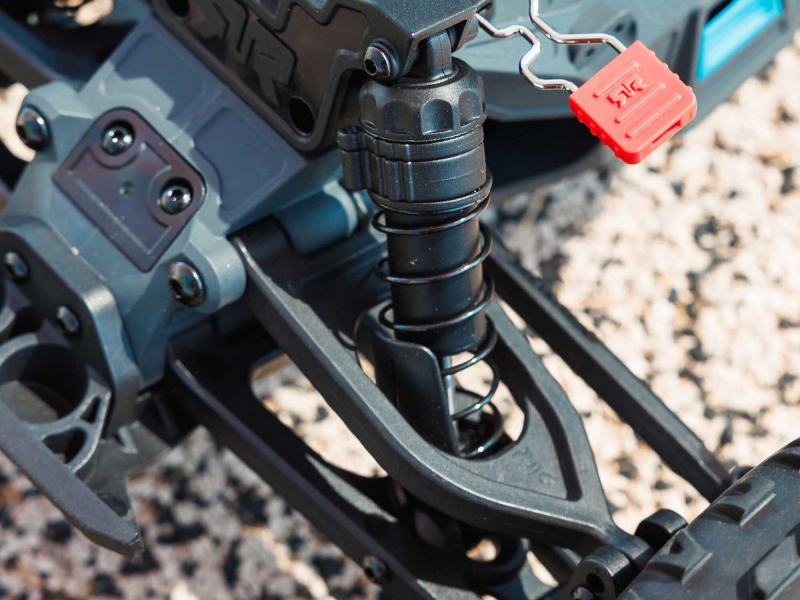

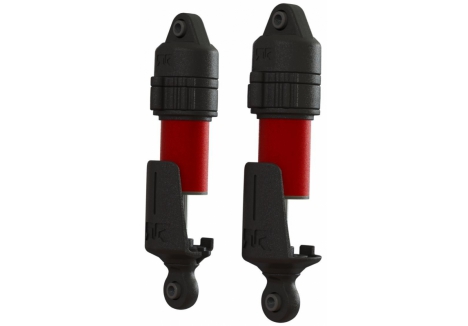

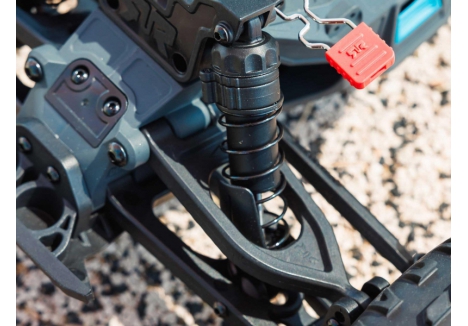

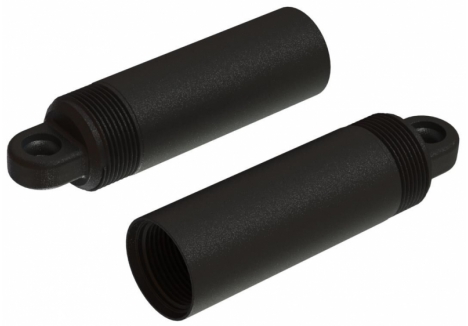

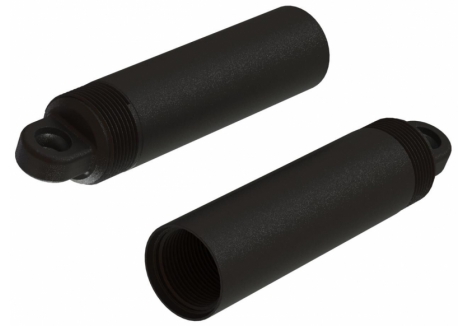

- Independent Oil-Filled Suspension — The independent suspension system incorporates oil-filled shock absorbers that soak up rough terrain, combined with adjustable ride height to fine-tune the driving experience. Front shock oil is set at 500 cSt whilst rear shocks use 300 cSt silicone oil for balanced handling characteristics.

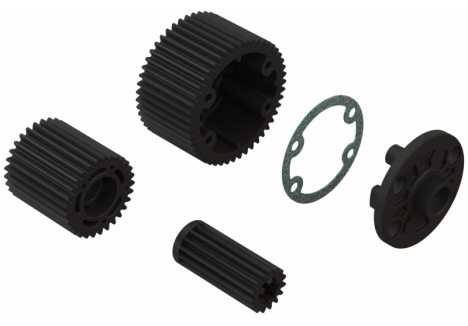

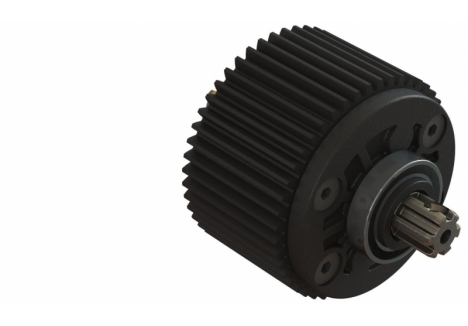

- Metal Internal Differential Gears — Heavy-duty composite and alloy gears deliver added toughness to transfer power to the wheels, whilst the metal internal differential provides superior durability when bashing rough surfaces. Metal pinion gears ensure longevity under demanding use.

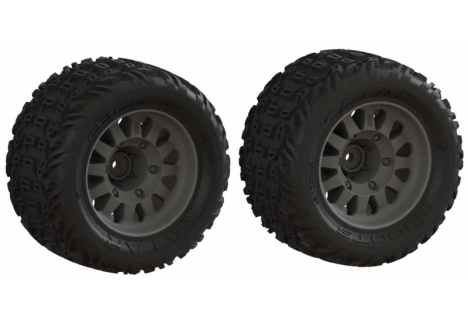

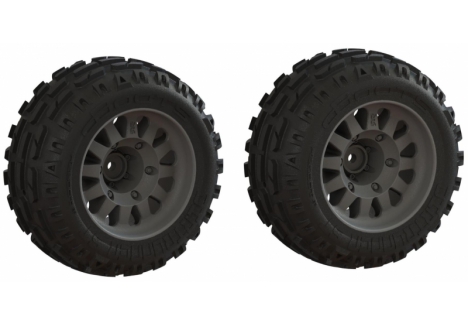

- dBoots Tyre System — The front tyres are dBoots Dirtrunner ST rubber with vented tread design for precise steering control and easy jumping and cornering on rough surfaces. The rear tyres are dBoots Katar rubber with vented construction, providing ultimate traction and durability for off-road performance.

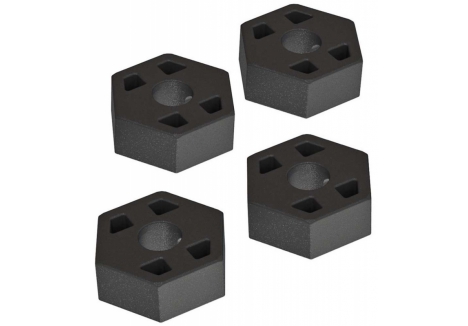

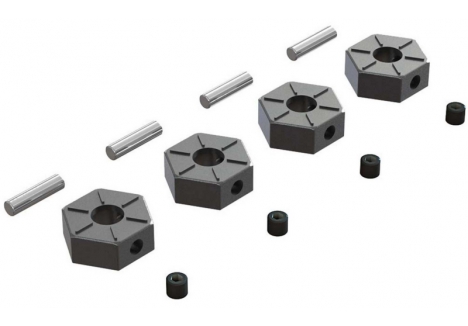

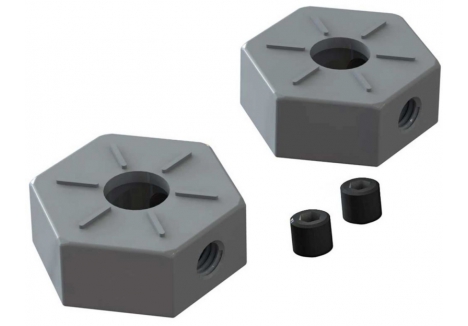

- All-Terrain 2.8-inch Wheels — The 14mm hex wheels feature gunmetal finish and come pre-mounted with glued medium-insert tyres, measuring 115mm in diameter for impressive ground clearance and terrain-tackling capability.

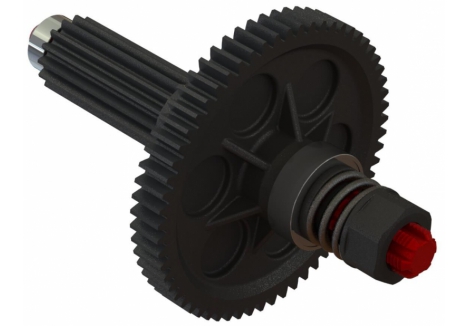

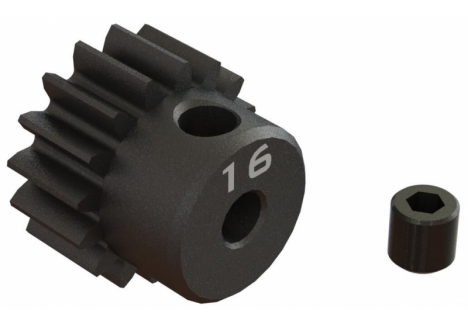

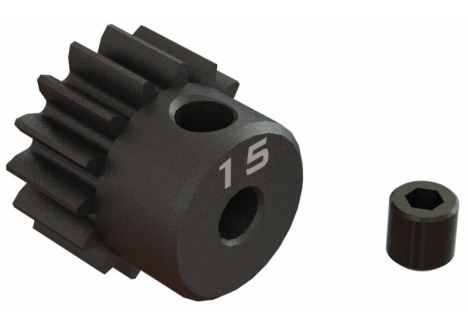

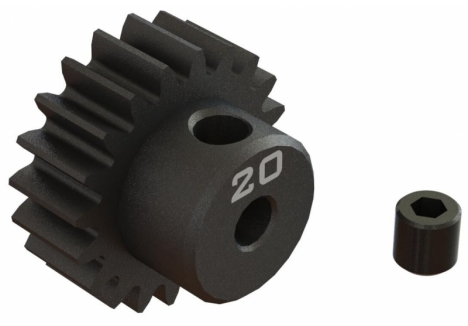

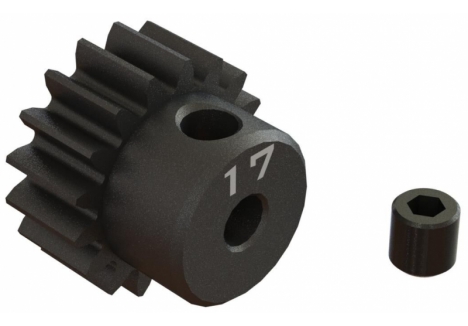

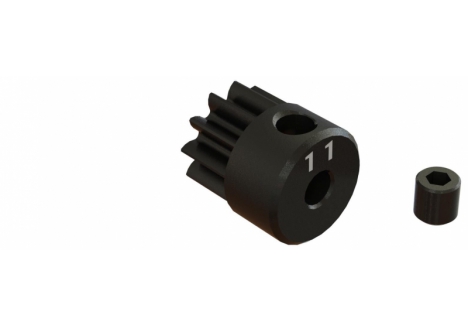

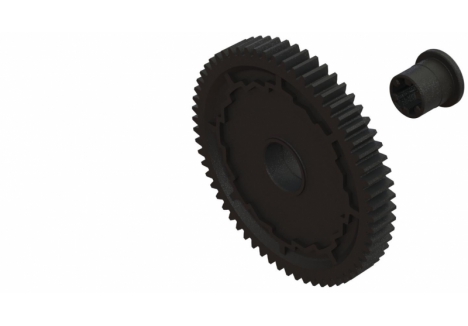

- Brushless-Ready Transmission — The 22mm wide gears are engineered with brushless power in mind, allowing easy motor upgrades when you're ready for enhanced performance. The heavy-duty transmission uses a 61-tooth plastic spur gear driven by a 13-tooth metal pinion, resulting in a 14.68:1 final gear ratio optimised for stadium truck driving.

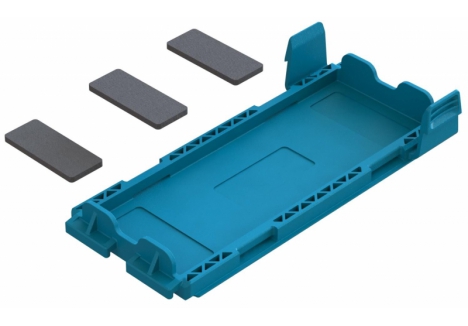

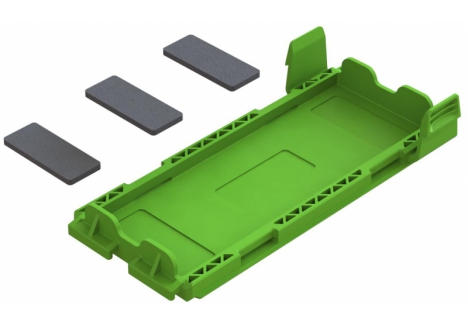

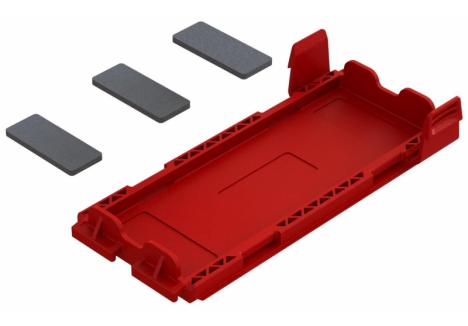

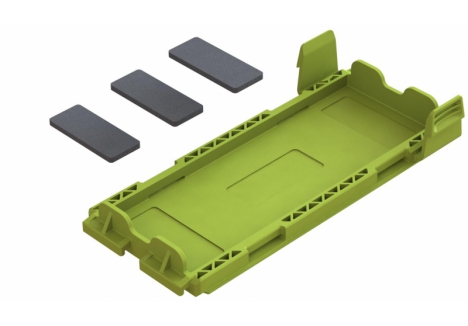

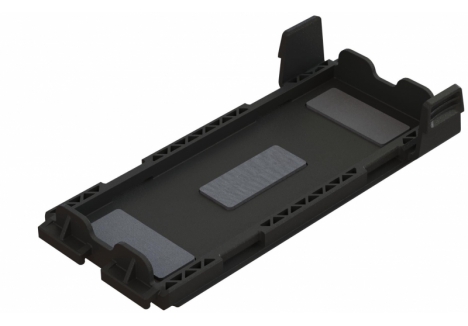

- Easy-Access Battery Tray — The bottom-loading battery compartment with colour-coded design allows fast battery swaps without removing body panels, keeping you racing rather than waiting. The tray accommodates batteries up to 140x50x35mm.

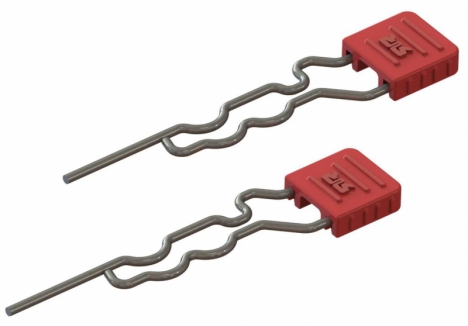

- Hidden Body Retention System — The clipless mounting system with super-simple retained sliding clip allows one-handed body removal for rapid maintenance, with just five screws required to access the steering servo when needed.

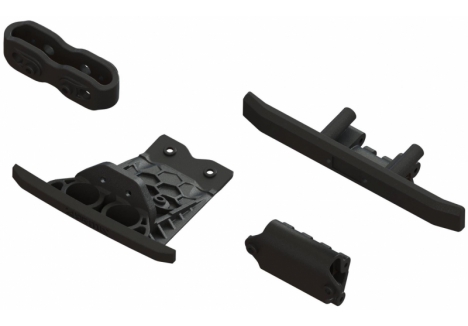

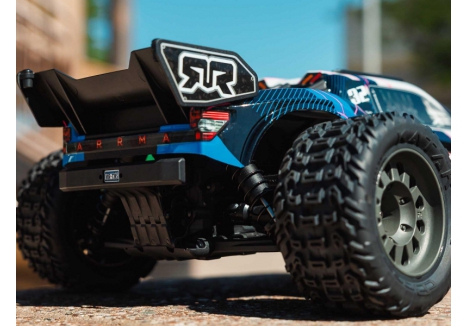

- Shock-Absorbing Bumpers and Skid Plates — Composite front and rear bumpers with integrated skid plates protect the chassis during impacts and heavy bashing, whilst the short rear overhang eliminates rear-mounted motor concerns and improves off-road capability without rear bodywork dragging in dirt.

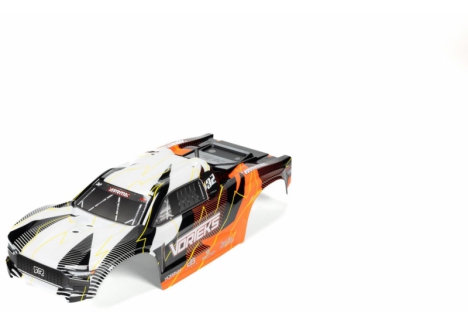

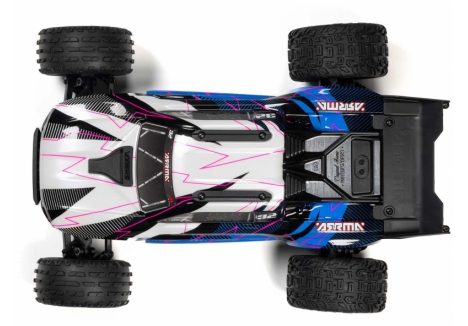

- Three Striking Colour Schemes — Available in striking blue, orange and purple finishes, the VORTEKS allows you to express your style whilst the detailed body mounting system provides a clean, professional appearance.
- Waterproof Electronics Package — Both the Spektrum 2-in-1 ESC and S660 servo are waterproof rated, enabling confident driving through wet conditions and puddles without electrical concerns (always consult the instruction manual for specific waterproofing details).
- LiPo-Ready Design — The Spektrum electronics are fully compatible with 2S LiPo batteries, allowing simple future upgrades to lithium polymer power for increased voltage and runtime as your driving progresses.
- Durable Composite Construction — The entire chassis uses moulded composite materials for lightweight strength combined with impact resistance, ensuring the VORTEKS survives hard bashing and rough terrain.
- Sleek Hidden Body Mounts — Refined design aesthetics are maintained through hidden body mounting points that don't detract from the clean, modern appearance of the stadium truck bodywork.
- Rope-Cutter Wheel Design — The moulded composite wheels provide clean lines and professional appearance whilst the medium-insert tyres offer predictable grip characteristics for learning driving technique.
Technical Performance
The ARRMA VORTEKS MEGA 550 2WD delivers impressive performance from its proven Spektrum electronics package, featuring a 40-amp waterproof ESC and powerful 14-turn brushed motor that generates excellent torque and acceleration across rough terrain. The motor is rated at standard 550 size, making it compatible with abundant aftermarket options for future upgrades. Running on the MEGA power system, this stadium truck achieves top speeds exceeding 20mph straight out of the box, providing thrilling performance for new and experienced drivers alike. The Spektrum S660 servo delivers 6kg-cm of torque at 6 volts with lightning-quick 0.15-second response time, ensuring precise steering control even when carving tight corners at speed. The transmission utilises a 61-tooth plastic spur gear driven by a 13-tooth metal pinion arrangement with 0.8 modulus pitch, producing a final gear ratio of 14.68:1 that balances acceleration and top speed for stadium truck racing. The chassis geometry features a 286mm wheelbase, 456mm overall length and 325mm track width, creating the wide stance that contributes to confident handling. At just 2.34kg without battery, the VORTEKS remains light enough for responsive handling whilst maintaining enough mass for stability through bumps and rough terrain. The independent suspension system uses front shocks filled with 500cSt silicone oil and rear shocks with 300cSt silicone oil, with spring rates of 0.547 N/mm front and 0.402 N/mm rear. The adjustable ride height of 40mm allows fine-tuning for different terrains and driving styles. The Spektrum electronics accept 8.4V seven-cell NiMH batteries or 7.4V two-cell LiPo batteries, providing flexibility as you develop your RC hobby. The composite chassis design with spine technology keeps dirt out more effectively than flat-bottom designs, reducing maintenance frequency and extending the lifespan of internal components. All gearing components are engineered for durability, with metal internal differential gears and composite gear covers protecting the drivetrain from impacts. The dBoots tyre system provides excellent off-road traction with vented tread design optimised for loose and rocky surfaces.
What's in the Box
- VORTEKS MEGA 550 2WD Stadium Truck RTR chassis
- Spektrum SLT 2-in-1 40A ESC and Receiver unit
- ARRMA 14T Brushed 550 motor
- Spektrum SLT2 2.4GHz 2-channel transmitter
- Spektrum S660 high-torque digital steering servo
- 4 x "AA" alkaline batteries for transmitter

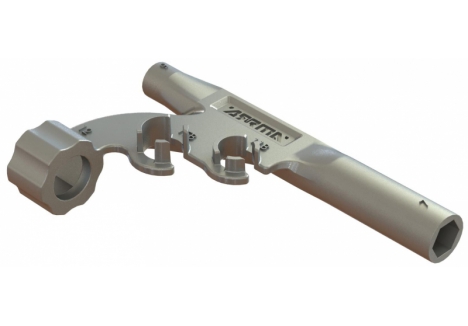

- Multi-tool and hex wrenches (2.0mm and 2.5mm sizes)
- Instruction manual with exploded view diagrams
- Molded plastic tools and support materials
What You Need to Complete

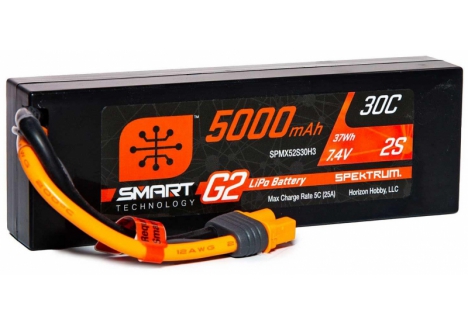

- 7-cell NiMH battery pack (8.4V) or 2S LiPo hardcase battery (7.4V minimum) — The VORTEKS is compatible with both battery types, though the included Spektrum SLT2 ESC is optimised for NiMH out of the box

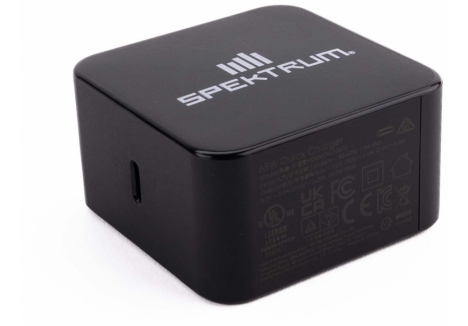

- Battery charger compatible with your chosen battery type — A Spektrum SMART charger is recommended for NiMH batteries, or any compatible LiPo charger for lithium polymer upgrades
- LiPo charging bag or safety storage container if using LiPo batteries
Frequently Asked Questions
- Is the ARRMA VORTEKS 2WD suitable for beginners and first-time RC car buyers? — Yes, absolutely. The VORTEKS is specifically designed as an entry-level ready-to-run stadium truck offering hobby-quality performance at an affordable price. The included Spektrum SLT2 transmitter features 50% and 75% throttle limiters that allow new drivers to safely learn control skills before accessing full power. The easy-to-handle suspension and wide stance provide confidence-boosting stability, whilst the simple construction allows straightforward maintenance and learning opportunities. Professional ARRMA engineering ensures reliability even for users new to the RC hobby.
- What battery does the ARRMA VORTEKS MEGA 550 need? — This model is compatible with 8.4V seven-cell NiMH batteries or 7.4V two-cell LiPo hardcase batteries. The Spektrum electronics are rated for continuous discharge of at least 25C with LiPo batteries. For recommended extended runtime, a 4000mAh or higher capacity is suggested. The battery tray accommodates batteries up to 140x50x35mm dimensions. This model does not include a battery or charger, so you'll need to purchase these separately.
- Can I upgrade the VORTEKS to brushless power? — Yes, the VORTEKS is brushless-ready with heavy-duty composite and alloy gears specifically designed to handle brushless motor conversions. The 22mm wide gears and 14.68:1 gear ratio provide solid foundation for brushless upgrades. However, you'll need to purchase a compatible brushless motor (550 size format) and potentially upgrade the ESC to handle the increased current draw from brushless systems. The Spektrum 40A ESC may require upgrading for high-performance brushless motors.
- What is the difference between this blue ARA3205T1 model and the orange ARA3205ST1 and purple ARA3205ST2 variants? — All three models are identical in chassis, electronics, motor and features. The only differences are colour (blue, orange or purple) and what's included. This blue ARA3205T1 model does not include a battery or charger, allowing you to choose your own power solution. The orange ARA3205ST1 and purple ARA3205ST2 models include a Spektrum 8.4V 3300mAh SMART NiMH battery and Spektrum S120 USB-C SMART charger, offering all-in-one convenience.
- How fast does the VORTEKS 2WD go? — The VORTEKS achieves top speeds exceeding 20mph straight from the box on standard gearing. Actual speed depends on battery type, charge level, and terrain conditions. The 50% and 75% throttle limiters on the SLT2 transmitter allow you to restrict maximum speed for learning purposes.
- Is the VORTEKS waterproof? — The Spektrum 2-in-1 40A ESC and S660 servo are both rated as waterproof, allowing confident driving through wet conditions. However, the instruction manual should be consulted for specific waterproofing guidelines and limitations. Never submerge the battery or transmitter in water.
- What tools do I need to maintain the VORTEKS? — The kit includes 2.0mm and 2.5mm hex wrenches plus a multi-tool for basic assembly and maintenance. For more advanced tuning, additional metric hex wrench sets and small screwdrivers are recommended. The simple design allows access to the differential with four screws, slipper clutch with two screws, and steering servo with five screws.

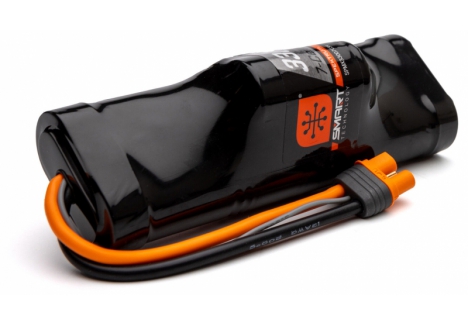

- How long does the battery last on a single charge? — Runtime depends on battery capacity and type. With the included Spektrum 3300mAh 7C 8.4V SMART battery (in the S-series models), you can expect extended run times compared to entry-level RC trucks. The 3300mAh capacity offers 83% more capacity than typical 1800mAh RTR batteries, providing longer bashing sessions before recharging.
- Can I use LiPo batteries with this truck? — Yes, the VORTEKS electronics are fully LiPo-compatible. The Spektrum SLT 2-in-1 ESC supports 2S hardcase LiPo batteries at 7.4V. Upgrading to LiPo provides increased voltage (giving 17% more power than NiMH), faster charge times, and better power delivery. Always use proper LiPo charging bags and follow safe charging practices when using lithium polymer batteries.
- What's the difference between the MEGA 550 motor and other motor sizes? — The 550 designation refers to the standard can diameter of the brushed motor. The 14-turn count means faster acceleration with this particular power rating. The 550 size is industry standard across 1/10 scale trucks, ensuring abundant aftermarket options for future upgrades. It provides excellent balance between torque and speed for stadium truck driving.
- How durable is the VORTEKS for rough bashing? — The VORTEKS is purpose-built for tough bashing with shock-absorbing bumpers, skid plates, composite chassis construction and metal differential gears. The spine chassis design keeps dirt out better than conventional flat-bottom designs, reducing maintenance. Oil-filled shocks absorb impacts across rough terrain. Heavy-duty composite and alloy gears withstand demanding use.
Why Buy from RC Model Shop?
RC Model Shop is a trusted UK RC retailer and authorised dealer for all the brands we stock, including Traxxas, ARRMA, Losi, FTX, Hobbywing, Spektrum and more. Based in Walsall, we have a physical store where customers are welcome to come in, view products and purchase in store. Whether you are a seasoned competitor, a weekend basher, or just discovering the world of RC for the first time, our team of experienced RC enthusiasts is here to help you find the perfect setup and provide ongoing support. Order the ARRMA 1/10 VORTEKS MEGA 550 2WD Stadium Truck (No Battery/Charger) Blue C-ARA3205T1 today with confidence, knowing you are buying from an authorised retailer with genuine products, expert knowledge and a commitment to customer satisfaction. Shop online or visit us in Walsall — we look forward to helping you get the most out of your RC experience.
Parts Diagrams
Front Assembly

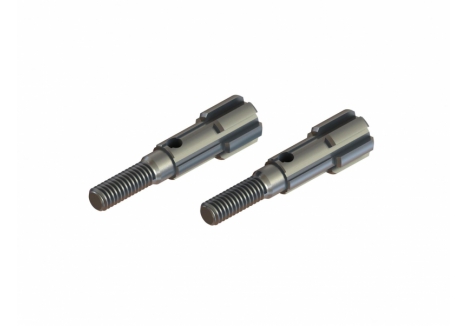

Rear Assembly

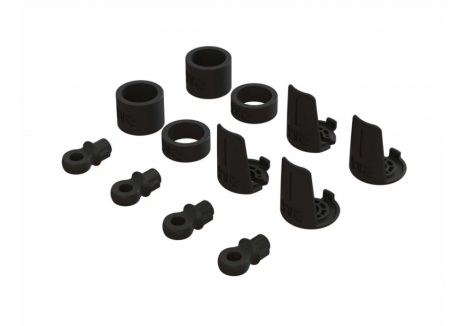

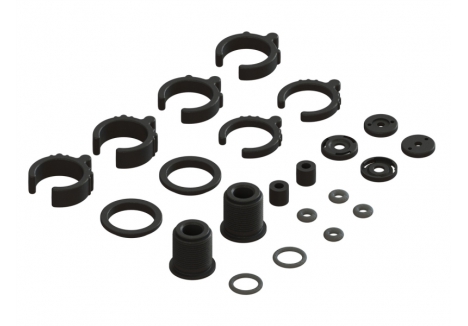

Differential & Shock Absorber Assembly
Chassis, Transmission, Electronics Assembly

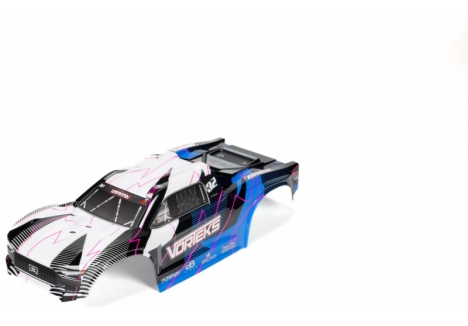

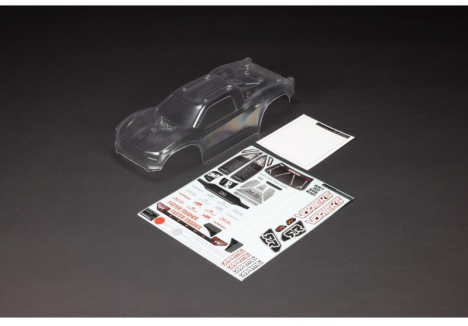

Bodyshell & Accessories / Wheels & Tyres
