Product Description of ARRMA C-ARA4410V2T4 OUTCAST 4S BLX 4X4 RTR with 2400Kv brushless motor and 120A Smart ESC

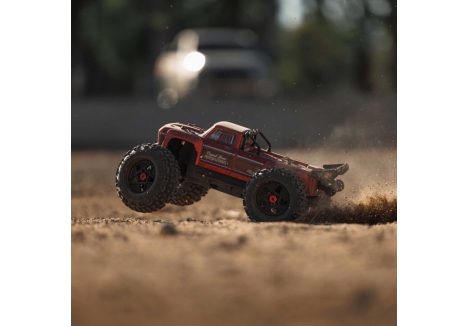

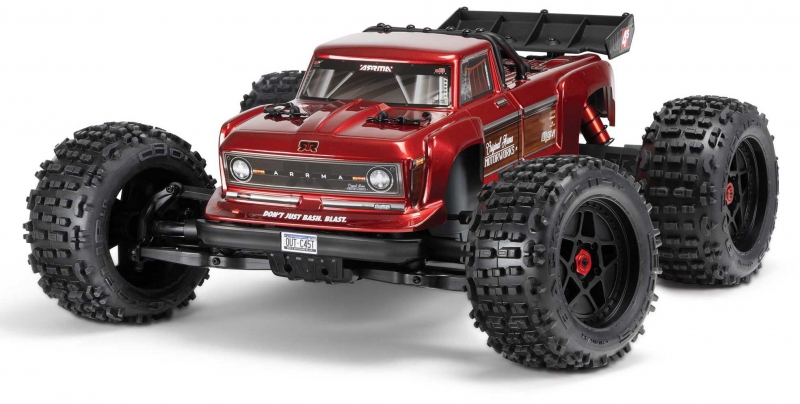

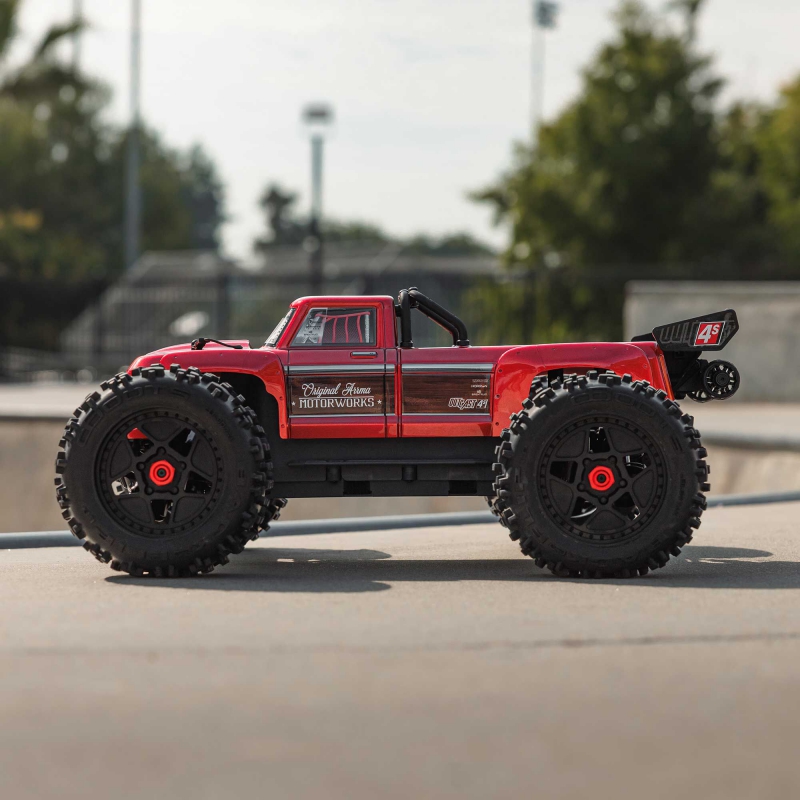

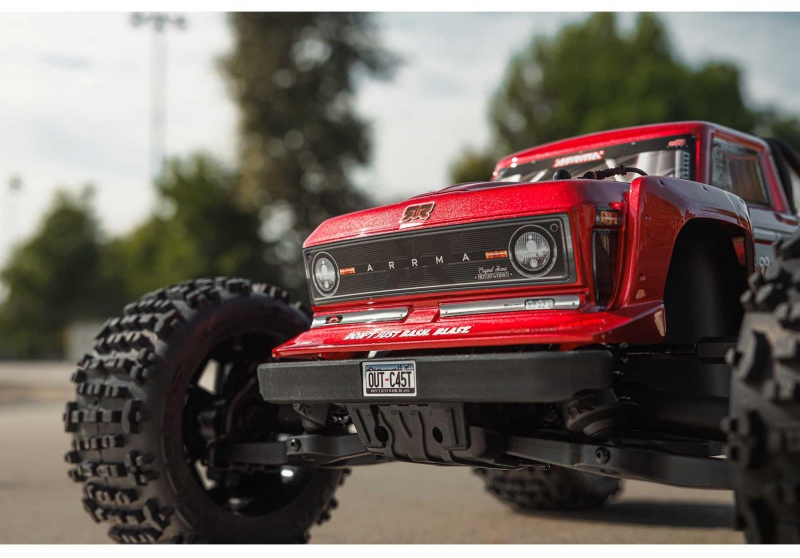

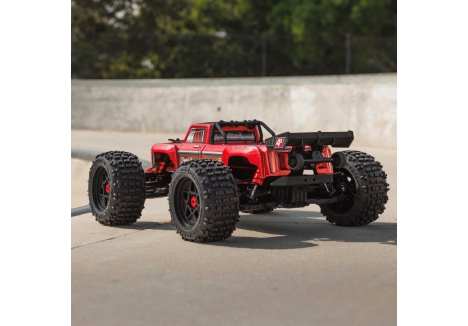

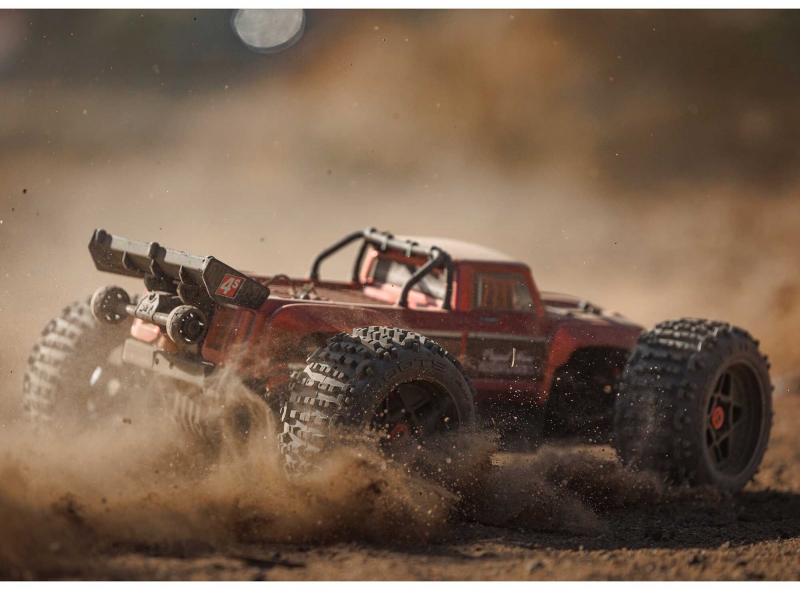

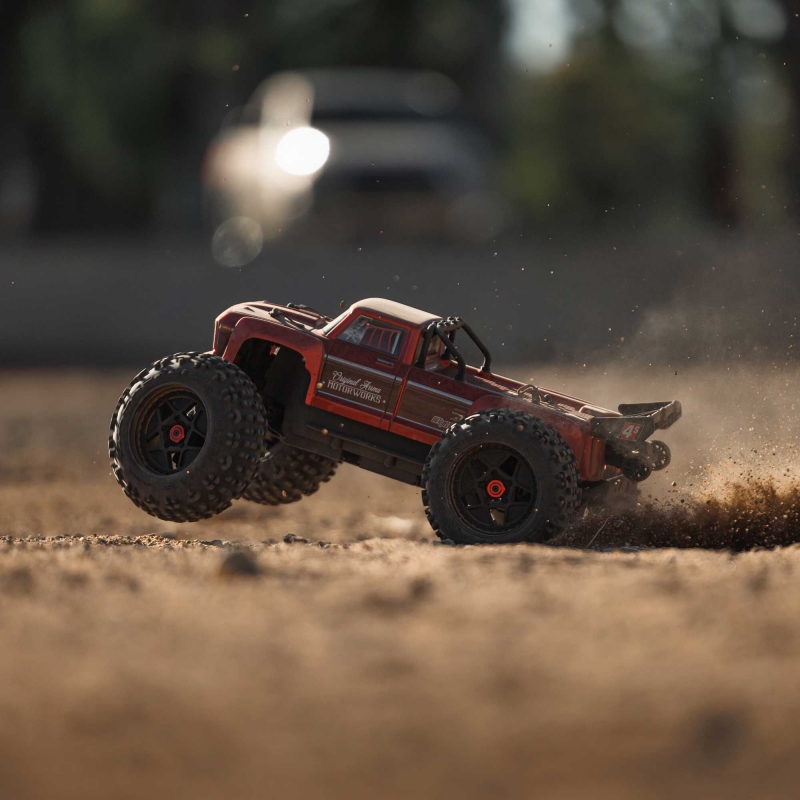

The ARRMA C-ARA4410V2T4 OUTCAST 4S BLX 4X4 RTR with 2400Kv brushless motor and 120A Smart ESC is a red 1/10 scale stunt truck engineered for flips, wheelies, and high-speed bashing. Built on the latest 4S BLX platform, it features a short wheelbase for agile stunt control, an aluminum center differential for balanced traction, and EXB-grade durability for extreme terrain. With 4S LiPo compatibility, oil-filled aluminum shocks, and dBoots BACK-FLIP LP tires, the ARRMA C-ARA4410V2T4 OUTCAST 4S BLX delivers 55+ mph potential and rugged control across dirt, grass, and pavement.
Key features of the ARRMA C-ARA4410V2T4 OUTCAST 4S BLX
- Aluminum-cased center differential – improves traction and balances power delivery during stunts
- EXB all-metal gear diffs – support high torque output and extreme durability
- Modular chassis design – separates electronics, drivetrain, and power system for fast access
- Spektrum Firma 2400Kv motor and 120A Smart ESC – deliver punchy acceleration and telemetry feedback

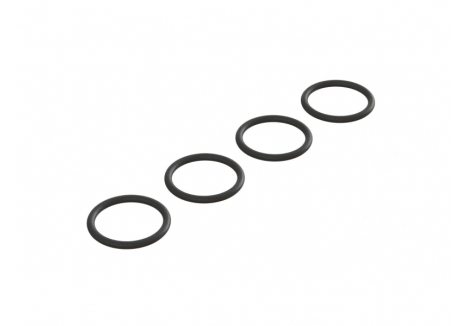

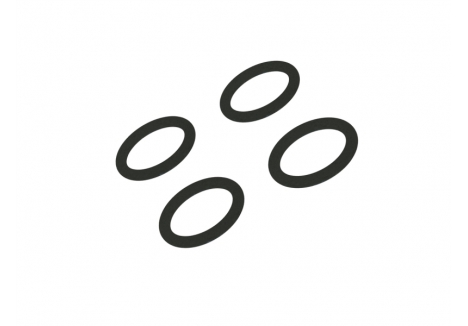

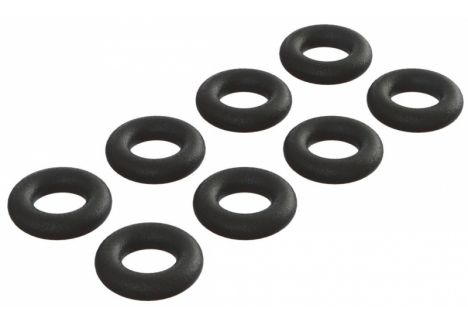

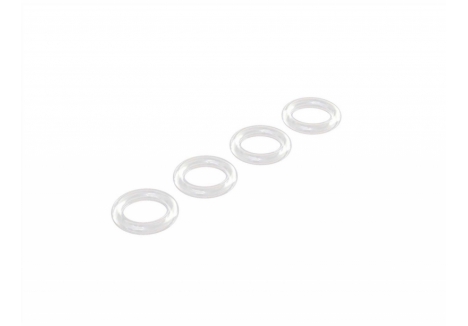

- Oil-filled aluminum shocks with silicone O-rings – absorb terrain impacts and allow ride height tuning

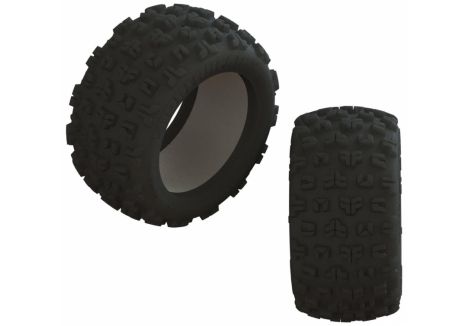

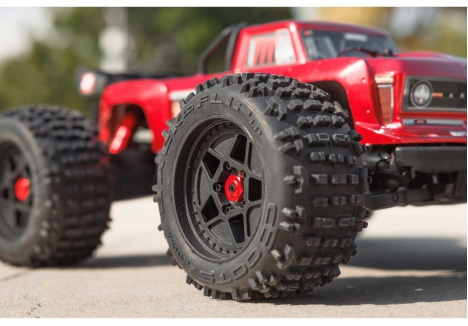

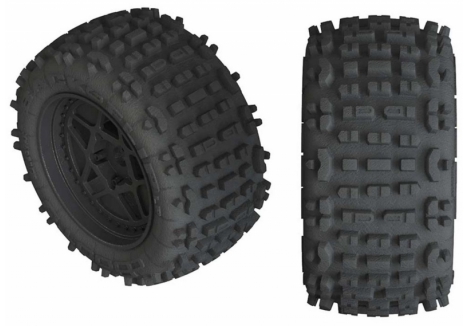

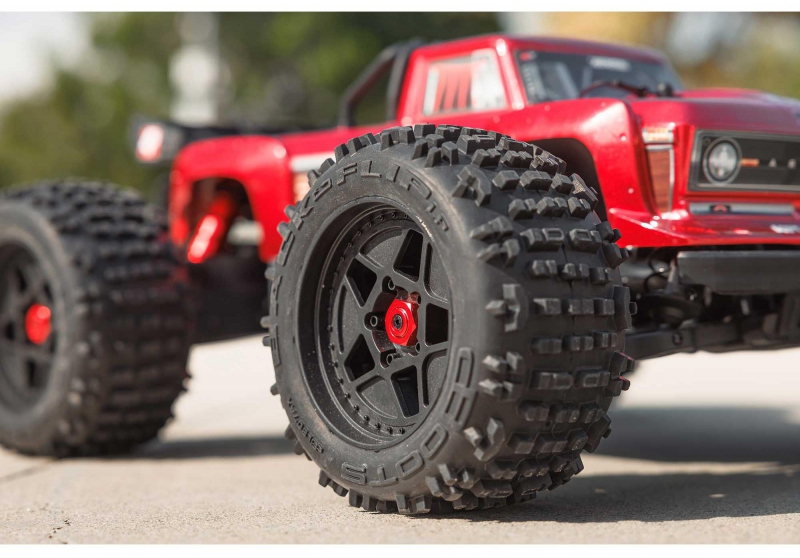

- dBoots BACK-FLIP LP tires – vented low-profile tread for multi-surface grip and stunt stability
- Spektrum SLT3 transmitter with SR315 receiver – dual protocol support and throttle limiting
- Waterproof electronics – enable confident bashing in wet conditions
How does the ARRMA C-ARA4410V2T4 OUTCAST 4S BLX perform in stunt scenarios?

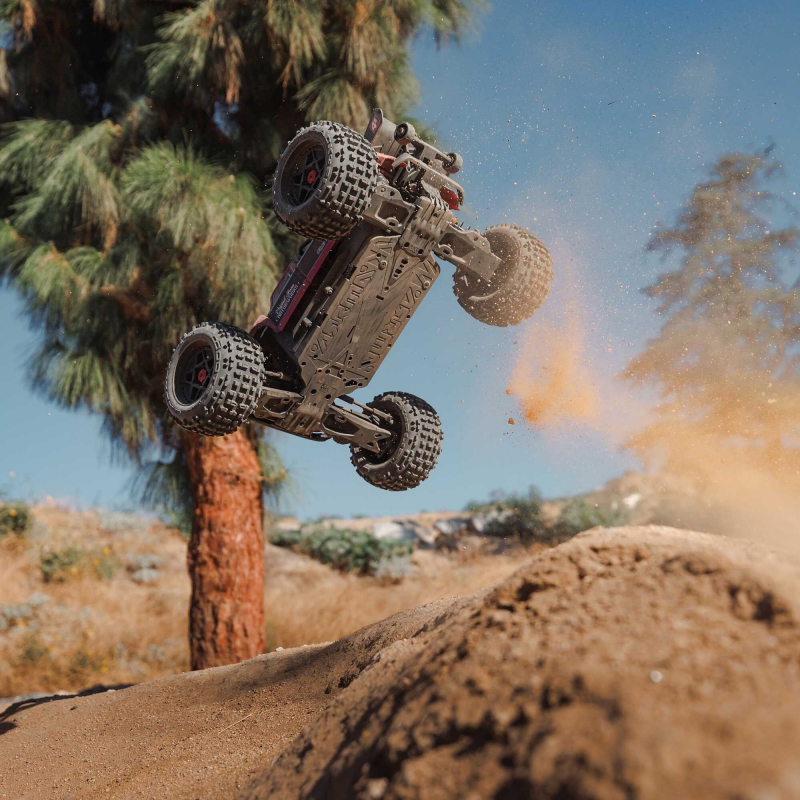

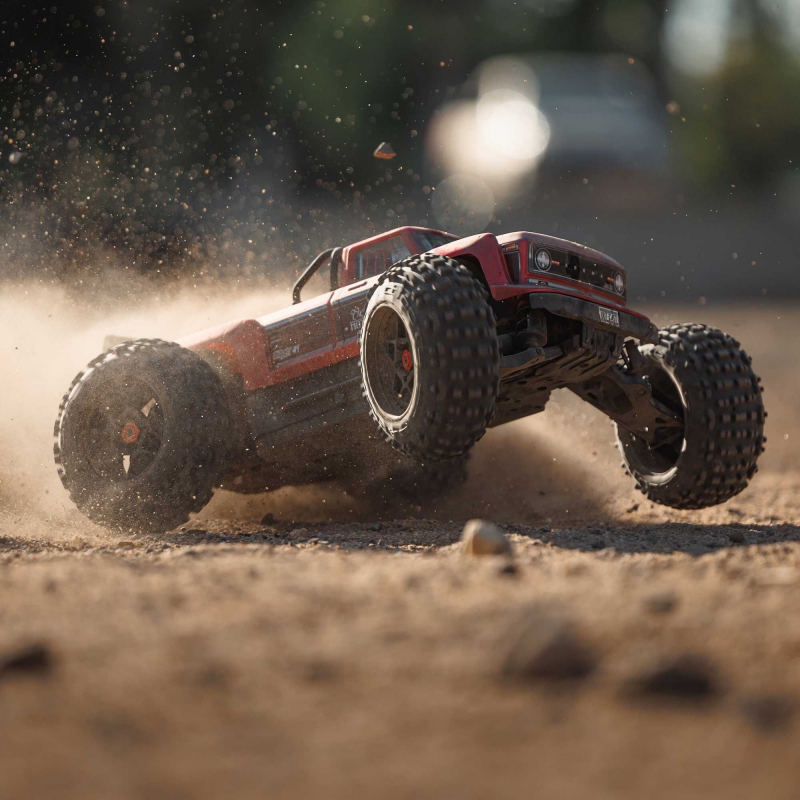

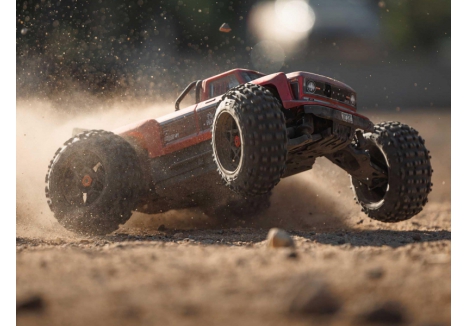

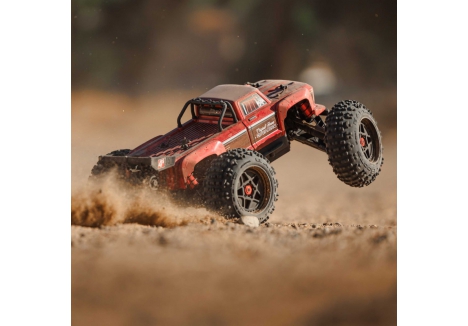

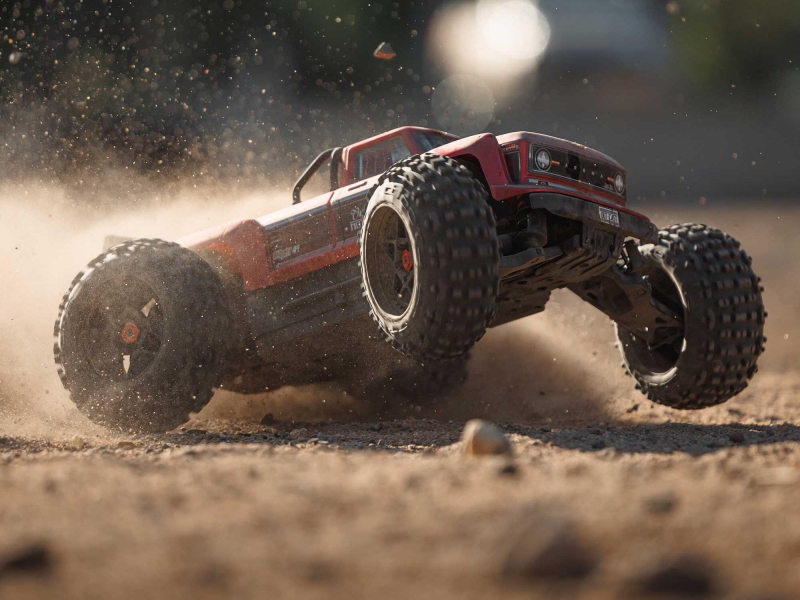

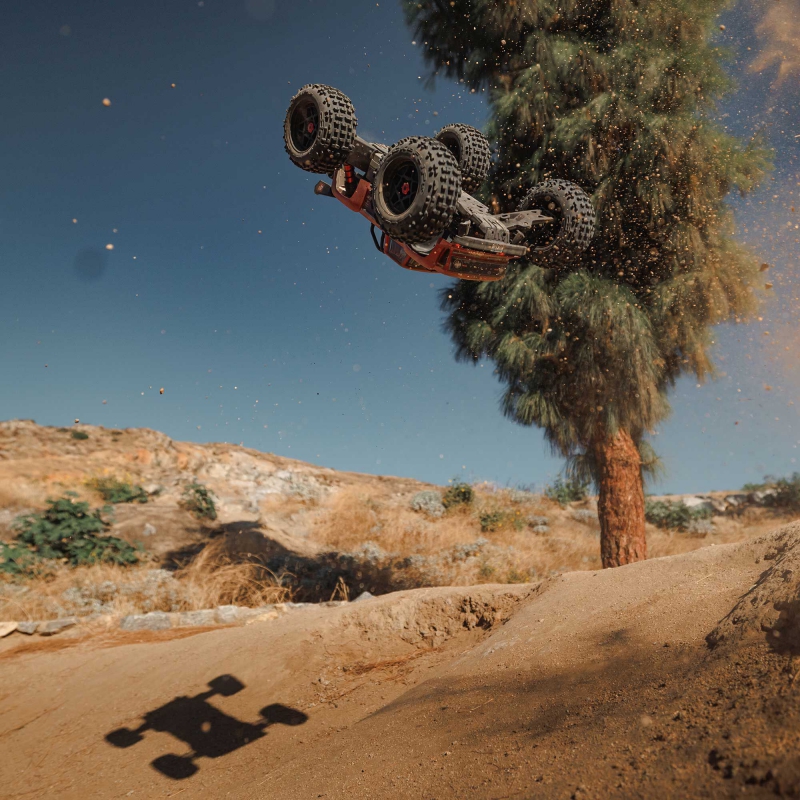

The ARRMA C-ARA4410V2T4 stunt truck with aluminum center diff, SLT3 transmitter, and SR315 receiver is optimized for flips, wheelies, and aerial control. Its short 12.32 inch wheelbase enhances maneuverability, while the center diff ensures balanced torque during takeoff and landing. The wheelie bar with rubber tires supports controlled rear lift, and the high shock towers absorb impact from jumps and landings. Whether you're launching off ramps or navigating tight terrain, the OUTCAST 4S BLX maintains responsive control and stunt-ready balance.
What makes the ARRMA C-ARA4410V2T4 OUTCAST 4S BLX ideal for brushless bashers?

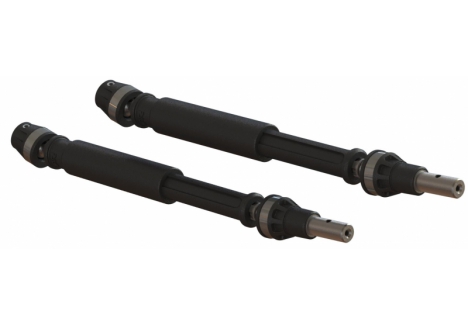

The ARRMA C-ARA4410V2T4 OUTCAST 4S BLX 4X4 RTR with 2400Kv brushless motor and 120A Smart ESC is designed for drivers who want to combine stunt capability with high-speed bashing. The EXB drivetrain includes steel diff gears and CVD driveshafts, while the aluminum center differential ensures consistent traction across all surfaces. Smart telemetry compatibility allows real-time monitoring of ESC data via the Spektrum Dashboard app, and the SR315 receiver supports both SLT and DSMR protocols. These features make the OUTCAST 4S BLX a strategic upgrade for drivers ready to push performance boundaries.
Why is the modular chassis design essential for stunt truck performance?

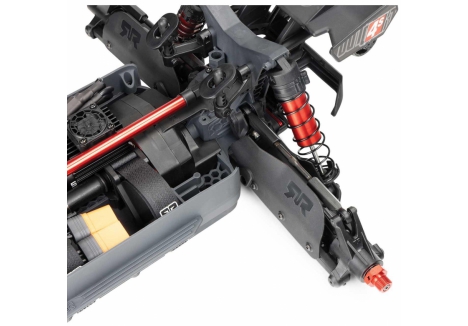

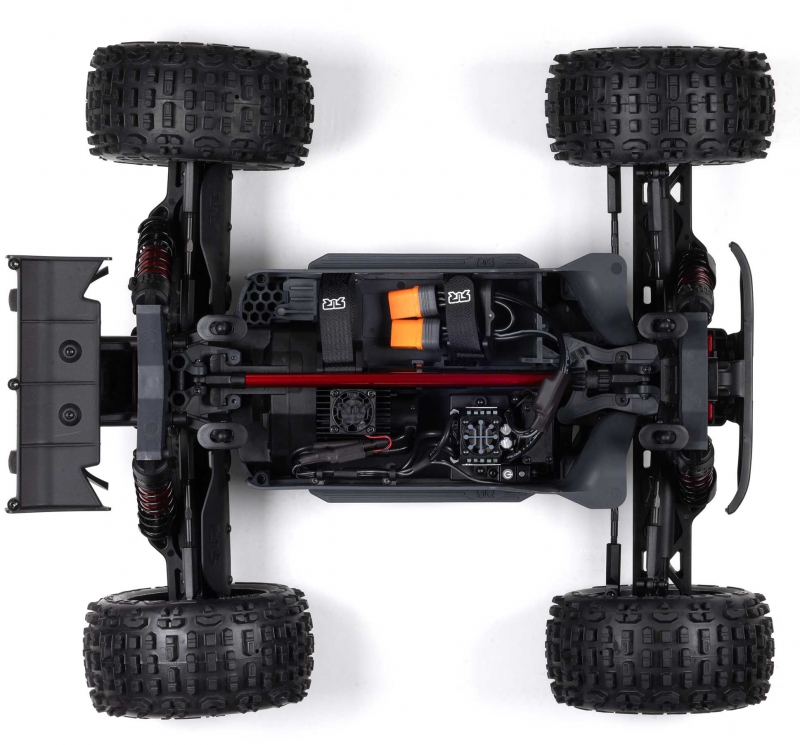

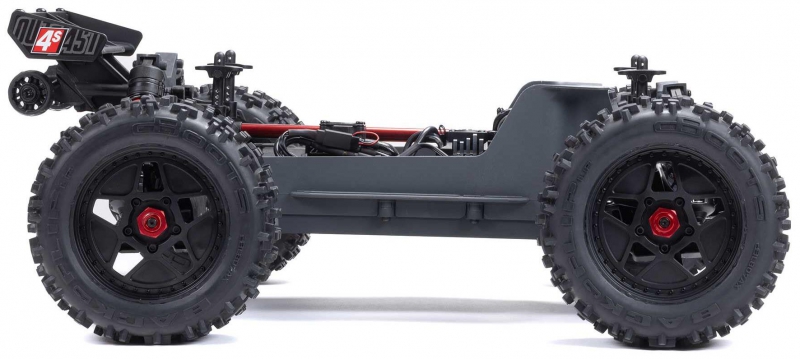

The modular chassis in the ARRMA C-ARA4410V2T4 with 4S LiPo compatibility and oil-filled aluminum shocks separates the power system, electronics, and drivetrain into removable sections. This layout simplifies routine maintenance and allows quick access to critical components. The updated chassis includes hinge pin bracing and a dirt drain, improving structural integrity and debris management. Combined with the center support brace and high shock towers, the OUTCAST 4S BLX chassis is engineered for stunt stability and long-term durability.
How does the ARRMA OUTCAST 4S BLX suspension system support aggressive bashing?
The OUTCAST 4S BLX with dBoots BACK-FLIP LP tires and modular chassis design features long-travel, oil-filled aluminum shocks mounted on high towers. These shocks absorb terrain irregularities and allow ride height adjustments for different surfaces. Wide suspension arms and double wishbone geometry provide plush travel and consistent control, while adjustable turnbuckles and body mounts enable fine-tuning. Whether you're executing flips or navigating uneven terrain, the OUTCAST 4S BLX suspension system keeps the truck planted and responsive.
Is the ARRMA OUTCAST 4S BLX the best choice for stunt-focused bashing?
For drivers seeking the best ARRMA 1/10 stunt truck with EXB gear diffs and aluminum center differential, the ARRMA C-ARA4410V2T4 OUTCAST 4S BLX offers a compelling combination of agility, control, and durability. Its 2400Kv motor and 120A Smart ESC deliver punchy acceleration and telemetry feedback, while the short wheelbase and vented tires support aerial stunts and responsive handling. With waterproof electronics, Smart-compatible receiver, and modular design, the OUTCAST 4S BLX is built for advanced bashing and show-stopping tricks.
For drivers ready to step into stunt-grade control and 4S brushless power, buy ARRMA C-ARA4410V2T4 OUTCAST 4S for flips, stunts, and brushless bashing.
Technical Specifications of ARRMA C-ARA4410V2T4 OUTCAST 4S BLX 4X4 RTR with 2400Kv brushless motor and 120A Smart ESC
Brand, Model and Product Type
- Brand: ARRMA
- Model: C-ARA4410V2T4
- Product Type: ARRMA C-ARA4410V2T4 OUTCAST 4S BLX 4X4 RTR with 2400Kv brushless motor and 120A Smart ESC, ARRMA C-ARA4410V2T4 stunt truck with aluminum center diff, SLT3 transmitter, and SR315 receiver, ARRMA C-ARA4410V2T4 1/10 scale brushless 4WD stunt truck with EXB drivetrain and 55+ mph potential, ARRMA C-ARA4410V2T4 with 4S LiPo compatibility and oil-filled aluminum shocks, OUTCAST 4S BLX with dBoots BACK-FLIP LP tires and modular chassis design, ARRMA stunt truck with Smart telemetry and waterproof electronics
Dimensions

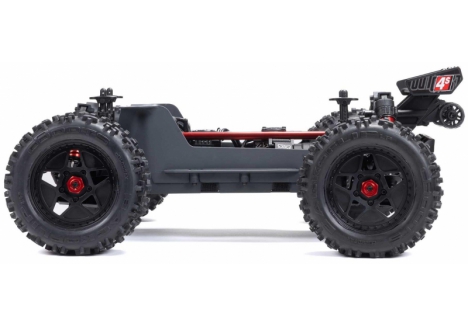

- Product Length: 51.5 cm – compact chassis supports stunt control and aerial stability
- Product Width: 45.0 cm – wide track enhances cornering grip and terrain adaptability
- Product Height: 22.5 cm – elevated profile supports impact absorption and obstacle clearance
- Wheelbase: 31.3 cm – short wheelbase tuned for flips, wheelies, and tight maneuvering
- Product Weight: 4.17 kg – balanced for durability and responsive handling under 4S power
- Max Battery Dimensions: 15.6 × 5.1 × 4.8 cm – supports 2S, 3S, or 4S hardcase LiPo packs
Motor and ESC
- Motor Type: Brushless – engineered for sustained power and efficient performance
- Motor Rating: Spektrum Firma 3668 2400Kv – featured in the ARRMA C-ARA4410V2T4 OUTCAST 4S BLX 4X4 RTR with 2400Kv brushless motor and 120A Smart ESC, delivering 55+ mph potential with optional gearing

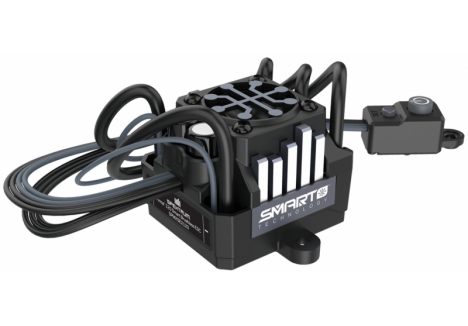

- ESC: Spektrum Firma 120A V2 Smart Waterproof ESC – supports Smart telemetry and IC5/EC5 connectors

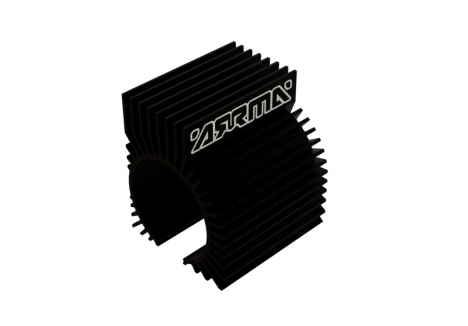

- Cooling System: Integrated heatsink and cooling fan – maintains thermal stability during extended runs
Drivetrain and Transmission
- Drivetrain: 4WD – delivers consistent traction across stunt terrain and mixed surfaces

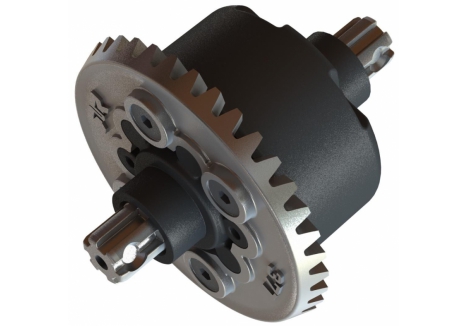

- Differential: EXB all-metal gear diffs – featured in the ARRMA C-ARA4410V2T4 1/10 scale brushless 4WD stunt truck with EXB drivetrain and 55+ mph potential, engineered for extreme durability
- Center Differential: Aluminum-cased – improves traction and balances torque across front and rear

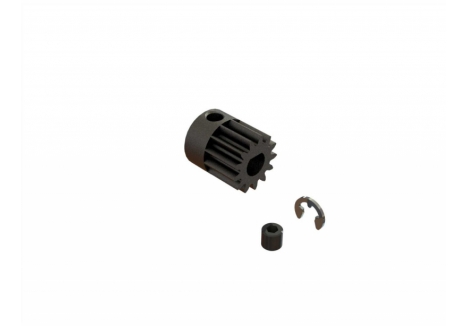

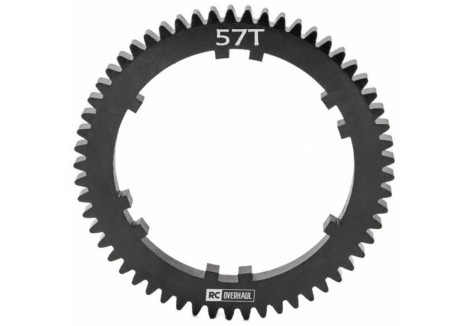

- Gear Pitch: 0.8 MOD – optimized for torque transfer and gear longevity
- Final Drive Ratio: 12.48 – tuned for acceleration and top speed balance
Suspension and Handling

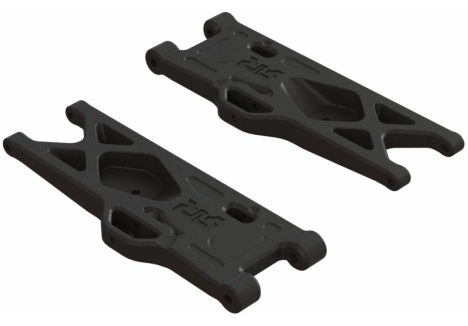

- Suspension Type: Independent double wishbone – absorbs terrain irregularities for stable control
- Shock Type: Oil-filled aluminum coilover – featured in the ARRMA C-ARA4410V2T4 with 4S LiPo compatibility and oil-filled aluminum shocks, tuned for damping and ride height customization
- Shock Towers: High-profile – support long-travel suspension and impact resistance
- Ride Height: Adjustable – supports terrain adaptability and stunt tuning

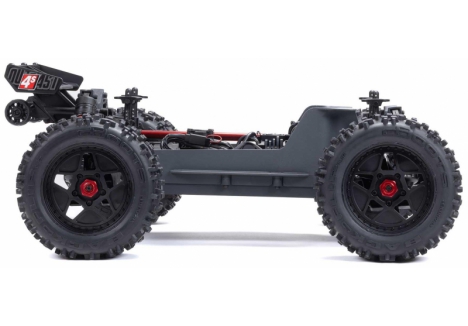

Chassis and Build

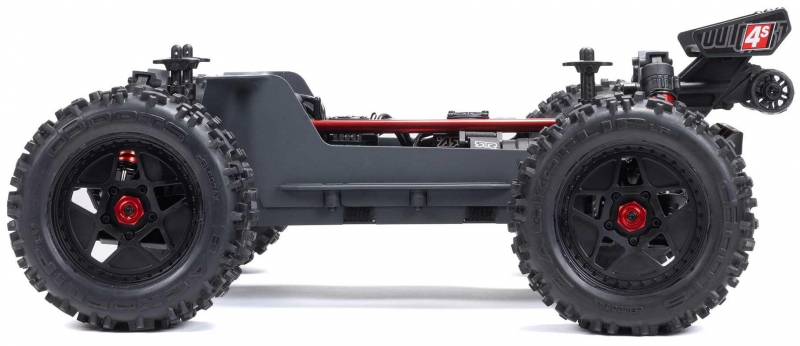

- Chassis Type: Modular composite – featured in the OUTCAST 4S BLX with dBoots BACK-FLIP LP tires and modular chassis design, separates electronics, drivetrain, and power system for fast access

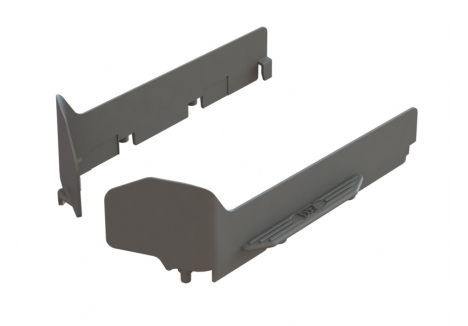

- Side Guards: Taller profile – prevent debris intrusion and protect internal electronics
- Dirt Protection: Wishbone guards, outdrive protectors, and chassis drain – engineered for all-road blasting

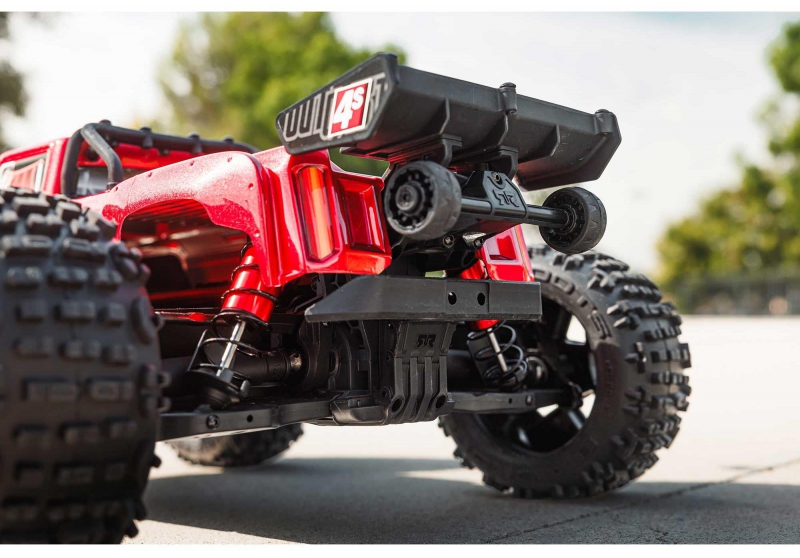

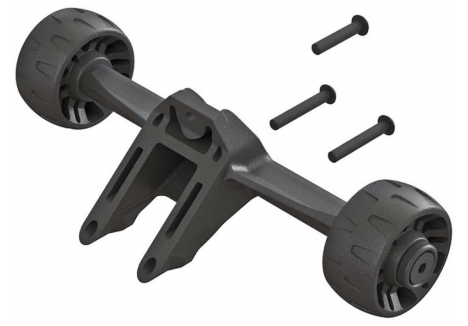

- Wheelie Bar: Rubber tires – supports stunt control and rear impact absorption

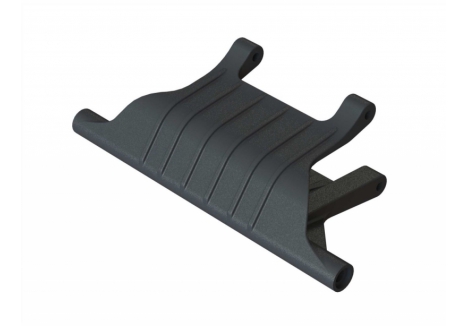

- Bumpers: Front and rear – protect body shell and chassis during collisions

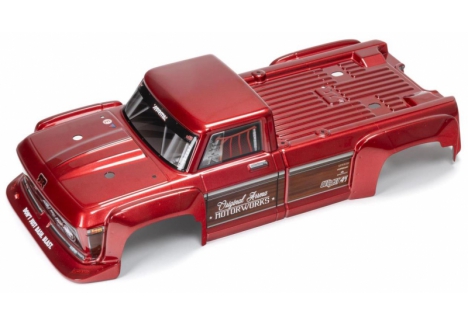

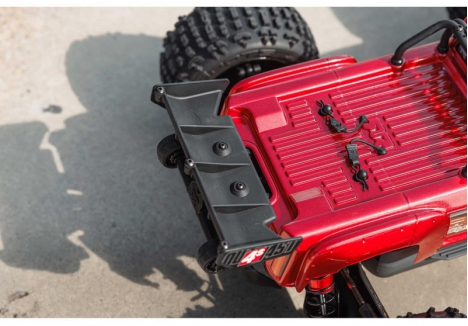

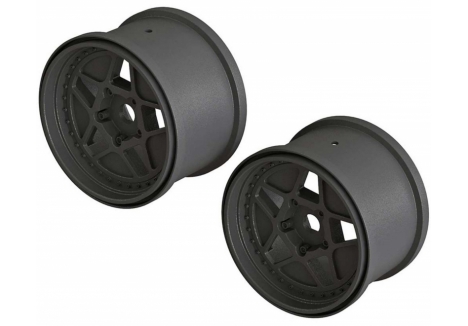

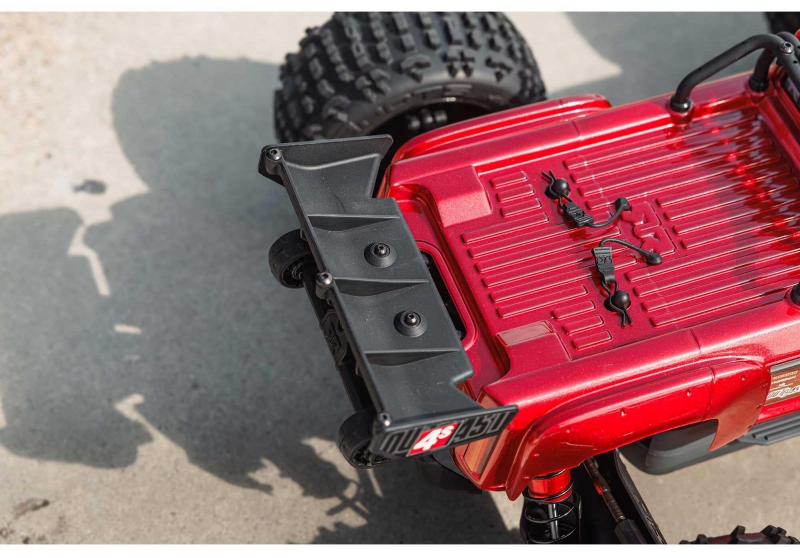

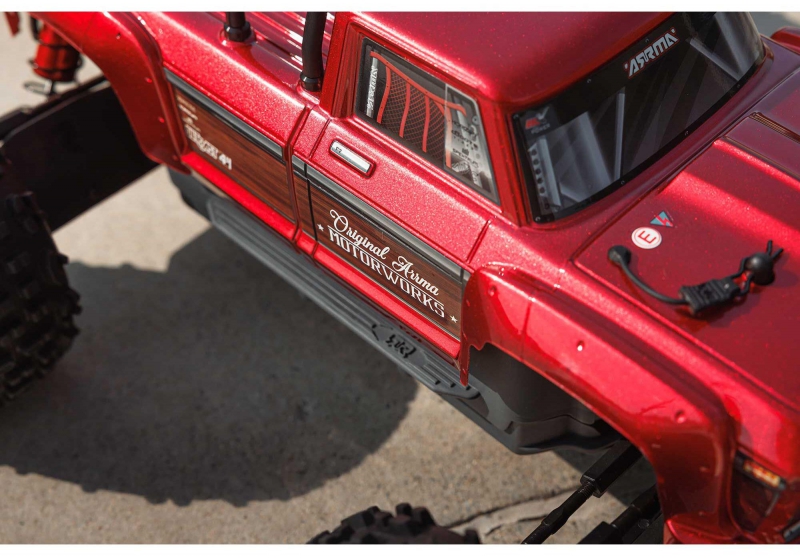

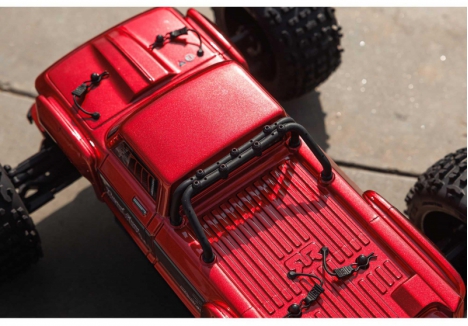

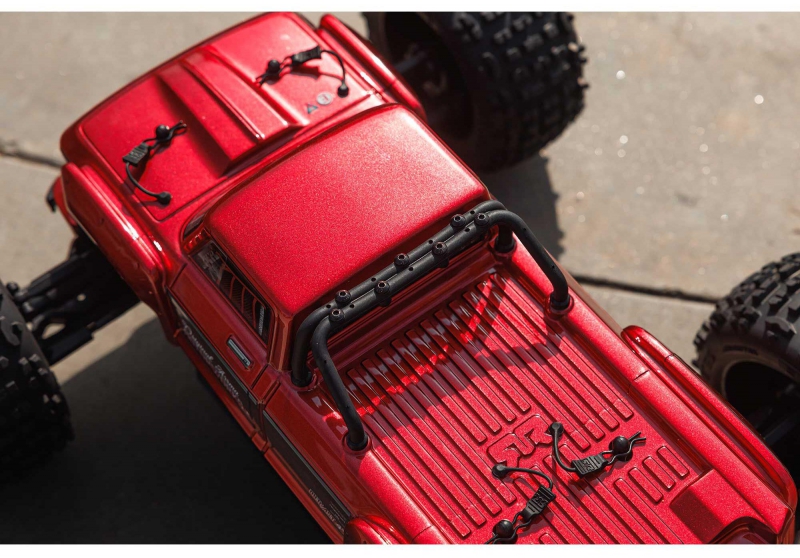

- Body Details: Factory-finished vintage truck body with injection-molded wing and multi-spoke wheels
Control and Electronics

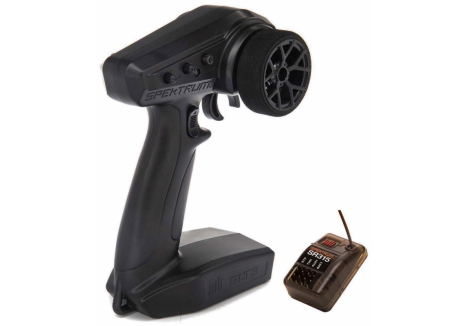

- Transmitter: Spektrum SLT3 3-channel 2.4GHz – featured in the ARRMA C-ARA4410V2T4 stunt truck with aluminum center diff, SLT3 transmitter, and SR315 receiver, includes throttle limiting for scalable speed control

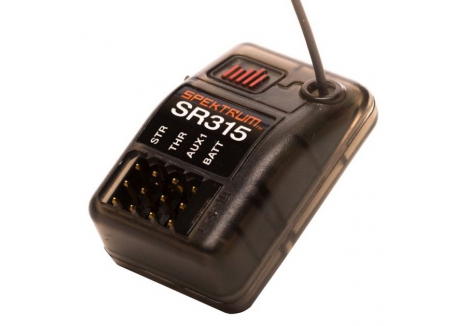

- Receiver: Spektrum SR315 – dual protocol (SLT/DSMR) with Smart telemetry compatibility

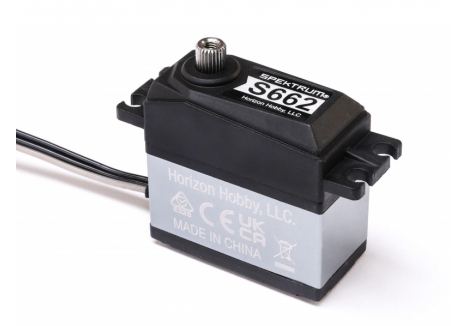

- Servo: Spektrum S662 Metal-Geared Waterproof Digital – delivers high torque steering with alloy case and 25T spline
- Technology: Smart telemetry – featured in the ARRMA stunt truck with Smart telemetry and waterproof electronics, enables real-time ESC data monitoring via Spektrum Dashboard app
What's in the Box
- ARRMA C-ARA4410V2T4 OUTCAST 4S BLX 4X4 1/10 Scale Stunt Truck RTR
- Spektrum Firma 120A V2 Smart Waterproof ESC
- Spektrum Firma 3668 2400Kv Brushless Motor
- Spektrum SLT3 2.4GHz Transmitter
- Spektrum SR315 Dual Protocol Receiver
- Spektrum S662 Metal-Geared Waterproof Digital Servo
- 4 × AA Transmitter Batteries
- Instruction Manual
What You Require / What You Will Need

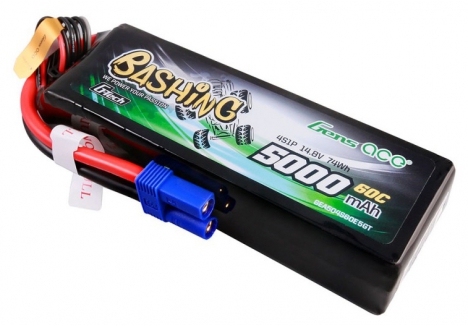

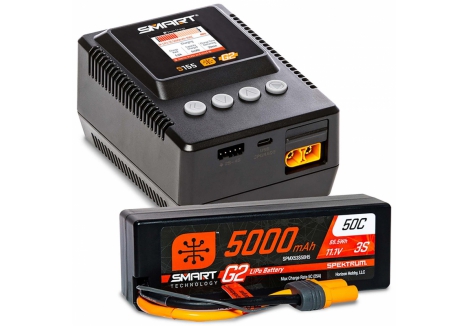

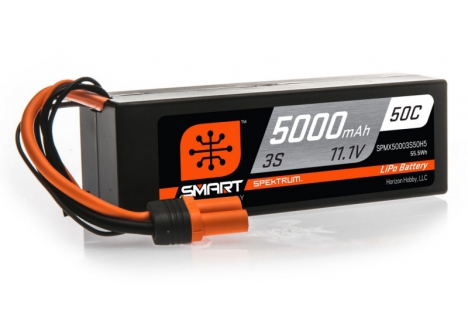

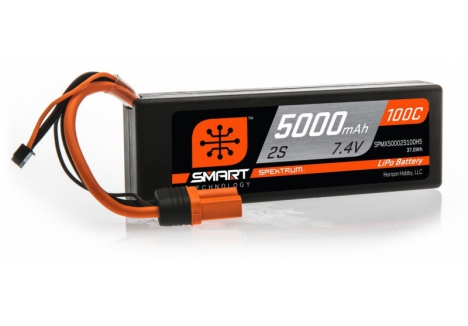

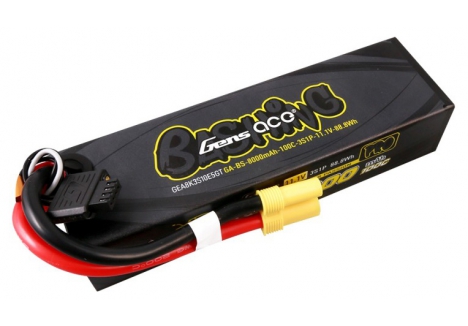

- (2) × 2S or (1) × 3S or (1) × 4S Hardcase LiPo Battery

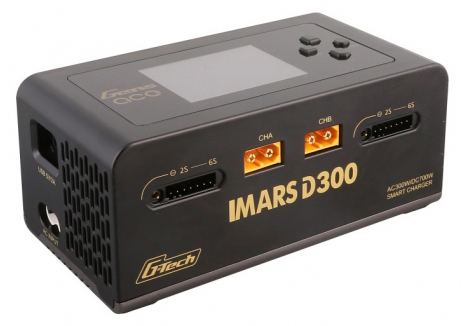

- (1) × Compatible Charger
Sold Separately

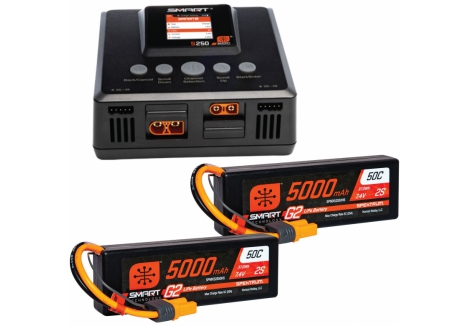

- Battery and Charger – not included with this model
Parts Diagrams
Front Assembly
Rear Assembly

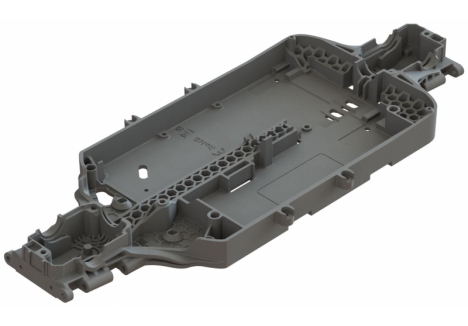

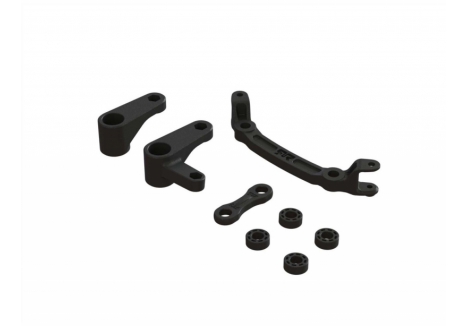

Chassis and Steering Assembly

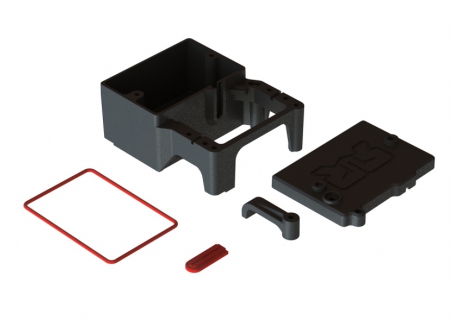

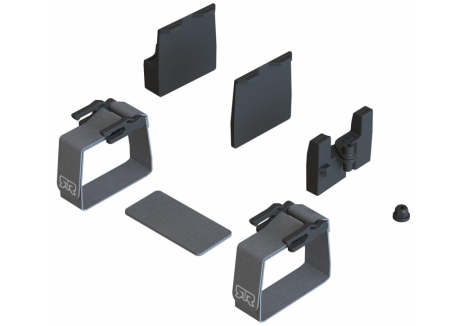

Electronics and Receiver Box

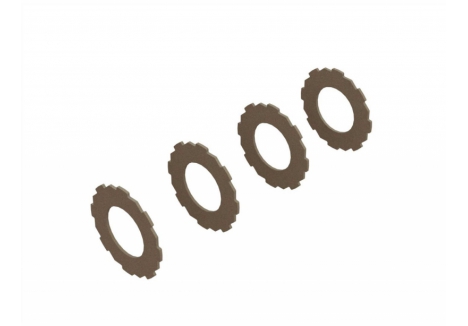

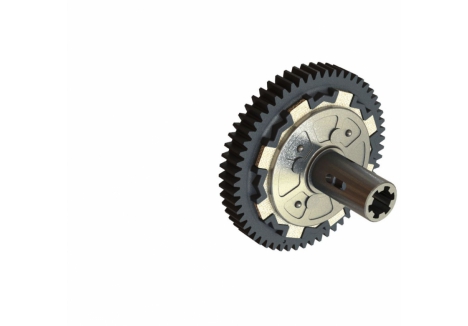

T1/T2 Transmission Assembly (Slipper Clutch)
T3/T4 Transmission Assembly (Centre Diff)

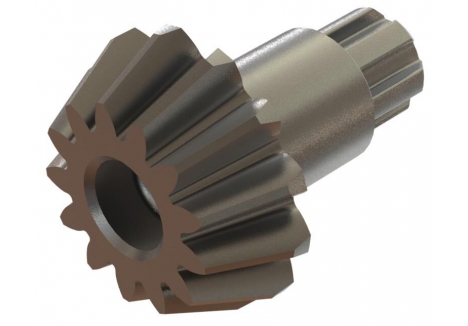

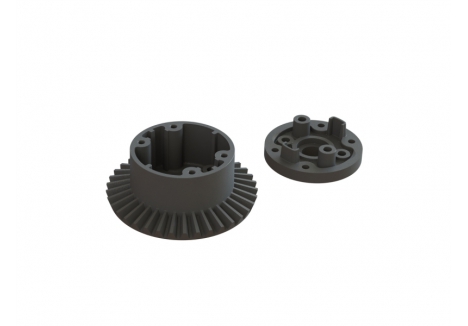

Front and Rear Differential Assembly

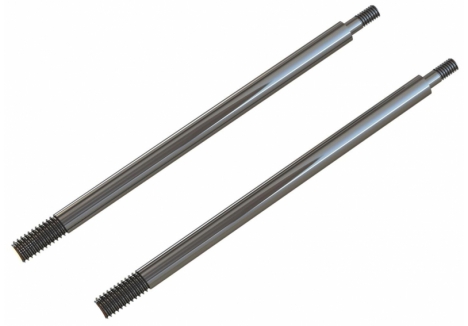

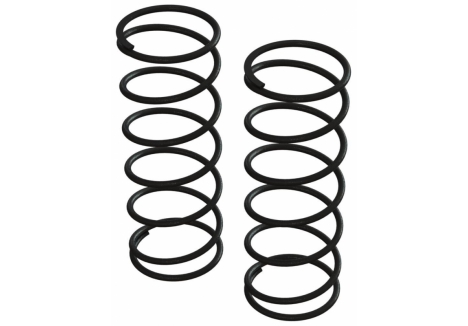

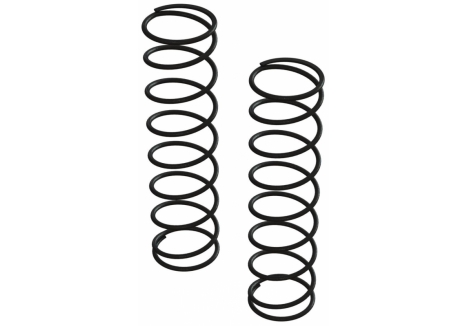

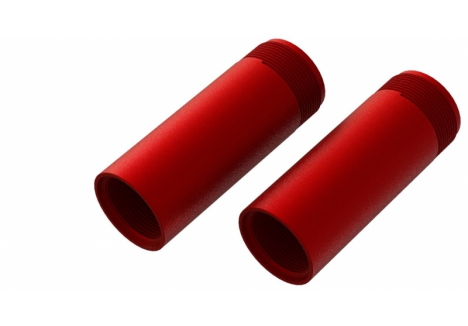

Shock Absorber Assembly

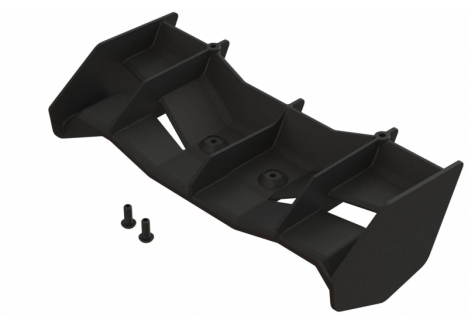

Bodyshell / Rear Wing / Wheel and Tyre
