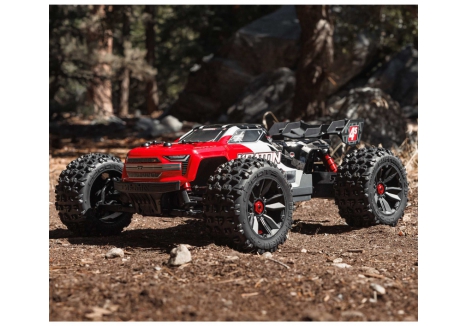

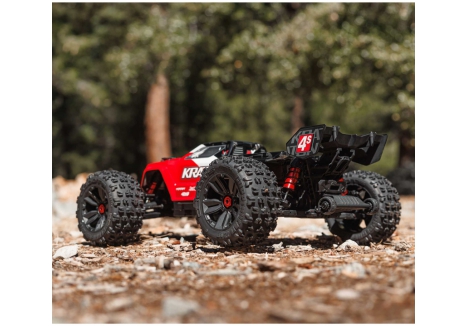

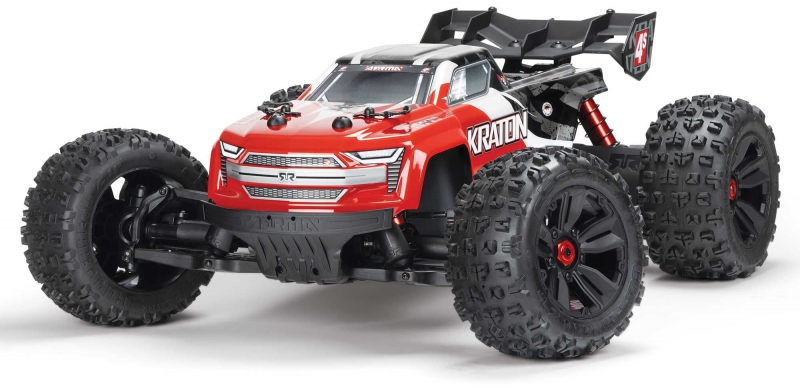

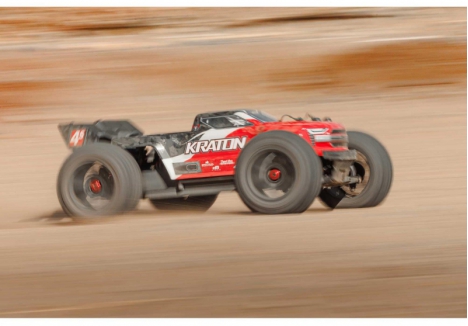

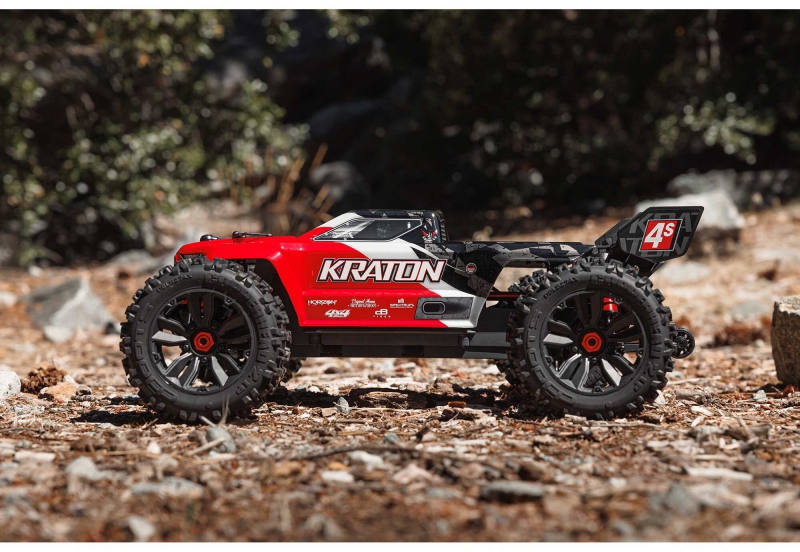

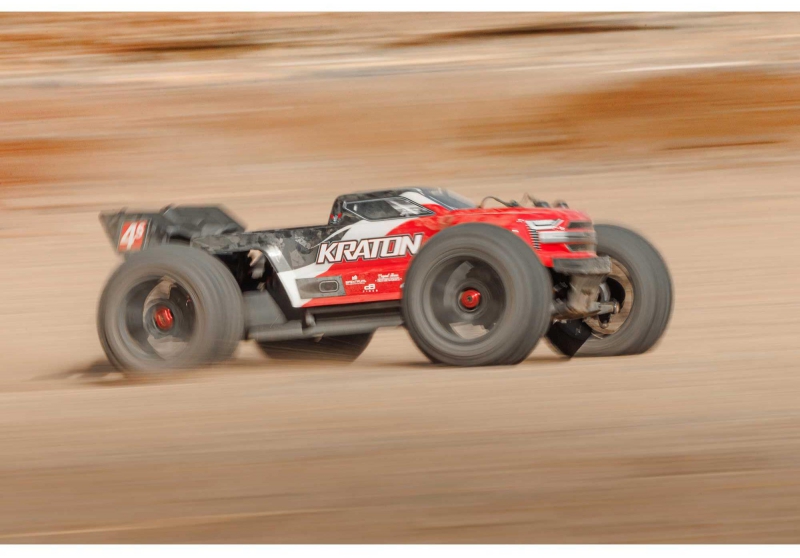

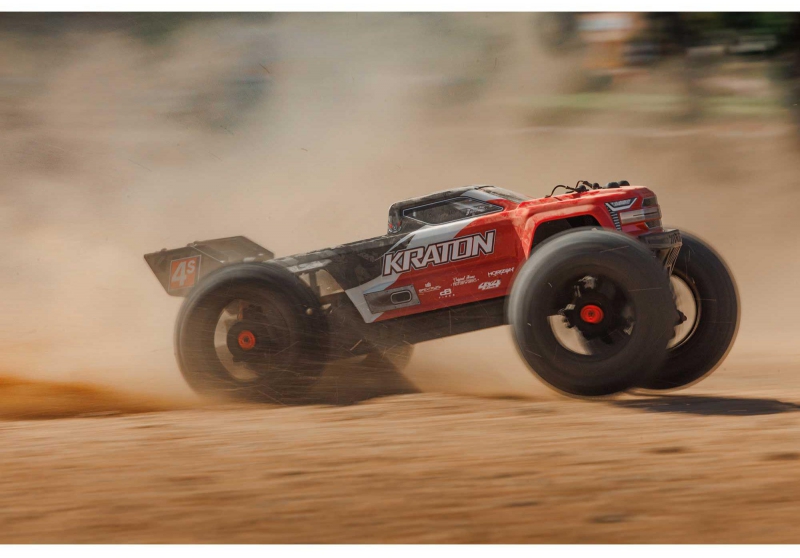

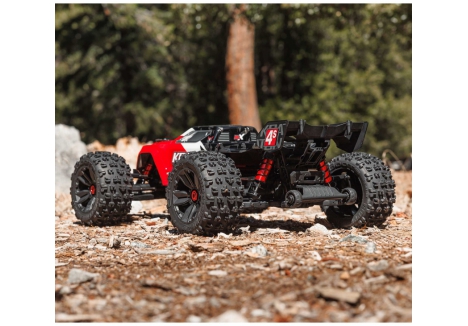

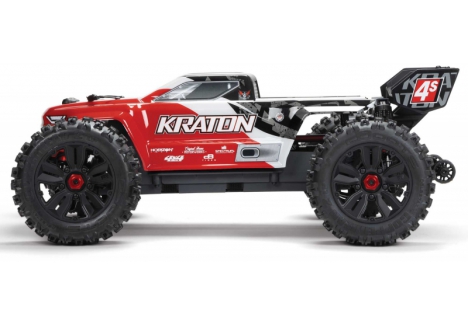

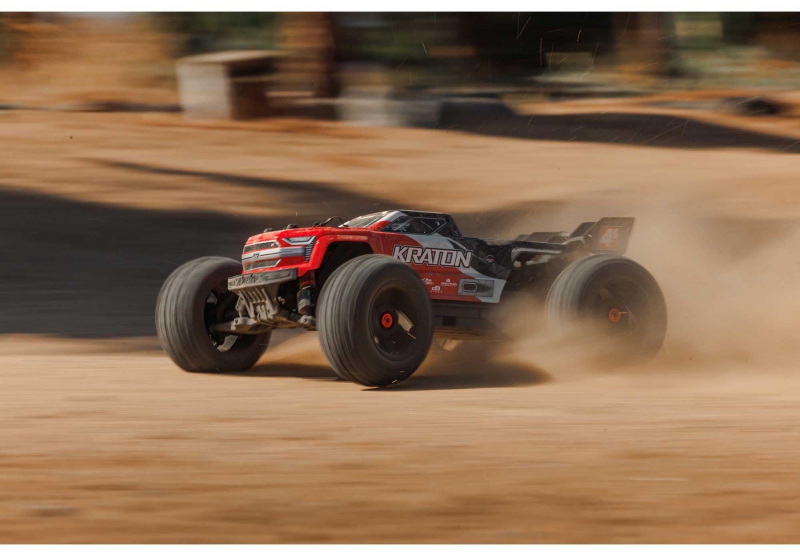

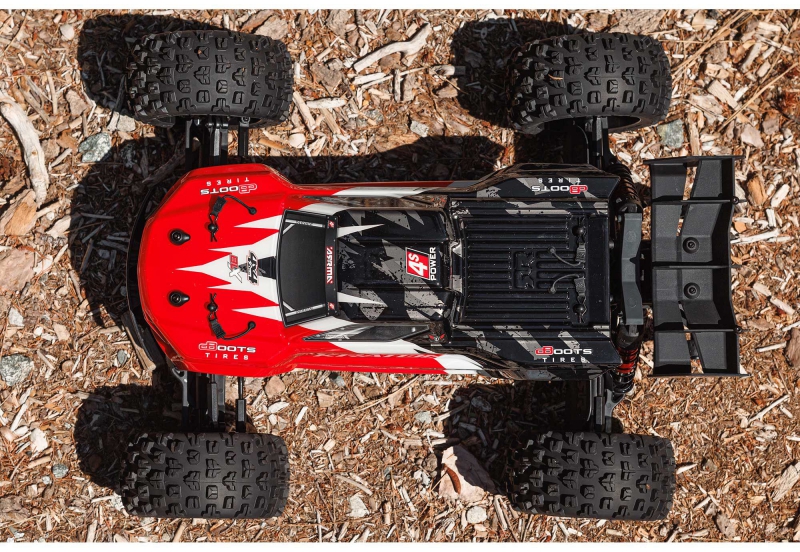

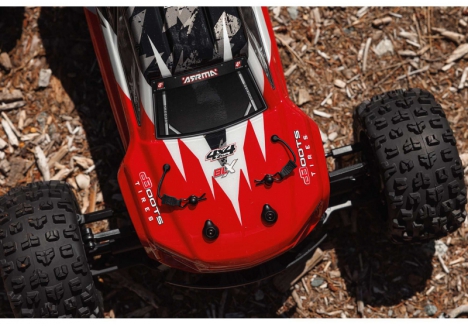

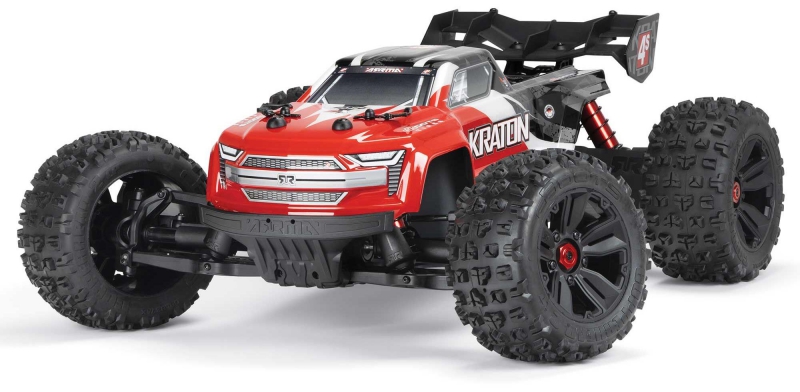

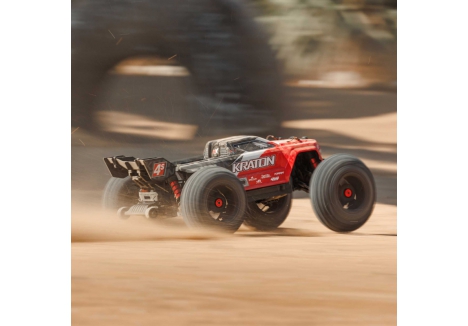

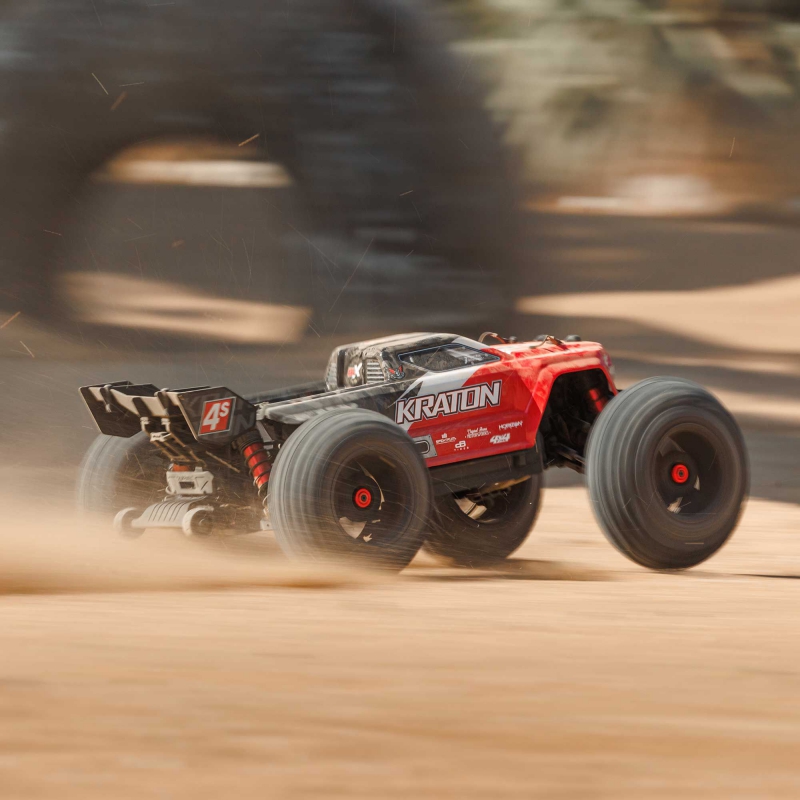

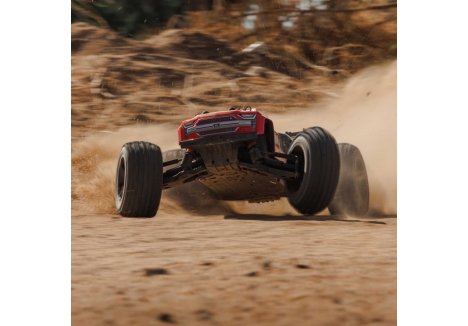

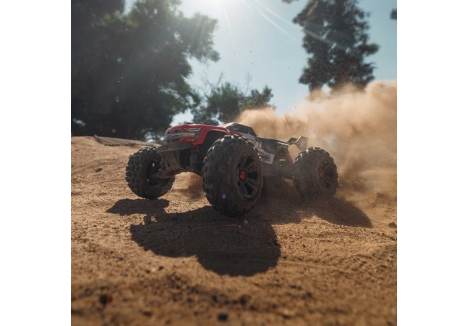

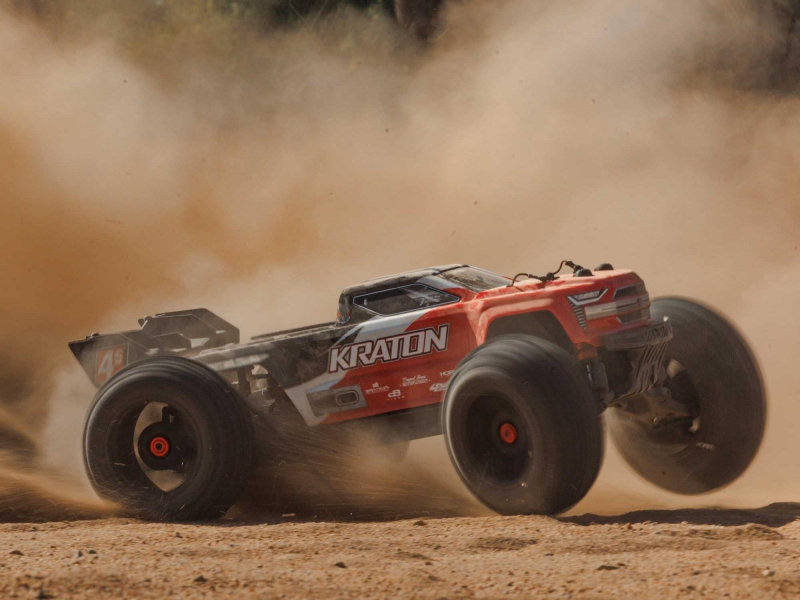

Product Description of ARRMA C-ARA4408V2T3 brushless monster truck

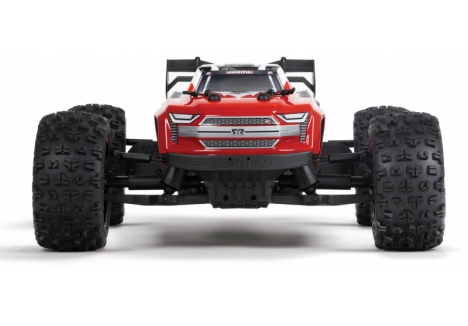

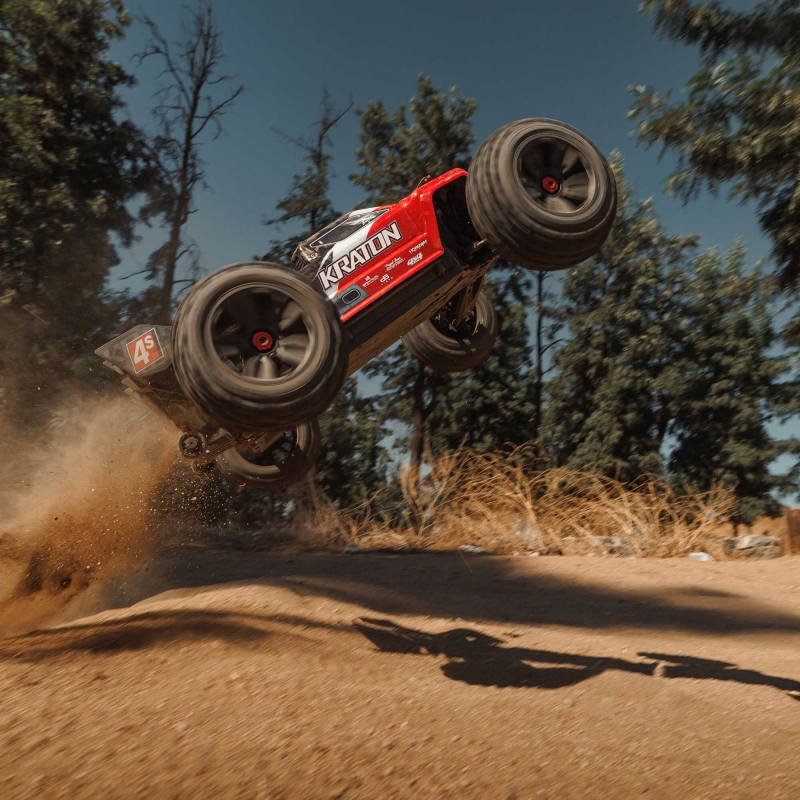

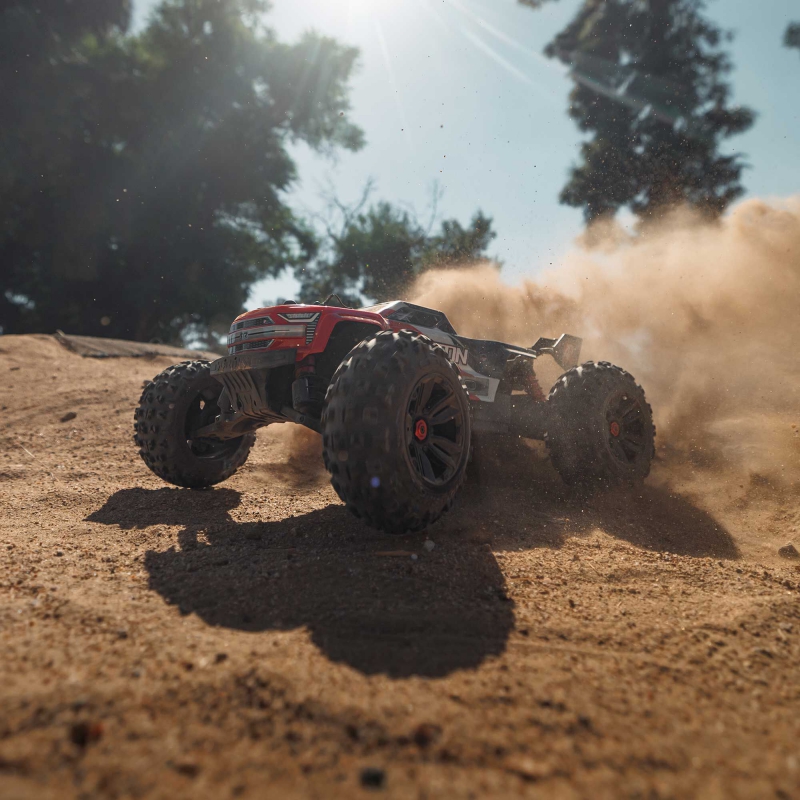

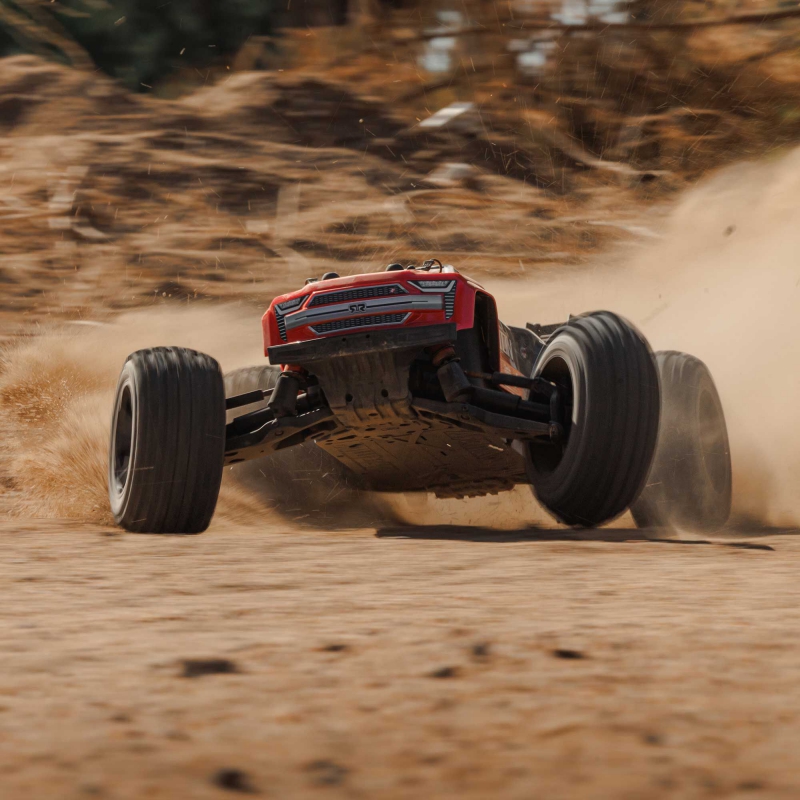

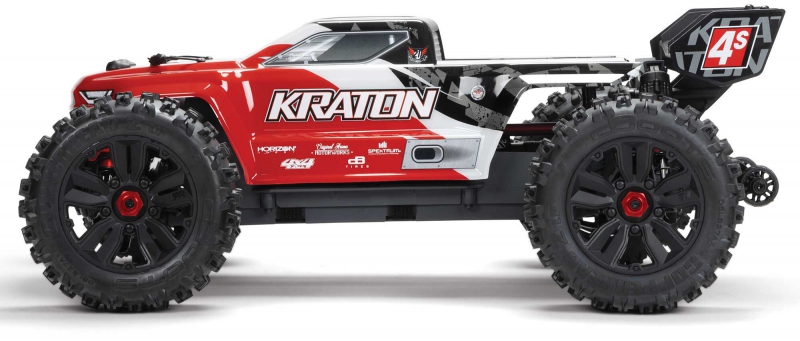

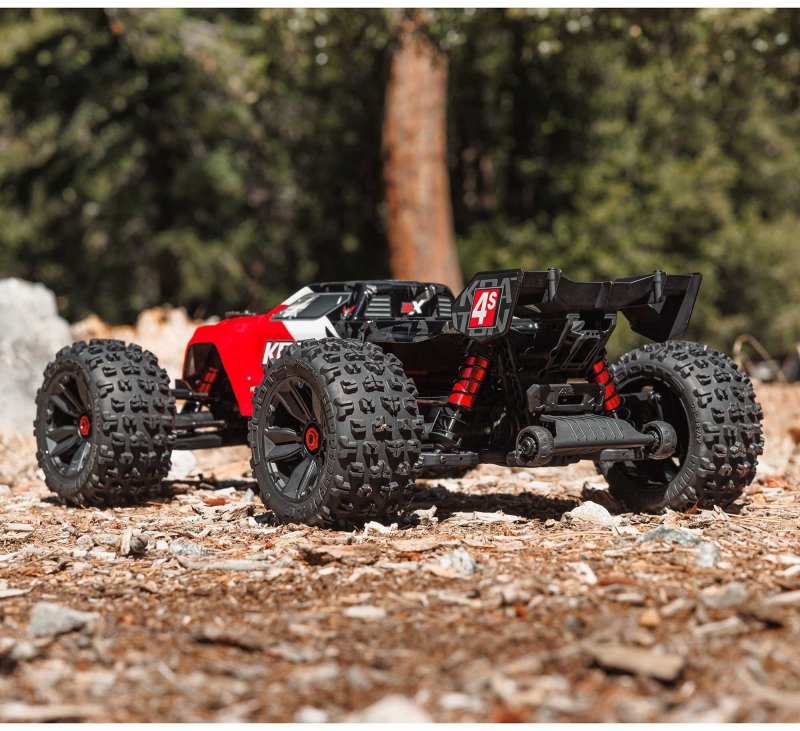

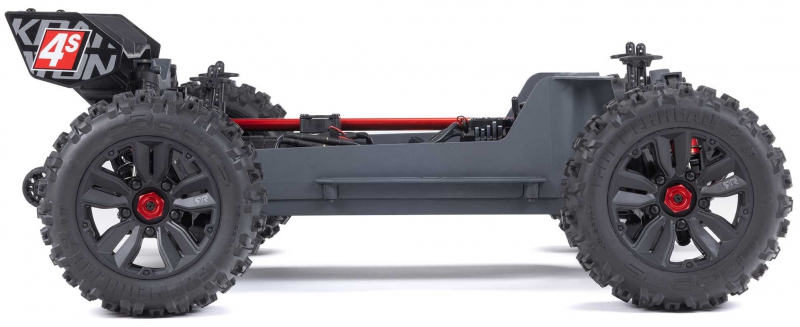

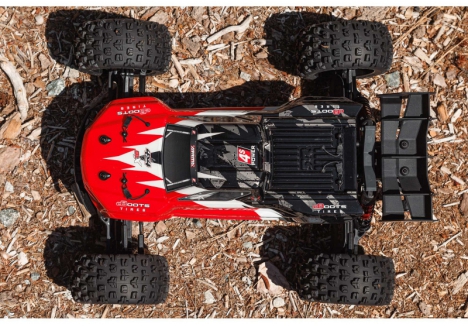

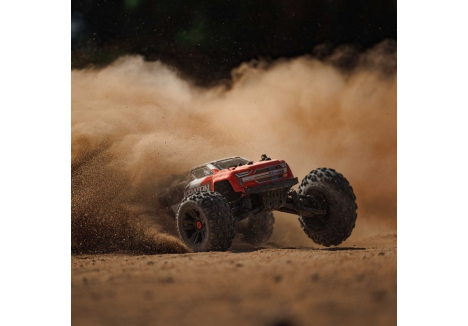

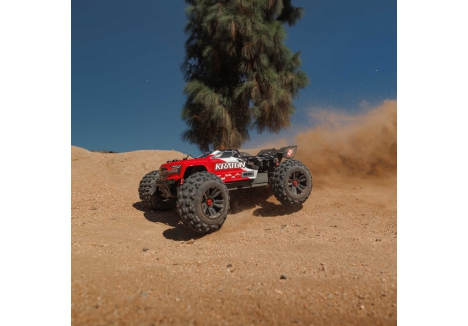

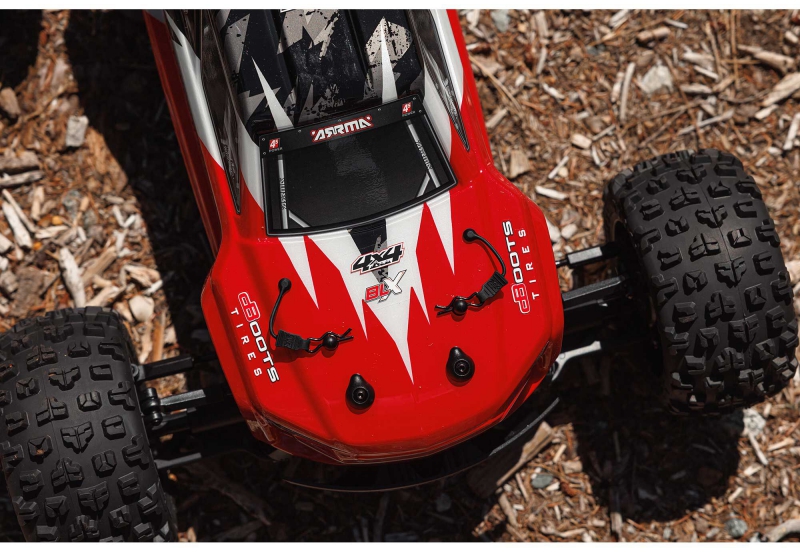

The ARRMA C-ARA4408V2T3 brushless monster truck is a 1/10 scale RC car engineered for high-speed bashing, rugged terrain, and modular durability. Finished in aggressive red, the 4WD KRATON BLX platform combines a long wheelbase, wide track, and centre differential for ultimate traction and control. Powered by a Spektrum Firma 2400Kv brushless motor and 120A Smart ESC, the ARRMA C-ARA4408V2T3 1/10 scale RC car delivers explosive acceleration and reaches speeds of 55+ mph with optional gearing. Reinforced with EXB driveshafts, oil-filled aluminium shocks, and dirt guards, the ARRMA C-ARA4408V2T3 4WD KRATON BLX is built to dominate any surface—from grass and gravel to pavement and ramps.
Key features of the ARRMA C-ARA4408V2T3 brushless monster truck
- 2400Kv motor and 120A Smart ESC – delivers high-speed brushless power with efficient cooling
- Centre differential – aluminium-cased for improved traction and balanced power delivery
- COPPERHEAD tyres – vented low-profile tread for multi-surface grip and water dispersion
- EXB driveshafts – all-metal CVD components for extreme bash durability

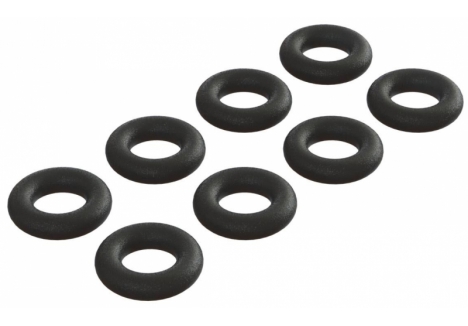

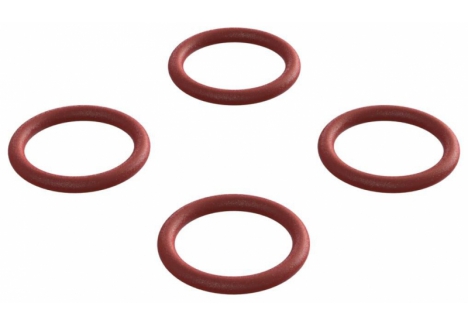

- Oil-filled aluminium shocks – long travel dampers with silicone O-rings for terrain absorption
- Modular chassis – easy-access design with dirt drain and hinge pin bracing
- Dual protocol receiver – supports SLT and DSMR transmitters for flexible control
How does the 2400Kv motor and 120A Smart ESC enhance performance?
The ARRMA C-ARA4408V2T3 with 2400Kv motor and 120A Smart ESC features a Spektrum Firma 3668 brushless motor paired with a cool-running 120A Smart V2 ESC. This power system is 4S LiPo compatible and delivers punchy throttle response across all terrain types. The ESC includes IC5 connectors (EC5 compatible) and Smart telemetry support, enabling real-time performance monitoring. With optional gearing and a 4S battery, the KRATON BLX reaches speeds of 55+ mph, making it a top-tier choice for serious bashers.
Why is the centre differential critical for traction?

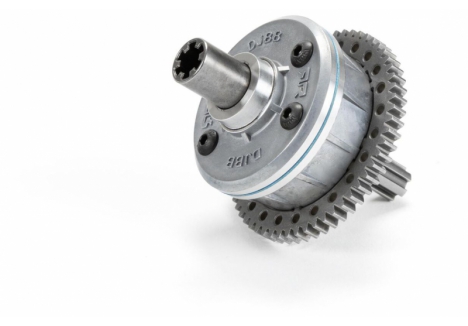

The aluminium-cased centre differential in the ARRMA monster truck with centre diff and COPPERHEAD tyres balances power between front and rear wheels, improving grip and reducing wheelspin. This setup is ideal for mixed terrain, where traction can vary rapidly. The centre diff module integrates seamlessly into the modular chassis and is supported by hinge pin bracing and a dirt drain, ensuring consistent performance and simplified maintenance. Whether launching off ramps or carving through loose surfaces, the centre diff keeps the truck stable and responsive.
How do COPPERHEAD tyres improve multi-surface handling?

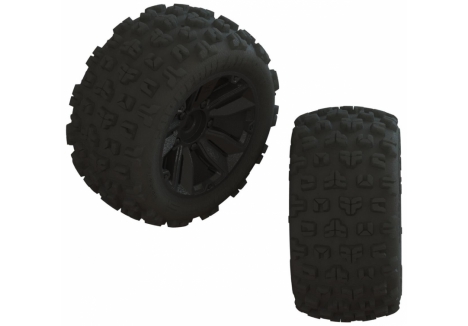

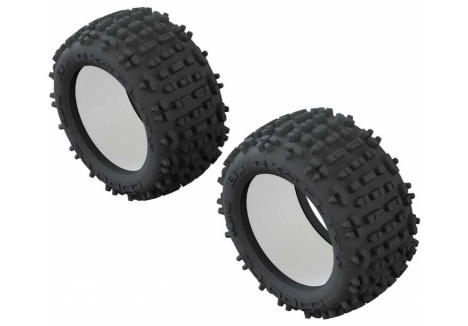

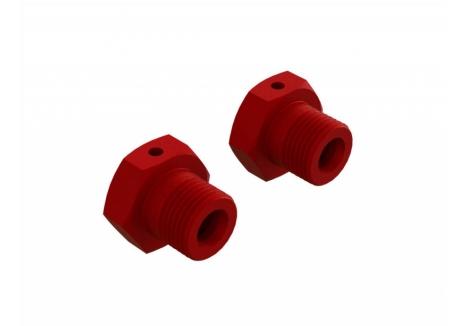

The dBoots COPPERHEAD 2 LP tyres on the ARRMA C-ARA4408V2T3 brushless monster truck feature a chunky tread pattern and vented design that disperses water and debris. Mounted on black multi-spoke wheels with red anodized 17mm hubs, these tyres provide aggressive grip across dirt, grass, and pavement. Their low-profile structure enhances stability at high speeds, while the foam inserts maintain shape under load. Combined with the wide 450mm track, the tyre setup ensures confident handling and visual impact.

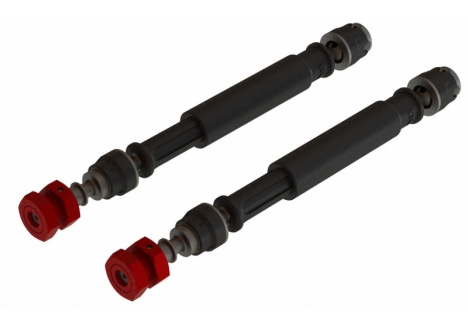

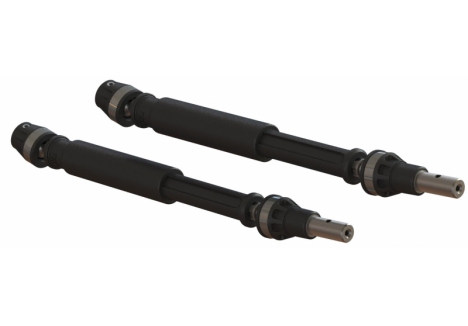

What makes the EXB driveshafts and oil-filled shocks ideal for bashing?

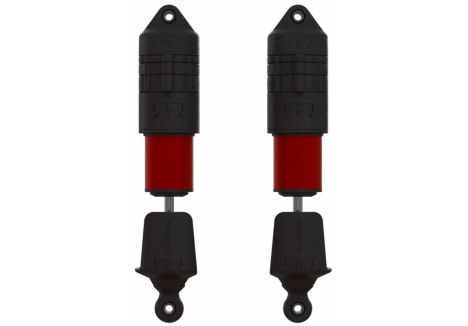

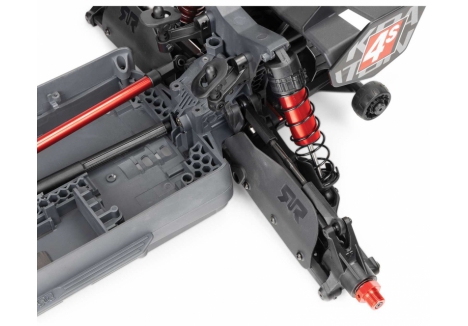

The ARRMA RC car with EXB driveshafts and oil-filled shocks is equipped with all-metal CVD front and rear driveshafts for maximum durability. These components are designed to withstand the torque and impact of extreme bashing. The long aluminium-bodied shocks feature silicone O-rings and are mounted on high towers, providing plush suspension travel and terrain absorption. This combination allows the KRATON BLX to maintain control over jumps, bumps, and rough surfaces without compromising speed or stability.
Is this the best ARRMA 1/10 RC car for modular strength and speed?

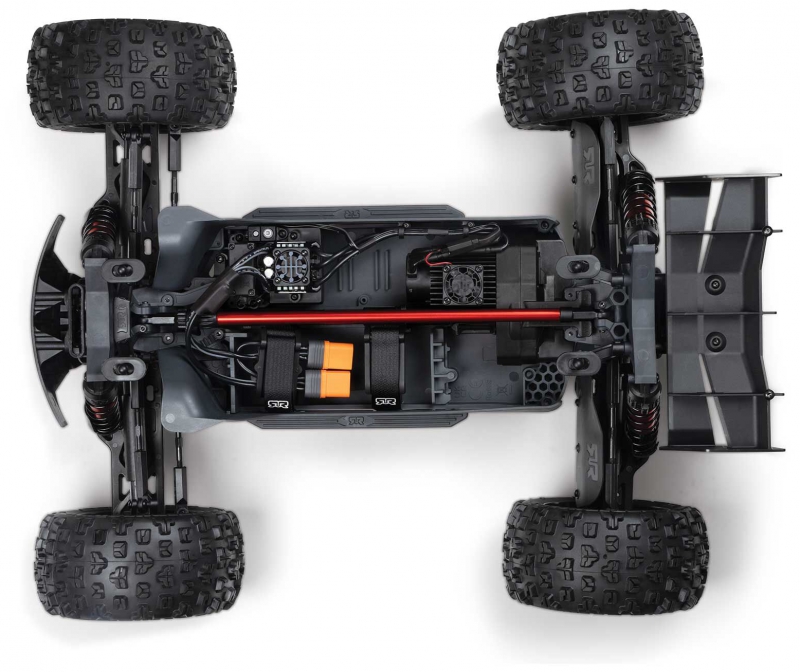

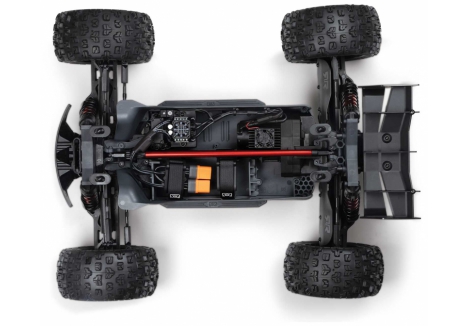

For drivers seeking the best ARRMA 1/10 RC car with aluminium shocks and 55+ mph speed potential, the KRATON 4S BLX delivers a complete package of power, control, and resilience. The modular chassis design separates electronics, power system, and differential components for fast access and simplified maintenance. Dirt guards, outdrive protectors, and taller side panels shield the internals from debris, while the centre support brace adds structural integrity. Every element is engineered for aggressive driving and long-term durability.
Those looking for an affordable ARRMA monster truck with dirt guards and dual protocol receiver will appreciate the value packed into this RTR platform. With its waterproof electronics, Smart telemetry, and bash-ready build, the truck is ready to hit the terrain straight out of the box. Buy ARRMA C-ARA4408V2T3 truck with waterproof electronics and modular chassis and experience next-level performance built for all-road domination.
Technical Specifications of ARRMA C-ARA4408V2T3 brushless monster truck
Brand, Model and Product Type
- Brand: ARRMA
- Model: C-ARA4408V2T3
- Color: Red
- Product Type: ARRMA C-ARA4408V2T3 brushless monster truck, ARRMA C-ARA4408V2T3 1/10 scale RC car, ARRMA C-ARA4408V2T3 4WD KRATON BLX, ARRMA C-ARA4408V2T3 with 2400Kv motor and 120A Smart ESC, ARRMA RC car with EXB driveshafts and oil-filled shocks
Dimensions
- Product Length: 54.7 cm – extended chassis for stable high-speed handling
- Product Width: 45.0 cm – wide track improves cornering and terrain grip
- Product Height: 20.6 cm – elevated stance supports obstacle clearance
- Wheelbase: 35.5 cm – long wheelbase enhances straight-line stability
- Product Weight: 4.2 kg – reinforced build for bash-ready durability
Drivetrain and Transmission
- Drivetrain: 4WD – full-time four-wheel drive for consistent traction
- Drive Type: Forward / Brake / Reverse – integrated via ESC
- Differential Type: 2-gear diffs – includes aluminium-cased centre differential
- Final Drive Ratio: 12.48 – tuned for torque and speed balance
- Internal Gear Ratio: 2.85 – optimized for 4S power delivery
Motor and Electronics

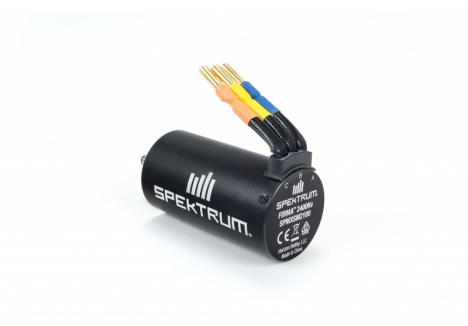

- Motor: Spektrum Firma 3668 2400Kv brushless – delivers high-speed performance
- ESC: Spektrum Firma 120A Smart V2 – waterproof and telemetry-enabled
- Connector Type: IC5 (EC5 compatible) – supports high-current LiPo batteries
- Radio System: Spektrum SLT3 2.4GHz – 3-channel transmitter with foam wheel
- Receiver: Spektrum SR315 – dual protocol DSMR/SLT with Smart telemetry

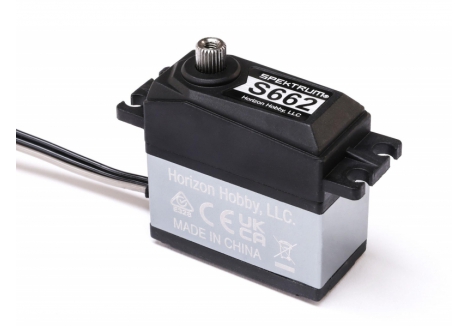

- Servo: Spektrum S662 – metal-geared, waterproof, 236 oz-in torque

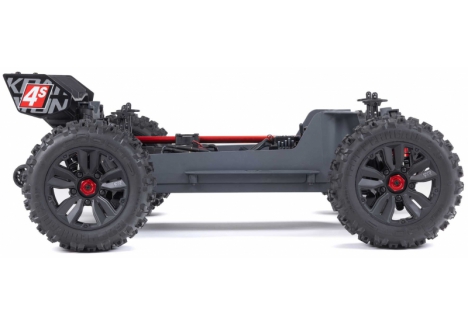

Suspension and Chassis
- Suspension Type: Independent double wishbone – wide arms for plush travel

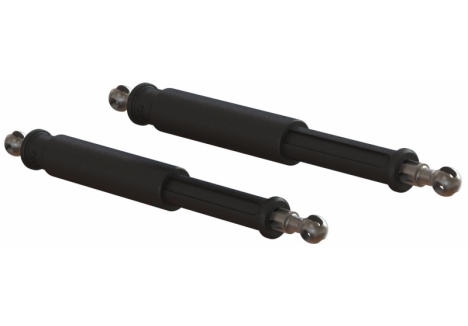

- Shock Type: Oil-filled aluminium body – mounted on high towers with silicone O-rings

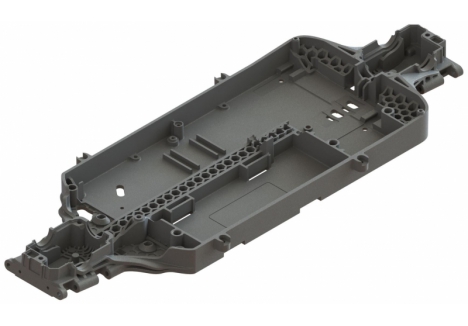

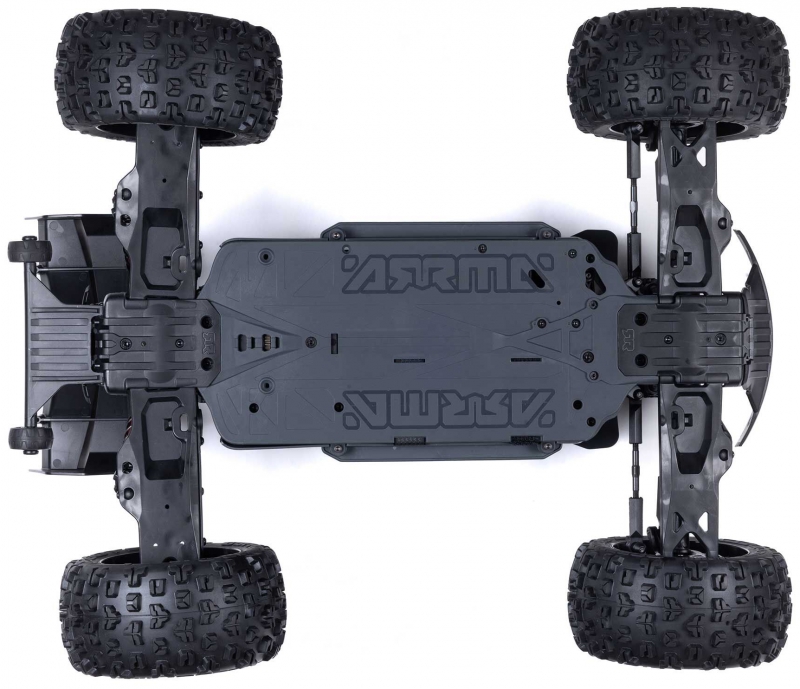

- Chassis Material: Molded composite – modular layout with dirt drain and hinge pin bracing
- Center Support: Included – adds rigidity and impact resistance
Tyres and Wheels
- Tyre Type: dBoots COPPERHEAD 2 LP – vented low-profile tread for multi-surface grip
- Wheel Type: 3.8″ black multi-spoke – mounted on red anodized 17mm CNC hubs
Technology and Control
- Smart Telemetry: Enabled – compatible with Spektrum dashboard and sensors
- Top Speed: 55+ mph – achievable with 4S LiPo and optional pinion gear
- Completion Level: Ready-To-Run – fully assembled with installed electronics
What’s in the Box
- 1 × ARRMA KRATON 4S BLX 4WD 1/10 Scale Speed Monster Truck RTR – Red
- 1 × Spektrum Firma 120A Smart ESC (installed)
- 1 × Spektrum Firma 2400Kv Brushless Motor (installed)
- 1 × Spektrum S662 Metal-Geared Waterproof Servo (installed)
- 1 × Spektrum SLT3 Transmitter
- 1 × Spektrum SR315 Receiver
- 4 × AA Batteries
- 1 × Instruction Manual
What You Require

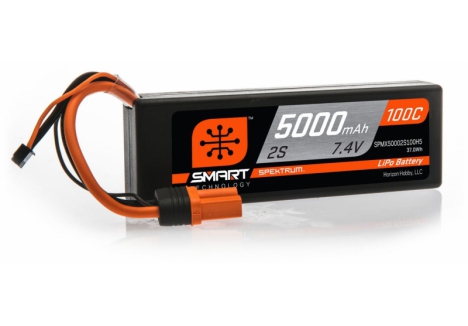

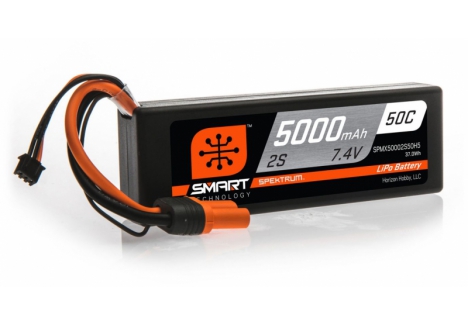

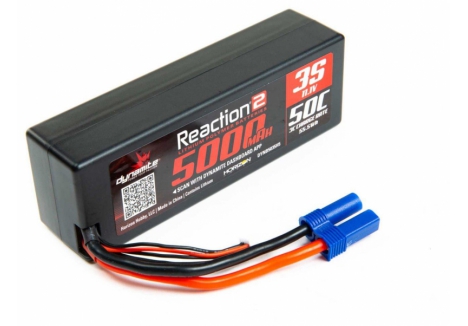

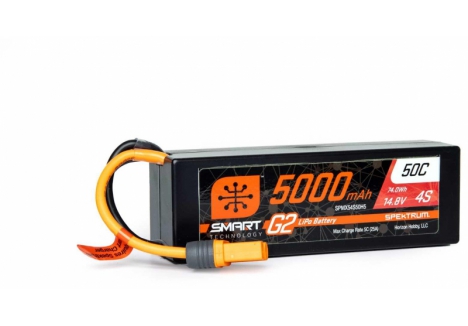

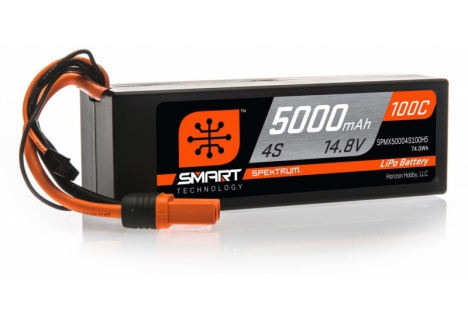

- 2 × 2S Hardcase LiPo Batteries, or 1 × 3S, or 1 × 4S Hardcase LiPo Battery

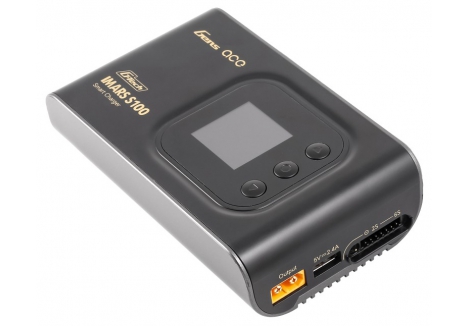

- 1 × Compatible LiPo Charger
Sold Separately
- Battery – required for operation
- Charger – compatible with selected battery type

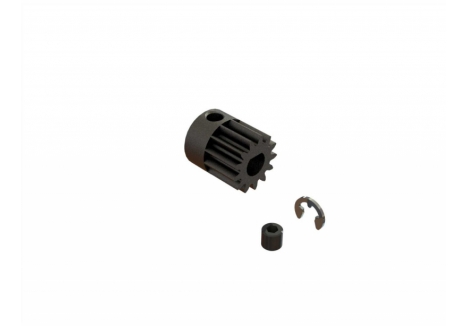

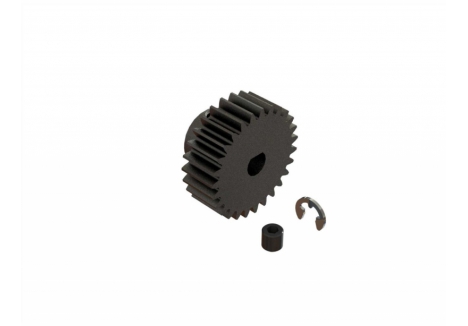

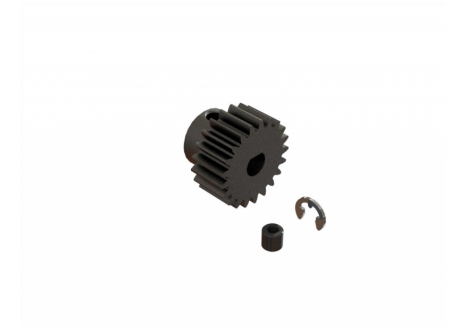

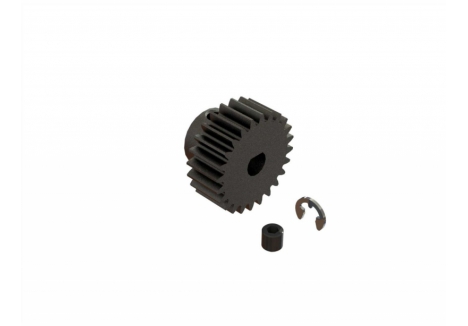

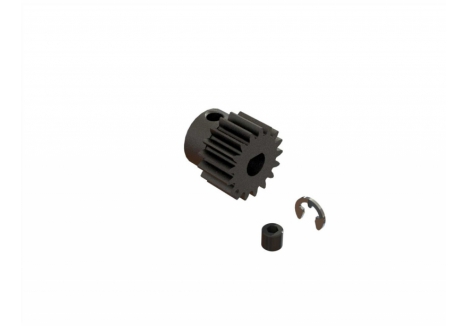

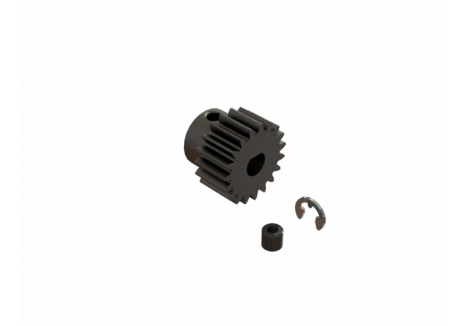

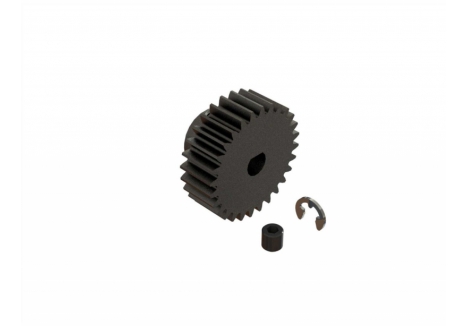

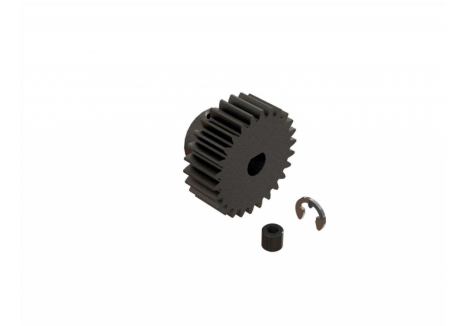

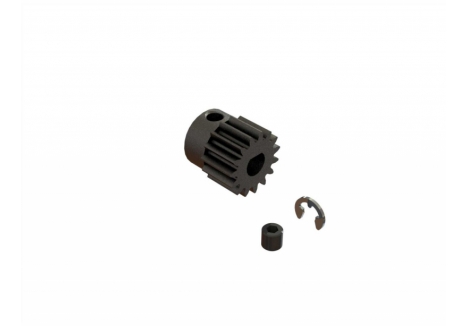

- Optional pinion gear – required for top speed configuration
Parts Diagrams
Front Assembly
Rear Assembly

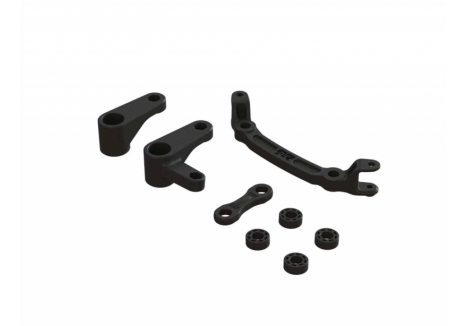

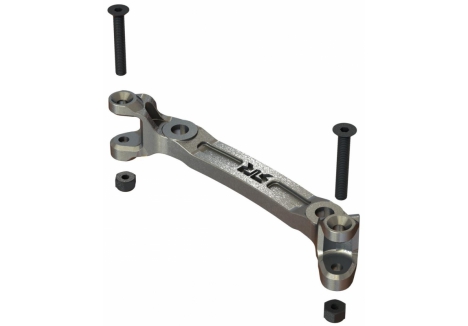

Chassis and Steering Assembly

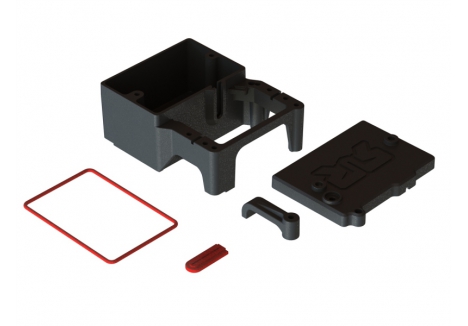

Electronics and Receiver Box

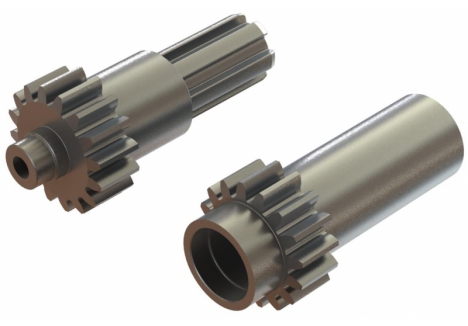

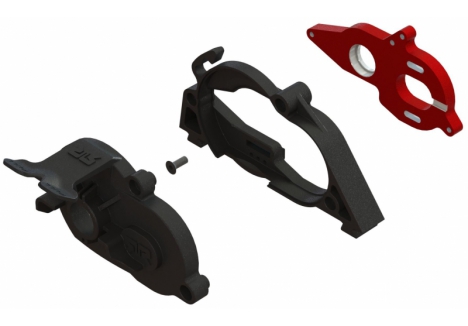

T1/T2 Transmission Assembly (Slipper Clutch)
T3/T4 Transmission Assembly (Centre Diff)

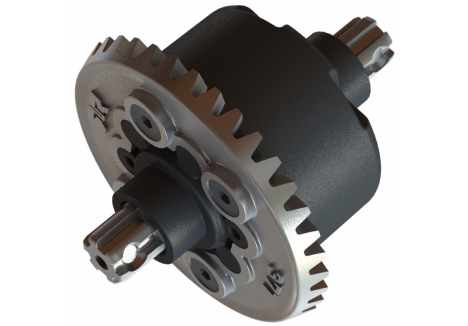

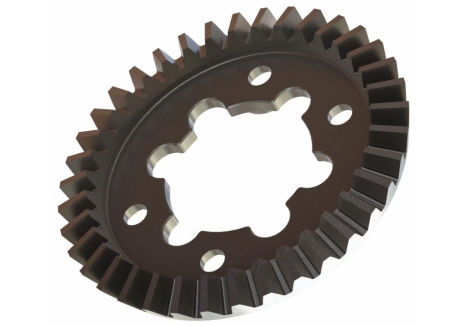

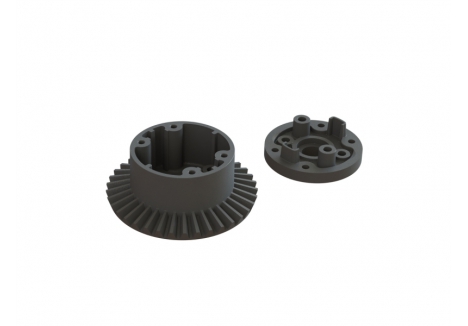

Front and Rear Differential Assembly

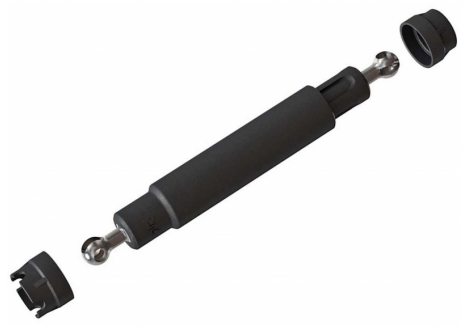

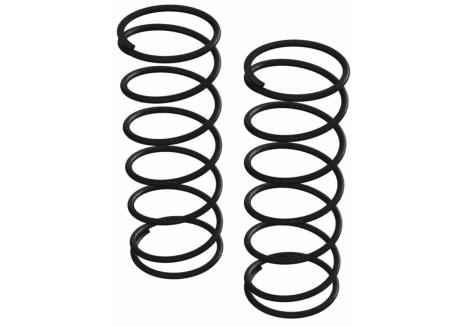

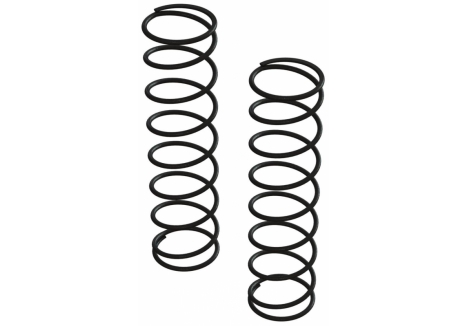

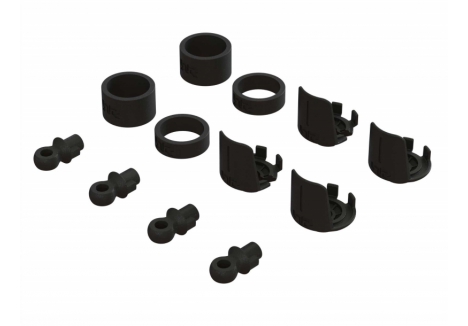

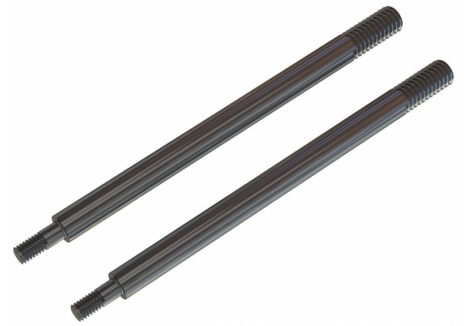

Shock Absorber Assembly

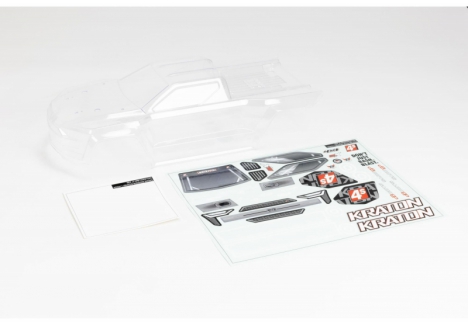

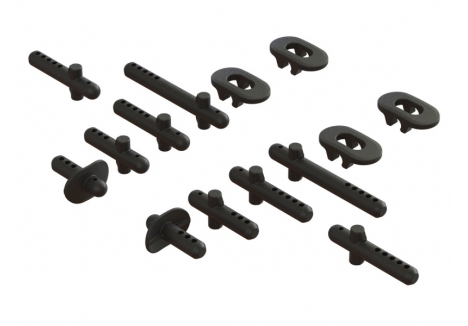

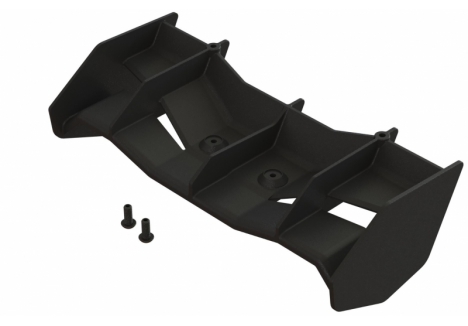

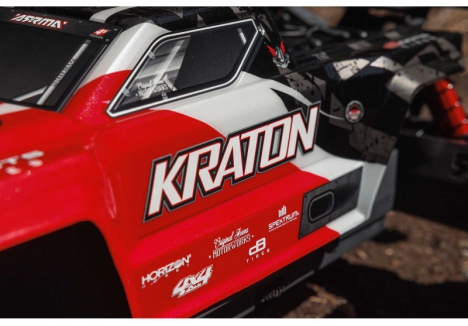

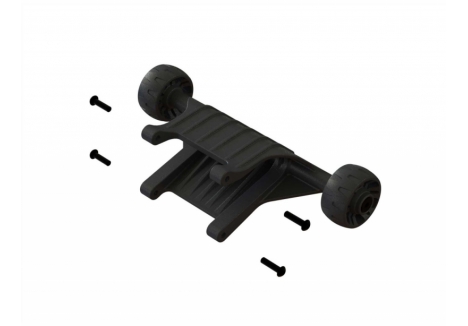

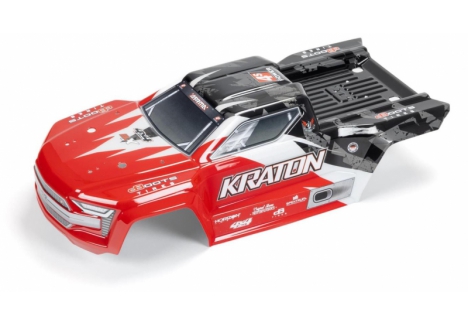

Bodyshell / Rear Wing / Wheel and Tyre
