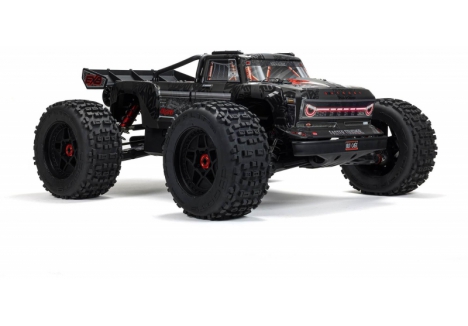

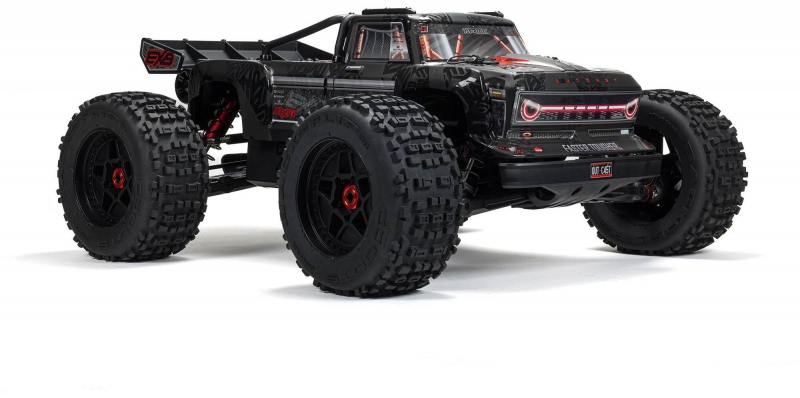

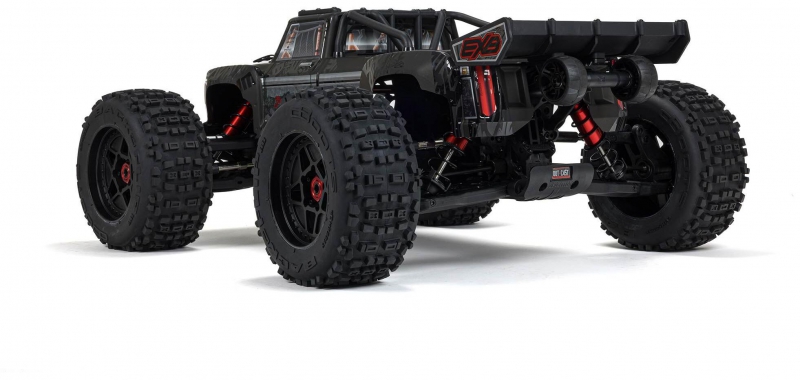

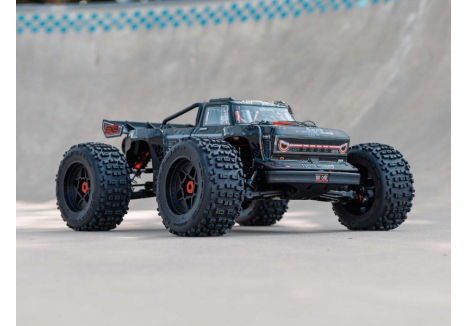

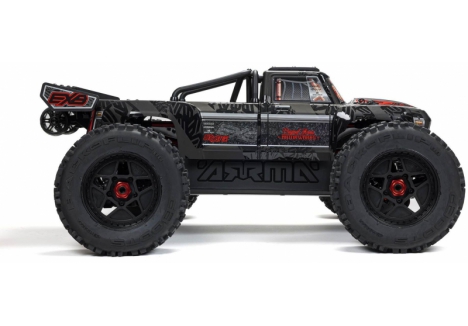

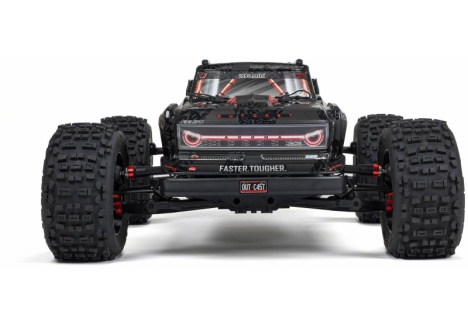

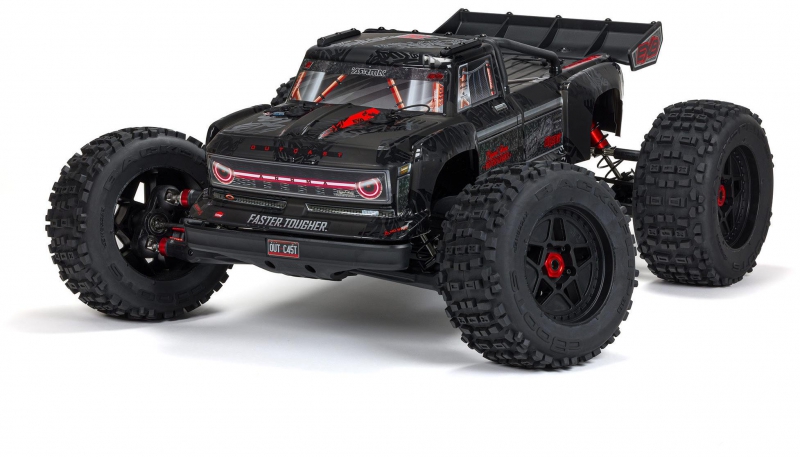

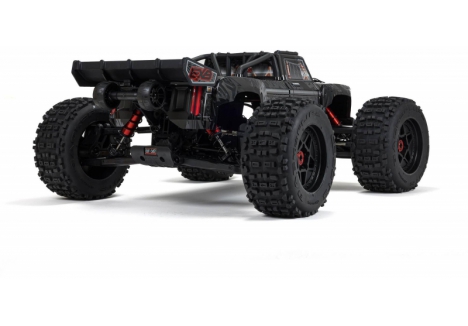

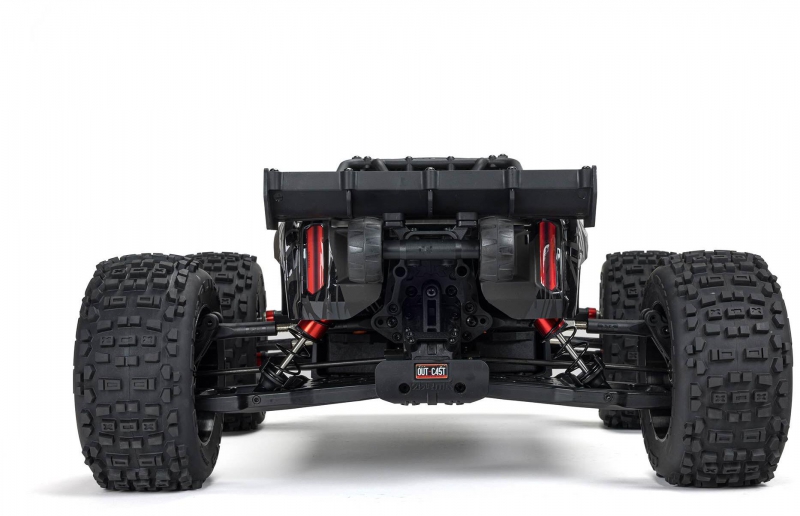

1/5 OUTCAST 8S 4X4 BLX EXB Stunt Truck RTR Black

Model No: C-ARA5810V2T1


Next Working Day Delivery Order before 2pm

In Stock for Immediate Dispatch

£1,077.00

Inc VAT & delivery

£1,224.99

£147.99

Next Day Delivery

We Accept
In Stock
Delivery Included
1 Year Warranty

Product Details

The ultimate 1/5 scale platform for bashing and performing stunts now includes the extreme strength of EXB parts, a beefed-up Spektrum 8S LiPo-capable brushless system, and much more - in a convenient, ready-to-run package that's loaded with value.

Key Features

  • The ultimate ARRMA 1/5 scale ready-to-run Stunt Truck
  • Engineered tough with EXtreme Bash 7075-T6 aluminium parts
  • Bigger, tougher shocks, linkages, turnbuckles, and more
  • Aggressive new EXB matte-and-gloss colour scheme
  • Updated, extreme 8S LiPo capable SpektrumT brushless power system
In The Box
  • (1) 1/5 OUTCASTT 8S EXtreme Bash Stunt Truck 4X4 RTR
  • (1) SpektrumT S6510 steel gear waterproof servo
  • (1) Spektrum FIRMA 1100Kv brushless motor

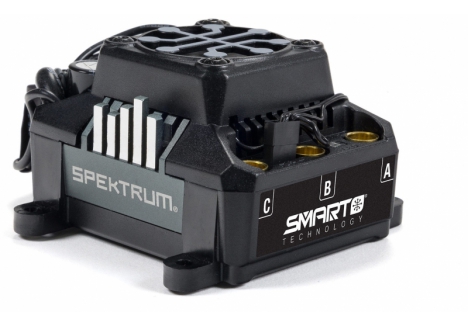

  • (1) Spektrum FIRMA 160A V2 Smart ESC
  • (1) Spektrum DX3T 3-channel 2.4GHz DSMR radio with SR6200A DSMR receiver
  • (1) CNC machined aluminium 24mm wheel wrench
  • (1) 1/5 OUTCASTT 8S EXtreme Bash Stunt Truck Product Manual
Needed to Complete

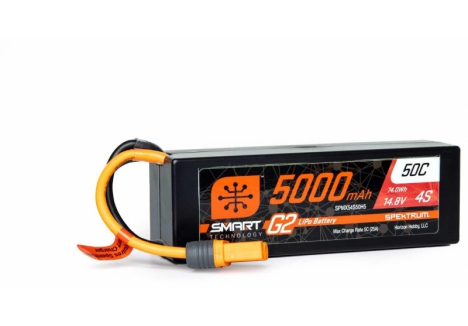

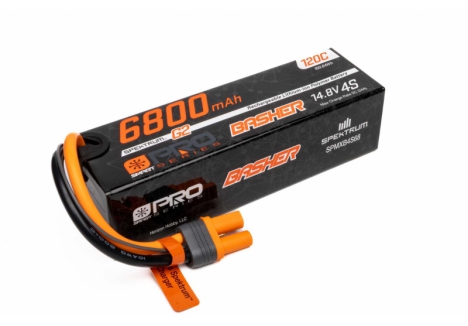

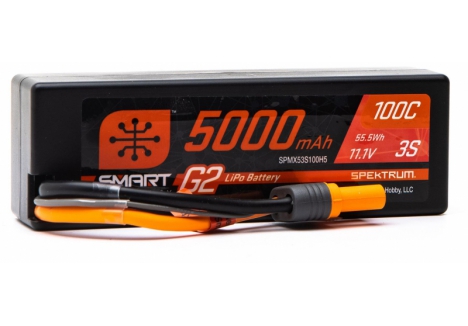

  • (2) 3S or (2) 4S LiPo Batteries with EC5 or IC5 connector
  • (1) Compatible Battery Charger
  • (4) AA batteries for Transmitter

Features

  • The ultimate ARRMA® 1/5 scale RTR Stunt Truck
  • Engineered tough with EXtreme Bash 7075-T6 aluminium parts
  • Bigger, tougher shocks, linkages, turnbuckles, and more
  • Aggressive new EXB matte-and-gloss colour scheme
  • Updated 8S LiPo capable Spektrum brushless power system
  • EXB 7075 T6 5mm thick CNC aluminium laser-etched chassis plate

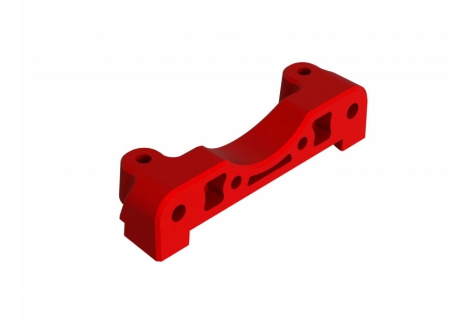

  • EXB Red-anodized CNC aluminium front brace mount
  • Spektrum FIRMA 1100Kv brushless motor with 10% more torque
  • Spektrum S6510 steel gear waterproof servo with 47% more torque
  • Spektrum DX3 3-channel 2.4GHz DSMR radio
  • Spektrum SR6200A DSMR receiver with AVC®
  • Updated Spektrum FIRMA 160A V2 Smart ESC for more punch and better driving feel
  • New big block dBoots® Back-Flip BB tyres
  • Front bumper with impact-absorbing design
  • Easy-access 3-bolt sliding motor mount
  • Heavy-duty drivetrain
  • Easy-access front and rear diff module design
  • All-metal diff outdrives and gearbox internals
  • Durable steel driveshafts
  • Durable wheel hubs
  • Easy-access waterproof electronics module
  • Centre body support and brace for maximum durability
  • Strong composite chassis side pods
  • Wheelie bar
  • High-quality CNC machined aluminium 24mm wheel wrench included

Overview

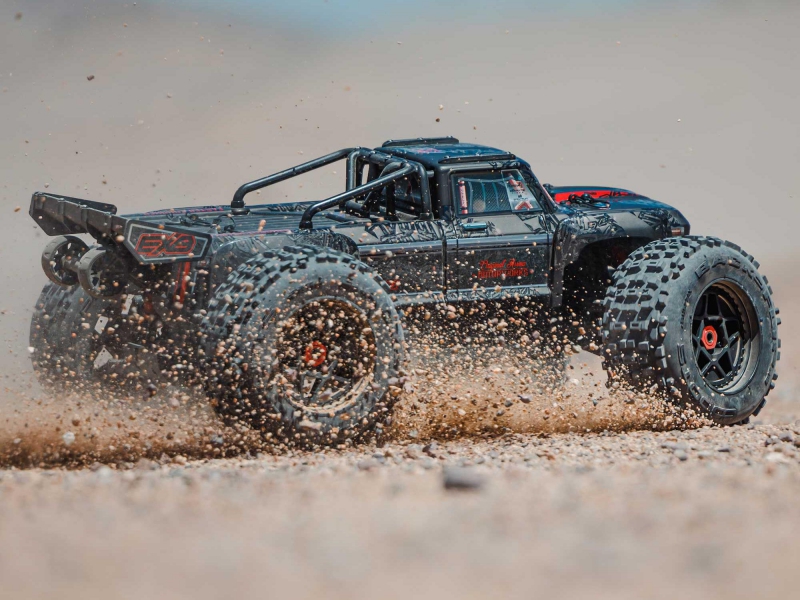

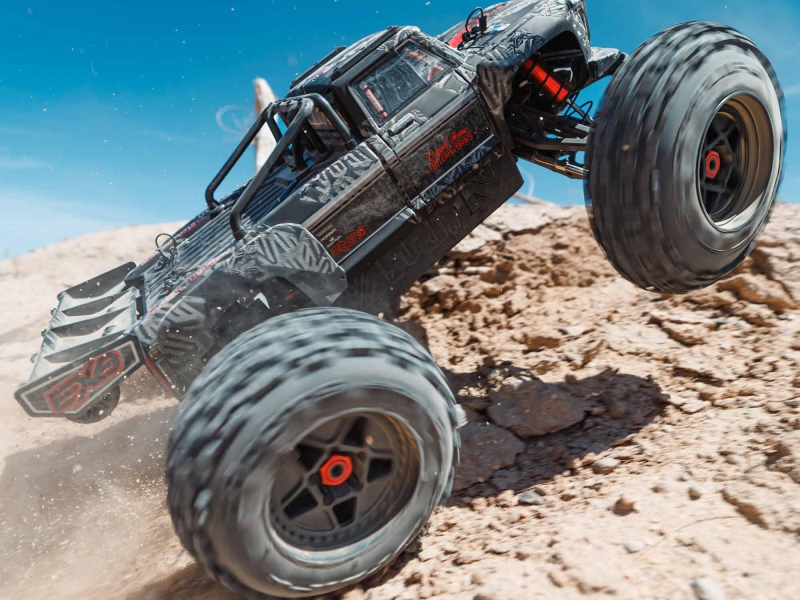

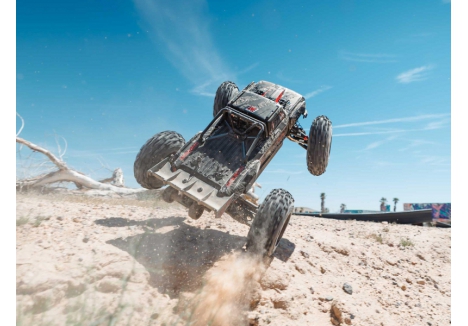

For stunt and bashing performance at its biggest and best, the ARRMA® OUTCAST 1/5 8S Stunt Truck has no equal. In this new ready-to-run version, it's better than ever before! Not only is the OUTCAST 1/5 8S EXB Stunt Truck RTR loaded with EXtreme Bash parts for even greater durability, but it also arrives with higher-powered Spektrum 8S LiPo-capable brushless electronics already installed — all at an astonishingly affordable price.

Punchy and powerful, the new Spektrum 8S-capable brushless system features a massive 5687 FIRMA 1100Kv brushless motor with a huge 56mm diameter and 10% more torque than the previous OUTCAST 8S RTR. The new motor is paired with a Spektrum S6510 steel gear servo that puts out 820 oz-in of torque at 8.4V — nearly 50% more muscle than its predecessor. The new RTR package also includes a Spektrum FIRMA 160A V2 Smart ESC and Spektrum DX3 3-channel 2.4GHz DSMR radio system, with Spektrum AVC technology built-in to keep the huge power under control.

The toughness engineered into the ARRMA® OUTCAST 1/5 8S EXtreme Bash Stunt Truck must be bashed to be believed. A huge number of EXB-hardened parts and options give it virtually unstoppable strength straight out of the box. They include a 5mm thick EXB 7075 T6 CNC aluminium laser-etched chassis plate; EXB red-anodized CNC aluminium front brace mount; and EXB front bumper with impact absorbing design. Topping it all off is an aggressive truck body with a bold new EXB matte-and-gloss paint scheme, for a look unlike any other vehicle. No "Candy Crush" designs here — the OUTCAST EXB is built to be as purposeful as it looks!

Adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts and ultra-thick composite towers soak up bumps. The ARRMA® OUTCAST 1/5 8S EXtreme Bash Stunt Truck RTR blasts over all kinds of surfaces, from asphalt to dirt and grass. Big dBoots® BACK FLIP 2 big block tyres on multi-spoke wheels add all-terrain traction. Everything in the durable design contributes to confident control and responsive handling for whatever eye-popping stunts you can imagine.

A centre body support, aluminium centre braces and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to extreme action.

Of course, the popular, easy-access ARRMA® modular design lowers your maintenance downtime to the minimum — so you can keep on enjoying the surprisingly affordable high-end performance without interruption. Ultimately, the OUTCAST 1/5 8S EXtreme Bash Stunt Truck is more than a massive and powerful bashing machine. It's the biggest and best ARRMA® ready-to-run basher to date!

ARA5810V2T1 Header Image
EXB (EXtreme Bash) Components
EXB (EXtreme Bash) Components

EXB-hardened components throughout its fully assembled chassis give the 1/5 scale ARRMA® OUTCAST 8S EXtreme Bash Stunt Truck RTR virtually unstoppable strength.

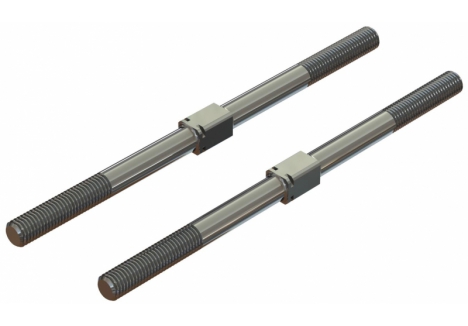

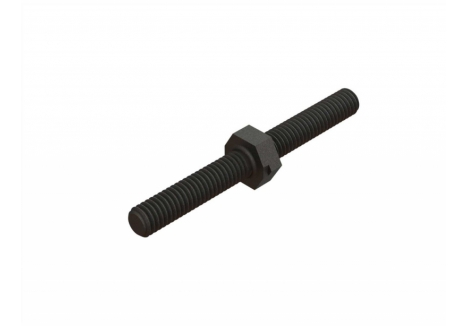

Steel Turnbuckles
Steel Turnbuckles

Heavy-duty components including the 8mm thick steel rear turnbuckles and 7mm thick steel steering turnbuckles enable the 1/5 scale OUTCAST EXB to withstand extreme off-road bashing.v

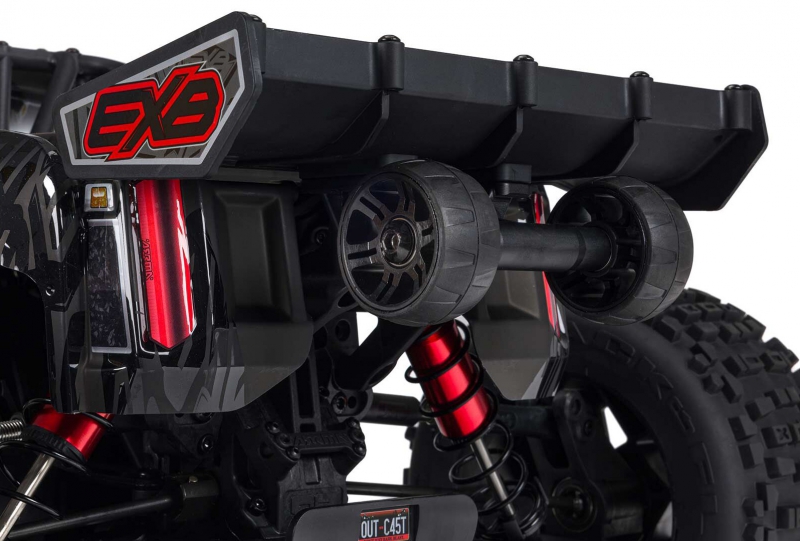

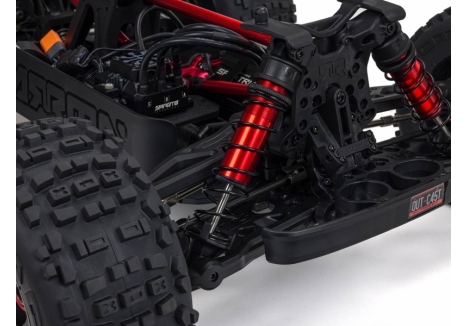

Oil-Filled Shocks
Oil-Filled Shocks

Mounted on ultra-thick composite front and rear towers and featuring plush shock tuning, the adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts easily soak up bumps.

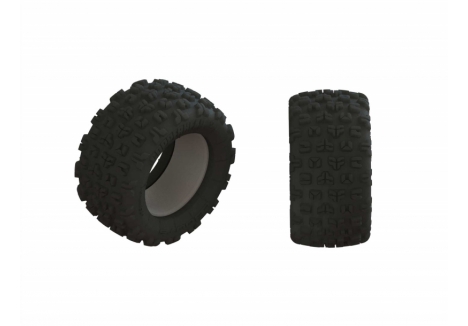

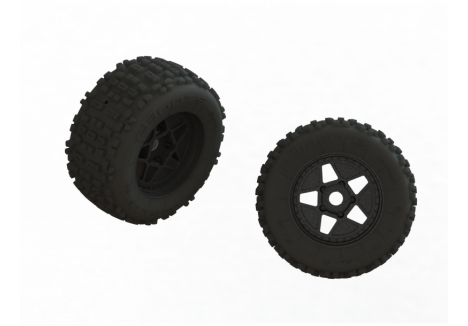

High-Traction dBoots<sup>®</sup> Tyres
High-Traction dBoots® Tyres

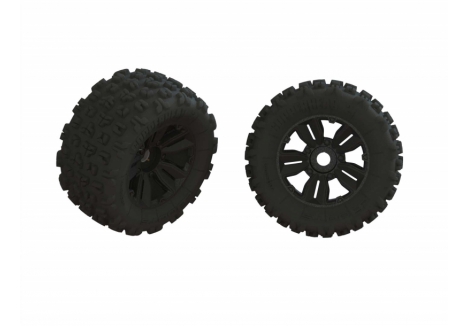

Long-lasting new Big Block dBoots® Back-Flip BB tyres on multi-spoke wheels with durable hubs deliver all-terrain traction — and add an aggressive edge to the EXB matte and gloss effect finished truck body.

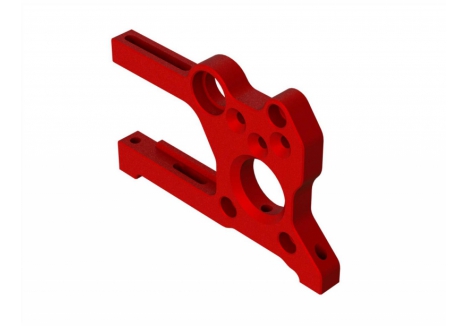

Quick Motor Access
Quick Motor Access

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. For example, the easy-access, 3-bolt sliding motor mount allows quick motor removal.



Electronics Module
Electronics Module

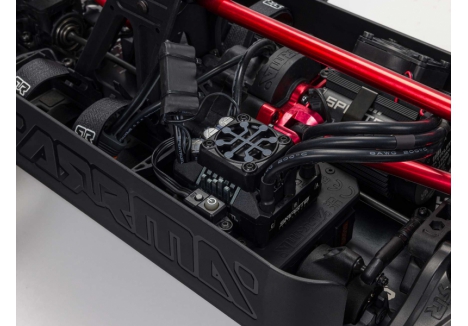

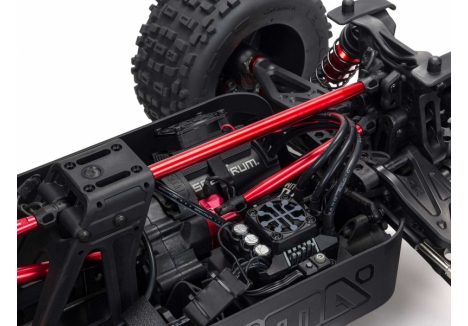

The easy-access, molded electronics module screwed to the chassis contains a waterproof receiver box, servo mount and ESC tray — ready to protect your electronics from dirt and moisture.

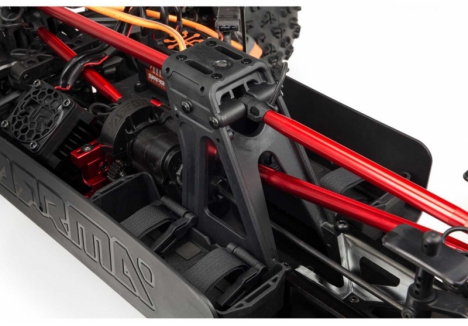

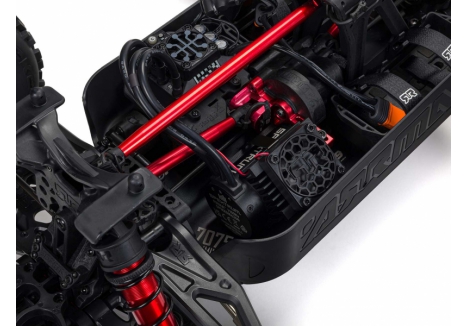

Multi-Structured Centre Brace System
Multi-Structured Centre Brace System

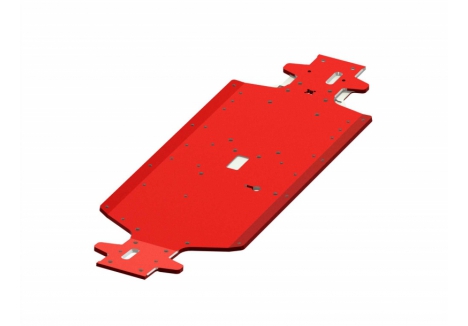

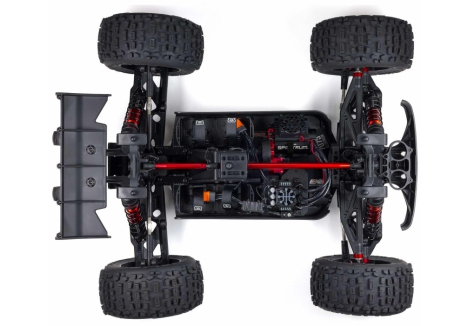

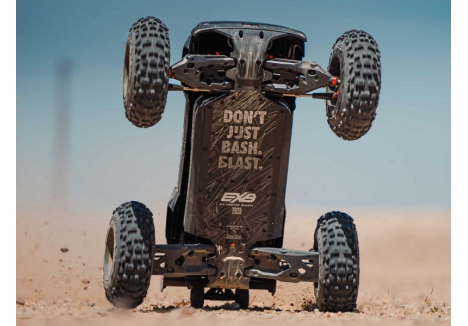

Made of rugged anodized 7075 T6 aluminium, the laser-etched 5mm chassis plate includes strong composite chassis side pods and a centre body support and brace for maximum durability.



Durable Metal Construction
Durable Metal Construction

Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An EXB-toughened suspension system smooths the ride.



Smart Technology
Smart Technology

The included Spektrum DX3 Smart transmitter and SR6200A AVC® (Active Vehicle Control®) receiver let you take full advantage of the Spektrum Smart Firma brushless motor and ESC's innovative telemetry capabilities. Download the free Spektrum Dashboard App to your mobile device and follow motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time. Dial-in extra stability with the radio's AVC® system to carve corners and nail jumps without letting up on the throttle.



ARA5810V2T1 Footer Image

Brand, Model and Product Type

  • Brand: ARRMA
  • Model: C-ARA5810V2T1
  • Product Type: ARRMA OUTCAST C-ARA5810V2T1 1/5 8S EXB stunt truck RTR black, ARRMA C-ARA5810V2T1 4WD brushless stunt truck with Smart ESC, ARRMA OUTCAST EXB C-ARA5810V2T1 1/5 scale electric stunt truck, ARRMA OUTCAST EXB with 5687 1100Kv motor and 160A Smart ESC – C-ARA5810V2T1, ARRMA 1/5 scale 8S stunt truck with dBoots Back-Flip tyres and AVC control

Dimensions

  • Product Length: 71.4 cm – compact stunt-ready chassis for agile flips and jumps
  • Product Width: 59.5 cm – wide stance for enhanced stability during high-speed stunts
  • Product Height: 30.5 cm – elevated profile with reinforced body support and shock towers
  • Wheelbase: 43 cm – short wheelbase optimised for stunt responsiveness and tight rotation
  • Ground Clearance: 6.5 cm – suitable for off-road terrain and obstacle clearance

Drivetrain and Transmission

  • Drive Type: 4WD – full-time shaft-driven system for consistent traction and stunt control
  • Differential Type: 3 gear diffs – all-metal internals for high-torque durability and smooth power delivery
  • Gear Pitch: 1.0 MOD – heavy-duty gearing designed for extreme loads and impact resistance
  • Internal Gear Ratio: 9.06 – tuned for explosive acceleration and stunt execution

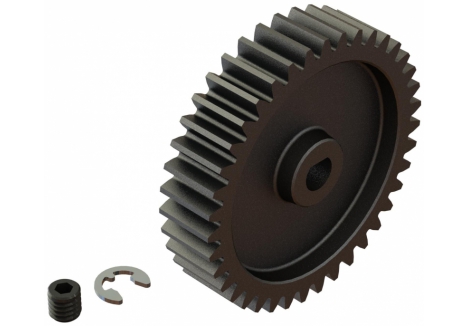

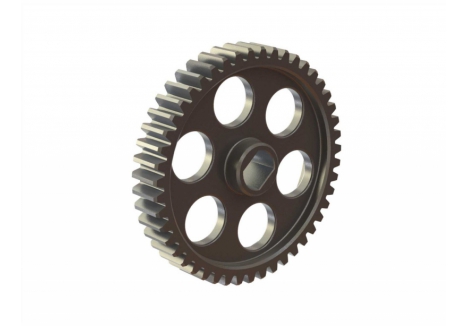

  • Spur Gear: 47T – paired with high-output motor for balanced torque and speed

Motor and ESC System

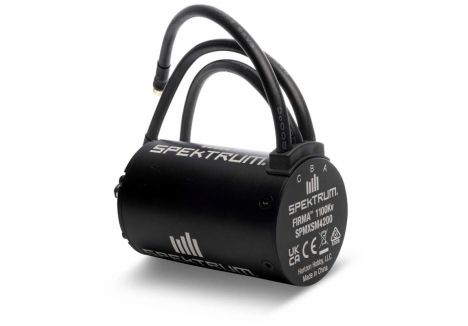

  • Motor Type: Brushless – Spektrum Firma 5687 1100Kv 4-pole motor with 10% more torque than previous models
  • ESC: Spektrum Firma 160A V2 Smart ESC – waterproof, telemetry-enabled, and tuned for 8S LiPo power
  • Power System: 8S – compatible with dual 4S or dual 3S LiPo batteries for maximum output
  • Battery Connector: IC5 / EC5 – high-current connectors for efficient power delivery and compatibility

Suspension and Steering

  • Suspension Type: Independent – EXB-hardened components with steel turnbuckles and composite towers
  • Shock Type: Oil-filled coil-over – 20mm bore shocks with 6mm thick shafts for plush damping and stunt absorption
  • Steering Servo: Spektrum S6510 – steel gear waterproof servo with 820 oz-in torque at 8.4V for responsive control

Tyres and Wheels

  • Tyre Type: dBoots Back-Flip BB – big block tread pattern for all-terrain grip and stunt-ready traction

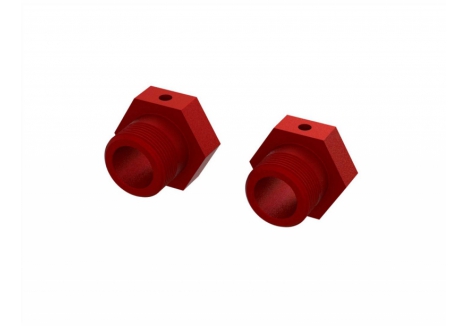

  • Wheel Type: Multi-spoke wheels – durable hubs with 24mm hex size for secure fitment and impact resistance

Chassis and Structure

  • Chassis: 5mm thick EXB 7075-T6 aluminium – laser-etched plate with composite side pods and center brace
  • Body: Painted, decalled, and trimmed – aggressive matte-and-gloss EXB finish for visual impact
  • Center Brace: Multi-structured – includes center body support and aluminium brace for added rigidity
  • Bumper: EXB front bumper – impact-absorbing design for frontal protection during landings

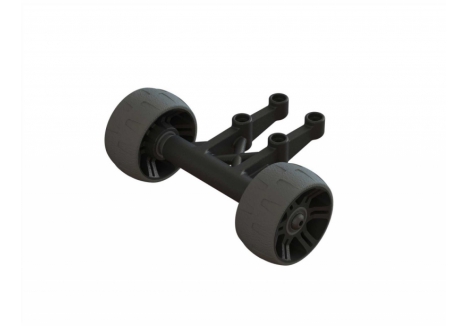

  • Wheelie Bar: Integrated – supports high-speed launches and protects rear end during stunt execution

Electronics and Control

  • Radio System: Spektrum DX3 3-channel 2.4GHz DSMR – Smart-compatible with AVC stability control
  • Receiver: Spektrum SR6200A – DSMR protocol with AVC and telemetry support for real-time data
  • Electronics Module: Molded waterproof tray – houses receiver, ESC, and servo mount for protection and accessibility
  • Smart Features: Real-time telemetry via Spektrum Dashboard – monitor RPM, ESC temperature, battery voltage, and more

What’s in the Box

  • 1 × ARRMA OUTCAST 1/5 8S EXB Stunt Truck RTR
  • 1 × Spektrum DX3 3-channel DSMR radio
  • 1 × Spektrum SR6200A receiver with AVC
  • 1 × Spektrum S6510 steel gear waterproof servo
  • 1 × Spektrum Firma 1100Kv brushless motor
  • 1 × Spektrum Firma 160A V2 Smart ESC
  • 1 × CNC machined aluminium 24mm wheel wrench
  • 1 × Product Manual
  • 4 × AA batteries for transmitter

What You Require

  • 2 × 3S or 4S LiPo Batteries with EC5 or IC5 connector
  • 1 × Compatible LiPo Battery Charger

Warranty

  • Warranty Coverage: 2-Year limited warranty as detailed on manufacturer support site

Parts Diagrams

Front Assembly
Servo Save & Receiver Box Assembly
Transmission Assembly
Chassis Assembly
Rear Assembly
Front & Rear Diff Assembly
Centre Diff Assembly
Shock Absorber Assembly

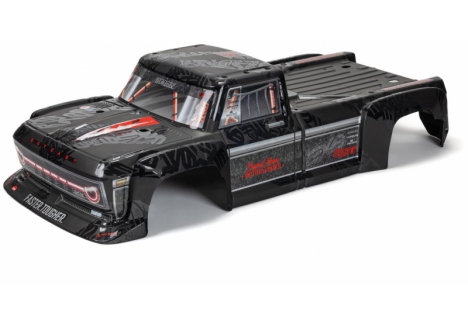

Bodyshell, Wheel & Tyre
