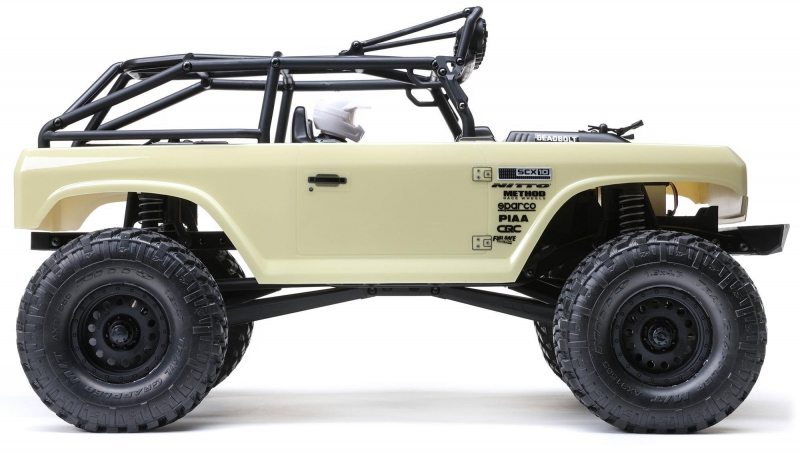

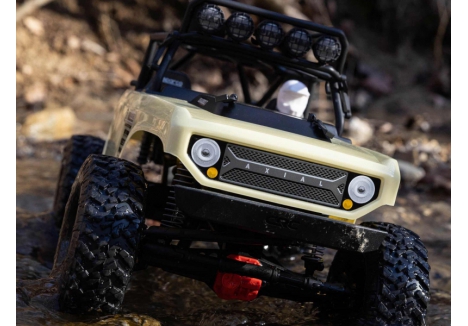

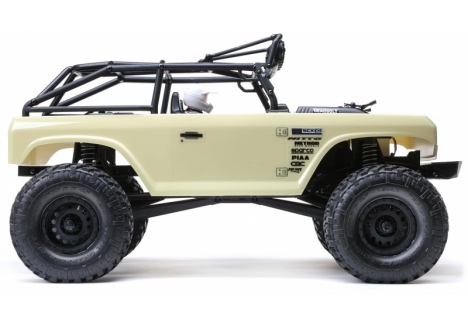

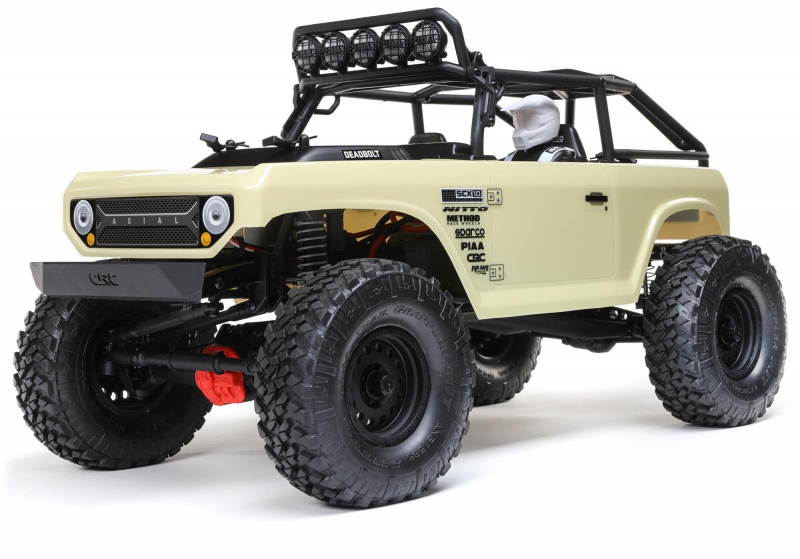

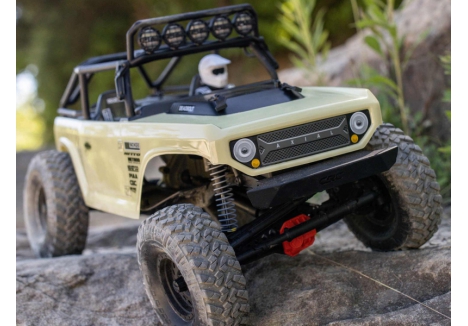

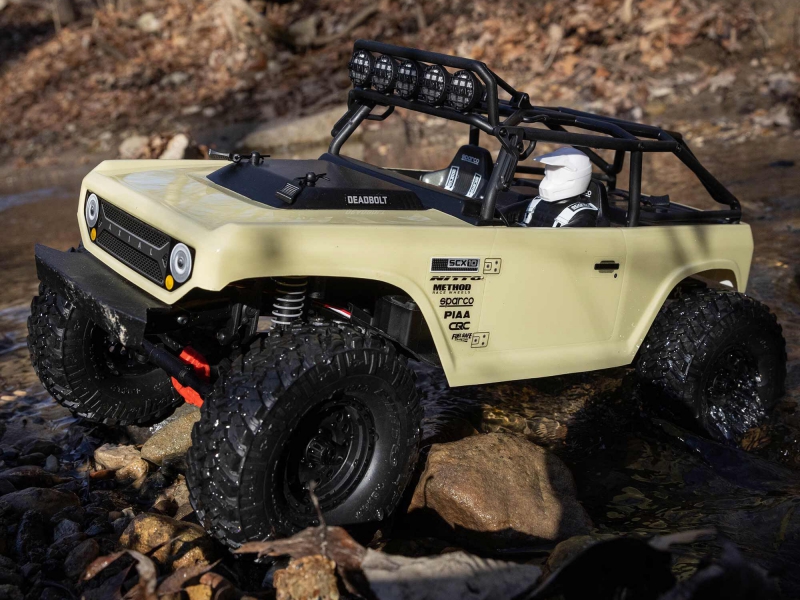

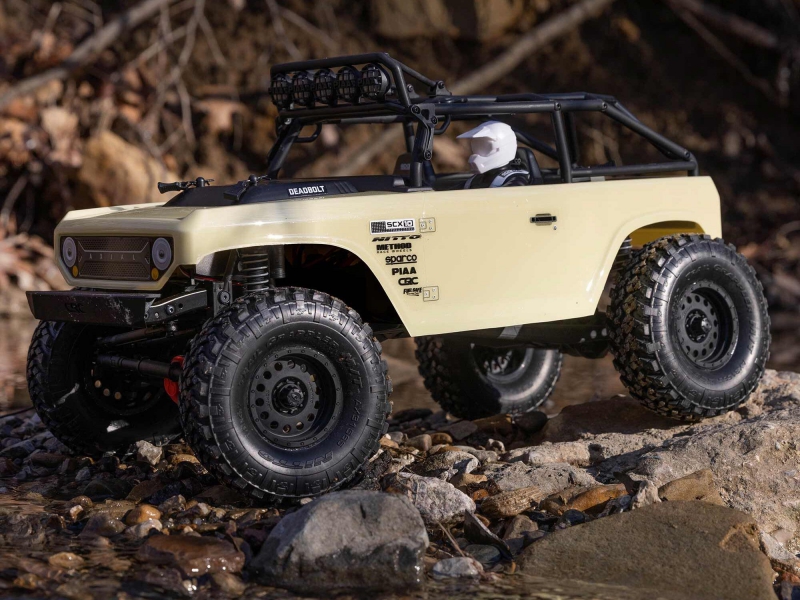

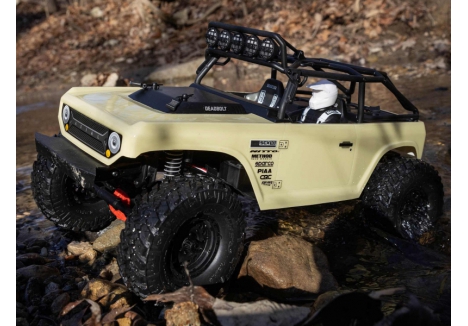

AXIAL 1/10 SCX10 II Deadbolt 4WD RTR Tan C-AXI03025T2

Name: AXIAL 1/10 SCX10 II Deadbolt 4WD RTR Tan C-AXI03025T2
Brand: Axial
SKU: C-AXI03025T2
Price: 366.47 GBP
Availability: InStock

Model No: C-AXI03025T2

Next Working Day Delivery Order before 2pm

In Stock for Immediate Dispatch

£366.47

Inc VAT & delivery

ONP:

£429.99

You Save:

£63.52

Quantity:

Delivery:

Next Day Delivery

Interest FREE Finance Available:

We Accept

Price Match

If you find this product cheaper elsewhere we will check if we can match or beat the price

In Stock

Delivery Included

1 Year Warranty

Product Details

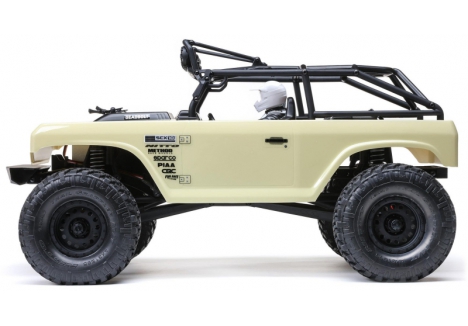

Legendary for its scale off-road performance and durability, the Axial^® SCX10 II chassis returns for an encore in the affordable, easily upgradeable Deadbolt 4WD - an agile, short wheelbase ready-to-run rig that comes equipped to conquer any trail.

Key Features

Realistic, durable steel C-channel chassis with cross braces for reinforcement and rigidity
Single-piece AR44 front and rear axles with moulded truss for extreme durability
High pinion design that adds ground clearance, improves driveshaft angles, and increases gear surface contact
LCX AX10 transmission with adjustable gearing ratio for super high speed or competition-level crawling speed
Universal joint axles allowing up to 45Â of steering and providing an efficient, high-performance drivetrain

In The Box

(1)Axial SCX10 II Deadbolt 1/10 Scale 4WD RTR
(1)Spektrum SLT2 2.4GHz Radio System
(1)Dynamite 35-Turn 540 Brushed Motor
(1)Spektrum 40A Brushed ESC with IC3Â® Connector
(1)Spektrum SLR300 3-Channel SLT FHSS 2.4GHz Receiver
(1)Spektrum S614 Waterproof Metal Gear Surface Servo, 23T
(1)Product Manual(4) AA Transmitter Batteries

Needed to Complete

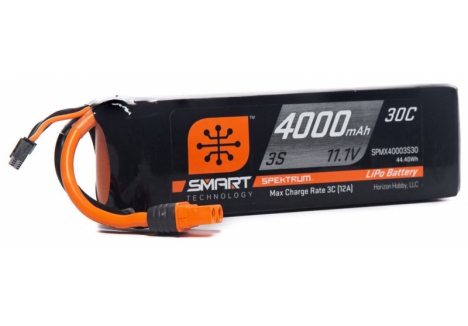

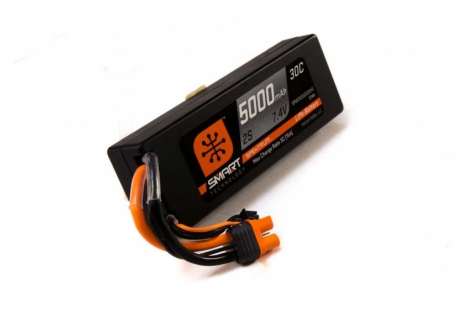

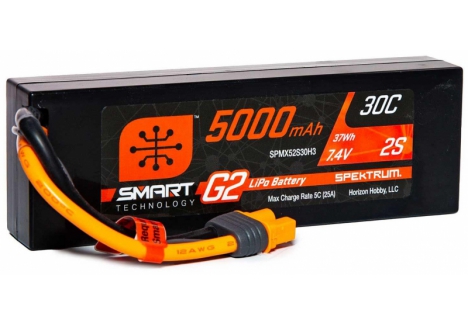

(1) 2-3S LiPo Battery with EC3 or IC3 connector

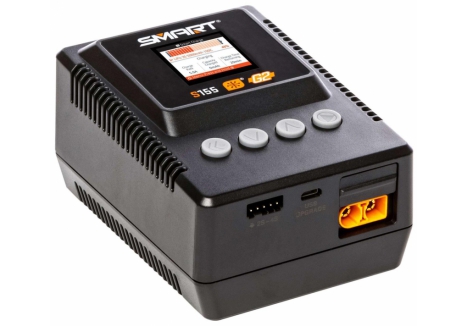

(1) Compatible Battery Charger

Features

Realistic, durable steel C-channel chassis with cross braces for reinforcement and rigidity
Single-piece AR44 front and rear axles with moulded truss for extreme durability
High pinion design that adds ground clearance, improves driveshaft angles, and increases gear surface contact
LCX AX10 transmission with adjustable gearing ratio for super high speed or competition-level crawling speed
Universal joint axles allowing up to 45° of steering and providing an efficient, high-performance drivetrain
Optimized gear ratio of 3.75 that reduces torque twist

Hypoid-cut metal gears
Larger load rated bearings for durability
8° Kingpin axle that eliminates tyre scrub
10° Increment adjustments for knuckle carriers and straight axle adapters
Chassis mounted servo with adjustable servo mounting system
Oil-filled, coilover shocks with threaded shock bodies
Licensed CRC front bumper
3-piece WB8 HD Wildboar front and rear driveshafts with strengthened slider-floater tube to reduce flex and fatigue
Easy-access, water-resistant receiver box

Agile, affordable, and upgradeable

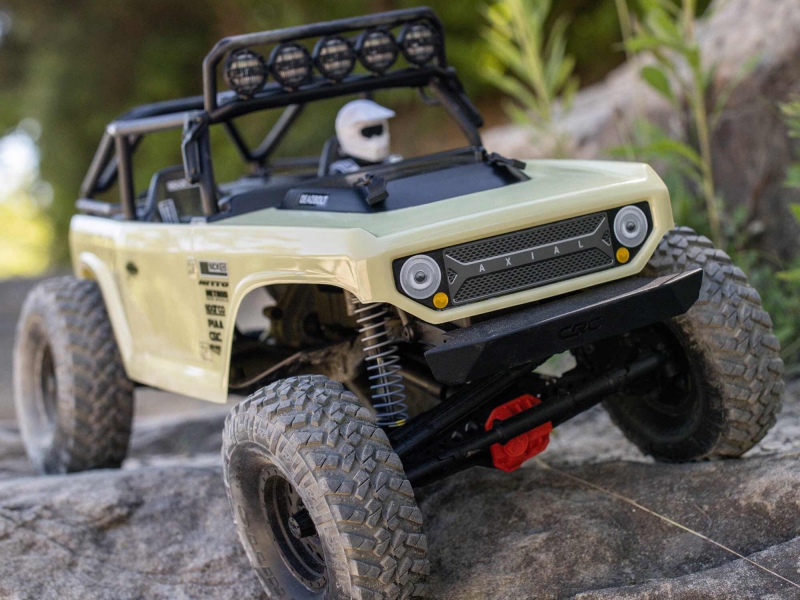

The ready-to-run Axial^® SCX10^™ II Deadbolt^™ 4WD is a budget-friendly, highly capable, and easily upgradeable RC rock crawler that's perfectly suited for both experienced adventurers and hobby newcomers. It combines rugged scale looks with the exceptional handling of the trail-ready SCX10 II chassis, in a 12" short wheelbase setup that's agile enough to take on twisty trails.

The SCX10 II remains one of the best 1/10 scale rock crawler chassis ever designed. This high-strength, C-channel chassis is made of durable steel with cross braces for reinforcement and rigidity. The contoured skid plate significantly reduces hang-ups, and the simplified design makes maintenance quick and easy.

Highly adaptable, the SCX10 II Deadbolt 4WD also features an adjustable wheelbase, adjustable body mount, adjustable bumper mounts with swaybar mounting points, and mounting points for an optional 2-speed transmission and servo winch. The included LCX AX10^™ transmission, with a three gear layout, heavy-duty slipper, sealed gear cover, and all-metal gears, accepts a wide range of gearing options. Its overall ratio can be adjusted using different pinion and spur gear choices for super high speed or competition-level crawling speed.

Just as a full-size truck has its steering box located on the frame, Axial^® places the Deadbolt's adjustable servo mount on the SCX10 II chassis frame and allows a wide range of servos to be used. Universal joint axles permit up to 45° of steering and provide an efficient, high-performance drivetrain. The single-piece AR44^™ front and rear axles feature a moulded truss for extreme durability. The pinion gear is 6mm above centre for higher ground clearance and improved driveshaft angles. Metal dog bones and helical cut internal gears are standard equipment, and the drivetrain includes full, high-quality ball bearings.

The oil-filled shocks, with threaded bodies and a single coilover spring, can be tuned to meet the dampening demands of any trail. Realistic shock hoops with multiple mounting positions let you adjust the suspension for maximum performance. S30 compound, 4.7" x 1.9" wide Nitto Trail Grappler M/T tyres on METHOD 307 Hole wheels provide ample ground clearance for off-road trails and have a large block tread pattern for excellent bite in all terrain.

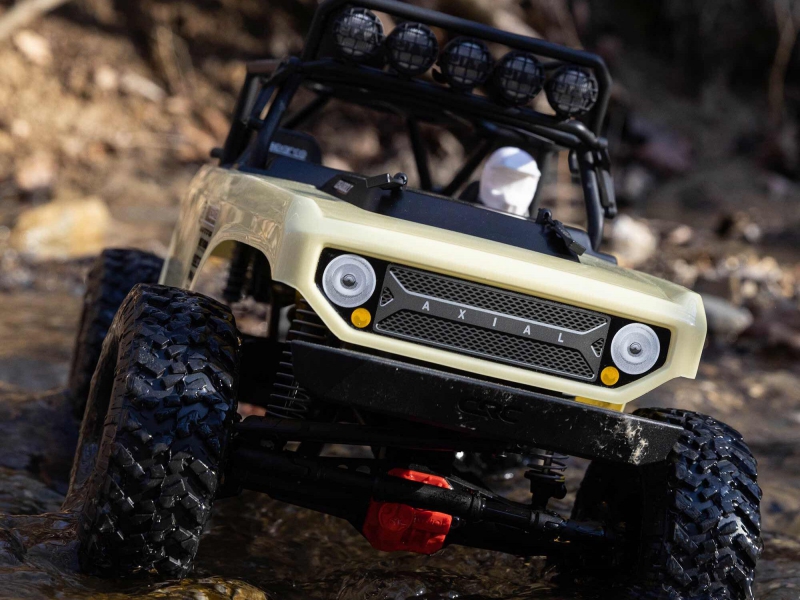

With a realistic driver figure and exterior cage complete with light bar (LED lights sold separately), the Axial^® SCX10 II Deadbolt 4WD delivers scale excitement and class-leading performance in a convenient, ready-to-run package. Nearly all electronics, including a Spektrum^™ SLT2 2.4GHz radio system, motor, and ESC, are supplied and installed. Just add your choice of batteries and charger and start your adventure!

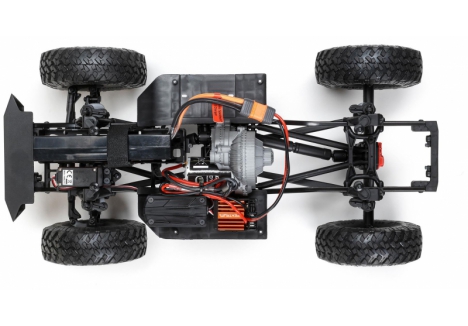

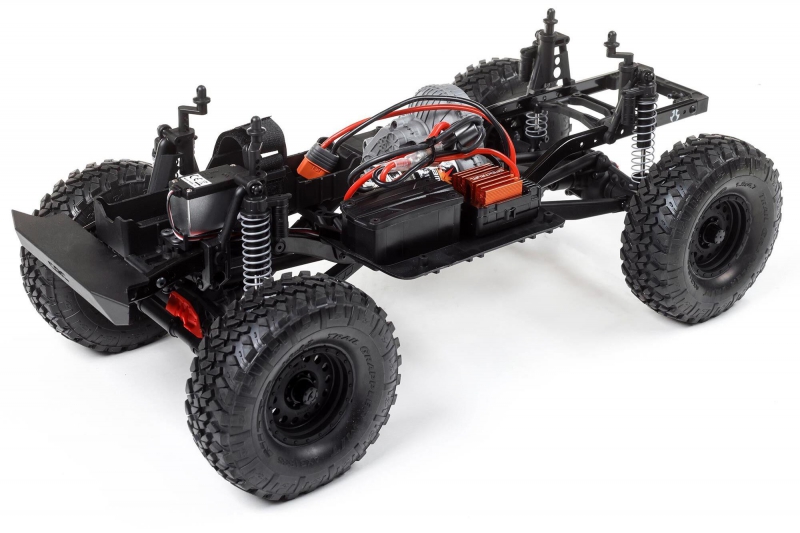

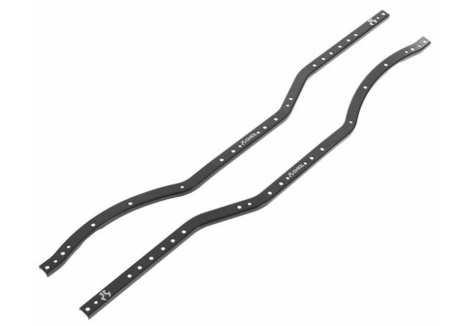

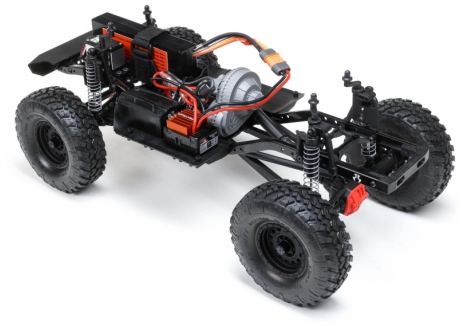

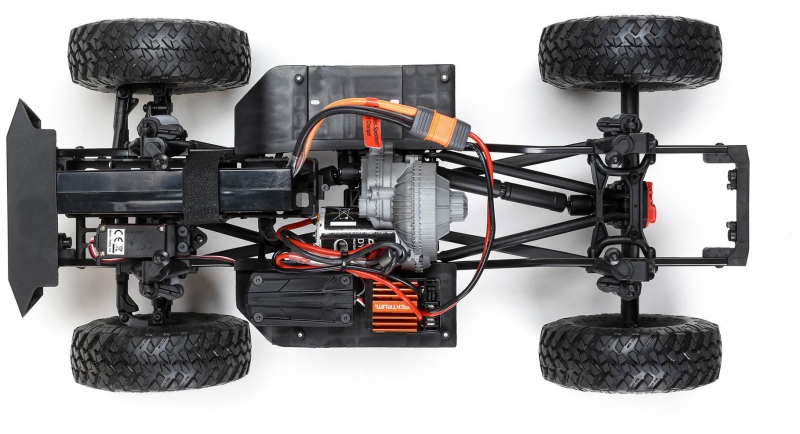

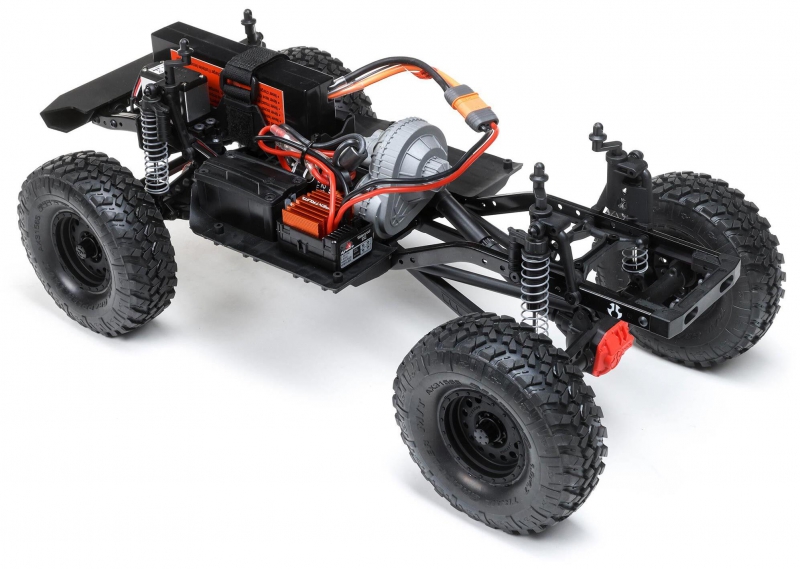

STEEL C-CHANNEL FRAME RAIL CHASSIS

The realistic, high-strength SCX10^™ II C-channel chassis is made of durable steel with cross braces for reinforcement and rigidity. The contoured skid plate significantly reduces hang-ups, and the simplified design makes maintenance quick and easy. There's also an adjustable body mount, adjustable bumper mounts with swaybar mounting points, and mounting points for an optional 2-speed transmission and servo winch.

ADJUSTABLE WHEELBASE

The Deadbolt SCX10 II chassis is designed at a 12.0" wheelbase length but is easily adjusted to either a 11.4" or 12.3" wheelbase (optional link kits sold separately). Axial designed the chassis so that all the wheelbase adjustability happens out back without sacrificing front-end suspension geometry. Simple removal and installation of the suspension links and changing the drive shaft length allows an easier way to adjust the wheelbase.

LCX AX10^™ TRANSMISSION

The proven LCX AX10 transmission features a three gear layout, heavy-duty slipper, sealed gear cover, and all-metal gears. It accepts a wide range of gearing options. The overall ratio can be adjusted using different pinion and spur gear choices, allowing super high speed or competition-level crawling speed.

4-LINK REAR SUSPENSION

The suspension geometry utilizes a 4-link design for the rear which is optimized to reduce axle steer and torque twist. It also helps with steep off-camber climbs by having the proper amount of anti-squat and roll characteristics.

WB8 HD WILDBOAR^™ DRIVESHAFTS

WB8 HD Wildboar^™ front and rear driveshafts have a larger diameter cross pin (2x11mm) along with an M4 screw shaft (2mm hex drive) for added strength. A centre splined slider floats between each end and features added material to reduce flex and fatigue.

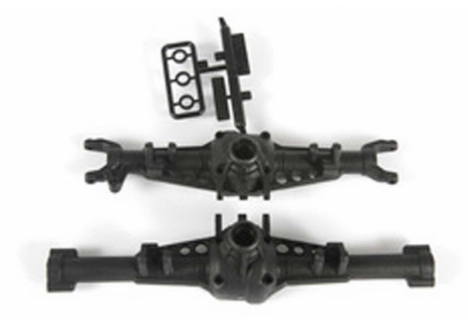

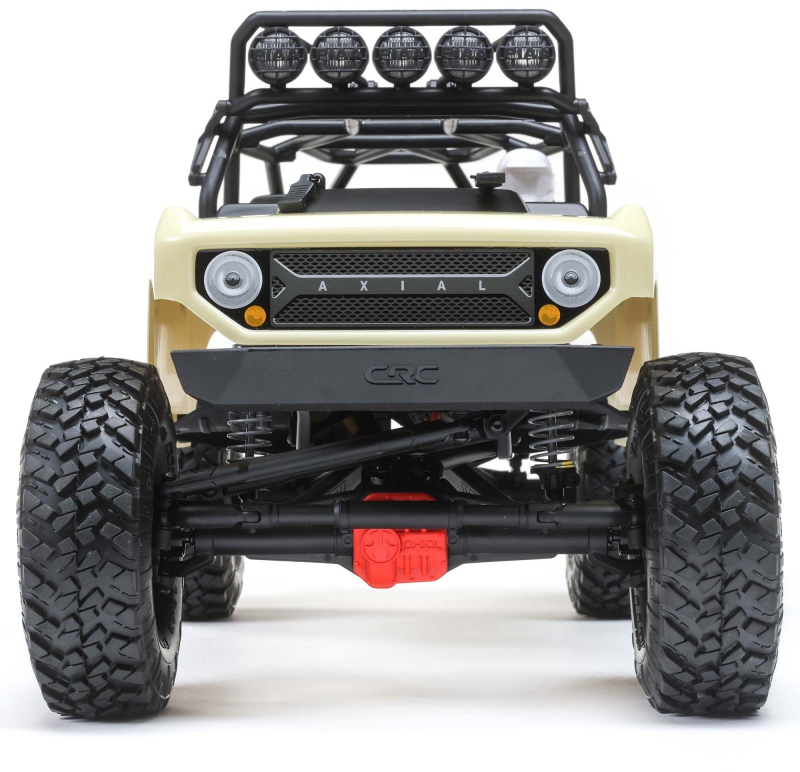

AR44^™ HIGH PINION AXLE

Single-piece AR44 front and rear axles feature a moulded truss for extreme durability. The pinion gear is 6mm above centre, increasing ground clearance and improving driveshaft angles. Metal dog bones and helical cut internal gears are standard equipment, and the drivetrain includes full, high-quality ball bearings.

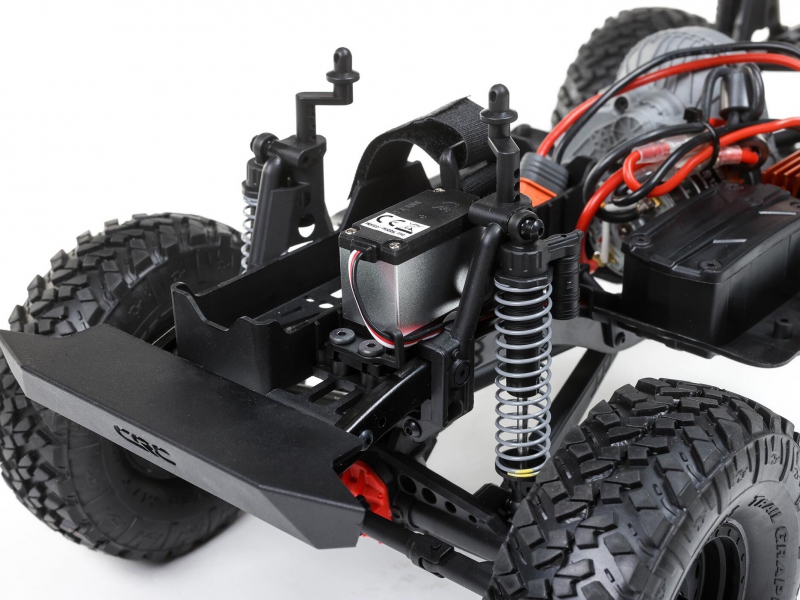

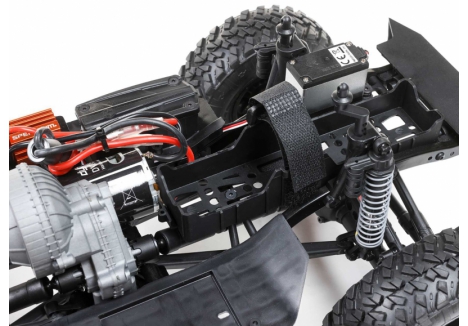

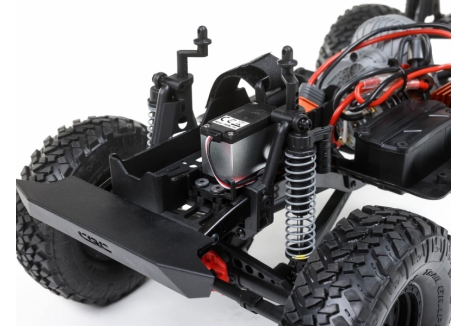

CHASSIS MOUNTED SERVO

Just as a full-size truck has its steering box located on the frame, Axial places the servo mounting location on the chassis. The adjustable servo mounting system allows a wide range of servos to be used.

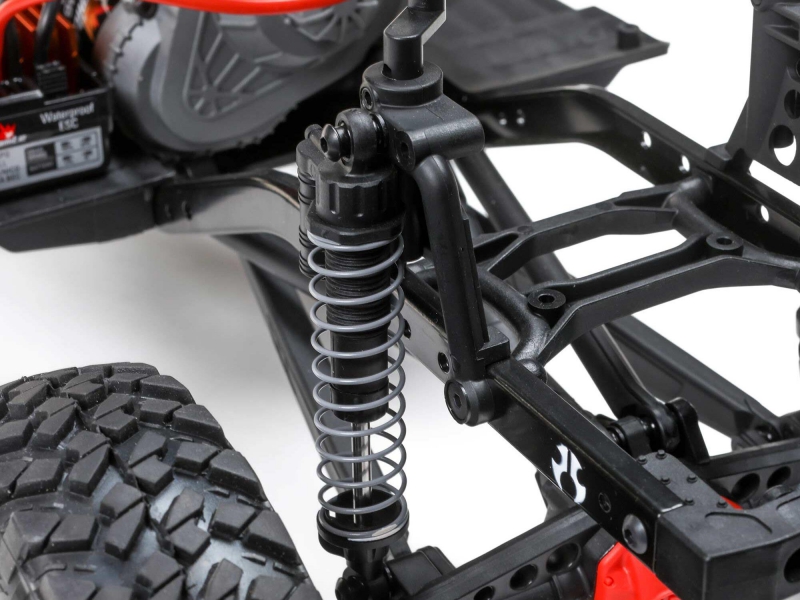

ADJUSTABLE COILOVER SHOCKS

The oil-filled shocks have threaded bodies and a single coilover spring. The dampening rate can be tuned to meet the demands of the trail. Realistic shock hoops with multiple mounting positions let you adjust your suspension for maximum performance.

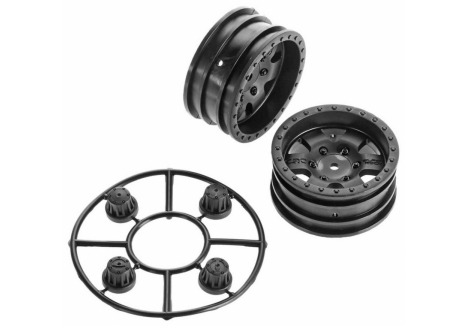

METHOD 307 HOLE 1.9" WHEELS

Officially licensed METHOD 307 Hole 1.9" Wheels offer durability and clean looks. The Hole features a simulated beadlock ring using a strategically placed under-cut on the wheel's outer lip.

NITTO TRAIL GRAPPLER M/T 1.9" TYRES

The S30 compound, 4.7" (119.4mm) x 1.9" (48.2mm) wide Nitto Trail Grappler M/T tyres included with the SCX10 II Deadbolt provide ample ground clearance for off-road trails. The large block tread offers excellent bite in all terrain.

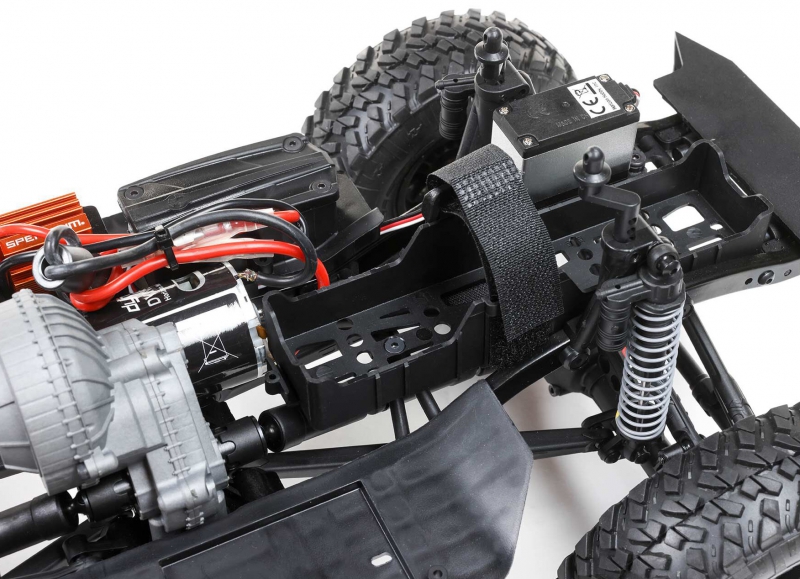

WATER-RESISTANT RECEIVER BOX

Located on the side plates, the receiver box allows easy access and lowers the centre of gravity. Three silicone seals are included: one for the antenna, one for the servo wires (includes three slots for three channels), and one that acts as a gasket for the receiver box cover.

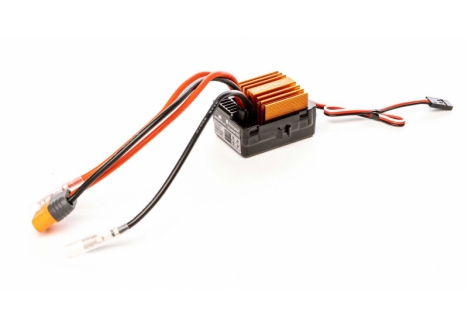

SPEKTRUM<sup>™</sup> 40A BRUSHED ESC WITH IC3<sup>®</sup> CONNECTOR

SPEKTRUM^™ 40A BRUSHED ESC WITH IC3^® CONNECTOR

The Spektrum^™ 40A Brushed ESC (SPMXSE1040) is 2-3S LiPo capable, yet easily switched "in the field" between LiPo and NiMH battery types.

40 Amp Rated

2-3S LiPo Compatible

5-9 Cell NiMH/NiCd Compatible

Forward/Reverse

Adjustable Drag Brakes

SPEKTRUM^™ SLT2 TRANSMITTER

The SLT2 2-channel radio system offers many features of higher-end 2.4GHz radio systems like throttle/steering travel adjust and throttle limiting.

Built-in 3-position throttle limiter

Steering and throttle rate and trim adjustments with steering reversing

FHSS 2.4GHz protocol offers extended range and interference-free performance

AA batteries included

SPEKTRUM^™ S614 SERVO

The Spektrum S614 servo offers 201 oz-in of steering torque and metal gears for strength. It's waterproof for extra protection against the elements.

SPEKTRUM<sup>™</sup> SLR300 SLT<sup>™</sup> RECEIVER

SPEKTRUM^™ SLR300 SLT^™ RECEIVER

The included SLR300 3-channel receiver features interference-resistant SLT FHSS 2.4GHz technology and channels for throttle, steering, and auxiliary functions. Its bind port can also be used to power devices like fans, lights, or a lap sensor.

Brand, Model and Product Type

Brand: Axial
Model: C-AXI03025T2
Product Type: Axial SCX10 II Deadbolt 4X4 Brushed RTR C-AXI03025T2, Axial SCX10 II Deadbolt 4X4 RTR kit C-AXI03025T2, Axial SCX10 II Deadbolt 4WD Brushed RTR C-AXI03025T2, SCX10 II Deadbolt with adjustable wheelbase C-AXI03025T2, SCX10 II Deadbolt with oil-filled coilover shocks C-AXI03025T2

Dimensions

Product Length: 46 cm – compact enough for trail agility yet long enough for stability
Product Width: 22.4 cm – wide stance enhances crawling grip and balance
Product Height: 22.9 cm – includes realistic cage and driver figure for scale appeal
Wheelbase: 30.5 cm – adjustable to 29 cm or 31.2 cm for terrain-specific tuning
Ground Clearance: 6.8 cm – high-pinion axle design boosts obstacle clearance
Front/Rear Track: 19.05 cm – equal width front and rear for predictable handling
Product Weight: 2.1 kg – lightweight for responsive control yet durable for rugged use

Drivetrain and Transmission

Drivetrain: 4WD with locked differentials for maximum traction
Drive Type: Forward, Brake, Reverse – controlled via Spektrum SLT2 radio system
Transmission: LCX AX10 with 3-gear layout and heavy-duty slipper clutch
Gear Ratio: 3.75 – optimised to reduce torque twist and improve crawling control
Final Drive Ratio: 40.44:1 – tuned for low-speed torque and precision
Gear Pitch: 32P – standardised for durability and compatibility
Spur Gear: 56T – paired with 14T pinion for balanced gearing

Suspension and Shocks

Shock Type: Oil-filled coilover shocks with threaded bodies for tunable dampening
Suspension Design: 4-link rear geometry – reduces axle steer and torque twist
Shock Mounting: Multiple positions via realistic shock hoops for performance tuning

Axles and Driveshafts

Axles: AR44 high-pinion front and rear with molded truss for extreme durability
Pinion Position: 6 mm above centre – improves driveshaft angles and ground clearance
Driveshafts: WB8 HD Wildboar front and rear – strengthened slider-floater tube reduces flex
Dog Bones: Metal construction – enhances drivetrain strength
Internal Gears: Helical cut – smoother engagement and reduced wear
Bearings: Full ball bearings throughout – improves efficiency and longevity

Wheels and Tyres

Wheels: METHOD 307 Hole 1.9 inch – licensed design with simulated beadlock styling
Tyres: Nitto Trail Grappler M/T 1.9 inch – S30 compound with large block tread for all-terrain grip
Wheel Hex Size: 12 mm – standard fitment for upgrade compatibility

Electronics and Control

Radio System: Spektrum SLT2 2.4GHz – includes throttle limiter and trim adjustments
Receiver: Spektrum SLR300 – 3-channel SLT FHSS with auxiliary bind port
ESC: Spektrum 40A Brushed – 2–3S LiPo and 5–9 cell NiMH/NiCd compatible
Motor: Dynamite 35-turn 540 brushed – reliable torque for crawling
Servo: Spektrum S614 waterproof metal gear – 201 oz-in torque for precise steering
Steering Type: 2WS with chassis-mounted servo and adjustable mounting system

Water Resistance and Build Features

Receiver Box: Water-resistant with three silicone seals – protects electronics and lowers centre of gravity
Chassis: Steel C-channel with cross braces – reinforced for rigidity and scale realism

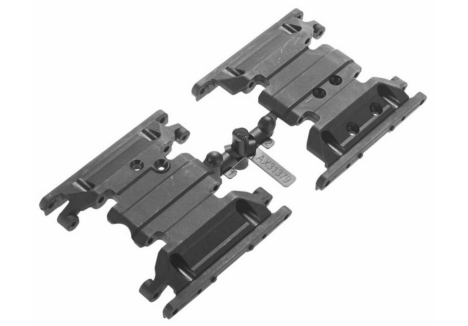

Skid Plate: Contoured design – reduces hang-ups and improves trail flow
Bumper: Licensed CRC front bumper – adds realism and protection

What's in the Box

Axial SCX10 II Deadbolt 4WD Brushed RTR
Spektrum SLT2 2.4GHz Radio System
Dynamite 35-Turn 540 Brushed Motor
Spektrum 40A Brushed ESC with IC3 Connector
Spektrum SLR300 3-Channel SLT FHSS Receiver
Spektrum S614 Waterproof Metal Gear Servo
4 AA Transmitter Batteries
1/10 SCX10 II Deadbolt 4WD Manual

What You Will Need

2–3S LiPo Battery with EC3 or IC3 connector
Compatible Battery Charger

Sold Separately

Optional 2-speed transmission
Optional servo winch

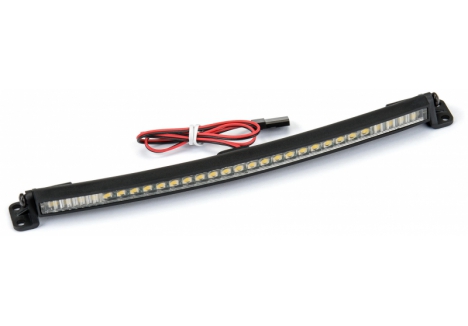

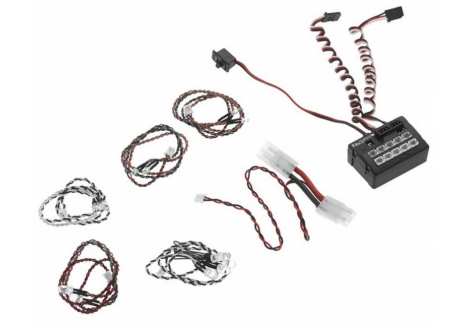

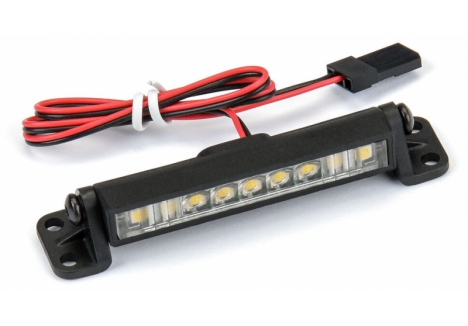

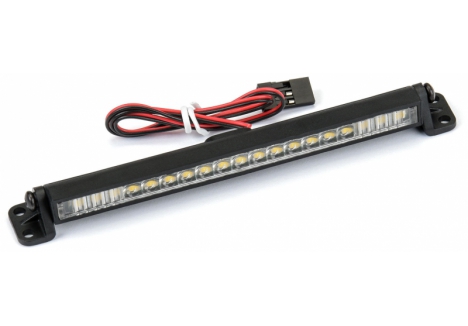

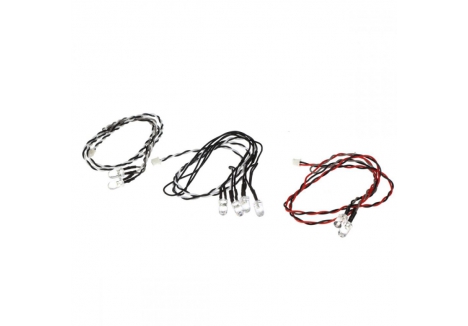

LED lights for light bar

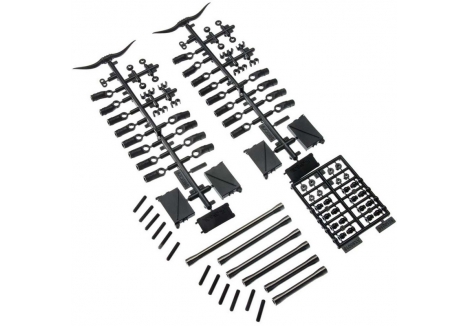

Wheelbase adjustment link kits

Warranty

1 Year Manufacturer Warranty

Product Description of AXIAL 1/10 SCX10 II Deadbolt 4WD RTR C-AXI03025T2

The Axial SCX10 II Deadbolt 4X4 Brushed RTR C-AXI03025T2 is a trail-ready, 1/10 scale off-road crawler engineered for enthusiasts who demand durability, agility, and upgrade potential. Built on the renowned SCX10 II chassis, this short wheelbase rig delivers exceptional handling across rugged terrain, combining scale realism with high-performance features. Whether you're navigating twisty trails or tackling steep rock faces, the Axial SCX10 II Deadbolt 4WD Brushed RTR offers a compelling balance of affordability and capability, making it ideal for both seasoned adventurers and newcomers to RC crawling.

Key features of the Axial SCX10 II Deadbolt 4WD Brushed RTR

Steel C-channel chassis - reinforced with cross braces for maximum rigidity
AR44 high-pinion axles - increased ground clearance and improved driveshaft angles
LCX AX10 transmission - adjustable gearing for speed or crawling precision
Oil-filled coilover shocks - threaded bodies for tunable dampening
Adjustable wheelbase - easily configured for different terrain setups
METHOD 307 Hole wheels - licensed design with simulated beadlock styling
Nitto Trail Grappler M/T tyres - large block tread for superior off-road grip
Spektrum SLT2 radio system - interference-resistant control with throttle limiter
Water-resistant receiver box - easy access and low centre of gravity

Why is the Axial SCX10 II Deadbolt 4WD Brushed RTR ideal for trail crawling?

The Axial SCX10 II Deadbolt 4WD Brushed RTR is built on a steel C-channel chassis that’s reinforced with cross braces to deliver unmatched rigidity. This high-strength frame is designed to withstand the rigours of off-road use while maintaining scale realism. The contoured skid plate reduces hang-ups on rocks and roots, and the simplified layout ensures quick maintenance access. Adjustable body and bumper mounts, swaybar mounting points, and optional winch and 2-speed transmission compatibility make the chassis highly adaptable for evolving trail demands.

How does the adjustable wheelbase enhance performance?

The SCX10 II Deadbolt with adjustable wheelbase offers a 12" configuration by default, but can be modified to 11.4" or 12.3" using optional link kits. This flexibility allows users to tailor the rig’s geometry to specific terrain challenges without compromising front-end suspension integrity. The rear suspension links and driveshaft length can be easily adjusted, giving users a streamlined method to optimise handling and stability for different crawling conditions.

What makes the LCX AX10 transmission a standout feature?

The LCX AX10 transmission in the Axial SCX10 II Deadbolt 4WD Brushed RTR features a robust three-gear layout, heavy-duty slipper clutch, sealed gear cover, and all-metal gears. This setup supports a wide range of gearing options, allowing users to configure the rig for high-speed trail runs or slow, controlled crawling. The transmission’s adjustable ratio is a key asset for those seeking competition-level performance or casual trail exploration.

Trail-tuned suspension and shock performance

The SCX10 II Deadbolt with oil-filled coilover shocks is equipped with threaded shock bodies and single coilover springs that can be tuned to meet the dampening demands of any terrain. Realistic shock hoops offer multiple mounting positions, enabling users to fine-tune suspension geometry for optimal articulation and stability. This level of adjustability ensures the rig remains composed over uneven surfaces and steep inclines.

What makes the drivetrain of the SCX10 II Deadbolt so durable?

The drivetrain of the Axial SCX10 II Deadbolt 4WD Brushed RTR includes single-piece AR44 front and rear axles with molded trusses for extreme durability. The high-pinion design raises the gear 6mm above centre, improving ground clearance and driveshaft angles. Metal dog bones and helical cut internal gears are standard, supported by full ball bearings throughout the system. This configuration reduces torque twist and enhances gear contact for smoother power delivery.

Wheel and tyre setup for maximum grip

The licensed METHOD 307 Hole wheels on the Axial SCX10 II Deadbolt 4WD Brushed RTR feature a simulated beadlock ring and durable construction. Paired with S30 compound Nitto Trail Grappler M/T tyres measuring 4.7" x 1.9", the rig achieves excellent ground clearance and traction. The aggressive tread pattern ensures reliable grip across mud, gravel, and rocky surfaces, making the crawler highly capable in diverse environments.

Spektrum electronics for reliable control

The included Spektrum SLT2 2.4GHz radio system offers advanced features such as throttle limiting, steering rate adjustment, and trim controls. The FHSS protocol ensures extended range and interference-free performance. The Spektrum SLR300 receiver supports auxiliary functions and includes a bind port for powering accessories like lights or fans. The Spektrum S614 waterproof metal gear servo delivers 201 oz-in of torque, ensuring precise steering control even in wet conditions.

How does the receiver box improve usability?

The water-resistant receiver box in the Axial SCX10 II Deadbolt 4WD Brushed RTR is mounted on the side plates to lower the centre of gravity and simplify access. It includes three silicone seals for antenna, servo wires, and the cover gasket, protecting internal components from moisture and debris. This thoughtful design enhances reliability and makes field maintenance more convenient.

Is the Axial SCX10 II Deadbolt 4WD Brushed RTR suitable for beginners?

Yes, the Axial SCX10 II Deadbolt 4WD Brushed RTR is an excellent entry point for hobbyists thanks to its ready-to-run configuration, durable build, and upgrade potential. The included Spektrum electronics, adjustable chassis components, and robust drivetrain make it a versatile platform that grows with the user’s skill level. Its short wheelbase and agile handling also make it forgiving for those learning to navigate technical terrain.

Why is the SCX10 II Deadbolt considered one of the best off-road RC crawler kits?

The Axial SCX10 II Deadbolt 4WD Brushed RTR combines scale realism, mechanical durability, and trail-tuned performance in a single package. From its steel chassis and AR44 axles to its oil-filled shocks and Spektrum electronics, every component is engineered for off-road excellence. The adjustable wheelbase and transmission gearing add layers of customisation, making this rig one of the best off-road RC crawler kits available for enthusiasts seeking reliability and excitement.

Start your adventure with the Axial SCX10 II Deadbolt 4X4 Brushed RTR C-AXI03025T2 and experience trail-ready performance in a compact, upgradeable format. Buy Axial SCX10 II Deadbolt 4X4 Brushed RTR C-AXI03025T2 online today and take your crawling to the next level.

Technical Specifications of AXIAL 1/10 SCX10 II Deadbolt 4WD RTR C-AXI03025T2

Brand, Model and Product Type

Brand: Axial
Model: C-AXI03025T2
Product Type: Axial SCX10 II Deadbolt 4X4 Brushed RTR C-AXI03025T2, Axial SCX10 II Deadbolt 4X4 RTR kit C-AXI03025T2, Axial SCX10 II Deadbolt 4WD Brushed RTR C-AXI03025T2, SCX10 II Deadbolt with adjustable wheelbase C-AXI03025T2, SCX10 II Deadbolt with oil-filled coilover shocks C-AXI03025T2

Dimensions

Product Length: 46 cm – compact enough for trail agility yet long enough for stability
Product Width: 22.4 cm – wide stance enhances crawling grip and balance
Product Height: 22.9 cm – includes realistic cage and driver figure for scale appeal
Wheelbase: 30.5 cm – adjustable to 29 cm or 31.2 cm for terrain-specific tuning
Ground Clearance: 6.8 cm – high-pinion axle design boosts obstacle clearance
Front/Rear Track: 19.05 cm – equal width front and rear for predictable handling
Product Weight: 2.1 kg – lightweight for responsive control yet durable for rugged use

Drivetrain and Transmission

Drivetrain: 4WD with locked differentials for maximum traction
Drive Type: Forward, Brake, Reverse – controlled via Spektrum SLT2 radio system
Transmission: LCX AX10 with 3-gear layout and heavy-duty slipper clutch
Gear Ratio: 3.75 – optimised to reduce torque twist and improve crawling control
Final Drive Ratio: 40.44:1 – tuned for low-speed torque and precision
Gear Pitch: 32P – standardised for durability and compatibility

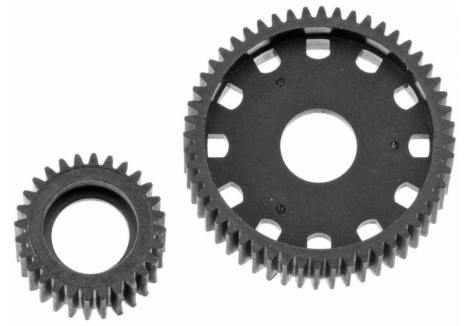

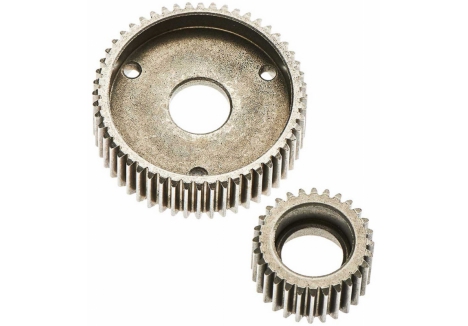

Spur Gear: 56T – paired with 14T pinion for balanced gearing

Suspension and Shocks

Shock Type: Oil-filled coilover shocks with threaded bodies for tunable dampening
Suspension Design: 4-link rear geometry – reduces axle steer and torque twist
Shock Mounting: Multiple positions via realistic shock hoops for performance tuning

Axles and Driveshafts

Axles: AR44 high-pinion front and rear with molded truss for extreme durability
Pinion Position: 6 mm above centre – improves driveshaft angles and ground clearance

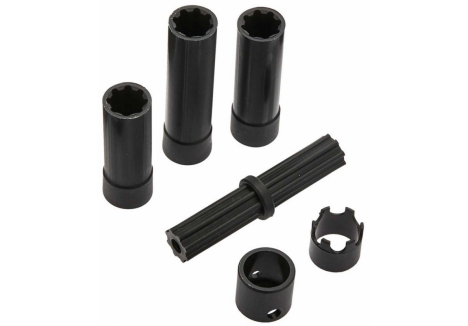

Driveshafts: WB8 HD Wildboar front and rear – strengthened slider-floater tube reduces flex

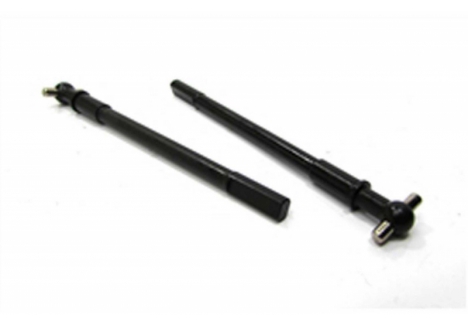

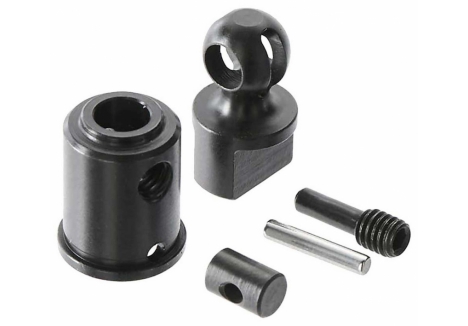

Dog Bones: Metal construction – enhances drivetrain strength

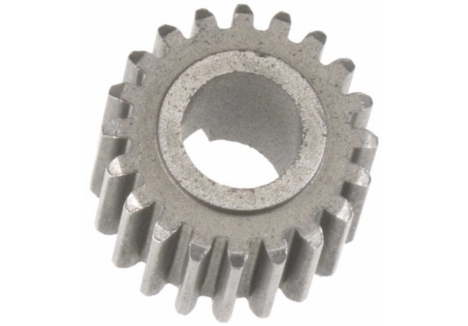

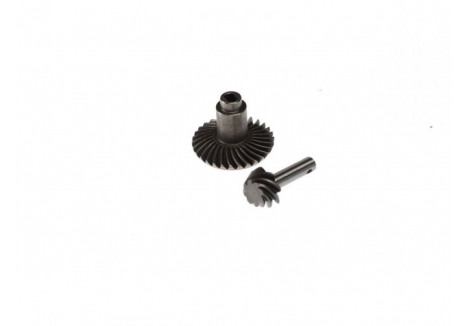

Internal Gears: Helical cut – smoother engagement and reduced wear

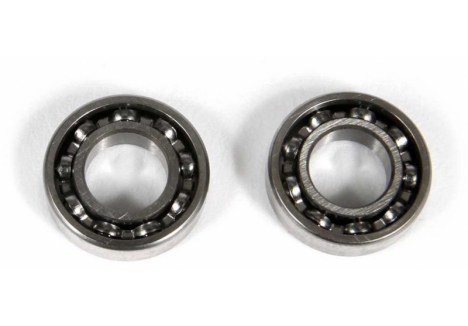

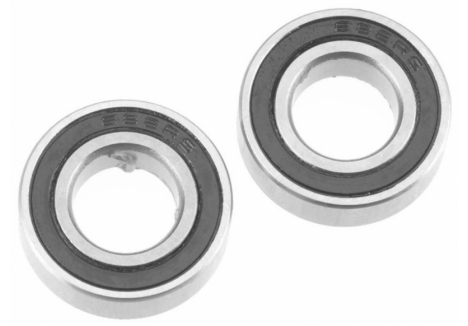

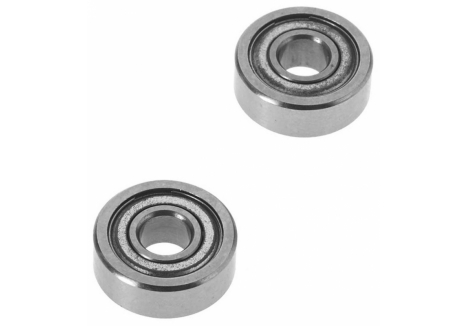

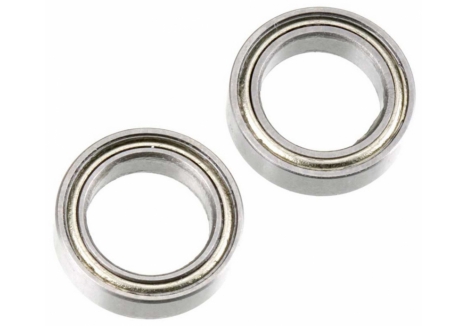

Bearings: Full ball bearings throughout – improves efficiency and longevity

Wheels and Tyres

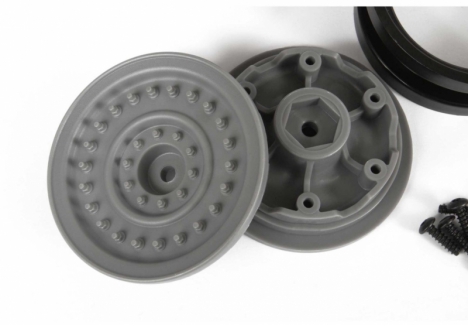

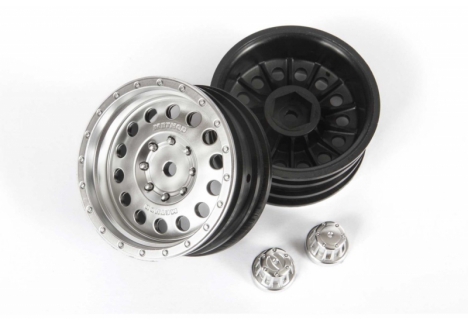

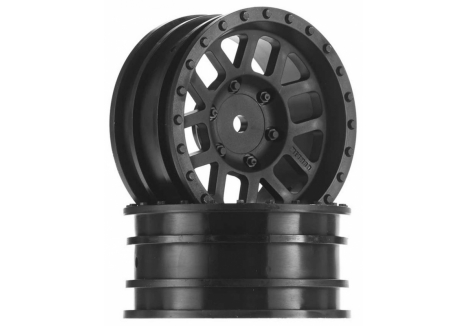

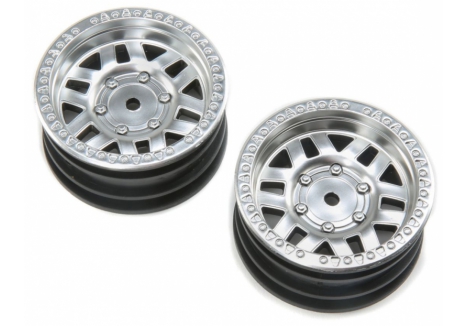

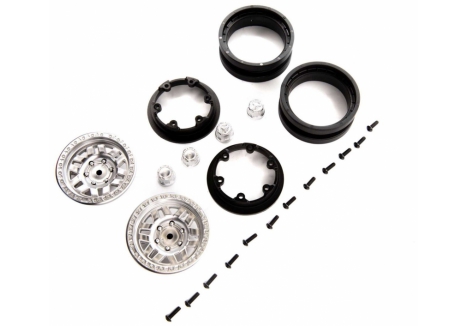

Wheels: METHOD 307 Hole 1.9 inch – licensed design with simulated beadlock styling

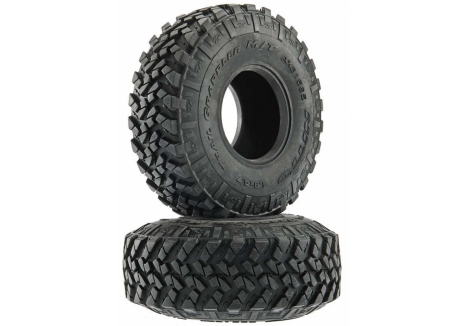

Tyres: Nitto Trail Grappler M/T 1.9 inch – S30 compound with large block tread for all-terrain grip

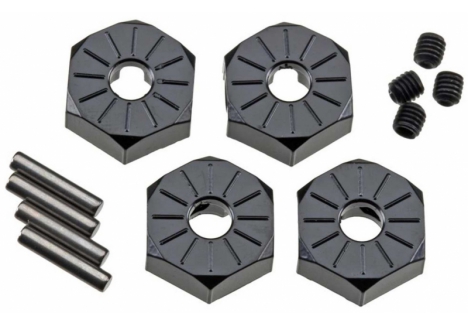

Wheel Hex Size: 12 mm – standard fitment for upgrade compatibility

Electronics and Control

Radio System: Spektrum SLT2 2.4GHz – includes throttle limiter and trim adjustments
Receiver: Spektrum SLR300 – 3-channel SLT FHSS with auxiliary bind port
ESC: Spektrum 40A Brushed – 2–3S LiPo and 5–9 cell NiMH/NiCd compatible
Motor: Dynamite 35-turn 540 brushed – reliable torque for crawling
Servo: Spektrum S614 waterproof metal gear – 201 oz-in torque for precise steering
Steering Type: 2WS with chassis-mounted servo and adjustable mounting system

Water Resistance and Build Features

Receiver Box: Water-resistant with three silicone seals – protects electronics and lowers centre of gravity
Chassis: Steel C-channel with cross braces – reinforced for rigidity and scale realism
Skid Plate: Contoured design – reduces hang-ups and improves trail flow
Bumper: Licensed CRC front bumper – adds realism and protection

What's in the Box

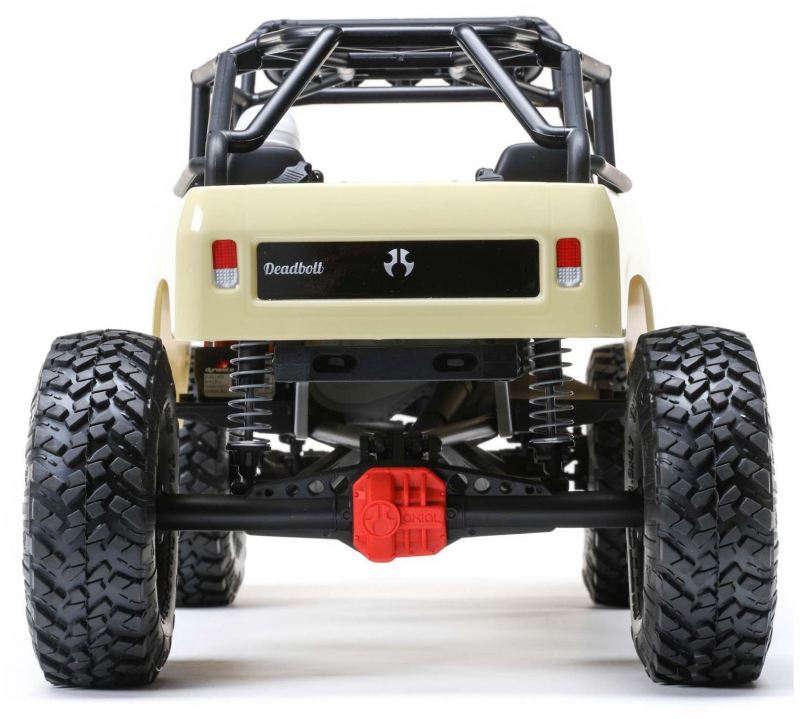

Axial SCX10 II Deadbolt 4WD Brushed RTR
Spektrum SLT2 2.4GHz Radio System
Dynamite 35-Turn 540 Brushed Motor
Spektrum 40A Brushed ESC with IC3 Connector
Spektrum SLR300 3-Channel SLT FHSS Receiver
Spektrum S614 Waterproof Metal Gear Servo
4 AA Transmitter Batteries
1/10 SCX10 II Deadbolt 4WD Manual

What You Will Need

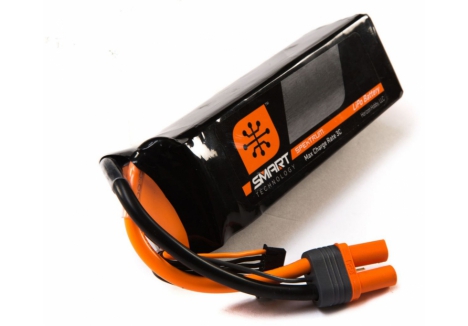

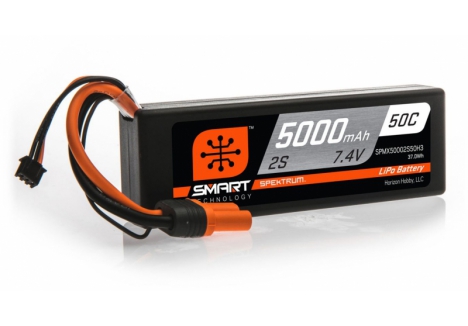

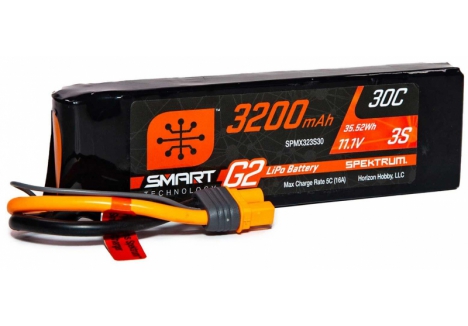

2–3S LiPo Battery with EC3 or IC3 connector

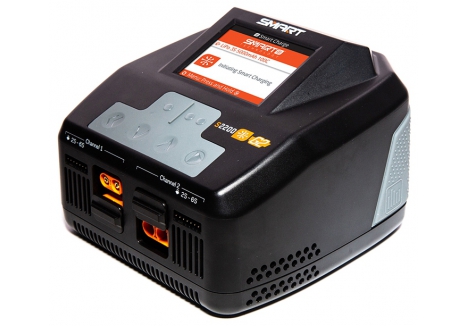

Compatible Battery Charger

Sold Separately

Optional 2-speed transmission
Optional servo winch
LED lights for light bar
Wheelbase adjustment link kits

Warranty

1 Year Manufacturer Warranty

Parts Diagrams

Front Assembly

Rear Assembly

Transmission Assembly

Chassis Assembly 1

Chassis Assembly 2

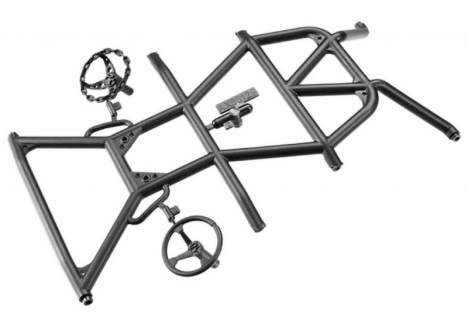

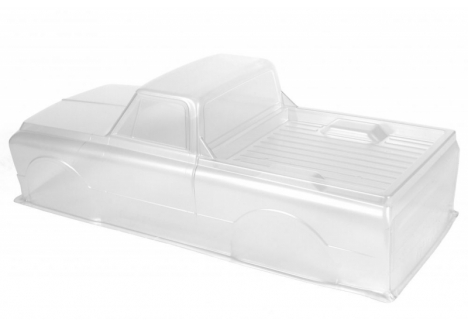

Roll Cage and Bodyshell

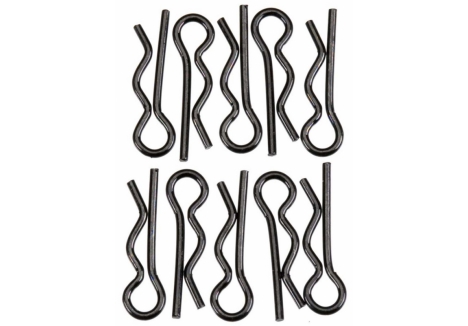

Shocks / Wheels & Tyres / Body Pins

Finance Options

Click to see Novuna Finance Information

Novuna Personal Finance Available on this product

DEPOSIT	MONTHS	APR	MONTHLY PAYMENTS	TOTAL AMOUNT PAYABLE
24 Month Credit
£36.65	24	19.9%	24 x £16.51	£432.89
36 Months Credit
£36.65	36	19.9%	36 x £11.97	£467.57
48 Months Credit
£36.65	48	19.9%	48 x £9.74	£504.17
Buy Now Pay Later 48 months (6 months Deferred)
£36.65	48	24.9%	48 x £11.49	£588.17
Buy Now Pay Later 48 months (10 months Deferred)
£36.65	48	24.9%	48 x £12.14	£619.37
Buy Now Pay Later 48 months (12 months Deferred)
£36.65	48	24.9%	48 x £12.84	£652.97

We want to make sure your delivery goes smoothly, so here are some important details about our service:

For orders above £120, we offer delivery to most mainland UK addresses. For orders under £120, we can still deliver to Northern Ireland and the outlying isles, as long as the item can be sent by Royal Mail, weighs less than 30kg, and fits within 61cm × 46cm × 46cm. Some highland and remote areas may carry an extra delivery charge as couriers often apply surcharges in these locations. If you live in one of these areas, feel free to contact us before ordering so we can confirm the delivery options and costs for you.
Most of our products include delivery in the price. If your order is under £90, a small delivery fee will apply but do not worry this will always be clearly shown at checkout before you complete your purchase.
Depending on what you choose at checkout, your order will usually be delivered either the next working day or within 2 working days. For next day delivery please place your order before 2:00pm. Orders are dispatched Monday to Friday only. Some items may take a little longer and if that is the case we will always show the expected delivery time on the product page.
If your order includes items with different dispatch times we will normally wait and send everything together once all items are in stock. If one of the items is going to take a while we will give you the choice either wait for everything to arrive or let us send the available items now and deliver the rest later. It is up to you.
We use trusted delivery partners to make sure your order gets to you safely and on time. We use DPD for next working day deliveries and Royal Mail for the 2 day option.
As soon as your order is on its way we will send you a tracking number by email. If you provide your mobile number at checkout we will also send delivery updates straight to your phone so you can keep an eye on progress.
If a product is marked as "Dispatched within 3 working days" delivery usually takes around 3 to 5 working days from when your order is placed.
For customers in Inverness and other parts of the Scottish Highlands deliveries can take up to 2 working days even if you select next day delivery as couriers do not currently offer a guaranteed next day service to those areas.
