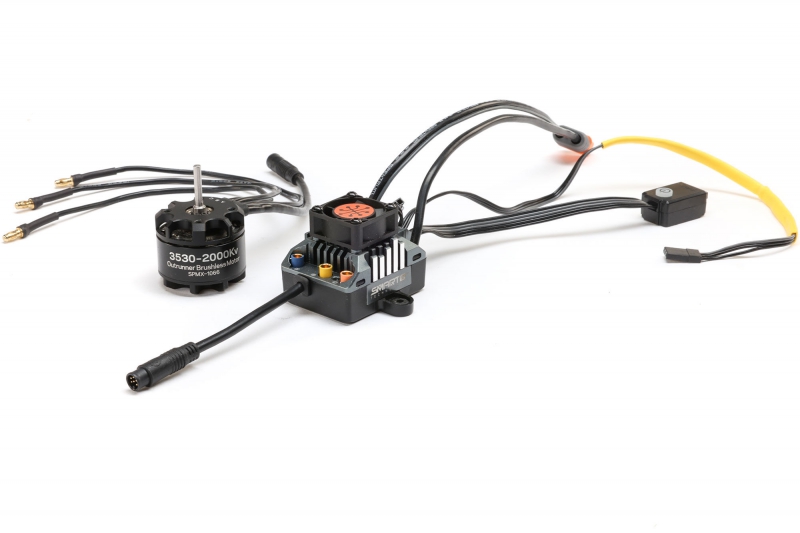

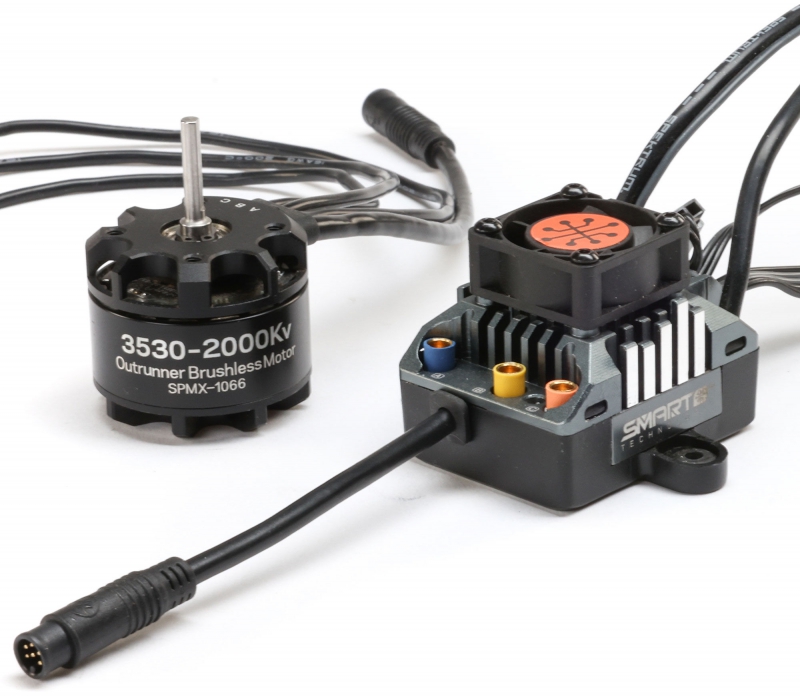

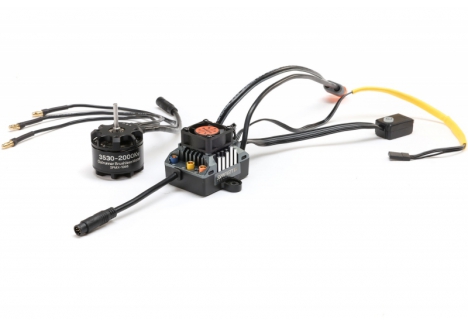

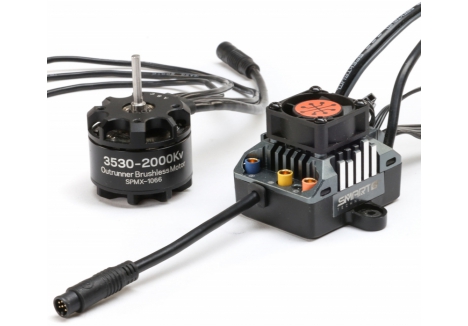

Spektrum Firma 1/10 Smart Sensored Outrunner Motor / ESC 2-in-1 Combo Overview
The SpektrumT Smart 1/10 Sensored Outrunner 2000Kv Motor/ESC Combo is the perfect choice for your crawler or scaler models running on 2-4S LiPo power. This combo features a low-cog, 12-pole, 14-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for durability and smooth rotation. This combo is specifically developed for 1/10 crawlers and scalers to provide ultra-smooth low speed control and performance and reliability. The Motor/ESC combo includes preinstalled 3.5mm gold-plated bullet connectors for easy installation. Furthermore, the included SPMX-1066 motor is perfectly matched for the included Firma 80A Smart ESC (SPMXSE2060S).

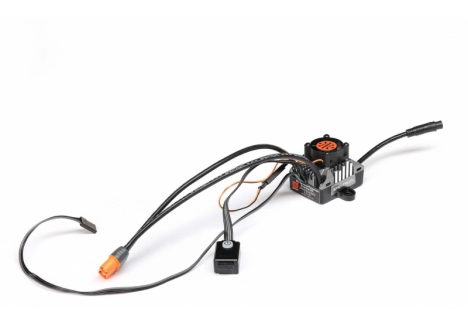

Spektrum Firma 80A Brushless Sensored Smart ESC,Outrunner (SPMXSE2060S) Features
Smart All-In-One Telemetry
Enable/Disable Drag Brake From Compatible Spektrum Transmitters
Fast, Powerful 32-Bit ARM M4 Processor
Multiple Programming Options
Multi-Point Protection
Waterproof (See Instructions For Details)

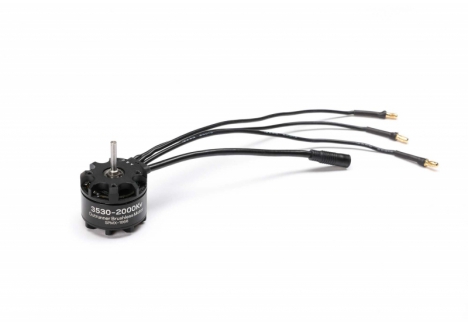

Spektrum Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor (SPMX-1066) Features
2-3S LiPo Power Compatible
12-pole Outrunner
3.175mm Output Shaft
Pre-installed 3.5mm Gold-plated Bullet Connectors
Product Description of Spektrum M-SPMXSEMC22 Firma 2000Kv sensored outrunner motor and ESC combo
The Spektrum M-SPMXSEMC22 Firma 2000Kv sensored outrunner motor and ESC combo for 1/10 crawlers is a purpose-built 2-in-1 system engineered for torque-rich low-speed control, Smart telemetry integration, and waterproof reliability. Designed specifically for 1/10 scale crawlers and scalers operating on 2S–4S LiPo power, this combo merges a sensored 2000Kv outrunner motor with a 60A Smart ESC, delivering seamless throttle response and real-time system feedback. The motor features a 14-pole rotor with a 12-magnet configuration, CNC-machined aluminum housing, and precision bearings for smooth rotation and long-term durability. With drag brake support, passive cooling, and pre-installed IC3 and 3.5mm bullet connectors, the system simplifies installation while enhancing performance. Whether navigating technical terrain or scaling steep inclines, the Spektrum M-SPMXSEMC22 combo offers intelligent control and rugged dependability for serious off-road builds.
Key features of the Spektrum M-SPMXSEMC22 combo
- 14-pole rotor – delivers ultra-smooth throttle response and consistent torque at crawl speeds
- Smart telemetry support – enables real-time monitoring of system metrics without additional modules
- Drag brake functionality – improves downhill control and enhances scale realism
- CNC-machined aluminum motor housing – increases structural integrity and thermal efficiency
- Pre-installed IC3 and 3.5mm bullet connectors – simplifies wiring and ensures secure high-current connections
- Waterproof construction – supports reliable operation in wet, muddy, and unpredictable trail conditions
How does the 14-pole rotor improve low-speed crawling?
The Spektrum M-SPMXSEMC22 with 14-pole rotor and ultra-smooth low-speed control is optimized for technical crawling where precision and torque are critical. The 12-pole, 14-magnet rotor design minimizes cogging and ensures that even the smallest throttle inputs result in predictable movement. This configuration allows drivers to maintain control over steep inclines, rock gardens, and tight switchbacks without sacrificing responsiveness. The sensored feedback loop further enhances throttle fidelity, making the system ideal for scale builds that require realistic and consistent low-speed behavior.
What makes Smart telemetry integration valuable for trail performance?
The Spektrum Smart ESC with telemetry and 2000Kv motor for 2S–4S scaler builds includes a one-wire telemetry system that transmits RPM, voltage, temperature, and battery capacity directly to compatible Spektrum transmitters. This real-time data stream allows drivers to monitor system health during operation, make informed adjustments, and prevent performance degradation due to overheating or voltage drops. The telemetry functionality is embedded within the ESC architecture, eliminating the need for external sensors or modules and preserving the simplicity of the 2-in-1 combo design.
Why is drag brake support essential for scale realism?
The Spektrum 2000Kv motor with drag brake support and CNC-machined aluminum housing features programmable drag brake functionality that can be enabled or disabled via compatible Spektrum transmitters. This feature allows the motor to hold position when throttle input ceases, simulating the behavior of mechanical brakes in full-scale vehicles. It’s particularly useful during downhill descents or when pausing on uneven terrain, providing added control and realism. The drag brake strength can be adjusted to match driving style and terrain, giving users the flexibility to fine-tune their crawler’s behavior for optimal performance.
How does the CNC-machined aluminum housing enhance durability?
The Spektrum Firma combo for waterproof crawling and Smart telemetry integration includes a motor housed in CNC-machined aluminum, which offers superior structural rigidity and heat dissipation. This precision-machined enclosure protects internal components from vibration, impact, and environmental exposure, while also helping to regulate operating temperatures during extended runs. The aluminum housing contributes to the system’s overall reliability, ensuring that the motor maintains consistent performance even in rugged and unpredictable trail conditions.
What installation advantages do IC3 and 3.5mm bullet connectors offer?
The Spektrum M-SPMXSEMC22 brushless 2-in-1 system with IC3 and 3.5mm bullet connectors comes pre-equipped with high-quality connection points that simplify setup and ensure secure electrical contact. The IC3 battery plug is compatible with Spektrum Smart LiPo batteries, enabling full telemetry functionality and efficient power delivery. The 3.5mm bullet connectors provide a snug fit between motor and ESC, minimizing resistance and reducing the risk of disconnection during operation. These connectors are designed for ease of use, allowing users to install the combo quickly and confidently without soldering or custom adapters.
Is the Spektrum M-SPMXSEMC22 combo suitable for waterproof crawler builds?
The Spektrum M-SPMXSEMC22 Firma 2000Kv sensored outrunner motor and ESC combo for 1/10 crawlers is built to withstand wet and muddy environments, making it ideal for trail rigs and scale crawlers that operate in unpredictable conditions. The waterproof construction ensures that the system remains operational even when exposed to moisture, while the passive cooling design maintains thermal stability without the need for fans or external cooling systems. For drivers seeking the best Spektrum outrunner system for torque-rich control and real-time data feedback, this combo delivers intelligent performance and rugged reliability in a compact, installation-ready format.
For RC enthusiasts upgrading their 1/10 scale crawler with a Smart-enabled, waterproof brushless system that delivers torque-rich control and telemetry feedback, the Spektrum M-SPMXSEMC22 Firma 2000Kv sensored outrunner motor and ESC combo for 1/10 crawlers offers a complete solution for scale realism and trail performance. Buy Spektrum M-SPMXSEMC22 combo for 1/10 scale crawler upgrades with Smart ESC.
Technical Specifications of Spektrum M-SPMXSEMC22 Firma 2000Kv sensored outrunner motor and ESC combo
Brand, Model and Product Type
- Brand: Spektrum
- Model: M-SPMXSEMC22
- Product Type: Spektrum M-SPMXSEMC22 Firma 2000Kv sensored outrunner motor and ESC combo for 1/10 crawlers, Spektrum Smart ESC with telemetry and 2000Kv motor for 2S–4S scaler builds, Spektrum M-SPMXSEMC22 brushless 2-in-1 system with IC3 and 3.5mm bullet connectors, Spektrum M-SPMXSEMC22 with 14-pole rotor and ultra-smooth low-speed control, Spektrum Firma combo for waterproof crawling and Smart telemetry integration
Dimensions
- Motor Size: 3.5 cm diameter × 3.0 cm length – compact format for 1/10 scale crawler platforms
- Motor Shaft Diameter: 0.3175 cm – compatible with standard crawler drivetrain couplers
- Motor Shaft Length: 1.85 cm – ensures secure gear mesh and optimal alignment
Performance & Electrical Specifications
- RPM/Volt (Kv): 2000Kv – delivers torque-rich low-speed control for technical crawling
- Input Voltage Range: 2S–4S LiPo (6V–16.8V) – supports flexible power configurations for trail and scaler builds
- Maximum Continuous Current: 60A – enables sustained operation under demanding terrain conditions
- Maximum Burst Current: 360A – supports peak torque delivery during steep climbs and descents
- Motor Type: Brushless Sensored Outrunner – engineered for ultra-smooth throttle response and crawl precision
- Rotor Configuration: 14-pole rotor with 12 magnets – minimizes cogging and enhances low-speed fidelity
- ESC Type: Sensored Brushless Outrunner – optimized for 1/10 crawler applications
- BEC Voltage: Selectable 6V or 7.4V – supports high-torque servos and auxiliary electronics
- BEC Continuous Current: 6A – ensures stable power delivery to receiver and peripherals
Smart Technology & Control Features
- Telemetry System: Spektrum Smart ESC with telemetry and 2000Kv motor for 2S–4S scaler builds – transmits RPM, voltage, temperature, and battery data in real time
- Drag Brake Functionality: Programmable via compatible Spektrum transmitters – enhances downhill control and scale realism
- Processor: 32-bit ARM M4 – enables high-resolution signal processing and precise motor output
- Programming Options: Button interface, Smart ESC Programming Box, and SmartLink USB – allows flexible tuning and firmware updates
Construction & Environmental Features
- Motor Housing: CNC-machined aluminum – improves heat dissipation and structural durability for rugged trail use
- Cooling System: Passive – maintains thermal stability without external fans
- Waterproof Rating: Yes (refer to manufacturer instructions) – supports reliable operation in wet and muddy conditions
- Bearings: Precision ball bearings – reduce friction and support smooth rotation
Connectivity & Compatibility
- Battery Connector: IC3 plug – compatible with Spektrum Smart LiPo batteries for telemetry integration
- Motor Connectors: 3.5mm gold-plated bullet connectors – pre-installed for secure, high-current motor-to-ESC connection
- Application: Designed for 1/10 scale crawlers and scalers – optimized for torque-focused trail builds
What’s in the Box
- (1) Firma 60A Brushless Sensored Smart ESC, Outrunner (SPMXSE2060S)
- (1) Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm (SPMX-1066)
What You Require
- Spektrum Smart Technology LiPo Battery (2S–4S)
- Spektrum Surface Receiver
- Spektrum Transmitter with telemetry support
