Overview

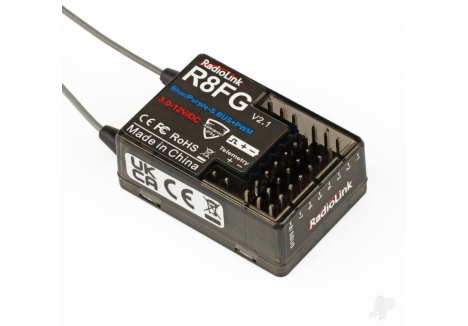

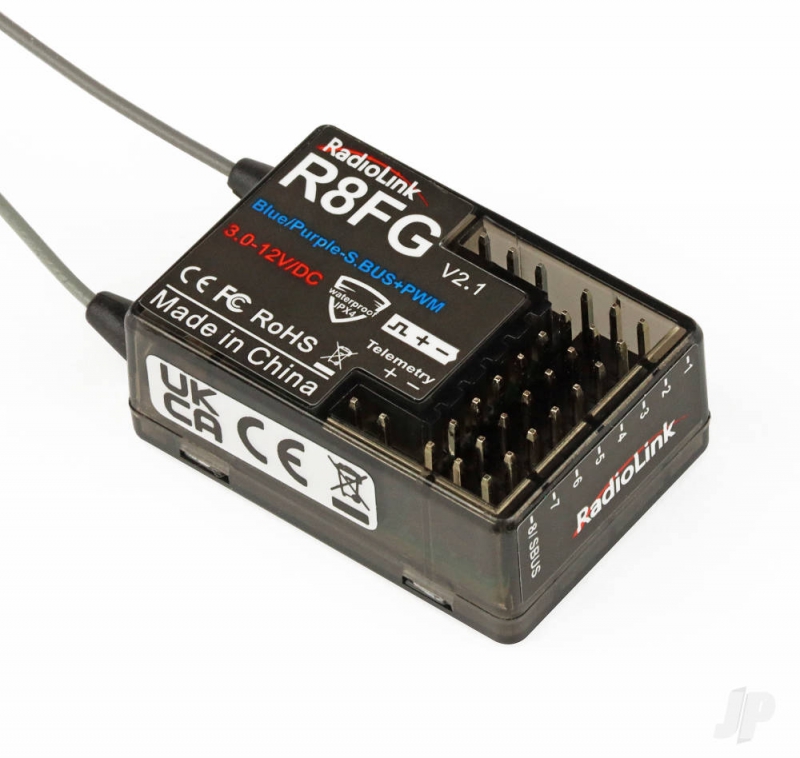

The RadioLink R8FG 8-Channel Receiver with Gyro Function is a professional-grade receiver designed specifically for RC car enthusiasts in the UK who demand precision control and advanced stabilisation technology. This compact, splash-proof receiver combines sophisticated FHSS spread spectrum technology with an integrated gyroscope to deliver exceptional handling characteristics for drift cars, touring vehicles, and high-performance surface models. Whether you're a serious competitor or an experienced hobbyist, the R8FG offers the kind of responsive, stable control that separates premium equipment from standard alternatives.
Built by RadioLink, a recognised manufacturer of advanced RC radio systems, the R8FG represents the cutting edge of surface vehicle receiver technology. Its integration of gyro stabilisation technology means you get professional-grade correction and handling without needing external modules or additional hardware. The receiver has been engineered to work seamlessly with RadioLink's range of professional transmitters, including the RC8X, RC6GS V3, RC4GS V3, and several other compatible systems, making it an ideal choice for UK RC enthusiasts looking to upgrade their control systems or build a complete professional setup.
At just 10.5 grams, the R8FG's compact dimensions (35 x 24 x 14mm) make it perfect for modern RC cars where space and weight are critical. The splash-proof IPX4 rating means you can run your models in light wet conditions without fear of water damage, whilst the advanced telemetry system provides real-time feedback on signal strength, receiver voltage, and model battery voltage right on your transmitter screen. This level of feedback and control is precisely what serious RC car UK enthusiasts have come to expect from professional equipment.
Key Features
- FHSS Spread Spectrum Protocol — The R8FG uses FHSS (Frequency Hopping Spread Spectrum) technology, which provides secure, interference-resistant communication between your transmitter and receiver, ensuring reliable control even in environments with other RC frequencies operating nearby.
- 8 Channels of PWM and SBUS Output — With 8 full channels, you can control multiple servos and functions simultaneously, and the receiver supports both traditional PWM servo signals and advanced SBUS signals for enhanced compatibility with modern digital servos and systems.
- 4096 Resolution PWM Output — When paired with compatible transmitters using FHSS V2 protocol (available in R8FG V2.0 and later), the receiver outputs 4096-level PWM resolution instead of the standard 2048, providing significantly more refined servo positioning and smoother steering control.
- Integrated Gyroscope with Customisable Sensitivity — The R8FG features a built-in high-performance gyroscope that actively stabilises your model during cornering and drift manoeuvres, with adjustable sensitivity controlled via your transmitter's knobs and switches, allowing you to fine-tune the response for different driving styles and track conditions.
- Ultra-Low Response Latency — When paired with a RadioLink RC8X transmitter, the R8FG delivers response latencies as low as 3ms, with 4ms and 14ms options available depending on your receiver version and servo type, ensuring your inputs translate to model movement with minimal delay.
- Dual Antenna Design — The receiver incorporates two separate antennas positioned at optimum angles to maximise signal reception and eliminate dead zones, providing a theoretical control range of up to 600 metres in unobstructed areas free of interference.
- 600 Metre Control Range — In optimal conditions with clear line-of-sight and no signal interference, the R8FG delivers control at ranges up to 600 metres, more than sufficient for any ground-based RC car application.
- Real-Time Telemetry System — The receiver continuously transmits telemetry data to your transmitter, including RSSI signal strength, receiver voltage, and model battery voltage (supporting up to 8S LiPo batteries at 33.6V maximum), with customisable low-voltage alarms to prevent over-discharging your batteries.
- Reverse Polarity Protection — All 8 channels feature reverse polarity protection circuitry to safeguard critical receiver components from accidental backwards battery connections, providing peace of mind during rapid model setup changes.
- Splash-Proof IPX4 Rating — The receiver is protected to IPX4 waterproofing standard, meaning it can withstand splash and spray from any direction, allowing you to run your RC car in light rain or wet conditions without risk of water ingress damage.
- Compact, Lightweight Design — Measuring just 35 x 24 x 14mm and weighing only 10.5 grams, the R8FG fits easily into modern compact RC cars whilst keeping weight to an absolute minimum, which improves acceleration, braking and handling characteristics.
- Subsidiary ID Function — The receiver supports RadioLink's Subsidiary ID system when paired with RC8X transmitters, allowing you to bind multiple receivers and switch control between different models whilst keeping all devices on the same transmitter.

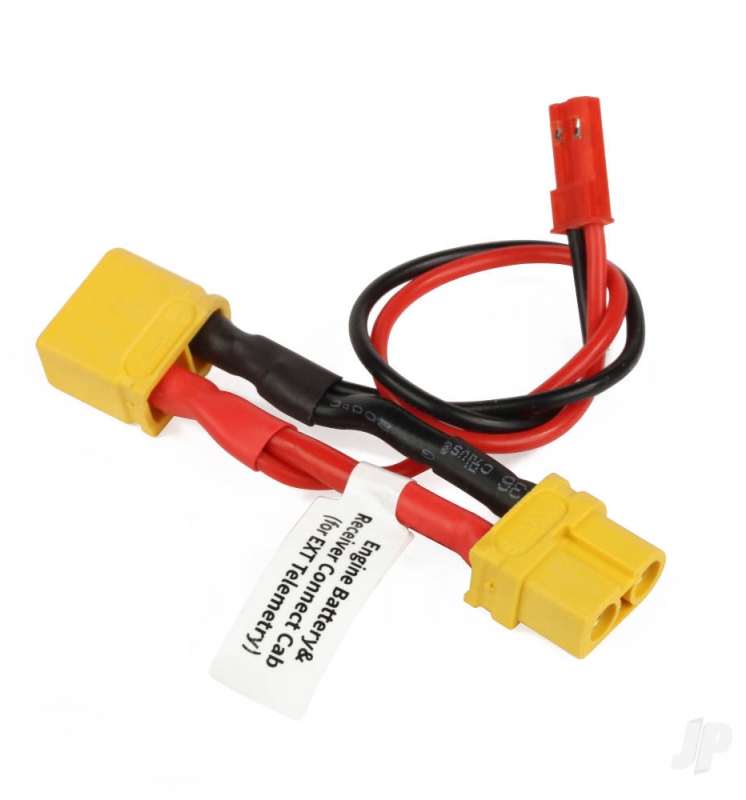

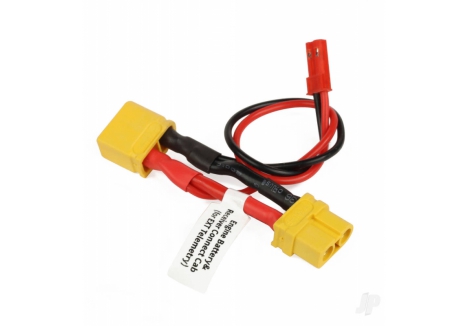

- Motor Voltage Telemetry Cable Included — The package includes a specialised JST connector telemetry cable that allows you to monitor your model battery voltage in real-time by connecting between your ESC and battery, with no additional modules required.
Technical Performance
The R8FG represents a significant engineering achievement in compact receiver design. Operating from a 3-12V input voltage range with a standard operating current draw of just 35mA at 5V, the receiver is efficient enough for even extended running sessions. The FHSS V2 protocol variant (found in R8FG V2.0 and later models) delivers 4096-level PWM resolution, compared to the standard 2048 resolution of FHSS V1, which translates to noticeably more precise servo positioning—a critical advantage when fine-tuning steering response or achieving consistent drift lines. The receiver can be configured for three different response latencies: 3ms for maximum responsiveness with digital servos (R8FG V2.1 or factory date 2023/4/26 and later), 4ms for high-speed digital servo operation, or the standard 14ms for traditional analogue servos. The dual-antenna design operates at 2.4GHz and uses RadioLink's proprietary FHSS spread spectrum technology, which automatically hops across frequencies to maintain a clean, interference-free link even in crowded RF environments such as multi-model flying fields or large RC car clubs. The gyroscope uses sophisticated software filtering and PID algorithm correction to actively stabilise the model in real-time, which is particularly valuable for drift cars where maintaining consistent line and angle is critical. All critical receiver components are protected from reverse polarity damage, and the IPX4 splash-proof rating means the electronics can survive light rain or splash without performance degradation. The compact footprint and 10.5-gram weight make this receiver suitable for installation in nearly any modern RC car, from lightweight touring cars to heavier drift models.
Working Modes and Gyro Configuration
The R8FG offers exceptional flexibility through four distinct working modes: standard PWM mode for traditional servo operation, SBUS mode for digital servo systems, Gyro mode for active stabilisation with PWM servos, and combined Gyro+SBUS mode for the ultimate in digital servo control with integrated gyro stabilisation. Mode selection is simple and intuitive—pressing the binding button once toggles SBUS mode, pressing three times within two seconds toggles the gyro function, and pressing twice switches the gyro phase correction. Visual LED feedback confirms each mode change: green indicates standard PWM mode, red indicates gyro-enabled operation, blue indicates SBUS mode, and red+blue indicates Gyro+SBUS mode combined. The gyro operates from the default disabled state to prevent accidental activation, and must be explicitly enabled through the control button. Once enabled, gyro sensitivity is controlled via channel 8 (typically assigned to a dial or slider switch on your transmitter), allowing real-time adjustment of stabilisation intensity from complete off (0 value) to maximum sensitivity (+100). If the gyro operates in reverse—steering left when you turn right—simply press the binding button twice to automatically reverse the gyro phase correction. The system is designed so that servo jitter during gyro operation is normal and indicates active correction; if excessive servo shaking occurs with the gyro disabled, check that no servos are accidentally connected to the SBUS-only channel 8, as standard servos only accept PWM signals.
Binding and Multi-Model Support
Each R8FG receiver has a unique individual ID code that must be bound to your transmitter before use. Binding is straightforward: select the correct receiver protocol on compatible RC8X transmitters (FHSS V1 or FHSS V2 depending on your receiver version), position the transmitter and receiver approximately 60 centimetres apart, power both devices on, and press the binding button on the receiver for more than one second. The LED will flash rapidly whilst binding is in progress and will remain solid when binding is complete, with signal tower icon confirmation on your transmitter screen. Once bound, that receiver ID is stored permanently in your transmitter memory and does not require rebinding. For users with multiple models, RadioLink's Subsidiary ID system (available with RC8X transmitters) allows you to bind and store up to 16 different receivers within a single transmitter, then switch between models by simply changing the selected ID number on the main transmitter screen. This means you can control different RC cars, trucks, or buggies with a single transmitter without any rebinding process.
Telemetry and Real-Time Feedback
The R8FG provides comprehensive real-time telemetry feedback directly on your transmitter's screen. Signal strength is displayed as RSSI (Received Signal Strength Indicator) in decibels, with values ranging from 0 to -99dBm—the closer to 0, the stronger your signal. At typical operating distances around 60 centimetres, RSSI values of 0 to -30dBm are normal; beyond this distance, declining RSSI indicates you're operating near the range limit. You can set custom RSSI alarm thresholds to receive warning alerts if signal drops below a predetermined level, helping prevent signal loss during extended flying or running sessions. Receiver voltage telemetry shows the power supply voltage to the receiver itself, whilst model battery voltage telemetry displays the current state of your main model battery, supporting measurement up to 8S LiPo batteries (33.6V maximum). The included telemetry cable connects your model battery to the receiver's telemetry port (via a JST connector), and you can set low-battery alarms based on individual cell voltage—for example, setting a 3.7V per-cell alarm on a 3S battery would be 11.1V total. This telemetry function requires no additional modules and is available by default on RC8X, RC6GS V3, RC4GS V3, RC6GS V2, and RC4GS V2 transmitters, with compatibility available through firmware updates on earlier transmitter versions.
Servo Speed and Digital Servo Support
The R8FG offers three selectable servo response speeds to match different servo types and driving requirements. The standard 14ms servo speed is appropriate for traditional analogue servos and represents the classic RC servo refresh rate. Modern digital servos, however, benefit from faster update rates: 4ms and 3ms speeds deliver noticeably quicker servo response and improved smoothness, particularly valuable for high-speed touring cars and precision drift applications. Important note: only R8FG V2.1 and receivers manufactured from 2023/4/26 onwards support digital servo speeds; earlier versions will default to 14ms even if 3ms or 4ms are selected in your transmitter settings. To verify successful speed switching, the receiver's green LED will flash twice when the change is applied—if no LED flash occurs, your receiver does not support digital servo speeds and will continue using the default 14ms timing. Servo speed selection is available through your RC8X transmitter when FHSS V2 protocol is selected and requires RC8X firmware V1.1.5 or later.
Antenna Installation and Placement Guidance
Optimal antenna positioning is crucial for achieving the full 600-metre control range and maintaining reliable signal in all circumstances. The receiver includes two antenna leads measuring 205mm each, which should be kept as straight as possible and positioned at approximately 90 degrees to each other to maximise coverage in different orientations. Antennas should be kept at least half an inch away from any metal conductors, carbon fibre material, or other RF-reflective components, as these create signal dead zones and dead spots. For larger models containing metal chassis components or bodies, position one antenna on each side of the model to ensure consistent signal regardless of model orientation. Keep antennas away from motors, speed controllers, servos, and other electrical interference sources by at least several centimetres. Use foam or sponge padding to isolate the receiver from vibration and shock, as the receiver contains precision electronic components sensitive to physical stress. Store the receiver in a sealed plastic bag when not in use to protect against humidity and dust, which can cause operational failures.
Compatible Transmitters
The R8FG is compatible with a comprehensive range of RadioLink transmitter systems: RC8X, RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2, RC6GS 3-position switch version, RC4GS (versions with production dates after 2018-01-01), T8FB(BT), T8FB(OTG), T8S(BT), and T8S(OTG). Users of RC8X transmitters gain access to the full feature set including FHSS V2 protocol with 4096 resolution, digital servo speed selection, and Subsidiary ID multi-model control. Users of other compatible transmitters can use FHSS V1 protocol (2048 resolution) without requiring special configuration. Firmware updates may be available to unlock telemetry features on some transmitter models—check the RadioLink website for the latest firmware versions.
What's in the Box

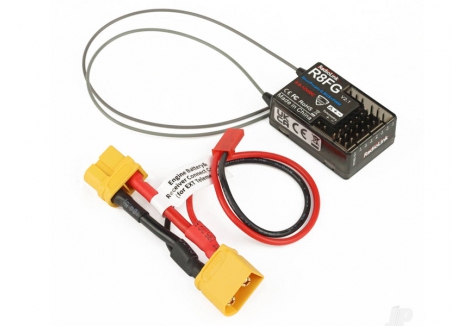

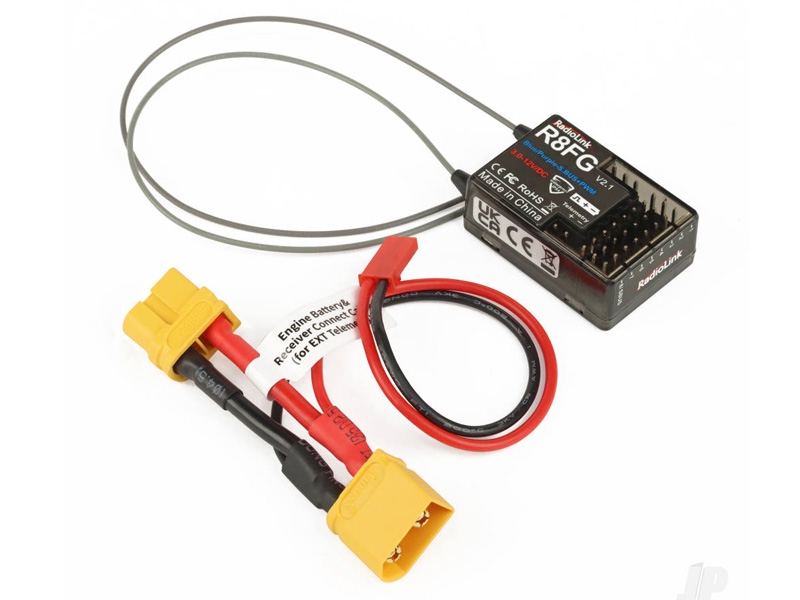

- 1x R8FG 8-channel receiver with integrated gyroscope
- 1x Motor voltage telemetry cable with JST connector for battery monitoring
What You Need to Complete
- Compatible RadioLink transmitter (RC8X, RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2, or other compatible models)
- Servo plugs or connectors matching your servo type (standard 0.1-inch servo connectors for PWM mode)
- Power supply: 3-12V input voltage source (typically your model's main battery through an ESC or BEC)
- Standard RC servo motors and/or digital servos (compatible with 3ms, 4ms, or 14ms update rates depending on your servo type and receiver version)
Frequently Asked Questions
- What is FHSS and why does the R8FG use it? — FHSS stands for Frequency Hopping Spread Spectrum, a transmission method where the radio link automatically hops across multiple frequencies many times per second. This makes the signal resistant to interference and jamming, and allows multiple RC models to operate simultaneously without frequency conflicts. RadioLink uses FHSS V1 (2048 PWM resolution) and FHSS V2 (4096 PWM resolution) protocols, with V2 offering more precise servo control.
- How do I know if my R8FG supports digital servos? — Only R8FG V2.1 and receivers with factory dates of 2023/4/26 or later support digital servo speeds of 3ms and 4ms. If you have an earlier version, you can still use digital servos, but they will operate at the default 14ms speed. Check your receiver for version markings or contact RC Model Shop for verification.
- Can I bind multiple receivers to a single RC8X transmitter? — Yes, the RC8X supports binding and controlling multiple receivers through the Subsidiary ID system, allowing you to own several RC models and control them all from one transmitter by switching the selected ID.
- What is the range of the R8FG? — The theoretical maximum control range is 600 metres in unobstructed areas free of interference. Actual range depends on antenna orientation, nearby metallic objects, presence of other RF equipment, and terrain. It's important to keep antennas straight and positioned at 90 degrees to each other for optimal range.
- Does the R8FG work in wet conditions? — Yes, the R8FG has an IPX4 splash-proof rating, meaning it can withstand splash and spray from any direction. This allows operation in light rain or wet conditions. However, it is not fully waterproof, so prolonged submersion should be avoided.
- How do I adjust gyro sensitivity? — Gyro sensitivity is controlled via channel 8, typically assigned to a dial or knob on your transmitter. Turn the dial to adjust sensitivity from 0 (off) to +100 (maximum). Changes are visible on your transmitter screen and confirmed by the receiver's LED flashing twice.
- What voltage battery does the R8FG accept? — The receiver operates from 3-12V input. For telemetry purposes, it can measure model battery voltages up to 8S LiPo (33.6V maximum) through the included telemetry cable.
- Why is my servo shaking when the gyro is enabled? — Mild servo vibration during gyro operation is normal and indicates active stabilisation correction taking place. Excessive shaking can indicate either that a servo is incorrectly connected to the SBUS-only channel 8 (servos only accept PWM signals), or that gyro sensitivity is set too high.
- What is the difference between PWM and SBUS signals? — PWM (Pulse Width Modulation) is the traditional servo signal format where each channel has an individual wire sending pulses of varying width. SBUS is a digital serial format that combines all channel data into a single signal, requiring compatible digital servos. The R8FG supports both simultaneously (7 channels PWM + 1 channel SBUS).
- How do I know if binding was successful? — When binding completes, the R8FG's LED will stop flashing and remain solid, and your transmitter screen will display a signal tower icon at the top. If binding fails, the LED will continue flashing slowly—bring the devices slightly further apart and try again.
