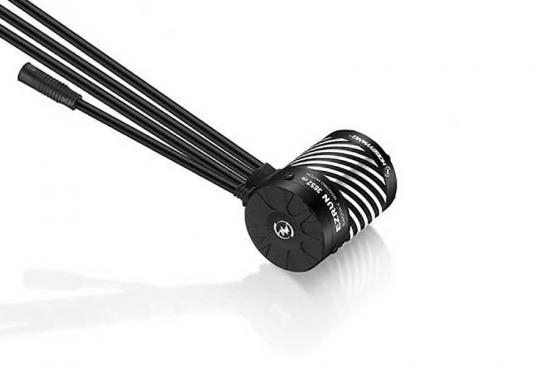

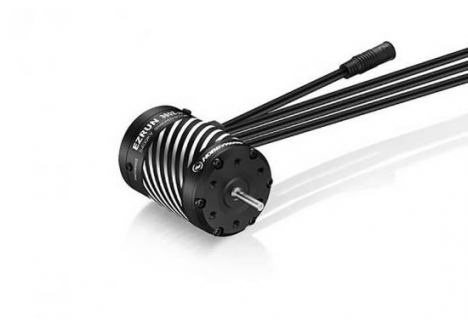

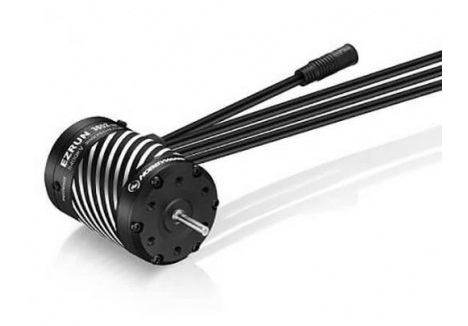

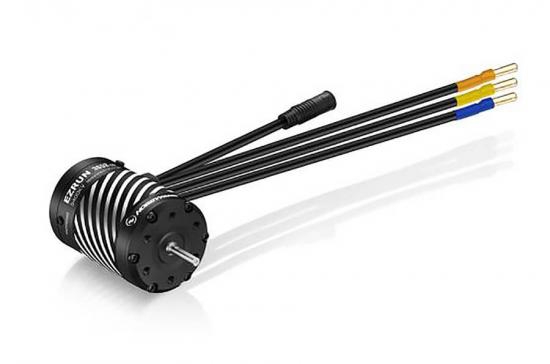

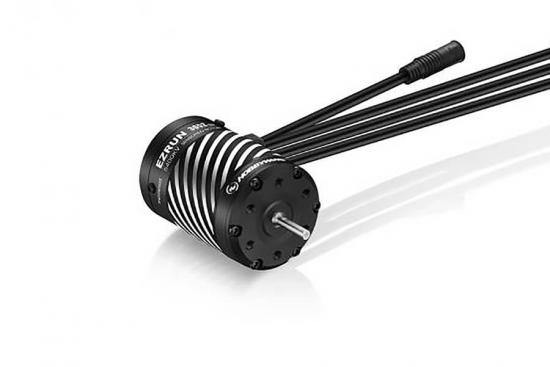

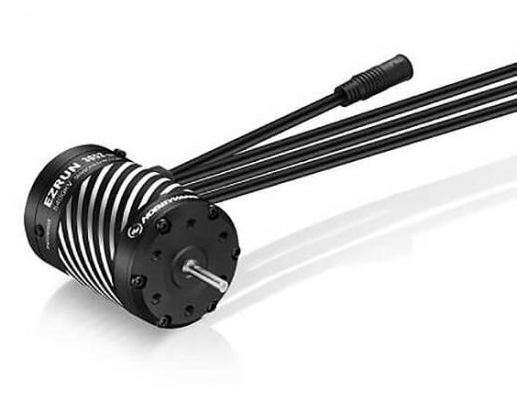

Hobbywing EZRUN 3652SD 1/10 3300KV Sensored Brushless Motor HW30402603

Overview

The Hobbywing EZRUN 3652SD 3300KV BLACK G3 Sensored Motor represents the latest evolution in brushless motor technology for competitive and recreational RC enthusiasts across the UK. This 1/10th scale brushless motor is purpose-built for short course trucks and light-duty on-road and off-road applications, delivering exceptional performance whether you're racing on tarmac or bashing through rough terrain. The third-generation G3 design builds upon proven engineering excellence with significant improvements in efficiency, power output, and reliability compared to its predecessors.

As a sensored brushless RC motor, the EZRUN 3652SD offers precise throttle control and smooth acceleration characteristics that make it ideal for drivers who demand predictable performance during aggressive manoeuvres such as power wheelies, high-speed straight-line runs, and clearing jumps. The 3300KV rating strikes an excellent balance between speed and torque, making this motor versatile enough for both competitive racing and casual weekend bashing. Whether you're a seasoned RC competitor or exploring the world of brushless RC cars for the first time, this Hobbywing motor delivers the quality and performance you expect from a recognised leader in RC power systems.

What sets the EZRUN 3652SD G3 apart from standard RC motors is its comprehensive feature set designed specifically for demanding users. The motor features an improved waterproof sensored cable interface and upgraded sensored mode technology that achieves effective motor temperature protection, ensuring reliable operation in challenging conditions. This motor perfectly matches the Hobbywing EzRun MAX10 G2 ESC, creating a seamlessly integrated power system for your RC short course truck.

Key Features

• High-Precision Hall Sensor Components — The EZRUN 3652SD incorporates high-precision Hall sensor technology that ensures the rotor position output remains always accurate and consistent, delivering excellent linearity and outstanding throttle control that responsive drivers demand when piloting their RC vehicles at speed.
• Advanced Waterproof Sensored Cable Interface — The improved waterproof sensored cable design protects your electrical connections from moisture ingress, critical for maintaining reliable sensor operation when driving through wet conditions or muddy terrain common in UK RC racing venues.
• Waterproof Front Bearing — A precision waterproof bearing at the front end of the motor provides enhanced durability and protection against water and dust contamination, extending the service life of your RC motor investment.
• Precision Iron Cover Rear Design — The rear end features a precision iron cover with reduced structural size, improving motor capacity whilst providing higher bearing speed capability whilst maintaining low resistance for smoother and more reliable operation.
• 3% Increased Efficiency Over G2 — Compared to the previous generation G2 motor, the G3 delivers 3% greater overall efficiency, meaning more of your battery's energy converts directly into motor performance rather than wasted as heat.
• 5% Increased Maximum Output Power — The EZRUN 3652SD G3 produces 5% more maximum output power than the G2 variant, providing noticeably improved acceleration and climbing ability for your 1/10th scale short course truck.
• Significantly Reduced Motor Temperature — Under identical load conditions, this motor runs substantially cooler than previous generations, reducing thermal stress on internal components and extending motor lifespan during extended driving sessions.
• Premium Material Selection — Every component is crafted from carefully selected high-quality materials including motor casing, precision bearings, ultra-thin silicon steel sheets, high-temperature-resistance copper wire, explosion-proof rotor, and high-tolerance alloy shaft, all approved by Hobbywing's in-house engineers.
• Modular Detachable Structure Design — The motor adopts a modular design philosophy enabling easy disassembly for routine maintenance and cleaning, helping to prolong the overall lifespan of the motor whilst keeping it operating at peak efficiency throughout its service life.
• IP-67 Waterproof Rating — The comprehensive IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection, allowing your RC short course truck to drive confidently across mud, sand, ice, snow, and water without damaging the power unit or compromising performance.
• Stable Power Delivery for Advanced Manoeuvres — The combination of stable power output and high motor efficiency makes throttle control intuitive during demanding manoeuvres, whether you're executing power wheelies, maintaining top speed on straights, or clearing jumps with confidence.
• Temperature Protection Mode — The upgraded sensored mode achieves motor temperature protection, automatically managing performance to protect internal components from thermal damage during extended high-load operation.
• 4-Pole Brushless Design — The 4-pole brushless configuration provides the optimal balance between speed and torque characteristics for 1/10th scale short course truck applications.

Technical Performance

The EZRUN 3652SD 3300KV G3 represents a significant engineering achievement in brushless motor design for competitive RC applications. With a 3300KV rating, this motor delivers 3,300 RPM per volt of applied voltage, making it suitable for 2-3S LiPo battery configurations and optimised for 1/10th scale short course trucks and light-duty on-road and off-road vehicles. The motor measures 37mm in outer diameter by 53mm in length, featuring a 3.175mm (0.125-inch) shaft diameter compatible with standard 1/10th scale RC drivetrain components. At just 228 grams, the motor offers a compact, lightweight package that won't compromise your vehicle's handling characteristics or balance. The no-load current specification of ?3.9A ensures efficient battery usage and minimal parasitic drain when the motor is spinning freely without load.

The precision bearing specification—D13×D5×T4 at the front and D11×D5×T5 at the rear—ensures smooth, reliable rotation with minimal friction losses. These high-precision bearings are the foundation of the motor's improved efficiency and reduced operating temperature compared to the previous G2 generation. The motor connects via 4.0mm gold-plated bullet connectors, a standard in the UK RC hobby that ensures secure, low-resistance electrical connections with compatible ESCs and power distribution systems. The Hobbywing engineering team has meticulously selected every material in this motor, from the robust motor casing protecting internal components through to the ultra-thin silicon steel sheets that optimise magnetic flux distribution, the high-temperature-resistance copper windings that safely handle sustained current loads, and the explosion-proof rotor design that provides reliability under demanding operating conditions. The high-tolerance alloy shaft resists bending and twisting during aggressive driving, maintaining perfect alignment and longevity even when subjected to the shock loads typical of off-road RC bashing and racing.

What's in the Box

• EZRUN 3652SD 3300KV G3 Sensored Brushless Motor (black)
• Waterproof sensored cable with Hall sensor connectors

What You'll Need to Complete Your Setup

• 2-3S LiPo battery pack (recommended capacity 5000-7000mAh for optimal runtime)
• Hobbywing EzRun MAX10 G2 ESC or compatible 1/10th scale brushless ESC with sensored support
• Radio control system with receiver compatible with your chosen ESC
• RC vehicle chassis with compatible 1/10th scale drivetrain (short course truck, truggy, or monster truck frame)
• Battery charger with LiPo charging capability

Frequently Asked Questions

• Is the Hobbywing EZRUN 3652SD 3300KV suitable for beginner RC drivers? — Yes, the EZRUN 3652SD G3 is an excellent choice for drivers transitioning from brushed to brushless RC motors. The sensored design provides smooth, predictable throttle response that's easier to control than sensorless alternatives, making it beginner-friendly whilst still offering the performance that experienced drivers demand. The 3300KV rating provides a balanced power delivery suitable for learning vehicle control without being overwhelmingly powerful.
• What battery voltage does this motor require? — The EZRUN 3652SD 3300KV is rated for 2-3S LiPo battery packs. A 2S (7.4V) LiPo will provide approximately 10,000 RPM maximum, whilst a 3S (11.1V) LiPo will reach approximately 15,000 RPM. Most UK RC drivers use 3S batteries for optimal performance in this motor.
• How does this compare to other 1/10th scale RC motors available? — The EZRUN 3652SD G3 offers 3% better efficiency and 5% more output power than the previous G2 generation, whilst running significantly cooler under identical load conditions. The sensored design provides superior throttle linearity compared to sensorless alternatives, and the IP-67 waterproofing makes it more versatile for all-weather UK RC driving conditions than basic unsealed motors.
• Can I use this motor with my existing ESC and radio system? — The EZRUN 3652SD G3 features standard 4.0mm bullet connectors and a waterproof sensored cable compatible with most modern Hobbywing ESCs and many third-party alternatives that support sensored brushless operation. It perfectly matches the Hobbywing EzRun MAX10 G2 ESC. However, you'll need a sensored-capable ESC rather than a sensorless one.
• How waterproof is this motor really? — The IP-67 waterproof rating means the motor is dust-tight and can be temporarily submerged in water without damage. In practical terms, you can confidently use this RC motor in muddy, wet conditions typical of UK off-road racing venues without concern for water ingress damaging internal components.
• Will this motor work in my 1/10th scale short course truck? — Yes, the EZRUN 3652SD 3300KV is specifically designed for 1/10th scale short course truck applications. The 37mm diameter, 3.175mm shaft, and 4.0mm connectors are all standard for this vehicle class. Verify that your specific truck model accepts 540-size motors before ordering.
• How long will this motor last with proper maintenance? — The modular detachable structure design allows you to easily disassemble the motor for cleaning and maintenance, which significantly extends operational lifespan. With regular cleaning of bearing surfaces and periodic inspection of the sensored cable, this Hobbywing motor will provide years of reliable service. The high-quality materials and precision engineering mean longevity comparable to other premium brands used by competitive UK RC racers.
• What is the actual top speed my vehicle will achieve? — Top speed depends on your vehicle's final drive ratio, tyre type, and terrain, not the motor alone. The 3300KV rating with a 3S LiPo provides approximately 15,000 RPM maximum, which translates to approximately 40-50 mph (65-80 km/h) in typical 1/10th short course trucks, though actual speed varies significantly based on gearing and drivetrain configuration.
