Product Details

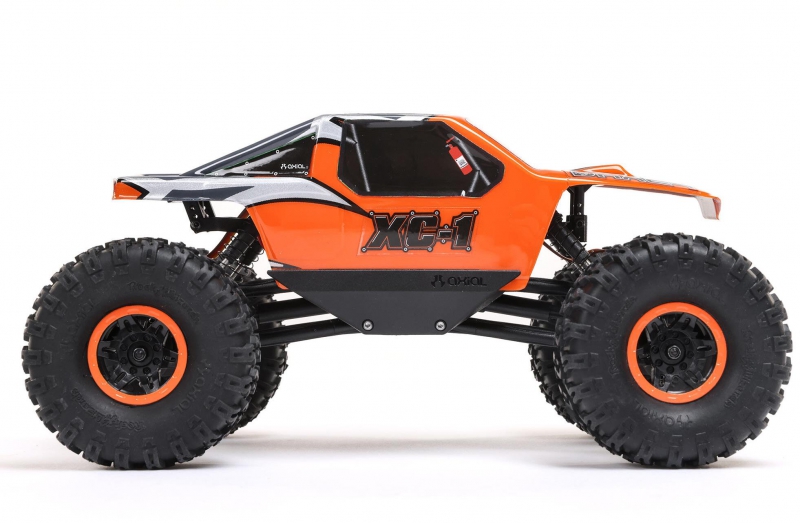

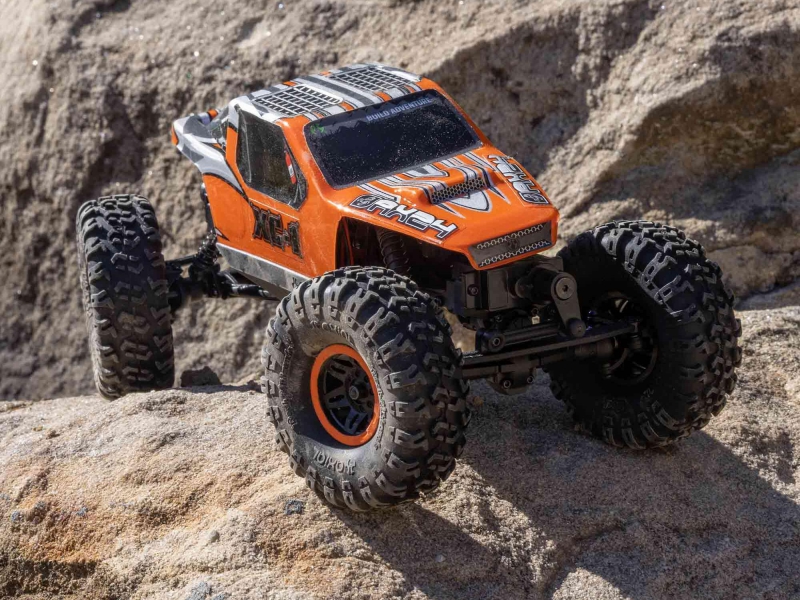

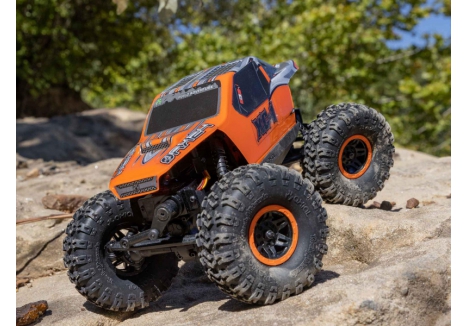

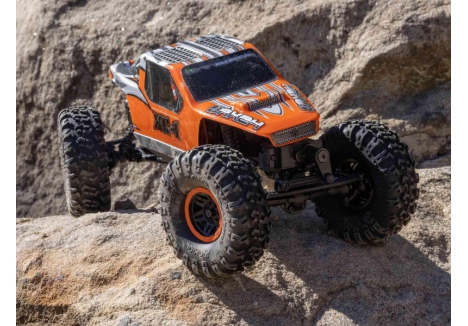

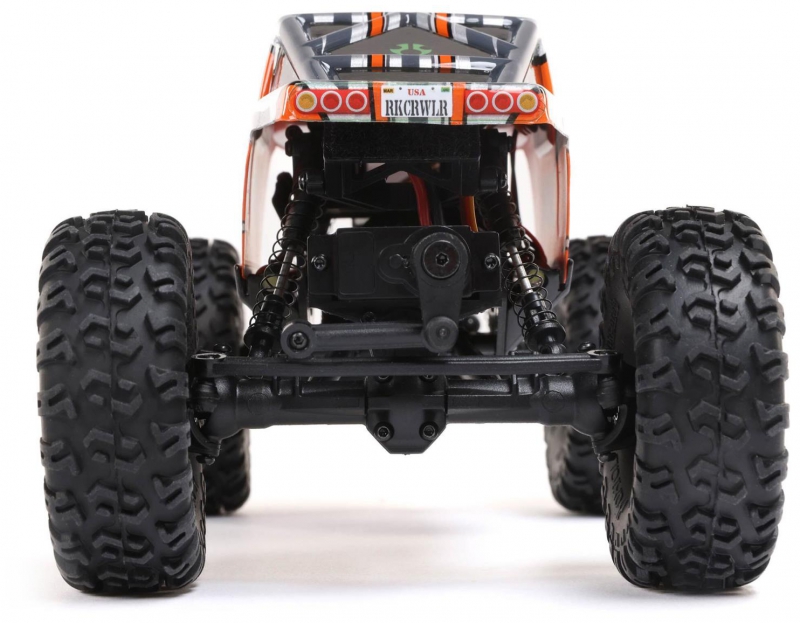

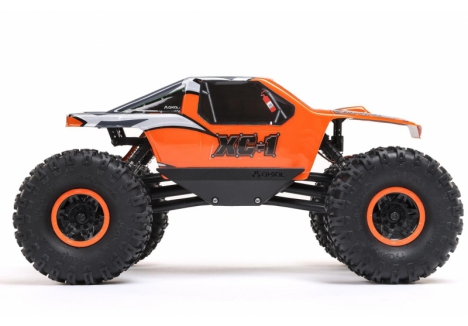

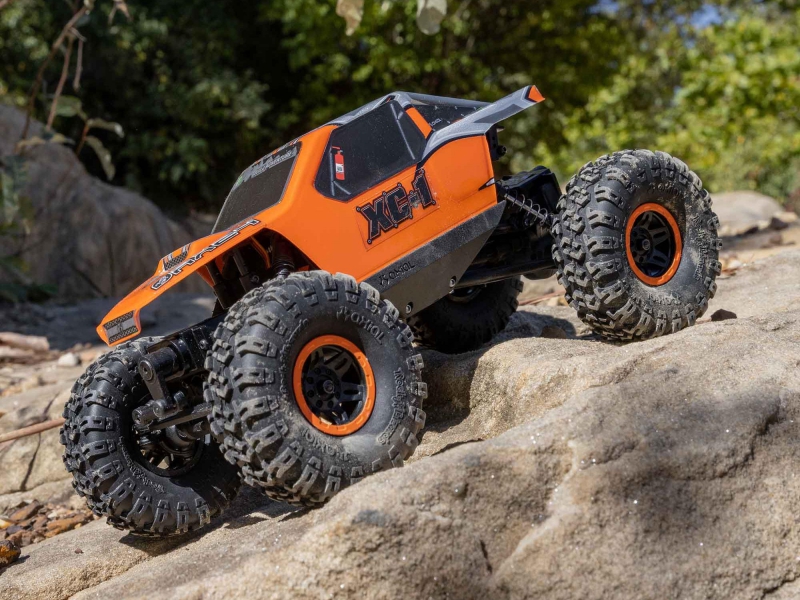

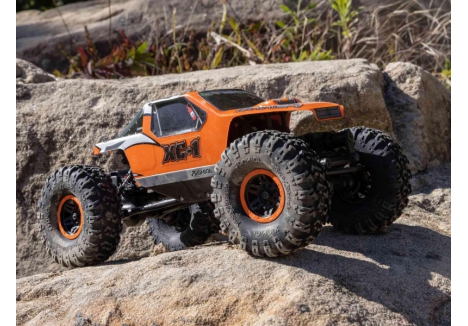

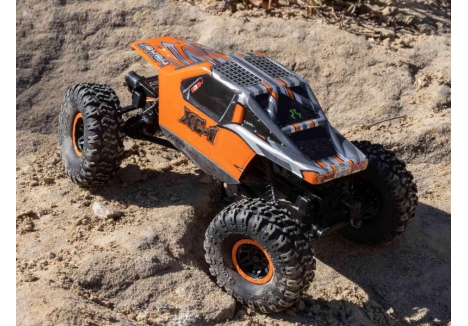

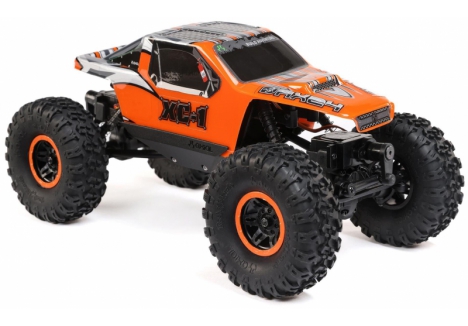

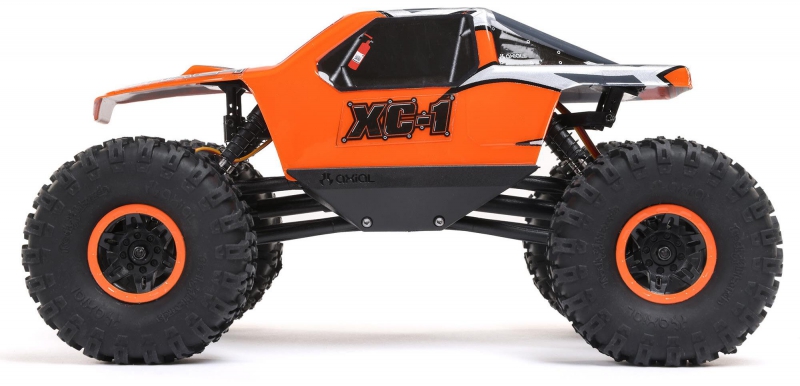

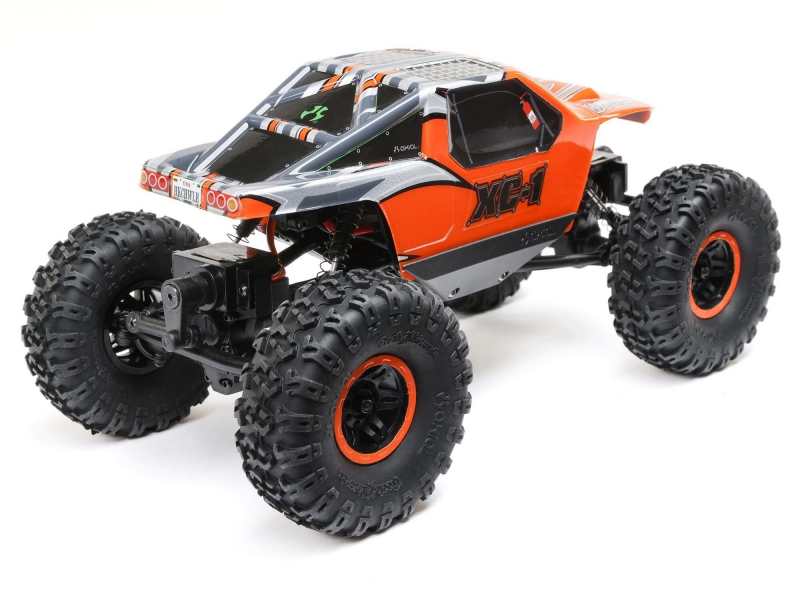

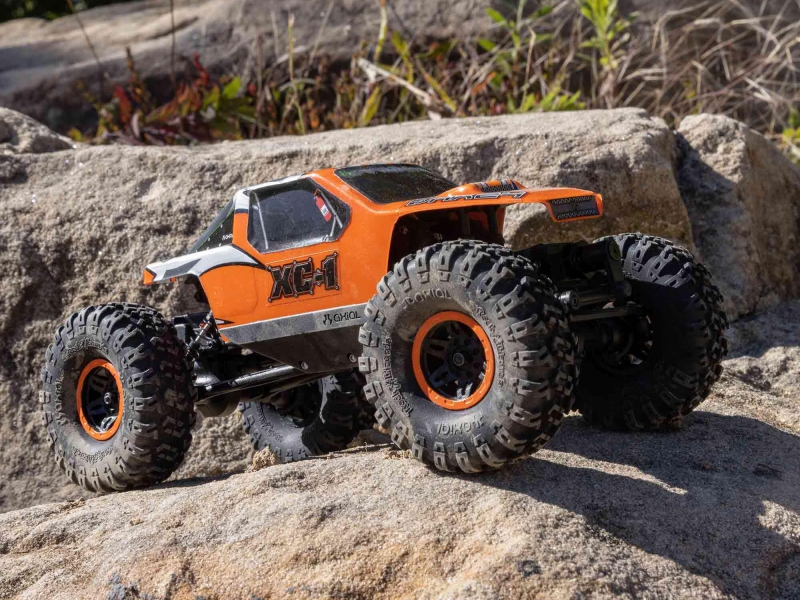

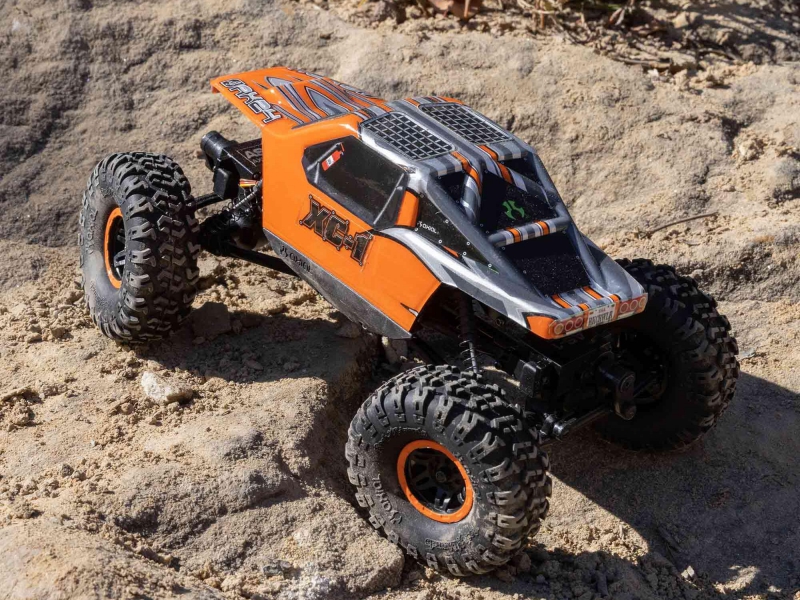

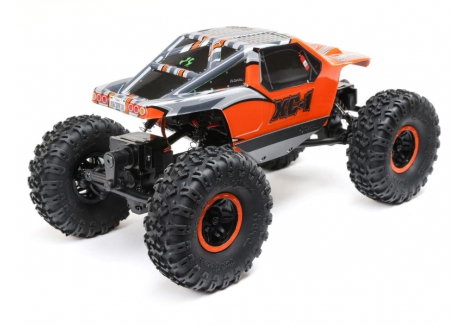

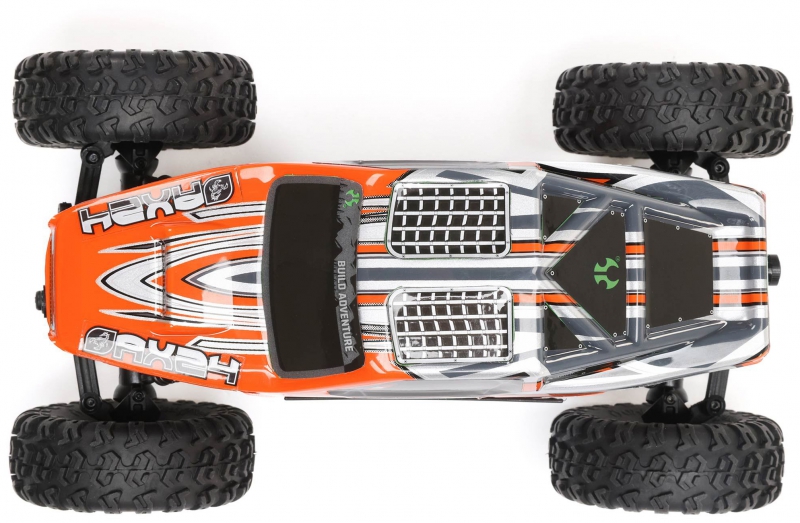

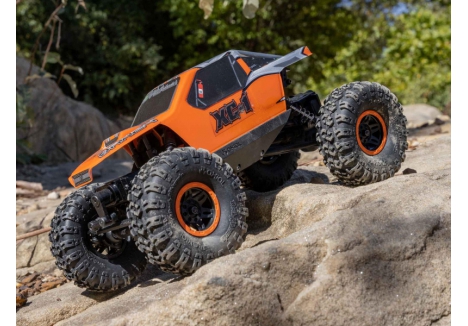

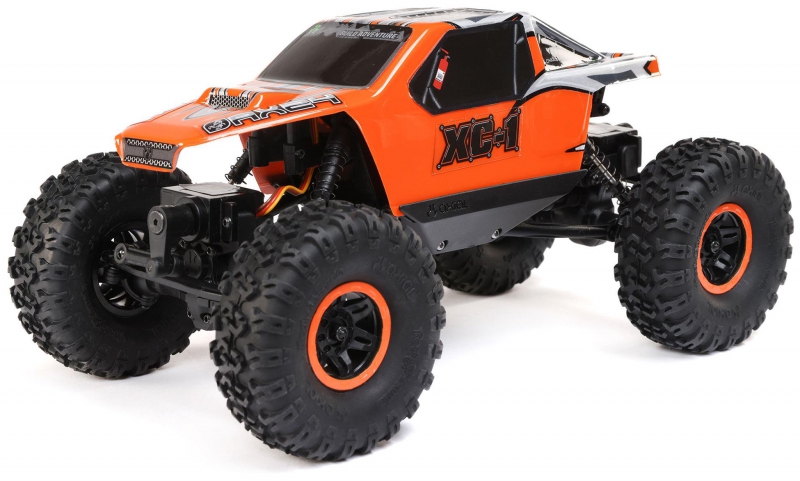

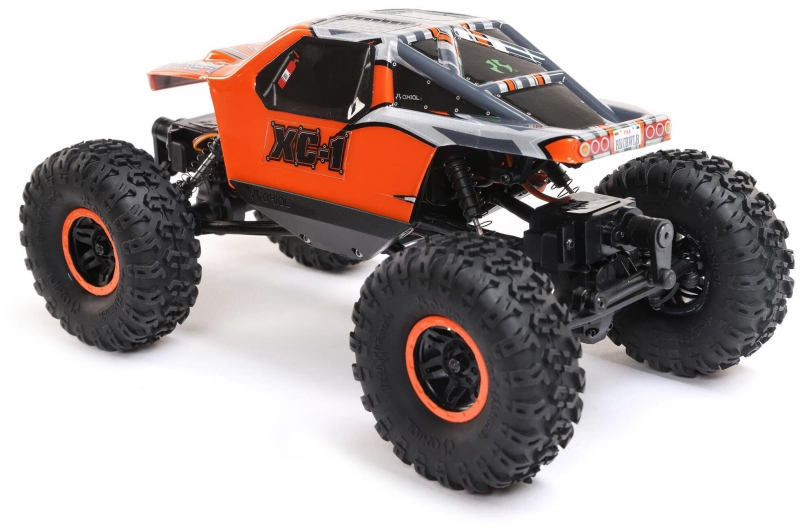

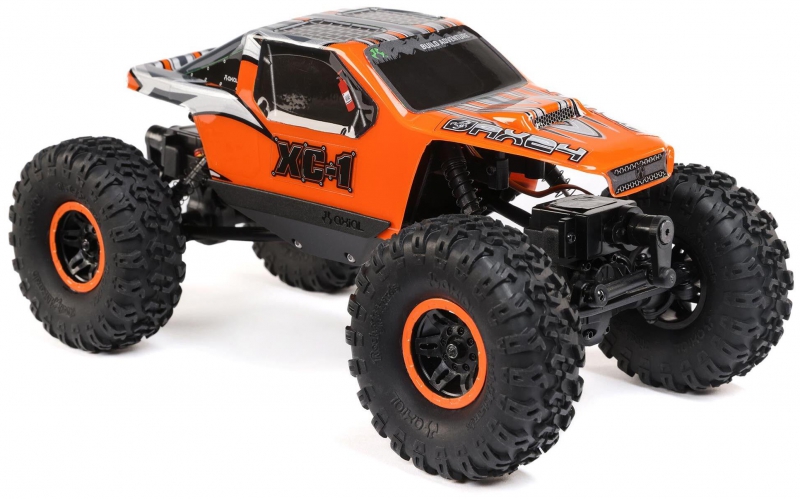

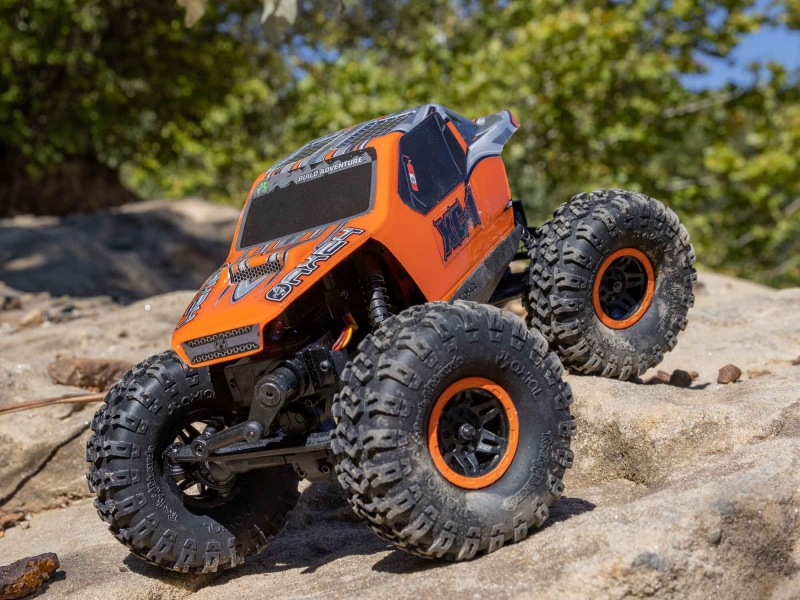

Push past boundaries and conquer more trails with the Axial AX24 XC-1 Rock Crawler RTR. Unique 4WS modes, extreme articulation, oversize tyres, and more let you crawl over bigger obstacles and pull tougher lines than any other 1/24 scale rig.
Key Features
- Three 4-wheel steering (4WS) modes give drivers new terrain conquering ability.
- Side plate chassis allows greater articulation for improved handling over rough terrain.
- LED rock lights mounted in the rock sliders keep your path visible in low light.
- Rockster wheels and Rock Lizards tyres produce trail-taming traction.
- Fully equipped - you can hit the trails almost immediately!
In The Box - (1) Axial AX24 XC-1 1/24 Scale 4WS RTR Rock Crawler
- (1) Spektrum SLT3 2.4GHz 3-Channel Radio System

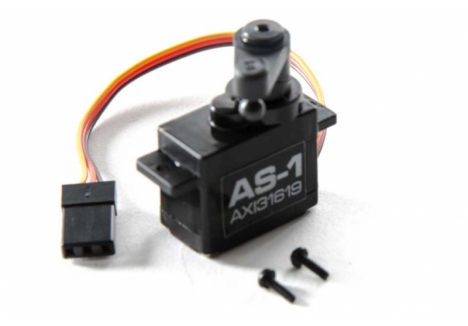

- (2) Axial AS-1 Servo
- (1) Spektrum 2-in-1 ESC/Receiver Combo
- (1) 0.5 Amp USB Charger
- (1) Dynamite 88T Brushed Electric Motor
- (1) Dynamite 350mAh 2S 7.4V LiPo
- (4) AA Transmitter Batteries
- (1) Product Manual

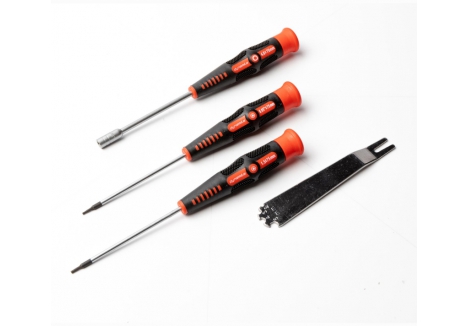

- (1) Miscellaneous Tools
Needed to Complete- Nothing! Everything is included in the box!
Features
- Three 4-wheel steering (4WS) modes give drivers new terrain conquering ability.
- Side plate chassis allows greater articulation for improved handling over rough terrain.
- LED rock lights mounted in the rock sliders keep your path visible in low light.
- Long travel coilover shocks keep wheels on the ground to maximize traction.
- 4-Link front and rear suspension reduces axle steer and torque twist.
- Front and rear lockers with worm gear setup increase ground clearance.
- Steel front and rear axles, stub axles, and dog bones provide strength.
- Splined and sleeved drive shafts increase suspension travel.
- Hinged body system offers easy access to on-board components.
- Rockster wheels and Rock Lizards tyres produce trail-taming traction.
- No bushings — entyre vehicle features sealed bearings.

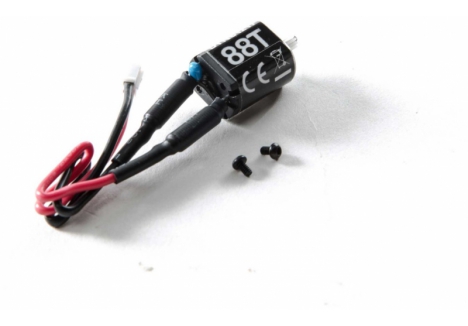

- Dynamite 88T motor provides the torque to conquer steep climbs.
- Fully equipped — you can hit the trails almost immediately!
Overview
Every weekend, groups of off-road rock crawling enthusiasts gather to follow trails toward destinations far removed from the modern world. Their journey's end will reward them with beautiful views that only a select few ever see. But the best memories are made during the journey itself.
Within this community are the extreme crawlers. Where others see rocks, roots, and barriers, they see puzzle pieces that form a line to maneuver up, over, and beyond. It doesn't matter if most people would have trouble getting through on foot, let alone on wheels. Extreme crawlers have such a deep connection to their rig that they know when it can be pushed to new limits.
The 1/24 scale Axial AX24 XC-1 speaks to the extreme crawlers, and to everyone who wants to be one. With the AX24 XC-1, you'll be able to crawl over bigger obstacles and pull tougher lines than you can with any other 1/24 scale rig.
The new AX24 platform provides stability, durability, high clearance, generous articulation, and everything else extreme rock crawling enthusiasts need to overcome the impossible. Flat chassis side plates with rock sliders help you move through tight formations. Long travel shocks, a 4-link suspension, and worm gear drivetrain combine for easy handling, dependable power delivery, and the ability to clear rough terrain.
Then there's the unique AX24 4-wheel steering system. Following tightly to the line that leads from "here" to "there" has never been easier. Three transmitter-activated steering modes — for no rear tyre input, mirrored rear tyre input, or "crab crawl" — provide the flexibility you need to maneuver over or around almost anything in your way. This system gives all drivers new terrain conquering ability!
In 2007, Axial broke new ground in extreme RC crawling with the 1/10 scale AX10. If you're a long-time Axial fan, you'll love how the AX24 XC-1 pays homage to that legendary rig with a replica body and livery plus Rockster wheels and Rock Lizards tyres.
The AX24 XC-1 isn't just for experienced RC rock crawling hobbyists (though you'll enjoy how it takes on even steeper inclines and bigger obstacles than our SCX24 platform rigs). Newcomers will find it to be a fun and highly capable mini crawler to run on indoor or outdoor courses. It's also a great way for full-scale off roading enthusiasts to exercise and refine their skills.
Get ready to push past boundaries and conquer more trails with the Axial AX24 XC-1 Rock Crawler RTR. Because it's fully assembled and equipped, you can start today.
- Scale: 1/24
- Vehicle Type: Rock Crawler
- Completion Level: Ready-to-Run (RTR)
- Drivetrain: 4WD
- Motor Type: Brushed Electric
- Motor: Dynamite 88T
- Motor Mount: Stamped Aluminium

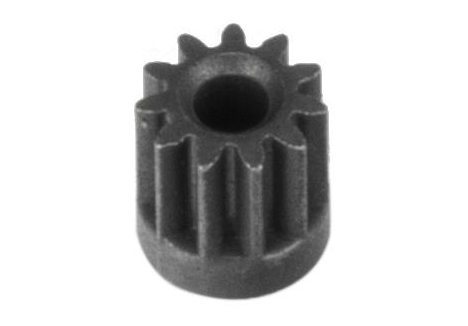

- Pinion Gear: 11T
- Spur Gear: 55T
- Differential: Worm Gear (16T/4T)
- ESC Type: Spektrum 2-in-1 ESC/Receiver Combo with Throttle Bypass Port
- Speed Control: Included
- Brakes: Integral with ESC (Forward/Brake/Reverse)

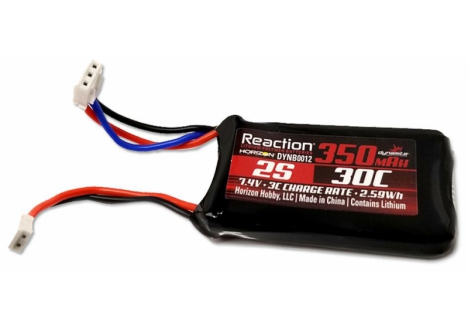

- Battery Type: Dynamite 350mAh 2S 7.4V LiPo
- Battery Compatibility: 2S LiPo
- Battery Connector: PH 2.0 (High-Current Ultra Micro)
- Charger: 0.5 Amp USB Charger (Included)
- Radio System: Spektrum SLT3 2.4GHz 3-Channel
- Transmitter: Spektrum SLT3 with Foam Wheel
- Frequency: 2.4GHz
- Channels: 3
- Receiver: Spektrum 2-in-1 ESC/Receiver Combo (Included)
- Steering Type: 4WS (Four-Wheel Steering) with Three Modes
- Servos: (2) Axial AS-1
- Servo Mounts: Just Above Axle with Servo Savers
- Suspension Type: Solid Axle, Front and Rear
- Suspension Geometry: 4-Link Design
- Shock Type: Coil-over (1.35-2.0 inches / 35-51mm) Plastic
- Shock Length: 51mm

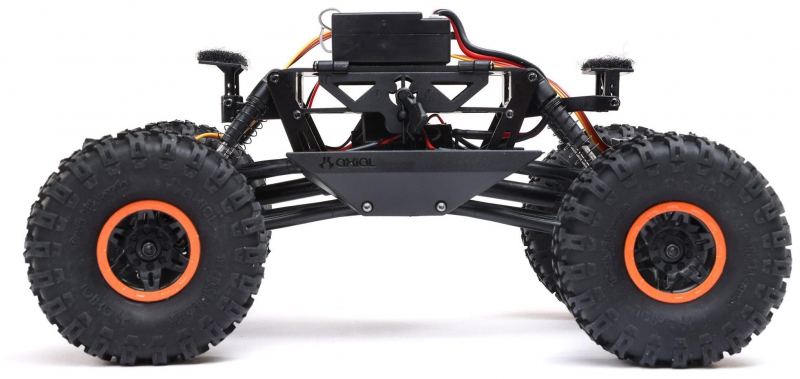

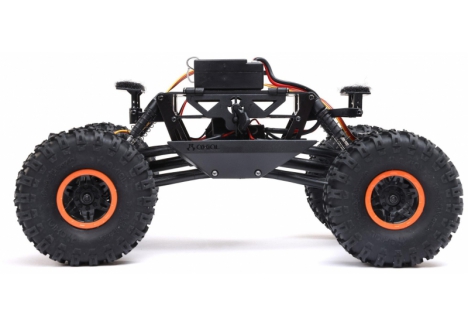

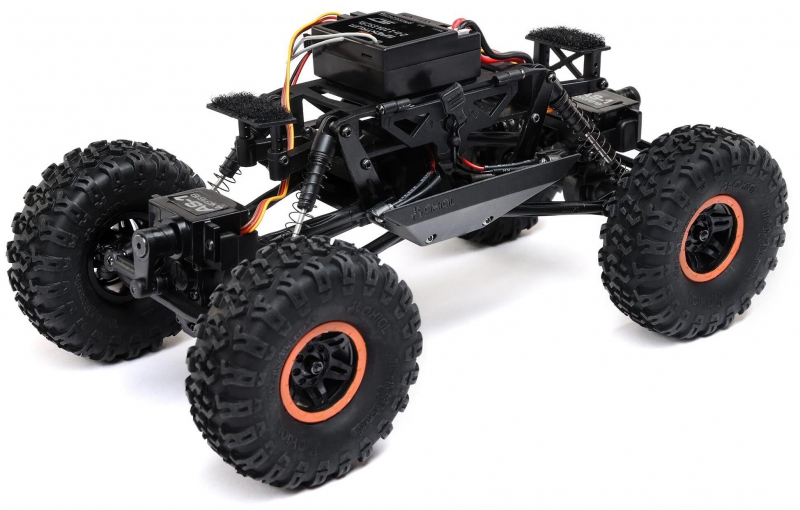

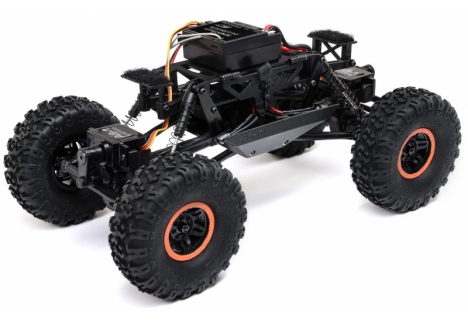

- Chassis: Side Plate Design
- Chassis Features: Flat Side Plates with Rock Sliders, Hinged Body System

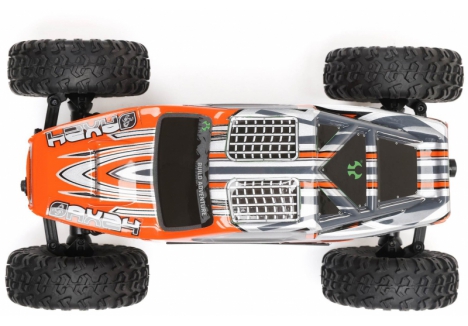

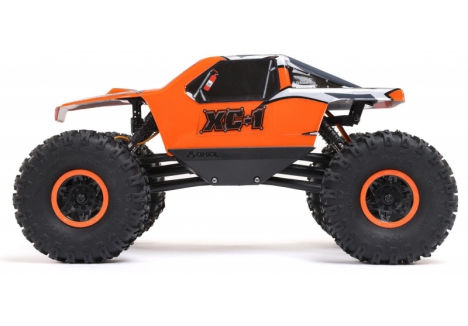

- Body: XC-1 Screened (Replica 2007 AX10 Livery)
- Body Hinge: Hook-and-Loop Design
- Axles: Steel Front and Rear Axles
- Stub Axles: Steel
- Dog Bones: Steel

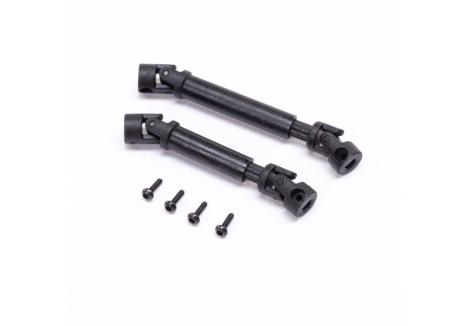

- Drive Shafts: Splined and Sleeved
- Bearings: Full Ball Bearings Throughout (No Bushings)
- Bearing Type: Sealed Bearings

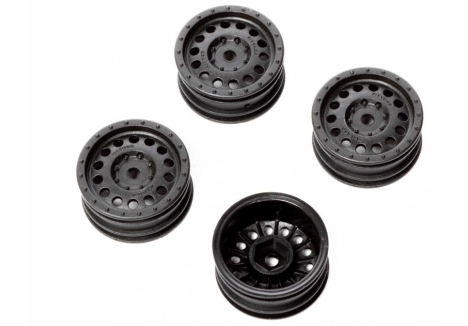

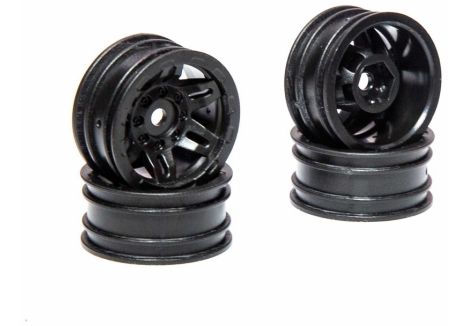

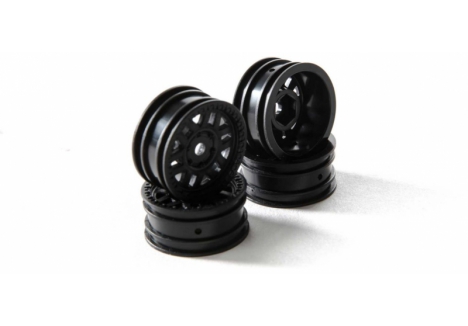

- Wheels: Rockster (1.0 inch)
- Wheel Width: 0.5 inch (12.5mm)
- Tyres: Axial Rock Lizards (2.44 inch)
- Tyre Tread: Axial Rock Lizards
- Ground Clearance: 1.3 inches (34mm)
- Wheelbase: 5.3 inches (135mm)
- Front Track Width: 4.5 inches (113mm)
- Rear Track Width: 4.5 inches (113mm)
- Product Length: 7.8 inches (198mm)
- Product Width: 4.5 inches (114mm)
- Product Height: 3.7 inches (94mm)
- LED Features: LED Rock Lights in Rock Sliders
- Worm Gear Lockers: Front and Rear (Increase Ground Clearance)
- Articulation: Extreme/Exceptional
- Radio Batteries: (4) AA Batteries for Transmitter
- Included Tools: Miscellaneous Tools for Assembly and Maintenance
- Instruction Manual: 1/24 AX24 XC-1 4WS (Available in English, German, French, Italian)
- Transmitter Batteries Included: Yes (4x AA)
- Skill Level: Skill Level 1 (Beginner-Friendly)
Overview
The Axial 1/24 AX24 XC-1 4WS Crawler RTR is a revolutionary ready-to-run RC car that brings extreme rock crawling performance to the 1/24 scale segment. This fully assembled and equipped brushed electric crawler represents a significant leap forward in mini rock crawling capability, delivering the kind of terrain-conquering ability that enthusiasts have come to expect from Axial's legendary lineage. Whether you're a seasoned RC crawler pilot or discovering the world of ready-to-run RC vehicles for the first time, the AX24 XC-1 offers unprecedented articulation, stability, and manoeuvrability in a compact, highly capable package.
Every weekend, groups of off-road rock crawling enthusiasts gather to follow trails toward destinations far removed from the modern world. Their journey's end rewards them with beautiful views that only a select few ever see, but the best memories are made during the journey itself. Within this community are the extreme crawlers—those who see rocks, roots, and barriers not as obstacles but as puzzle pieces that form a line to manoeuvre up, over, and beyond. The 1/24 scale Axial AX24 XC-1 speaks directly to the extreme crawlers and to everyone who wants to be one. With this RTR crawler, you'll be able to crawl over bigger obstacles and pull tougher lines than you can with any other 1/24 scale rig available today.
The new AX24 platform provides everything extreme rock crawling enthusiasts need to overcome the impossible: stability, durability, exceptional ground clearance, and generous articulation. The AX24 XC-1 isn't just for experienced RC rock crawling hobbyists—though you'll enjoy how it takes on even steeper inclines and bigger obstacles than competing SCX24 platform rigs. Newcomers will find it to be a fun and highly capable mini crawler to run on indoor or outdoor courses. It's also an excellent way for full-scale off-roading enthusiasts to exercise and refine their driving skills. Best of all, because it's fully assembled and equipped with everything you need, you can start exploring trails today.
Key Features
- Three 4-Wheel Steering (4WS) Modes — The unique AX24 4WS system gives all drivers new terrain conquering ability with three transmitter-activated steering modes: standard two-wheel steering with no rear tyre input, mirrored rear tyre input for enhanced manoeuvrability, and "crab crawl" mode that allows the vehicle to move sideways for navigating tight formations and complex obstacles. This unparalleled flexibility means you can manoeuvre over or around almost anything in your way, something no other 1/24 scale crawler can match.
- Side Plate Chassis with Rock Sliders — The durable flat side plate chassis is engineered to allow exceptional ground clearance and generous articulation, working together with angled rock sliders to help you manoeuvre past rocks, roots, ledges, and other large obstacles. This design philosophy means you go where you want to go, not where the terrain forces you.

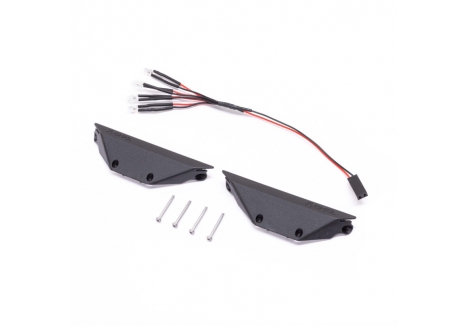

- LED Rock Lights — LED rock lights mounted in the rock sliders keep your path visible in low light conditions, allowing you to see and surmount obstacles you might not otherwise spot. Day or night, the AX24 XC-1 keeps your adventure alive and your vision sharp.

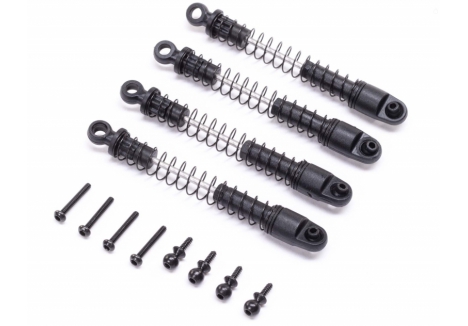

- Long Travel Coilover Shock Absorbers — The new 51mm coilover shocks are mounted at a lay-back angle in the side plate chassis, allowing increased articulation to keep all wheels on the ground and maximising traction over uneven surfaces. This suspension geometry means better contact with obstacles and more confident climbing over rough terrain.
- 4-Link Front and Rear Suspension — The suspension geometry uses a 4-link design that works in concert with the AX24 side plate chassis to increase articulation whilst reducing axle steer and torque twist. This engineering provides superior handling characteristics over rough terrain and rocky obstacles.
- Worm Gear Differentials — Front and rear axle housings each feature a worm screw and worm gear setup that delivers power to the axles whilst creating higher ground clearance. This design increases the vehicle's ability to clear rough terrain and maintain traction on steep inclines.
- Durable Steel Axles and Drive Components — Steel front and rear axles, stub axles, and dog bones provide the strength and durability needed to keep running with confidence during tough climbs and over rough trails. These components are built to withstand the extreme forces generated during aggressive rock crawling.
- Splined and Sleeved Drive Shafts — The drive shafts are splined and sleeved to allow for maximum suspension travel whilst keeping power delivered reliably to the wheels, ensuring that your articulation doesn't compromise traction or responsiveness.

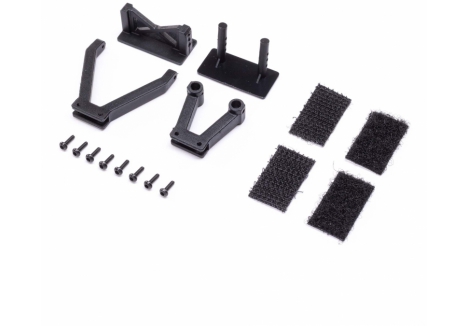

- Hinged Body System — The hinged body system with hook-and-loop hinge design provides fast, easy access to on-board components, allowing you to reach the chassis and battery simply by swinging the body up. This makes maintenance, battery changes, and component upgrades straightforward and frustration-free.

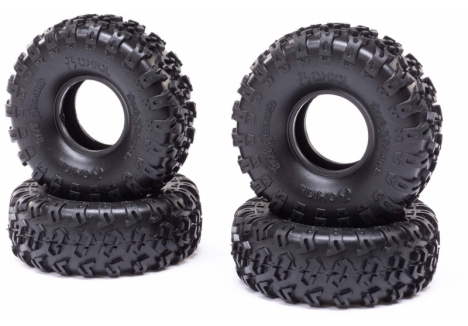

- Rockster Wheels and Rock Lizards Tyres — Paying homage to Axial's legendary 2007 AX10 platform, the AX24 XC-1 features 1.0 inch Rockster wheels and 2.44 inch Rock Lizards tyres that deliver both nostalgic aesthetics and genuine trail-taming traction for conquering real rock crawling courses.
- Full Ball Bearing Construction — Although the AX24 is smaller than many other Axial RC crawlers, it measures up to Axial's highest quality standards. You'll find no bushings here—the drivetrain spins freely on sealed bearings throughout the entire vehicle, reducing friction and extending component lifespan.

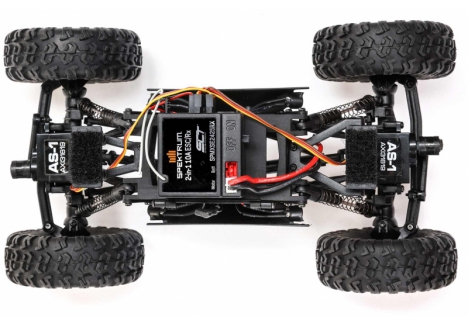

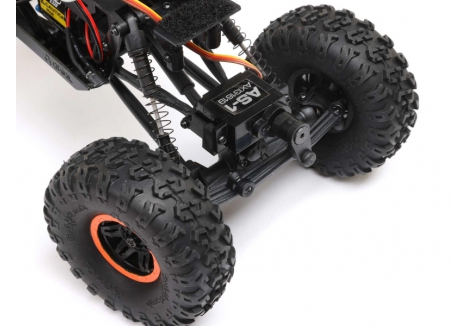

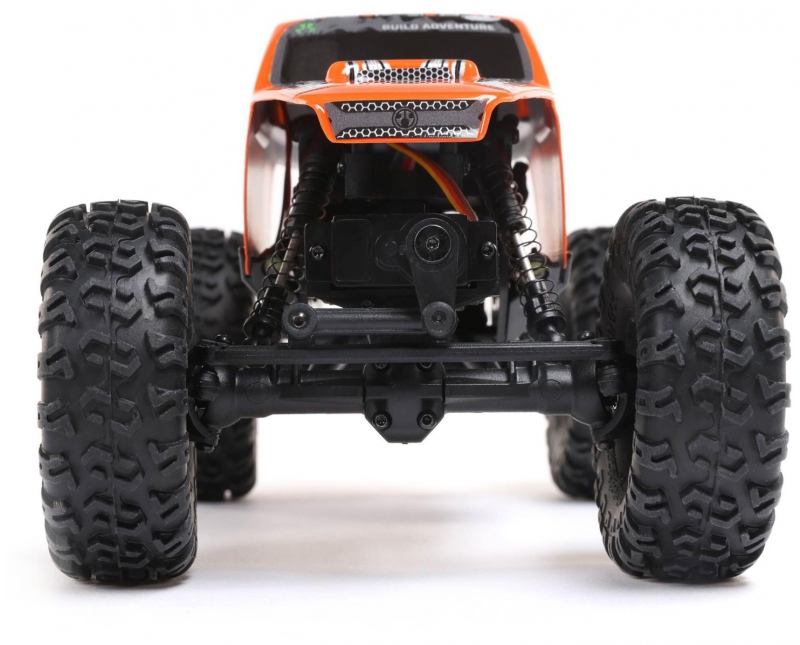

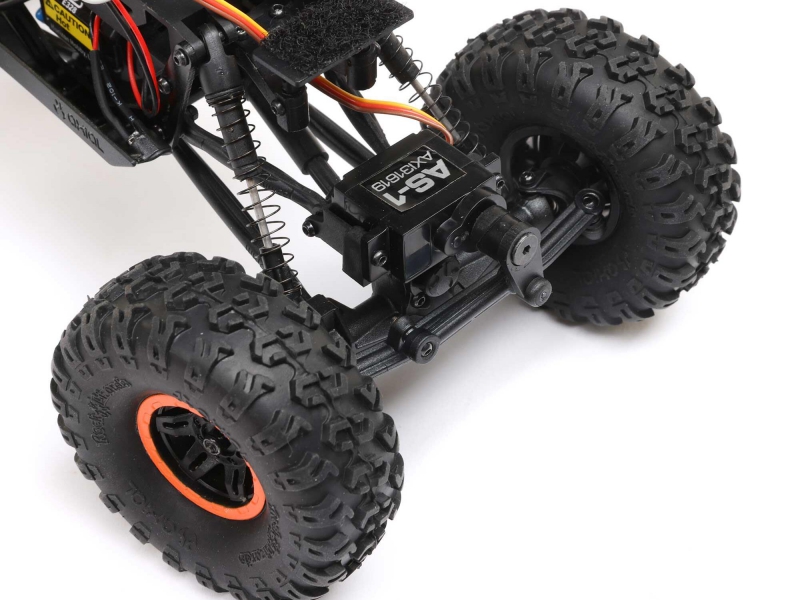

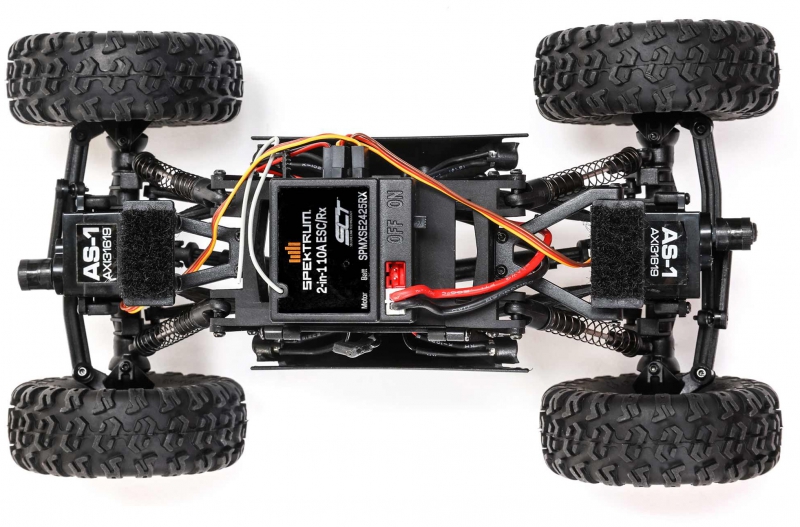

- Axial AS-1 Servo Motors — Two Axial AS-1 servos are mounted just above the axle with servo savers that allow for steering accuracy whilst protecting the servo gears in the event of a bind or impact. This protection means your steering system stays responsive and reliable even during demanding crawling sessions.
- Dynamite 88T Brushed Motor — The included Dynamite 88T brushed electric motor provides the right amount of torque to conquer steep climbs and power through challenging terrain. It's mated to a stamped aluminium motor mount to keep flex to a minimum and protect the gears from stress damage.
- Spektrum SLT3 2.4GHz Radio System — The included Spektrum SLT3 transmitter is ergonomically designed for fatigue-free driving and features a foam wheel for precise fingertip control. Paired with a Spektrum 2-in-1 ESC/Receiver combo, its 2.4GHz signal lets you crawl in the company of multiple other rigs without worrying about interference or dropouts.

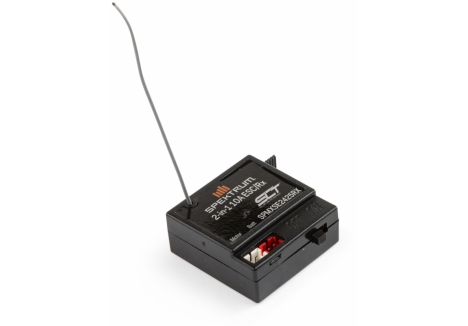

- 2-in-1 ESC/Receiver System with Throttle Bypass — The Spektrum 2-in-1 ESC/Receiver combo includes a new throttle port that serves as an ESC bypass, allowing you to use aftermarket ESCs without having to purchase a new receiver if you want to upgrade your vehicle's performance later.
- Ready-to-Run Out of the Box — Everything needed to hit the trails is included: the crawler, radio system, battery, charger, and all tools. You can start driving immediately without purchasing additional components, making this an ideal ready-to-run RC car for UK hobbyists.
Technical Performance
The AX24 XC-1 represents cutting-edge engineering in the 1/24 scale brushed electric RC crawler category. Measuring 7.8 inches (198mm) in length, 4.5 inches (114mm) in width, and 3.7 inches (94mm) in height, this compact vehicle delivers serious performance in a highly portable form factor. The 4WD drivetrain features a 4-link suspension geometry paired with long-travel 51mm coilover shock absorbers that work in harmony with the innovative side plate chassis to provide exceptional articulation and obstacle-clearing capability. The solid axle front and rear suspension, combined with worm gear differentials rated at 16T/4T, ensures consistent power delivery and increased ground clearance of 1.3 inches (34mm). The 11T pinion gear meshes with the 55T spur gear to provide a well-balanced power delivery curve suitable for crawling work. The included Dynamite 88T brushed motor delivers sufficient torque for climbing steep inclines whilst the 2S LiPo battery (350mAh at 7.4V) provides reliable power through extended crawling sessions. The vehicle uses PH 2.0 (High-Current Ultra Micro) connectors for convenient battery swaps. With sealed ball bearings throughout and no bushings in the drivetrain, the AX24 XC-1 offers smooth, efficient power transmission and extended component longevity. The Spektrum SLT3 radio system operates on 2.4GHz with three channels, providing interference-free operation alongside other RC vehicles. All steering functions, including the three unique 4WS modes, are accessible via the transmitter, making this one of the most feature-rich ready-to-run RC crawlers available in the 1/24 scale segment.

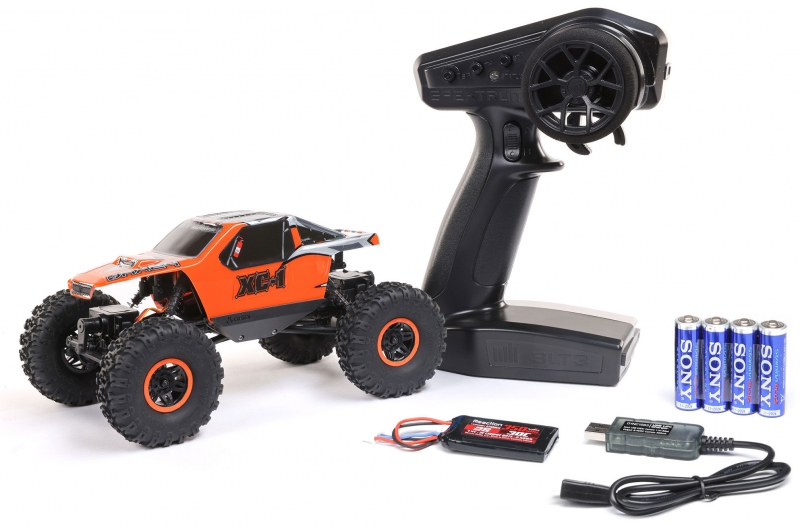

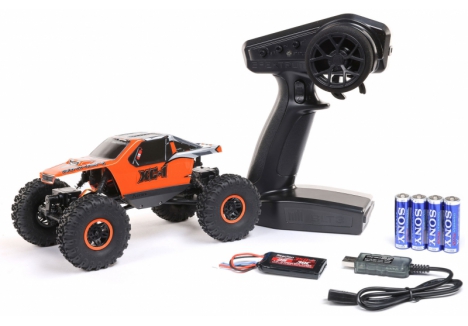

What's in the Box
- (1) Axial AX24 XC-1 1/24 Scale 4WS RTR Rock Crawler
- (1) Spektrum SLT3 2.4GHz 3-Channel Radio System
- (2) Axial AS-1 Servo Motors
- (1) Spektrum 2-in-1 ESC/Receiver Combo
- (1) 0.5 Amp USB Charger
- (1) Dynamite 88T Brushed Electric Motor
- (1) Dynamite 350mAh 2S 7.4V LiPo Battery
- (4) AA Transmitter Batteries
- (1) 1/24 AX24 XC-1 4WS Instruction Manual
- (1) Miscellaneous Tools
Frequently Asked Questions
- Is the Axial AX24 XC-1 suitable for complete beginners to RC crawling? — Yes, absolutely. While the AX24 XC-1 offers advanced features like three 4WS modes that even experienced crawlers will appreciate, the Ready-to-Run format means beginners don't need to assemble anything. The vehicle comes fully equipped with a radio system, battery, and charger. The intuitive Spektrum SLT3 transmitter is ergonomically designed for easy control, and the vehicle's forgiving nature and stable side plate chassis make it ideal for learning rock crawling techniques. Newcomers will find it to be a fun and highly capable mini crawler to run on both indoor and outdoor courses.
- What battery does the AX24 XC-1 use and how long does it run? — The AX24 XC-1 comes equipped with a Dynamite 350mAh 2S 7.4V LiPo battery and is compatible with other 2S LiPo batteries of similar capacity. A 350mAh battery typically provides 15-30 minutes of runtime depending on driving style and terrain conditions, with more aggressive crawling consuming battery faster than smooth, technical driving. The included 0.5 Amp USB charger is designed to safely charge the included battery.
- What makes the 4-wheel steering system different from standard RC crawlers? — Most RC crawlers feature two-wheel steering (front wheels only), but the AX24 XC-1's unique four-wheel steering system offers three distinct modes: standard mode with no rear tyre input for conventional driving, mirrored mode where the rear tyres follow the front steering input for enhanced manoeuvrability, and "crab crawl" mode where the vehicle can move sideways to navigate tight formations. This unprecedented flexibility allows you to tackle obstacles and navigate terrain that would be impossible or extremely difficult with standard steering systems.
- How does the AX24 XC-1 compare to other 1/24 scale crawlers? — The AX24 XC-1 distinguishes itself through several innovations: the unique three-mode 4WS system found on no competing 1/24 platform, the innovative side plate chassis design that allows greater articulation, longer travel 51mm coilover shocks, LED rock lights for low-light visibility, sealed ball bearings throughout (no bushings), and the premium Spektrum SLT3 radio system with a dedicated ESC bypass port. The vehicle can crawl over bigger obstacles and pull tougher lines than any other 1/24 scale rig available.
- What tools and skills are needed to maintain the AX24 XC-1? — The AX24 XC-1 comes fully assembled and requires no tools for initial setup. Ongoing maintenance is minimal thanks to the sealed ball bearing construction and quality components. Basic tools like hex wrenches (included) are sufficient for occasional maintenance like cleaning, checking fasteners, or replacing the battery. The hinged body system makes accessing components straightforward, and the instruction manual provides detailed guidance for any maintenance needs.
- Can I upgrade the motor, battery, or radio system? — Yes, the AX24 XC-1 platform supports upgrades. The battery connector type is PH 2.0 (High-Current Ultra Micro), so you can use compatible aftermarket 2S LiPo batteries. The Spektrum 2-in-1 ESC/Receiver includes a throttle port that serves as an ESC bypass, allowing you to install an aftermarket ESC without replacing the receiver. These upgrade paths mean you can expand the vehicle's performance as your skills develop.
- Is the AX24 XC-1 waterproof or suitable for water crossings? — The AX24 XC-1 is not specifically rated as waterproof. While it features sealed ball bearings and quality construction, the electronics and motor are not sealed against water ingress. It's suitable for dry rock crawling environments but should be kept away from deep water or heavy rain to prevent damage to the Spektrum radio receiver, motor, or ESC.
- What is the ground clearance and wheelbase? — The AX24 XC-1 features 1.3 inches (34mm) of ground clearance and a wheelbase of 5.3 inches (135mm). The front and rear track width are both 4.5 inches (113mm). These dimensions provide excellent balance between stability and the articulation needed for technical rock crawling.
Why Buy from RC Model Shop?
RC Model Shop is a trusted UK RC retailer and authorised dealer for all the brands we stock, including Traxxas, ARRMA, Losi, FTX, Hobbywing, Spektrum and more. Based in Walsall, we have a physical store where customers are welcome to come in, view products and purchase in store. Whether you are a seasoned competitor, a weekend basher, or just discovering the world of RC for the first time, our team of experienced RC enthusiasts is here to help you find the perfect setup and provide ongoing support. Order the AXIAL 1/24 AX24 XC-1 4WS Crawler RTR Orange C-AXI00003T2 today with confidence, knowing you are buying from an authorised retailer with genuine products, expert knowledge and a commitment to customer satisfaction. Shop online or visit us in Walsall — we look forward to helping you get the most out of your RC experience.
Parts Diagrams
Front & Rear Assembly
Link Assembly

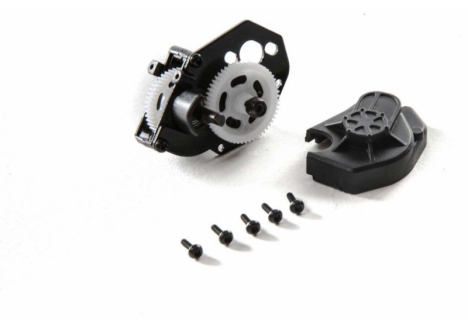

Shocks / Driveshaft / Transmission
