Product Features
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Multiple options for easy programming:
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Throttle stick programming
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install - no soldering required
- Heat dissipating design
- Dual BEC power connectors
- Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
Product Overview
Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics - together, creating the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before - without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.
Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Needed to Complete
- Spektrum™ Aircraft Receiver
- Spektrum Smart Technology LiPo Battery
- Spektrum Transmitter
What's in the Box?
- (1) Spektrum™ Avian™ Smart ESC
- (1) Spektrum Smart sticker sheet
- (1) Product Manual
One-Wire Telemetry
No need to connect multiple wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.
Â

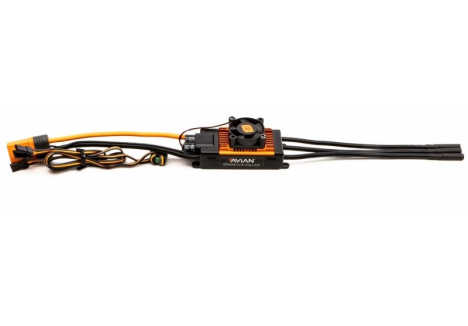

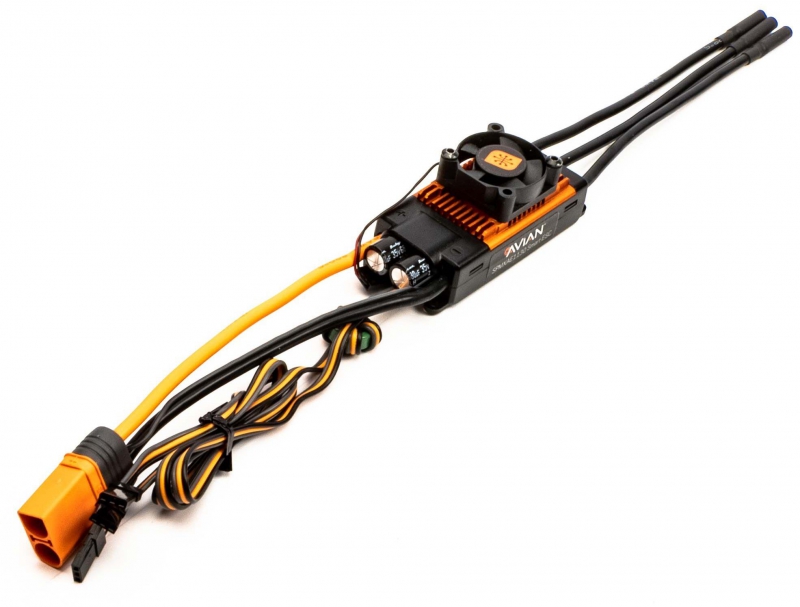

- Model Number: P-SPMXAE1130
- Brand: Spektrum (Avian line)
- ESC Type: Brushless Smart ESC
- Maximum Continuous Current: 130 Amps
- Maximum Burst Current: 760 Amps
- Battery Input Voltage: 2S - 4S LiPo
- Nominal Voltage Range: 7.4V - 14.8V
- Maximum Input Voltage: 14.8V
- BEC (Battery Eliminator Circuit): Yes
- BEC Type: Linear
- BEC Voltage Output: 6V
- BEC Continuous Current: 8 Amps (Source 1) / 4 Amps at 6V (Source 3)
- Low-Voltage Cutoff: Programmable automatic LiPo cutoff
- Over-Current Protection: Yes
- Thermal Protection: Yes
- Failsafe Protection: Yes
- Brake Function: Yes
- Forward/Reverse Operation: Yes
- Processor: Fast, powerful 32-bit ARM M4 processor
- Waterproof: Yes, fully waterproof all-weather design
- Telemetry: Smart all-in-one telemetry with real-time transmission
- Telemetry Data Transmitted: RPM, temperature, battery voltage, cell balance, current, capacity
- One-Wire Telemetry: Yes, single-wire solution for data transmission
- Programming Options: Button programming, Smart ESC Programming Box, SmartLink USB Updating and Programmer application
- Firmware Updatable: Yes, through Smart ESC Programming Box and SmartLink PC application
- Battery Connector Type: IC5 (high heat-resistant IC series)
- Battery Connector Compatibility: Backwards compatible with EC3 and EC5 connectors
- Motor Output Connector: 4mm bullet connectors
- Smart Technology Compatibility: Yes, compatible with Spektrum Smart ecosystem
- Application: Air
- Product Height: 1.5 inches (38mm)
- Product Length: 2.2 inches (57mm)
- Product Width: 1.4 inches (37mm)
- Product Weight: 4.4 ounces (126 grams)
- Case Material: Rugged plastic case with mounting tabs
- Heat Management: Aluminium heat sink with integrated cooling fan
- Connectors: High heat-resistant IC connectors, pre-installed connections
- Installation: Ready to install, no soldering required
- Warranty: Limited 1-year warranty
- Contents: 1x Spektrum Avian 130A Brushless Smart ESC, 1x Spektrum Smart sticker sheet, 1x Product Manual
Overview

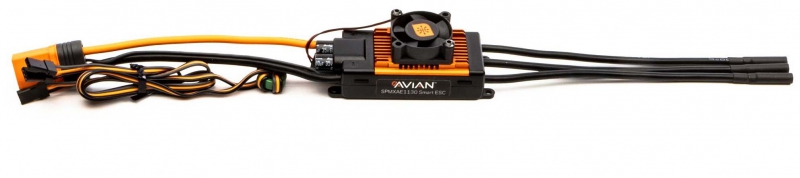

The Spektrum Avian 130 Amp Brushless Smart ESC represents a significant leap forward in electronic speed control technology for RC aircraft enthusiasts across the UK. Designed and engineered by Spektrum in partnership with industry-leading ESC manufacturers, this high-performance unit combines cutting-edge Smart telemetry with robust power handling capabilities that make it ideal for demanding aerial applications. Whether you're piloting high-performance electric RC planes, large-scale aerobatic models, or demanding multirotor platforms, the Avian 130A delivers the precision control and real-time feedback you need to push your aircraft to its limits with confidence.
This brushless ESC stands out in the crowded market of RC electronics because it does far more than simply regulate power to your motor. The Avian 130A functions as a virtual engineer inside your model, providing a direct pathway to vital operating data that you need to reach peak performance every single flight. With Smart all-in-one telemetry integrated directly into the unit, you receive real-time transmission of critical flight data including RPM, temperature, battery voltage, cell balance, and current draw — all sent wirelessly to your compatible Spektrum transmitter without the need for additional wiring, sensors, or modules. This revolutionary one-wire telemetry solution has been tested and validated by the best brands in RC, and their verdict is clear: Smart technology is both simpler and superior to traditional multi-component systems.
The Avian 130A is engineered for fliers who demand reliability, performance, and intelligent feedback. Ready to install straight from the box with no soldering required, this ESC integrates seamlessly into your aircraft with its compact dimensions and rugged plastic case featuring convenient mounting tabs. The high-efficiency aluminium heat sink and integrated cooling fan ensure sustained performance even during extended flight sessions, whilst the intelligent protection systems safeguard your investment through automatic low-voltage cutoff, thermal protection, and failsafe protocols.
Key Features
- Smart All-in-One Telemetry — The Avian 130A transmits real-time data directly to your transmitter, eliminating the need for additional telemetry modules, extra wires, or independent sensors. Monitor critical parameters including RPM, temperature, voltage, cell balance, and current draw during flight, allowing you to adjust settings on the fly to optimise performance based on actual operating conditions.
- Fast, Powerful 32-Bit ARM M4 Processor — This advanced processor delivers higher resolution signal input and more accurate motor output compared to conventional ESCs, resulting in smoother throttle response, better motor control precision, and improved overall flight performance across a wider range of flight conditions.
- Waterproof All-Weather Design — The fully waterproof construction allows the Avian 130A to perform reliably in nearly any terrain or weather condition, whether you're flying through dust, rain, snow, or across challenging outdoor environments, giving you the freedom to fly when you want without worrying about moisture damage.
- Intelligent Multi-Point Protection System — Built-in safeguards include automatic LiPo low-voltage cutoff to protect your battery, thermal protection to prevent overheating damage, over-current protection against electrical faults, and intelligent failsafe protection that activates if signal is lost, ensuring your aircraft and investment remain safe in all flying conditions.
- IC3/IC5 Battery Connectors with EC3/EC5 Compatibility — The Avian 130A features high heat-resistant IC series battery connectors designed from the ground up to provide solid connections and effortless installation. When paired with Spektrum Smart LiPo batteries equipped with IC connectors, the ESC automatically receives and transmits comprehensive battery telemetry including cycle count, charge percentage, individual cell voltages, and estimated remaining flight time.
- Multiple Programming Options for Maximum Flexibility — Configure your ESC using simple button programming with nothing else required, utilise the optional Smart ESC Programming Box for detailed track-side adjustments, or employ the comprehensive SmartLink USB Updating and Programmer application on your PC for complete customisation of all parameters and firmware updates.
- High-Power BEC with Dual Power Connectors — The integrated BEC (Battery Eliminator Circuit) provides 4 amps of continuous power at 6 volts, delivering sufficient capacity to power your receiver, servos, and other onboard electronics without requiring additional battery packs or power management systems, whilst dual connectors provide redundancy and flexibility in system design.
- Firmware Updatable Through Multiple Methods — Keep your ESC current with the latest performance enhancements and bug fixes using the Smart ESC Programming Box or the SmartLink PC application, ensuring your speed control always incorporates the latest improvements from Spektrum engineers.
- Compact Design for Easy Installation — The space-saving compact form factor fits easily into most aircraft fuselages and frame designs, whilst the rugged plastic case with convenient mounting tabs and pre-installed connections means you can integrate the Avian 130A into your build in minutes without complex installation procedures or modifications.
- Ready to Install — No Soldering Required — All connections feature pre-installed connectors including high heat-resistant IC and EC compatible battery leads and 4mm motor output connectors, meaning your ESC is ready for immediate installation without any soldering work, making setup faster and safer for fliers of all experience levels.
- High-Efficiency Aluminium Heat Sink with Cooling Fan — The substantial aluminium heat dissipation design combined with an integrated cooling fan maintains optimal operating temperatures even during extended high-power flights, preventing thermal throttling and ensuring consistent performance throughout your flying session.
- Spektrum Smart Ecosystem Integration — Like every component in the Spektrum Smart ecosystem, the Avian 130A combines plug-and-play simplicity with the ability to communicate with other Smart electronics — receivers, batteries, and servos — creating a truly integrated system where all components work together seamlessly for the best possible RC aircraft experience.
Technical Performance
The Avian 130 Amp Brushless Smart ESC delivers exceptional technical performance specifications designed for demanding RC aircraft applications. With a maximum continuous current rating of 130 amps and an impressive maximum burst current capacity of 760 amps, this ESC handles high-power motors and aggressive flight manoeuvres without hesitation. The unit accepts input voltages from 2S through 4S LiPo batteries (7.4V to 14.8V nominal operation), making it compatible with a wide range of aircraft powerplants and battery configurations used throughout the RC aircraft community in the UK and globally. The fast, powerful 32-bit ARM M4 processor operates at significantly higher clock speeds than conventional ESC processors, delivering superior signal processing and motor commutation accuracy that translates into noticeably smoother throttle response and more precise motor speed control across the entire throttle range. The high-power BEC continuously supplies 4 amps at 6 volts to power your receiver, servos, and accessories, eliminating the need for secondary battery systems in most installations. The waterproof design with rugged plastic casing and aluminium heat sink ensures reliable operation in moisture-rich environments whilst maintaining optimal thermal characteristics. All connections utilise high heat-resistant IC connectors (backwards compatible with EC connectors for flexibility) and 4mm bullet connectors on the motor output, providing secure, low-resistance connections that minimise power loss and heating. The integrated cooling fan automatically manages heat dissipation during sustained high-current operation, whilst the intelligent thermal protection system prevents damage if temperatures exceed safe limits. Total unit dimensions measure 57mm in length, 37mm in width, and 38mm in height, with a compact overall weight of just 126 grams, making this ESC suitable for integration into aircraft of various sizes and configurations. The advanced firmware supports programmable low-voltage cutoff, brake function, forward/reverse operation, and comprehensive telemetry data logging, with all settings configurable through multiple interfaces including button programming, dedicated programming box, or PC application via SmartLink.
What's in the Box
- Spektrum Avian 130A Brushless Smart ESC (1 unit)
- Spektrum Smart sticker sheet
- Product manual with detailed programming instructions and troubleshooting guides
What You Need to Complete
- Spektrum Surface Receiver (compatible with your aircraft configuration)
- Spektrum Smart Technology compatible transmitter with telemetry capability
- 2S-4S LiPo battery (7.4V to 14.8V nominal, 130 amp capable discharge rating recommended)
- Brushless motor suitable for your aircraft (3S-4S compatible motor recommended)
Frequently Asked Questions
- What is the difference between the Avian 130A and similar brushless ESCs available in the UK? — The Avian 130A's primary advantage is its integrated Smart telemetry system that transmits real-time flight data to your transmitter through a single wire connection, eliminating the need for separate telemetry modules or additional wiring. The advanced 32-bit ARM M4 processor provides smoother, more responsive motor control than conventional designs. The waterproof construction, high-power 4-amp BEC, and intelligent protection systems make it particularly suitable for demanding aircraft applications where reliability and performance data are essential.
- Is the Spektrum Avian 130A suitable for beginners? — Yes, the Avian 130A is suitable for beginning RC aircraft pilots, though it's typically recommended for intermediate to advanced fliers due to its high current capacity. The simple button programming option makes initial setup straightforward, and the integrated telemetry and protection systems provide additional safety margins that actually benefit less experienced pilots. However, the high power rating suggests it's designed for higher-performance aircraft rather than entry-level trainers.
- What battery does the Avian 130A require? — The ESC accepts 2S, 3S, or 4S LiPo batteries, providing nominal voltages of 7.4V, 11.1V, or 14.8V respectively. The maximum input voltage is 14.8V (4S), and the ESC includes automatic low-voltage cutoff to protect your battery. For optimal performance, select a battery with a discharge rating of 130 amps or higher and choose a cell count that matches your motor's voltage requirements. Spektrum Smart LiPo batteries with IC connectors provide the added benefit of battery telemetry transmission to your transmitter.
- Does the Avian 130A come with a receiver? — No, the ESC does not include a receiver. You'll need to separately purchase a compatible Spektrum surface receiver that matches your aircraft type and control channel requirements. The ESC will integrate seamlessly with any compatible Spektrum receiver to provide full Smart telemetry functionality.
- Can I use the Avian 130A with my existing Spektrum transmitter? — The Avian 130A is compatible with Spektrum transmitters and receivers that support Smart technology. Check your transmitter's specifications to confirm Smart telemetry compatibility. The ESC will function with standard Spektrum receivers even if your transmitter doesn't support telemetry, though you'll lose the real-time data transmission feature.
- What protection features does the Avian 130A provide? — The ESC includes comprehensive multi-point protection: automatic LiPo low-voltage cutoff to preserve battery health, thermal protection that activates if the ESC overheats, over-current protection against electrical faults, and intelligent failsafe protection that activates if radio signal is lost. These systems work together to protect your aircraft, battery, motor, and investment.
- How is the Avian 130A programmed? — Three programming methods are available: simple button programming for basic adjustments, the optional Smart ESC Programming Box for detailed track-side configuration, or the SmartLink USB Updating and Programmer application running on your computer for comprehensive parameter adjustment and firmware updates. This flexibility accommodates different user preferences and experience levels.
