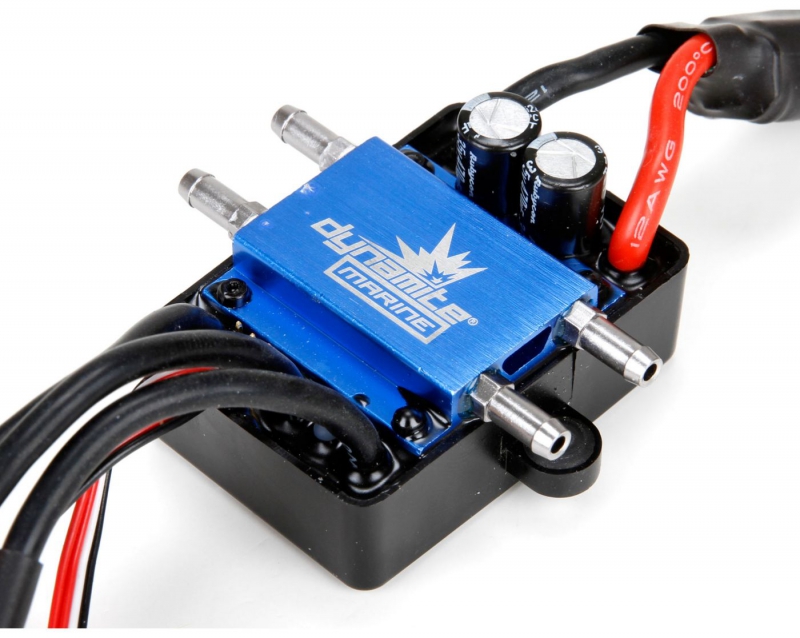

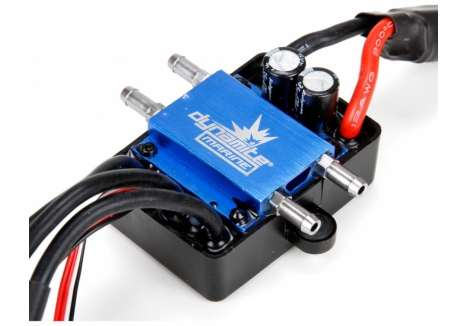

The Dynamite P-DYNM3876 120A Marine ESC for 2–6S LiPo brushless RC boats is a high-performance, water-cooled controller engineered for medium to large hulls demanding precision, power, and durability. Designed for platforms like the Blackjack 29 V3, deep-V hulls, catamarans, and airboats, this ESC delivers 120A continuous current and up to 720A burst capacity, making it ideal for aggressive throttle profiles and extended high-speed runs. With full forward/reverse/brake functionality, programmable cutoff, and marine-specific firmware, the Dynamite P-DYNM3876 offers refined control and thermal stability in demanding aquatic environments.
Key features of the Dynamite P-DYNM3876 120A Marine ESC
- 120A continuous current – supports high-output brushless motors for serious marine propulsion
- Waterproof and water-cooled housing – marine-grade enclosure with integrated cooling jacket for thermal management
- Reverse-enabled drive – enhances maneuverability for docking, recovery, and tight water turns
- Programmable brake – includes time-delay functionality for smoother deceleration and safer transitions
- 6V switching BEC – powers receiver and servos with stable voltage delivery
- IC5 connector – ensures secure, high-current connectivity with LiPo battery packs
How does the Dynamite P-DYNM3876 handle high-current marine loads?
The Dynamite P-DYNM3876 marine ESC with 720A burst current, 6V switching BEC, and 5.5mm bullets is built to withstand the demands of high-speed aquatic platforms. Its 120A continuous rating ensures consistent power delivery during sustained throttle runs, while the 720A burst capacity provides headroom for acceleration spikes and peak loads. The integrated water-cooled housing actively dissipates heat, allowing the ESC to operate efficiently under prolonged stress without thermal shutdown.
Why is reverse functionality important in RC boats?
The Dynamite P-DYNM3876 waterproof ESC with IC5 connector, reverse, and programmable brake includes full directional control for enhanced maneuverability. Whether you're repositioning after a missed turn, navigating docks, or recovering from obstacles, the reverse function adds flexibility that forward-only ESCs cannot offer. Combined with programmable brake settings and time-delay deceleration, this ESC provides a smoother and safer driving experience across varied water conditions.
What battery configurations does the Dynamite P-DYNM3876 support?
The 2–6S brushless marine ESC with time-delay brake, overload protection, and programmable cutoff supports both 2–6S LiPo and 6–18 cell NiMH setups, offering broad compatibility for speed tuning and runtime optimization. Users can tailor their power systems to match hull type, motor KV, and water conditions. The programmable low-voltage cutoff protects batteries from over-discharge, while the overload protection safeguards internal components during current surges or motor stalls.
How does the ESC maintain efficiency under load?
The Dynamite P-DYNM3876 with 120A continuous current, 12 AWG input leads, and .0005 ohm resistance is optimized for low-resistance power transfer and high-current throughput. The 12 AWG input leads support high-discharge rates, while the internal resistance of just .0005 ohms minimizes energy loss and heat buildup. These specifications ensure that the ESC delivers clean, efficient power to the motor, even during full-throttle operation or rapid directional changes.
Which RC boats are best suited for this ESC?
The RC boat ESC for Blackjack 29 V3, deep-V hulls, catamarans, and airboats with water-cooled housing is designed for medium to large-scale platforms that operate in open water or competitive racing environments. Its compact footprint fits most standard marine ESC trays, and its sensorless design simplifies installation and reduces failure points. Whether you're building a custom speed boat or upgrading a stock system, the Dynamite P-DYNM3876 offers plug-and-play compatibility with high-performance marine setups.
Buy Dynamite P-DYNM3876 120A ESC for high-speed RC boats with 2–6S LiPo setups.
Product Description of Dynamite P-DYNM3876 120A Marine ESC for 2–6S LiPo brushless RC boats
The Dynamite P-DYNM3876 120A Marine ESC for 2–6S LiPo brushless RC boats is a high-performance, water-cooled controller engineered for medium to large hulls demanding precision, power, and durability. Designed for platforms like the Blackjack 29 V3, deep-V hulls, catamarans, and airboats, this ESC delivers 120A continuous current and up to 720A burst capacity, making it ideal for aggressive throttle profiles and extended high-speed runs. With full forward/reverse/brake functionality, programmable cutoff, and marine-specific firmware, the Dynamite P-DYNM3876 offers refined control and thermal stability in demanding aquatic environments.
Key features of the Dynamite P-DYNM3876 120A Marine ESC
- 120A continuous current – supports high-output brushless motors for serious marine propulsion
- Waterproof and water-cooled housing – marine-grade enclosure with integrated cooling jacket for thermal management
- Reverse-enabled drive – enhances maneuverability for docking, recovery, and tight water turns
- Programmable brake – includes time-delay functionality for smoother deceleration and safer transitions
- 6V switching BEC – powers receiver and servos with stable voltage delivery
- IC5 connector – ensures secure, high-current connectivity with LiPo battery packs
How does the Dynamite P-DYNM3876 handle high-current marine loads?
The Dynamite P-DYNM3876 marine ESC with 720A burst current, 6V switching BEC, and 5.5mm bullets is built to withstand the demands of high-speed aquatic platforms. Its 120A continuous rating ensures consistent power delivery during sustained throttle runs, while the 720A burst capacity provides headroom for acceleration spikes and peak loads. The integrated water-cooled housing actively dissipates heat, allowing the ESC to operate efficiently under prolonged stress without thermal shutdown.
Why is reverse functionality important in RC boats?
The Dynamite P-DYNM3876 waterproof ESC with IC5 connector, reverse, and programmable brake includes full directional control for enhanced maneuverability. Whether you're repositioning after a missed turn, navigating docks, or recovering from obstacles, the reverse function adds flexibility that forward-only ESCs cannot offer. Combined with programmable brake settings and time-delay deceleration, this ESC provides a smoother and safer driving experience across varied water conditions.
What battery configurations does the Dynamite P-DYNM3876 support?
The 2–6S brushless marine ESC with time-delay brake, overload protection, and programmable cutoff supports both 2–6S LiPo and 6–18 cell NiMH setups, offering broad compatibility for speed tuning and runtime optimization. Users can tailor their power systems to match hull type, motor KV, and water conditions. The programmable low-voltage cutoff protects batteries from over-discharge, while the overload protection safeguards internal components during current surges or motor stalls.
How does the ESC maintain efficiency under load?
The Dynamite P-DYNM3876 with 120A continuous current, 12 AWG input leads, and .0005 ohm resistance is optimized for low-resistance power transfer and high-current throughput. The 12 AWG input leads support high-discharge rates, while the internal resistance of just .0005 ohms minimizes energy loss and heat buildup. These specifications ensure that the ESC delivers clean, efficient power to the motor, even during full-throttle operation or rapid directional changes.
Which RC boats are best suited for this ESC?
The RC boat ESC for Blackjack 29 V3, deep-V hulls, catamarans, and airboats with water-cooled housing is designed for medium to large-scale platforms that operate in open water or competitive racing environments. Its compact footprint fits most standard marine ESC trays, and its sensorless design simplifies installation and reduces failure points. Whether you're building a custom speed boat or upgrading a stock system, the Dynamite P-DYNM3876 offers plug-and-play compatibility with high-performance marine setups.
Buy Dynamite P-DYNM3876 120A ESC for high-speed RC boats with 2–6S LiPo setups.
Technical Specifications of Dynamite P-DYNM3876 120A Marine ESC for 2–6S LiPo brushless RC boats
Brand, Model and Product Type
- Brand: Dynamite
- Model: P-DYNM3876
- Product Type: Dynamite P-DYNM3876 120A Marine ESC for 2–6S LiPo brushless RC boats, Dynamite P-DYNM3876 waterproof ESC with IC5 connector, reverse, and programmable brake, Dynamite P-DYNM3876 marine ESC with 720A burst current, 6V switching BEC, and 5.5mm bullets, Dynamite P-DYNM3876 with 120A continuous current, 12 AWG input leads, and .0005 ohm resistance, RC boat ESC for Blackjack 29 V3, deep-V hulls, catamarans, and airboats with water-cooled housing
Dimensions and Build
- Length: 6.1 cm – compact footprint fits standard marine ESC trays
- Width: 5.73 cm – suitable for medium to large hulls with high-current requirements
- Height: 3.02 cm – low-profile design supports efficient cooling and installation flexibility
- Housing: Waterproof and water-cooled – marine-grade enclosure with integrated cooling jacket for thermal stability
Electrical and Performance Specifications
- Continuous Current Rating: 120A – supports aggressive throttle profiles and high-load propulsion systems
- Maximum Burst Current: 720A – provides headroom for acceleration spikes and peak loads
- Input Voltage Range: 2–6S LiPo (7.4V–22.2V) or 6–18 cell NiMH – flexible power compatibility across hull sizes
- Resistance: 0.0005 ohm – ultra-low internal resistance for efficient energy transfer and reduced heat buildup
- Input Leads: 12 AWG – supports high-discharge current with minimal voltage drop
Drive and Control Features
- Forward Drive: Yes – primary propulsion mode for high-speed marine platforms
- Reverse Function: Yes – enables full directional control for docking and recovery
- Brakes: Yes – includes programmable time-delay brake for smoother deceleration
- Programmability: Yes – adjustable throttle curve, brake strength, and cutoff settings via optional program box
- Low-Voltage Cutoff: Programmable – protects battery from over-discharge during extended runs
- Overload Protection: Yes – safeguards ESC from current surges and motor stalls
BEC Specifications
- BEC Type: Switching – efficient onboard voltage regulation
- BEC Voltage: 6V – stable output for powering receiver and servos
- BEC Continuous Current: 5A – supports standard RC electronics
- BEC Burst Current: 10A – accommodates peak servo loads during high-speed maneuvers
Connectivity and Compatibility
- Connector Type: IC5 – ensures secure, high-current connections with LiPo battery packs
- Output Connector: 5.5mm bullet – supports reliable motor connectivity

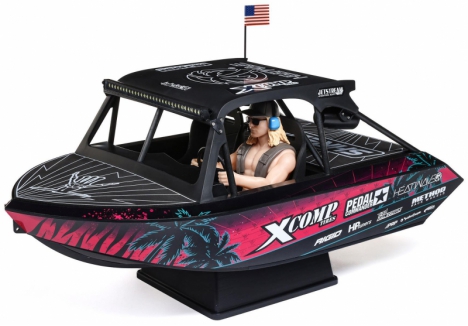

- Hull Compatibility: Ideal for Blackjack 29 V3, deep-V hulls, catamarans, and airboats
- Firmware: Marine-specific – optimized for smooth throttle ramping and safe reverse behavior
What’s in the Box
- 1 × Dynamite P-DYNM3876 120A Brushless Marine ESC with IC5 Connector
What You Require / What You Will Need
- Compatible brushless motor – matched to 120A ESC rating
- 2–6S LiPo or 6–18 cell NiMH battery – required for operation

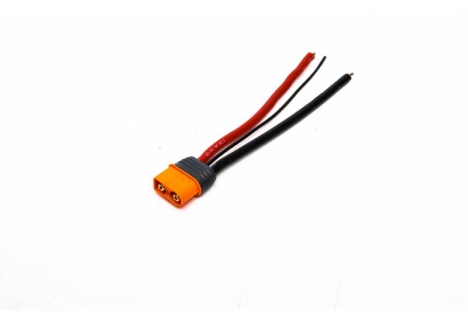

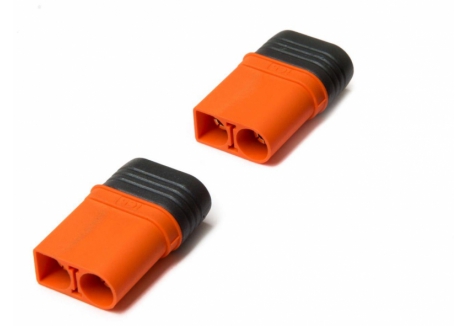

- IC5 battery connectors – for secure power delivery

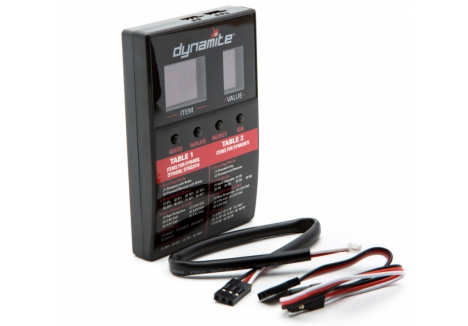

- Optional DYN3748 Digital Program Box – for advanced tuning and customization
Sold Separately
- DYN3748 Digital Program Box – enables programmable throttle, brake, and cutoff settings
