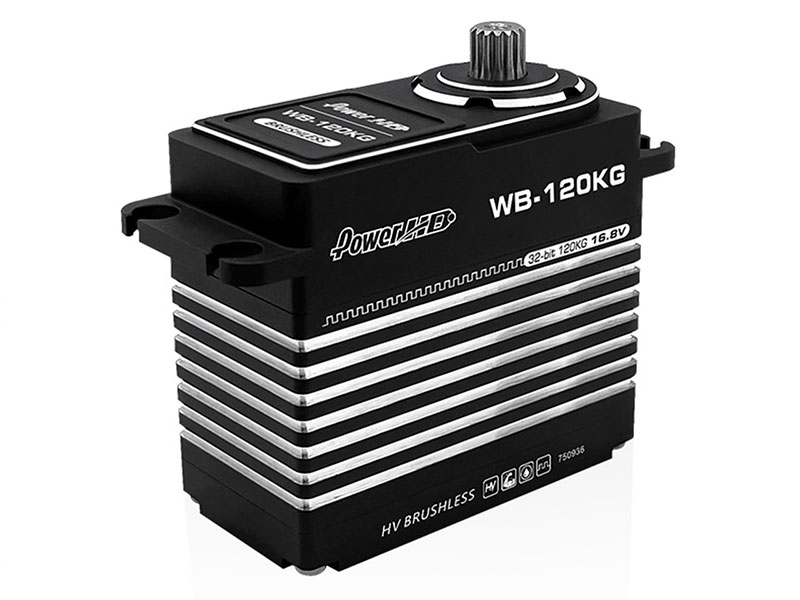

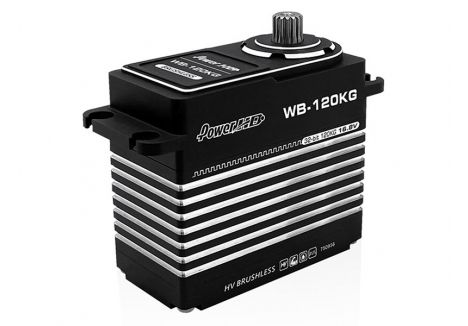

The Power HD WB-120KG (part number HD-WB-120KG) is a high-voltage, large-scale brushless servo engineered for extreme torque and fast response.
With an aluminium case for rigidity and heat dissipation, steel gears for durability, and a 15T output spline, it is designed to deliver dependable performance in demanding RC applications.
This HV servo is powered via a 4S balance lead and operates from 12.6–16.8V DC, producing up to 120.0 kg-cm of torque and speeds down to 0.10s. A 333 Hz working frequency and precise 1520 μs pulse width support smooth, accurate control. Despite its high output, the servo maintains a compact large-scale footprint and robust build quality.
Key Specifications
Motor type: Brushless
Gear type: Steel
Case: Aluminium
Horn gear spline: 15T
Operating voltage: 12.6–16.8V DC
Max current: 8A
Working frequency: 1520 μs / 333 Hz
Operating temperature: -10? to 60?
Power connection: Fitted with two plugs; use the 4S balance lead for 12.6–16.8V input
Size: 59.5 x 29.5 x 54.4 mm
Weight: 212 g
Performance Ratings
Torque (6.0V): 36.0 kg-cm (499.9 oz-in)
Torque (7.4V): 42.0 kg-cm (583.3 oz-in)
Torque (8.4V): 50.0 kg-cm (694.4 oz-in)
Torque (12.6V): 80.0 kg-cm (1111.0 oz-in)
Torque (14.8V): 98.0 kg-cm (1360.9 oz-in)
Torque (16.8V): 120.0 kg-cm (1666.5 oz-in)
Speed: 0.14s (12.6V) | 0.12s (14.8V) | 0.10s (16.8V)
Suggested Compatibility
Suggested compatibility: large-scale RC models requiring very high torque and robust control, such as heavy-duty steering or throttle/brake applications.
Manufacturer: Power HD
Part Number: HD-WB-120KG
EAN: 6929180012006
Servo Horn Fitment: 15t
Gear Material: Metal Geared
Servo Size: Large Scale
Operation: Digital
Torque (6v): 35 - 39.9kg
Speed (6v): .10 - .14s
Bearing Type: Double
