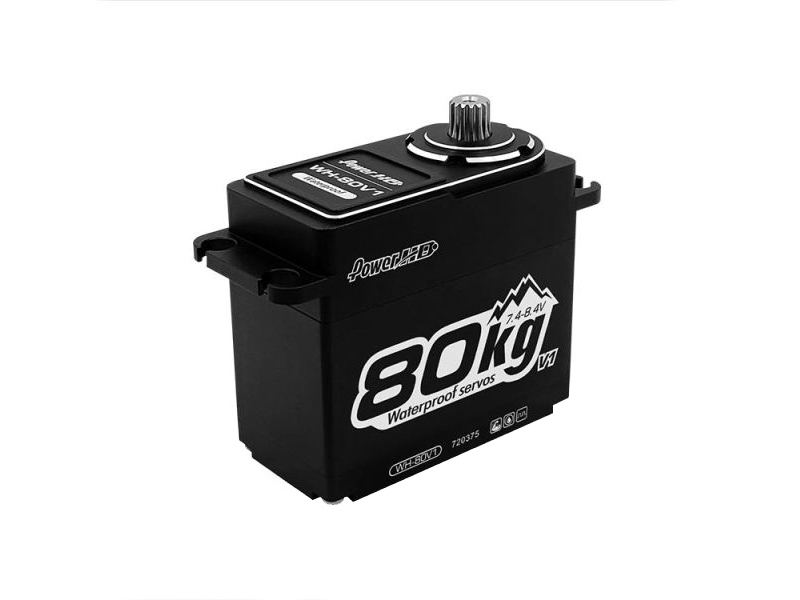

With the fresh full-metal case waterproof design, the WH-80 from Power HD offers 8.4V high-voltage compatibility, up to 80kg-cm of torque, double ball bearings and a stainless steel gear train for durability and strength.
It is compatible with most 1/5th, 1/6th scale crawler, monster, short course truck and so on such as the SCX6, Super Baja Rey, Super Rock Rey, Arrma Kraton and Outcast etc. The 15T spline perfectly matches the original factory servo horn.
Specifications
Torque(6.0V): 60.0 kg-cm / ( 833.2 oz/in)
Torque(7.4V): 75.0 kg-cm / ( 1041.0 oz/in)
Torque(8.4V): 80.0 kg-cm / ( 1110.0 oz/in)
Speed: 0.20 sec (6.0V) - 0.18sec (7.4V) - 0.17 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 186.0 g (7.05 oz)
Bearing Type: Ball Bearing x 2
Motor Type: DC Motor
Gear Type: Copper & Steel
Operating Temperature: -20°C~60°C
Working frequency: 1520us / 333hz
Spline Count: 15T
Size: 59.4x29.5x53.4mm (2.34x1.16x2.10 in)
Manufacturer: Power HD
Part Number: HD-WH-80V1
EAN: 6929188088003
Bearing Type: Double
Speed (6v): > .19s
Torque (6v): 60kg +
Operation: Digital
Servo Size: Large Scale
Gear Material: Metal Geared
Servo Horn Fitment: 15t
