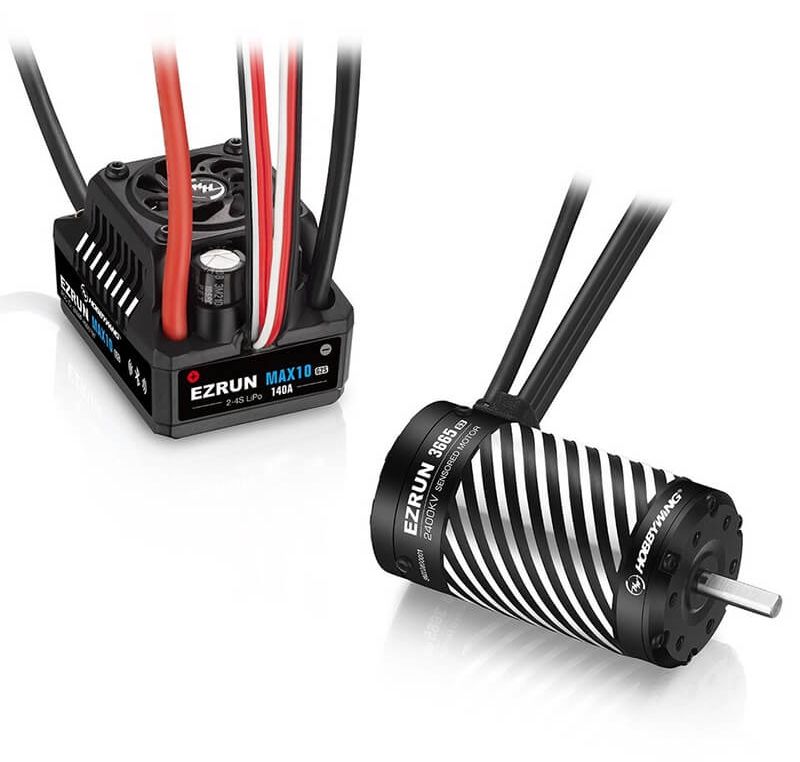

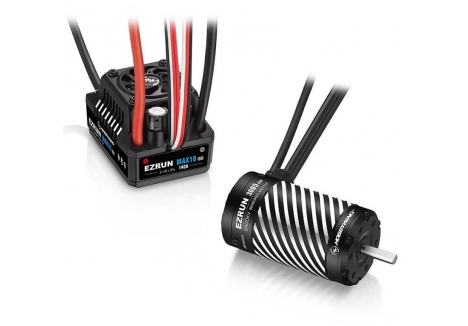

Hobbywing Ezrun MAX10 G2S 140A Brushless Combo with the matching Ezrun 3665SD G3 2400kV motor delivers a perfectly factory-tuned powertrain package for 1:10 scale RC cars.
The MAX10 G2S ESC is the advanced successor of the MAX10 G2: it features the same power specs and housing but offers effortless programming without additional devices. The integrated Bluetooth module is built into the switch, enabling seamless connection to your smartphone via the HW-LINK app for configuration, data analysis, and firmware updates. New features include internal data logging and a third BEC voltage stage of 8.4V tailored for high-voltage servos.
This combo really shines thanks to the ESC’s special capabilities: Turbo Timing can only be activated with supported Hobbywing motors, boosting maximum RPM by up to approximately 25%. Additionally, the motor overheat protection works exclusively with compatible Hobbywing motors—both functions come pre-enabled with the supplied Ezrun 3665SD G3.
Features
- Integrated Bluetooth module within the switch – program directly using smartphone without extra equipment.
- Internal data logging of last 10 minutes driving time, graphically analyzable via HW-LINK app.
- Turbo Timing up to 32 degrees – delivers approx. 25% more top speed with the included motor.
- Three-stage BEC: 6V, 7.4V, 8.4V selectable, 5A continuous current in switch mode.
- Frameless temperature-controlled fan with side air outlet.
- Dust and waterproof ESC and motor (IP67 rating) with waterproof sensor cable.
- Capacitor overheat protection.
- Protection against undervoltage, overheating, and signal loss.
- 4-pole rotor for high torque, rapid acceleration, and stable performance.
- CNC-machined aluminum motor housing and highly precise bearings.
Specifications
ESC (Ezrun MAX10 G2S 140A)
Type: 1/10 brushless, sensored and sensorless
Current (continuous/peak): 140A / 880A
Input voltage: 2-4S LiPo
BEC: 6V / 7.4V / 8.4V selectable, 5A continuous (switch mode)
Motor Limits:
- 2S LiPo: KV ≤ 6000 (3652 motors)
- 3S LiPo: KV ≤ 4000 (3665 motors)
- 4S LiPo: KV ≤ 2600 (4268 motors)
Turbo Timing: Up to 32°
Fan: Yes, powered via BEC
Programming: Bluetooth (HW-LINK app), LCD programming box, OTA module
Programming port: Separate 3-pin
Waterproof rating: IP67
Connectors: XT60 input, gold bullet output
Dimensions: 53 x 39.5 x 37.2 mm
Weight: 125 g (with cables and connectors)
Application: 1/10 short course truck, truck, monster truck
Motor (Ezrun 3665SD G3)
Type: Brushless, sensored
KV rating: 2400kV
No-load current: ≤ 5.2A
Cell count: 2-4S LiPo
Pole count: 4
Length: 65.8 mm
Diameter: 37 mm
Shaft diameter: 5 mm
Weight: 304 g
Waterproof rating: IP67
Application: 1/10 on-road/off-road short course truck (light-duty)
Please Note: A minimum 3S LiPo battery is required to use the 7.4V or 8.4V BEC settings. The Bluetooth connection range is approximately 5 meters due to design.
