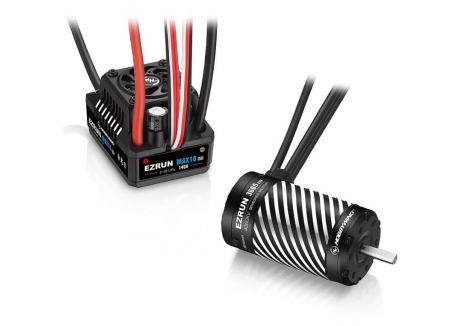

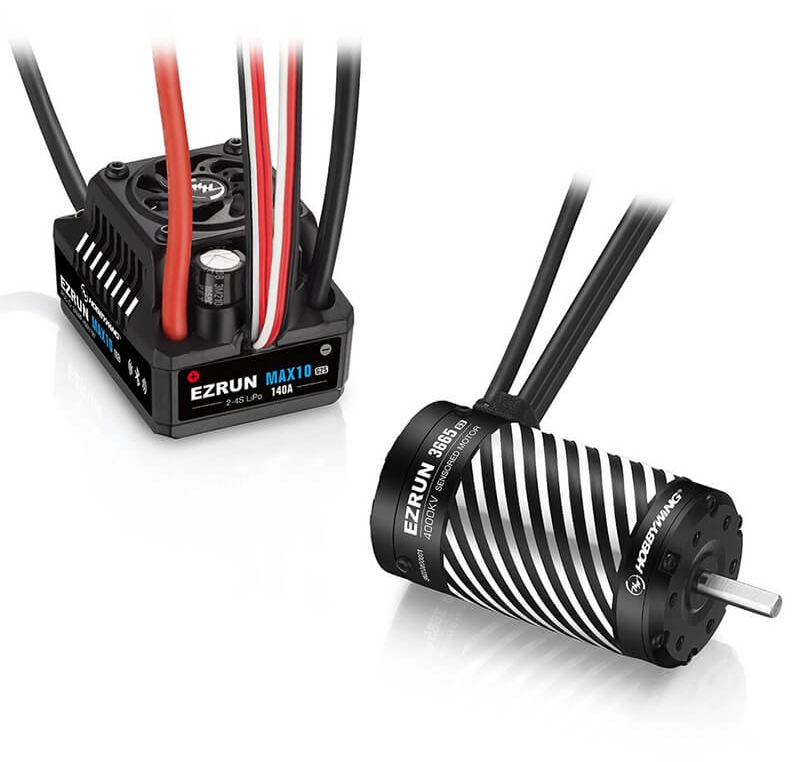

The Hobbywing Ezrun MAX10 G2S 140A Brushless Combo pairs the Ezrun MAX10 G2S with 140A and the matching Ezrun 3665SD G3 4000kV Motor – a perfectly synchronized 1:10 scale powertrain package ready for high-performance RC applications.
The MAX10 G2S is the advanced successor to the MAX10 G2: featuring identical performance specs and casing, but now equipped with a regulator that can be configured effortlessly without extra devices. Its integrated Bluetooth module is built into the switch, enabling direct connection to your smartphone via the HW-LINK app. This allows seamless programming, data analysis, and firmware updates. New to the G2S are internal data logging and a third BEC voltage setting of 8.4V designed for high-voltage servos.
In this combo, the ESC’s strengths truly shine: the Turbo Timing feature can only be activated with Hobbywing motors, boosting the maximum RPM by up to approximately 25%. Additionally, the motor overheat protection functions exclusively with supported Hobbywing motors — both available out-of-the-box with the supplied Ezrun 3665SD G3.
Features
- Integrated Bluetooth module in switch – smartphone programming without additional hardware.
- Internal data logging for the last 10 minutes of runtime, visually analyzed in the HW-LINK app.
- Turbo Timing up to 32 degrees – providing around 25% higher top speed with the included motor.
- Three-stage BEC output: 6V / 7.4V / 8.4V at 5A in switch mode, supporting high-voltage servos.
- Frameless, temperature-controlled fan with lateral air outlet.
- Dust and waterproof ESC and motor rated to IP67 standard, including waterproof sensor cable.
- Overheat protection for capacitors.
- Safety features covering undervoltage, overheating, and signal loss conditions.
- 4-pole rotor for high torque, rapid acceleration, and stable performance.
- CNC-machined aluminum housing with high-precision bearings on the motor.
Specifications
ESC (Ezrun MAX10 G2S 140A)
Type: Brushless, compatible with sensored and sensorless motors
Continuous / peak current: 140A / 880A
Input voltage: 2-4S LiPo
BEC adjustable at: 6V, 7.4V, or 8.4V with 5A continuous current (switch mode)
Turbo Timing: Adjustable up to 32 degrees
Temperature-controlled fan powered via: BEC
Bluetooth programming using: HW-LINK app, also supports LCD programmer and OTA updates
Waterproof rating: IP67
Connectors: XT60 input, gold-plated output sockets
Dimensions: 53 x 39.5 x 37.2 mm
Weight: 125 g (including cables and connectors)
Ideal for: 1/10 Short Course Trucks, Trucks, and Monster Trucks
Motor (Ezrun 3665SD G3)
Type: Brushless, sensored
KV rating: 4000kV
Idle current: ≤ 8.2A
Compatible with: 2-3S LiPo batteries
Design: 4-pole design
Length: 65.8 mm | Diameter: 37 mm | Shaft diameter: 5 mm
Weight: 297 g
Waterproof: standard IP67
Suitable for: 1/10 Short Course Trucks, Truggies, and Monster Trucks
Please Note: At least a 3S LiPo battery is required to use the 7.4V or 8.4V BEC settings. The Bluetooth range is approximately 5 meters due to design limitations.
