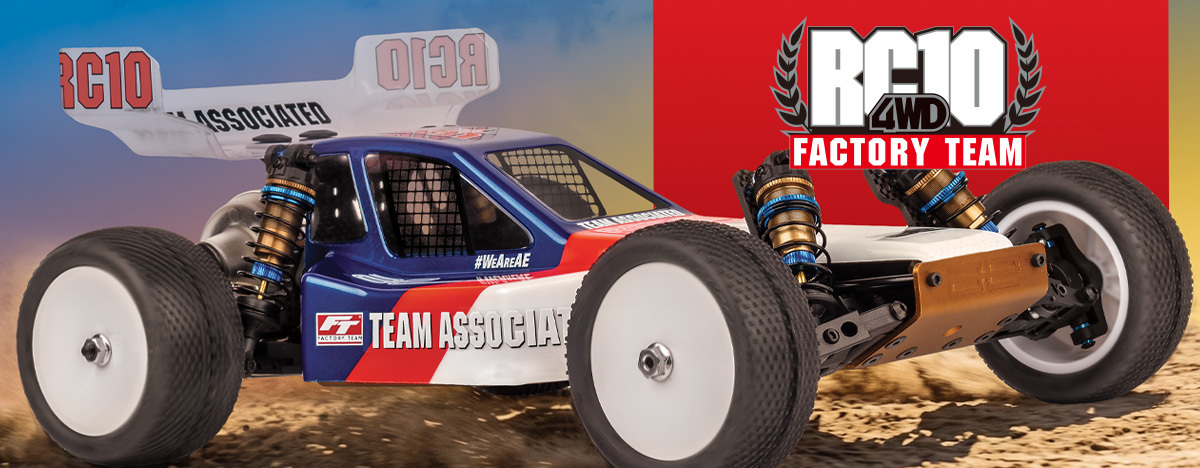

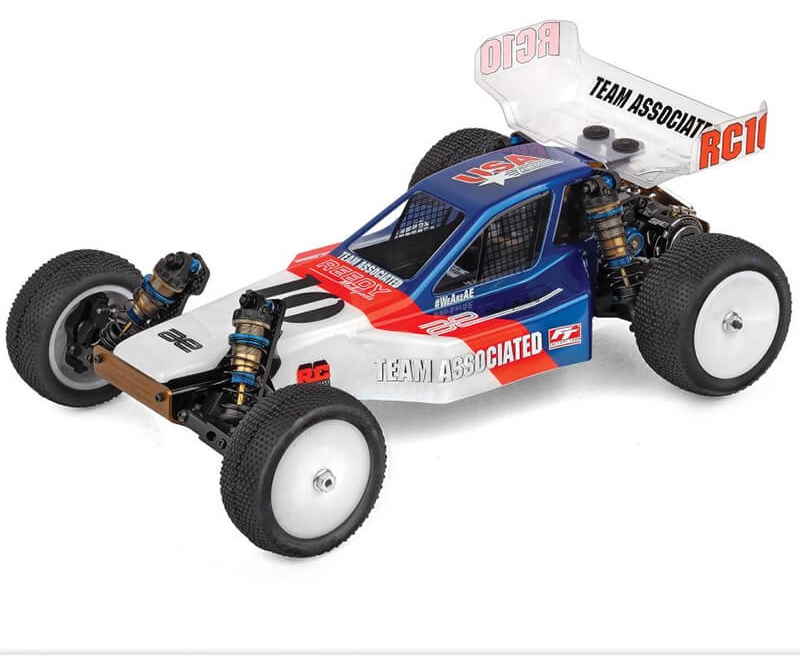

TEAM ASSOCIATED RC10 4WD FACTORY TEAM RACE KIT

The Team Associated RC10 4WD Factory Team is Engineered for Victory!

The RC10 started as the vision of Team Associated’s founder Roger Curtis (RC) and became one of the most iconic RC cars in history, with over 40 years of racing heritage, the RC10 platform remains an icon, now evolved by the AREA 51 Factory Team to dominate modern tracks.

This ultimate 4WD edition features a bronze anodized 6061-T6 aluminium monocoque chassis paired with Kashima coated 13mm Big Bore shocks and low CG carbon fiber towers for elite handling.

The race-proven Stealth transmission and V2 slipper clutch provide a durable powerhouse. Completed with all-black plastics, a sleek Mirage Pro body, and a B7 rear wing, this kit delivers a factory level setup that seamlessly blends vintage soul with cutting edge performance.

Features

• Bronze Anodized 6061-T6 Aluminium Monocoque 4WD Tub Chassis
• Bronze Anodized Nose Plate and Cut Motor Plate
• Exclusive Black Anodized Nose Tubes
• Black Anodized Aluminium Chassis Stiffeners
• Black Anodized Thumb Nuts
• All-Black Plastics
• New Mirage Pro Clear Lexan Body
• B7 Rear Wing Included
• Factory Team Captured Hinge Pins All Around
• New Carbon Fiber Steering Plates
• New Rear Carbon Fiber Shock Tower Integrates B6 Wing Mount
• Kashima-Coated 13mm Big Bore Factory Team Shocks Included
• New Lower-CG Carbon Fiber Front and Rear Shock Towers (Big Bore Compliant)
• Factory Team 12mm Hex Front Axle and Rear CVAs
• B84 12mm Hex White Wheels Included
• Carbon Fiber Transmission Brace
• CNC Blue Anodized Pulley Flanges
• New Servo Mount and Belt Guide System
• Fully Adjustable Four-Wheel Independent Suspension
• Race-Proven Front and Rear Stealth Transmissions

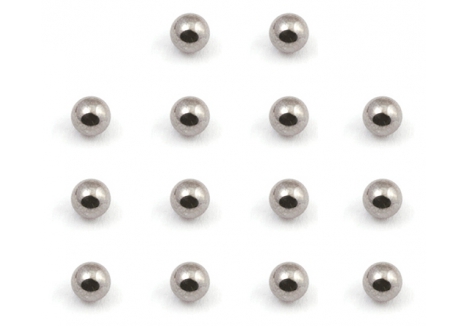

• Adjustable Ball Differentials Front and Rear
• Exceptional Ground Clearance with Low Centre of Gravity
• Precision Bearings Throughout

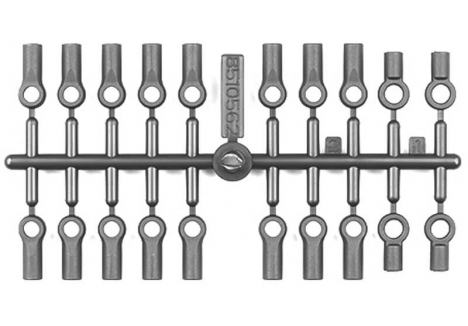

• Adjustable Heavy-Duty 3.5mm Turnbuckles and Ball Cups All Around

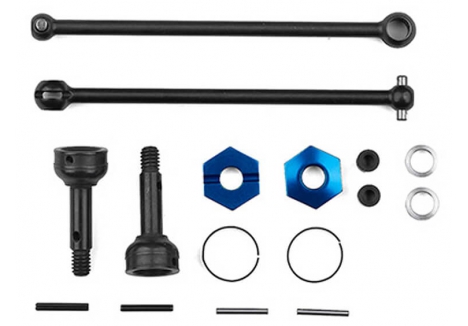

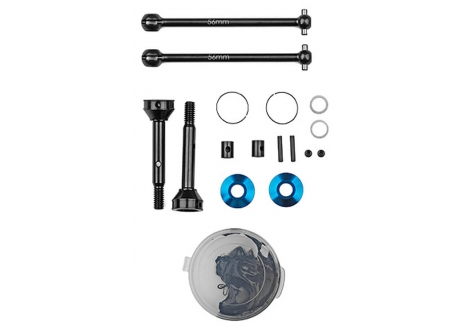

• Front and Rear CVA Driveshafts with 12mm Hex Front and Rear

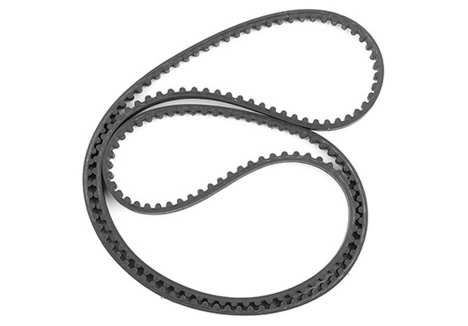

• Durable Low-Friction Centre Belt and Tension System
• Long Front Arm Geometry
• New Front Caster and Spindle Assembly Designed for the RC10 4WD
• Updated Rear Bulkhead and Chassis Stiffener
• HD Metric Ball Studs Throughout
• Race-Proven V2 Slipper Clutch System
• All-New 4WD Worlds-Style Specific Bell-crank System

Specifications

Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit*

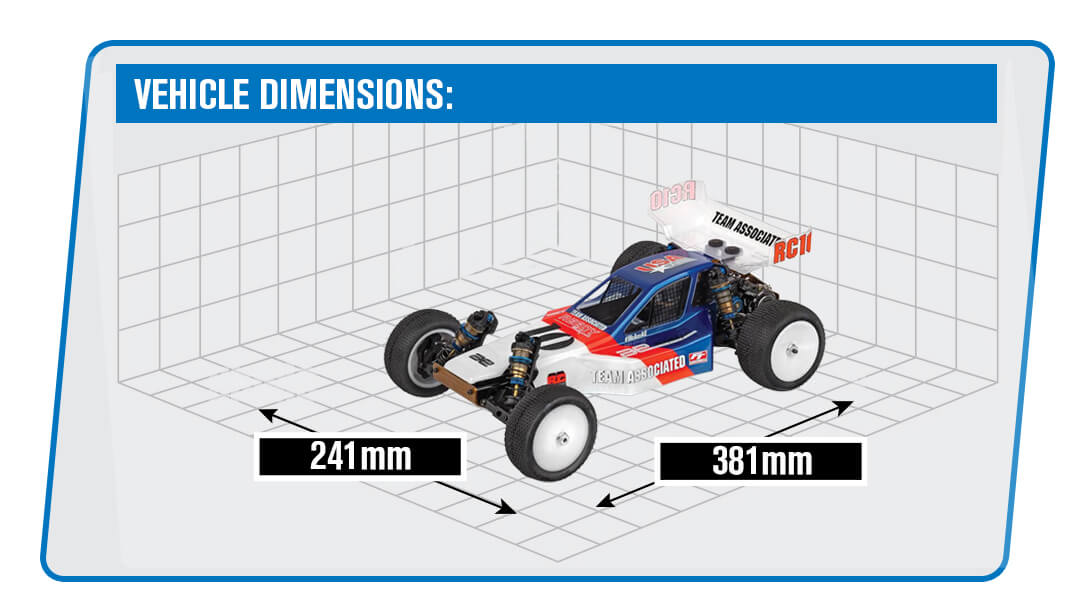

Length: 381mm (15in)
Width: 241mm (9.49in)
Wheelbase: 273mm (10.75in)
Weight: Varies
Internal Gear Ratio: 2.6:1
Drive: 4WD

Please Note: *This vehicle comes as a kit and must be fully assembled by the user

Needed To Complete

• 1:10 scale 540-size electric RC car motor
• 1:10 scale radio control electronic speed control
• 7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height)
• Battery charger
• 2-channel RC surface transmitter and its batteries
• Lexan specific spray paint for body
• Steering Servo
