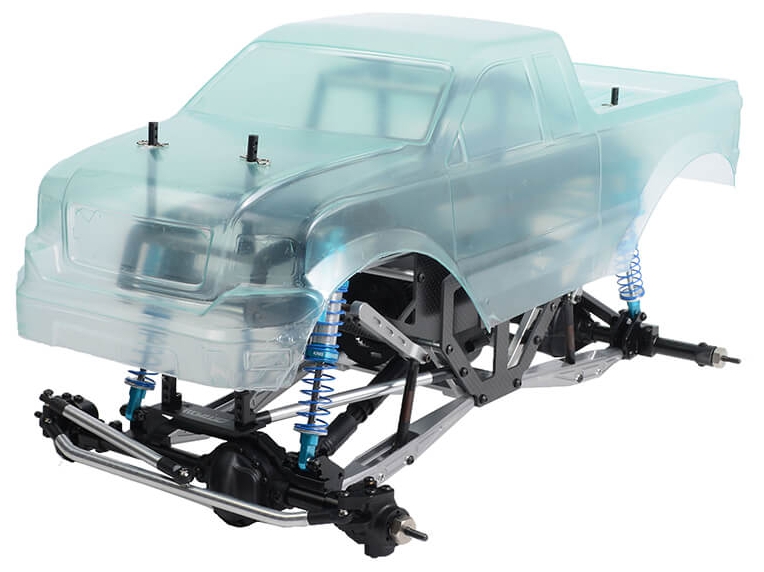

RC4WD's Carbon Assault Monster Truck has been created with premium parts and boundless customization, it uses proven suspension geometry and a light-weight carbon fiber chassis coupled with rugged CNC billet aluminium chassis components. The Carbon Assault Builder's Kit is only limited by your creativity, a great starting point for any builder looking for a high performance monster truck kit.
The Carbon Assault Monster Truck incorporates a chassis with multiple suspension mounts for various arrangements, suspension links that mimic dimensions of proven setups and a robust AX2 2-Speed transmission with hardened steel gears and a second gear for increased speed. The box includes 1 body and a complete sticker sheet featuring the epic Carbon Assault Logo.
The Carbon Assault has components and features never seen on a monster truck kit before. This truck is loaded with premium parts and will give hours of fun and a superior platform for the advanced builder.
Features

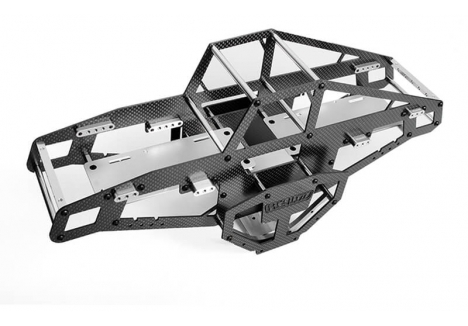

- CNC Machined 2MM Carbon Fiber Chassis
- CNC Billet Aluminum Chassis Braces & Skid Plates
- CNC Billet Aluminum Axle Tubes & Trusses
- AX-2 Speed Transmission
- RC4WD Wide D44 Front & Rear Axles
- Adjustable Front & Rear Sway Bars
- King Off-Road Racing Dual Spring Shocks

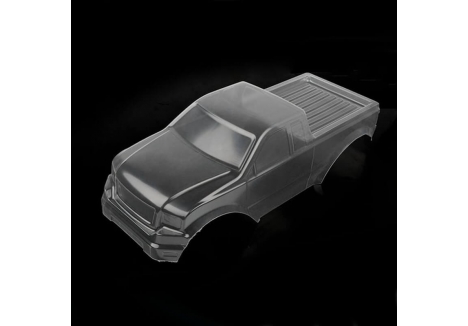

- Lexan Monster Truck Body w/ Complete Decal Sheet

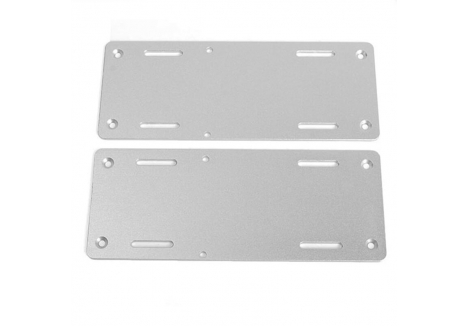

- Dual Electronics Mounting Plate
- Servo Mount for D44 Wide Axles
- CNC Machined Trailing Arms
- RC4WD Plastic Punisher Shaft V2
Specifications
AX2 2 Speed Transmission Transmission
- CNC Machined Billet Aluminum
- 15T 32P Steel Pinion
- 60T 32P Delrin Spur
- Gear Ratio Pinion / Spur Ratio = 4:1
- 1st Gear Ratio = 5.05:1
- 2nd Gear Ratio = 1.78:1
D44 Wide Axle
- Ratio: 2.9 : 1

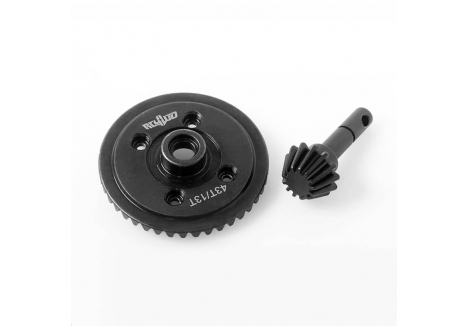

- Pinion Gear: 0.8 Mod 13T
- Hex Width: 242mm
- Hardened Steel Gears
- Case Material: Reinforced Nylon Plastic
- CNC Billet Aluminum Trusses and Tubes
Suspension and Shocks
- 4 Link Front and Rear Suspension
- King Off-road Dual Spring Shocks (110mm) - Can Be Oil Filled
Dimensions and Weight
- Wheelbase: 358mm (14.1")
- Width: 266mm (10.5")
- Height: 244.3mm (9.6")
- Final Drive Ratio: 2.9 : 1
- Weight: 4.23Lbs / 1.92Kg
What's Included
- 1x RC4WD Carbon Assault 1/10th Monster Truck Builder's Kit w/ Manticore Lexan Body Set
Required To Complete
- Electronics (Motor, ESC, Servo, RX/TX)
- Wheels
- Tyres
- Paint for Body
- Grease and Lubricants
Notes
- This is a kit that requires building time (approx. 2-3 hours)
- While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock when putting metal screws into metal parts.
- Use thread lock sparingly.
- Do not over tighten screws otherwise you may strip the thread.
