Features
- All Metal Parts CNC Machined.
- Radio:
- 3-channel 2.4GHz FHSS with dual rate steering and throttle.
- Charge jack on transmitter for optional NiCd batteries.
- Servo:
- High output ball bearing.
- Metal gear.
- Digital.
- 18kg-cm torque.

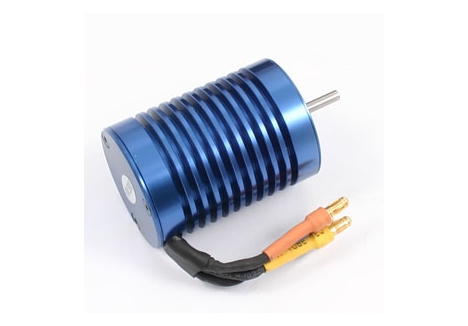

- Motor:
- 3900Kv brushless.
- 4 pole.
- Outer Diameter Ø36mm.
- Shaft Ø3mm.

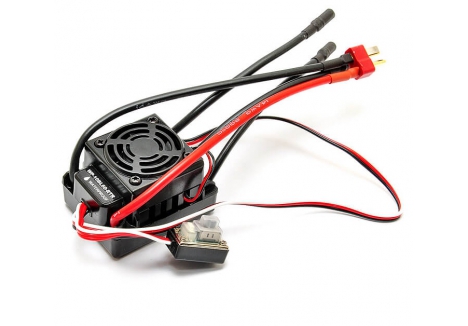

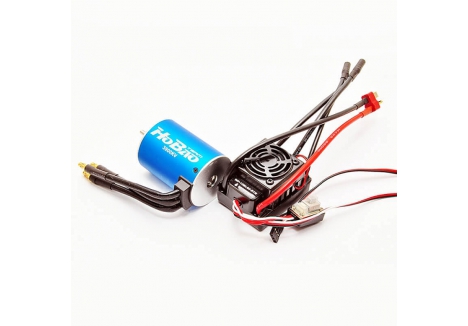

- ESC:
- HobbyWing 60A waterproof ESC with single Deans plug battery connectors.
- Cooling fan.

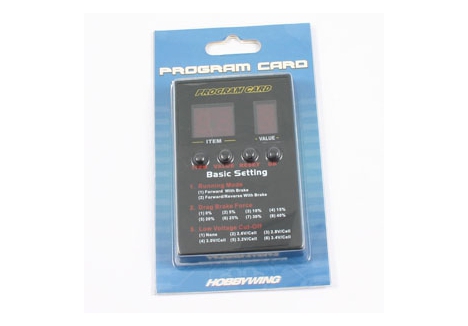

- Program card .
- Chassis: Lightweight, Hard anodised CNC aluminium, 3mm thick.
- Center Top Brace
- Wire pass through.
- Quick Release.
- Drive:
- Central: Single Ø4mm Hardened steel center driveshaft.
- Optional Aluminum center driveshaft HOP1-0083.
- Front wheel: CVA axles, Ø3.2mm Hardened steel.

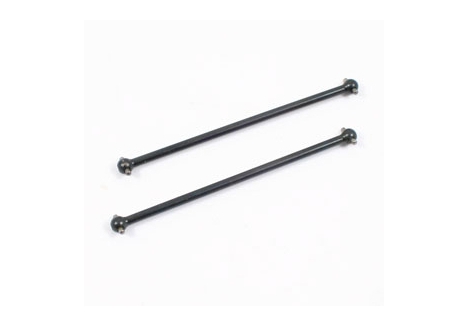

- Rear wheel: Dogbone axles, Ø3.4mm Hardened steel.
- Optional rear wheel CVA axles HOP1-0082.
- Differentials:
- Center differential is directly connected to rear differential.

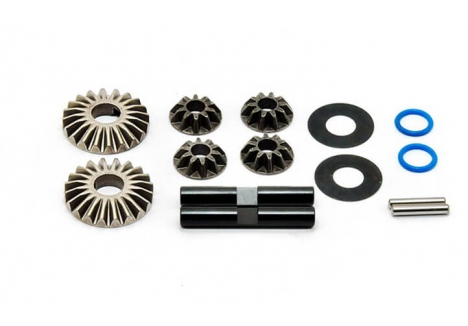

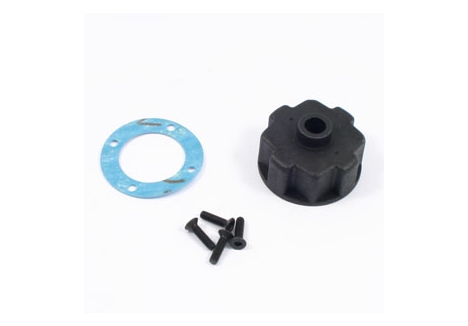

- Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing.

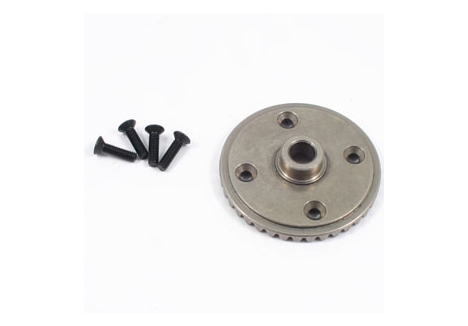

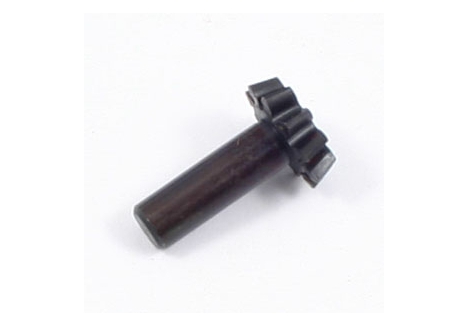

- Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1).
- Center Spur Gear: 40T (MOD 1).

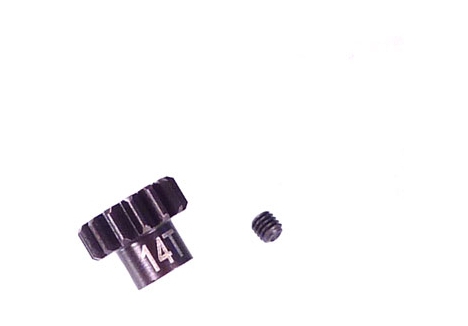

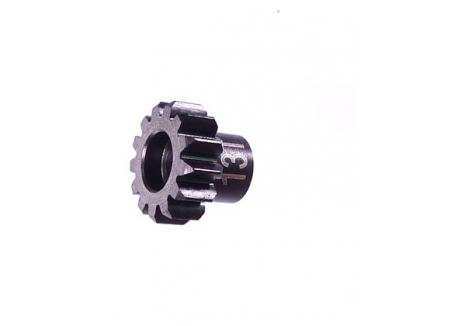

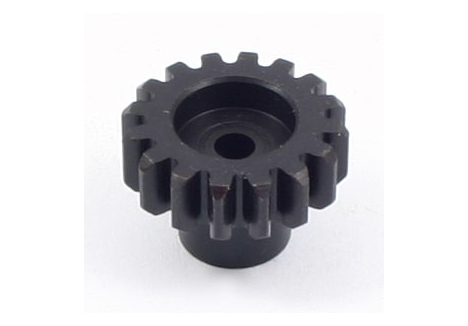

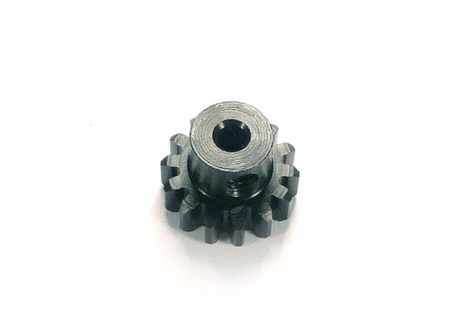

- Motor Gear:13T (MOD 1).
- Front differential filled with 20K silicone oil.
- Center differential filled with 9K silicone oil.
- Rear differential filled with 5K silicone oil.
- Shocks:
- Filled with front 700 silicone oil and rear 600 silicone oil.
- Aluminium 12mm Big Body, 3.5mm Shaft, Alum Adjustable Ring, Shock Cap Protector.

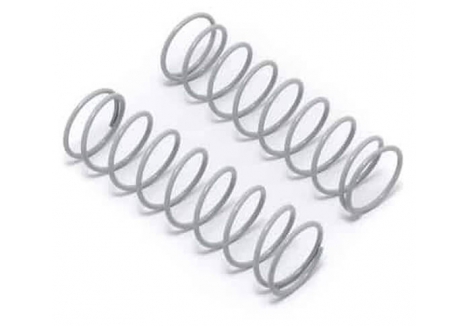

- Spring:
- Front: 0.86kg/cm, L=50mm, Blue.
- Rear: 064kg/cm, L=65mm, Blue.
- Optional Front Spring HOP1-0073: 1kg/cm, L=50mm, Grey.
- Optional Rear Spring HOP1-0074: 0.73kg/cm, L=65mm, Grey.
- Shock Tower: 3mm CNC aluminium.
- Optional carbon fiber shock tower, Front tower HOP1-0070 & Rear tower HOP1-0071.
- Suspension:
- Front PBS.

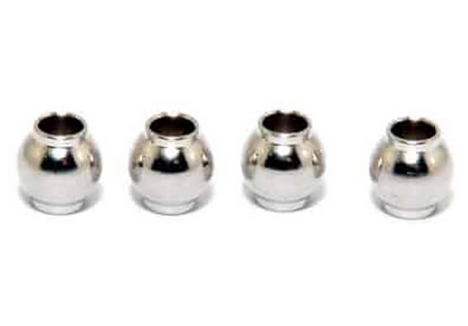

- New design steering block with enlarged pivot ball and alum steering arms.

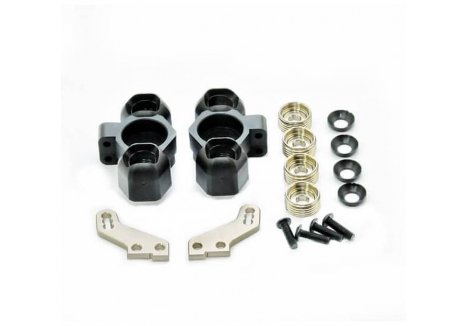

- Optional alum steering block set HOP1-0077; Alum rear hub HOP1-0079.

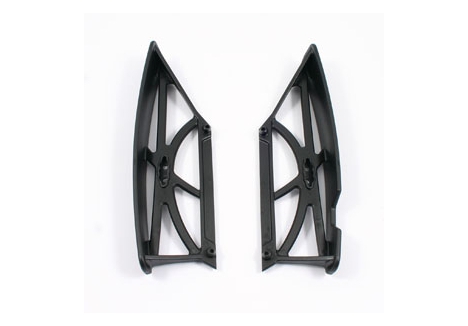

- New strengthened composite upper arms and lower arms.( Also Fitting for older versions of the Hyper 10SC).

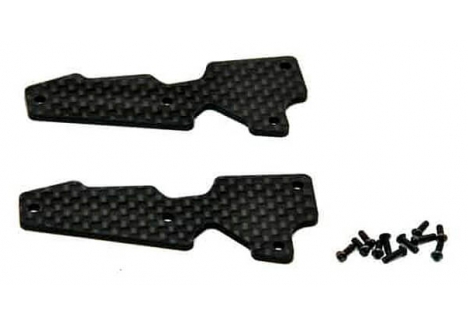

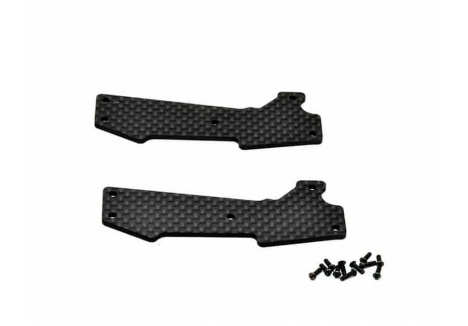

- Optional carbon fiber arm insertHOP1-0068 and HOP1-0069.
- Front & rear anti-roll bars.
- New Alum front and rear arm holder.
- Front and rear CNC alum arm holder with pill inserts H11367, adjustable toe angles and anti-squat angles.
- Steering:
- New Steering Crank set with Strengthen CNC Aluminium steering rack and hard spring.
- Ball bearing equipped with servo saver.

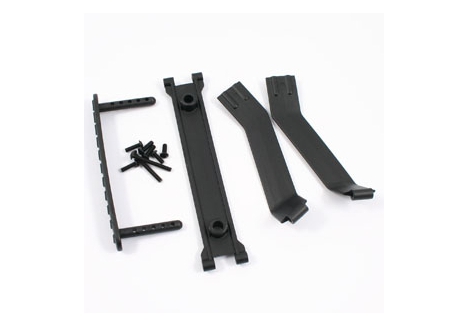

- Strengthen center body shell frame.
- Motor Mount:
- CNC aluminium laydown motor mount.
- Fitting for motors with size below 38mm.
- Spur gear cover.
- Tyres:

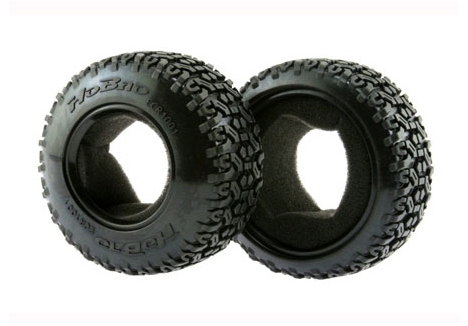

- 2.2″/3.0″ Short Course Tyres.

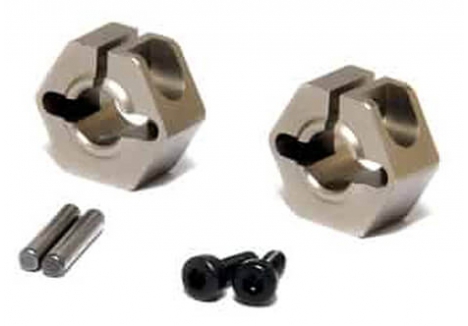

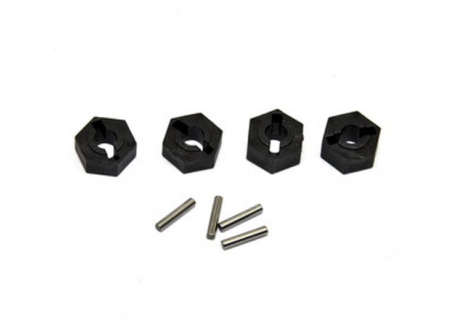

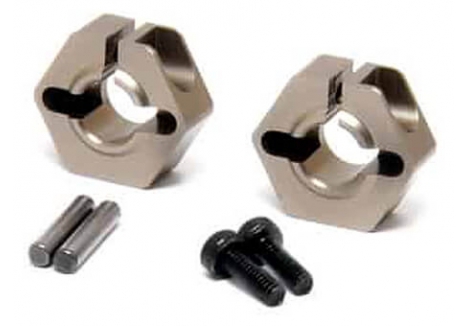

- Wheel Hex Hub:
- Front 12mm wheel hex hubs , Plastic.
- Rear 12mm wheel hex hubs, +1mm , Plastic.
- Optional Front wheel hex hubs HOP1-0075; Rear wheel hex hubs HOP1-0076.

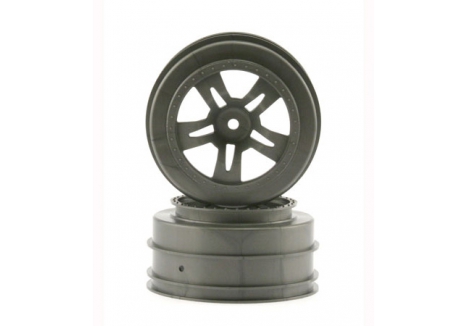

- Wheels:
- 2.2″/3.0, 12mm H40127.
- Optional 5-Spoke Wheels. H11034.
- Ball Bearings:
- Full set included.
- Caster:
- Adjustable.
- Camber:
- Adjustable.
Please Note: Compatible with 2S LiPo batteries only.
Specifications
Length: 550mm
Width: 306mm
Height: 195mm
Wheelbase: 325mm
Front Track: 235mm
Rear Track: 240mm
Weight: 2870g
Required To Complete
- 2S LiPo battery with single Deans Connector.
- Battery Charger.
- 4 x AA Batteries for Transmitter.
