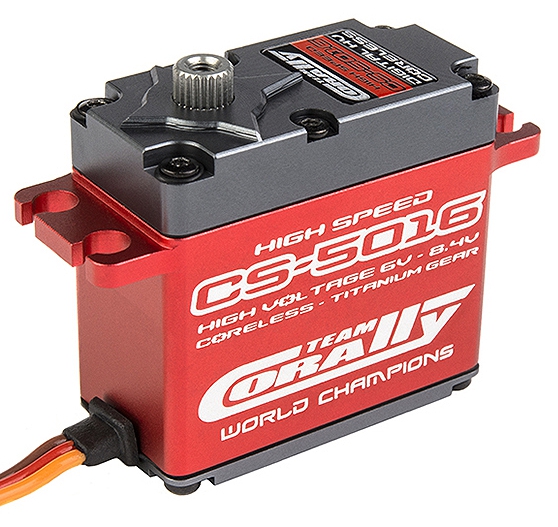

Team Corally CS-5016 HV High Speed Digital Servo Coreless C-52000

Overview

The Corally CS-5016 HV High Speed Servo is a high-performance digital servo developed specifically for competitive racers who demand ultimate control, precision and reliability in their RC car setups. Whether you're running a 1/10 scale buggy, short course truck, or any high-speed RC vehicle that requires lightning-fast response times, this servo delivers the exceptional performance needed to gain a competitive edge on the track. Built with cutting-edge technology and premium materials, the CS-5016 HV stands out as a serious upgrade for anyone looking to improve their RC car's steering response and overall handling characteristics.

This isn't a budget servo designed for casual bashing—it's engineered for drivers who understand that servo performance directly impacts lap times and race results. The combination of a coreless motor, titanium gears, ball bearings and a full aluminium case creates a servo that can handle the demands of high-speed circuit racing. Available in the UK from RC Model Shop, the Corally CS-5016 HV represents excellent value for UK RC racers seeking professional-grade steering control without the premium price tag of some competitors.

The servo excels at responsive steering input across a wide range of battery voltages, from standard 6.0V right up to 8.4V high voltage operation. This flexibility means you can optimise performance to match your specific power system, whether you're running traditional NiMH batteries or pushing the limits with LiPo packs. The water-resistant sealed design also provides peace of mind when racing in damp British weather conditions.

Key Features

• Coreless Motor Design — Unlike traditional coil-based servo motors, the coreless construction eliminates cogging and dead zones, delivering completely smooth, linear response across the full range of motion. This translates directly to more precise steering input and improved lap consistency for RC car UK racers.
• Titanium Gears — Titanium is significantly stronger and more durable than standard steel gears, allowing the servo to handle higher torque loads and reducing wear during aggressive steering inputs. This material choice ensures the servo maintains peak performance through thousands of racing cycles without degradation.
• Ball Raced Construction — The servo shaft is supported by ball bearings rather than plastic bushings, dramatically reducing friction and enabling faster response times. Ball bearings also provide superior durability and consistency, essential qualities for reliable RC car performance in competitive environments.
• High Voltage Operation (6.0V - 8.4V) — The servo operates across a wide voltage range, allowing you to optimise performance for your power system. At higher voltages, you gain increased speed and torque, making this servo compatible with both standard and high-voltage battery configurations used in modern RC racing setups.
• Full CNC Machined Aluminium Case — Every component is precision-engineered from start to finish, with the robust aluminium housing providing superior rigidity and structural integrity. This manufacturing approach ensures consistent quality and allows the servo to withstand the vibration and impacts of serious track racing.
• Digital Technology — Digital servo electronics deliver faster processor speeds and more frequent position updates compared to analogue servos, resulting in snappier response times and more predictable handling characteristics for your RC vehicle.
• Water Resistant Sealed Design — The rubber-sealed construction protects internal components from moisture and dust ingress, making this servo suitable for racing in wet conditions or muddy environments common in UK RC clubs.
• Ultra High Speed Performance — With response times as fast as 0.05 seconds at 60 degrees travel on 8.4V, this servo ranks amongst the fastest standard-size servos available, delivering instantaneous steering response that competitive racers demand.

Technical Performance

The Corally CS-5016 HV represents a significant engineering achievement in high-performance servo design. At its core sits a coreless motor—a technology that eliminates the traditional armature coil wrapped around an iron core, replacing it with a lightweight coil suspended in the magnetic field. This design completely eliminates cogging and delivers extraordinarily smooth, consistent torque throughout the servo's full range of motion. The motor connects to a titanium gear train supported by ball bearings rather than plastic bushings, creating a drivetrain that's both faster and more durable than conventional servo mechanisms. Every gear has been CNC machined to precise tolerances, ensuring zero backlash and maximum power transfer from motor to output horn.

Performance specifications vary based on input voltage, allowing you to tailor the servo's characteristics to your specific needs. Operating at 6.0V, the servo achieves response times of 0.07 seconds per 60 degrees of travel with a torque output of 11.8 kg/cm—already excellent for most racing applications. Step up to 7.4V (the voltage of a fully charged 2S LiPo battery), and you gain 0.06-second response with 14.4 kg/cm of torque. Push all the way to the servo's maximum operating voltage of 8.4V, and you unlock 0.05-second response times paired with 16.5 kg/cm of torque. This voltage-dependent performance scaling means competitive RC car racers can dial in the exact balance of speed versus power needed for their specific track conditions and driving style. The servo's digital electronics process input signals at speeds far exceeding analogue servo technology, enabling rapid course corrections and delivering the crisp, immediate steering response that separates championship drivers from the rest of the field.

The complete aluminium case construction provides superior structural rigidity compared to plastic housings. The case is not merely cast—it's machined from solid aluminium stock using CNC equipment, ensuring perfect dimensional consistency and eliminating the porosity and weak points inherent in cast construction. This precision engineering creates a servo that maintains mechanical consistency throughout its operational life, crucial for maintaining competitive advantage over hundreds of racing heats and endurance events. The 72-gram weight represents a perfect balance between performance and practicality, light enough to minimise unsprung mass yet substantial enough to house the robust mechanical systems required for reliable high-performance operation.

What's in the Box

• Corally CS-5016 HV High Speed Digital Servo
• JR Universal connector with coloured leads for easy polarity identification

Frequently Asked Questions

• What response time can I expect from the Corally CS-5016 HV servo? — Response times range from 0.07 seconds per 60 degrees at 6.0V up to an extremely fast 0.05 seconds at 8.4V, placing this servo amongst the fastest standard-size servos available for RC car UK racing applications. This speed translates directly to more responsive steering and quicker lap times on competitive circuits.
• Is this servo suitable for high-voltage LiPo battery systems? — Absolutely. The servo is specifically designed for high-voltage operation, with full compatibility across the 6.0V to 8.4V range. Modern 2S LiPo batteries deliver 8.4V when fully charged, making them ideal for powering this servo and unlocking maximum performance specifications.
• What torque output does the CS-5016 HV deliver? — Torque scales with voltage: 11.8 kg/cm at 6.0V, 14.4 kg/cm at 7.4V, and 16.5 kg/cm at 8.4V. These figures represent substantial steering control suitable for aggressive racing without servo binding or loss of precision during high-speed manoeuvres.
• Can I use this servo in wet conditions? — Yes, the servo features water-resistant rubber sealing that protects internal components from moisture and dust ingress. This makes it suitable for racing in damp British weather and after rain sessions at your local RC club.
• What makes the coreless motor design better than traditional servos? — Coreless motors eliminate cogging—the irregular jerking sensation common in traditional servos caused by the interaction between the coil and magnetic poles. This results in completely smooth, linear response with no dead zones, enabling more precise steering inputs and better vehicle control during racing.
• How does ball bearing construction improve performance? — Ball bearings reduce friction dramatically compared to plastic bushings, allowing the servo shaft to rotate faster and more freely. This contributes directly to the servo's fast response times and enables consistent performance over extended use without the wear degradation that affects budget servos.
• What's the significance of titanium gears in this servo? — Titanium is significantly stronger than steel, allowing the gear train to handle higher loads without stripping or wearing. For competitive RC racing, this durability ensures the servo maintains peak performance through thousands of steering cycles without degradation.
• Is this a digital or analogue servo? — The CS-5016 HV is a digital servo, featuring high-speed microprocessor electronics that sample and update servo position far more frequently than analogue servos. This digital architecture delivers faster response times and more predictable handling characteristics essential for competitive racing.
• What connector type does this servo use? — The servo features a JR Universal connector, the industry standard for servo compatibility. It connects directly to most radio receivers without adapters, and the coloured leads simplify correct polarity identification during installation.
• What are the physical dimensions and weight? — The servo measures 40.5mm in length, 20.5mm in width and 36mm in height, fitting standard servo mounting locations in 1/10 scale RC cars and buggies. At just 72 grams, it's light enough to minimise unsprung mass while remaining robust enough for serious racing.
