Overview
First, there was the Monster. Then the Monster 2. Now there's the Monster X. As revolutionary as it's predecessors, the Monster X Electronic Speed Controller (ESC) takes Castle's legendary "monster" performance to a whole new level. The waterproof* Monster X is capable of 2S LiPo up to a maximum of 6S LiPo and is the legendary "power up" for 1/8th scale buggies, truggies and on-road vehicles as well as 1/10th scale monster trucks and R/C monstrosities weighing up to 15 lbs.
The Monster X provides even more extreme performance than the Monster 2. Most notable is the addition of a programmable Auxiliary Wire that allows users to make "on-the-go" adjustments to several settings, such as torque control and max throttle. The Auxiliary Wire allows users to fine-tune the performance of their Monster X ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once the user has programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. The Monster X also features updated Audible Alerts that will notify drivers of possible issues with their calibrations and error conditions to help diagnose problems in the field.
The Monster X can also be configured to run sensored brushless motors with the purchase of an optional Sensor Harness from Castle Creations. This sensored-motor capability opens up a whole new segment of R/C enthusiasts who will now get to experience (or see the rooster tails) from a Castle Monster X-equipped racer, rock racer or rock crawler. One of the Monster X Beta testers summed up his experience, saying "Another race weekend in the books. Once again, in sensored mode, the ESC (Monster X) performed flawlessly. Great power and smooth transition from sensored to non-sensored."
The Monster X is capable of running from 2S to a maximum of 6S LiPo power, but now features an improved heavy-duty adjustable Battery Eliminator Circuit (BEC) to provide plenty of power for today's power hungry servos. The Monster X BEC voltage is adjustable from 5.5V, 6.0V, 7.5V and 8.0V while output is rated at 4.5 AMP continuous and 8 AMP peak. The Monster X also comes standard with a highly efficient, 30mm ESC cooling fan.
Also new to the Monster X is the ability to capture and record performance data from your last couple of runs, commonly referred to as data logging. This data can be downloaded via the upcoming Castle Quick Connect Duo (sold separately) that allows the user access to both wires into the single Castle Link connection. The user can then analyze this data and make adjustments to the ESC to maximize both performance and battery life.
The Monster X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Creations S.BUS Telemetry Link when it is released. Real-time data such as ESC temperature, voltages and RPM can be monitored to ensure performance advantages and spare you the "unknown" parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection, can increase your "tuning awareness" and in turn, let you have more time doing what you love to do - burn rubber and throw dirt!
In The Box

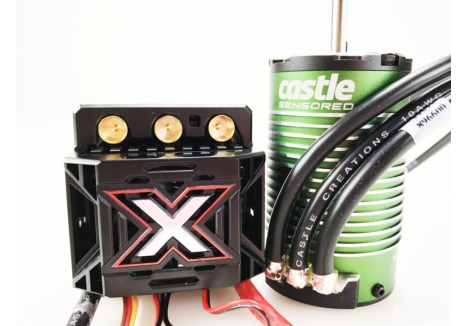

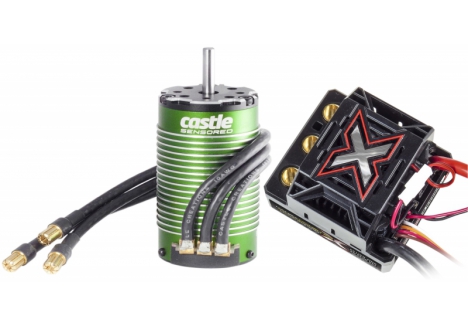

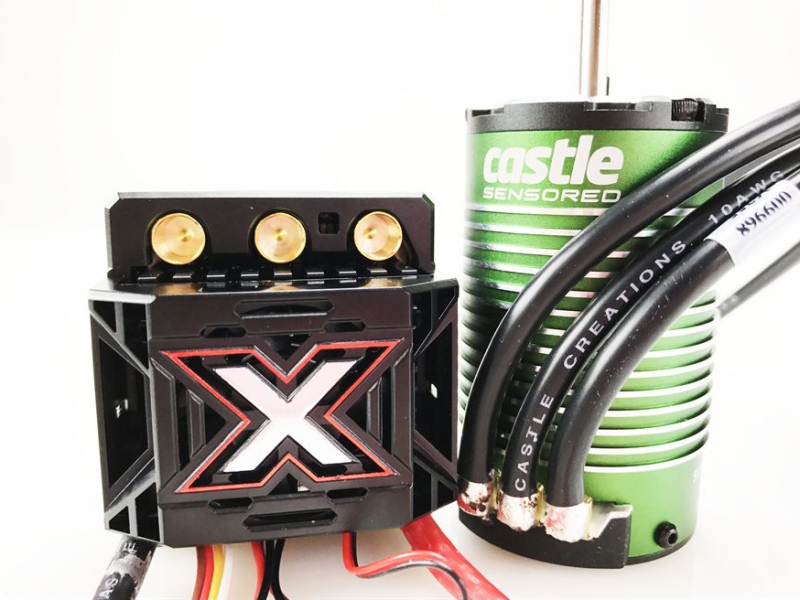

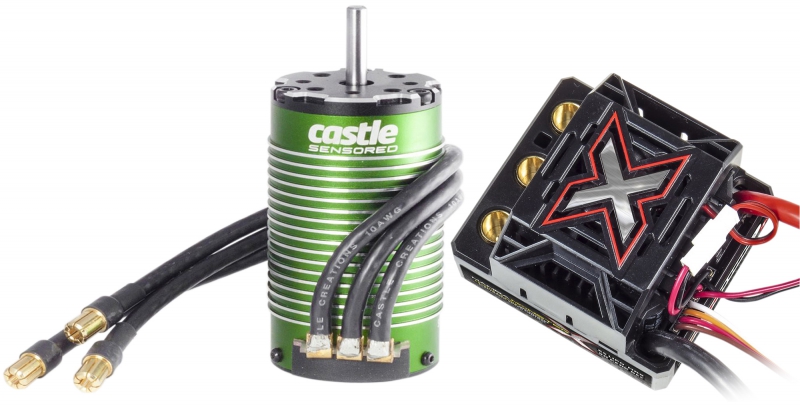

- (1) Mamba Monster X Waterproof Electronic Speed Control
- (1) 2650KV V2 Sensored Motor
Application
Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbsFeatures
- Input Voltage range 2S-6S
- Powerful integrated 8A Adjustable BEC (5.25V-8.0V)
- Data Logging capability to capture and record performance data from your vehicle
- Waterproof design for running in all weather conditions and elements
- Factory installed, fully removable 30MM cooling fan
- Convenient transmitter programming for six common adjustable settings
- Easily program and update ESC with use of Castle Link USB (coupon included for free USB with purchase) and freely downloadable Castle-Link WindowsT program
- Optional smartphone-based programming with the B-LINKT Bluetooth Adapter (sold separately and Castle Link all available on Google Play or Apple App Store)
- Telemetry Ready Compatible with 010-0152-00 Telemetry Link for Futaba S.Bus2 and Futaba T4PX and T7PX transmitters
- Auxiliary Wire Functionality allows for "on-the-fly" adjustments such as Max Power and Max Brake
- Audible Alerts that will notify you of possible issues with calibrations and error conditions
- Input Voltage range: 2s-4s LiPo

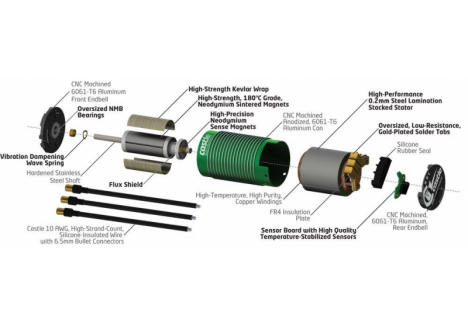

- Redesigned rotor and stator assemblies
- Reduced magnetic cogging, producing less residual drag brake
- Increased efficiency, resulting in lower temperatures and longer run times
- Smoother start-up, reducing cogging or stuttering when starting from a stop
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly
- High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
- Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
- Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
- High-Performance 0.2mm Steel Lamination Stacked Stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with High Quality Temperature-Stabilized Sensors
- T6 Aluminum CNC Machines Front/Rear End bell
