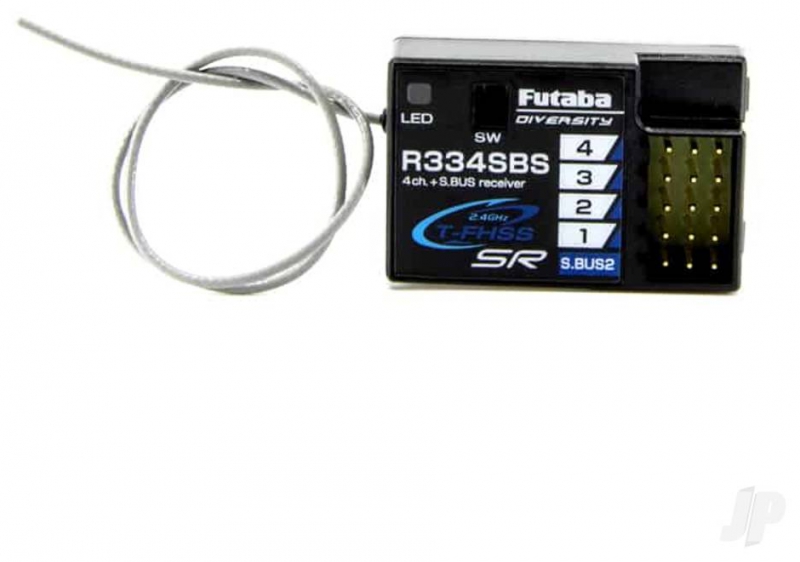

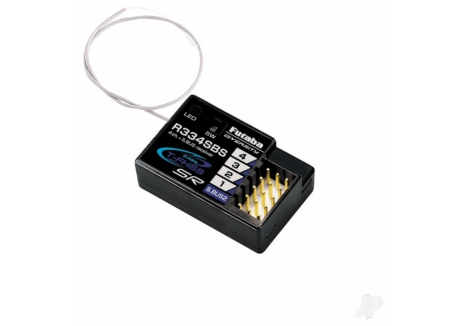

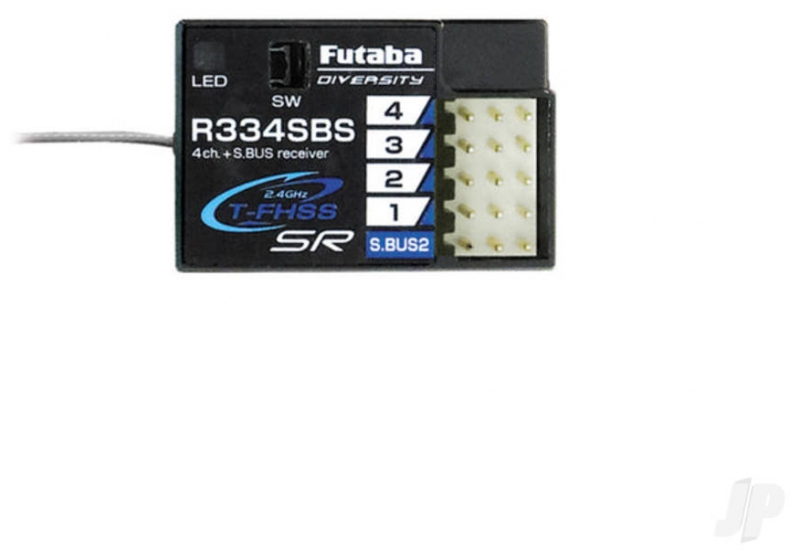

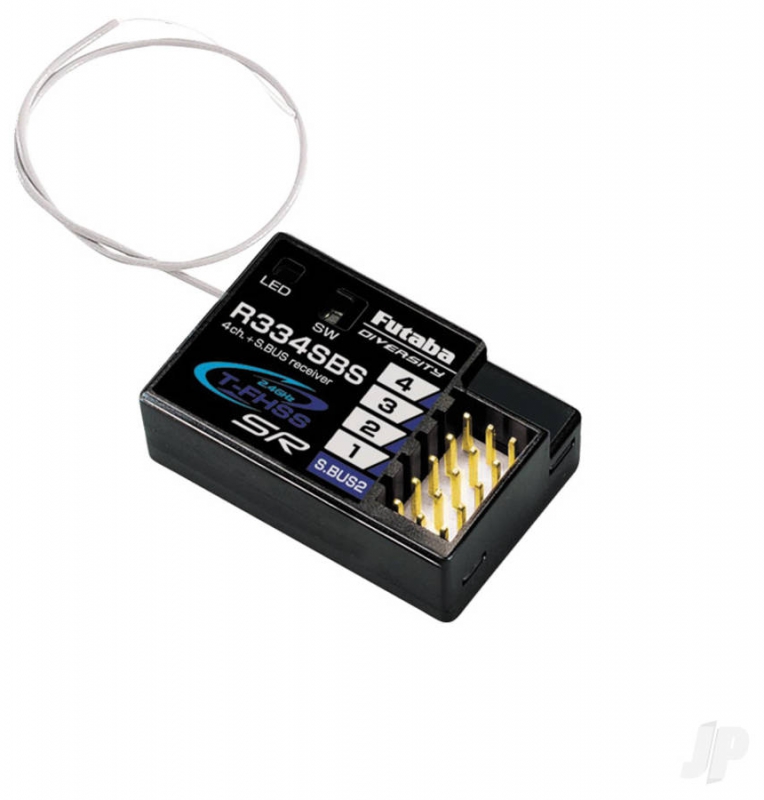

Futaba R334SBS 4-Channel T-FHSS Surface RC Receiver with S.BUS FUT05102646-3

Overview

The Futaba R334SBS is a high-performance 4-channel receiver specifically engineered for surface RC models, delivering ultra-responsive control through Futaba's advanced T-FHSS SR (Super Response) system. This compact, lightweight receiver is the ideal choice for RC car enthusiasts and competitive racers in the UK who demand precision handling and reliability in their RC vehicles. Whether you're piloting a high-speed RC car or a performance boat, the R334SBS combines cutting-edge technology with robust engineering to give you the competitive edge you need.

Built by Futaba, a company that has been leading the way in radio control since 1962, the R334SBS represents the pinnacle of receiver technology for ground-based RC applications. With its compact moulded plastic case measuring just 33.9 x 22.3 x 11.3mm and weighing only 7.5 grams, this receiver is perfect for fitting into space-constrained RC models without compromising performance or reliability. The receiver's robust construction ensures it can withstand the rigours of competitive RC car racing, weekend bashing sessions, and demanding aquatic environments.

What truly sets the R334SBS apart from other receivers available for RC car UK enthusiasts is its integration of Futaba's proprietary T-FHSS SR technology, which provides lightning-fast response times that simply cannot be matched by conventional receivers. The ultra-fast signal processing means your commands are executed instantaneously, giving you the responsiveness you need when competing at the highest levels. Combined with S.BUS2 telemetry capability, this receiver gives you real-time feedback about your model's performance, making it an excellent choice for serious hobbyists and competitors alike.

Key Features

• Ultra-Fast T-FHSS SR System — The receiver utilises Futaba's proprietary Super Response T-FHSS system, which delivers exceptionally fast command processing and signal transmission, ensuring your RC car or boat responds instantly to your control inputs with zero lag or delay.
• 4-Channel PWM Control — Four independent PWM channels provide precise control over essential functions including throttle, steering, and two additional channels for auxiliary functions, giving you complete command over your RC model's behaviour.
• S.BUS2 Telemetry Capability — The integrated S.BUS2 protocol enables real-time telemetry data transmission, allowing you to monitor your model's performance metrics and diagnose issues during operation or after racing sessions.
• High-Voltage Operation Up to 7.4V — The receiver supports operating voltages from 3.7V to 7.4V, providing flexibility for various battery configurations and allowing you to run higher voltage systems for improved servo performance and response times.
• Compact, Lightweight Design — At just 7.5 grams and measuring 33.9 x 22.3 x 11.3mm, this receiver is exceptionally compact, allowing easy installation in tight spaces within your RC model whilst maintaining full performance capabilities.
• Robust Moulded Plastic Case — The durable moulded plastic housing protects internal circuitry from impacts and environmental factors, making it suitable for both track racing and off-road RC car applications, as well as water-based RC boat use.
• Diversity Antenna — Equipped with a diversity antenna system to ensure consistent signal reception across all operating angles and distances, improving overall reliability and reducing the risk of signal dropouts during critical moments.
• Gold-Plated Connectors — Premium gold-plated connectors provide superior electrical conductivity and corrosion resistance, ensuring stable connections and reliable signal transmission throughout your RC car's operational lifespan.
• 2.4GHz Frequency Band — Operating on the 2.4GHz frequency with T-FHSS protocol, this receiver offers excellent range and operates on a globally recognised frequency band used by millions of RC enthusiasts worldwide.
• SR Mode Servo Compatibility — The receiver is fully compatible with Futaba's SR mode servo range, including the BLS371SV, BLS471SV, BLS571SV, BLS671SV, BLS671SVi, S9372SV and S9373SV models, which can be updated to unlock SR mode capabilities for maximum performance synergy.

Technical Performance

The Futaba R334SBS represents a significant engineering achievement in compact receiver design for RC car and boat applications. Built with precision components and meticulous attention to detail, this receiver delivers the lightning-fast response times that distinguish high-performance RC control systems from standard alternatives. The T-FHSS SR protocol operates at 2.4GHz, a frequency band that provides excellent propagation characteristics and immunity from interference, making it ideal for competitive racing environments where reliability is paramount. The receiver's PWM command protocol interface allows seamless integration with a vast array of servo motors, whilst the S.BUS2 telemetry system enables sophisticated data logging and real-time performance monitoring that was previously available only on professional-grade equipment.

Operating voltage flexibility from 3.7V to 7.4V represents a major advantage for RC enthusiasts, as it accommodates both standard lithium polymer batteries (3.7V single-cell) and higher-capacity multi-cell configurations that deliver increased servo torque and response speed. The compact dimensions of 33.9 x 22.3 x 11.3mm (1.33 x 0.88 x 0.44 inches) combined with the lightweight 7.5-gram mass make this receiver ideal for weight-sensitive applications where every gram counts towards performance. The moulded plastic chassis provides excellent impact resistance whilst maintaining structural integrity, and the diversity antenna system ensures you maintain signal lock regardless of model orientation or antenna position. Gold-plated connectors prevent oxidation and ensure reliable electrical connections over extended periods of use, whilst the robust engineering ensures the receiver will deliver consistent performance season after season in competitive RC car UK racing events.

What's in the Box

• Futaba R334SBS 4-Channel Receiver
• Printed User Manual with comprehensive operating instructions

What You Need to Complete

• Compatible T-FHSS or T-FHSS SR mode transmitter (such as Futaba's dedicated surface transmitter)
• RC car or boat model with servo mounting provisions
• SR-compatible servo motors (BLS371SV, BLS471SV, BLS571SV, BLS671SV, BLS671SVi, S9372SV, or S9373SV models recommended)
• Lithium polymer battery pack (3.7V to 7.4V) compatible with your specific RC model
• Battery charger suitable for lithium polymer cells
• Servo extension cables or Y-leads for multi-servo installations

Frequently Asked Questions

• Is the Futaba R334SBS suitable for beginners in RC car racing? — The R334SBS is best suited to intermediate and advanced RC car UK enthusiasts rather than complete beginners. Its T-FHSS SR system and requirement for SR-compatible servos means you need to understand receiver and servo compatibility before purchasing. However, if you're upgrading from a basic RC car or moving into competitive racing, this receiver offers excellent value and performance that will serve you well as your skills develop. The robust engineering and proven Futaba reliability make it an excellent long-term investment.
• What battery voltage does the R334SBS require? — The receiver operates at DC voltages from 3.7V to 7.4V, providing excellent flexibility. A single-cell 3.7V lithium polymer battery represents the minimum voltage, whilst a two-cell 7.4V battery pack delivers maximum performance. When using high-voltage input power of 7.4V, you must ensure all connected equipment including servos is also capable of high-voltage operation, as the receiver does not include voltage regulation down to lower levels. Many modern RC car servos support this voltage range, but always verify servo specifications before connection.
• Can I use standard servos with the R334SBS? — No, and this is a critical point. When using the T-FHSS SR mode, you must use SR mode compatible servos. Standard servos cannot be used with this receiver in SR mode, as the command protocol incompatibility may cause servo malfunction or damage. Futaba produces several SR-compatible servo options including the BLS371SV, BLS471SV, BLS571SV, BLS671SV, BLS671SVi, S9372SV and S9373SV, and many of these servos can be updated to activate SR mode if purchased in standard form. The receiver also supports standard T-FHSS mode operation, which is compatible with conventional servos, allowing you flexibility in your setup.
• What is the difference between T-FHSS and T-FHSS SR modes? — T-FHSS SR (Super Response) is Futaba's high-speed variant designed specifically for surface models like RC cars and boats that require rapid response times. The SR mode offers significantly faster command processing compared to standard T-FHSS, delivering the instantaneous control response essential for competitive RC car racing. T-FHSS is the standard variant, and whilst this receiver supports both modes, you must use appropriate servos for each mode. When racing at competitive levels or in high-speed applications, T-FHSS SR mode with compatible servos is strongly recommended.
• Is this receiver waterproof for RC boats? — The R334SBS features a robust moulded plastic case that provides good environmental protection suitable for RC boat applications. However, the manufacturer does not specify a formal waterproof rating. The gold-plated connectors and sealed construction help protect against moisture, but we recommend consulting the detailed user manual for specific guidance on water exposure and considering protective mounting positions within your boat hull to minimise direct water contact with electrical connectors.
• What is S.BUS2 telemetry and why does it matter? — S.BUS2 is an advanced digital communication protocol that enables bidirectional communication between the receiver and compatible servo motors or external telemetry modules. This allows real-time monitoring of servo position, voltage, temperature and performance data during operation. For competitive RC car UK racers, telemetry provides valuable performance feedback that can help optimise setup, diagnose issues and improve consistency. The data can be logged and analysed after racing sessions to refine your vehicle tuning.
• How does the diversity antenna system work? — Diversity antenna technology uses multiple antenna elements to improve signal reception quality. The system automatically selects the antenna with the strongest signal at any given moment, ensuring consistent reception regardless of the receiver's orientation or antenna position within your RC model. This is particularly valuable during dynamic RC car racing where the model's attitude changes constantly, ensuring you maintain signal lock and control throughout competition.
• What range can I expect from the R334SBS? — Futaba's T-FHSS system is recognised for excellent range characteristics, though specific maximum range figures are not provided in the technical documentation. The 2.4GHz frequency band provides excellent propagation, and the diversity antenna system maximises reception quality. In typical RC car racing environments with no significant RF interference, you can expect reliable control at standard racing ranges. For specific range requirements, consult Futaba's customer service or your local RC hobby retailer.
• Can I use this receiver with Futaba transmitters other than the T7PX? — The R334SBS is compatible with any T-FHSS or T-FHSS SR mode transmitter in Futaba's product range. The receiver will bind to any compatible Futaba transmitter using the T-FHSS system. Check your transmitter's specifications to confirm T-FHSS or T-FHSS SR compatibility before purchasing. For maximum performance benefits, consider pairing with a transmitter that fully supports T-FHSS SR mode.
• How do I bind the receiver to my transmitter? — Binding procedures vary between transmitter models. Consult your transmitter's user manual and the R334SBS user manual for detailed binding instructions. The process typically involves entering bind mode on both the receiver and transmitter, then completing a synchronisation sequence. Detailed guidance is provided in the printed manual included with your receiver.
