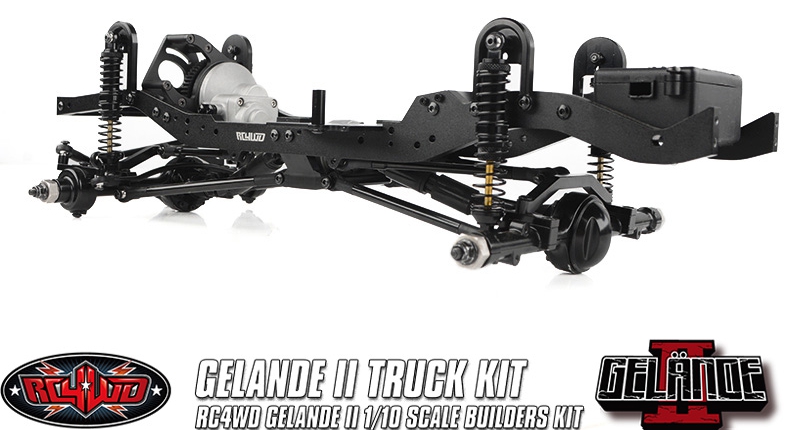

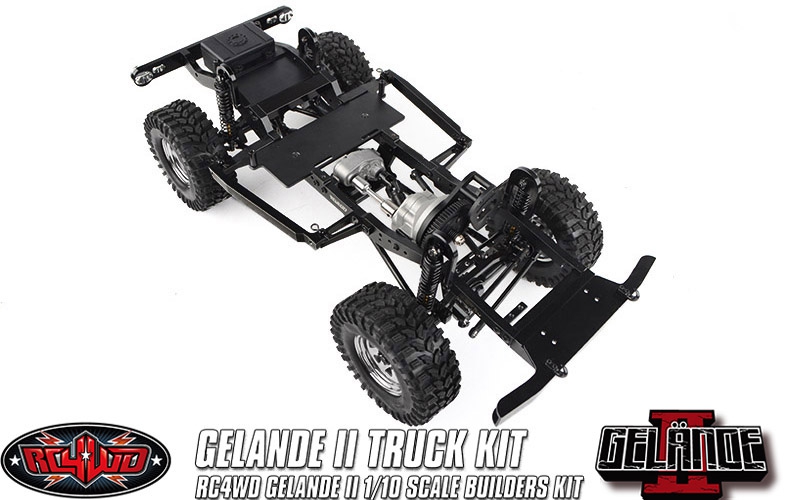

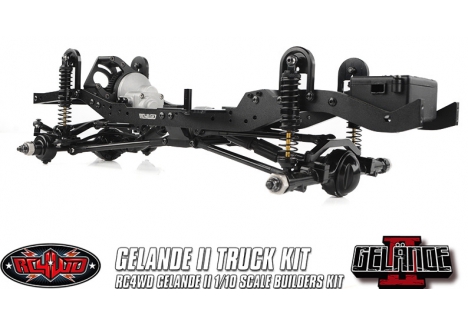

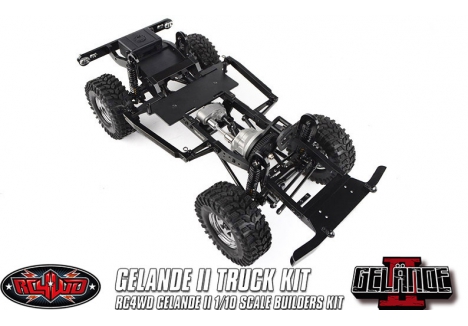

RC4WD Gelande II Truck Kit Z-K0071 – Scale Precision Meets Off-Road Power
The RC4WD Gelande II Truck Kit Z-K0071 is engineered for enthusiasts who demand realism, durability, and trail-ready performance. This 1/10 scale off-road truck kit features a precision-machined billet aluminium ladder frame chassis, a robust R3 single-speed transmission kit, and the industry-leading Yota II scale axle V2 system. Designed for builders who value customisation and technical excellence, the Gelande II delivers a platform that’s as versatile as it is rugged—ready to tackle rock crawling, expedition builds, and scale replicas with confidence.
Key features of the RC4WD Gelande II Truck Kit Z-K0071
- Billet aluminium ladder frame chassis – delivers structural integrity and scale realism
- R3 single-speed transmission – cast metal casing with wide hardened gears for durability
- Yota II scale axle V2 system – ultimate scale realism with removable diff covers and offset pumpkin
- Hammer transfer case – cast metal exterior with widened .8 Mod gears for high torque handling
- Dual spring 80mm scale black shocks – X-ring sealing for leak resistance and long-term performance
- Chassis-mounted servo – hidden for enhanced realism and cleaner body integration

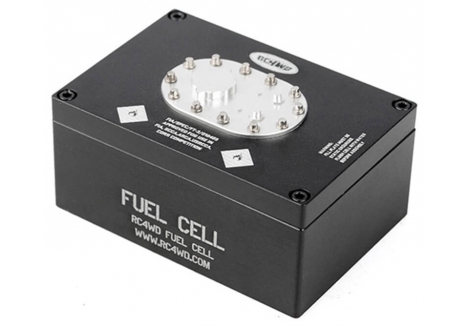

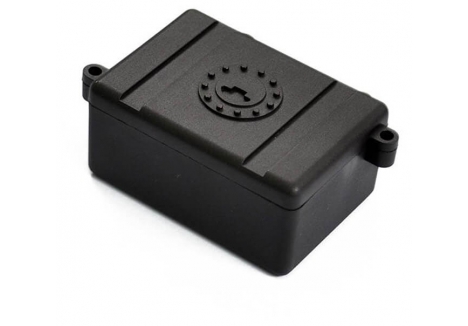

- Fuel cell radio box – compact and functional for electronics housing
- Heavy-duty driveshafts – metal uni-joints for superior driveline angles and trail endurance
- Customisable chassis – integrated grooves for cross-bracing and hard body mounting points

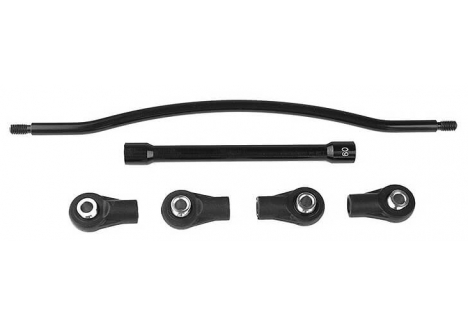

- Steering links – premium materials for sharp turning and responsive control
Why choose the RC4WD Gelande II 1/10 Scale Truck Kit?
The RC4WD Gelande II 1/10 Scale Truck Kit is built for serious off-road builders who want more than just a basic crawler. With its CNC-machined aluminium chassis and scale suspension geometry, this kit offers unmatched realism and strength. The 4-link rear and 3-link Panhard rod front suspension deliver precise articulation, while the chassis-mounted servo keeps the steering system hidden for a clean, authentic look. Whether you're building a scale expedition rig or a hardcore trail crawler, this kit provides the foundation for limitless creativity.

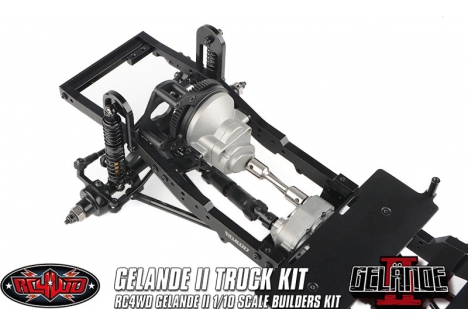

How does the RC4WD R3 single-speed transmission enhance performance?
The RC4WD R3 single-speed transmission kit is designed for rugged terrain and long-term reliability. Featuring a cast metal case, wide hardened steel gears, and a Delrin spur with slipper clutch, it ensures smooth power delivery and resistance to wear. The billet aluminium motor mount adds structural rigidity, making this transmission ideal for high-torque applications and demanding trail conditions.

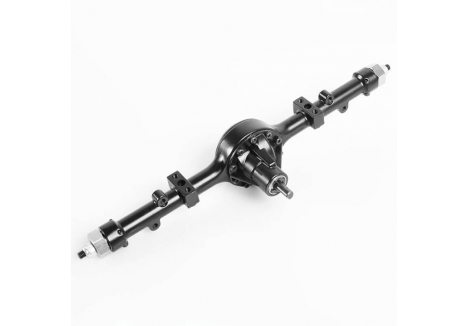

What makes the Yota II scale axle V2 system stand out?
The RC4WD Yota II scale axle V2 system sets the benchmark for scale realism. With 8-degree round knuckles, removable differential covers, and a compact offset pumpkin, these axles replicate full-size engineering in miniature form. The 2.67:1 gear ratio and 178.2mm width at hex provide balanced torque and stability, making them ideal for technical crawling and scale builds.
Is the RC4WD Gelande II Builders Kit customisable?

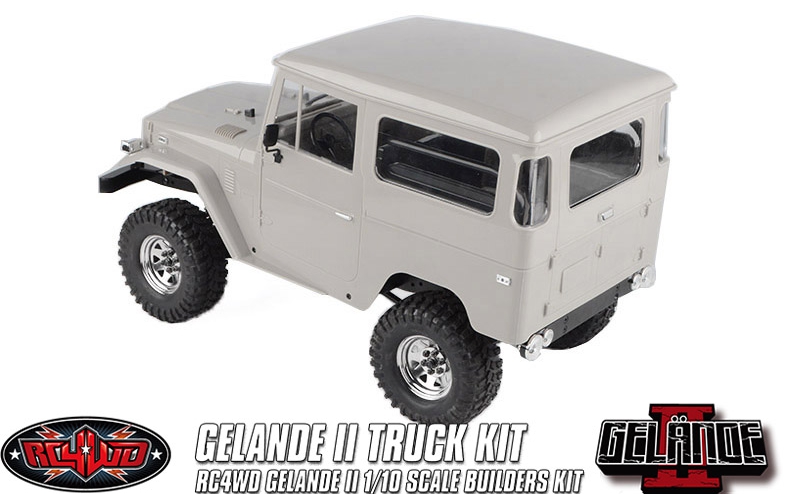

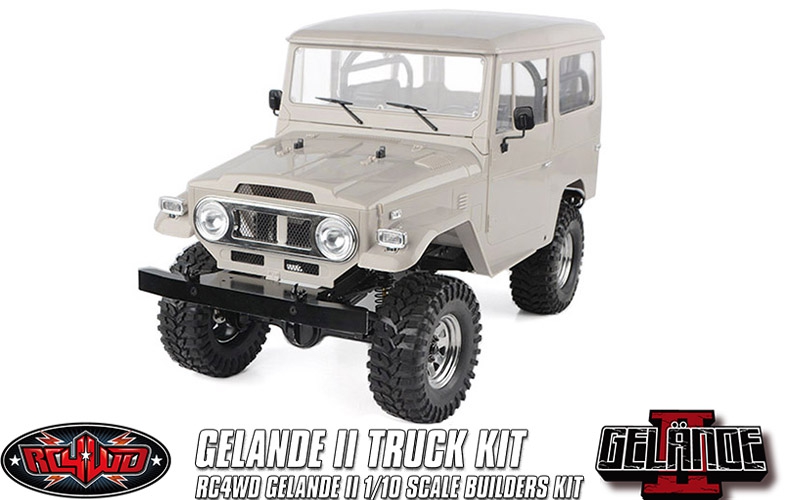

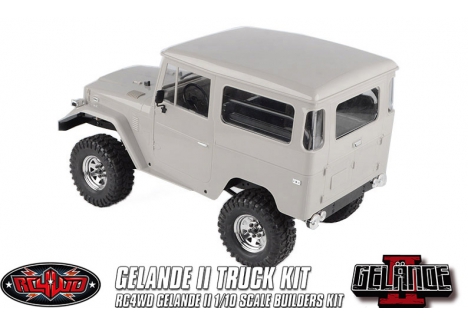

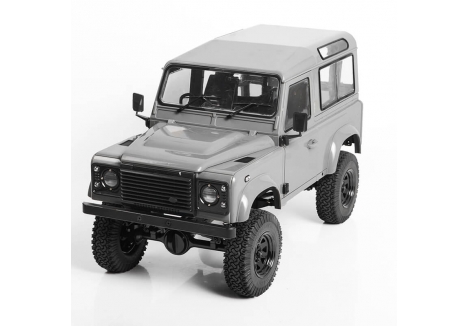

Absolutely. The RC4WD Gelande II Builders Kit is designed for full customisation. The anodized black chassis includes integrated notches for cross-bracing and mounting hard bodies. Builders can choose from compatible body sets like the Complete Cruiser or Land Rover Defender D90, and add scale accessories such as beadlock wheels and off-road tyres. The electronics deck, servo mounts, and link mounts are all modular, allowing for tailored builds that reflect your vision.

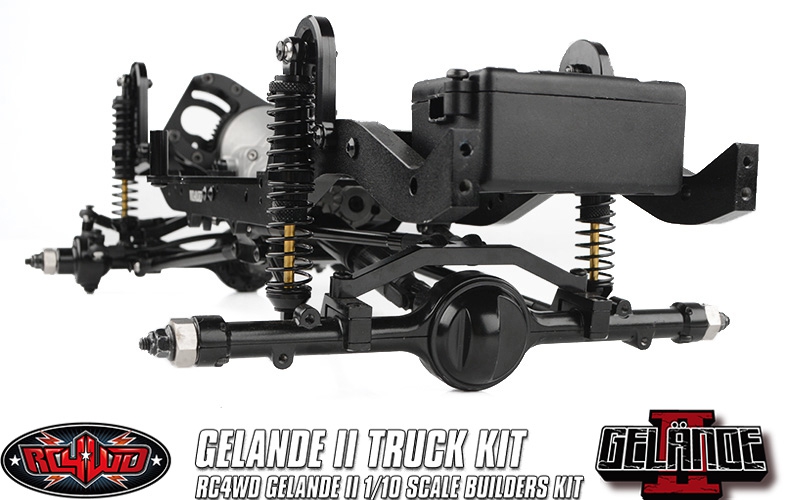

How does the suspension system improve trail handling?
The suspension system on the RC4WD Gelande II 1/10 Scale Truck Kit includes dual spring 80mm scale black shocks with X-ring sealing technology. These shocks offer multiple sealing points to prevent leaks and contamination, ensuring consistent performance over time. Combined with aluminium shock hoops and a full-link suspension design, the system delivers responsive handling and realistic articulation across uneven terrain.

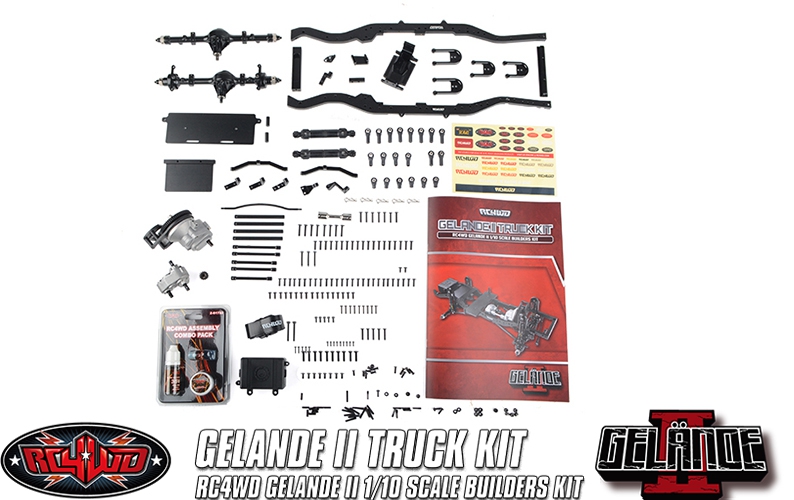

What’s included and what do you need to complete the build?

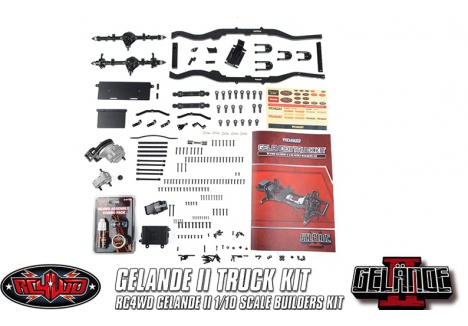

The RC4WD Gelande II Builders Kit includes the full chassis, transmission, axles, shocks, and drivetrain components. Assembly takes approximately 2–3 hours. To complete the build, users will need hex drivers, pliers, thread-locking adhesive, and a cross wrench. Electronics such as a motor (35t–55t), radio and receiver (2+ channels), high-torque servo, battery, and charger are required. Compatible accessories and body sets are available separately.
Where can you buy the RC4WD Gelande II 1/10 crawler kit online?
For builders seeking scale realism, rugged performance, and full customisation, the RC4WD Gelande II Truck Kit Z-K0071 is the ultimate choice. Buy RC4WD Gelande II 1/10 crawler kit online today and start building your next off-road adventure with confidence.
Technical specs of the RC4WD Gelande II Truck Kit Z-K0071
Brand, Model, Appliance Type
- Brand: RC4WD
- Model: Z-K0071
- Appliance Type: RC4WD Gelande II Truck Kit Z-K0071, RC4WD Gelande II 1/10 Scale Truck Kit, RC4WD Gelande II Builders Kit, RC4WD billet aluminium ladder frame chassis, RC4WD R3 single-speed transmission kit
Dimensions and Weight
- Wheelbase: 27.5 cm – ideal for scale realism and stable off-road handling
- Length: 44 cm – provides ample space for body customization and electronics
- Width: 22 cm – balanced stance for trail stability
- Height: 14 cm – compact enough for scale builds, tall enough for clearance
- Ground Clearance: 5 cm – allows confident traversal over rocks and uneven terrain
Chassis and Frame

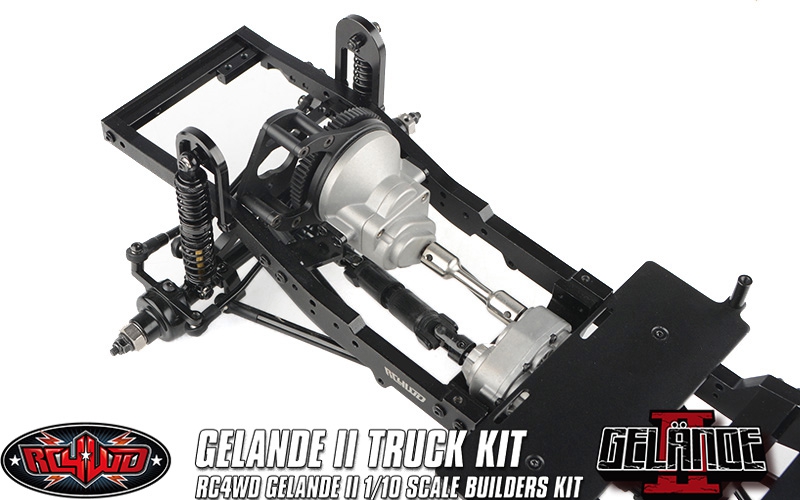

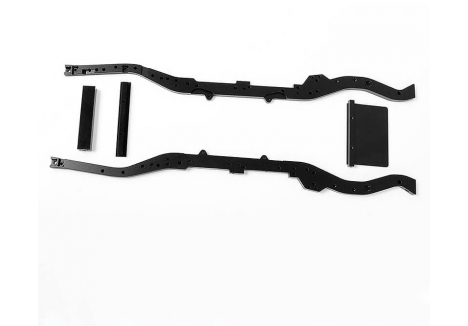

- Chassis Type: CNC-machined billet aluminium ladder frame with anodized black finish
- Cross-Bracing: Integrated grooves for added rigidity and mounting flexibility

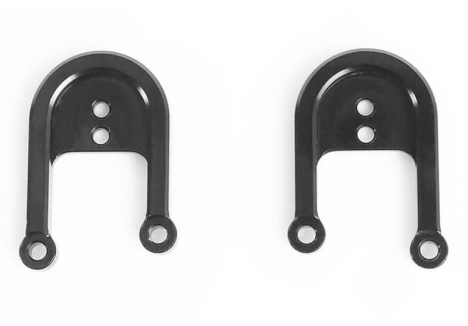

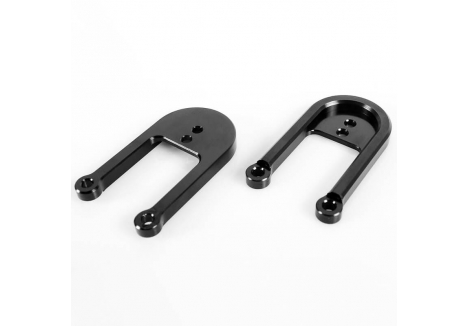

- Shock Mounts: Aluminium shock hoops for secure suspension setup
- Servo Mounts: Chassis-mounted servo for hidden, realistic steering configuration
Transmission and Drivetrain
- Transmission: RC4WD R3 single-speed transmission kit with cast metal case

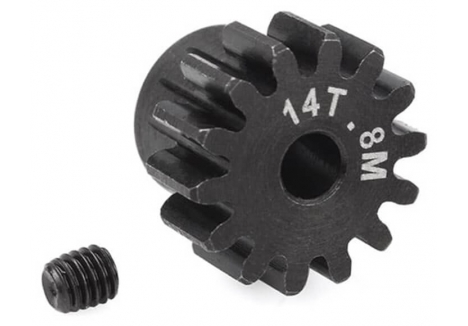

- Gear Ratio (Pinion/Spur): 14/64 = 1:4.57 – optimized for torque and trail control
- Internal Gear Ratio: 1.78:1 – ensures smooth power delivery
- Gears: Wide steel .8 Mod gears with Delrin spur and slipper clutch
- Transfer Case: Hammer transfer case with 1.47:1 ratio and hardened steel gears
- Final Drive Ratio: 31.9:1 – ideal for scale crawling and low-speed precision
- Drive Coupling: Hardened steel metal drive coupling for durability under torque
- Drive Shafts: Heavy-duty plastic shafts with steel yokes and uni-joints
Axles and Suspension

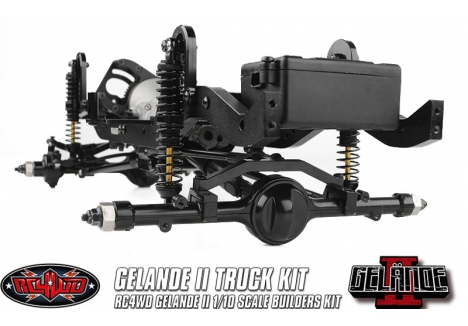

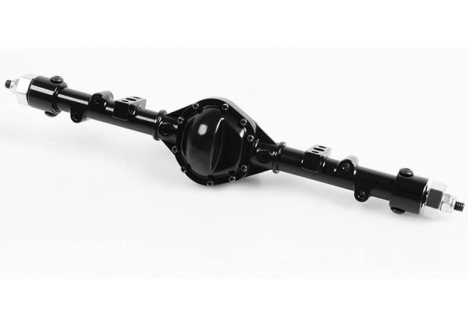

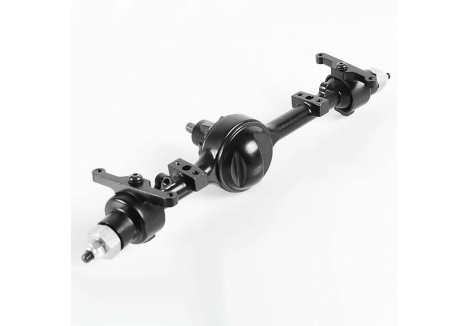

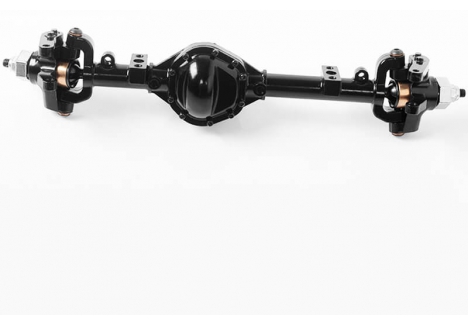

- Axle System: RC4WD Yota II scale axle V2 system (front and rear)
- Axle Gear Ratio: 15/40 = 2.67:1 – balanced for torque and scale accuracy
- Axle Width at Hex: 17.82 cm – wide enough for stability, narrow enough for realism

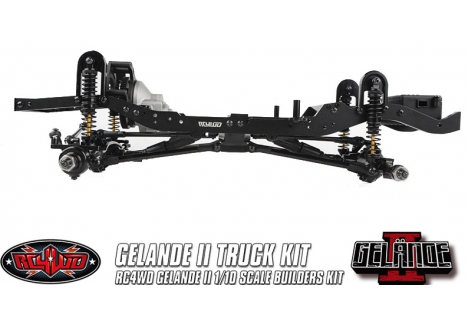

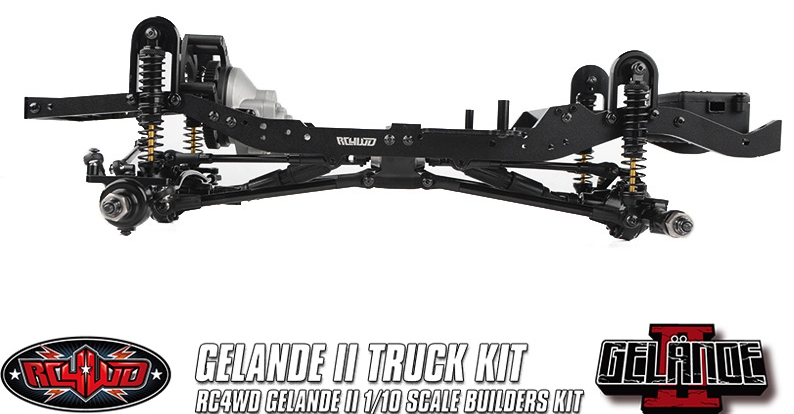

- Suspension Design: 4-link rear and 3-link Panhard rod front suspension
- Shocks: Dual spring 80mm scale black shocks (V3) with X-ring sealing technology
Electronics Compatibility

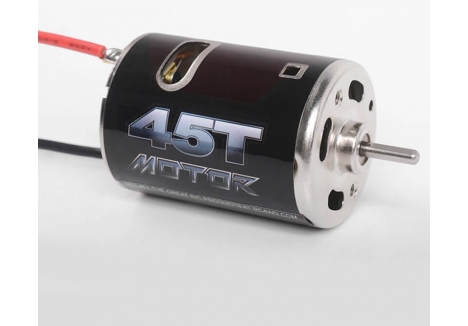

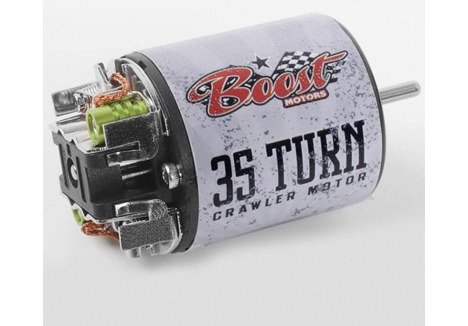

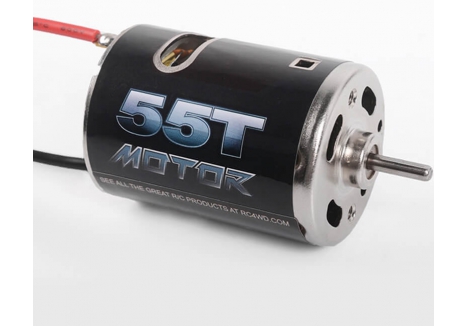

- Motor: Compatible with 35t, 45t, or 55t brushed motors
- Radio System: Requires 2-channel or more (3-channel Z-R0009, 4-channel Z-R0006)
- Servo: Twister high torque metal gear digital servo (Z-E0035)

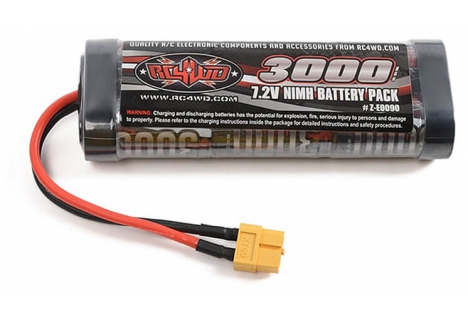

- Battery: Compatible with Z-E0090 or 2-cell LiPo battery (consult ESC manual)
- Charger: Must match battery type (consult battery guide)
Assembly Requirements
- Build Time: Approximately 2–3 hours
- Tools Needed: Hex drivers (1.5mm, 2mm, 2.5mm), long nose pliers, thread-locking adhesive, cross wrench or nut driver (4mm, 5.5mm, 7mm)
Warranty
- Warranty: 1 year manufacturers warranty
