Hobbywing Quicrun Fusion Mini16 370 Motor ESC 1/16 Brushless HW30120403

Overview

The Hobbywing Quicrun Fusion Mini16 370 Motor and ESC Combined represents a revolutionary all-in-one power system for 1/16th and 1/18th scale rock crawlers and lightweight RC models. This is the first commercially available FOC (Field Oriented Control) integrated power system of its kind in the industry, combining both the brushless motor and electronic speed controller into a single, compact unit. Perfect for RC enthusiasts across the UK looking to upgrade their crawler or mini-scale RC car with cutting-edge technology, the Fusion Mini16 delivers the smooth, powerful performance of brushless motors with the intuitive feel of traditional brushed systems. Whether you're a seasoned RC car enthusiast or exploring the world of brushless RC power for the first time, this integrated system simplifies installation and transforms how your vehicle performs on the trail.

Engineered by Hobbywing, a globally recognised leader in brushless motor and ESC technology, the Quicrun Fusion Mini16 combines intelligent engineering with practical design to solve real-world problems faced by RC car UK builders and enthusiasts. The integrated design eliminates complicated wiring and reduces frame clutter, making it an ideal solution for compact model layouts where space is at a premium. With its ultra-compact 24mm x 42mm dimensions and lightweight 72g total weight (including wires and connectors), this system brings professional-grade performance to small-scale crawlers without sacrificing reliability or features. The 3000Kv motor rating ensures strong torque delivery at low speeds whilst maintaining reasonable top-end performance, making this perfect for technical crawling scenarios where controlled power matters more than outright speed.

What truly sets the Fusion Mini16 apart from other brushless RC motors and ESCs is its implementation of advanced FOC drive technology combined with smart torque output and closed-loop speed control. This sophisticated system automatically adjusts power delivery to match terrain conditions—increasing torque when climbing and reducing output when descending to maintain stable speed. The result is a driving experience that feels more natural and controllable than conventional brushless systems, giving you the precision needed for technical rock crawling whilst retaining the raw power for faster running. With full IP66 waterproof protection, a powerful built-in BEC rated for high-voltage servos, and support for multiple programming interfaces, the Quicrun Fusion Mini16 is a complete power solution that delivers exceptional value for RC crawler enthusiasts throughout the UK.

Key Features

• Integrated Motor and ESC Design — The Quicrun Fusion Mini16 combines the brushless motor and electronic speed controller into a single unit, eliminating the need for multiple components and complex wiring. This integrated approach saves valuable space in your RC car's frame, reduces weight, and dramatically simplifies the installation process, making it perfect for compact 1/16th and 1/18th scale models where space is critically limited.
• FOC (Field Oriented Control) Drive Technology — The system employs advanced FOC drive methodology, which delivers superior low-speed torque and excellent linearity compared to standard brushless systems. FOC control provides smooth, predictable power delivery that matches the familiar feel of brushed motor systems whilst offering the efficiency and performance benefits of modern brushless technology, making it ideal for technical rock crawling.
• Smart Torque Output and Closed-Loop Speed Control — The Fusion Mini16 automatically adjusts power delivery based on terrain conditions. When climbing, the system increases torque output to help overcome resistance and accelerate uphill. When descending, it automatically reduces torque and stabilises vehicle speed to prevent runaway on downhill sections, providing intelligent handling that requires no manual adjustment.
• Real-Time Drag Brake Force Adjustment — Connect the yellow signal wire to an open channel on your receiver to adjust drag brake force on the fly. This allows you to dial in the perfect braking feel for different terrain and climbing scenarios without needing to reprogram the ESC, providing unmatched control flexibility for rock crawling applications.
• Exceptional Quiet Operation — The FOC drive system and brushless design ensure the Quicrun Fusion Mini16 operates nearly silently compared to traditional brushed or sensorless brushless motors. This quieter operation makes for a more enjoyable RC experience, particularly valuable when running your RC crawler in early mornings or residential areas.
• IP66 Waterproof and Dust Protection — With IP66 protection rating, the Fusion Mini16 system offers excellent waterproofing and dust-proofing performance to handle complex and varied climatic conditions. Whether you're running through muddy trails, wet terrain, or dusty landscapes, this robust protection ensures reliable operation in demanding outdoor environments throughout the UK.
• Powerful Built-In Switch Mode BEC — The integrated power regulator provides a continuous current output of 4A with a maximum current capability of 10A. The output voltage is switchable between 6V and 7.4V, allowing you to power both standard servos and modern high-voltage servo systems simultaneously without requiring additional external regulators.

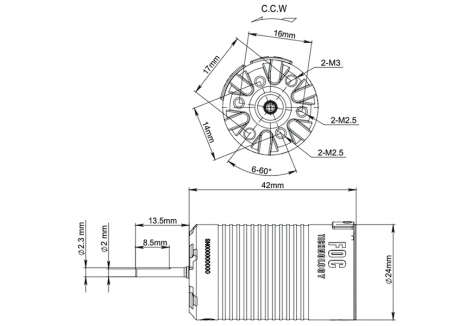

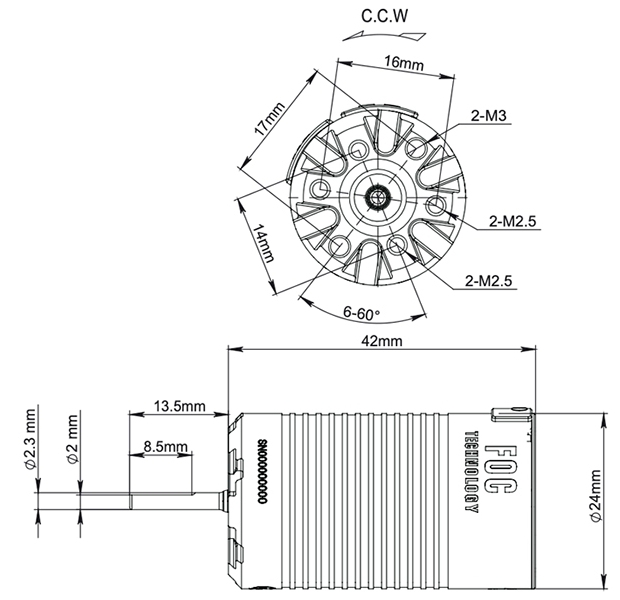

• Multiple Motor Mounting Options — The motor features three different mounting hole configurations: 14mm with M2.5 threading, 16mm with M2.5 threading, and 17mm with M3 threading. This versatility ensures compatibility with numerous RC crawler platforms. For models with 25.4mm frame mounting holes, an optional motor mounting conversion plate is available separately to adapt to larger 1/14th, 1/12th, and 1/10th scale lightweight models.
• Flexible Operating Modes — The system supports three different running modes to meet various application needs: fixed speed mode for direct forward and reverse control, normal mode with forward, reverse, and brake functions, and normal mode with direct forward and reverse without brake. This flexibility allows you to configure the ESC to match your driving style and vehicle requirements.

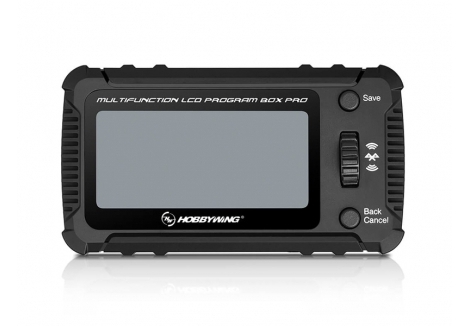

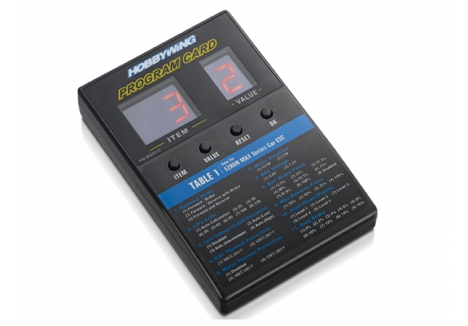

• Comprehensive Programming Support — The Quicrun Fusion Mini16 supports both LED and advanced LCD programming boxes, including the LCD G2 and LCD PRO interfaces. This compatibility allows you to access and adjust 13 different tunable parameters to customise throttle response, braking behaviour, torque delivery, and other performance characteristics without limitations.

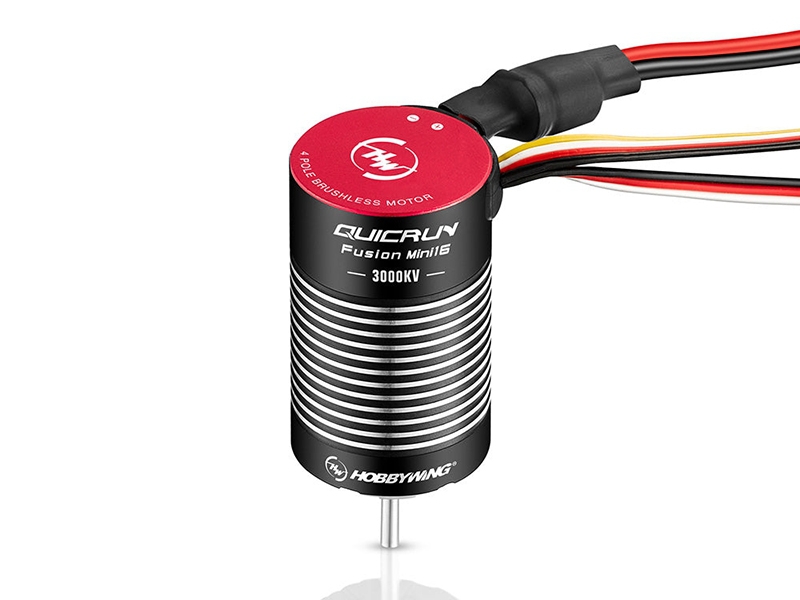

• Sensored Brushless Technology — The system uses sensored brushless motor technology with four poles, providing smooth commutation and precise speed regulation. Sensors eliminate cogging and allow for smoother starting and controlled low-speed operation compared to sensorless alternatives, making this particularly valuable for technical crawling where control is paramount.
• Reliable EC2 Connectors — The system comes fitted with industry-standard EC2 battery connectors and features 18AWG input wires rated at 150mm length. These quality connectors ensure secure, reliable power transfer and are compatible with most modern LiPo batteries and chargers available in the UK market.

Technical Performance

The Hobbywing Quicrun Fusion Mini16 delivers impressive technical performance in a remarkably compact and lightweight package. At just 24mm in diameter and 42mm in length, weighing only 72 grams including wires and connectors, this integrated system manages a 30A continuous current rating with an 80A peak current capability—an impressive power envelope for motors in this scale class. The 3000Kv motor combined with the four-pole brushless design provides strong torque characteristics ideal for technical rock crawling, whilst the FOC control algorithm ensures linear throttle response and smooth power delivery across the entire RPM range. The system accepts 2-3S LiPo batteries (7.4V to 11.1V) or 6-9 cell NiMH packs, giving you flexibility in battery selection depending on your particular crawler platform and running style. The brushless sensored design with closed-loop speed control maintains consistent speed regardless of load, automatically compensating for resistance when climbing and regulating output when descending, making this particularly effective for technical terrain where speed stability is critical. The IP66 waterproof rating protects all electronics from water immersion and dust ingress, whilst the switch-mode BEC generates minimal heat and provides clean, regulated power for servo systems. The 2.3mm shaft diameter with 13.5mm exposed length accommodates standard pinion gears and drivetrain components found on most 1/16th and 1/18th scale crawlers. Engineering-wise, the integration of motor and ESC eliminates external wiring, reduces electromagnetic interference, improves cooling efficiency, and creates a more rigid mechanical package that withstands the vibration and impacts inherent to crawling. The sensored brushless motor delivers superior torque characteristics at low speeds compared to equivalent sensorless systems, and the FOC algorithm provides smoother commutation and more precise speed regulation than traditional trapezoidal drive methods, resulting in a driving experience that feels responsive and controllable even at extremely low speeds.

What's in the Box

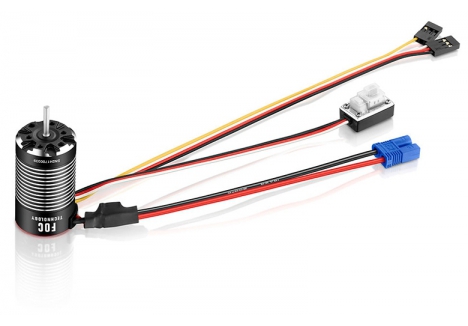

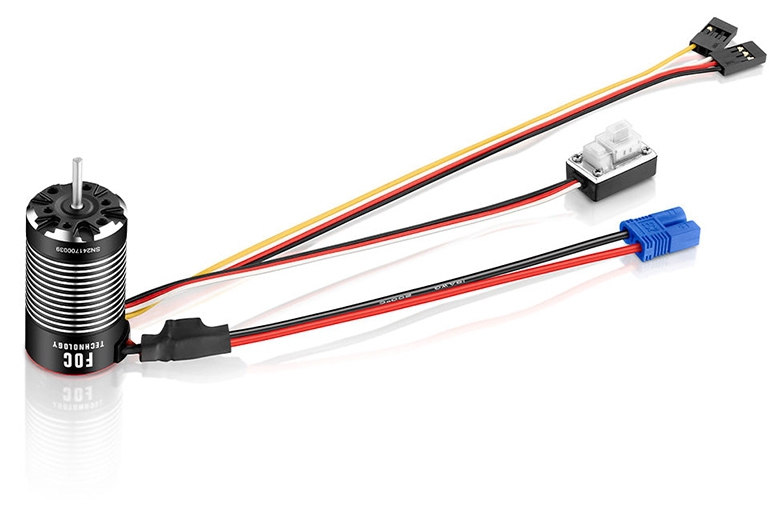

• Quicrun Fusion Mini16 integrated motor and ESC unit with attached wires and connectors
• Pre-soldered EC2 battery connector
• Black 18AWG input wire (negative/ground) at 150mm length
• Red 18AWG input wire (positive/power) at 150mm length
• Yellow signal wire for programming and drag brake adjustment
• Throttle signal wire for receiver connection
• Motor with three mounting hole configurations pre-drilled

What You Need to Complete

• 2-3S LiPo battery pack (7.4V to 11.1V) or 6-9 cell NiMH equivalent — essential to power the system
• Battery charger compatible with your selected battery type
• RC receiver compatible with your radio transmitter
• Servo(s) for steering control — the built-in BEC can power 1 or more servos
• LED or LCD programming box if you wish to adjust ESC parameters (optional but recommended)
• Motor mounting conversion plate (part number 30850502) if your frame uses 25.4mm mounting holes
• RC crawler chassis or lightweight single-speed 1/12th to 1/10th scale model (weight limit ?1.8kg with gear ratio ?60)

Frequently Asked Questions

• Is the Hobbywing Quicrun Fusion Mini16 suitable for rock crawlers and technical terrain? — Yes, absolutely. This system is specifically engineered for 1/16th and 1/18th rock crawlers and provides exceptional performance on technical terrain. The FOC control algorithm delivers strong low-speed torque, smooth power delivery, and intelligent speed regulation that makes technical crawling more controlled and enjoyable. The smart torque output system automatically increases power when climbing and decreases output when descending, providing intelligent handling without manual adjustment. Many UK RC crawler enthusiasts have found this system transforms their vehicles' handling characteristics, delivering more precise control and better holding power on inclines than conventional brushless systems.
• What battery does the Quicrun Fusion Mini16 need, and can I use the battery from my other RC cars? — The system accepts 2-3S LiPo batteries (7.4V to 11.1V nominal voltage) or 6-9 cell NiMH packs. If you currently run other 3S LiPo-powered RC cars or crawlers, those batteries will work perfectly with this system. The continuous 4A BEC can power servo systems simultaneously, eliminating the need for separate battery packs for receiver and servos. Always match your battery's continuous discharge rating (C rating) to your driving style—continuous high-current operation requires a battery rated for at least 30A continuous discharge.
• How does FOC control differ from the ESCs in my existing RC crawlers? — FOC (Field Oriented Control) is an advanced drive algorithm that provides smoother commutation, better low-speed torque, and more linear throttle response compared to traditional trapezoidal drive methods used in most standard brushless ESCs. The difference is most noticeable at extremely low speeds and when climbing obstacles—FOC systems maintain more consistent power delivery and provide better control feel. Many RC enthusiasts describe FOC-driven systems as feeling closer to brushed motors in terms of intuitive controllability, whilst retaining all the efficiency and cooling benefits of brushless technology. The Fusion Mini16's implementation is specifically tuned for rock crawling applications, prioritising low-speed control over raw speed.
• Can I adjust the brake force and other settings without buying additional equipment? — The Quicrun Fusion Mini16 supports both LED and LCD programming boxes (sold separately). Whilst you can adjust drag brake force in real-time using the yellow signal wire connected to a spare receiver channel, accessing the full range of 13 tunable parameters requires a compatible programming interface. However, the LED programming box is affordable and provides essential adjustment capabilities. The LCD G2 and LCD PRO boxes offer more detailed displays and are ideal if you want comprehensive parameter control and real-time performance monitoring.
• Will this motor fit in my specific RC crawler? — The Quicrun Fusion Mini16 has three pre-drilled mounting hole configurations (14mm M2.5, 16mm M2.5, and 17mm M3), making it compatible with most 1/16th and 1/18th scale crawlers. The compact 24mm diameter and 42mm length allow fitment in tight spaces where traditional separate motor and ESC combinations would not fit. For larger frames with 25.4mm mounting holes (common on 1/14th, 1/12th, and 1/10th scale models), an optional conversion plate is available. However, always check your specific model's dimensions before purchasing—for example, this system is not suitable for the Traxxas 1/18 TRX-4M due to space constraints.
• Is the IP66 waterproof rating sufficient for wet terrain and river crossings? — Yes, IP66 protection provides excellent waterproofing and dust resistance. The system can operate reliably in wet conditions, muddy terrain, and even shallow water crossings common in UK rock crawling. IP66 rating means the system is protected against powerful water jets and temporary immersion, making it suitable for serious off-road use. However, prolonged submersion in deep water is not recommended. Always allow the system to dry thoroughly after wet operation and periodically inspect connectors for corrosion.
• What is the difference between the Quicrun Fusion Mini16 and other brushless motor and ESC combinations? — The primary advantage is integration—the Fusion Mini16 combines motor and ESC into a single unit, eliminating external wiring and saving significant space and weight. Most competitors require separate motor and ESC components connected by power cables, which creates clutter, increases weight, and complicates installation. The Fusion Mini16's FOC drive algorithm is specifically optimised for crawling applications and delivers smoother, more controllable low-speed performance than many sensorless brushless alternatives. The built-in smart torque system provides intelligent power management without user intervention, and the 3000Kv rating is ideal for technical crawling rather than speed-focused applications.
• Can I power high-torque and high-voltage servos with the built-in BEC? — Yes. The Fusion Mini16's switch-mode BEC provides a continuous current output of 4A with a peak capability of 10A, and selectable output voltage of either 6V or 7.4V. This is sufficient to power modern high-torque, high-voltage servo systems commonly used in crawlers. You can power multiple servos simultaneously from the single BEC output without requiring external voltage regulators, simplifying your electrical setup. The switch-mode design generates minimal heat, ensuring stable voltage delivery even during extended run sessions.
• Is this system suitable for beginners, or do I need advanced RC knowledge to operate it? — Whilst the Quicrun Fusion Mini16 is technically sophisticated, it is straightforward to install and operate. The integrated design eliminates the complexity of wiring separate motor and ESC components, making installation simpler than traditional setups. Basic operation requires only connecting the battery, receiver, and servo(s)—no special knowledge required. If you wish to access advanced parameter tuning, a programming box is helpful but optional. The smart torque output and closed-loop speed control work automatically without user intervention, meaning even beginners benefit from the system's sophisticated features without needing to understand the underlying technology.
• How long will this motor run on a single battery charge? — Runtime depends on several variables including battery capacity (measured in mAh), your driving style, terrain difficulty, and motor efficiency. The Quicrun Fusion Mini16's high efficiency and low heat generation help extend runtime compared to less advanced systems. A typical 2200-3000mAh 2S or 3S LiPo battery provides 30-60 minutes of running time depending on driving intensity. The FOC drive system and sensored brushless design are particularly efficient at low speeds, making this ideal for technical crawling where extended sessions are common.
• What programming parameters can I adjust with the LED and LCD programming boxes? — The system supports 13 different adjustable parameters covering throttle response characteristics, braking behaviour, drag brake force (also adjustable in real-time via the yellow wire), torque output limits, and speed control settings. The LED programming box provides basic access to essential adjustments, whilst the LCD G2 and LCD PRO boxes offer more detailed displays and comprehensive parameter control. Specific parameter lists are available in the system documentation and programming box manuals.
