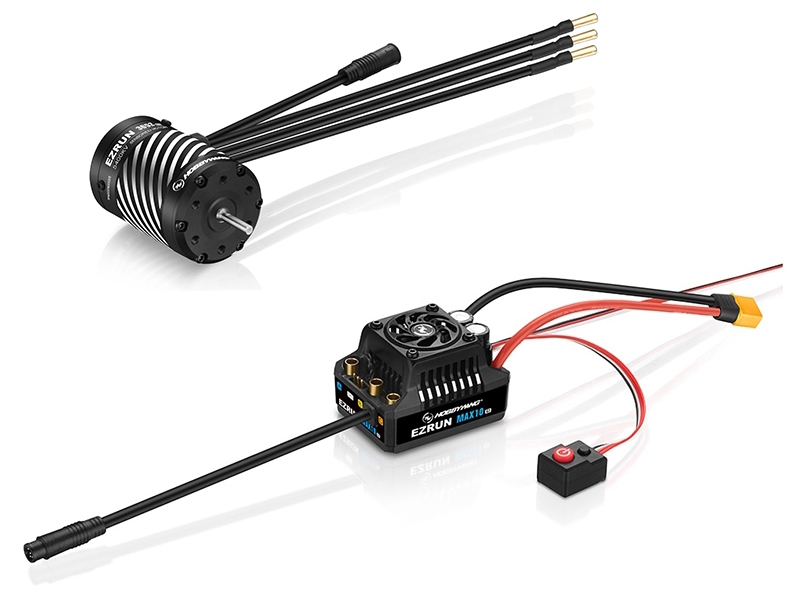

HOBBYWING COMBO MAX10 G2 80A ESC 3652SD 4100KV BLK G3 MOTOR HW38020347

Overview

The Hobbywing Combo MAX10 G2 80A ESC 3652SD 4100KV BLK G3 Motor represents the cutting edge of brushless RC power systems for 1/10 scale vehicles. This complete combo pairs the advanced EzRun MAX10 G2 ESC with the latest generation EzRun 3652SD G3 sensored motor, delivering exceptional performance whether you're racing on-road, bashing off-road, or running a short course truck. Built by Hobbywing, a globally recognised leader in RC electronics, this system combines proven reliability with next-generation technology to give you the competitive edge you need. Whether you're upgrading an existing RC car or building a new 1/10 scale brushless RC truck from scratch, this combo offers outstanding value and performance in a single purchase.

The EzRun MAX10 G2 ESC and 3652SD G3 motor have been specifically engineered to work together as a matched pair, maximising efficiency and delivering consistent throttle response across all driving conditions. The 4100KV motor variant sits in the sweet spot for 1/10 scale on-road and light-duty off-road applications, offering excellent acceleration and top speed when paired with 2-3S LiPo batteries. This is a sensored brushless system, meaning it uses precision Hall effect sensors to deliver perfectly timed motor control, resulting in smooth power delivery and refined handling that makes a real difference when you're pushing your RC to its limits.

If you're serious about RC performance in the UK market, this combo delivers the kind of engineering quality that separates premium systems from budget alternatives. The waterproof construction means you can run in challenging conditions without fear of water damage, whilst the intelligent power management features ensure your electronics stay cool and reliable even during extended driving sessions.

Key Features

• Upgraded Sensored Cable Interface — The improved waterproof sensored cable connection on the EzRun 3652SD G3 motor ensures perfect data transfer between motor and ESC, delivering accurate rotor position detection and consistent throttle linearity that makes your RC respond exactly as you command it.
• Turbo Timing Adjustment up to 32 Degrees — The MAX10 G2 ESC supports advanced timing adjustment, and when combined with the EzRun 3652/3665 G3 motor, this enables 25% more maximum speed with greater efficiency, giving competitive drivers a performance advantage without sacrificing reliability.
• Smart Start-Stop Fan Technology — Rather than running continuously and wasting power, the frameless cooling fan only activates when ESC temperature rises above a set threshold, reducing noise pollution and extending battery runtime whilst still protecting electronics from thermal damage.
• 74% Increased Capacitor Bank — The MAX10 G2 features dramatically increased total capacitance compared to the previous generation, with integrated overheating protection to prevent capacitor failure from power spikes and ensure reliable power delivery even under demanding load conditions.
• Smart Freewheeling Technology — This advanced feature dramatically improves drive efficiency compared to earlier generations, resulting in operating temperatures approximately 25°C lower than the previous generation MAX10 ESC, meaning your system runs cooler and your batteries last longer.
• Bluetooth Data Logging and Real-Time Telemetry — When paired with the optional OTA Bluetooth module, the MAX10 G2 allows you to monitor throttle amount, battery voltage, current draw, temperature, and speed in real-time through a mobile app, plus view historical running data for performance analysis.
• IP-67 Waterproof Rating — Both the ESC and motor feature complete IP-67 waterproofing and dustproofing, allowing you to run your RC on any surface including mud, sand, water, ice and snow without worrying about moisture damage to critical electronics.
• 3% Efficiency Improvement Over G2 Generation — The G3 motor delivers measurably better efficiency than its predecessor, with 5% higher maximum output power and significantly reduced motor temperature under identical load conditions, translating to better performance and longer component lifespan.
• High-Precision Hall Sensors — The ultra-precise Hall effect sensor components ensure the motor rotor position is always accurately detected and reported, achieving excellent linearity and responsive throttle control that makes handling predictable and enjoyable.
• Waterproof Front Bearing Assembly — The EzRun 3652SD G3 features a precision waterproof bearing at the motor front end, whilst the rear uses a compact precision iron cover that reduces parasitic friction and mechanical resistance, enabling higher bearing speeds whilst maintaining reliability.
• Modular Detachable Motor Design — The motor can be easily disassembled for maintenance and inspection without specialised tools, making it simple to clean bearings, replace brushless windings if needed, and keep your system performing at its peak for years of reliable service.
• Premium Material Selection — Every component has been carefully selected by Hobbywing engineers: the motor casing, bearings, ultra-thin silicon steel sheets, high temperature-resistance copper wire, explosion-proof rotor, and high-tolerance alloy shaft all work together to deliver exceptional durability and performance longevity.

Technical Performance

The EzRun 3652SD-4100KV G3 motor paired with the MAX10 G2 80A ESC creates a performance combination engineered for serious RC enthusiasts. The motor measures 37mm in diameter with a 53mm body length, keeping the overall package compact whilst delivering substantial power output. Spinning at 4100KV (revolutions per volt), this motor is specifically calibrated for 2-3S LiPo battery systems, producing no-load current draw of just 5.0A, which means efficient power utilisation and extended runtime. The 3.175mm (0.125-inch) motor shaft accommodates standard pinions, whilst the 4.0mm bullet connectors provide reliable electrical connections with minimal resistance. The complete motor assembly weighs just 227.9g, making it lightweight enough for demanding applications without sacrificing build quality.

The MAX10 G2 ESC is rated for continuous operation up to 80 amperes, making it suitable for high-performance 1/10 scale applications on both on-road and light-duty off-road RC vehicles. The XT-60 power connector ensures a secure battery connection with excellent current handling capability. With support for 2-3S LiPo and NiMh battery systems, this ESC is compatible with standard UK RC hobby batteries up to 11.1 volts (3S LiPo), delivering the power needed for spirited acceleration and sustained high-speed running. The sophisticated power management electronics include enhanced capacitor arrays designed to smooth power delivery and prevent voltage sag under peak current draw. The brushless sensored architecture delivers perfectly synchronised commutation, eliminating the cogging and jerky throttle response associated with sensorless systems, resulting in a driving experience that feels natural and responsive.

From an engineering perspective, the MAX10 G2 represents a significant step forward in ESC design. The addition of smart freewheeling technology reduces the resistive drag experienced during coast-down phases, improving overall system efficiency. The improved waterproof sensored cable interface uses sealed connectors and protected wiring to ensure signal integrity even in wet conditions, critical for reliable operation on muddy tracks or wet grass. The 4-pole motor design, combined with the advanced commutation control of the MAX10 G2, delivers smooth power delivery across the entire throttle range, from crawling starts for technical manoeuvres to explosive acceleration. The 0-degree timing configuration provides optimal performance for general-purpose driving, with the ability to increase timing through ESC programming if users wish to fine-tune performance for specific applications.

What's in the Box

• EzRun MAX10 G2 80A Brushless ESC with XT-60 connector
• EzRun 3652SD-4100KV G3 Sensored Brushless Motor with 4.0mm bullet connectors

What You Need to Complete

• 2-3S LiPo battery pack (recommended capacity 4000-5000mAh for optimal performance)
• LiPo battery charger compatible with your chosen battery
• RC car or truck chassis compatible with 1/10 scale brushless systems (motor mount must support 37mm diameter motors)
• Radio control system and receiver (2.4GHz recommended for UK use)
• Motor pinion gear (tooth count depends on your desired top speed)
• Motor heat sink (optional but recommended for extended running sessions)
• ESC programming card (for timing and other advanced adjustments)

Frequently Asked Questions

• Is the Hobbywing MAX10 G2 and 3652SD G3 combo suitable for beginners to RC hobbies? — Yes, this combo is appropriate for drivers with some RC experience who want to upgrade to a professional-grade sensored system. The sensored brushless design delivers smooth, predictable power delivery that's easier to control than high-KV sensorless systems, making it forgiving for learning throttle modulation. However, because it requires LiPo batteries and ESC programming, it's best suited to those familiar with RC fundamentals rather than complete newcomers.
• What battery does this MAX10 G2 and 3652SD combo need? — This system is designed for 2-3S LiPo batteries (7.4 to 11.1 volts nominal). The manufacturer recommends this battery range specifically for optimal performance with the 4100KV motor. For general purpose driving, a 3S LiPo (11.1V) with 4000-5000mAh capacity offers good balance between power and runtime. You can also use NiMh batteries up to 3S if you prefer, though LiPo delivers superior performance and lighter weight.
• How does this combo compare to the 3300KV and 5400KV motor variants? — The 4100KV version sits in the middle of Hobbywing's 3652SD G3 range. The 3300KV offers lower speed but more torque, better for heavier vehicles or rough terrain. The 5400KV spins faster but requires more efficient gearing and is best for 2S batteries to avoid excessive current draw. The 4100KV balances top speed and pulling power, making it the most versatile choice for mixed driving on both on-road and light off-road surfaces.
• What makes the G3 motor better than the G2 version? — Hobbywing's testing shows the G3 generation delivers 3% better overall efficiency and 5% higher maximum output power. More importantly, under the same load conditions, the G3 motor runs noticeably cooler, extending component lifespan and enabling longer driving sessions without thermal throttling. The improved waterproof sensored cable interface also provides more reliable sensor signal transmission, particularly important in wet conditions.
• Is this system waterproof? — Yes, both the MAX10 G2 ESC and the 3652SD G3 motor feature IP-67 waterproof and dustproof protection, allowing operation on muddy tracks, in light rain, and on wet grass. However, IP-67 protection means it can handle temporary water immersion but shouldn't be left underwater for extended periods. Always rinse with fresh water after running in salty or heavily chlorinated water, and allow time to dry before recharging.
• Can I use this combo in a brushless RC car or truck designed for sensorless systems? — This depends on your specific vehicle's motor mount and connector compatibility. The 37mm diameter motor and 4.0mm bullet connectors are industry standard for 1/10 scale brushless systems, so it will fit most modern brushless-ready chassis. However, you'll need a sensored-compatible ESC, which the MAX10 G2 is, so compatibility is excellent. Always verify your chassis specifications before purchasing.
• What does the Turbo Timing feature do? — Turbo timing adjustment (up to 32 degrees on the MAX10 G2) allows you to advance the ESC's motor commutation timing for increased peak RPM and top speed. When combined with the 3652SD G3 motor, this can add approximately 25% to your vehicle's maximum speed. However, advancing timing increases current draw and heat generation, so use it carefully and monitor ESC temperatures, especially during extended running sessions.
• Can I monitor my RC's performance data in real-time? — Yes, with the optional OTA Bluetooth module, you can view live data including throttle percentage, battery voltage and remaining capacity, current draw, ESC temperature, and motor speed through a mobile app on your smartphone. The system also logs historical data allowing you to analyse performance trends and diagnose issues after your driving session.
