Delivery Included
1 Year Warranty
Application:
Ideal for 2s No Prep Street Eliminator vehicles on 2s such as Associated DR10, Losi 22S, and Traxxas Drag Slash
Product Overview
Castle is excited to introduce our latest offering to the drag racing scene. The new 1412-6400kv motor is a very high torque, high wattage, mid-RPM motor designed for 2s no prep Street Eliminator racing.
We went with a slightly different approach than current motors on the market. Most no prep motors are standard 540 size with very high kv (low turn). These motors rely on high RPM and low torque to push the car down the track (think turbo charged 4 cylinder). The 1412 is longer than most drag motors, which provides significantly more torque, acceleration, and cooler temps (think American Muscle). This results in a high horsepower, snappy, cool running motor. Your final drive ratio will need to be decreased (larger pinion/smaller spur) to get the RPMs up for top speed; due to the size of the motor it will take just about any gearing and CHEAT timing you can throw at it.
We beefed up the design over a standard 14xx series motor to handle the high demands of drag racing. It uses a 5mm output shaft, 10AWG battery wires and 6.5mm bullets. Due to the high power nature of this motor it is highly recommended to use a 1/8th scale size ESC or larger. The 1/8th Mamba Monster X and 1/6th scale Mamba Monster X 8s are great pairings with this motor.
THE DESIGN: KEEPING IT COOL
- Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
- QUIETSENSET technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and
- ESC in sync at all times. Use of a Flux Shield in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.
- Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
- REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
- Updated modern and sleek design; looks as cool as it performs.
Immense care is taken by our US design team during every step of the development process. While using the highest quality components is important, design is equally important. Our experienced, in-house engineering team, located in Olathe, Kansas, has spent countless hours simulating and developing the most efficient design. Development includes magnetic simulations, custom winding techniques, and rigorous, real-world testing of the final product.
You will reap the benefits of longer run times on one battery and a cooler running motor that can be pushed harder.
INTEGRATED SOPHISTICATION
Castle engineers always add a little something extra in their designs that takes your performance to the next level. We have not skimped here. Many customers have utilized our industry leading software functionality that Castle Link* offers. When paired with a Castle Creations sensor supported ESC, like the MAMBA MAX PRO, MAMBA X or COPPERHEAD, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors.
SMARTSENSE uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSET will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.
With a Castle sensored ESC and sensored motor you will have the ULTIMATE POWER PLANT for your vehicle. Users will experience PRECISE throttle control, BUTTERY SMOOTH starts, PEAK PERFORMANCE and EFFICIENCY throughout the full throttle range. You will feel the POWER and LONGER RUN TIMES that a WORLD-CLASS motor produces..

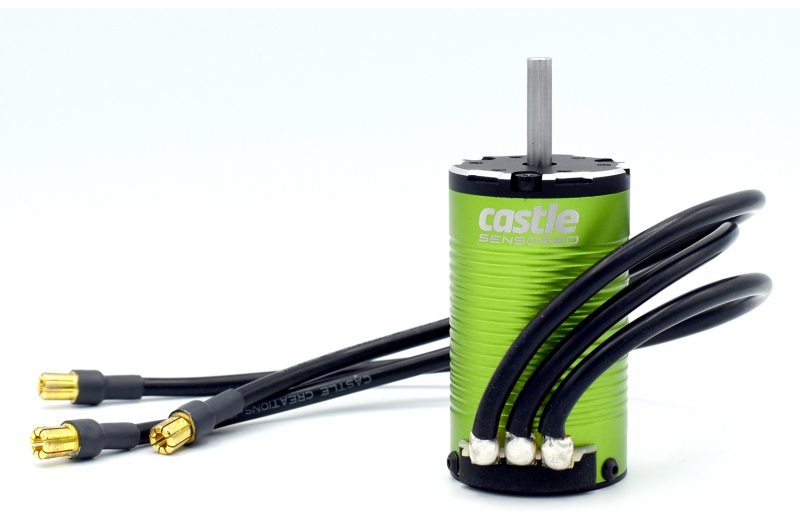

Product Description of Castle M-CC060-0089-00 1412-6400kV sensored brushless motor
The for no prep drag cars is engineered for high-RPM launches, precision timing, and consistent throttle control across competitive 2S LiPo drag platforms. Designed specifically for no prep drag setups like DR10 and 22S, this motor delivers explosive acceleration with minimal cogging and maximum efficiency. Castle Creations has integrated advanced sensor technology into a compact 1412-size inrunner format, featuring a 4-pole, 12-slot architecture that minimizes heat and maximizes magnetic precision. With a 5mm shaft and factory-installed 6.5mm bullet connectors, the Castle M-CC060-0089-00 sensored inrunner motor with 5mm shaft and 6.5mm bullet connectors offers plug-and-play compatibility for racers seeking reliable, race-ready performance.
Key features of the Castle M-CC060-0089-00 1412-6400kV motor
- High-RPM optimized Kv rating – delivers rapid launches and top-end speed
- Sensor-based startup – eliminates cogging and ensures consistent throttle response
- Kevlar-reinforced rotor – resists deformation under extreme acceleration
- Oversized bearings – reduce vibration and extend motor lifespan
- Low-resistance stator – improves thermal efficiency and runtime
- Dual-mode operation – supports sensored and sensorless configurations
- Rebuildable design – allows replacement of rotor, shaft, and bearing assemblies
How does the Castle M-CC060-0089-00 4-pole motor with QuietSense and Flux Shield technology improve launch precision?
The Castle M-CC060-0089-00 4-pole motor with QuietSense and Flux Shield technology is built to deliver clean, predictable launches in no prep drag racing. QuietSense™ shields the motor’s sensors from magnetic interference, ensuring uninterrupted communication with the ESC. This prevents desynchronization during throttle transitions, which is critical during high-RPM launches. Flux Shield™ works in tandem with secondary Sense Magnets to enhance rotor alignment, allowing the motor to deliver torque instantly and uniformly. Together, these technologies eliminate startup hesitation and provide the precision needed for competitive drag racing.
Why is the 6400kV rating ideal for no prep drag cars?
The Castle 6400kV motor with low-resistance stator and high-purity copper windings is tuned for explosive acceleration and top-end speed on 2S LiPo setups. Its high Kv rating allows racers to achieve rapid RPM buildup, making it ideal for short-distance sprints where every millisecond counts. The stator’s proprietary winding techniques reduce electrical resistance, allowing the motor to run cooler and more efficiently. This combination of high Kv output and thermal stability ensures consistent performance across repeated runs, giving racers a competitive edge in no prep formats.
What makes the rotor design durable under extreme loads?
The rotor in the Castle M-CC060-0089-00 with Kevlar-wrapped rotor and oversized NMB bearings is reinforced with high-strength Kevlar to withstand the centrifugal forces generated during high-RPM launches. This wrap maintains rotor integrity under stress, preventing deformation and imbalance. Oversized NMB bearings further enhance durability by reducing vibration and mechanical wear. Combined with a vibration dampening system, these features ensure long-term reliability and smooth operation, even under the harsh demands of competitive drag racing.
Is the Castle 1412 motor compatible with race-legal ESCs?
Absolutely. The Castle 1412 motor with ROAR sensor port and vibration dampening system includes a ROAR-compliant sensor port and clearly labeled connections, ensuring compatibility with sensored ESCs used in sanctioned racing environments. The vibration dampening system protects internal components from mechanical stress, while the rebuildable design allows users to maintain peak performance by replacing worn assemblies. This flexibility makes the motor a reliable choice for racers who demand precision and longevity from their power systems.
How does the rebuildable design benefit long-term performance?
The affordable Castle 1412-6400kV motor with rebuildable design and SmartSense timing is engineered for maintainability and sustained performance. Users can replace the rotor, shaft, and front end bell with bearings, extending the motor’s lifespan and preserving its performance characteristics. This rebuildable architecture is especially valuable for racers who push their equipment to the limit and require a motor that can be serviced and restored without compromising output. Combined with SmartSense timing logic, the motor adapts to changing load conditions and maintains optimal efficiency throughout its lifecycle.
Why is this motor the best Castle upgrade for high-RPM throttle control?
The Castle M-CC060-0089-00 1412-6400kV sensored brushless motor for no prep drag cars offers a unique combination of high Kv output, sensor-based precision, and rugged construction. Its 4-pole, 12-slot design enhances torque delivery and startup smoothness, while QuietSense™ and Flux Shield™ technologies ensure clean launches and consistent timing. The motor’s compact form factor, Kevlar reinforcement, and oversized bearings make it the best Castle upgrade for high-RPM launches and buttery smooth throttle control.
For racers seeking a sensored motor with advanced timing logic, high-efficiency winding, and rebuildable architecture, the Castle M-CC060-0089-00 1412-6400kV sensored brushless motor for no prep drag cars delivers unmatched value and performance. Buy Castle M-CC060-0089-00 sensored motor for 2S LiPo drag setups like DR10 or 22S.
Technical Specifications of Castle M-CC060-0089-00 1412-6400kV sensored brushless motor
Brand, Model and Product Type
- Brand: Castle Creations
- Model: M-CC060-0089-00
- Product Type: Castle M-CC060-0089-00 1412-6400kV sensored brushless motor for no prep drag cars, Castle M-CC060-0089-00 4-pole motor with QuietSense and Flux Shield technology, Castle M-CC060-0089-00 sensored inrunner motor with 5mm shaft and 6.5mm bullet connectors, Castle M-CC060-0089-00 with Kevlar-wrapped rotor and oversized NMB bearings, Castle 1412 motor with ROAR sensor port and vibration dampening system, Castle 6400kV motor with low-resistance stator and high-purity copper windings
Dimensions
- Motor Length: 6.2 cm – compact size for optimized drag chassis integration
- Motor Height: 3.6 cm – low-profile format for aerodynamic setups
- Shaft Diameter: 0.5 cm – precision-machined for secure gear mounting
- Shaft Length: 2.1 cm – supports standard pinion configurations
- Product Weight: 283 g – lightweight for reduced load and faster launches
Motor Architecture and Performance
- Motor Type: Brushless – engineered for high efficiency and minimal maintenance
- Motor Design: Inrunner – enclosed rotor configuration for consistent torque output
- Number of Poles: 4 – enhances startup torque and low-speed drivability
- Slot Configuration: 12-slot – improves magnetic efficiency and reduces heat generation
- RPM/Volt (Kv): 6400 kV – tuned for rapid acceleration in 2S LiPo drag setups
- Input Voltage: 2S LiPo – optimized for short-distance, high-RPM racing formats
- Application: Designed for no prep drag cars – ideal for platforms like DR10 and 22S
Materials and Build Quality
- Rotor Construction: Kevlar-wrapped – reinforced for structural integrity under high RPM stress
- Magnet Type: High-strength, high-temperature neodymium sintered magnets – resist thermal degradation
- Bearings: Oversized NMB bearings – extend bearing life and support high RPM loads
- Vibration Dampening: Integrated system – minimizes mechanical stress and improves longevity
- Stator Assembly: Low-resistance proprietary winding – supports cooler operation and longer runtime
Connectivity and Compatibility
- Connector Type: 6.5 mm bullet – ensures secure, low-resistance power transfer
- Sensor Port: ROAR standard – ensures compatibility with race-legal sensored ESCs
- Recommended ESC: Compatible 1/10 Brushless Electronic Speed Control – must support sensored operation
Integrated Technologies
- QuietSense: Shields sensors from magnetic field noise – maintains ESC-motor synchronization
- Flux Shield: Works with secondary Sense Magnets – improves startup precision and efficiency
- Sensor Alignment: Delivers uniform timing and torque in both directions – no mechanical adjustment required
Rebuildability and Maintenance
- Design: Rebuildable – allows replacement of rotor, shaft, and front end bell with bearings
What’s in the Box
- (1) Castle 1412-6400kV 4-Pole Sensored Brushless Motor – model M-CC060-0089-00
What You Require
- (1) Compatible Brushless Electronic Speed Control – must support sensored operation
