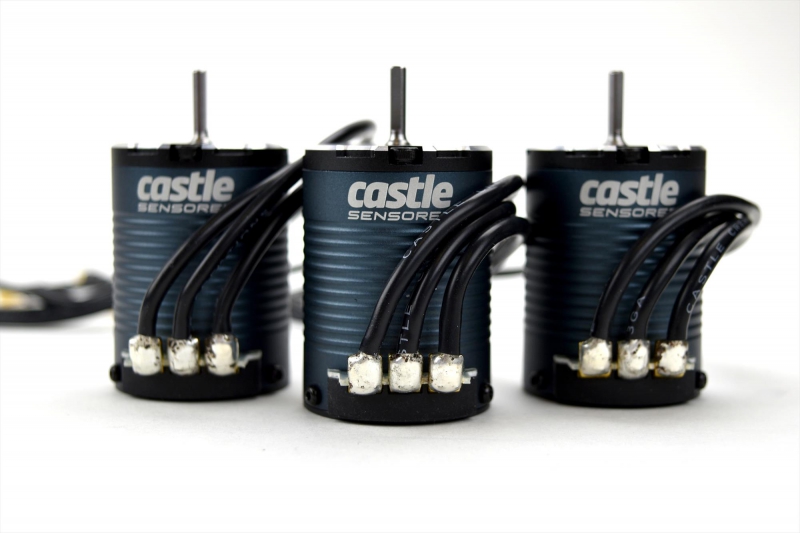

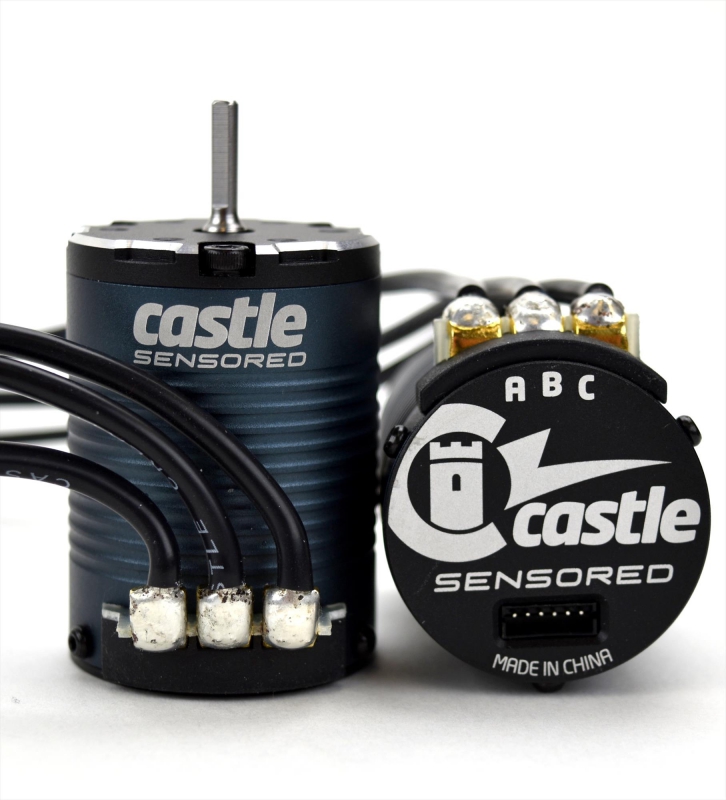

Product Description of Castle M-CC060-0069-00 1406-2280kV sensored brushless motor

The Castle M-CC060-0069-00 1406-2280kV sensored brushless motor for 1/10 scale rigs is engineered for precision throttle control, low-RPM startup smoothness, and high-efficiency performance across trail rigs, crawlers, and buggies. Featuring Castle’s advanced 4-pole, 12-slot inrunner design, this motor integrates QuietSense™ and Flux Shield™ technologies to eliminate cogging and maintain ESC-motor synchronization under all load conditions. Finished in slate and built with a vibration-dampened structure, the Castle M-CC060-0069-00 4-pole motor with Flux Shield and QuietSense technology delivers consistent torque, cooler operation, and long-term reliability for demanding off-road environments.

Key features of the Castle M-CC060-0069-00 1406-2280kV motor

• QuietSense shielding – maintains ESC-motor sync by suppressing magnetic field noise
• Flux Shield with dual sensor magnets – delivers higher startup precision and smoother throttle
• Kevlar-wrapped rotor – reinforced for durability under harsh trail conditions
• Oversized NMB bearings – extend bearing life and support high RPM loads
• Low-resistance stator – supports cooler operation and longer runtime
• ROAR sensor port – ensures compatibility with race-legal ESCs
• Rebuildable design – allows rotor, shaft, and bearing replacement

How does QuietSense™ improve drivability in 2S–4S trail rigs?

The Castle M-CC060-0069-00 sensored inrunner motor with 4mm bullet connectors uses QuietSense™ technology to shield its sensors from magnetic field noise generated by motor coils. This shielding maintains clean signal communication between the motor and ESC, preventing desynchronization during throttle transitions or directional shifts. For 1/10 scale rigs operating in unpredictable terrain, QuietSense™ ensures consistent torque delivery and precise throttle modulation, eliminating startup hesitation and improving drivability across all RPM ranges.

What makes the Flux Shield™ system critical for startup control?

The Castle M-CC060-0069-00 4-pole motor with Flux Shield and QuietSense technology incorporates a Flux Shield™ and secondary Sense Magnets to enhance rotor position detection. This dual-sensor configuration enables the ESC to accurately align motor timing during startup, resulting in smoother launches and reduced cogging. The system automatically adjusts timing across load phases, eliminating the need for mechanical tuning and ensuring optimal performance whether crawling over rocks or accelerating on trail runs.

Why is the Kevlar-wrapped rotor essential for off-road durability?

The rotor in the Castle M-CC060-0069-00 with Kevlar-wrapped rotor and oversized NMB bearings is reinforced with Kevlar to withstand the extreme centrifugal forces encountered during high-RPM operation. This structural reinforcement ensures long-term reliability and vibration-free performance, even under harsh trail conditions. Combined with oversized NMB bearings and a vibration dampening system, the Kevlar wrap contributes to a motor that’s built to endure the rigors of Ultra 4 racing and aggressive off-road use.

How does the stator design enhance runtime and thermal efficiency?

The Castle 2280kV motor with low-resistance stator and high-purity copper windings features proprietary winding techniques that minimize electrical resistance across the stator assembly. This low-resistance configuration reduces heat generation during operation, allowing the motor to run cooler and more efficiently. The result is extended runtime on a single charge and improved power delivery under load, making the motor ideal for long trail sessions and competitive crawling events.

Is the Castle 1406 motor compatible with race-legal ESCs?

Yes. The Castle 1406 motor with ROAR sensor port and vibration dampening system includes a ROAR-standard sensor port and clearly labeled connections, ensuring compatibility with sensored ESCs used in race-legal setups. The vibration dampening system further enhances component longevity by minimizing mechanical stress, while the rebuildable design allows users to replace the rotor, shaft, and front end bell with bearings as needed. This flexibility makes the motor a reliable choice for both recreational and competitive drivers.

What makes this motor the best Castle upgrade for smooth throttle control?

The Castle M-CC060-0069-00 1406-2280kV sensored brushless motor for 1/10 scale rigs combines advanced sensor technology, precision engineering, and rugged construction to deliver a performance-focused solution for 2S–4S platforms. Its 4-pole, 12-slot configuration enhances torque and startup smoothness, while the integrated Flux Shield™ and QuietSense™ systems ensure clean launches and consistent timing. The motor’s slate finish and modern design reflect its premium build quality, making it the best Castle upgrade for buttery smooth throttle and low-RPM startup control.

For RC enthusiasts seeking a sensored motor with rebuildable architecture and dual sensor magnets, the affordable Castle 1406-2280kV motor with rebuildable design and dual sensor magnets offers unmatched value and performance. Buy Castle M-CC060-0069-00 sensored motor for 2S–4S trail rigs, crawlers, and buggies.

Technical Specifications of Castle M-CC060-0069-00 1406-2280kV sensored brushless motor

Brand, Model and Product Type

• Brand: Castle Creations
• Model: M-CC060-0069-00
• Product Type: Castle M-CC060-0069-00 1406-2280kV sensored brushless motor for 1/10 scale rigs, Castle M-CC060-0069-00 4-pole motor with Flux Shield and QuietSense technology, Castle M-CC060-0069-00 sensored inrunner motor with 4mm bullet connectors, Castle M-CC060-0069-00 with Kevlar-wrapped rotor and oversized NMB bearings, Castle 1406 motor with ROAR sensor port and vibration dampening system, Castle 2280kV motor with low-resistance stator and high-purity copper windings
• Product Colour: Slate

Dimensions

• Motor Series: 1406 – compact format optimized for low-RPM control and trail performance
• Connector Type: 4 mm bullet – supports secure, low-resistance power delivery

Motor Architecture and Performance

• Motor Type: Brushless – delivers high efficiency and minimal maintenance
• Motor Design: Inrunner – enclosed rotor configuration for consistent torque output
• Number of Poles: 4 – enhances startup torque and low-speed drivability
• Slot Configuration: 12-slot – improves motor efficiency and reduces heat generation
• RPM/Volt (Kv): 2280 kV – tuned for 2S–4S trail rigs, crawlers, and buggies

Materials and Build Quality

• Rotor Construction: Kevlar-wrapped – reinforced for structural integrity under high RPM stress
• Magnet Type: High-strength, high-temperature neodymium sintered magnets – resist thermal degradation
• Bearings: Oversized NMB bearings – extend bearing life and support high RPM loads
• Vibration Dampening: Integrated system – minimizes mechanical stress and improves longevity
• Stator Assembly: Low-resistance proprietary winding – supports cooler operation and longer runtime

Connectivity and Compatibility

• Sensor Port: ROAR standard – ensures compatibility with race-legal sensored ESCs
• Connection Labels: Clearly marked terminals – simplify installation and reduce setup errors

Integrated Technologies

• QuietSense Technology: Shields sensors from magnetic field noise – maintains ESC-motor synchronization
• Flux Shield: Works with secondary Sense Magnets – improves startup precision and efficiency
• Sensor Alignment: Delivers uniform timing and torque in both directions – no mechanical adjustment required

Rebuildability and Maintenance

• Design: Rebuildable – allows replacement of rotor, shaft, and front end bell with bearings

Application Suitability

• Designed for 1/10 scale trail rigs, crawlers, and buggies – optimized for 2S–4S LiPo configurations

What's in the Box

• (1) Castle 1406 4-Pole Sensored Brushless Motor – model M-CC060-0069-00

What You Require

• (1) 1/10 Brushless Electronic Speed Control – must support sensored operation
