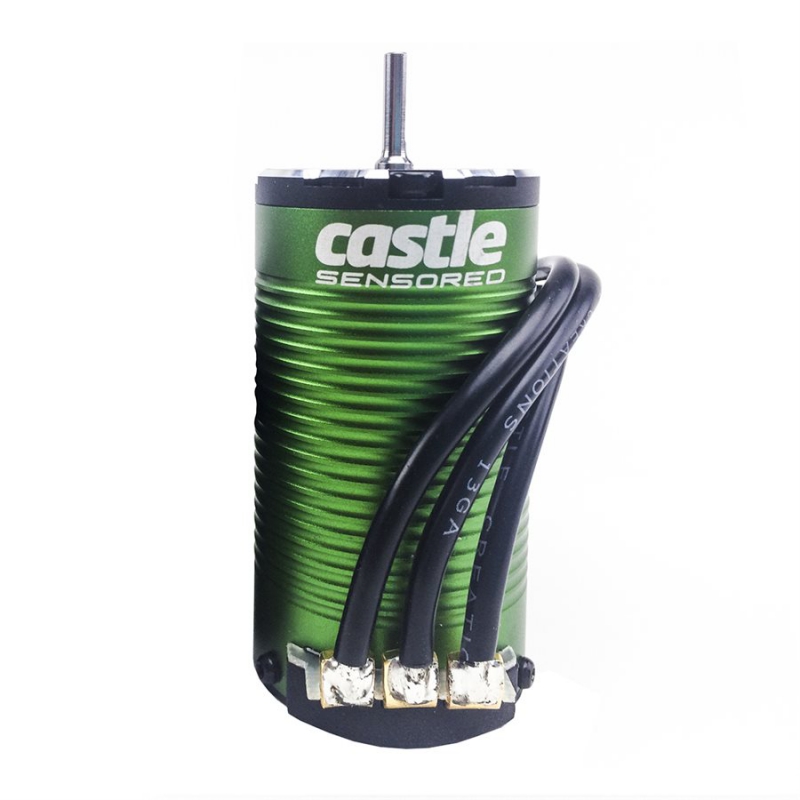

Product Description of Castle M-CC060-0060-00 1415-2400kV sensored brushless motor for 1/10 SCT

The Castle M-CC060-0060-00 1415-2400kV sensored brushless motor for 1/10 SCT is engineered for torque-demanding short course truck applications, delivering smooth throttle control and high-efficiency performance across 3S–4S LiPo setups. This motor features a robust 4-pole, 12-slot inrunner design that ensures consistent torque delivery and reduced heat generation. With advanced SmartSense™ and QuietSense™ technologies, the Castle M-CC060-0060-00 4-pole motor with SmartSense and QuietSense technology provides sensor-driven startup precision and seamless transitions to sensorless operation, making it ideal for bashing, racing, and technical terrain.

Key features of the Castle M-CC060-0060-00 1415-2400kV motor

• SmartSense startup – delivers cog-free launches and torque-rich low-speed control
• QuietSense synchronization – maintains ESC-motor sync for smoother transitions
• Kevlar-wrapped rotor – reinforced for durability under high RPM stress
• 180°C neodymium magnets – resist thermal degradation during extended runs
• ROAR sensor port – ensures compatibility with race-legal ESCs
• Rebuildable architecture – allows rotor, shaft, and bearing replacement

How does SmartSense™ enhance torque delivery?

The Castle M-CC060-0060-00 sensored inrunner motor with 3.17mm shaft and 4mm bullet connectors uses SmartSense™ to initiate motion with sensor-based rotor alignment, eliminating startup cogging and delivering immediate torque. Once in motion, the motor transitions to Castle’s ultra-efficient sensorless mode, where timing is electronically optimized for each phase and load condition. This dynamic timing adjustment ensures consistent torque output across throttle ranges, making the motor ideal for short course trucks that require controlled acceleration and reliable low-speed drivability.

What makes QuietSense™ valuable for short course truck control?

The Castle M-CC060-0060-00 with 180°C magnets and Kevlar-wrapped rotor incorporates QuietSense™ technology to suppress magnetic field noise generated by motor coils. This shielding effect maintains clean signal communication between the motor and ESC, preventing desynchronization during rapid throttle changes or directional shifts. For short course trucks operating in unpredictable terrain, QuietSense™ ensures smoother transitions and more predictable handling, especially during aggressive driving or competitive racing.

Why is the Kevlar-wrapped rotor essential for durability?

The rotor in the Castle 1415 motor with ROAR sensor port and CNC aluminum heatsink can is wrapped in Kevlar, a material known for its tensile strength and resistance to deformation. This reinforcement allows the rotor to maintain structural integrity under extreme centrifugal forces, which are common in high-RPM bashing environments. Combined with hardened stainless steel shafts and oversized NMB bearings, the Kevlar wrap ensures long-term reliability and vibration-free operation, even under heavy loads and extended runtime conditions.

How does the CNC aluminum can improve thermal performance?

The Castle 2400kV motor with oversized bearings and high-purity copper windings features a CNC-machined 6061-T6 billet aluminum heatsink can that acts as a passive cooling system. This material promotes efficient heat dissipation from the motor’s internal components, helping to maintain optimal operating temperatures during high-load scenarios. The extended 69mm can length further supports thermal stability, making the motor suitable for 3S–4S short course trucks up to 6.5lbs that demand sustained torque and power without overheating.

Is this motor suitable for torque-heavy bashing and racing?

Absolutely. The Castle M-CC060-0060-00 1415-2400kV sensored brushless motor for 1/10 SCT is optimized for short course trucks that require high torque, smooth throttle control, and thermal resilience. Its 2400kV rating delivers controlled acceleration, while the sensored architecture ensures clean launches and consistent torque delivery. The ROAR-compliant sensor port makes it compatible with race-legal ESCs, and the rebuildable design allows users to maintain peak performance over time. Whether you're bashing through rough terrain or competing on track, this motor provides the control and power needed to excel.

What makes this motor a strategic upgrade for short course trucks?

The Castle M-CC060-0060-00 sensored inrunner motor with 3.17mm shaft and 4mm bullet connectors combines advanced materials, intelligent timing control, and precision engineering to deliver a performance-focused solution for 1/10 SCT platforms. Its 4-pole, 12-slot configuration enhances torque and startup smoothness, while the high-purity copper windings and low-resistance gold-plated connectors ensure efficient power delivery. Every component is optimized for torque-heavy bashing and smooth throttle modulation, making this motor the best Castle upgrade for torque-heavy bashing and smooth throttle control.

For RC enthusiasts seeking a sensored motor with rebuildable architecture and advanced timing control, the affordable Castle 1415-2400kV motor with rebuildable design and SmartSense timing offers unmatched value and performance. Buy Castle M-CC060-0060-00 sensored motor for 3S–4S short course trucks up to 6.5lbs today.

Technical Specifications of Castle M-CC060-0060-00 1415-2400kV sensored brushless motor for 1/10 SCT

Brand, Model and Product Type

• Brand: Castle Creations
• Model: M-CC060-0060-00
• Product Type: Castle M-CC060-0060-00 1415-2400kV sensored brushless motor for 1/10 SCT, Castle M-CC060-0060-00 4-pole motor with SmartSense and QuietSense technology, Castle M-CC060-0060-00 sensored inrunner motor with 3.17mm shaft and 4mm bullet connectors, Castle M-CC060-0060-00 with 180°C magnets and Kevlar-wrapped rotor, Castle 1415 motor with ROAR sensor port and CNC aluminum heatsink can, Castle 2400kV motor with oversized bearings and high-purity copper windings

Dimensions

• Outer Diameter: 3.6 cm – compact for 1/10 SCT chassis
• Product Length: 6.9 cm – extended can for enhanced torque output
• Shaft Diameter: 0.317 cm (1/8 in) – hardened stainless steel for durability
• Mounting Dimensions: M3 @ 2.5 cm – standard bolt pattern for short course truck platforms

Motor Architecture and Performance

• Motor Type: Sensored brushless inrunner – optimized for torque-heavy bashing
• RPM/Volt (kV): 2400 kV – delivers controlled acceleration and sustained torque
• Input Voltage: 12.4–16.8V – compatible with 3S–4S LiPo setups
• Number of Poles: 4 – enhances torque and startup smoothness
• Slot Configuration: 12-slot – improves efficiency and reduces heat generation

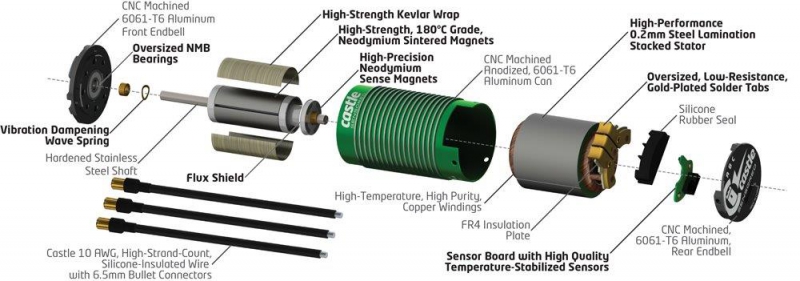

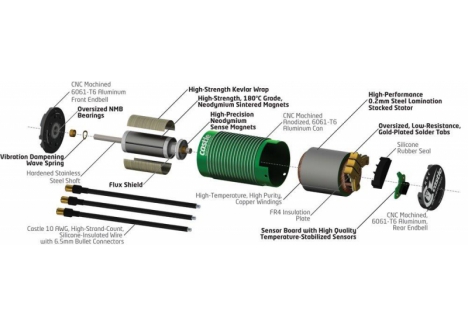

Materials and Build Quality

• Rotor Construction: Kevlar-wrapped – reinforced for structural integrity under high RPM stress
• Magnet Type: Neodymium sintered magnets rated to 180°C – resists thermal degradation
• Can Material: CNC-machined 6061-T6 billet aluminum – acts as a passive heatsink
• Bearings: High RPM NMB oversized bearings – ensures smooth rotation and extended lifespan
• Windings: High-purity, high-temperature copper – supports efficient power delivery
• Laminations: 0.2 mm steel – minimizes eddy current losses and heat buildup

Connectivity and Compatibility

• Sensor Port: ROAR standard – compatible with Castle sensored ESCs for race-legal setups
• Connector Type: 4 mm gold-plated bullet connectors – low resistance and secure fit
• Wire Gauge: 13 AWG high-strand silicone-insulated wire – supports high current flow

Integrated Technologies

• SmartSense Technology: Enables sensor-driven startup and automatic timing advance for optimal performance
• QuietSense Technology: Suppresses magnetic noise to maintain ESC-motor synchronization
• Sensor Alignment: Delivers uniform timing and torque in both directions without mechanical adjustment

Rebuildability and Maintenance

• Design: Rebuildable – allows replacement of rotor, shaft, and front end bell with bearings
• Connection Labels: Clearly marked sensor and power terminals for easy setup and servicing

Application Suitability

• Designed for 1/10 scale 2WD and 4WD short course trucks
• Supports 3S–4S LiPo builds up to 6.5 lbs – ideal for torque-heavy bashing and smooth throttle control

What You Require

• Compatible Castle sensored ESC such as Mamba Max Pro or Mamba Monster X
• 3S–4S LiPo battery pack with appropriate connectors

Sold Separately

• Castle Link USB adapter for advanced tuning and firmware updates
• Castle sensored ESC required to unlock full SmartSense functionality

Warranty

• Warranty information not provided by manufacturer
