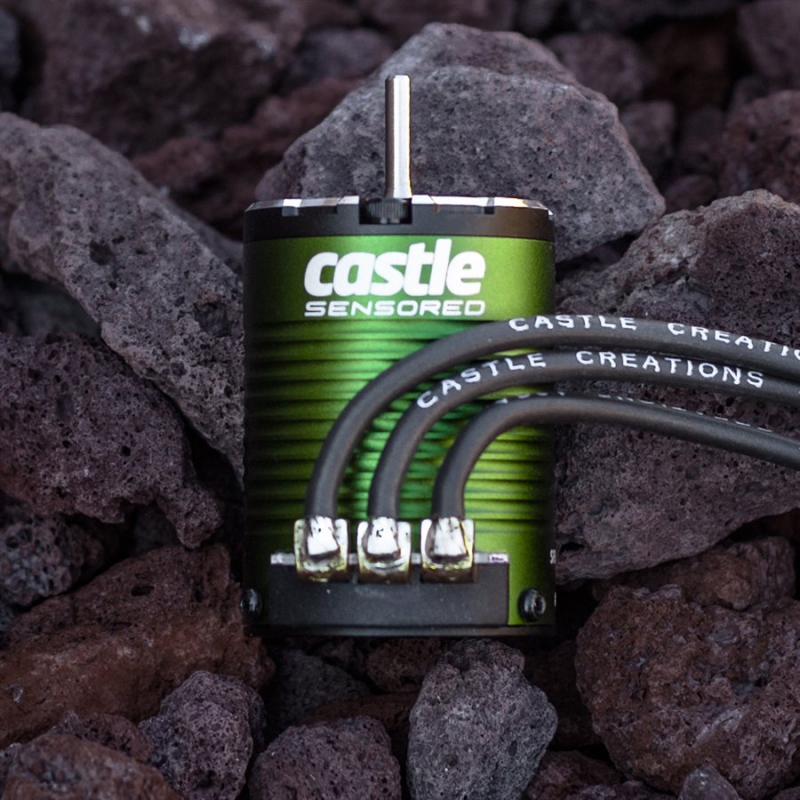

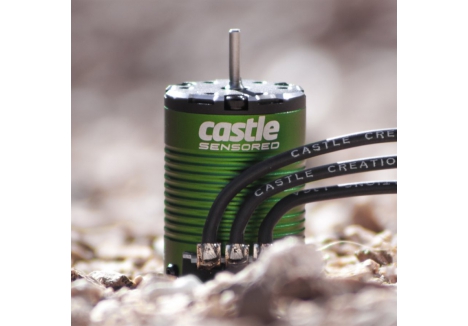

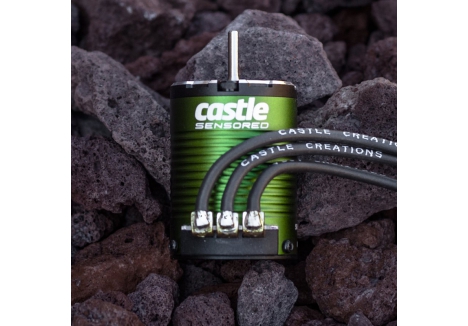

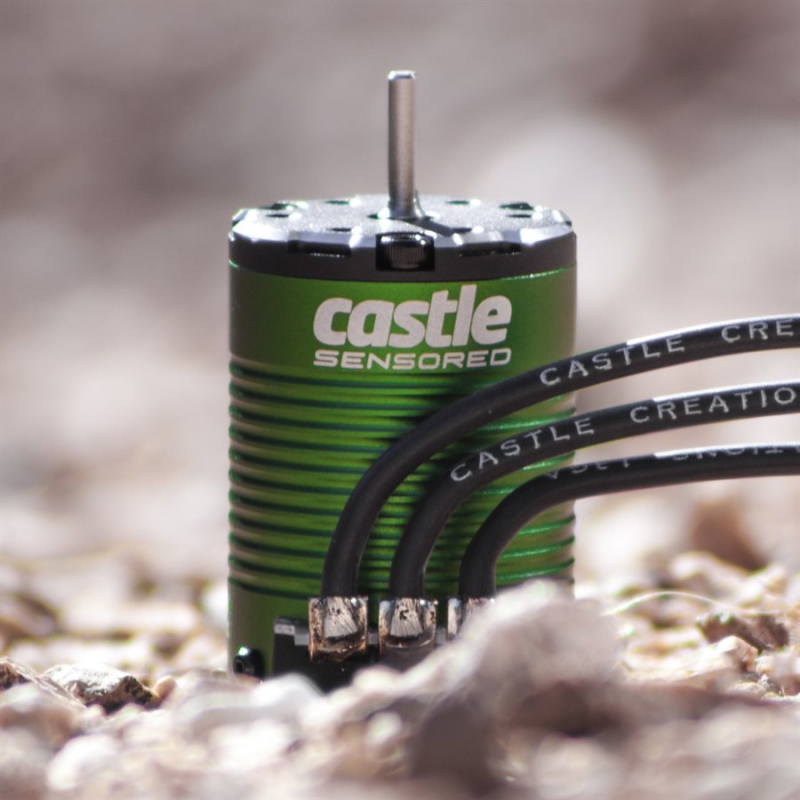

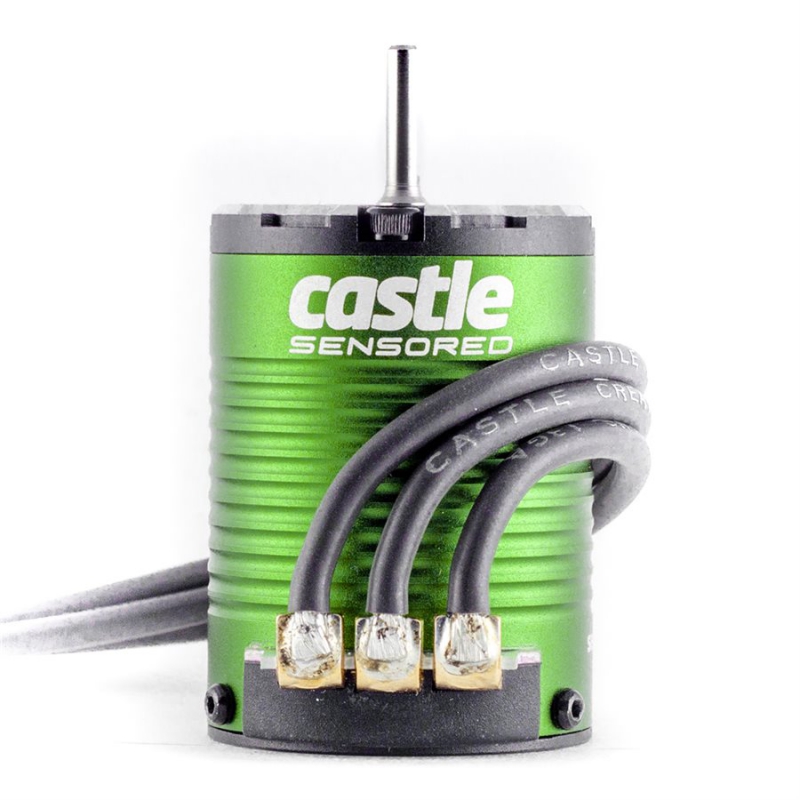

Product Description of Castle M-CC060-0058-00 1406-6900kV sensored brushless motor for 1/10 touring

The Castle M-CC060-0058-00 1406-6900kV sensored brushless motor for 1/10 touring is built for high-RPM precision and ultra-smooth acceleration, making it the ideal upgrade for 2S LiPo on-road setups. With a 4-pole, 12-slot design and advanced SmartSense™ and QuietSense™ technologies, this motor delivers seamless startup control, efficient transitions, and consistent torque across the entire throttle range. Whether you're racing on tarmac or tuning for top-end speed, the Castle M-CC060-0058-00 4-pole motor with SmartSense and QuietSense technology offers the responsiveness and thermal stability needed for competitive performance.

Key features of the Castle M-CC060-0058-00 1406-6900kV motor

• SmartSense™ startup – sensor-driven launches for cog-free acceleration
• QuietSense™ synchronization – shields magnetic noise for ESC-motor sync
• Kevlar-wrapped rotor – reinforced for high-RPM durability
• 180°C neodymium magnets – resist heat-induced demagnetization
• ROAR sensor port – race-legal connectivity with Castle sensored ESCs
• Rebuildable design – replaceable rotor, shaft, and bearing assembly

Why SmartSense™ matters for on-road touring?

The Castle M-CC060-0058-00 sensored inrunner motor with 3.17mm shaft and 4mm bullet connectors uses SmartSense™ to initiate motion with precise rotor alignment. This eliminates startup hesitation and ensures smooth throttle response, especially critical in tight corners and launch zones. Once in motion, the motor transitions to Castle’s sensorless mode, automatically adjusting timing for optimal efficiency and speed. This hybrid approach maximizes performance across all driving phases without manual tuning.

How does QuietSense™ improve drivability?

The Castle M-CC060-0058-00 with 180°C magnets and Kevlar-wrapped rotor features QuietSense™, which suppresses coil-generated magnetic noise to maintain clean signal communication between motor and ESC. This prevents desynchronization during rapid throttle changes and directional shifts, ensuring consistent torque delivery and smoother handling. It’s especially beneficial in high-speed touring applications where precision and stability are paramount.

What materials enhance durability and thermal control?

The Castle 1406 motor with ROAR sensor port and CNC aluminum heatsink can is built for endurance. Its Kevlar-wrapped rotor withstands centrifugal stress, while the 180°C-rated neodymium magnets maintain magnetic integrity under heat. The 6061-T6 billet aluminum can acts as a heatsink, dissipating thermal buildup during extended runs. Oversized NMB bearings and high-purity copper windings further enhance reliability and efficiency.

Is this motor suitable for high-speed 2S LiPo builds?

Absolutely. The Castle 6900kV motor with oversized bearings and high-purity copper windings is optimized for 2S LiPo on-road touring setups. Its high kV rating delivers rapid acceleration and top-end speed, while the sensored design ensures smooth launches and precise throttle modulation. Whether you're building for speed runs or competitive racing, this motor offers the control and power needed to outperform stock systems.

For racers seeking high-RPM output, sensor-driven control, and long-term reliability, the best Castle upgrade for precision throttle and high-RPM performance is ready to deliver. Buy Castle M-CC060-0058-00 sensored motor for 2S LiPo on-road touring setups today.

Technical Specifications of Castle M-CC060-0058-00 1406-6900kV sensored brushless motor for 1/10 touring

Brand, Model and Product Type

• Brand: Castle Creations
• Model: M-CC060-0058-00
• Product Type: Castle M-CC060-0058-00 1406-6900kV sensored brushless motor for 1/10 touring, Castle M-CC060-0058-00 4-pole motor with SmartSense and QuietSense technology, Castle M-CC060-0058-00 sensored inrunner motor with 3.17mm shaft and 4mm bullet connectors, Castle M-CC060-0058-00 with 180°C magnets and Kevlar-wrapped rotor, Castle 1406 motor with ROAR sensor port and CNC aluminum heatsink can, Castle 6900kV motor with oversized bearings and high-purity copper windings

Dimensions and Mounting

• Outer Diameter: 36 mm (1.41 in)
• Length: 49.5 mm (1.95 in)
• Shaft Diameter: 3.17 mm (1/8 in) – hardened stainless steel
• Mounting Dimensions: M3 @ 25 mm – standard 1/10 scale bolt pattern

Electrical and Performance

• Motor Type: Sensored brushless inrunner
• RPM/Volt (kV): 6900 kV – high-RPM output for on-road touring
• Input Voltage: Up to 8.4V – designed for 2S LiPo setups
• Number of Poles: 4 – enhances torque and startup smoothness

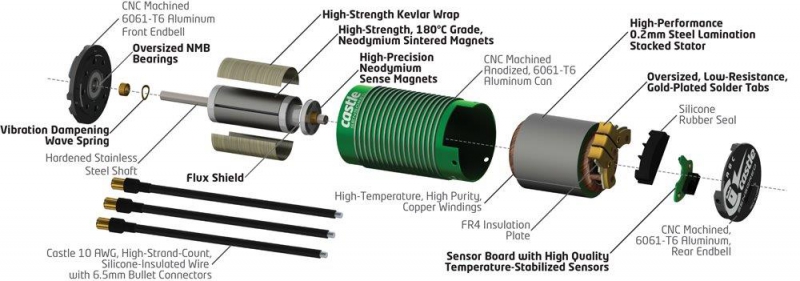

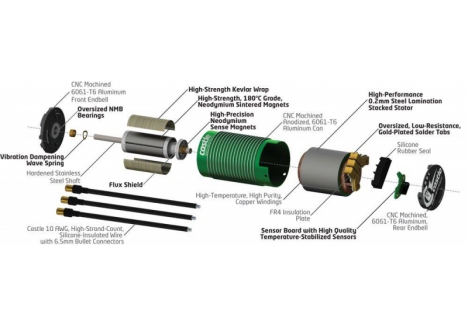

Construction and Materials

• Rotor: Kevlar-wrapped for structural integrity at high RPM
• Magnets: Neodymium sintered magnets rated to 180°C
• Windings: High-purity, high-temperature copper
• Bearings: Oversized NMB bearings for durability and smooth rotation
• Can Material: 6061-T6 billet aluminum heatsink can
• Laminations: 0.2 mm steel – reduces eddy current losses

Connectivity and Compatibility

• Sensor Port: ROAR standard – compatible with Castle sensored ESCs
• Bullet Connectors: 4 mm gold-plated – low resistance and secure fit
• Wire Gauge: 13 AWG high-strand silicone-insulated wire

Software and Timing Features

• SmartSense: Sensor-driven startup with automatic timing advance
• QuietSense: Suppresses magnetic noise for ESC-motor synchronization
• Timing Advance: Electronically optimized across load phases

Rebuildability and Maintenance

• Design: Rebuildable – replaceable rotor, shaft, and front end bell with bearings
• Labeling: Clearly marked sensor and power connections

Application Suitability

• 1/10 scale on-road touring cars
• 2S LiPo high-speed builds

What You Require

• Compatible Castle sensored ESC (e.g., Mamba Monster X or Mamba Max Pro)
• 2S LiPo battery pack

Sold Separately

• Castle Link USB adapter for advanced tuning
• Castle sensored ESC for full SmartSense functionality
