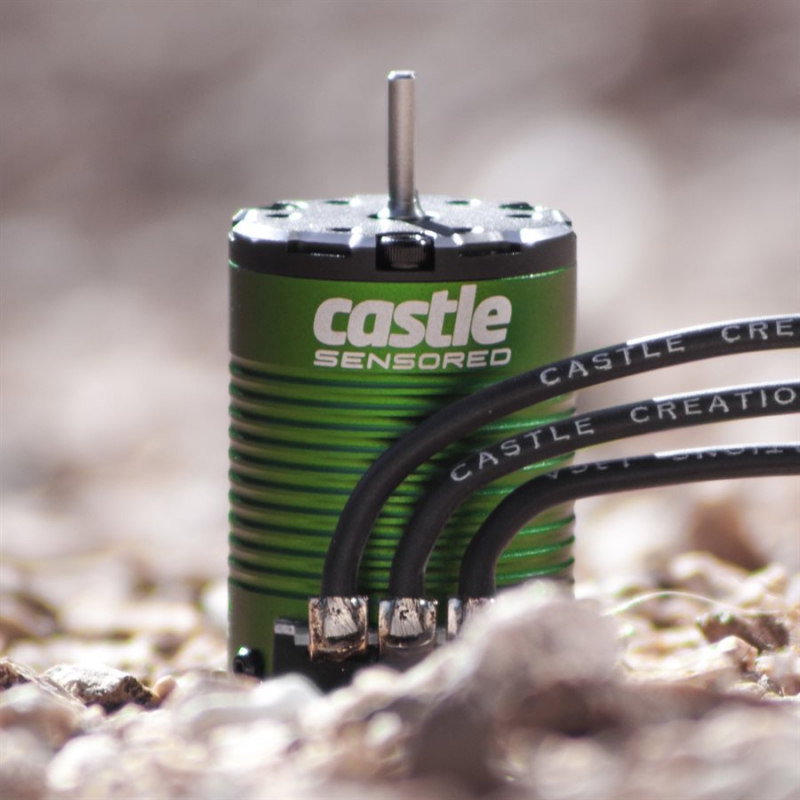

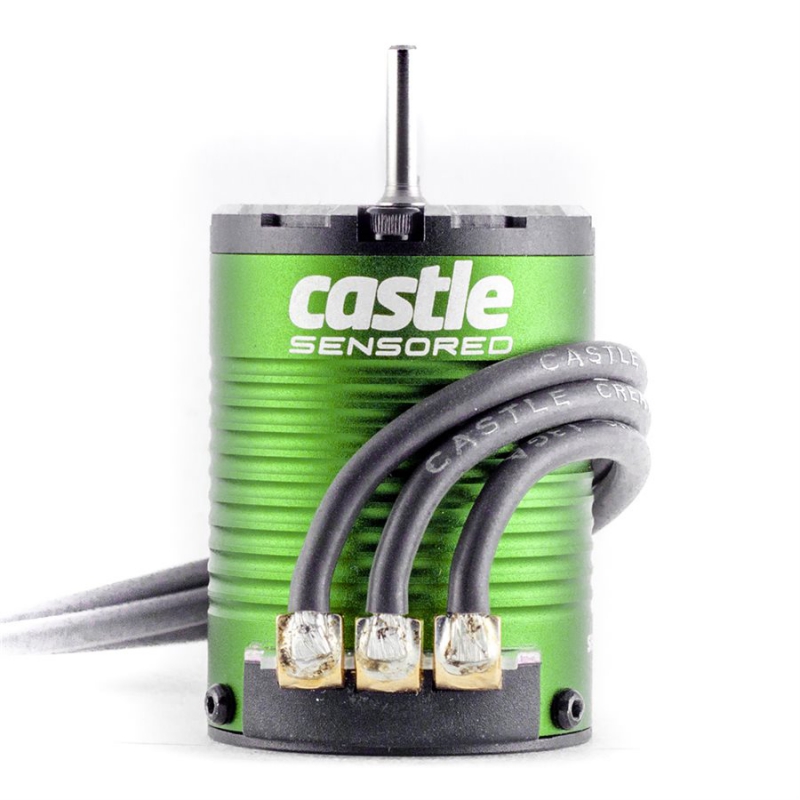

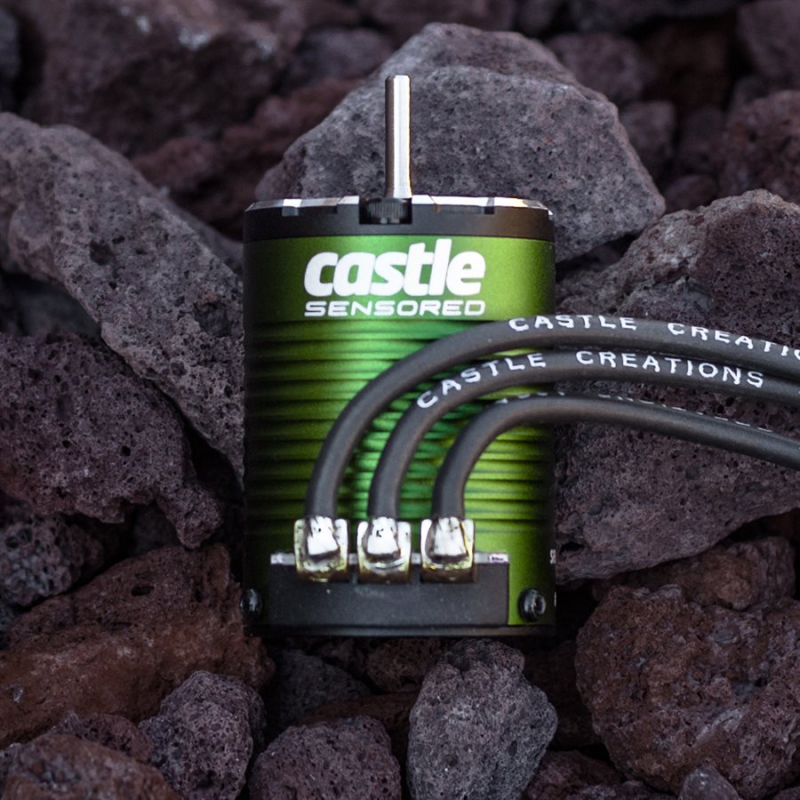

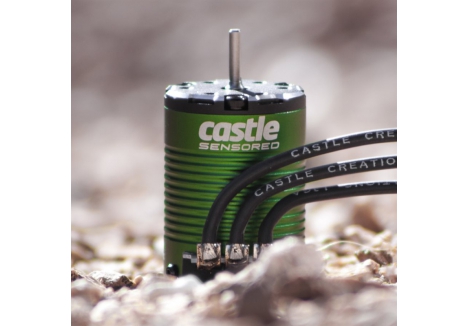

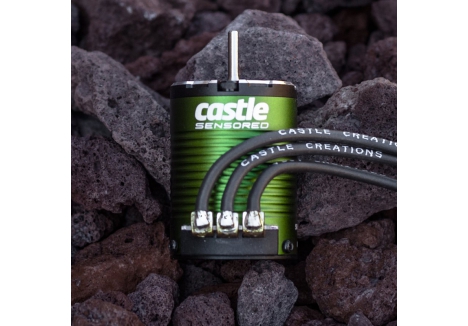

Product Description of Castle M-CC060-0056-00 1406-4600kV sensored brushless motor for 1/10 SCT

The Castle M-CC060-0056-00 1406-4600kV sensored brushless motor for 1/10 SCT is engineered for precision throttle response, high-efficiency performance, and smooth startups across demanding RC applications. Designed with a 4-pole, 12-slot architecture, this inrunner motor delivers exceptional torque and low-speed drivability, making it ideal for stadium trucks, buggies, and on-road touring cars. Featuring SmartSense™ and QuietSense™ technologies, the Castle M-CC060-0056-00 4-pole motor with SmartSense and QuietSense technology ensures seamless transitions between sensored and sensorless operation, maintaining synchronization and peak efficiency throughout the power band.

Key features of the Castle M-CC060-0056-00 1406-4600kV motor

• SmartSense™ startup – delivers smooth launches and precise low-speed control
• QuietSense™ synchronization – shields magnetic noise and maintains ESC-motor sync
• Kevlar-wrapped rotor – enhances structural integrity under high RPM loads
• 180°C neodymium magnets – withstand extreme temperatures without performance loss
• ROAR sensor port – ensures compatibility with sanctioned racing setups
• Rebuildable design – allows rotor and bearing replacement for extended lifespan

What makes SmartSense™ ideal for throttle precision?

The Castle M-CC060-0056-00 sensored inrunner motor with 3.17mm shaft and 4mm bullet connectors uses SmartSense™ technology to initiate motion using rotor position sensors. This eliminates startup cogging and delivers consistent torque from the first pulse. Once in motion, the motor transitions to Castle’s ultra-efficient sensorless mode, automatically adjusting timing for optimal performance across load conditions. This dual-mode operation ensures high responsiveness and smooth acceleration, especially valuable in competitive racing and technical terrain.

How does QuietSense™ improve motor-ESC communication?

The Castle M-CC060-0056-00 4-pole motor with SmartSense and QuietSense technology incorporates QuietSense™, a shielding system that suppresses magnetic field noise generated by motor coils. This keeps the motor and ESC in sync at all times, reducing timing errors and improving startup consistency. By maintaining clean signal integrity, QuietSense™ enhances drivability and protects against desynchronization during rapid throttle changes or directional shifts.

What materials contribute to durability and thermal stability?

The Castle M-CC060-0056-00 with 180°C magnets and Kevlar-wrapped rotor is built to endure high-stress environments. Its rotor is wrapped in Kevlar for added tensile strength, while the neodymium magnets are rated to 180°C, resisting demagnetization under extreme heat. The motor’s 6061-T6 billet aluminum heatsink can promotes efficient cooling, and oversized NMB bearings ensure smooth rotation at high RPMs. These features combine to deliver long-term reliability and consistent performance in both racing and bashing scenarios.

How does the rebuildable design extend motor life?

The Castle 1406 motor with ROAR sensor port and CNC aluminum heatsink can features a modular construction that allows users to replace the front end bell, bearings, or rotor assembly. This rebuildable design reduces downtime and extends the motor’s service life, making it a cost-effective choice for serious hobbyists. Labeled sensor connections and gold-plated solder tabs simplify maintenance and ensure secure electrical contact during rebuilds.

Is this motor suitable for competitive and recreational use?

Absolutely. The Castle 4600kV motor with oversized bearings and high-purity copper windings is optimized for 1/10 scale 2WD short course trucks, stadium trucks, and buggies. Its high RPM capability and efficient winding design deliver rapid acceleration and sustained top-end speed. Whether you're racing on-road or navigating off-road terrain, this motor provides the control and power needed to outperform stock setups. The ROAR-compliant sensor port also makes it eligible for sanctioned events.

For drivers seeking a high-efficiency motor with advanced startup control and rebuildable architecture, the best Castle upgrade for precision throttle and low-speed torque control is ready to elevate your build. Buy Castle M-CC060-0056-00 sensored motor for 1/10 stadium trucks and buggies today.

Technical Specifications of Castle M-CC060-0056-00 1406-4600kV sensored brushless motor for 1/10 SCT

Brand, Model and Product Type

• Brand: Castle Creations
• Model: M-CC060-0056-00
• Product Type: Castle M-CC060-0056-00 1406-4600kV sensored brushless motor for 1/10 SCT, Castle M-CC060-0056-00 4-pole motor with SmartSense and QuietSense technology, Castle M-CC060-0056-00 sensored inrunner motor with 3.17mm shaft and 4mm bullet connectors, Castle M-CC060-0056-00 with 180°C magnets and Kevlar-wrapped rotor, Castle 1406 motor with ROAR sensor port and CNC aluminum heatsink can, Castle 4600kV motor with oversized bearings and high-purity copper windings
• Product Colour: Black anodized heatsink can with gold-plated connectors

Dimensions and Mounting

• Outer Diameter: 36 mm (1.41 in) – compact for 1/10 scale platforms
• Length: 50 mm (1.95 in) – optimized for short course and stadium truck fitment
• Shaft Diameter: 3.17 mm (1/8 in) – hardened stainless steel for durability
• Mounting Dimensions: M3 @ 25 mm – standard bolt pattern for 1/10 RC vehicles

Electrical and Performance

• Motor Type: Sensored brushless inrunner
• RPM/Volt (kV): 4600 kV – delivers high RPM for aggressive acceleration
• Input Voltage: Up to 12.6V – compatible with 2S–3S LiPo setups
• Number of Poles: 4 – enhances torque and startup smoothness

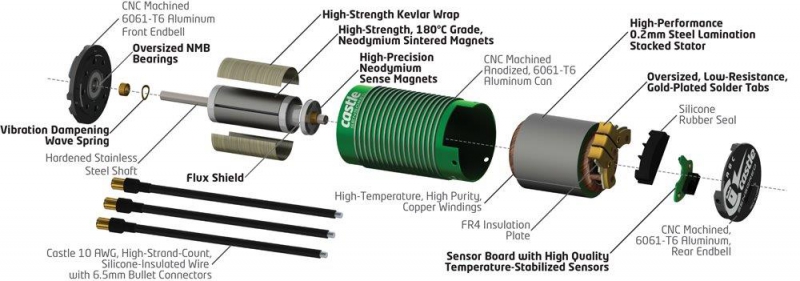

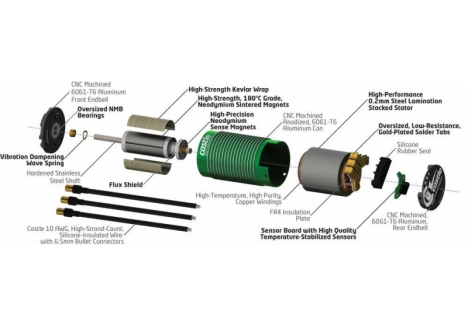

Construction and Materials

• Rotor: Kevlar-wrapped for structural integrity at high RPM
• Magnets: High-strength neodymium sintered magnets rated to 180°C
• Windings: High-purity, high-temperature copper for thermal efficiency
• Bearings: Oversized NMB bearings for smooth rotation and durability
• Can Material: 6061-T6 billet aluminum heatsink can for effective cooling
• Laminations: 0.2 mm steel – reduces eddy current losses and heat

Connectivity and Compatibility

• Sensor Port: ROAR standard – compatible with Castle sensored ESCs
• Bullet Connectors: 4 mm gold-plated – low resistance and secure fit
• Wire Gauge: 13 AWG high-strand silicone-insulated wire

Software and Timing Features

• SmartSense: Uses sensors for startup, transitions to sensorless mode for efficiency
• QuietSense: Shields magnetic field noise to maintain ESC-motor sync
• Timing Advance: Electronically optimized across load phases – no mechanical adjustment needed

Rebuildability and Maintenance

• Design: Rebuildable – allows replacement of rotor, shaft, and front end bell with bearings
• Labeling: Clearly marked sensor and power connections for easy setup

Application Suitability

• 1/10 scale 2WD short course trucks
• Stadium trucks and buggies
• On-road touring cars

What You Require

• Compatible Castle sensored ESC (e.g., Mamba Monster X or Mamba Max Pro)
• 2S–3S LiPo battery pack

Sold Separately

• Castle Link USB adapter for advanced tuning
• Castle sensored ESC for full SmartSense functionality
