10-15 Size Main Retract Units (mm)
The E-flite 10–15 Size Main Electric Retract Unit – EFLG101 delivers seamless retract functionality in a compact, plug-and-play package—no air tanks, additional servos, or plumbing required.
Why choose the EFLG101 unit?

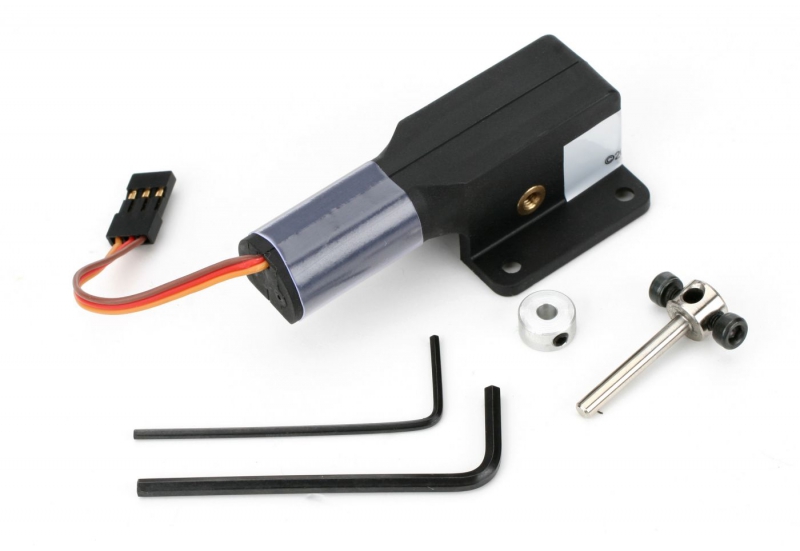

This self-contained electric retract integrates a brushed motor, micro PCB, and mounting brackets into one easy-to-install assembly. Suitable for modelers of any skill level, installation is as simple as bolting it in and connecting via the included Y-harness.
What’s included?

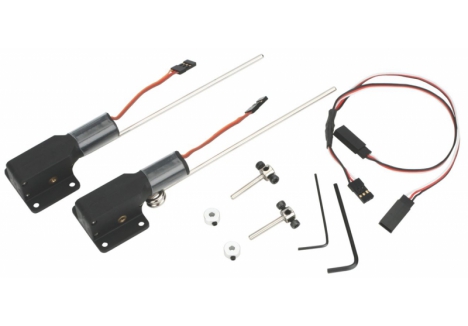

- Two robust metal struts with integrated mounting brackets
- Built-in brushed motor and micro PCB with over-current protection

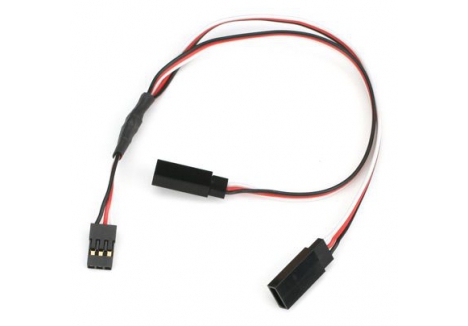

- Y-harness allows one servo channel to control both retracts
- Pre-wired connectors—just connect and go
Performance & build
Designed for 10–15 size aircraft (2.0 to 4.5 lb), the EFLG101 delivers fast deployment: approximately 1.25 seconds at 4.8 V, and around 0.8 seconds at 7.4 V, ensuring quick and realistic landing gear action.
Installation simplicity
The self-contained design fits directly with minimal modification. Align the struts, secure the brackets, hook up the Y-harness, and the gear is ready to retract with smooth, reliable motion.
Benefits over pneumatic options
Compact, lighter, and simpler—electric retracts eliminate the need for air systems, tubing, and multiple servos, saving space and reducing complexity.
Key features at a glance
- Integrated electric system: motor, PCB, and strut included
- Fast, smooth deployment (0.8–1.25 seconds based on voltage)
- Y-harness simplifies receiver integration
- Over-current protection ensures electronics safety
- Tailored for 10–15 size aircraft (2–4.5 lb lift capacity)
Installation tips
- Ensure retracts are symmetrically aligned before energizing
- Secure wiring to prevent contact with moving parts
- Perform a ground test cycle before initial flight
Benefits summary
- Quick, clean retract upgrade for small RC planes
- No complex systems required
- Proven durability—brushed motor and metal struts built to last
Final thoughts
The E-flite EFLG101 electric retract unit is a streamlined upgrade for 10–15 size airplanes—easy to install, reliable in performance, and flawlessly integrates into your build—buy EFLG101 today.
Brand, Model & Product Type
- Brand: E-flite
- Model: EFLG101
- Product Type: 10–15 Size Main Electric Retract Unit
Dimensions & Mechanics
- Strut Diameter: 3 mm
- Strut Length: 22 mm
- Deployment Speed: 1.25 s (4.8 V) / 0.80 s (7.4 V)
- Motor Type: Brushed, with micro PCB and over-current protection
Electrical Specifications
- Idle Current Draw: 5 mA
- Stall Current Draw: ~150–200 mA
- Operating Voltage Range: 4.8–7.4 V DC
Aircraft Compatibility
- Recommended Weight Range: 2.0–4.5 lb (0.9–2.0 kg)
- Fits 10–15 size RC airplanes with minimal alteration
