Tamiya Electric Tipper Truck Actuator Set with 10kg Lift Capacity – TAM56545

Manufacturer: Tamiya
Part Number: 56545
EAN :4950344565450
Tune-Up Type: Chassis

The Tamiya TAM56545 tipper actuator set with electric worm-drive gearbox and metal shaft for 1/14 R/C trucks is a purpose-built upgrade kit designed to convert compatible Tamiya tipper truck platforms into fully functional, transmitter-controlled dumpers. Engineered for realism and durability, this actuator system introduces hydraulic-style bed articulation to construction-themed R/C builds, enabling precise load handling and interactive operation. Whether used in quarry haulage simulations, bulk material transport dioramas, or active logistics scenarios, the TAM56545 delivers smooth, controlled tipping performance with a lifting capacity of up to 10kg. Its compact design, reinforced components, and plug-and-play compatibility make it an essential addition for builders seeking scale realism and operational depth.

Key features of the Tamiya TAM56545 tipper actuator set

• Electric worm-drive gearbox – ensures smooth, controlled bed articulation under repeated load cycles
• Metal actuator shaft – provides structural integrity and lifting power for scale cargo operations
• ACU-01 controller unit – enables transmitter-based lift control with precise responsiveness
• Clutch-protected motor – safeguards against overload damage during heavy lifting
• Reinforced gearbox housing – designed to withstand mechanical stress and vibration
• Plug-and-play installation – includes mounting brackets, wiring harness, and pre-configured components
• MFC-03 compatibility – supports synchronized sound and light feedback during tipping operations

How does the electric worm-drive gearbox improve tipping performance?

At the heart of the Tamiya TAM56545 actuator kit for tipper truck conversion with mounting brackets and wiring harness is a compact worm-drive gearbox that delivers consistent, controlled motion. This gear configuration is ideal for lifting applications, as it prevents back-driving and maintains position under load. The gearbox is paired with a geared motor that ensures smooth acceleration and deceleration during bed articulation, minimizing stress on the chassis and actuator components. This setup allows builders to simulate realistic dumping behavior, whether raising the bed gradually for precision unloading or executing full lifts for bulk material release.

What role does the metal actuator shaft play in load handling?

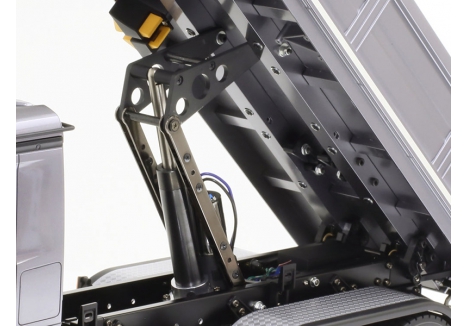

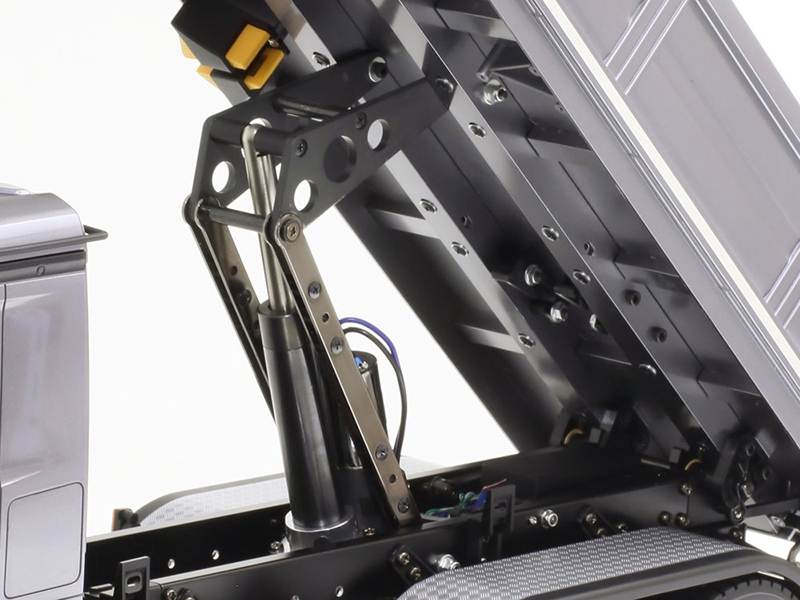

The RC dump truck upgrade kit with metal actuator shaft, 7.2V–7.4V voltage range, and 4-channel system support features a robust spindle shaft that translates motor torque into vertical lift. Constructed from metal for maximum durability, this shaft is engineered to handle payloads of up to 10kg, making it suitable for scale construction scenarios. The actuator’s link pieces and mounting brackets are reinforced to support the shaft’s movement, ensuring stability and alignment throughout the lift cycle. This structural integrity is essential for builders replicating heavy-duty dump truck operations in realistic terrain and load conditions.

How does the ACU-01 controller enhance transmitter-based operation?

The Tamiya TAM56545 dump bed controller with ACU-01 unit, transmitter input, and 10kg lifting capacity includes a dedicated actuator control unit that interfaces directly with a 4-channel R/C transmitter. This allows users to raise and lower the tipper bed remotely, using stick input for precise modulation. The ACU-01 interprets transmitter signals and regulates motor output, ensuring smooth transitions and responsive control. This functionality adds a layer of realism to construction-themed R/C builds, enabling builders to simulate material loading and unloading procedures with accuracy and ease.

What protection does the clutch-protected motor offer?

The Tamiya TAM56545 with clutch-protected motor, reinforced gearbox housing, and plug-and-play installation is equipped with a motor that includes an integrated clutch mechanism. This feature is designed to prevent mechanical damage in the event of overload or obstruction during lifting. If the tipper bed encounters resistance beyond its rated capacity, the clutch disengages to protect the motor and gearbox from strain. This safeguard is particularly valuable in dynamic R/C environments where terrain, payload weight, or user input may vary. It ensures long-term reliability and reduces the risk of component failure during operation.

Is the TAM56545 actuator set compatible with existing Tamiya tipper platforms?

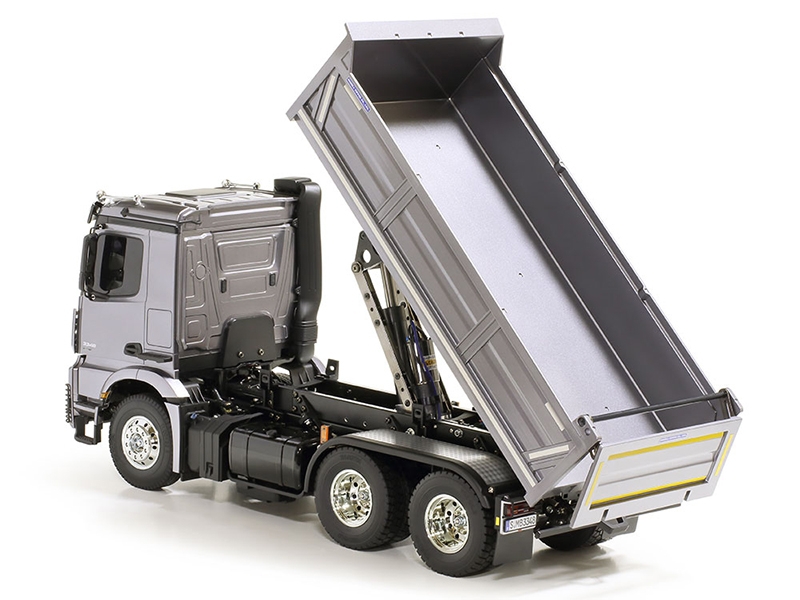

The 1/14 scale tipper actuator set with transmitter-controlled lift, MFC-03 compatibility, and scale realism is designed for direct integration with Tamiya tipper truck kits, including the Mercedes-Benz Arocs 3348 6×4 Tipper (TAM56357). The actuator unit, gearbox, and mounting hardware are pre-configured for standard chassis layouts, allowing for straightforward installation. The wiring harness connects seamlessly to the ACU-01 and transmitter system, while optional pairing with the MFC-03 enables synchronized sound and light feedback during tipping operations. This compatibility ensures that builders can upgrade their rigs without extensive modification or custom fabrication.

How does the actuator kit contribute to exhibition and diorama realism?

The Tamiya tipper upgrade with synchronized sound/light integration, 4ch transmitter support, and scale hauling realism enhances interactive scenes by enabling functional load/unload simulation. When paired with MFC units, the actuator’s movement can be accompanied by realistic sound effects and lighting cues, creating a dynamic visual experience for viewers. This makes the TAM56545 ideal for competitive modeling, convoy displays, and construction-themed dioramas where operational authenticity is valued. Builders can demonstrate tipping procedures, simulate material delivery, and showcase mechanical articulation in a controlled and visually engaging format.

Buy Tamiya TAM56545 actuator set for realistic 1/14 scale tipper truck conversion with remote-controlled dumping.

Brand, Model and Product Type

• Brand – Tamiya
• Model – TAM56545
• Product Type – Tamiya TAM56545 tipper actuator set with electric worm-drive gearbox and metal shaft for 1/14 R/C trucks; dump bed controller with ACU-01 unit, transmitter input, and 10kg lifting capacity; actuator kit for tipper truck conversion with mounting brackets and wiring harness

Actuator and Gearbox

• Actuator type – Electric worm-drive with gearbox: compact configuration for smooth, controlled bed articulation
• Motor – Geared motor with integrated clutch: protects against overload and mechanical strain
• Gearbox housing – Reinforced plastic: designed for durability under repeated load cycles
• Actuator shaft – Metal construction: supports lifting loads up to 10kg with structural integrity

Voltage and Control

• Voltage range – 7.2V–7.4V: compatible with NiMH and 2S LiPo battery systems
• Control method – Transmitter input via ACU-01 unit: requires 4-channel system with self-neutral stick type and 4ch trims
• System support – Compatible with standard 4-channel R/C setups

Mounting and Compatibility

• Mounting compatibility – Designed for Tamiya 1/14 tipper truck kits (e.g., TAM56357 Mercedes-Benz Arocs 3348 6×4 Tipper)
• Installation – Plug-and-play configuration with included brackets, screws, and wiring harness
• Assembly type – Kit: requires manual installation and calibration

Integration and Expansion

• MFC compatibility – Fully compatible with MFC-03: enables synchronized sound and light feedback during tipping operations

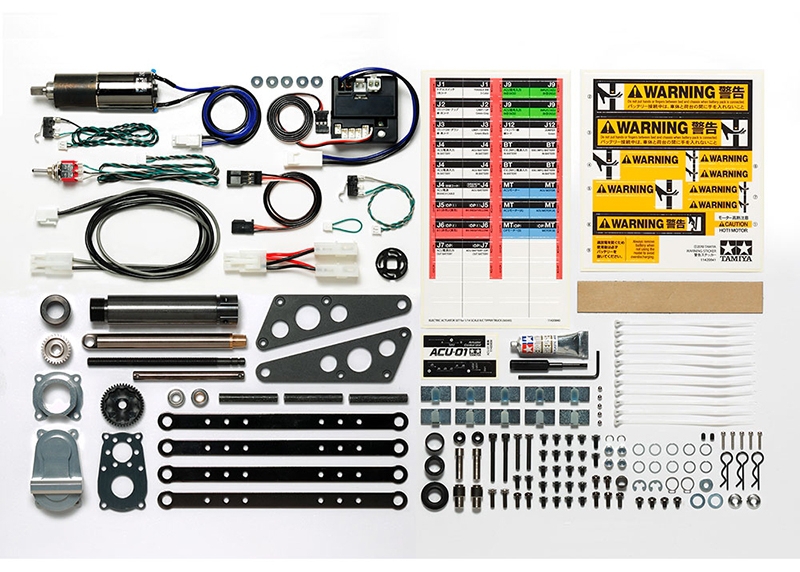

Included Components

• Actuator unit with worm-drive gearbox
• Metal spindle shaft and link pieces
• ACU-01 controller unit
• Mounting brackets and screws
• Wiring harness for transmitter integration
