Application:
Ideal for 1:10 scale 2WD and 4WD SC Trucks, Monster Trucks, Rock Racers, up to 4s operation.
Max Vehicle Weight:
Up to 6.5 lbs. ready-to-run.
Product Overview
Drivers in all applications demand clean starts when coming off the line. Crawler fans require high-precision low speed control and torque for climbing, racers need precision and predictability, and dragsters don't have a millisecond to spare. To achieve all of these performance demands and more, we have integrated rotor position sensor technology with our improved high power and high efficiency motor design. Through the use of our sensors, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup. Users will experience PRECISE throttle control and BUTTERY SMOOTH starts plus the RAW POWER and LONGER RUN TIMES that our highly efficient motors produce.
WHAT MAKES AN EXCEPTIONAL MOTOR?
When tasked with designing a sensored motor our engineers started with the question,What makes a motor great?
Efficiency
- You can push it harder (gear it up)
- You can run it longer (with the same battery)
- It stays cool under extreme loads
Reliability
- Ability to withstand the harsh demands of any RC application
- Long-life, high-quality components
- Proven manufacturing techniques
EFFICIENCY IS KEY
The higher the efficiency of a motor the more power it can produce without overheating, which allows you to safely run higher gear ratios. The higher the efficiency of a motor, the less power it takes to produce the same output power, which allows you to run longer on a single charge. The higher the efficiency of the motor, the less energy it turns into heat; keeping it cool under extreme loads. Efficiency equals performance.
RELIABILITY CAN'T BE IGNORED
Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it. Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible. High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions. Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the highest efficiency possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn't put our name on anything less.
THE DESIGN: KEEPING IT COOL
- Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
- QUIETSENSET technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and
- ESC in sync at all times. Use of a Flux Shield in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.
- Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
- REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
- Updated modern and sleek design; looks as cool as it performs.
Immense care is taken by our US design team during every step of the development process. While using the highest quality components is important, design is equally important. Our experienced, in-house engineering team, located in Olathe, Kansas, has spent countless hours simulating and developing the most efficient design. Development includes magnetic simulations, custom winding techniques, and rigorous, real-world testing of the final product.
You will reap the benefits of longer run times on one battery and a cooler running motor that can be pushed harder.
INTEGRATED SOPHISTICATION
Castle engineers always add a little something extra in their designs that takes your performance to the next level. We have not skimped here. Many customers have utilized our industry leading software functionality that Castle Link* offers. When paired with a Castle Creations sensor supported ESC, like the MAMBA MAX PRO, MAMBA X or COPPERHEAD, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors.
SMARTSENSE uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSET will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.
With a Castle sensored ESC and sensored motor you will have the ULTIMATE POWER PLANT for your vehicle. Users will experience PRECISE throttle control, BUTTERY SMOOTH starts, PEAK PERFORMANCE and EFFICIENCY throughout the full throttle range. You will feel the POWER and LONGER RUN TIMES that a WORLD-CLASS motor produces..

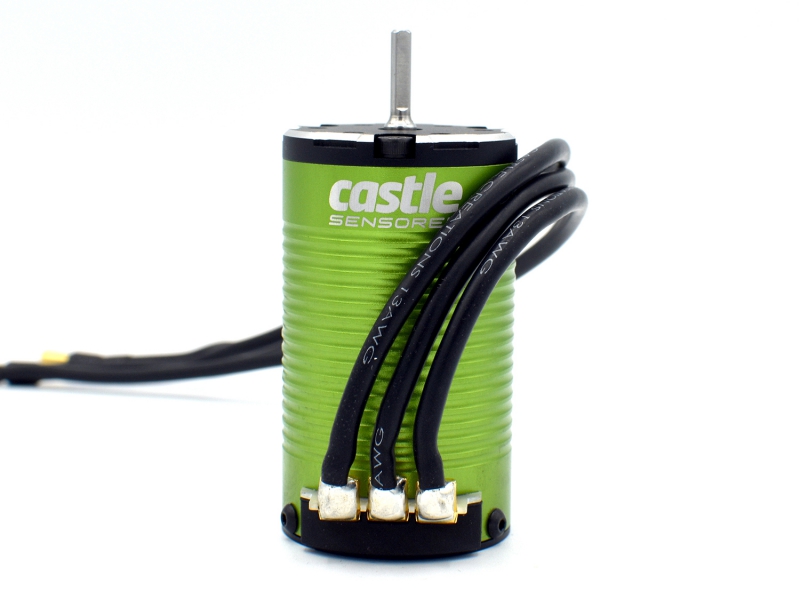

Product Description of Castle M-CC060-0094-00 1412-2100kV sensored brushless motor
The Castle M-CC060-0094-00 1412-2100kV sensored brushless motor for 1/10 scale trucks is engineered for precision throttle control, low-RPM startup smoothness, and high-efficiency performance across 2WD and 4WD short course and monster truck platforms. Designed to operate on 2S–4S LiPo systems with vehicles up to 6.5 lbs, this motor integrates Castle’s advanced sensor suite and optimized internal architecture to deliver consistent torque, reduced cogging, and longer run times. The Castle M-CC060-0094-00 4-pole motor with SmartSense startup and QuietSense sync features a 12-slot stator and hybrid timing logic that transitions seamlessly between sensored and sensorless operation for peak efficiency across all driving conditions.
Key features of the Castle M-CC060-0094-00 1412-2100kV motor
- Kevlar-reinforced rotor – maintains structural integrity under high-RPM stress
- Oversized bearings – reduce vibration and extend operational lifespan
- Low-resistance stator – improves thermal efficiency and runtime
- SmartSense startup logic – delivers smooth launches and dynamic timing control
- QuietSense shielding – maintains clean sensor signals for consistent throttle response
- Rebuildable design – allows rotor, shaft, and bearing replacement
- ROAR sensor port – ensures compatibility with race-compliant ESCs
How does the Kevlar-wrapped rotor enhance durability?
The Castle M-CC060-0094-00 with Kevlar-wrapped rotor and oversized NMB bearings is built to withstand the mechanical stress of high-RPM operation in 1/10 scale platforms. The Kevlar wrap reinforces the rotor against centrifugal force, preventing deformation and maintaining balance during aggressive acceleration. Paired with oversized NMB bearings and a vibration dampening system, this structural reinforcement ensures long-term reliability and smoother operation across varied terrain and driving styles.
Why is SmartSense critical for low-speed control?
The Castle M-CC060-0094-00 4-pole motor with SmartSense startup and QuietSense sync uses sensor-based timing logic to eliminate cogging and deliver smooth, predictable launches. SmartSense monitors rotor position and adjusts timing dynamically as load conditions change, ensuring optimal torque delivery across the throttle range. This hybrid timing system transitions seamlessly into sensorless mode once the motor is in motion, combining startup precision with high-efficiency drive characteristics. For rock racers and monster trucks, SmartSense provides the control needed for technical climbs and low-speed maneuvering.
How does QuietSense improve ESC-motor synchronization?
QuietSense technology in the Castle M-CC060-0094-00 sensored inrunner motor for 2WD/4WD SC and monster trucks shields the motor’s sensors from magnetic field noise generated by the coils. This shielding ensures uninterrupted communication between the motor and ESC, preventing desynchronization during throttle transitions. For 1/10 scale trucks operating in high-stress environments, QuietSense delivers consistent timing, smoother acceleration, and more predictable handling—especially during low-speed maneuvers and rapid directional changes.
What makes the stator design essential for thermal efficiency?
The Castle 2100kV motor with low-resistance stator and high-purity copper windings utilizes proprietary winding techniques to reduce electrical resistance across the stator assembly. This low-resistance configuration minimizes heat buildup, allowing the motor to operate cooler and more efficiently. As a result, users benefit from longer runtimes on a single charge and improved power delivery under sustained loads. The stator’s thermal efficiency is especially valuable in short course and monster truck applications where extended sessions and aggressive driving demand consistent performance without overheating.
Is the Castle 1412 motor compatible with race-legal ESCs?
Yes. The Castle 1412 motor with ROAR sensor port and vibration dampening system includes a ROAR-compliant sensor port and clearly labeled connections, ensuring compatibility with sensored ESCs used in sanctioned racing environments. The vibration dampening system protects internal components from mechanical stress, while the rebuildable design allows users to maintain peak performance by replacing worn assemblies. This flexibility makes the motor a reliable choice for both recreational and competitive drivers seeking long-term value and adaptability.
Why is this motor the best Castle upgrade for smooth throttle control?
The Castle M-CC060-0094-00 1412-2100kV sensored brushless motor for 1/10 scale trucks combines advanced sensor integration, hybrid timing control, and rugged construction to deliver a premium power solution for short course and monster truck platforms. Its 4-pole configuration enhances torque and startup smoothness, while SmartSense and QuietSense ensure precise rotor alignment and consistent throttle response. This makes it the best Castle upgrade for buttery smooth throttle and low-RPM startup control.
For RC enthusiasts seeking a sensored motor with advanced timing logic, Kevlar reinforcement, and oversized bearings, the affordable Castle 1412-2100kV motor with rebuildable design and hybrid timing offers exceptional value and performance. Buy Castle M-CC060-0094-00 sensored motor for 2S–4S LiPo setups up to 6.5 lbs.
Technical Specifications of Castle M-CC060-0094-00 1412-2100kV sensored brushless motor
Brand, Model and Product Type
- Brand: Castle Creations
- Model: M-CC060-0094-00
- Product Type: Castle M-CC060-0094-00 1412-2100kV sensored brushless motor for 1/10 scale trucks, Castle M-CC060-0094-00 4-pole motor with SmartSense startup and QuietSense sync, Castle M-CC060-0094-00 sensored inrunner motor for 2WD/4WD SC and monster trucks, Castle M-CC060-0094-00 with Kevlar-wrapped rotor and oversized NMB bearings, Castle 1412 motor with ROAR sensor port and vibration dampening system, Castle 2100kV motor with low-resistance stator and high-purity copper windings
Application and Compatibility
- Vehicle Type: 1/10 scale 2WD and 4WD short course trucks, monster trucks, rock racers
- Max Vehicle Weight: Up to 6.5 lbs (ready-to-run)
- Input Voltage Range: 2S–4S LiPo – supports standard high-performance setups
- ESC Compatibility: Castle Mamba Max Pro, Mamba X, Copperhead – optimized for sensor support
Motor Architecture and Performance
- Motor Type: Brushless – designed for high efficiency and minimal maintenance
- Motor Design: Inrunner – enclosed rotor configuration for consistent torque output
- Number of Poles: 4 – enhances startup torque and throttle precision
- Slot Configuration: 12-slot – improves magnetic efficiency and reduces heat generation
- RPM/Volt (Kv): 2100 kV – tuned for 2S–4S LiPo systems in 1/10 scale platforms
Dimensions and Weight
- Motor Size: 1412 – compact format for tight chassis configurations
- Outer Diameter: 3.6 cm – optimized for 1/10 scale installations
- Product Length: 6.2 cm – supports short course and monster truck setups
- Shaft Diameter: 0.5 cm – precision-machined for secure gear fitment
- Shaft Length: 2.1 cm – compatible with standard pinion mounting
Materials and Build Quality
- Rotor Reinforcement: Kevlar wrap – maintains structural integrity under high RPM stress
- Magnet Composition: High-temperature neodymium sintered magnets – resist thermal degradation
- Bearings: Oversized NMB bearings – reduce vibration and extend operational lifespan
- Stator Assembly: Low-resistance proprietary winding – supports cooler operation and longer runtime
Connectivity and Electrical Interface
- Connector Type: 6.5 mm bullet – ensures secure, low-resistance power transfer
- Sensor Port: ROAR standard – ensures compatibility with race-legal sensored ESCs
Integrated Technologies
- SmartSense: Sensor-based startup logic – delivers smooth launches and dynamic timing control
- QuietSense: Shields sensors from magnetic field noise – maintains ESC-motor synchronization
- Sensor Alignment: Automatically delivers uniform timing and torque – no mechanical adjustment required
Rebuildability and Maintenance
- Design: Rebuildable – allows replacement of rotor, shaft, and front end bell with bearings
What’s in the Box
- (1) Castle 1412-2100kV 4-Pole Sensored Brushless Motor – model M-CC060-0094-00
What You Require
- (1) Compatible Brushless Electronic Speed Control – must support sensored operation
