Overview
Pilots enjoy even more Smart advantages when using Spektrum™ Smart G2 100C LiPo batteries to power their planes and helis. New "Generation 2" features make these LiPo packs — featuring a 100C continuous discharge rating for high performance and longevity — even simpler and safer to use together with your Smart charger.
For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery's innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. You can change the battery's Auto Storage settings based on your own preferences. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries.
Smart G2 100C soft-case LiPo packs also include thicker internal metal side plates. These plates improve heat dissipation and provide more protection for the cells against punctures during rough landings or in similar impact-prone situations.
As with other Smart batteries, you'll never have to set your own charging preferences for a Spektrum™ Smart G2 battery until you want to. When a Smart G2 LiPo battery is connected to a Spektrum™ Smart charger, its unique charging parameters and health information upload to the charger from the battery's integrated memory microchip. Through the charger you can view and set preferences such as charge rates, so all that's required to charge the pack is connecting it to your Smart charger. Smart technology takes care of the rest.
Spektrum™ Smart G2 100C LiPo batteries store a wide variety of essential information, including:
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
Spektrum™ Smart G2 LiPo 100C batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents. This data can be helpful in assuring that the battery you've chosen is right for the application. Innovative Spektrum™ Smart G2 LiPo 100C batteries are so easy to use, they nearly take care of themselves. It's easy to achieve peak battery performance, reliability and longevity with Smart G2 technology!
Note: G2 batteries require the use of a Spektrum™ G2 Smart Charger or earlier Smart Charger with G2 update.
Features
- Simpler and safer to use
- Powerful 100C continuous discharge rating to deliver maximum performance and longevity
- 100C battery packs are available in a variety of capacities and cell counts that are perfect for almost any application
- Balance charge through the IC3® or IC5® connector data wire — with only one connection, no balance lead required
- Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
- Thicker internal metal side plates protect cells and improve heat dissipation
- Integrated microchip stores unique parameters for each battery
- IC3® and IC5® connectors are also compatible with EC3™ and EC5™ styles
- Spektrum™ G2 Smart Charger required (or earlier Smart Charger with G2 update)
Overview

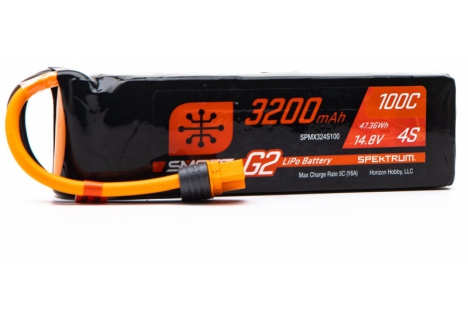

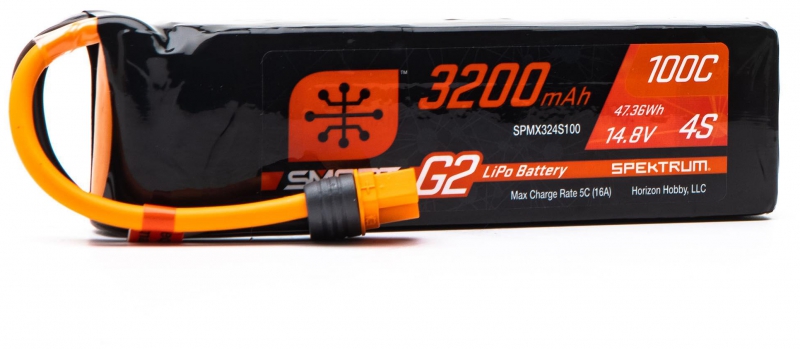

The Spektrum 14.8V 3200mAh 4S 100C Smart G2 LiPo Battery with IC3 connector represents the pinnacle of modern RC battery technology for pilots and drivers throughout the UK who demand maximum performance and reliability. Whether you're flying high-performance RC aeroplanes, helicopters, or powering other demanding RC applications, this professional-grade LiPo battery delivers exceptional power, safety features and ease of use. Spektrum's Smart G2 generation technology has revolutionised how RC enthusiasts manage their batteries, eliminating the complexity and guesswork that once characterised LiPo battery ownership.
This 100C continuous discharge rated battery pack is engineered for those who refuse to compromise on performance. With a capacity of 3200mAh spread across four cells at 14.8V nominal voltage, this battery provides the punch needed for acrobatic flight, aggressive manoeuvres and extended runtime on compatible RC models. The integrated Smart microchip technology means your battery communicates directly with Spektrum Smart chargers, automatically uploading charging parameters, health data and performance metrics. For UK RC enthusiasts seeking a ready-to-use, hassle-free battery solution that combines cutting-edge technology with practical convenience, the Smart G2 100C represents an intelligent investment in your RC experience.
Unlike traditional LiPo batteries that require manual balance leads and complex charging setup, the Spektrum Smart G2 simplifies everything through its innovative single-connection IC3 interface. This means faster charging, safer operation and complete peace of mind that your battery is being charged to optimum parameters every single time. For serious RC pilots and drivers who want to spend more time flying or driving and less time managing battery maintenance, this is the battery technology that changes everything.
Key Features
- 100C Continuous Discharge Rating — This exceptional discharge capability means the battery can safely deliver massive amounts of current continuously, enabling maximum acceleration, aggressive throttle control and sustained high-performance output without the voltage sag that compromises response and power delivery on weaker batteries.
- Smart G2 Technology — The integrated microchip automatically communicates battery parameters, capacity, cell count, chemistry, C rating and health data to your Spektrum Smart charger, meaning intelligent charging happens automatically with zero manual setup required.
- Single IC3 Connection — Balance charging information travels through the IC3 connector's data wire, eliminating the need for a separate balance lead entirely and reducing connection points from two down to one, which streamlines setup and reduces potential failure points.
- Auto Storage Discharge — Factory-programmed to automatically discharge to a safe storage voltage of 3.90V per cell after 72 hours of inactivity, protecting your battery from storage-related damage and degradation whilst requiring zero user intervention or maintenance.
- Thicker Internal Metal Side Plates — Premium reinforced internal construction provides superior heat dissipation during high-current discharge and offers enhanced mechanical protection for cells during rough landings or impact-prone situations common in RC flying.
- Integrated Memory Microchip — Stores essential battery information including charge and discharge cycle count, temperature data, internal resistance measurements and a comprehensive error log tracking over-heat, over-discharge and over-charge incidents for informed decision-making.
- Three Times Faster Auto Discharge — The G2 generation provides storage discharge up to 1.5A, three times quicker than previous G1 Smart battery versions, getting your battery to safe storage voltage faster after flying sessions.
- Soft Case Construction — The flexible soft case protects the battery whilst remaining lightweight and easy to store, with reinforced internal metal plates providing added durability without excessive weight penalty.
- Compatible Connectors — IC3 connectors are fully backwards compatible with EC3 connector systems, providing flexibility with existing RC equipment and systems you may already own.
- Data Rich Performance Tracking — Each battery maintains detailed records of battery brand, chemistry type, cell count, capacity specifications, C rating, voltage measurements, temperature readings and charging cycles for complete transparency into battery condition.
Technical Performance
The Spektrum Smart G2 100C represents serious engineering excellence. With a 4-cell (4S) LiPo configuration providing 14.8V nominal voltage and 3200mAh capacity, this battery delivers 47.36 watt-hours of usable energy. The 100C continuous discharge rating permits maximum continuous discharge current of 320 amps, making it suitable for the most demanding RC aeroplanes, high-performance helicopters and other power-hungry applications. The battery measures 142mm in length, 42mm in width and 28mm in height, weighing a substantial 410g, which reflects the premium components and reinforced internal construction. The 12 AWG wire gauge provides excellent current handling with minimal voltage drop, whilst the maximum charge rate of 5C (16 amps) allows rapid recharging when paired with appropriate Spektrum Smart chargers. The innovative IC3 connector combines power delivery and smart communication in a single, robust interface that's both mechanically sound and electronically intelligent. Built with charge protection circuitry to prevent dangerous overcharging conditions, this battery incorporates every safety feature modern RC technology demands. The thicker internal metal side plates work in concert with the soft case to protect cells from physical damage whilst maintaining optimal heat dissipation during extended high-current discharge cycles. For UK RC pilots and drivers using Spektrum Smart chargers, this battery automatically optimises charging parameters, charge rate and storage discharge based on real-time battery condition data, ensuring consistent performance, maximum lifespan and absolute safety with every charge.
What's in the Box
- Spektrum 14.8V 3200mAh 4S 100C Smart G2 LiPo Battery with IC3 connector
- Instruction manual
- Battery safety sheet (multilingual)
What You Need to Complete
- Spektrum Smart Charger (required) — This battery is specifically designed for use with Spektrum Smart chargers and cannot be charged with standard chargers
- RC model compatible with 14.8V 4S LiPo batteries and IC3 connectors (or with EC3 compatible connectors)
Frequently Asked Questions
- Do I need a special charger for this Spektrum Smart G2 battery? — Yes, this battery requires a Spektrum Smart Charger to operate correctly. The integrated microchip communicates exclusively with Smart chargers to transmit battery parameters, health data and charging information. Standard chargers cannot communicate with the battery's onboard microchip and should never be used. If you don't currently own a Spektrum Smart charger, you'll need to purchase one as part of your setup.
- Why do I need to use a balance lead with this battery? — Actually, you don't! This is one of the major advantages of Smart G2 technology. Unlike traditional LiPo batteries that require separate balance connectors with multiple leads, the Spektrum Smart G2 transmits all balancing information through the IC3 data wire. This means only a single connection is needed to both power your RC model and balance the cells, dramatically simplifying the charging process.
- How long does the auto storage discharge take? — The Smart G2 battery automatically discharges to a safe storage voltage of 3.90V per cell after 72 hours of inactivity. The discharge rate can reach up to 1.5A, which is three times faster than previous G1 Smart batteries. You can also adjust the auto storage settings based on your personal preferences using your Spektrum Smart charger.
- What does the error log tell me about battery health? — The integrated microchip tracks the number of times your battery has experienced over-heat, over-discharge or over-charge incidents. This error log helps you make informed decisions about whether the battery is still suitable for your application or whether it needs replacement. A battery with many error incidents may have reduced lifespan or performance.
- Is this battery suitable for beginners? — Whilst the Smart G2 technology is extremely user-friendly thanks to automatic parameter detection, you do need to already own a Spektrum Smart charger to use this battery. If you're completely new to RC flying or driving and don't yet own compatible charging equipment, you might want to start with a more basic battery option and upgrade once you've invested in a Smart charger system. However, if you're already using Spektrum RC equipment, this battery is perfect for any experience level because the charger handles all the complex setup automatically.
- Can I use this battery in non-Spektrum RC models? — The IC3 connector is backwards compatible with EC3 style connectors, so you can use this battery with RC models equipped with EC3 connectors. However, you lose the Smart charging benefits unless your charger is a Spektrum Smart charger with the matching IC3 compatibility. Always verify connector compatibility before purchasing.
- What makes the 100C discharge rating important for my RC flying? — The 100C rating means this battery can deliver extremely high current safely and continuously. This translates to instant throttle response, aggressive acceleration, sustained power during high-performance manoeuvres and virtually no voltage sag even during demanding flight patterns. For acrobatic flying, 3D flying or high-speed racing applications, the 100C rating is essential for optimal performance.
- How do I know when to replace this battery? — Monitor the error log data stored in the microchip, which you can view through your Spektrum Smart charger. If you see increasing numbers of over-charge, over-discharge or over-heat incidents, your battery is degrading. Additionally, if the battery consistently shows reduced capacity compared to the original 3200mAh specification or if charge times become significantly longer, replacement is advisable.
- Is this battery waterproof? — Whilst the IC3 connector itself is designed to resist moisture, the battery itself is not waterproof. You should avoid submerging the battery or exposing it to heavy water spray. If the battery does get wet, allow it to dry completely before charging or using it.
- What is the maximum charge rate for this battery? — The maximum charge rate is 5C, which calculates to 16 amps for this 3200mAh battery. However, your Spektrum Smart charger automatically loads optimal charge rate settings from the battery's microchip, so you typically won't need to calculate this manually. The standard charge rate is 1C (3.2 amps) for typical use.
