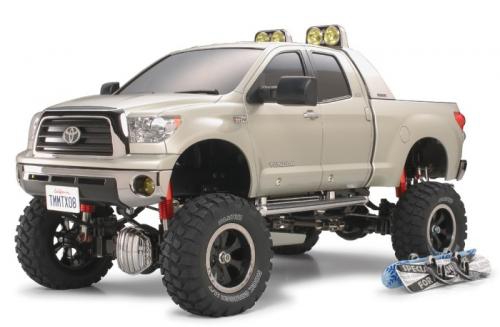

Tamiya Toyota Tundra High-Lift 1/10 Electric 4WD Pick-Up Truck with 3-Speed Transmission – TAM58415

Manufacturer :Tamiya
Part Number: 58415
EAN: 4950344584154
Drive: 4WD
Surface Type: Off-Road
Assembly Type: Un-Assembled (Kit)
Motor Type: Brushed
Scale: 1:10
Vehicle: Rock Crawler
Skill Level: Skill Level 3

The Tamiya TAM58415 Toyota Tundra High-Lift 1/10 R/C truck with shaft-driven 4WD and 3-speed transmission is a precision-engineered scale replica designed for serious off-road enthusiasts and collectors alike. Modeled after the full-size double cab Tundra introduced in 2007, this electric R/C kit combines rugged mechanical architecture with authentic styling details. From its metal ladder frame and leaf spring suspension to its injection-molded body and LED-ready roll bar, the TAM58415 delivers a high-lift experience that’s both visually striking and mechanically immersive. Whether navigating trail terrain or showcasing scale realism, this truck offers a versatile platform for builders seeking performance and detail.

Key features of the Tamiya TAM58415 Toyota Tundra High-Lift 1/10 R/C truck

• Metal ladder frame – provides structural rigidity and mimics full-size truck architecture
• 3-speed transmission – enables realistic gear shifting and low-speed control
• Shaft-driven 4WD – ensures consistent traction across varied terrain
• Injection-molded body – captures the contours and proportions of the second-generation Toyota Tundra
• Billet grille and roll bar – adds scale detailing and supports LED integration
• Leaf spring suspension – delivers authentic ride dynamics and trail articulation
• Friction dampers – absorb shocks and maintain chassis stability

How does the drivetrain support off-road realism?

The Tamiya TAM58415 off-road pick-up with metal ladder frame, leaf spring suspension, and RS540 motor features a shaft-driven 4WD system that distributes power evenly to all four wheels. This configuration enhances traction on loose surfaces and steep inclines, making it ideal for trail driving and scale crawling. The 3-speed transmission offers selectable gear ratios—low for torque-heavy climbs, mid for balanced control, and top for speed—allowing users to replicate real-world driving scenarios. Combined with a slipper clutch that protects the drivetrain from shock loads, the system delivers smooth and reliable performance across terrain types.

What makes the chassis and suspension system unique?

The 4x4 R/C pick-up with friction dampers, metal diff covers, and 94mm beadlock wheels is built around a metal ladder frame that mirrors the structural design of full-size trucks. This frame supports leaf spring suspension at both front and rear, offering realistic articulation and load-bearing characteristics. Friction dampers help absorb terrain impacts, while metal-plated differential covers and exhaust tips add visual depth. The 94mm beadlock wheels provide a commanding stance and secure tire fitment, enhancing both aesthetics and trail capability. These features combine to create a chassis that’s as functional as it is visually authentic.

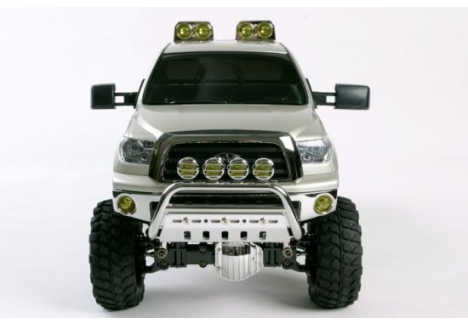

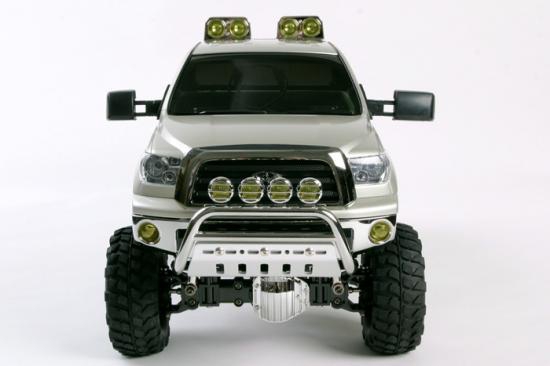

How does the body design enhance scale realism?

The Tamiya TAM58415 scale truck with injection-molded body, billet grille, and LED-ready roll bar replicates the double cab Toyota Tundra with remarkable accuracy. The injection-molded shell captures the truck’s bold lines and proportions, while the billet-style grille and grille guard add a purposeful look. Side mirrors are crafted from soft resin for durability, and the roll bar includes light positions that can be fitted with separately sold LEDs. Roof marker lights and aluminum skid plates further elevate the truck’s visual presence, making it suitable for both trail use and display.

What customization options are included?

The RC truck kit with roof carrier, snowboards, and compatibility with MFC-02 for sound/light integration offers builders a range of personalization features. A roof carrier holds two snowboards, each with colorful sticker options for added flair. The grille guard, roll bar, and exhaust tips can be styled to match your build theme, while LED-ready positions allow for lighting upgrades. For those seeking immersive realism, the truck is compatible with the MFC-02 Multi-Function Unit (sold separately), enabling synchronized sound and light effects. These options make the TAM58415 a flexible platform for creative expression and technical enhancement.

What are the dimensions and weight specifications?

The Tamiya TAM58415 with 500mm length, 216mm width, and 238mm height for realistic 1/10 scale terrain performance offers a substantial footprint that mirrors the proportions of the actual Tundra. Its approximate weight of 3.1kg adds mass for improved suspension response and trail stability. The large 94mm wheels and elevated chassis height contribute to its high-lift stance, allowing it to clear obstacles and navigate uneven terrain with ease. These dimensions make it suitable for both scale exhibitions and functional off-road driving.

Why choose the Tundra High-Lift for your next build?

The best electric RC pick-up with metal ladder frame, snowboards, and LED-ready roof marker lights combines mechanical sophistication with scale authenticity. From its 3-speed gearbox and shaft-driven 4WD to its detailed body and accessory set, the TAM58415 offers a complete package for builders who value realism and performance. Whether used for trail exploration or static display, this kit delivers a rewarding build experience and a visually striking result. With its blend of durability, customization, and terrain capability, the Tundra High-Lift stands out as a top-tier choice for R/C enthusiasts.

Buy Tamiya TAM58415 Toyota Tundra High-Lift for realistic 1/10 scale off-road driving with 3-speed gearbox and 4WD.

Brand, Model and Product Type

• Brand – Tamiya
• Model – TAM58415
• Product Type – Tamiya TAM58415 Toyota Tundra High-Lift 1/10 R/C truck with shaft-driven 4WD and 3-speed transmission, Tamiya off-road pick-up with metal ladder frame, leaf spring suspension, and RS540 motor, Tamiya scale truck with injection-molded body, billet grille, and LED-ready roll bar, Tamiya 4x4 R/C pick-up with friction dampers and metal diff covers, Tamiya RC truck kit with roof carrier and snowboards

Dimensions

• Length – 50 cm: extended chassis length enhances trail realism and supports large-scale terrain articulation
• Width – 21.6 cm: wide track improves cornering stability and off-road balance
• Height – 23.8 cm: elevated stance supports obstacle clearance and high-lift aesthetics
• Weight – Approximately 3.1 kg: substantial mass improves suspension response and trail grip

Motor and Transmission

• Motor type – RS540: reliable brushed motor delivers consistent torque for off-road driving
• Drivetrain – Shaft-driven 4WD: ensures full-time traction across all wheels for rugged terrain handling
• Transmission – 3-speed gearbox: selectable gear ratios for low-speed crawling, mid-range control, and top-speed cruising
• Gear ratios – Low: 64.39:1, Second: 35.20:1, Top: 21.14:1: supports realistic gear shifting and terrain adaptability
• Slipper clutch – Included: protects drivetrain from shock loads and ensures smooth gear engagement

Suspension and Chassis

• Chassis type – Metal ladder frame: replicates full-size truck architecture and provides structural rigidity
• Suspension – Front and rear leaf rigid: delivers authentic ride dynamics and load-bearing articulation
• Dampers – Friction type (front/rear): absorbs terrain impact and maintains chassis stability
• Differential – Front/rear 2-bevel diff gears: supports smooth cornering and can be locked for enhanced off-road capability
• Diff covers – Metal-plated: adds visual realism and protects internal components

Body and Exterior Features

• Body type – Injection-molded: accurately replicates the contours of the second-generation Toyota Tundra
• Grille options – Standard and billet type included: allows customization of front-end styling
• Roll bar – LED-ready: supports installation of separately sold lights for enhanced realism
• Roof marker lights – LED-compatible: adds scale detailing and trail visibility

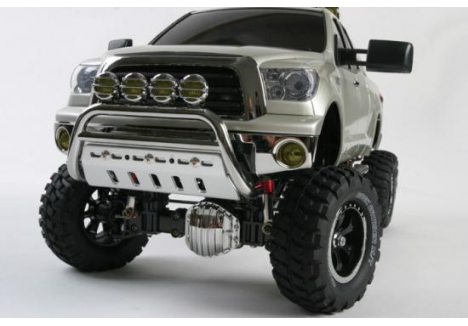

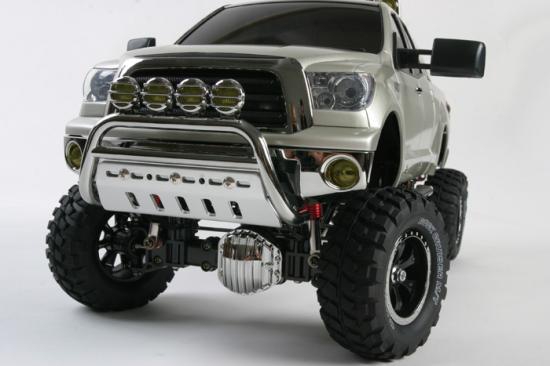

• Grille guard – Includes fog light mounts and aluminum skid plate: enhances rugged appearance and protection
• Side mirrors – Soft resin with two-piece mirror surfaces: replicates full-size truck detailing
• Exhaust tips – Metal-plated and rear-mounted: adds scale realism and visual depth

Wheels and Tires

• Wheel type – 6-spoke beadlock design: supports secure tire fitment and aggressive styling
• Wheel diameter – 9.4 cm: large size improves ground clearance and trail performance

Systems and Compatibility

• Speed controller – ESC compatible: supports electronic throttle modulation and system integration
• LED system – Multiple mounting points: compatible with turn signals, reverse lights, brake lights, and roof markers (LEDs sold separately)
• Multi-function unit – Compatible with MFC-02 (sold separately): enables synchronized sound and light effects

Accessories and Customization

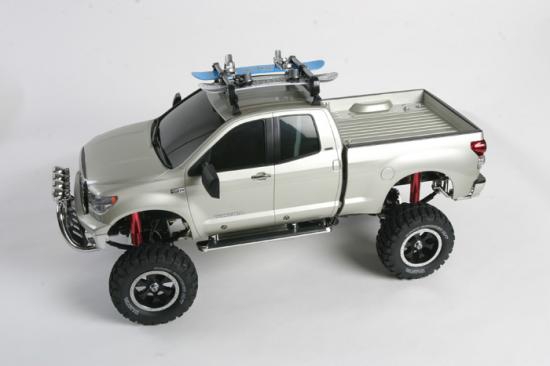

• Roof carrier – Included: adds utility and scale realism
• Snowboards – Two included: feature colorful sticker options for personalization
• Sticker set – Provided for snowboards: supports visual customization

Assembly Type

• Kit configuration – Requires assembly and finishing: ideal for hobbyists seeking a detailed build experience

Sold Separately

• LED lighting system
• Multi-Function Unit MFC-02
