Power HD WH-65KG 65kg High Torque Digital RC Servo HD-WH-65KG

Overview

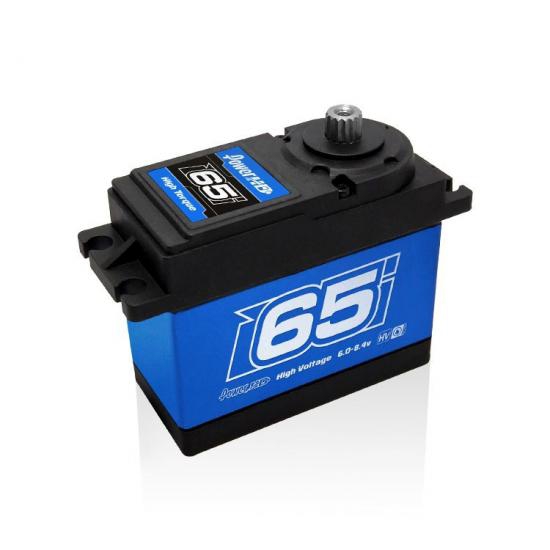

The Power HD WH-65KG is a high-torque HV servo specifically engineered for demanding RC applications where raw holding power and responsive control are essential. Whether you're piloting large-scale RC vehicles, competitive off-road buggies, or precision crawler builds, this servo delivers the performance characteristics that serious RC enthusiasts demand. This is a servo built for those who refuse to compromise on quality, durability or power when it comes to their RC car UK setup.

With a maximum torque output of 65 kg-cm at 8.4V and an impressive 0.15-second transit speed, the WH-65KG combines professional-grade engineering with practical reliability. The dual ball bearing construction ensures smooth, consistent movement across thousands of hours of operation, whilst the copper and steel gear arrangement provides the strength needed for high-stress manoeuvres. This is the kind of servo you'll find on competition vehicles and serious basher rigs across the UK RC scene.

Operating across a flexible 6.0–8.4V DC voltage range, the WH-65KG adapts to your power system requirements without fuss. The robust metal housing around the middle section allows heat to dissipate rapidly during extended use, protecting the internal components and maintaining performance consistency even during intense driving sessions. If you're looking for a brushless-quality servo experience in a wired unit, the Power HD WH-65KG deserves serious consideration.

Key Features

• 65 kg-cm Maximum Torque — At 8.4V, this servo produces 65 kg-cm of holding force, making it suitable for heavy steering loads and demanding control applications where lesser servos would struggle or strip.
• Lightning-Fast 0.15 Second Transit Speed — The 0.15-second response time at maximum voltage ensures your steering inputs translate to vehicle movement with minimal delay, crucial for precision driving and competitive racing.
• Dual Ball Bearing Construction — Two precision ball bearings eliminate play and friction in the servo mechanism, delivering smooth, responsive motion that lasts through countless driving sessions without degradation.
• Copper and Steel Gear Assembly — The combination of copper and steel gears provides the optimal balance between strength and durability, resisting stripping under heavy load whilst maintaining smooth operation.
• Metal Housing Heat Dissipation — The metal housing around the middle section acts as a heat sink, rapidly dissipating heat generated during operation and protecting internal components during extended use.
• Wide Operating Voltage Range — Compatible with 6.0–8.4V DC power systems, the WH-65KG works with standard 2S LiPo setups through to high-voltage 3S configurations, giving you flexibility in battery choice.
• Compact Dimensions — At 65.8 x 30.0 x 55.6mm, the WH-65KG fits into most large-scale RC applications without requiring extensive modification or servo installation redesign.
• 15T Spline Output — The 15-tooth spline is standard for large-scale servos and compatible with most aftermarket horn options, including the optional aluminium horn HD-AP2530 for enhanced durability.
• Waterproof Design — Factory-confirmed waterproof construction means this servo handles wet terrain, water crossings and damp conditions without degradation to performance or lifespan.
• Wide Operating Temperature Range — Functioning reliably from -10°C to 60°C, the WH-65KG performs consistently whether you're driving in winter months or hot summer conditions across the UK.

Technical Performance

The Power HD WH-65KG represents serious servo engineering optimised for high-stress RC applications. At its core sits a DC motor that drives a copper and steel gear train, an intentional design choice that sacrifices absolute speed for torque production and durability. This motor type is proven across thousands of hours in competitive and recreational large-scale RC vehicles. The dual ball bearing design eliminates backlash in the servo output, meaning your steering inputs remain precise even after extended use. The voltage-scalable performance is particularly noteworthy: at 6.0V you get 55 kg-cm torque with 0.19-second speed, at 7.4V you step up to 60 kg-cm and 0.17 seconds, and at maximum 8.4V you achieve the full 65 kg-cm and fastest 0.15-second response. This graduated performance curve allows you to tune your power system to your specific driving style and vehicle requirements. The 200-gram weight is substantial but proportional to the servo's capabilities and is standard for servos of this torque class. Working frequency of 1520 microseconds at 333 Hz ensures smooth, jitter-free control that competitive drivers appreciate. The metal housing isn't simply cosmetic—it actively conducts heat away from the gearbox and motor, protecting components during sustained high-load steering inputs like those required during aggressive cornering or rock crawling. Whether you're upgrading a Kraton 8S, setting up a large-scale buggy, or building a dedicated basher, the WH-65KG provides the servo-side performance that separates reliable vehicles from ones that drop out of competitive or recreational fun due to servo failure.

What's in the Box

• Power HD WH-65KG servo unit
• Servo connector leads

What You Need to Complete

• RC receiver compatible with your radio system
• Battery system (6.0–8.4V DC compatible)
• Servo mounting bracket suitable for your RC vehicle
• Servo horn or control arm (15T spline compatible—optional aluminium horn HD-AP2530 available)
• Servo extension lead or Y-harness if required for your installation

Frequently Asked Questions

• Is the Power HD WH-65KG waterproof? — Yes, the WH-65KG is factory-confirmed waterproof, making it suitable for wet terrain, water crossings and damp conditions. This feature is particularly valuable if you run your RC vehicles through streams, puddles or in British weather conditions.
• Will this servo fit in a Kraton 8S? — Yes, customers have successfully used the WH-65KG as a servo replacement in the Kraton 8S. The servo kit comes with different teeth options to work with the standard servo saver, making installation straightforward.
• What voltage should I run the Power HD WH-65KG at for best performance? — The servo operates across 6.0–8.4V DC. At 8.4V you achieve maximum torque (65 kg-cm) and fastest speed (0.15s). At 7.4V you get 60 kg-cm torque and 0.17-second speed, which is a popular compromise between performance and battery load. At 6.0V you receive 55 kg-cm torque and 0.19-second speed, suitable for lighter applications.
• What is the 15T spline and what does it mean for servo horn compatibility? — The 15T (15-tooth) spline is the output connection on the servo shaft where you attach control horns or servo arms. This is standard for large-scale servos. The optional aluminium horn HD-AP2530 is compatible with this spline and provides enhanced durability compared to plastic horns.
• How much torque does the WH-65KG produce? — Torque output scales with voltage: 55 kg-cm at 6.0V, 60 kg-cm at 7.4V, and the maximum 65 kg-cm at 8.4V. This makes it suitable for heavy-duty steering loads in large-scale RC vehicles.
• What is the response speed of this servo? — Response time (transit speed) also scales with voltage: 0.19 seconds at 6.0V, 0.17 seconds at 7.4V, and 0.15 seconds at 8.4V. The fastest 0.15-second speed at maximum voltage ensures responsive steering control.
• How heavy is the WH-65KG servo? — The servo weighs 200 grams (7.05 ounces), which is appropriate for its torque class and is standard for high-torque servos in large-scale RC applications.
• What are the physical dimensions of this servo? — The WH-65KG measures 65.8 x 30.0 x 55.6mm (2.59 x 1.18 x 2.19 inches), making it a compact option that fits into most large-scale RC vehicle servo bays without requiring major modification.
• What operating temperature range does the WH-65KG support? — The servo functions reliably from -10°C to 60°C, covering winter driving conditions and summer heatwaves across the UK with consistent performance.
• Is the WH-65KG suitable for beginners? — Whilst this servo is not designed for beginner-level micro vehicles, it's an excellent choice if you're upgrading an existing large-scale RC car or building a new competition or high-performance setup. The straightforward installation process and intuitive operation make it accessible to anyone with basic RC knowledge.
• What gear materials are used in the WH-65KG? — The servo uses copper and steel gears, a proven combination that provides excellent durability and resistance to stripping under heavy load whilst maintaining smooth operation throughout the servo's lifespan.
• Does the servo include bearing support? — Yes, the WH-65KG features dual ball bearings that eliminate play in the servo mechanism, ensuring smooth, responsive motion even after extensive use.
