Smart™ Technology Overview
LiPo batteries with Spektrum Smart™ technology practically take care of themselves. When combined with a Spektrum™ Smart Battery Charger, the unique parameters, history of the battery and more are all available the instant it's connected. Charging a Smart Battery is easy as it gets, plus Smart LiPo battery packs are programmable to meet your exact charging needs. But the crowning feature of a Spektrum Smart LiPo battery is that it can be programmed to safely self-discharge to storage condition. That's a Smart Battery pack!
Spektrum Smart technology is about offering a higher connection to your hobby. It's a connection that puts you in complete control, makes you more aware and more confident about the capability of your equipment-all the while making your hobby easier. The combined result will make you wish everything about your hobby was "smarter." Spektrum Smart LiPo Batteries are a part of a wide series of Smart technology products now available.
Key Features
- Integrated microchip stores unique parameters for each battery
- Smart discharge allows batteries to automatically discharge to a safe voltage
- Save time and hassle, while improving battery life
- Powerful 100C continuous discharge rating to deliver high performance and longevity
- Protective outer metal alloy sheet helps dissipate heat, hold battery shape, and increase durability
- No soldering required, equipped with IC3 and IC5 Connectors that are compatible with EC3 and EC5
- 100C battery packs are available in a variety of capacities and cell counts that are perfect for almost any application
Feature Overview
You'll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger "Start" button. Smart technology takes care of the rest.
Our new Spektrum Smart 100C LiPos come in a variety of popular sizes and are ready to drop into your RC aircraft for better performance, power, and reliability. These are the perfect packs for high performance models and power systems and a great upgrade to get more punch and power on nearly any setup.
Spektrum Smart LiPo Batteries Store Unique Data, Such As:
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you've chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the "Start" button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.
Â

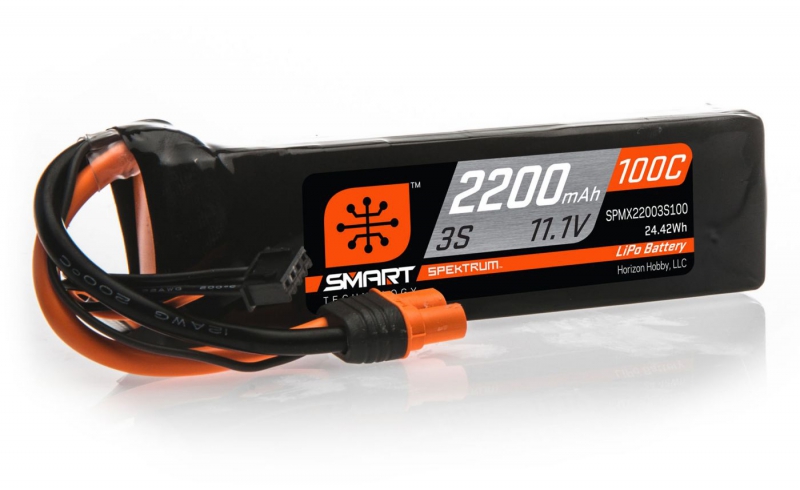

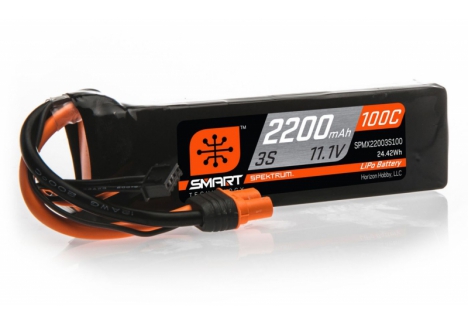

- Model Number: SPMX22003S100
- Product Name: 11.1V 2200mAh 3S 100C Smart LiPo Battery: IC3
- Battery Type: LiPo (Lithium Polymer)
- Battery Voltage: 11.1V (nominal)
- Voltage per Cell: 3.7V per cell
- Capacity: 2200mAh
- Number of Cells: 3S (three cells)
- C Rating: 100C
- Maximum Continuous Discharge Rate: 100C
- Maximum Continuous Discharge Current: 220A (2200mAh × 100C)
- Maximum Charge Rate: 3C
- Maximum Charge Current: 6.6A
- Battery Connector Type: IC3 with data transfer wire
- Balance Connector Type: JST/XH
- Backwards Compatibility: EC3 and EC5 connectors
- Integrated Microchip: Yes (Smart memory microchip)
- Charge Protection Circuitry: Yes
- Wire Gauge: 12 AWG
- Product Weight: 225g (7.936oz)
- Product Length: 119mm (4.69 in)
- Product Height: 21mm (0.83 in)
- Product Width: 34mm (1.34 in)
- Material: Soft case with protective outer metal alloy sheet
- Hard Case: No
- Storage: Yes (programmable with Smart charger)
- Smart Technology: Yes (Spektrum Smart G1 Technology)
- Smart Discharge: Yes (programmable between 12 and 240 hours)
- Application: Air (RC aircraft)
- Data Logging: Yes (stores brand, type, capacity, C rating, voltage, temperature, charge cycles, discharge cycles, internal resistance, error log for over-heat, over-discharge, and over-charge incidents)
- Roar Approved: No
- Prop 65 Warning: Yes (California Residents)
Overview
The Spektrum 11.1V 2200mAh 3S 100C Smart LiPo Battery with IC3 connector is a cutting-edge power solution designed for high-performance RC aircraft and demanding applications. Whether you're a dedicated RC enthusiast in the UK looking to upgrade your current setup, or a competitive flyer seeking maximum performance from your brushless RC aircraft, this Smart battery delivers the reliability, power, and intelligent technology that modern RC flying demands. With its impressive 100C continuous discharge rating, this 3-cell LiPo battery provides sustained power delivery for high-performance models and power systems that require serious punch.
What sets the Spektrum Smart 100C LiPos apart from conventional RC batteries is the revolutionary integrated microchip technology built into every pack. This isn't just another ready-to-fly RC battery—it's an intelligent power system that learns, adapts, and takes care of itself. When you connect this Smart battery to a compatible Spektrum Smart charger, unique parameters and the complete health history of your battery automatically upload from the integrated memory microchip. This means you'll never have to manually configure charging settings again; simply press the Start button and let Smart technology handle the rest.
Perfect for high-performance RC models and power systems, this battery is an ideal upgrade for pilots who want to extract maximum performance and reliability from their RC aircraft. The protective outer metal alloy sheet helps dissipate heat during demanding flights, maintains the battery's shape under stress, and significantly increases overall durability—critical features when you're pushing your RC aircraft to its limits.
Key Features
- Integrated Smart Microchip Technology — Each battery contains a unique microchip that stores vital information including battery brand, chemistry, cell count, capacity, number of charging and discharge cycles, C rating, battery temperature, and internal resistance. This data is automatically transferred to your Spektrum Smart charger, eliminating the need for manual configuration and ensuring your battery is always charged with optimal settings tailored to its exact specifications.
- Powerful 100C Continuous Discharge Rating — This exceptional discharge rating delivers maximum sustained power for high-performance RC aircraft and demanding applications. Whether you're flying aggressive aerobatic manoeuvres, fast-paced racing, or pushing your model to its performance limits, this 100C capability ensures your battery can deliver the current your power system demands without voltage sag or performance degradation.
- Smart Discharge Technology — Spektrum Smart batteries practically take care of themselves. When programmed through a Spektrum Smart charger, this battery will automatically discharge to your predetermined storage voltage after a time period you select (between 12 and 240 hours). This intelligent feature prevents the battery from sitting fully charged for extended periods, which degrades the chemical integrity of Lithium Polymer cells and reduces overall lifespan. The result is longer battery life expectancy and consistent performance flight after flight.

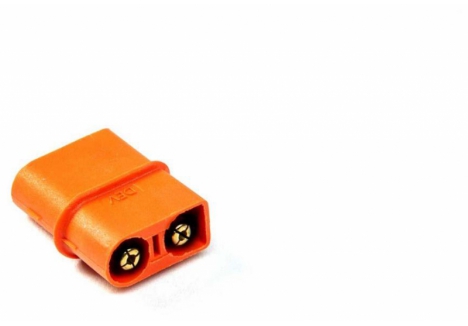

- Advanced IC3 Connector with Data Transfer — Equipped with the innovative IC3 connector featuring an integrated data transfer wire, this battery communicates directly with Spektrum Smart chargers and compatible devices. The IC3 connector is entirely backwards compatible with existing EC3 connectors, so you can use this Smart battery with older systems. However, only when connected to Spektrum Smart devices will you unlock the complete benefits of Smart technology, including automatic parameter upload and intelligent charging profiles.
- Protective Metal Alloy Construction — The outer protective metal alloy sheet serves multiple critical functions. It helps dissipate heat generated during high-discharge applications, maintaining optimal operating temperatures even during sustained high-performance flights. The metal construction holds the battery shape under stress and vibration, preventing case deformation that could compromise internal cell integrity. This robust design significantly increases overall durability and reliability, making this battery ideal for demanding RC aircraft applications.
- No Soldering Required — The battery comes factory-equipped with both IC3 and IC5 connectors, meaning no soldering or additional modifications are necessary. Simply connect the battery to your RC aircraft and charger, and you're ready to fly. This hassle-free setup saves time and reduces the risk of connection problems or poor soldering joints that could cause performance issues.
- Error Logging and Diagnostics — Beyond storing standard battery parameters, each Smart battery maintains a detailed error log that tracks unhealthy events including over-charge, over-discharge, and over-temperature incidents. This valuable diagnostic data allows you to make informed decisions about each battery's suitability for specific applications and flight conditions, helping you prevent future damage and optimise your battery fleet management.
- Customisable Charge Rates — The Smart technology system allows you to customise the charge rate of individual batteries to match their specifications and your requirements. Once you set your preferred charge rate, the integrated microchip remembers these settings. The next time you plug in the battery, these preferences automatically populate on your Smart charger, so you simply press Start and charging begins with your exact specifications already loaded.
Technical Performance
The SPM 2200mAh 3S 11.1V 100C Smart LiPo Battery represents the pinnacle of modern RC battery engineering. With a capacity of 2200mAh across three cells (3S configuration), this battery delivers 11.1V nominal voltage—the standard specification for 3-cell LiPo packs used in countless high-performance RC aircraft and demanding applications. The 100C continuous discharge rating is the standout specification here; at full charge, this battery can safely deliver a continuous discharge current of 220 amps (2200mAh × 100C = 220A), making it suitable for power systems requiring extreme current draw without voltage sag. The maximum charge rate of 3C means you can charge this battery at up to 6.6 amps, allowing relatively quick turnaround times between flights without compromising cell longevity. Construction-wise, the battery weighs 225 grams and measures 119mm in length, 34mm in width, and 21mm in height—a compact form factor that fits into most high-performance RC aircraft designs. The JST/XH balance connector ensures proper cell balancing during charging, critical for maintaining individual cell health and maximising overall battery lifespan. With integrated charge protection circuitry built into the battery management system, this pack includes safeguards against over-charging and other electrical faults. The 12 AWG wire gauge provides excellent current handling capability with minimal voltage drop, essential for delivering the full performance potential to your power system.
What's in the Box
- SPM 2200mAh 3S 11.1V 100C Smart LiPo Battery with IC3 connector
- Instruction manual
- Battery safety sheet (multilingual)
Frequently Asked Questions
- What makes Spektrum Smart batteries different from standard LiPo batteries? — Spektrum Smart batteries include an integrated microchip that stores unique battery parameters, charge history, discharge cycles, temperature data, and internal resistance information. When connected to a Spektrum Smart charger, this data uploads automatically, eliminating manual configuration. The battery remembers your preferred charge rates and settings, making charging as simple as pressing the Start button. Additionally, Smart batteries can be programmed to automatically self-discharge to safe storage voltage, extending battery life by preventing them from sitting fully charged for extended periods.
- Is this battery suitable for beginners? — While this is an advanced, high-performance battery designed for demanding applications and high-performance RC aircraft, it is user-friendly when paired with a Spektrum Smart charger. However, beginners should note that the 100C discharge rating and 2200mAh capacity indicate this is a performance-focused pack best suited for aircraft with power systems capable of handling these specifications. If you're new to RC, consult the documentation for your specific aircraft model to confirm compatibility before purchasing.
- What charger do I need to use with this battery? — To take full advantage of the Smart technology features, you'll need a Spektrum Smart charger. The battery is backwards compatible with older EC3 connectors and can charge with standard chargers, but you'll lose all the intelligent Smart features including automatic parameter upload, customisable charge rates, and smart discharge functionality. A compatible Spektrum Smart charger is strongly recommended to unlock this battery's full capabilities.
- How long will this battery last? — The lifespan of LiPo batteries depends on usage, charging practices, and storage conditions. However, Spektrum Smart batteries typically last significantly longer than conventional packs because the smart discharge feature prevents damage from extended full-charge storage. By automatically discharging to safe storage voltage during rest periods, the battery's chemical integrity is preserved. Proper charging, avoiding over-discharge, and storing at appropriate temperatures will maximise lifespan.
- Can I use this battery with my existing RC aircraft? — The IC3 connector is backwards compatible with EC3 connectors, so physical compatibility is likely. However, you must verify that your aircraft's power system is designed for 11.1V nominal voltage (3S LiPo) and can safely handle the continuous discharge current this powerful 100C battery can deliver. Consult your aircraft manufacturer's specifications before use to ensure safe operation.
- What does the 100C discharge rating mean? — The C rating indicates the safe continuous discharge rate multiplied by battery capacity. A 100C rating on a 2200mAh battery means you can safely discharge up to 220 amps continuously (2200 × 100 = 220A). This extreme discharge capability is designed for high-performance aircraft with power systems that demand maximum current. Standard applications may not require this level of performance, but it provides a powerful upgrade for those who do.
- Does this battery come with a charger? — No, the battery does not include a charger. You'll need to purchase a compatible Spektrum Smart charger separately to charge this battery and access all Smart technology features. Standard LiPo chargers can technically charge this battery, but you'll lose the intelligent Smart features that make this battery special.
- What is the maximum charge rate? — The maximum charge rate for this 2200mAh battery is 3C, which equates to 6.6 amps maximum charging current. This allows relatively quick charging turnaround times between flights while maintaining cell health. Your Spektrum Smart charger will automatically recognise this specification and enforce safe charging limits.
