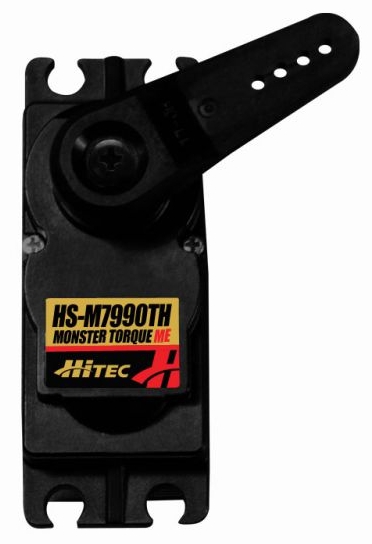

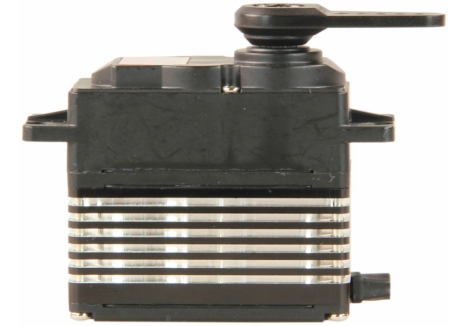

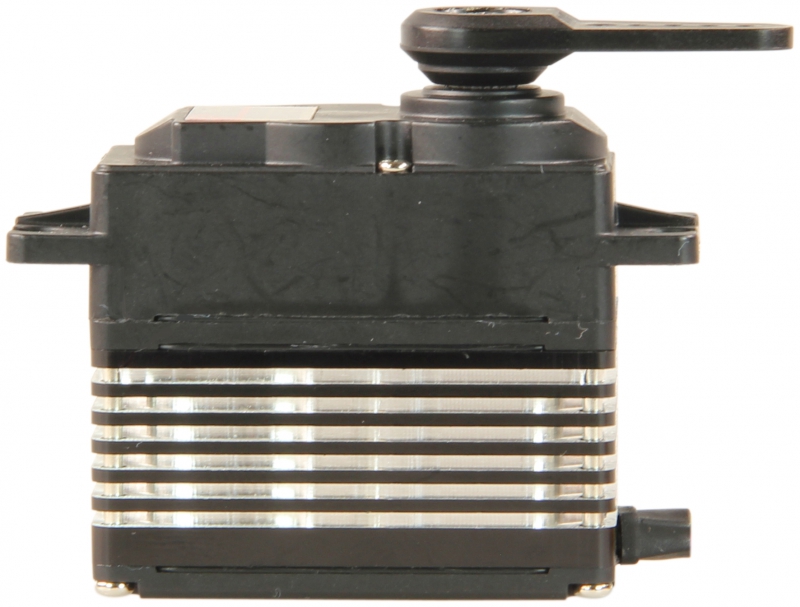

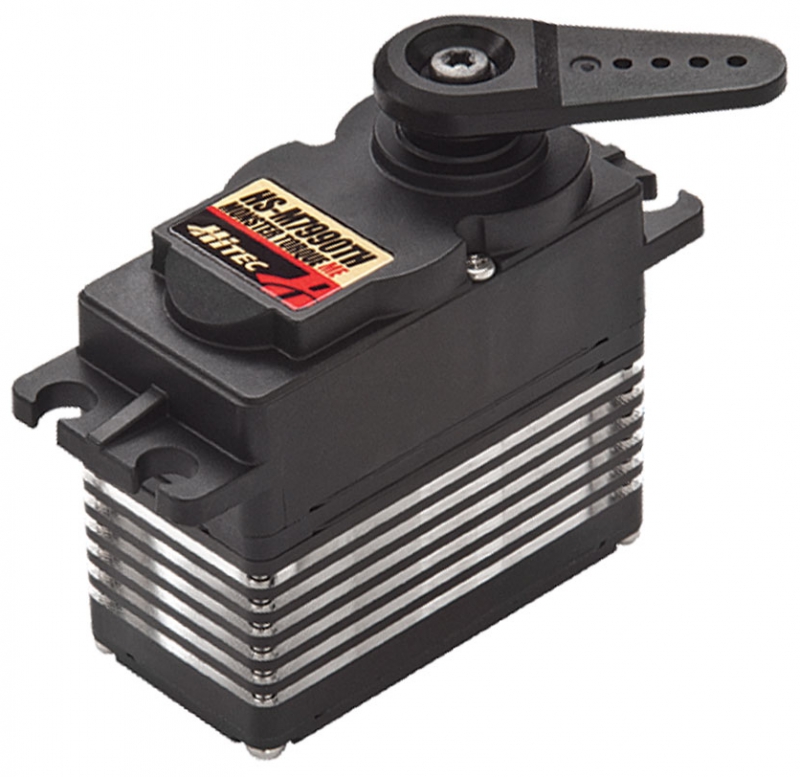

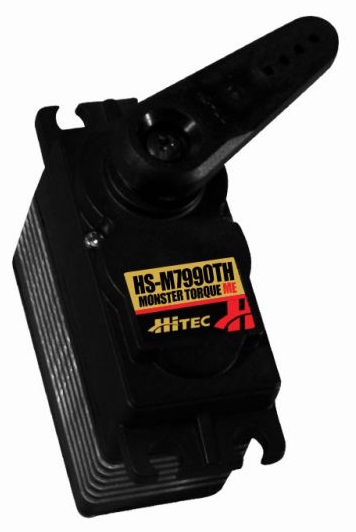

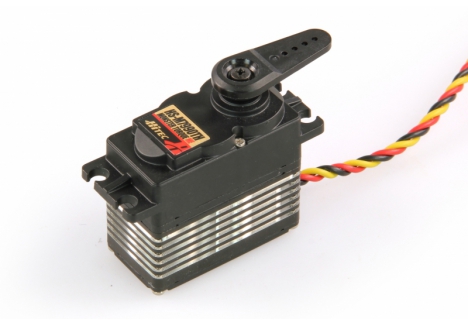

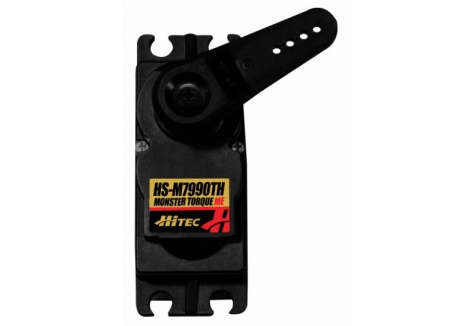

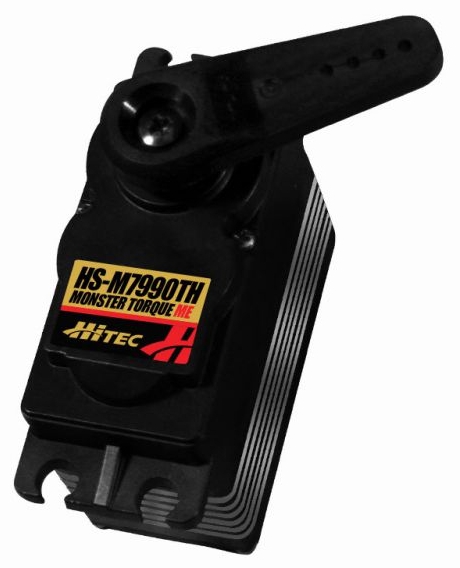

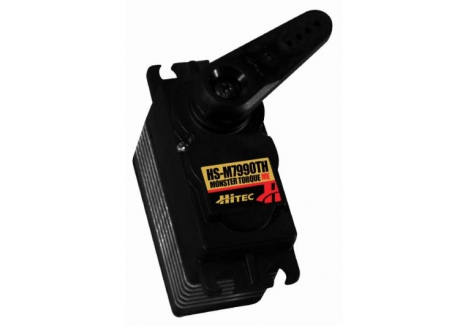

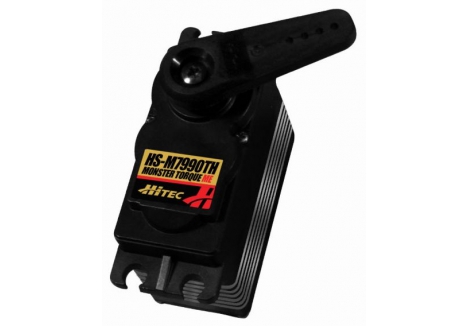

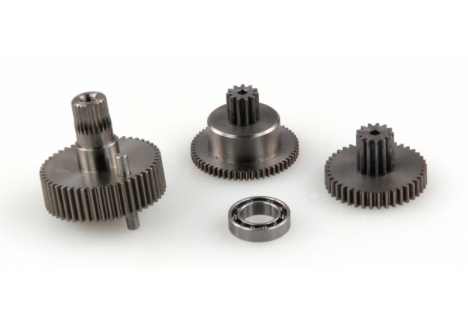

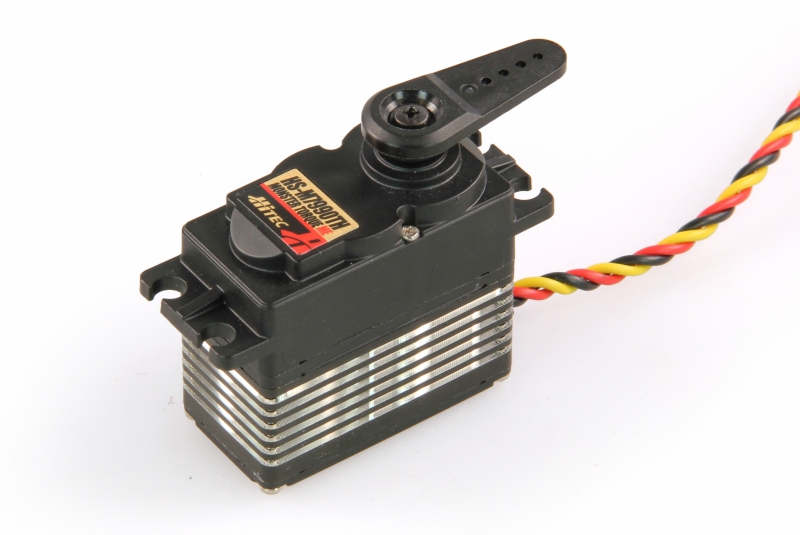

Hitec's most technologically advanced servo, the 'Monster Torque' HS-M7990TH features an ultra precise high resolution magnetic encoder instead of a conventional mechanical potentiometer. Designed to operate on a two cell LiPo Pack the HS-M7990TH features our newest high resolution 'G2.5' 12 bit generation programmable digital circuit and our indestructible Titanium gears. Other features of the HS-M7990TH include a 7.4V optimised coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by brass axial bushings.
Specification:
| Torque (kg.cm): | 36.0 at 6V / 44.0 at 7.4V |
| Speed (sec/60deg): | 0.21 at 6V / 0.17 at 7.4V |
| Weight (g): | 79.0 |

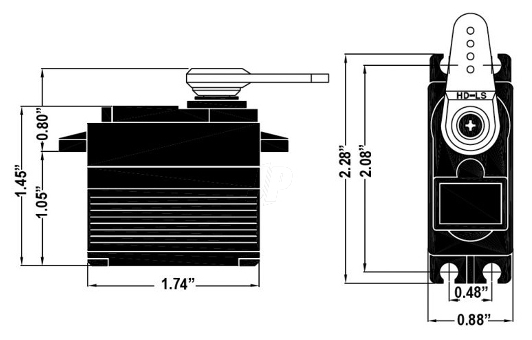

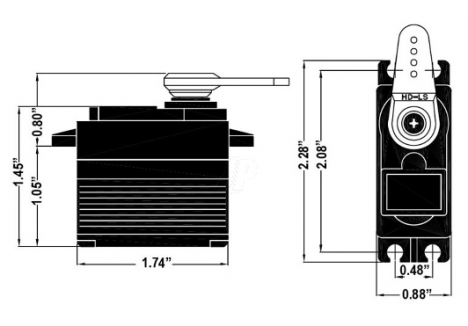

| Dimensions (mm): | 43.8 x 22.4 x 40 |
Programmable Features Include:
- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
- Overload Protection* (default is off)
*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
